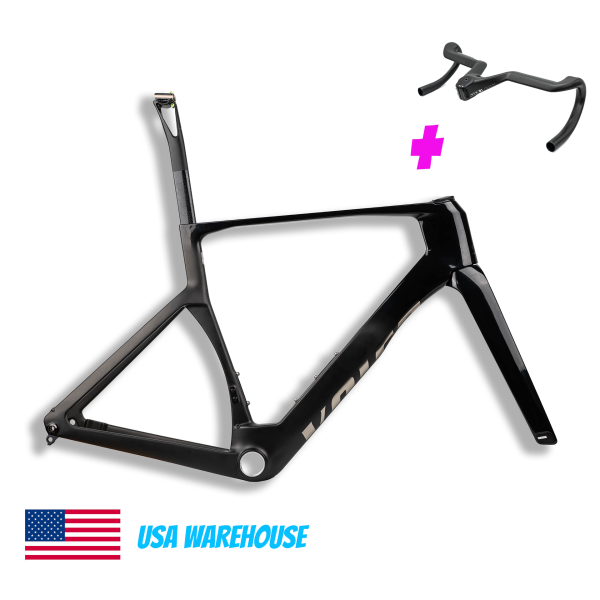

US Warehouse Clearance – Voicevelo VFV ECHO Aero Carbon Road Bike Frameset
$1,690.00
Only One Left, Ships from USA, FREE delivery, Used only for exhibition—Like New
Note: Promotional discounted goods. No return or exchange without factory defects.
Voice Velo enters the road chat.
- Aero optimized head tube
- Stiffness tuned for all-out sprints
- Premium T1100 + T800 (VO) | T800 (VH) Carbon
- Weight: V0 975g (Size M/52) | VH 1100g (Size M/52). Unpainted, no hardware.
- T47A bottom bracket
- Fully integrated – electronic shifting only
- Maximum tire size: 700x34c
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description
VFV ECHO
Voice Velo are already masters of the carbon frame world however, their pedigree has been mostly off-road thus far, with their extremely high performing gravel frame the G-Major and their full suspension XC frame the Chorus V-Peaks.
The ECHO is Voice Velo's premiere road frame and it's gearing up to rival some of the big boys. Coming in two versions the VO and VH, this aero frame is designed to take you to the ragged edge.
VH
The VH model is made from T800 carbon fiber but shares the exact form of the VO.
VH : 1100g +/- 2\% (Size MEDIUM 52, No Hardware)
VO
The VO model uses a mixture of T1100 and T800 carbon.
VO : 975g +/- 2\% (Size MEDIUM 52, No Hardware)
DEEPENED HEAD TUBE
Thanks to the new UCI regulations, the previous tube ratio of 3:1 has been changed to the current 8:1. This has reduced the restrictions for aero bikes. The ECHO head tube has a deeper tube compared to earlier aero frames. The shape at the rear of the head tube has also been optimized to allow the airflow to smoothly pass through the rear side of the head tube and the lower side of the top tube.
T47A BOTTOM BRACKET
The VFV ECHO uses the T47A bottom bracket. T47A is an asymmetrical design, providing a larger space on the drive side, which is more convenient for installing power meters.
DI2 BATTERY COMPARTMENT
The Di2 battery compartment is designed at the bottom of the bottom bracket and is fixed with screws. This makes it convenient for daily disassembly, maintenance, and allows you to remove the battery when boarding a plane without having to remove the seat post.
COMFORT AND STIFFNESS
The seat tube and seat post are relatively slim to achieve better flexibility, providing better shock absorption for seated riding.
More comfort built into the frame can keep you fresher for longer and doesn't have to come at the expense of stiffness where it matters.
VFV have optimized the stiffness of the head tube and bottom bracket areas to ensure that watts are not lost during all-out sprints and wrenching on the front of the bike.
VFV have used high-modulus T1100 filament and their own layup to achieve the balance of stiffness and flex in the ECHO frames.
The stiffness of the ECHO frame head tube reaches an impressive 105.78 Nm, and the crown stiffness was measured at 174.6 Nm.
VFV ECHO
The geometry chart shows the sizes we recommend based on height, but there are a number of other factors, such as arm and leg length, that also determine fit. To determine the best size for you, consult a specialist or fitter at your local retailer.
| Size | S / 49 | M / 52 | L / 54 | XL / 56 |
|---|---|---|---|---|
| Suggested Rider Height | 158–168 cm | 162–174 cm | 173–183 cm | 178–188 cm |
| A – Seat Tube | 465 | 490 | 520 | 545 |
| B – Stack | 507 | 526 | 548 | 569 |
| C – Reach | 379 | 384 | 389 | 395 |
| D – Effective Top Tube | 515 | 530 | 550 | 565 |
| E – Head Tube Length | 103 | 121 | 141 | 161 |
| F – Head Angle | 71 | 71.8 | 72.5 | 73 |
| G – Standover Height | 750 | 770 | 796 | 820 |
| H – BB Drop | 70 | 70 | 70 | 70 |
| I – Trail | 70.2 | 65.1 | 60.6 | 57.5 |
| J – Effective Seat Tube Angle | 75 | 74.5 | 73.6 | 73.3 |
| K – Chainstay | 405 | 405 | 405 | 405 |
| L – Front Center | 581 | 586 | 591 | 598 |
| M – Wheelbase | 977 | 981 | 987 | 994 |
| N – Fork Offset | 45 | 45 | 45 | 45 |
| O – Fork Length | 373 | 373 | 373 | 373 |
Frameset Specifications
Frame Sizes
49, 52, 54, 56
Brake Type
Disc only
Cable Routing
Internal; Electronic Only
Wheel Size
700C
Bottom Bracket
Threaded T47A BB
Frame Weight
VO : $975g +/- 2\%
VH : $1100g +/- 2\%
(Size 52, No Hardware)
Fork Axle to Crown
373mm
Fork Rake
45mm
Tire Clearance
Max 34c
Axle
Front Axle 12x100
(Total Length: 113.5, TP: 1.0, TL: 15)
Rear Axle 12x142
(Total Length: 165, TP: 1.0, TL: 15)
Headset Bearing
Upper : 8*52*40*45°*45
Lower : 8*51.8*36°45
Max Chainrings
56 T
Unit: mm
| Top Width (c-c) | 360 | 380 | 400 | 420 |
| Drop Width (c-c) | 385 | 405 | 425 | 445 |
| Reach | 72 | |||
| Drop 1 | 112 | |||
| Drop 2 | 102 | |||
| Rise | 10 | |||
Additional information
| Size | L |
|---|---|
| Model | VO (Light Weight Version) |
| Color | VO2 The Abyss Black |
| Handlebar Size | 380*110mm |
Brand
Voicevelo
| Brand Name: VoiceVelo | Chinese Company Name: 广州市竞速艺体育用品有限公司 |
| Founded: 2015 | # of Employees: 5-10 |
| Headquarters: Guangzhou, Guangdong | Products Categories: Frames, Wheels, Handlebars |
