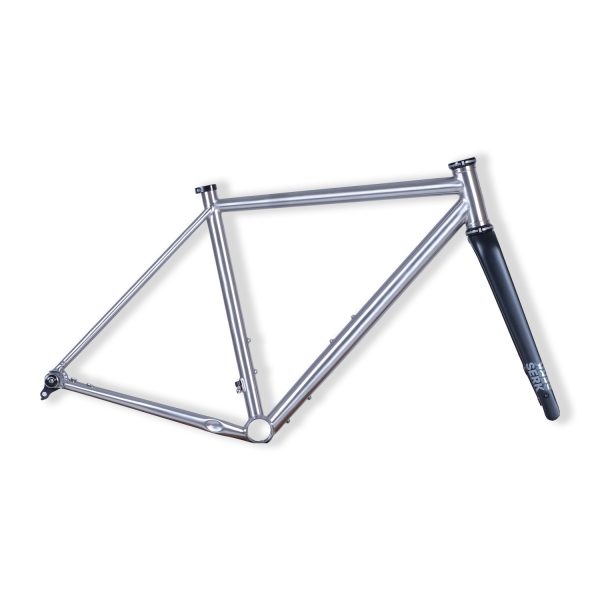

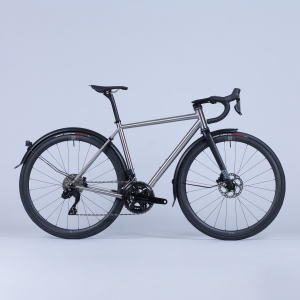

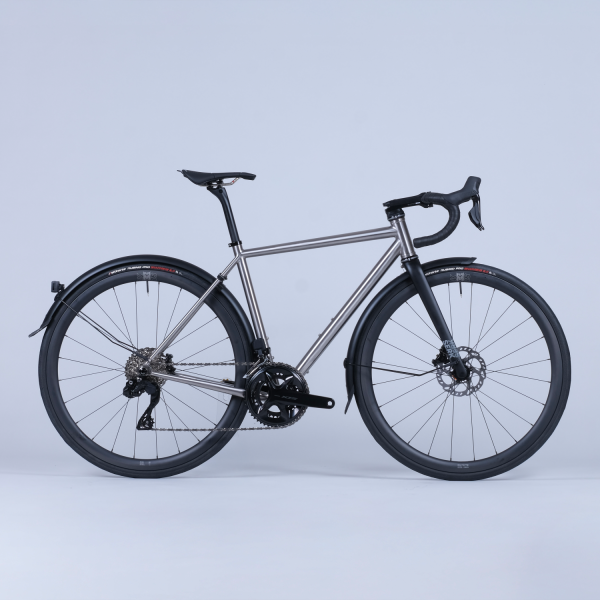

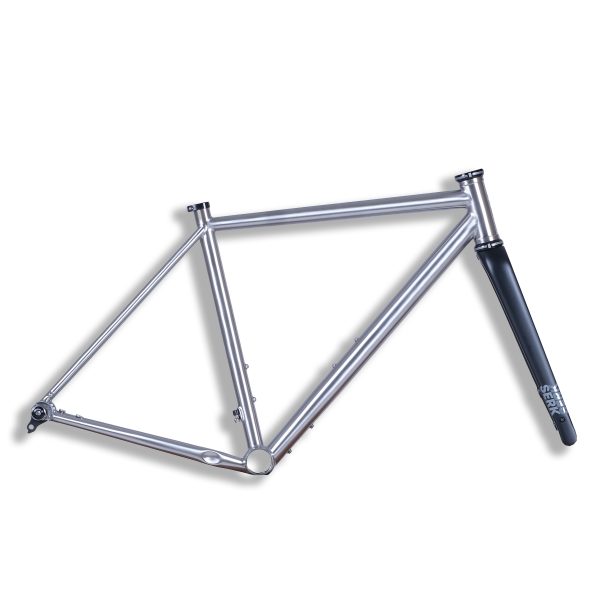

Serk A40 “The Fixer” Titanium All-Road Bike Frameset
Price range: $2,499.00 through $3,199.00
There’s no such thing as one bike to do it all but the A40 gets pretty damn close.
Unrivaled versatility in one sleek package.
- Titanium 3Al/2.5V frame / Carbon fork
- Clearance for 40mm tyres
- Endurance geometry
- Custom UDH dropout
- 1x and 2x compatible – 8sp onwards
- Integrated or external cabling
- 3rd bottle cage mount
- Full mudguard mounts front and rear
- Quick release style rear rack compatible
- OPTIONAL CUSTOM PAINT ($500.00) / CARBON SEATPOST ($100.00) / TITANIUM SEATPOST($200.00)
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description
THE FIXER
True performance is never just numbers on paper – it is the perfect blend of function and feeling; the rider and bike coming together as one. This is the design ethos of the A40, dubbed ‘The Fixer’. With a new endurance geometry, additional mounting bosses for racks/mudguards/3rd bottle and true clearance for 700c x 40mm tires, the A40 takes you further into uncharted territories.
THE FIXER
True performance is never just numbers on paper – it is the perfect blend of function and feeling; the rider and bike coming together as one. This is the design ethos of the A40, dubbed ‘The Fixer’.
With a new endurance geometry, additional mounting bosses for racks/mudguards/3rd bottle and true clearance for 700c x 40mm tires, the A40 takes you further into uncharted territories.
DESIGN DETAILS

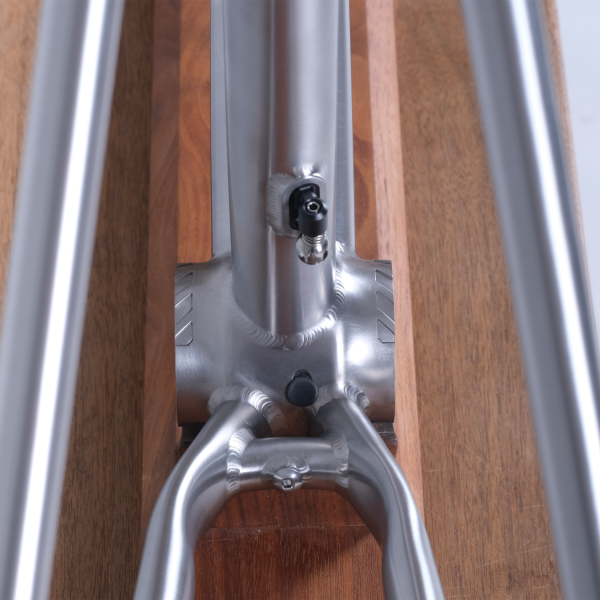

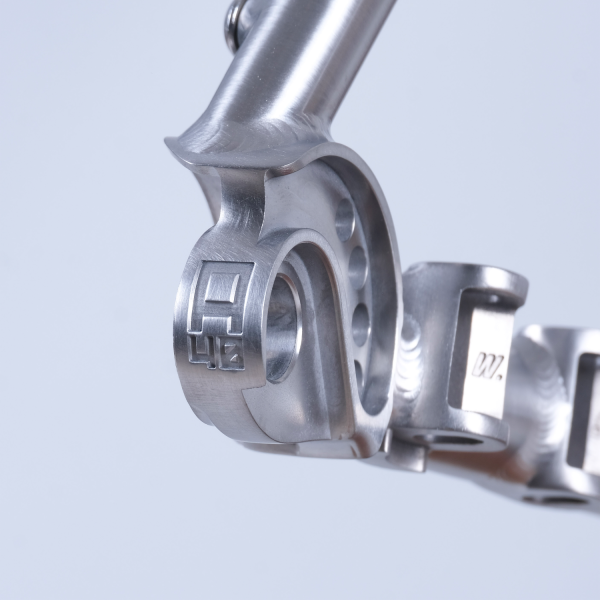

The devil is in the details and in places where you don’t immediately see; new custom designed drop outs, headtube, flat mount brake bosses.
DRIVETRAIN VERSATILITY
The A40 supports all 1x and 2x mechanical road groupsets from 8 speed onward, thanks to a custom cable stop port—making it one of today’s most universally compatible bikes for drive trains.
WEIGHT OPTIMIZED
The A40’s new hydro-formed tubeset boosts comfort for all-day rides, retains beloved A30 handling, and features hidden weight-saving details, weighing 100g less than A30 frames.
Specifications
Titanium 3Al/2.5V
Flat mount disc brakes
Rear 12x142mm
Clearance for 40mm tyres (measured 40mm width)
Di2 Compatible
T47 BB Shell
3rd bottle cage mount
Full Mudguard mounts front and rear
Quick Release style Rear Rack compatible
Fork : Serk carbon Internal or External Cable routing all-road plus
12x100mm
Includes Serk Headset Integrated, seatpost clamp, thru-axles, expander, rear seat stay bridge mudguard mounting accessory.
FRAME WEIGHT
SIZE XS : 1500g
SIZE S : 1600g
SIZE M : 1640g
SIZE L : 1680g
SIZE XL : 1750g
SIZE XXL : 1830g
FORK : 435g (300m steerer)
SERK A40 - "THE FIXER" ALL ROAD FRAMESET
| Code | Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|---|
| Reach | 366 | 374 | 382 | 390 | 398 | 406 | |
| Stack | 519 | 548 | 567 | 590 | 613 | 638 | |
| * | Additional top headset stack (Internal routing) | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| * | Additional top headset stack (External routing) | 10.1 | 10.1 | 10.1 | 10.1 | 10.1 | 10.1 |
| A | Seat Tube Length | 435 | 495 | 515 | 535 | 560 | 585 |
| B | Top Tube Length | 505 | 526 | 545 | 565 | 580 | 601 |
| C | Head Tube Length | 90 | 121 | 141 | 168 | 192 | 218 |
| D | Seat Tube Angle | 75 | 74.5 | 74 | 73.5 | 73.5 | 73 |
| E | Head Tube Angle | 71 | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 |
| F | BB Drop | 77 | 75 | 75 | 73 | 73 | 73 |
| G | Chainstay Length | 420 | 420 | 420 | 420 | 420 | 420 |
| H | Wheelbase | 981 | 995 | 1009 | 1026 | 1042 | 1058 |
| I | Fork Offset | 47 | 47 | 47 | 47 | 47 | 47 |
| J | Trail (28C) | 67 | 63.9 | 63.9 | 63.9 | 63.9 | 63.9 |
| J | Trail (35C) | 69.4 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 |
| J | Trail (40C) | 71.2 | 67.9 | 67.9 | 67.9 | 67.9 | 67.9 |
| * | Standover Height (28C) | 710 | 755 | 733 | 796 | 819 | 843 |
| * | Standover Height (35C) | 717 | 762 | 780 | 803 | 826 | 850 |
| * | Standover Height (40C) | 722 | 767 | 785 | 808 | 831 | 855 |
Template (Multi-Cam is only applicable to A21, the other 3 templates can be used for any SERK model)
Discover more custom paint options in Colour Map.
Additional information
| Frame Size | XS, S, M, L, XL, XXL |
|---|---|
| Color & Finish | RAW TI, CUSTOM PAINT |
| Frame Customization | External Cable Routing, Internal Cable Routing |
| Seatpost | Not Included, Carbon Seatpost ($100.00), Titanium Seatpost($200.00) |
Brand
SERK
| Brand Name: Serk | Chinese Company Name: 北京速旷文化传播有限公司 |
| Founded: 2011 | # of Employees: - |
| Headquarters: Beijing | Products Categories: Complete Bikes, Framesets |
