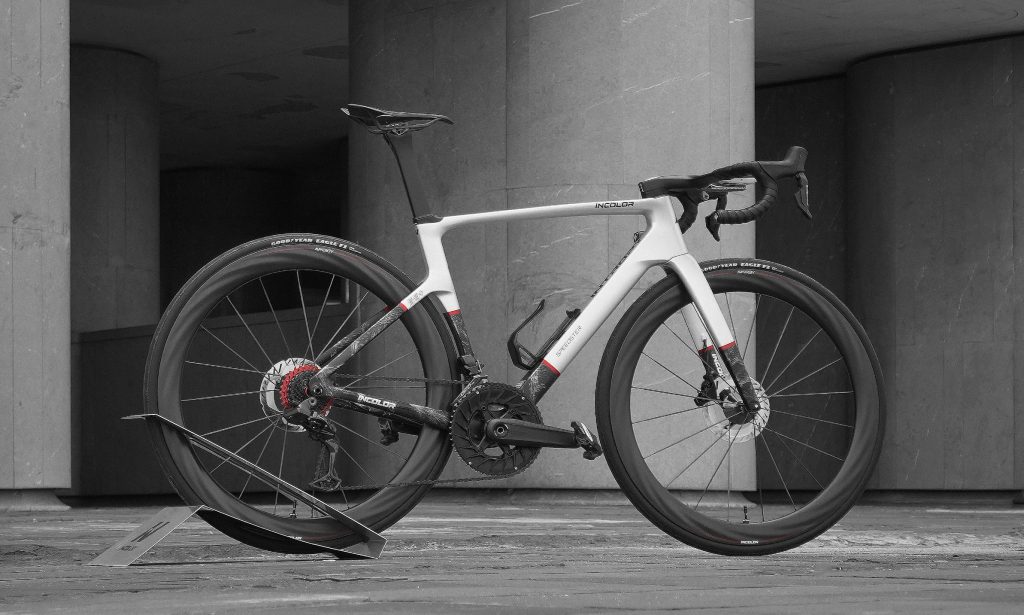

INCOLOR SR Carbon Disc Brake Road Bike Frameset
Price range: $2,499.00 through $3,499.00
- Wind-tunnel optimized: 3 W faster than an SL8 at 45 km/h
- Compact aero profile: 626.64 cm² frontal area, 3.2% smaller (Than SL8)
- Offset steer-tube: narrow 40 mm head tube with 28.6mm steerer tube
- Lightweight frame: 785 g (SR), 720 g (SR+) (Size 54 unpainted without accessories)
- High stiffness: 181 N/mm pedaling stiffness (SR+)
- Race geometry: Stable climbing, agile sprinting, confident descending
- Reinforced BB: T47A bottom bracket for stiffness and compatibility
- Wide clearance: Fits up to 38C tires with UDH hanger
- Integrated design: Aero cockpit, EPS molding, 3D titanium accessories
- Lifetime warranty: On manufacture defects and Crash Damage Discount
- Note: 2x Chainring Compatibility: Shimano: 48/35 ~ 54/40 | SRAM: 46/33 ~ 50/37

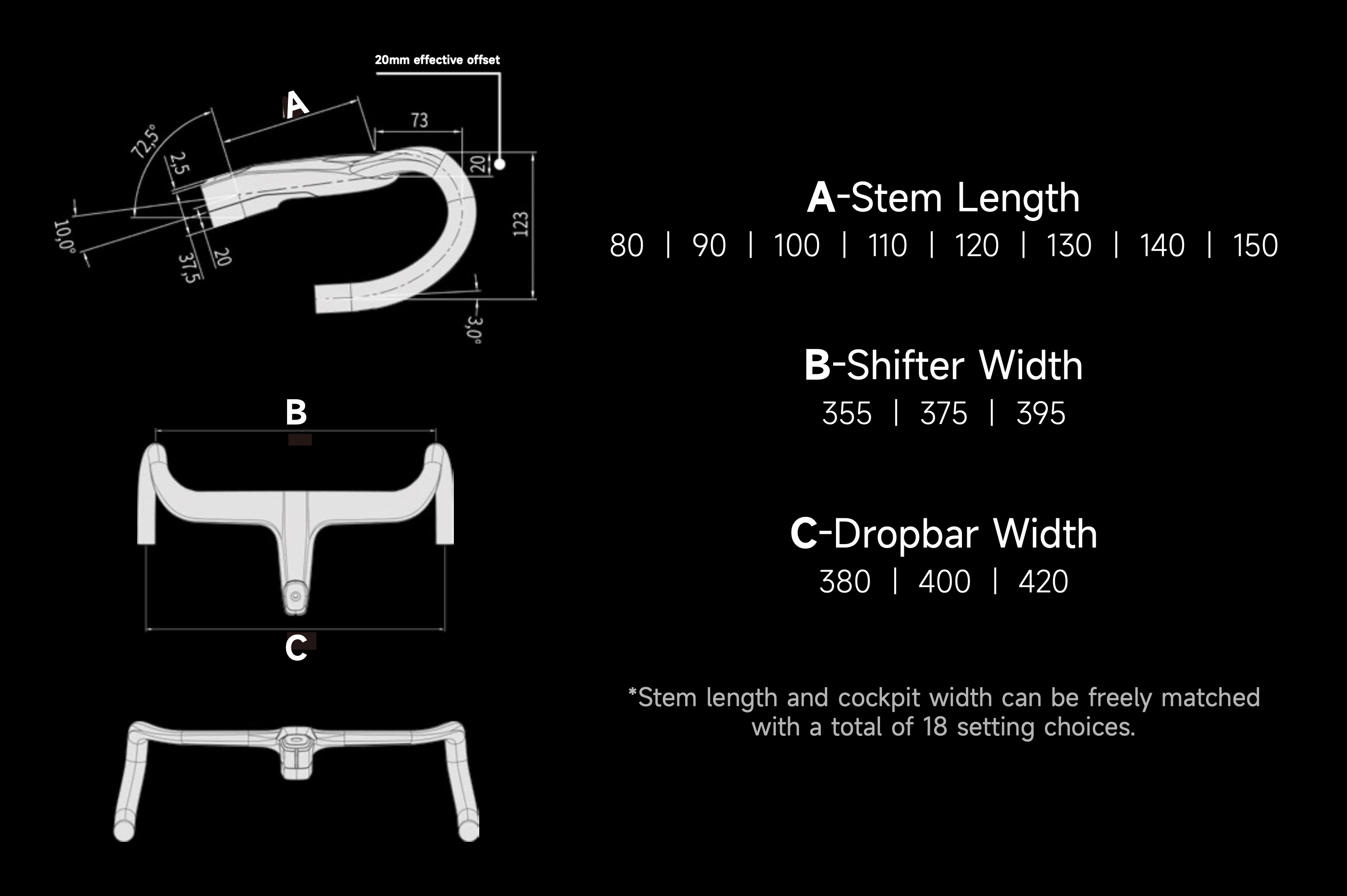

- Please choose an available size of INCOLOR AEROWAV Handlebar from Optional Component
Stock is very limited for INCOLOR SR. Manufacturing will start only after your order payment is confirmed. Please allow 4 weeks for shipping
Customer Review
I’ve been riding and building bikes for 30 years and this frameset probably left me with the least preparation to do, when building. Surfaces faced, no paint overspray, threads perfect. The paint stan... keep reading
What Customers Think
Optional Components
- Description
- Additional information
- Brand
- Reviews (1)
Description
INCOLOR SR (SR+)
The INCOLOR Speedster SR frameset embodies the pursuit of building the quintessential road bike.
Crafted from M60 and T800 carbon, it delivers an excellent balance of stiffness, lightweight performance, and aerodynamic efficiency.
The INCOLOR speedster was designed through advanced CFD and wind tunnel testing.
With its offset steer-tube design, progressive geometry, and seamless integration from cockpit to seatpost, the Speedster SR translates every watt into motion.
It captures INCOLOR’s spirit of relentless innovation .
INCOLOR SR
The SR version uses M60 + T800 carbon
Frame weight of 785 g (Size 54 | unpainted without accessories)
Pedaling stiffness tested up to 175N/mm
INCOLOR SR +
The SR+ upgrades to 80T pitch-based + T1100 carbon
Shaving frame weight to 720 g (Size 54 | unpainted without accessories)
Raising pedaling stiffness to 181 N/mm
OFFSET STEERER TUBE DESIGN
- A clever steerer tube layout allows for a narrow 40 mm head tube while keeping a 28.6 mm steerer.
- The offset design boosts stiffness and control without sacrificing compatibility, giving the front end incredible precision at high speed.

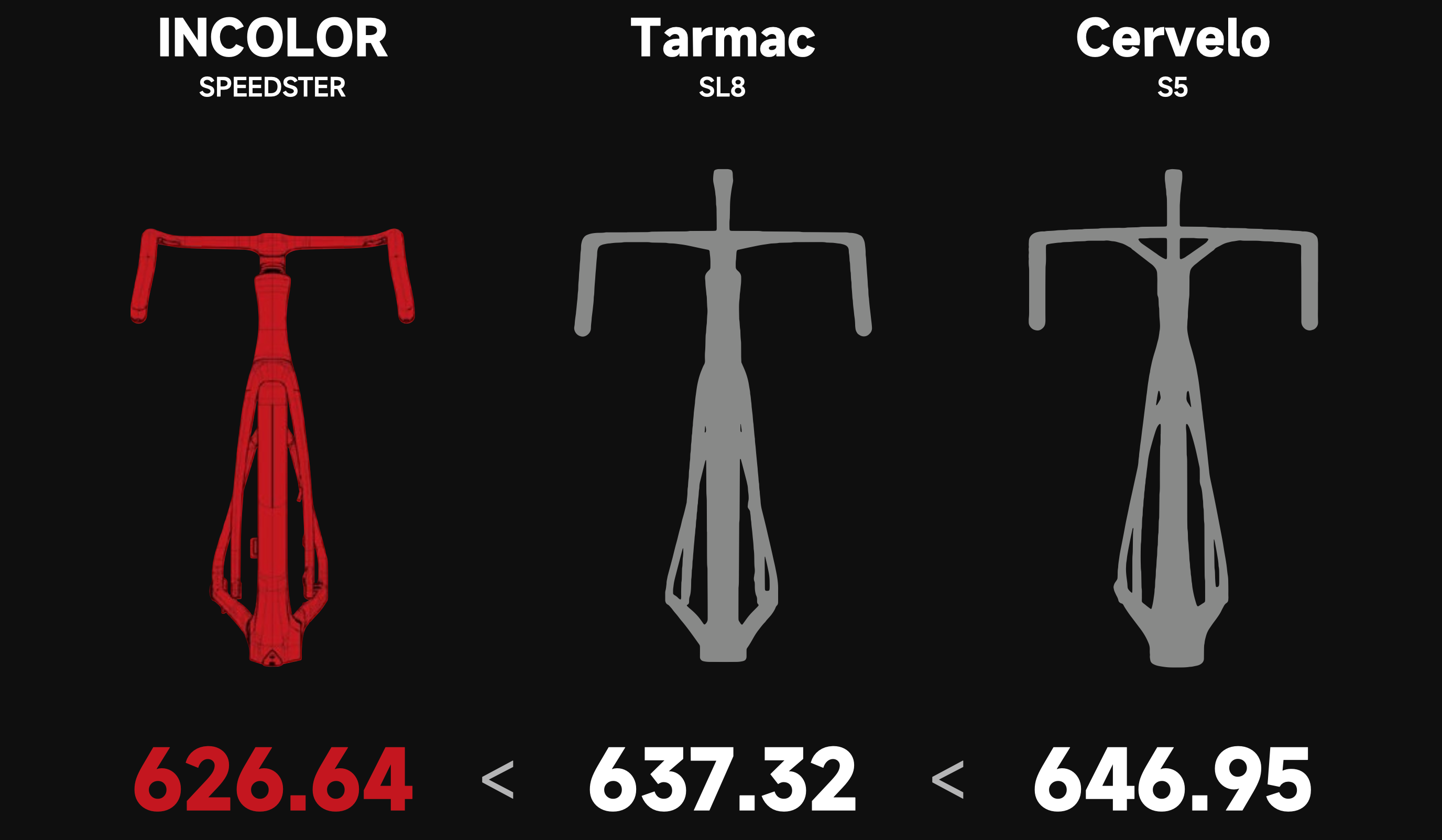

ULTRA-LOW FRONTAL AREA
- At just 626.64 cm², the Speedster’s profile is 3.2 % smaller than the Cervélo S5 and 1.7 % smaller than the Tarmac SL8, cutting through wind with less resistance and more speed.

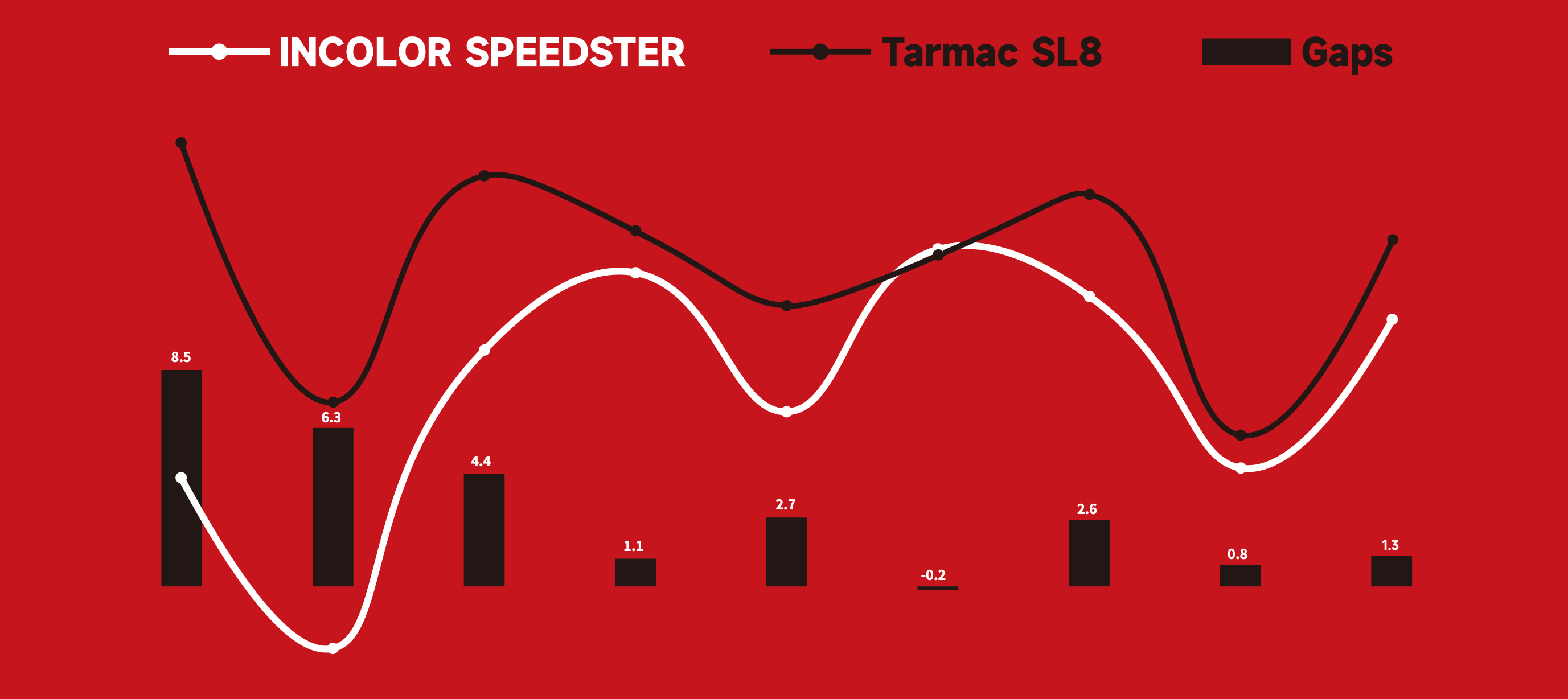

PROVEN AERO EFFICIENCY
- Developed through LES-CFD simulations and tested at the Silverstone Sports Engineering Hub (UK), the Speedster trims 3 W of drag at 45 km/h, saving around 21 seconds over 100 km. (Compared to the Tarmac SL8)
ASYMMETRIC T47A BOTTOM BRACKET
- A threaded T47A BB boosts stiffness by 10 % over T47-68 and stays fully compatible with modern power-meter cranks.
FUTURE-PROOF
- Room for up to 38C slicks or 36C off-road tires, plus a UDH hanger for precise shifting and long-term durability.
INCOLOR SR
- INCOLOR SR Frame & Fork
- INCOLOR Aero Cockpit
- INCOLOR SPEEDSTER Aero Seatpost
- Accessory Package
INCOLOR Lifetime Warranty:
- Covers all damages caused by material or production issues (excludes human or force majeure causes).
- For major damage, a 30% discount applies toward a new replacement.
INCOLOR SR+
- INCOLOR SR+ Frame & Fork
- INCOLOR Aero Cockpit
- INCOLOR SR+ Aero Seatpost
- Titanium 3D-Printed Accessory Package — reduced weight by 45 g
INCOLOR Lifetime Warranty:
- Covers all damages caused by material or production issues (excludes human or force majeure causes).
- For major damage, a 30% discount applies toward a new replacement.
A higher bottom bracket drop, smaller head tube angle, and shorter chainstays give the INCOLOR SPEEDSTER exceptional cruising stability.
When seated, it delivers confident climbing and descending control with minimal body movement and precise head tracking.
Meanwhile, the compact chainstays and trail geometry add a touch of agility that makes sprinting feel sharp and responsive.
INCOLOR - SR(SR+)
*The sizes listed are for reference only and represent common cases, as limb proportions vary among riders of the same height. To find your ideal fit, consult our customer service with details of your previous bike brand and size for personalized advice.

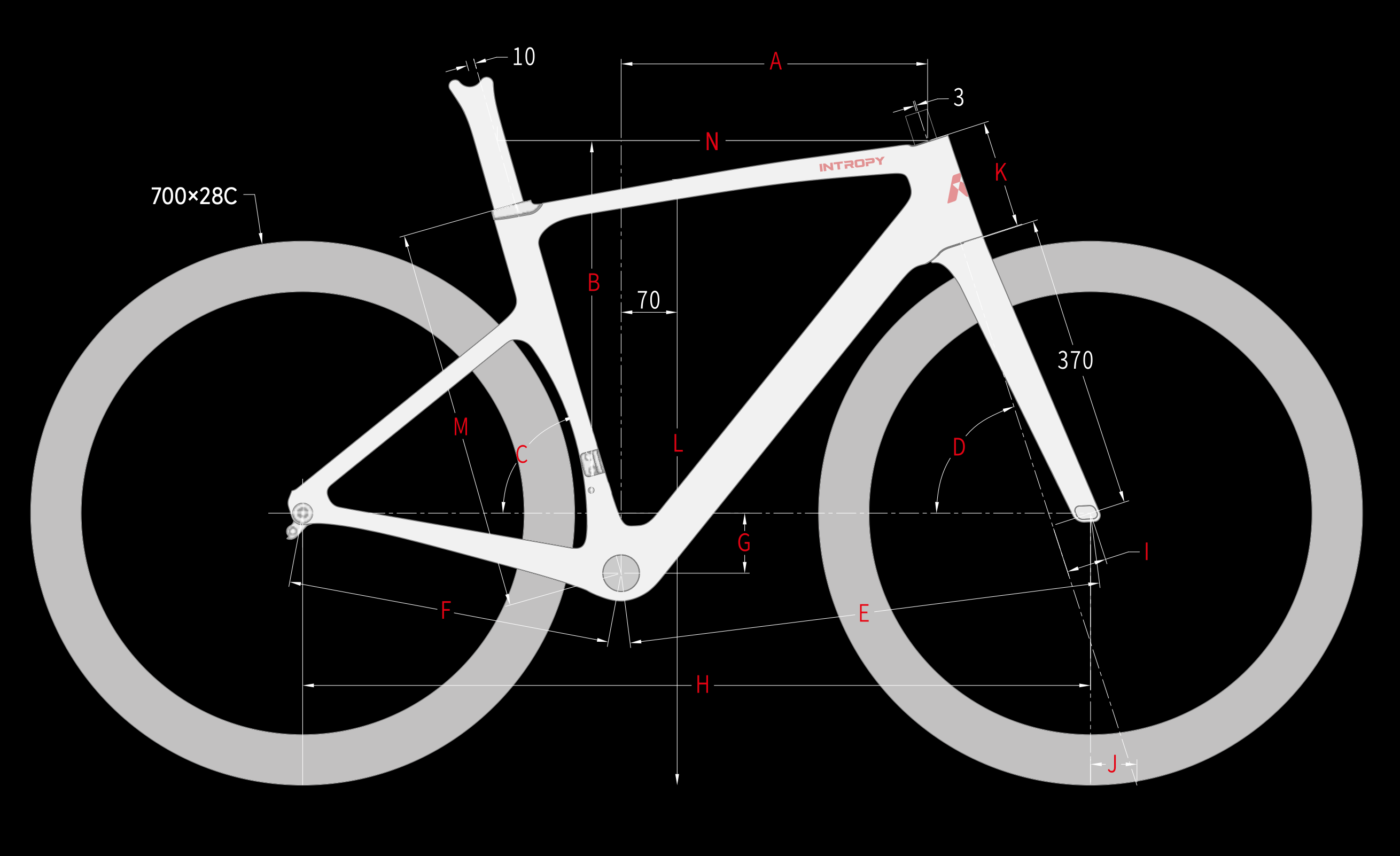

| Size | 45–XXS | 48–XS | 51–S | 54–M | 56–L | 58–XL |
|---|---|---|---|---|---|---|
| Recommended Height | 155–162 | 162–168 | 167–173 | 172–178 | 177–183 | 182–188 |
| A Reach | 365 | 371 | 376 | 383 | 390 | 398 |
| B Stack | 508 | 516 | 525 | 540 | 560 | 584 |
| C Seat Tube Angle | 75° | 74.5° | 74.5° | 74° | 73.75° | 73.5° |
| D Head Tube Angle | 70.8° | 71° | 71.2° | 72° | 72° | 72.25° |
| E Front Center | 578.3 | 585.2 | 592.1 | 591.3 | 605.3 | 618.5 |
| F Rear Center | 405 | 405 | 405 | 405 | 405 | 405 |
| G Bottom Bracket Drop | 78 | 78 | 75 | 75 | 72 | 72 |
| H Wheelbase | 970.4 | 977.4 | 985.3 | 984.6 | 999.6 | 1012.8 |
| I Fork Offset | 55 | 55 | 55 | 50 | 50 | 50 |
| J Trail | 60.2 | 58.9 | 57.7 | 58 | 58 | 56.4 |
| K Head Tube Length | 104.5 | 112.2 | 124.1 | 135.1 | 159.3 | 183.6 |
| L Stand over Height | 717.4 | 726.9 | 741.3 | 757.5 | 780.3 | 805.1 |
| M Seat Tube Length | 443 | 453 | 464 | 480 | 500 | 526 |
| N Effective Top Tube | 501.1 | 514.1 | 521.6 | 537.8 | 553.2 | 571.0 |
SR Frameset Specifications
Frame Sizes
45, 48, 51, 54, 56, 58
Brake Type
Disc only
Wheel Size
700C
Tire Clearance
up to 38c road tyres
Frame Weight
758g (SR)( M-sized; unpainted) 720g (SR+)( M-sized; unpainted)
Headset Bearing
D52/d40xh7(45°)
Bottom Bracket
Asymmetric T47 (Width 76.75)
Warranty
Limited lifetime warranty
Cable Routing
Internal; Electronic Only
Limited Rider Weight
120kg
Axle
Front: M 12 x 1.0 x 126 taper head thru-axle
Rear: M 12 x 1.0 x 162, taper head thru-axle
Certification
UCI Certified
The INCOLOR SPEEDSTER features a size-specific tube gradient, giving each frame size a more balanced and refined appearance while ensuring riders of all sizes enjoy a consistent ride experience.

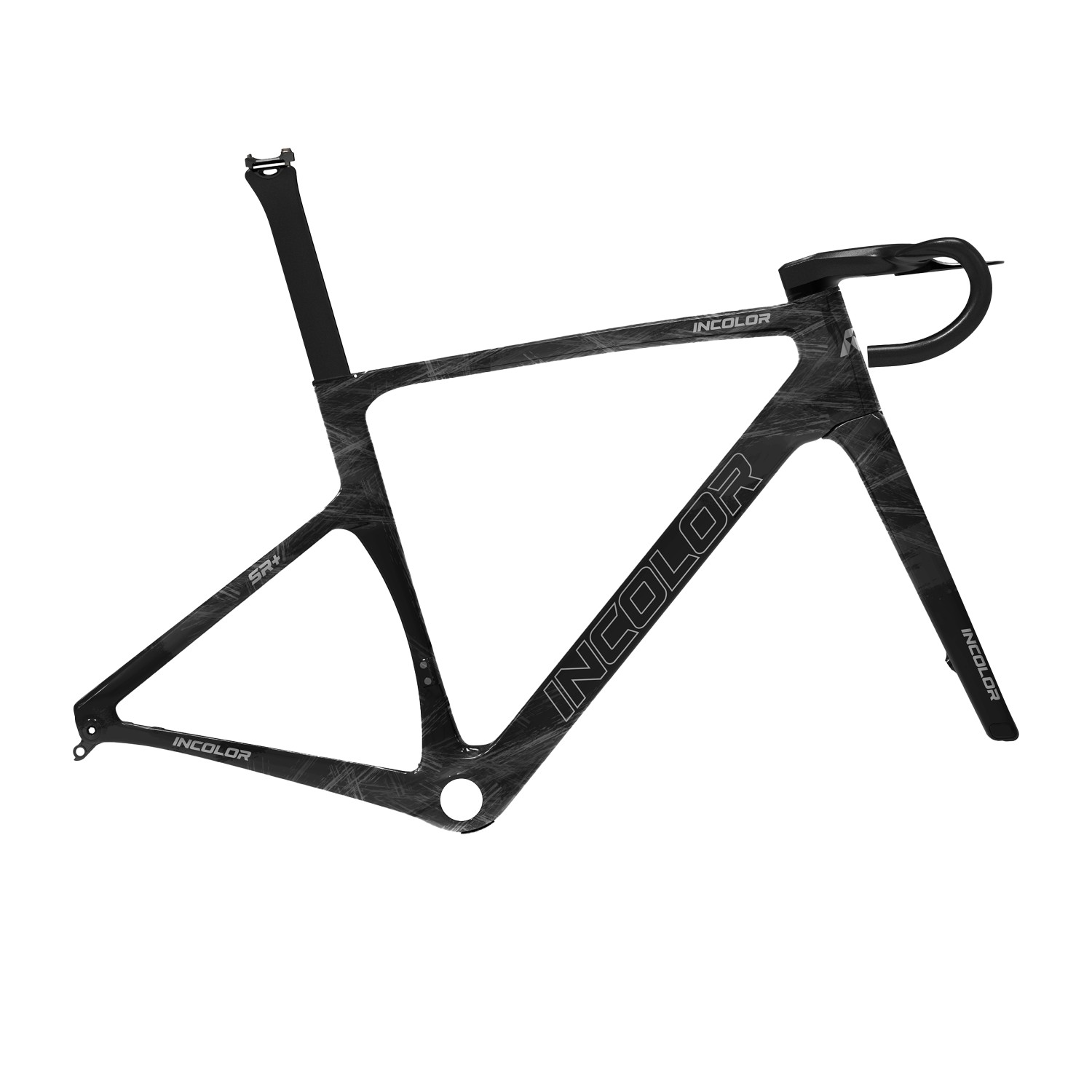

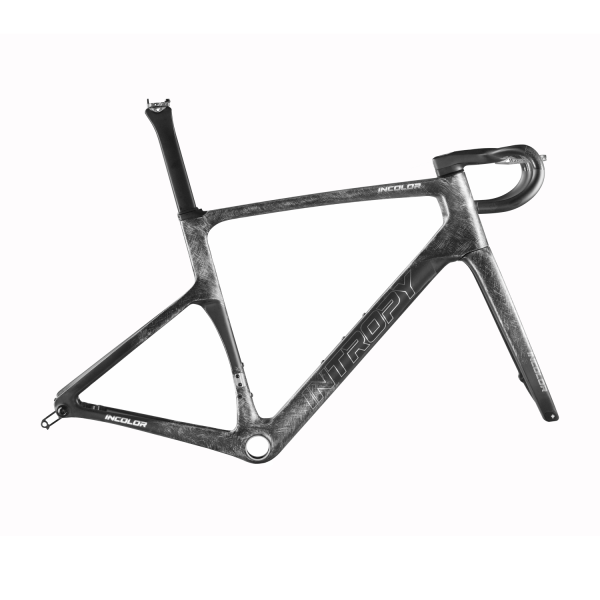

SILVER

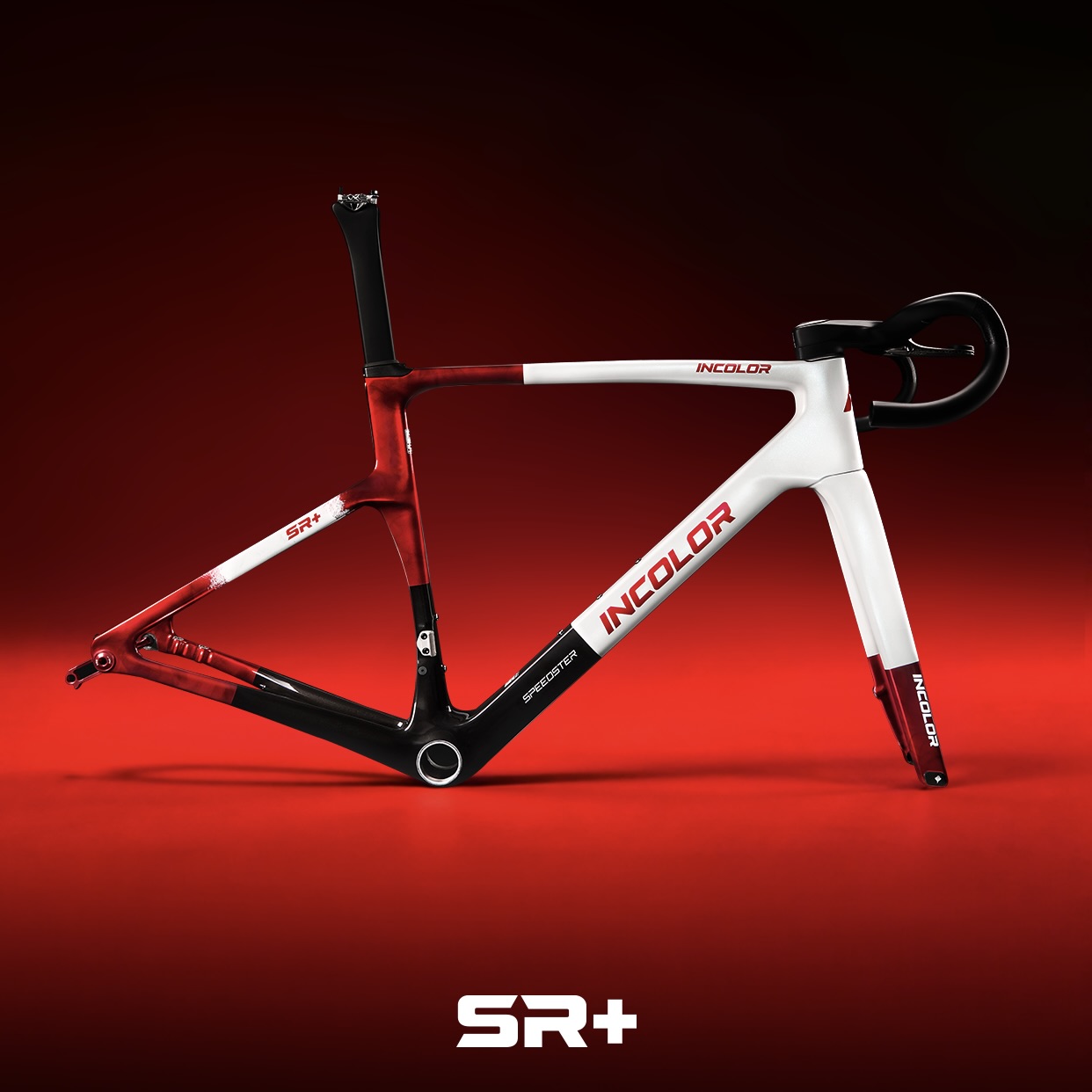

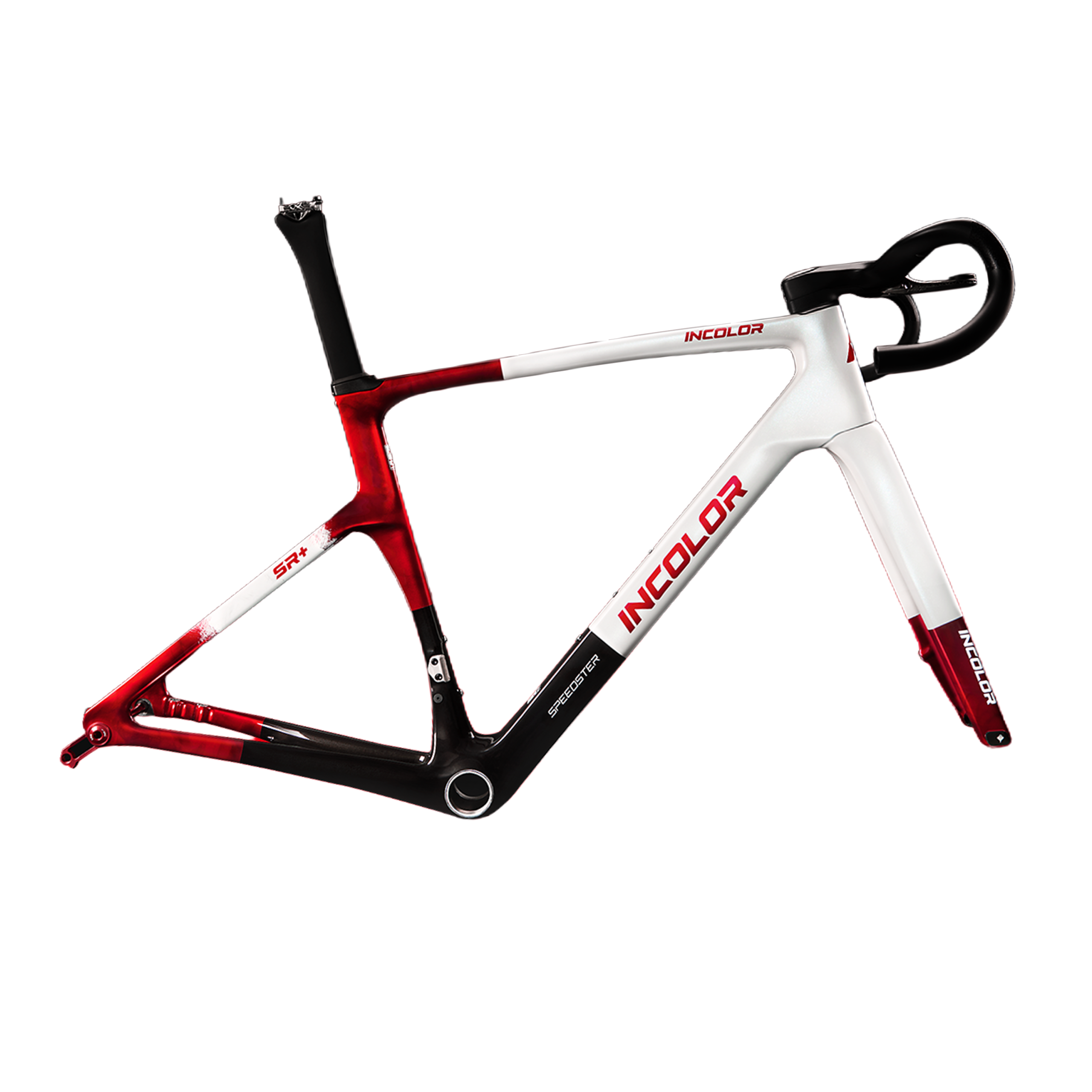

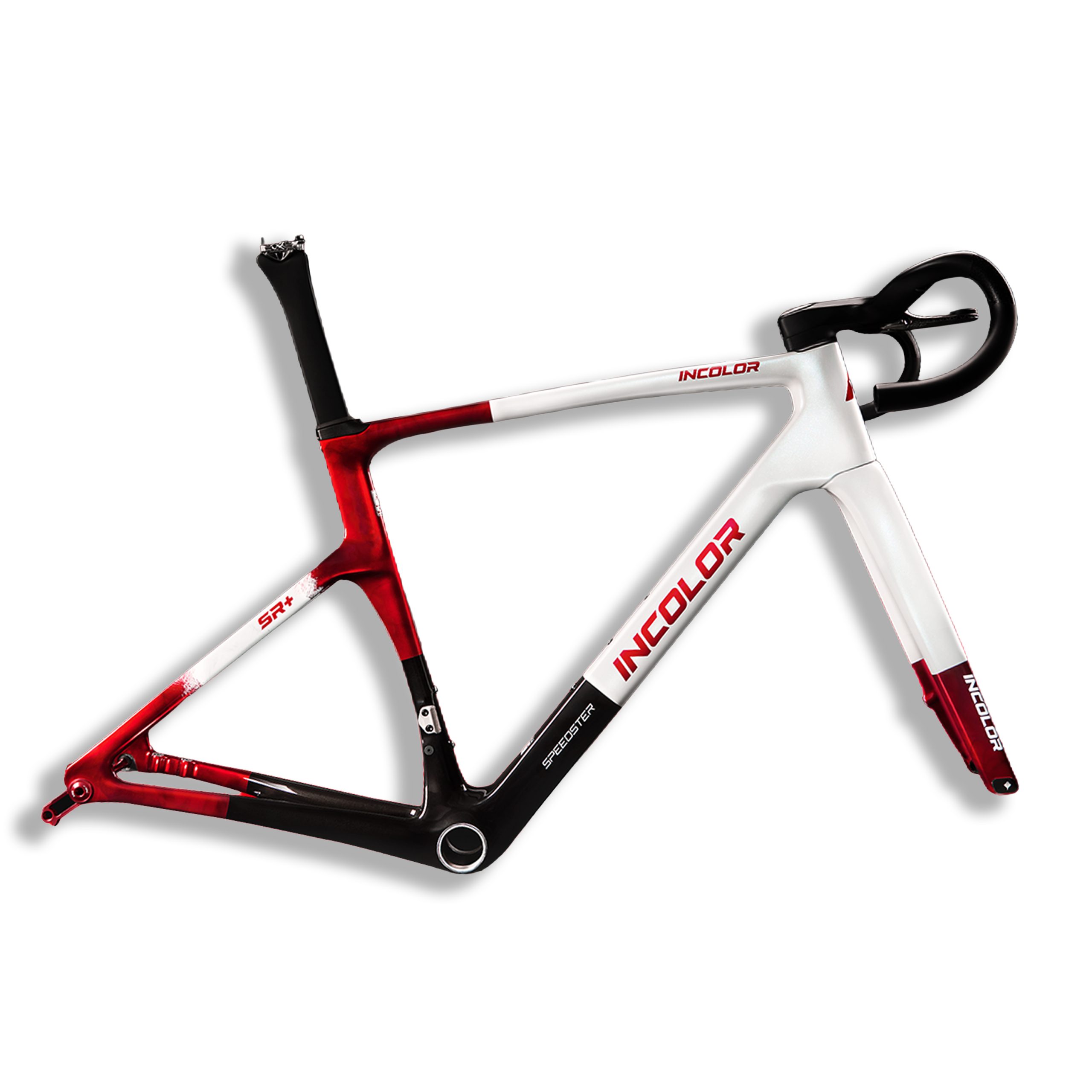

REDSPARK

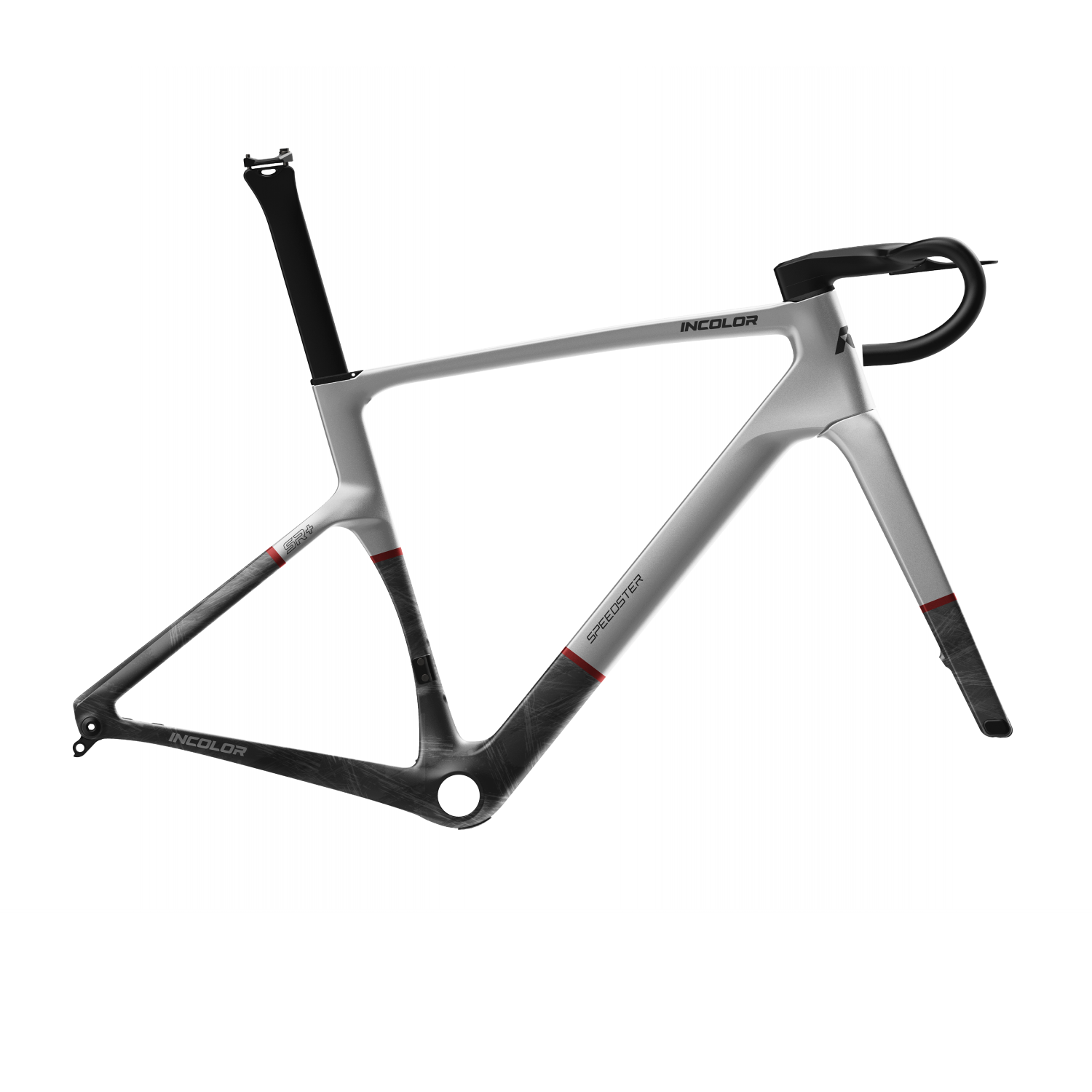

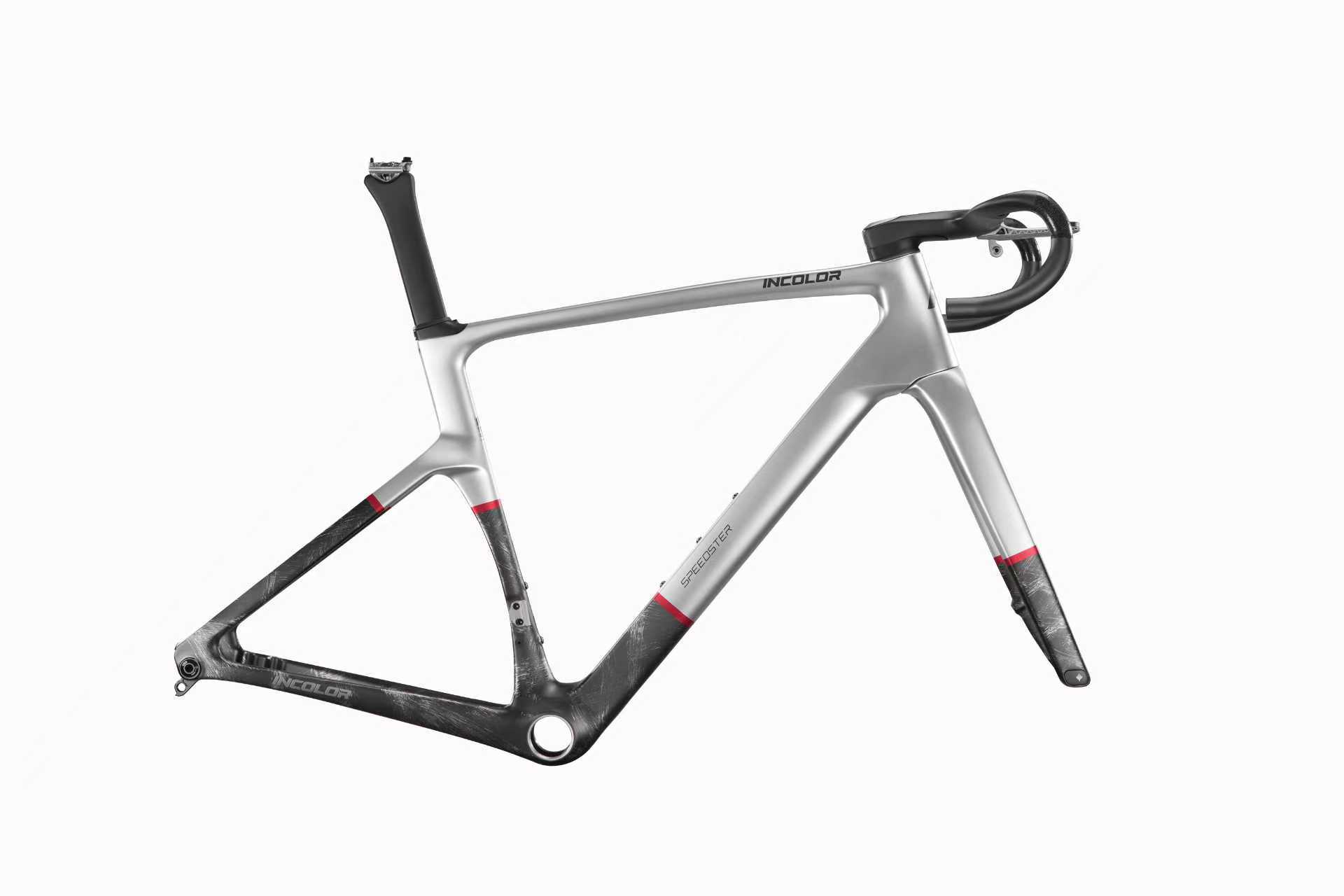

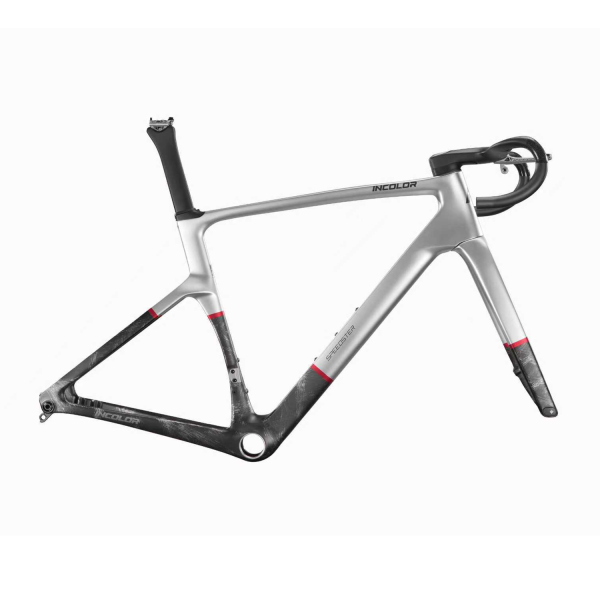

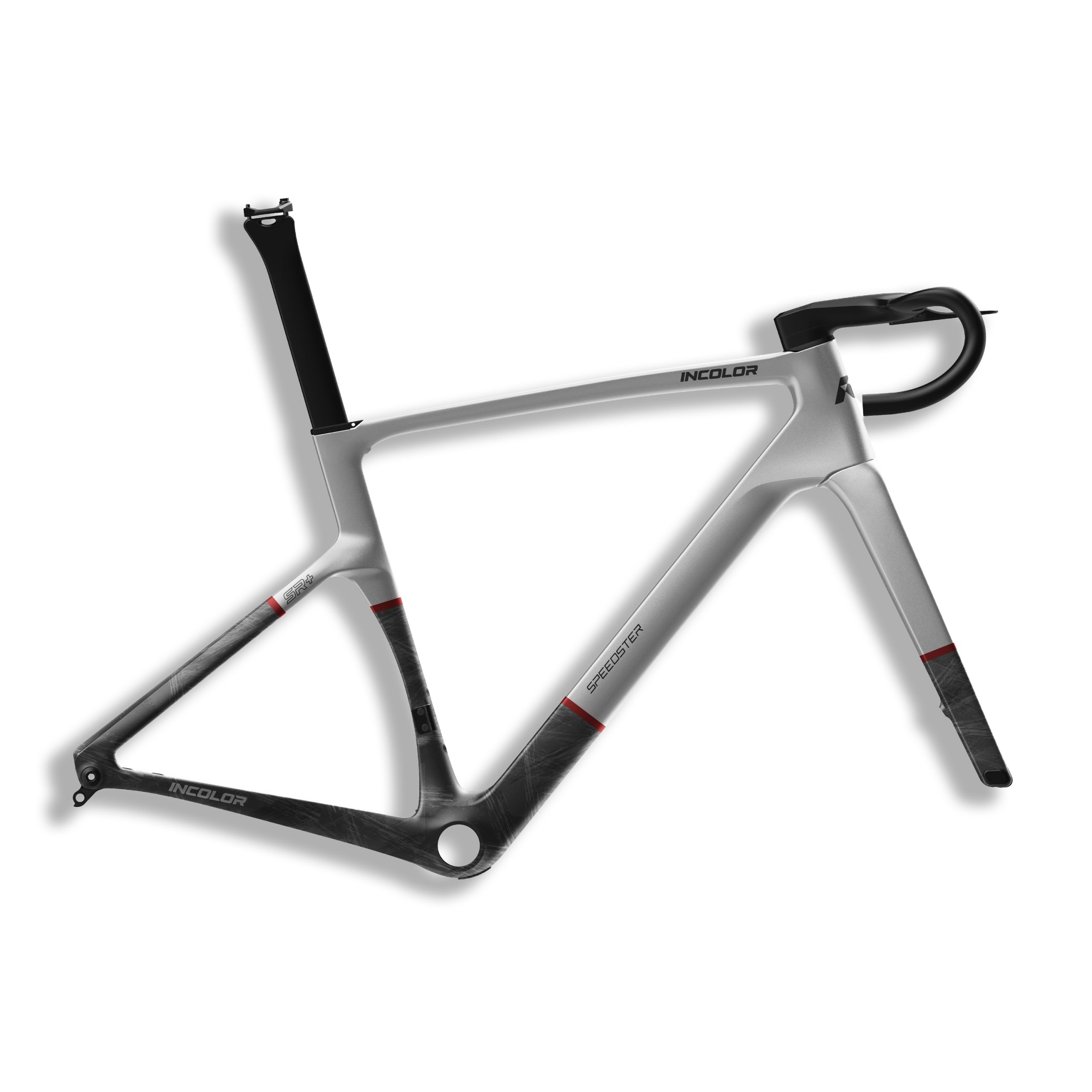

SILVERSTONE

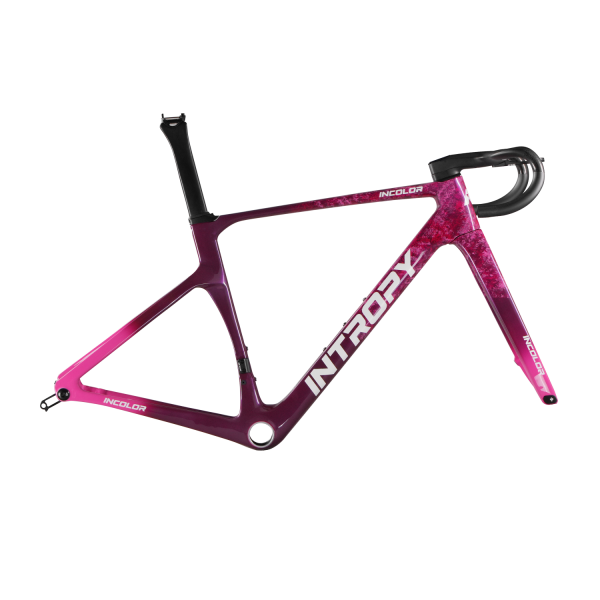

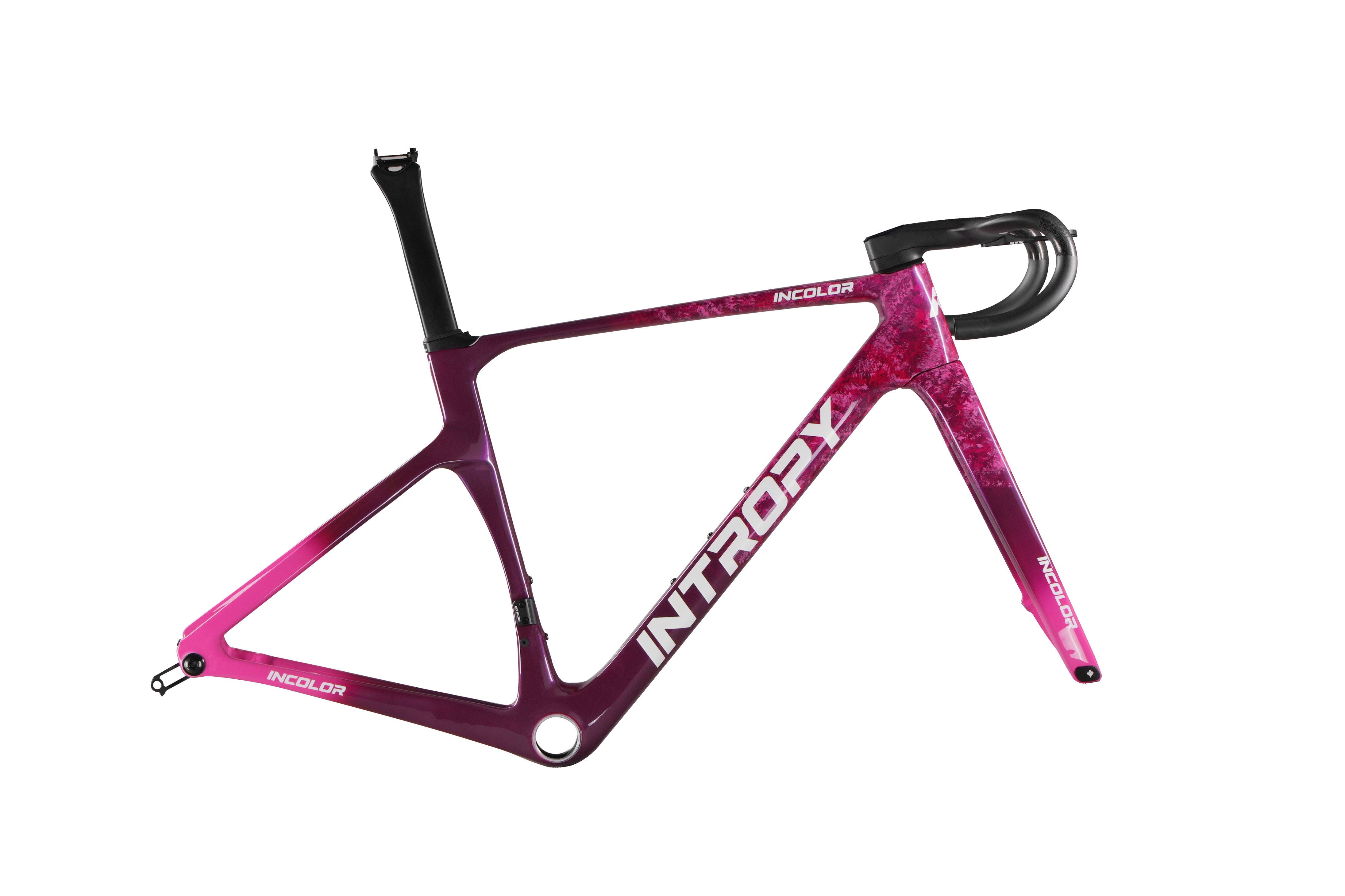

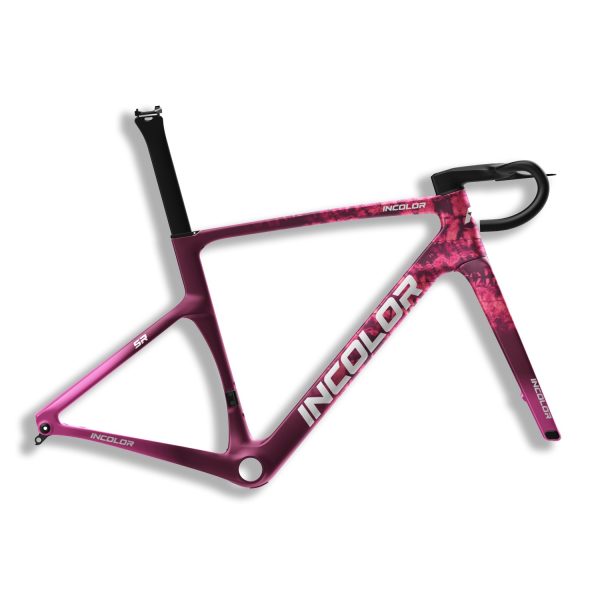

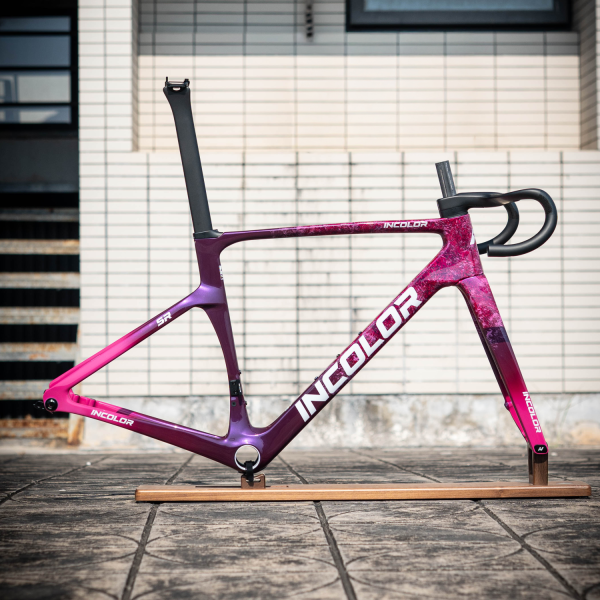

PINKLIGHT

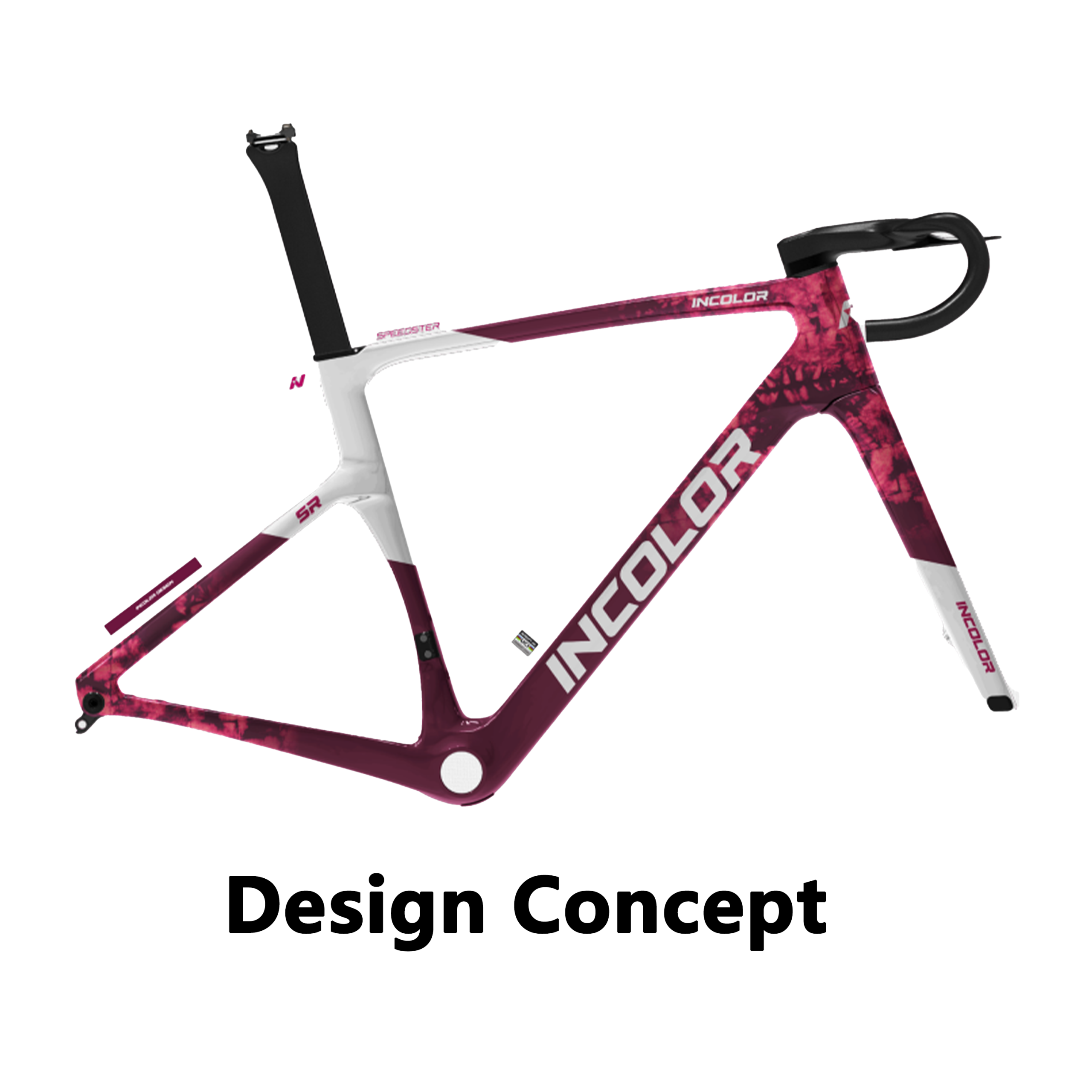

NEW PINKLIGHT

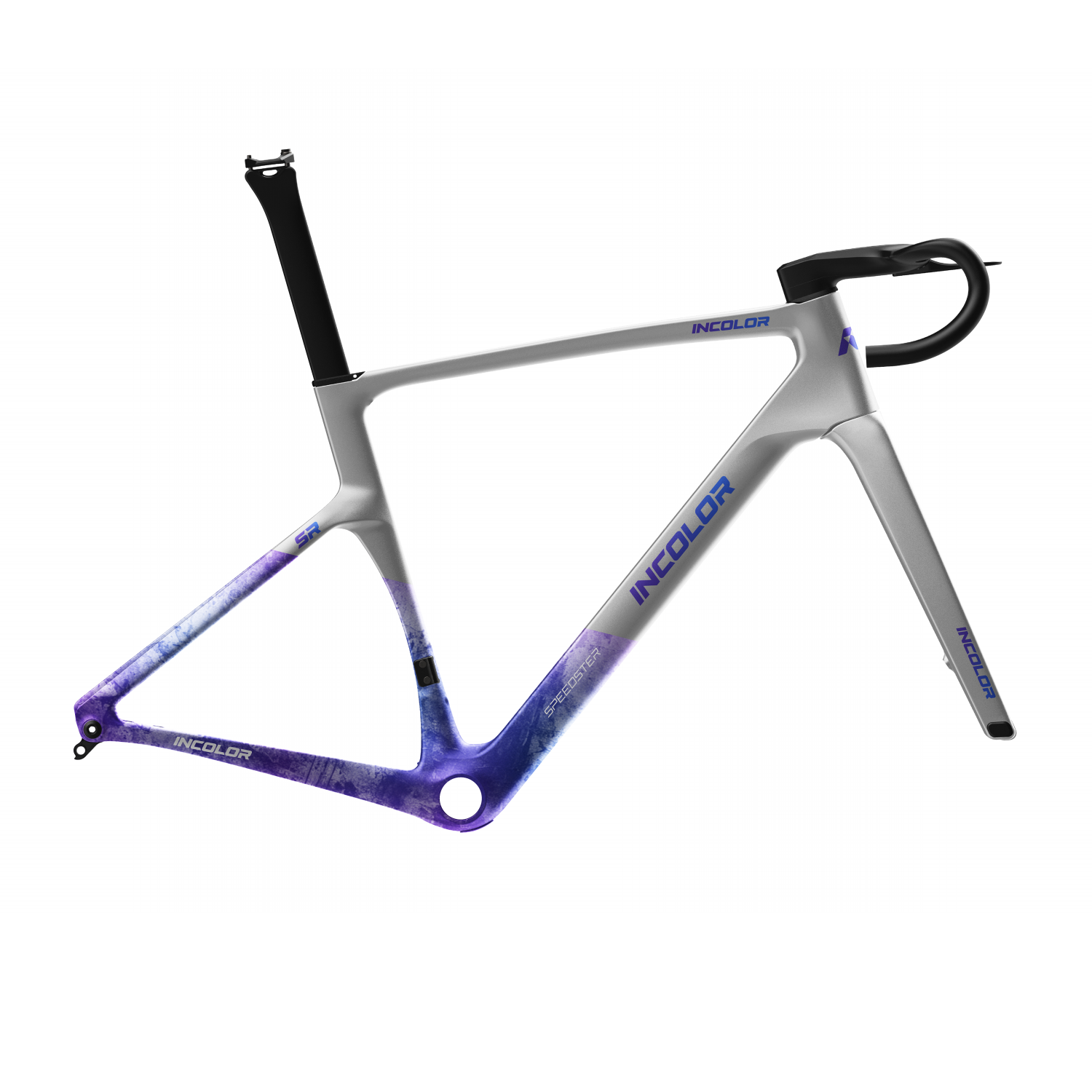

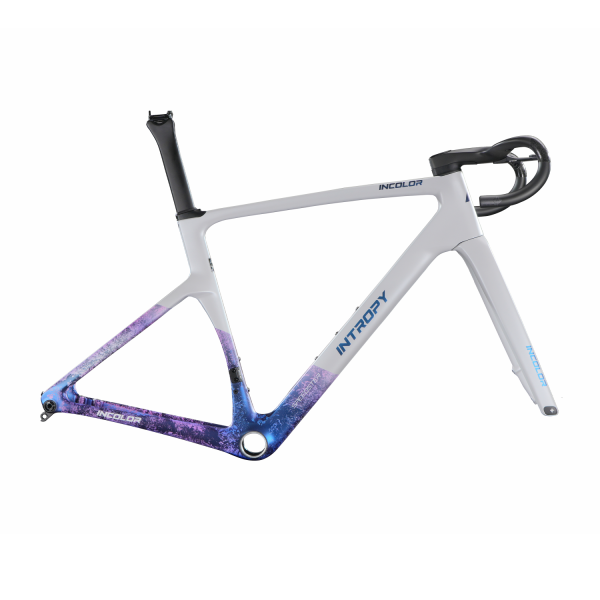

AURORA

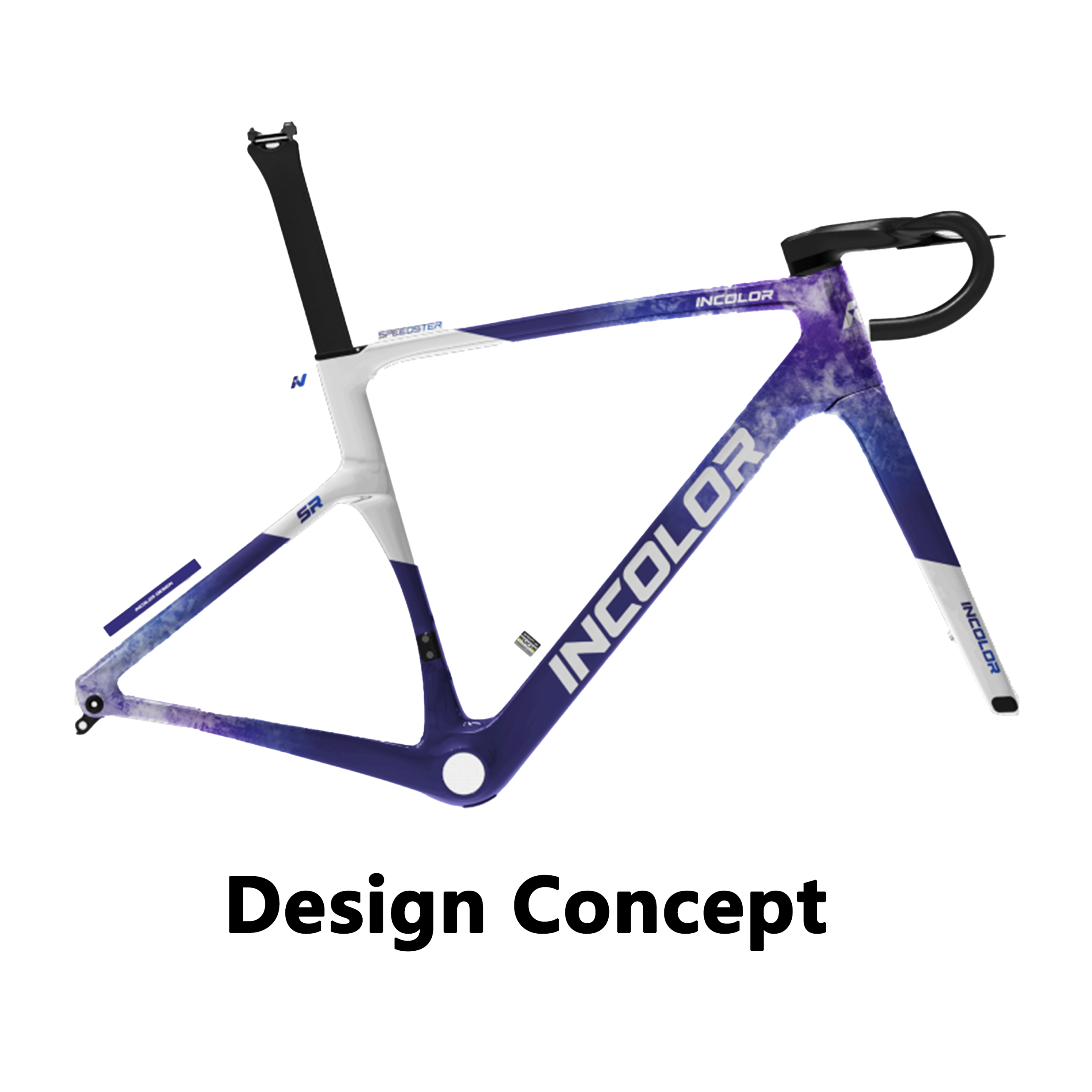

NEW AURORA

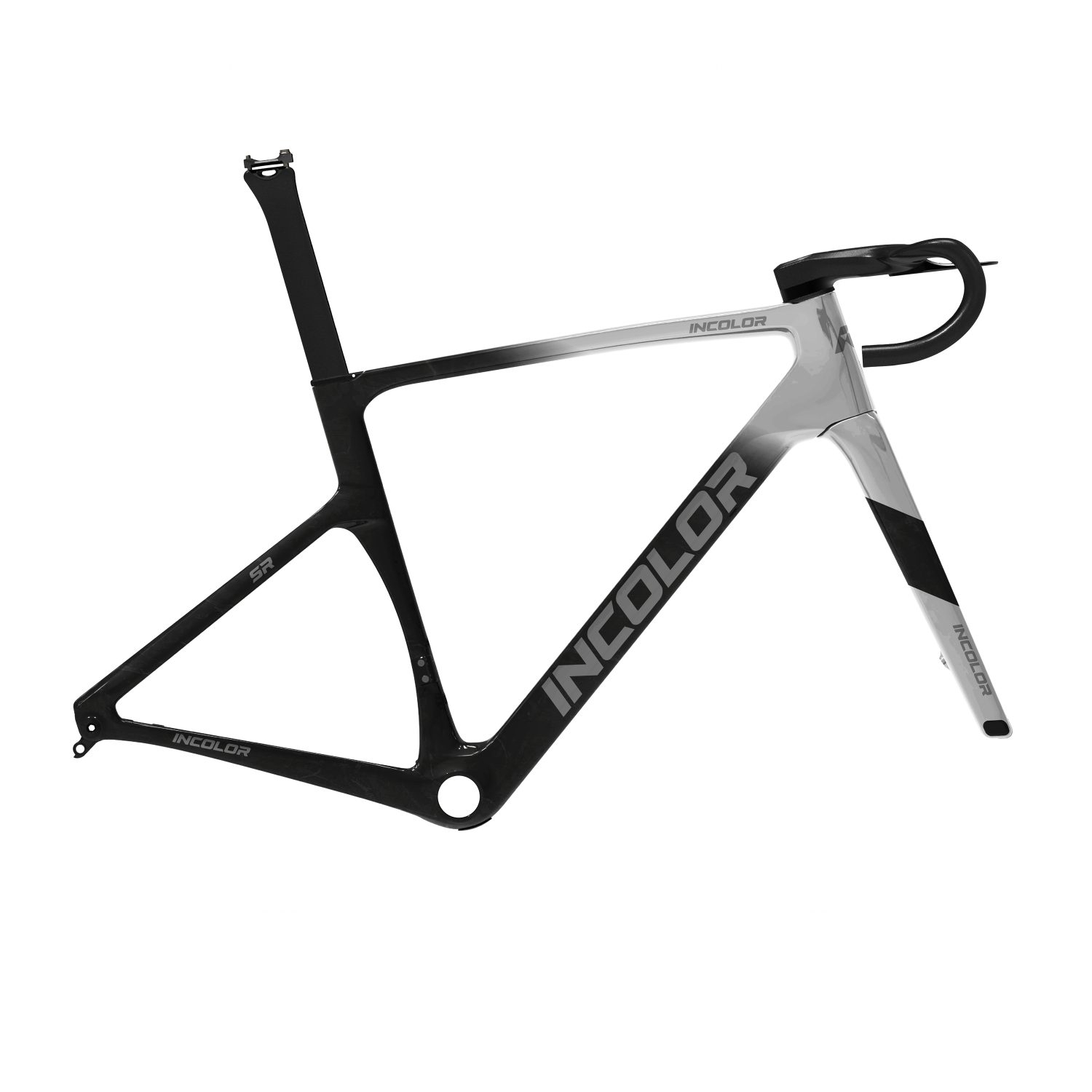

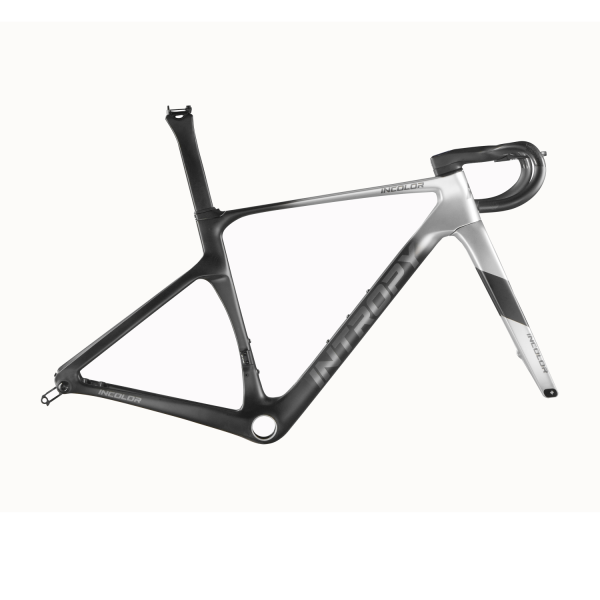

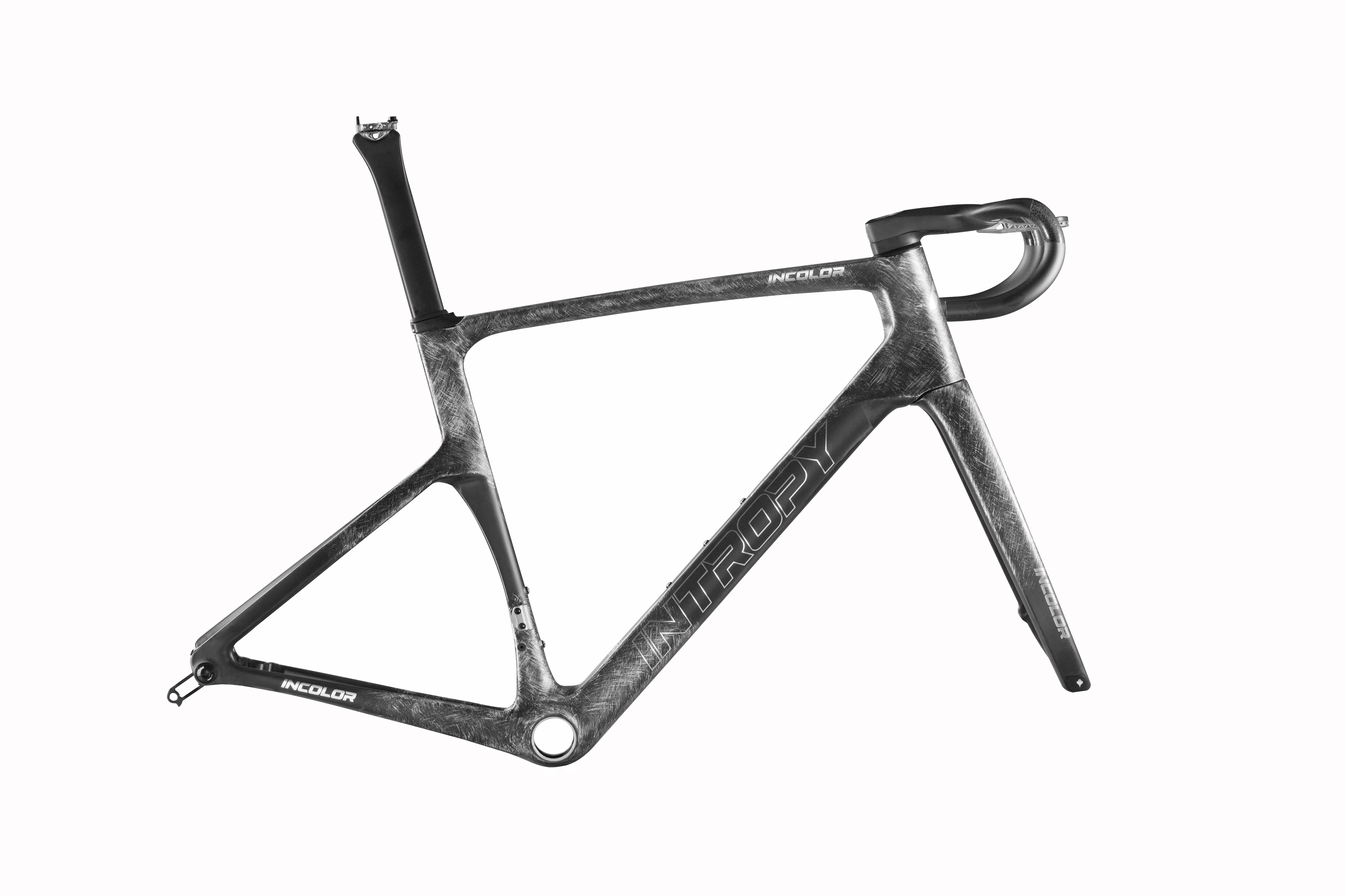

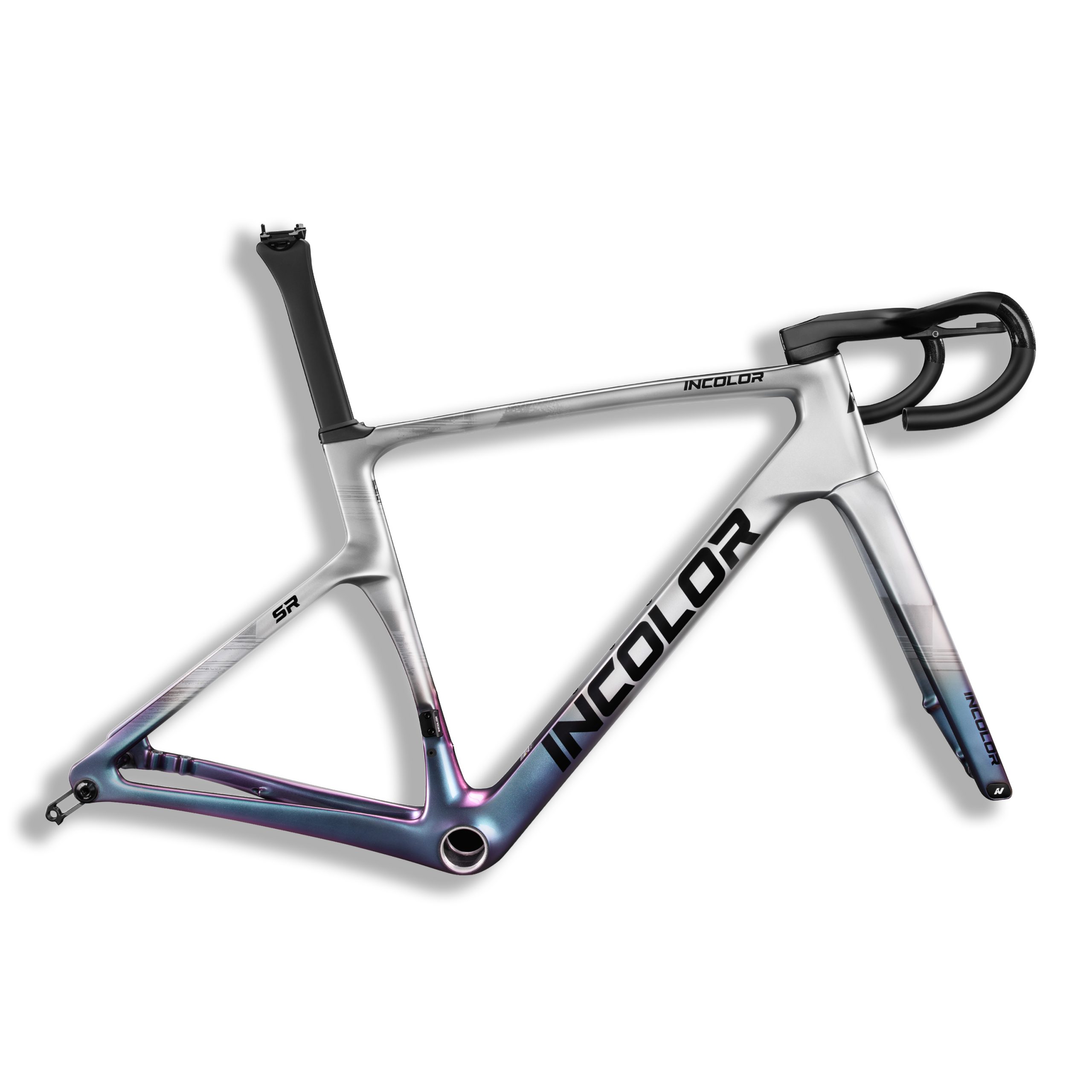

QUICKSILVER
Additional information
| Frame Size | 45–XXS, 48–XS, 51–S, 54–M, 56–L, 58–XL |
|---|---|
| Model | SR (Standard Version), SR+ (Premium Version) |
| Frame Color | SR AURORA, SR NEW AURORA, SR NEW PINKLIGHT, SR PINKLIGHT, SR QUICKSILVER, SR+ Redspark, SR+ SILVER, SR+ SILVERSTONE |
Brand
Incolor
| Brand Name: Incolor | Chinese Company Name: 广州应凯路科技有限公司 |
| Founded: 2016 | # of Employees: 10+ |
| Headquarters: Panyu, Guangzhou | Products Categories: Crankset, Cassette |
1 review for INCOLOR SR Carbon Disc Brake Road Bike Frameset
Add a review
You must be logged in to post a review.
r_fairholme (verified owner) –
I’ve been riding and building bikes for 30 years and this frameset probably left me with the least preparation to do, when building. Surfaces faced, no paint overspray, threads perfect. The paint standard is high, but adds quite a bit of weight – although this is the case for any bike. In size XS, my frame was over 900g (vs claimed unpainted weight of sub 800g). Rides very well, lively and more refined than my Time and Colnago, IMO. Excellent value for the quality of the frame and parts.
