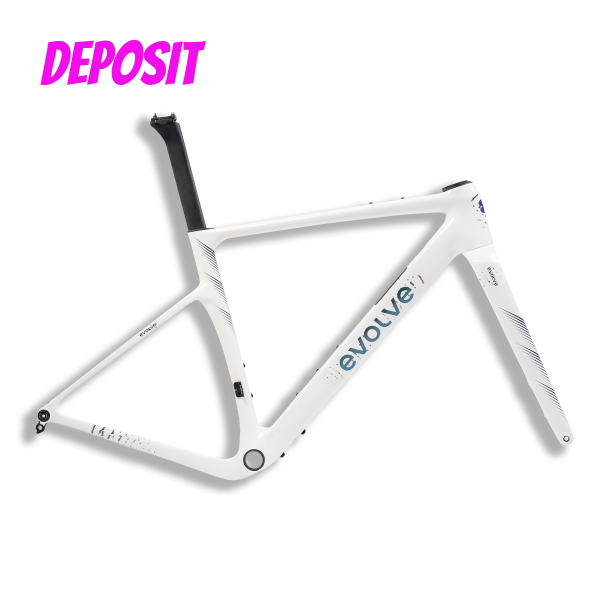

DEPOSIT – evolve CIMA GR Carbon Gravel bike Frameset
$100.00
Pre-Order Info:
Reserve your frame between July 22 and August 21 with a $100 deposit.
Pricing
- Frame + Integrated Handlebar: $2,199 regular price | $1,999 pre-order price ($200 discount)
- Frame Only: $1,999 regular price | $1,899 pre-order price ($100 discount)
Steps to follow:
- Place Deposit: Pay $100 between July 22 and August 21 to reserve your frame.
- Receive Link: When stock arrives in October, you will receive an email with a custom checkout link and your discount coupon.
- Finalize Purchase: Complete your order using the provided link and coupon.
Note: Pre-order discount coupons are only valid through the custom checkout link sent in the October arrival email.
evolve CIMA GR
- Ultra-Light Frame: 750g (Size M, unpainted)

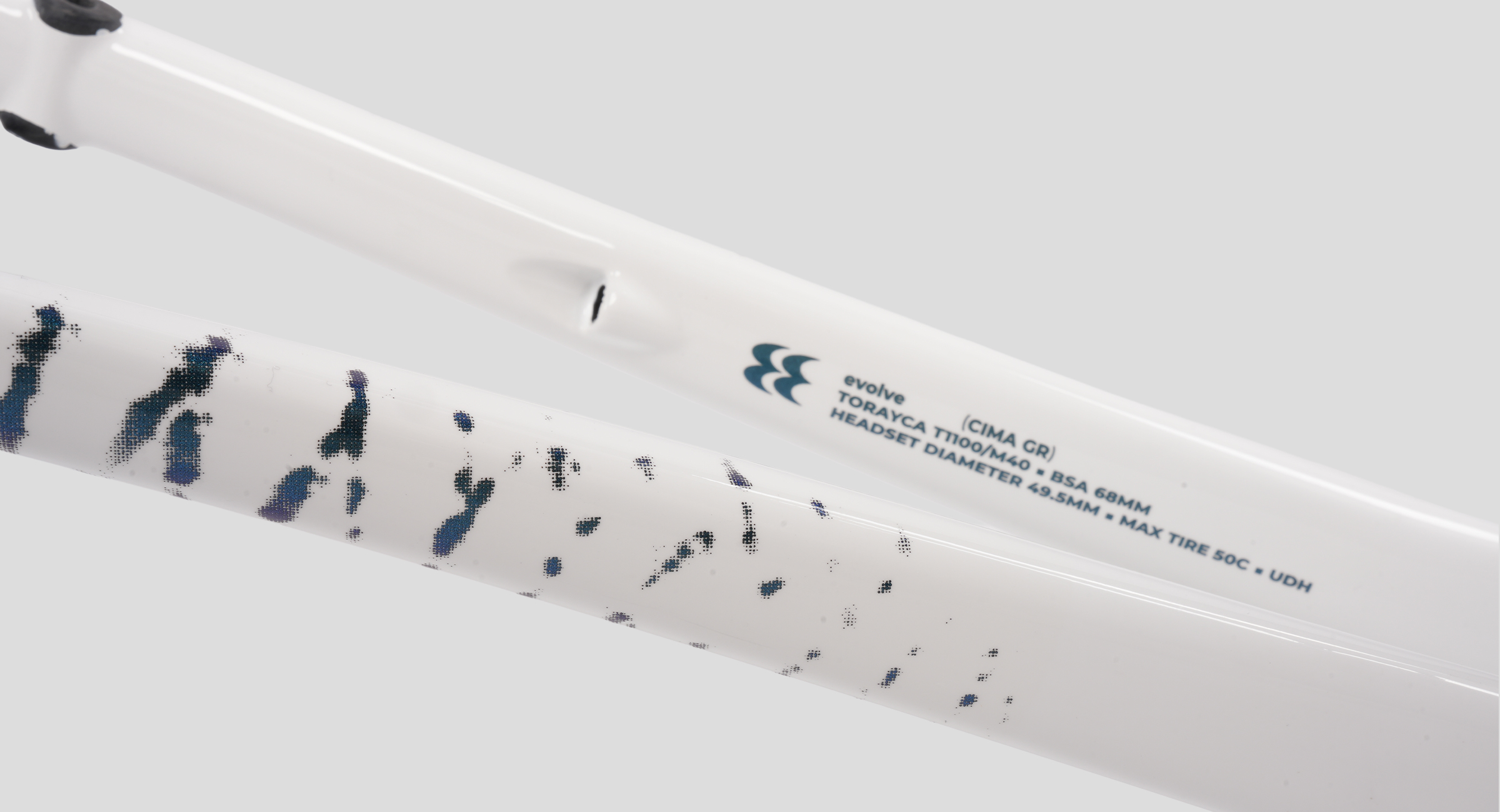

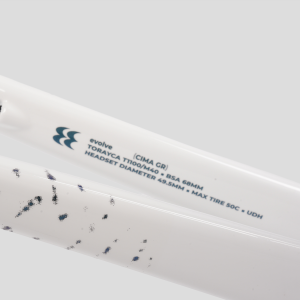

- Advanced Carbon Layup: TORAYCA® T1100 / T800 + M40
- Tuned Stiffness: +7.5% BB, +1.2% head tube over the CIMA road
- Wind Tunnel Validated against industry leaders
- Wide Tyre Clearance: Fits 700×50C / 29er×2.0″ tires
- Full Internal Routing: Compatible with 1x mechanical/electronic groupsets; 2x electronic-only
- Chainring Compatibility: 1× 50T, 2× GRX 48/31T / SH12S 50/34T / SRAM Road 48/35T
- BSA Threaded Bottom Bracket: 68mm width, simple maintenance
- UCI Approved Frame + Limited Lifetime Warranty
No reviews yet.

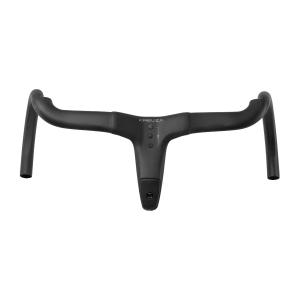

Optional Components – Select One Handlebar Only
- Description
- Additional information
- Brand
- Reviews (0)
Description
CIMA GR
Gravel racing is moving faster than ever, and the demands on equipment have shifted. Today’s riders require a frame that refuses to compromise - one that blends aerodynamic efficiency and wide tire clearance without adding unnecessary weight.
The CIMA GR delivers exactly that, it was engineered for high-speed dirt and gravel races.
Performance Features
Sub-Kilo Efficiency: Tipping the scales at an impressive 750g (unpainted, size M), it provides an elite strength-to-weight ratio that shines on climbs.
Aerodynamic Profiling: Clean lines and sculpted tube shapes cut through the wind, helping you save energy when riding solo or pushing the pace at the front.
Expansive Tire Clearance: Designed to comfortably accommodate wide, 700×50C / 29er×2.0“ tires, giving you the traction and compliance needed to tackle unpredictable surfaces.
Balanced Race Geometry: Dialed for high-speed stability on loose terrain without sacrificing the agile, aggressive feel required for competitive racing.

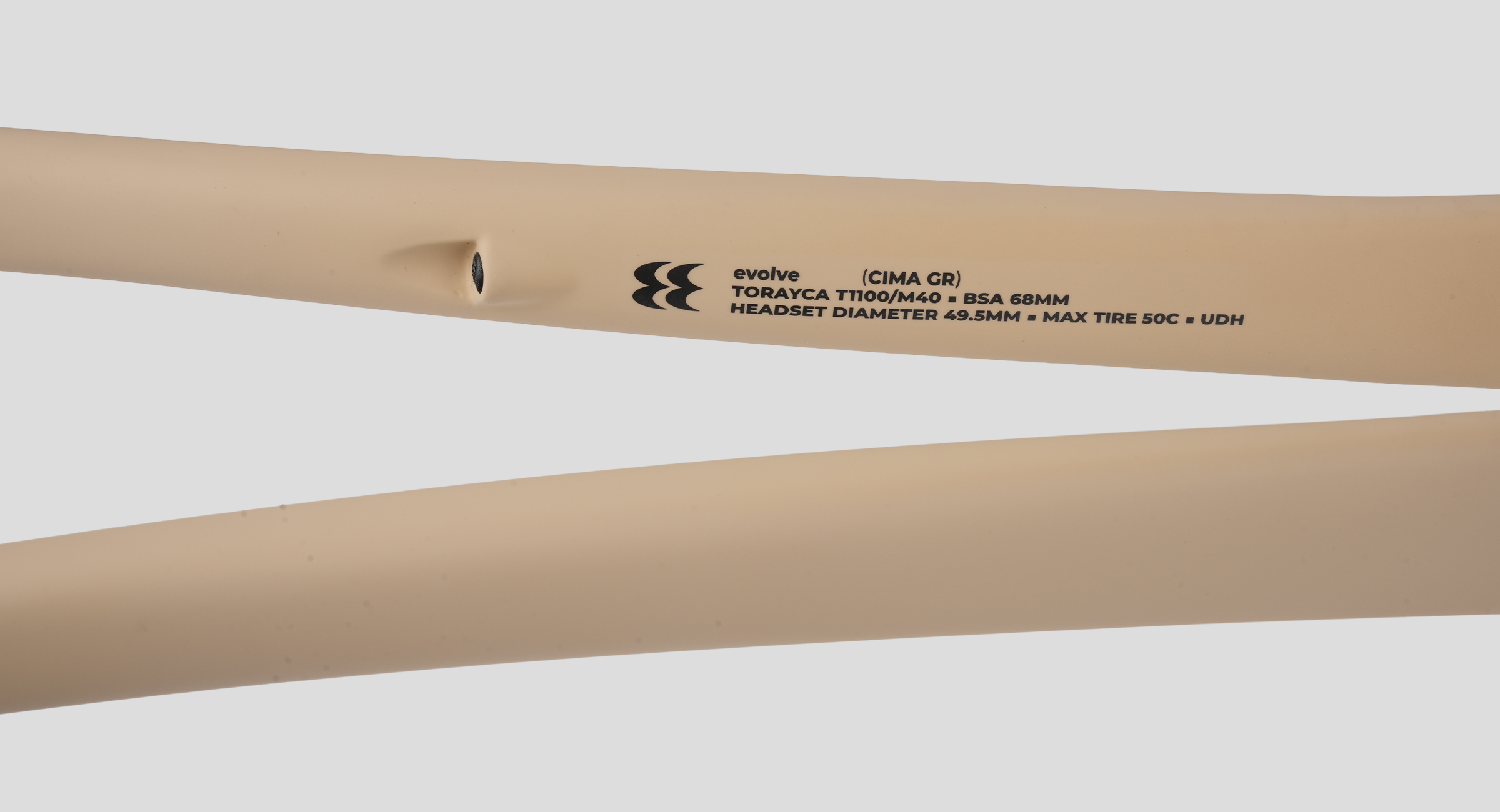

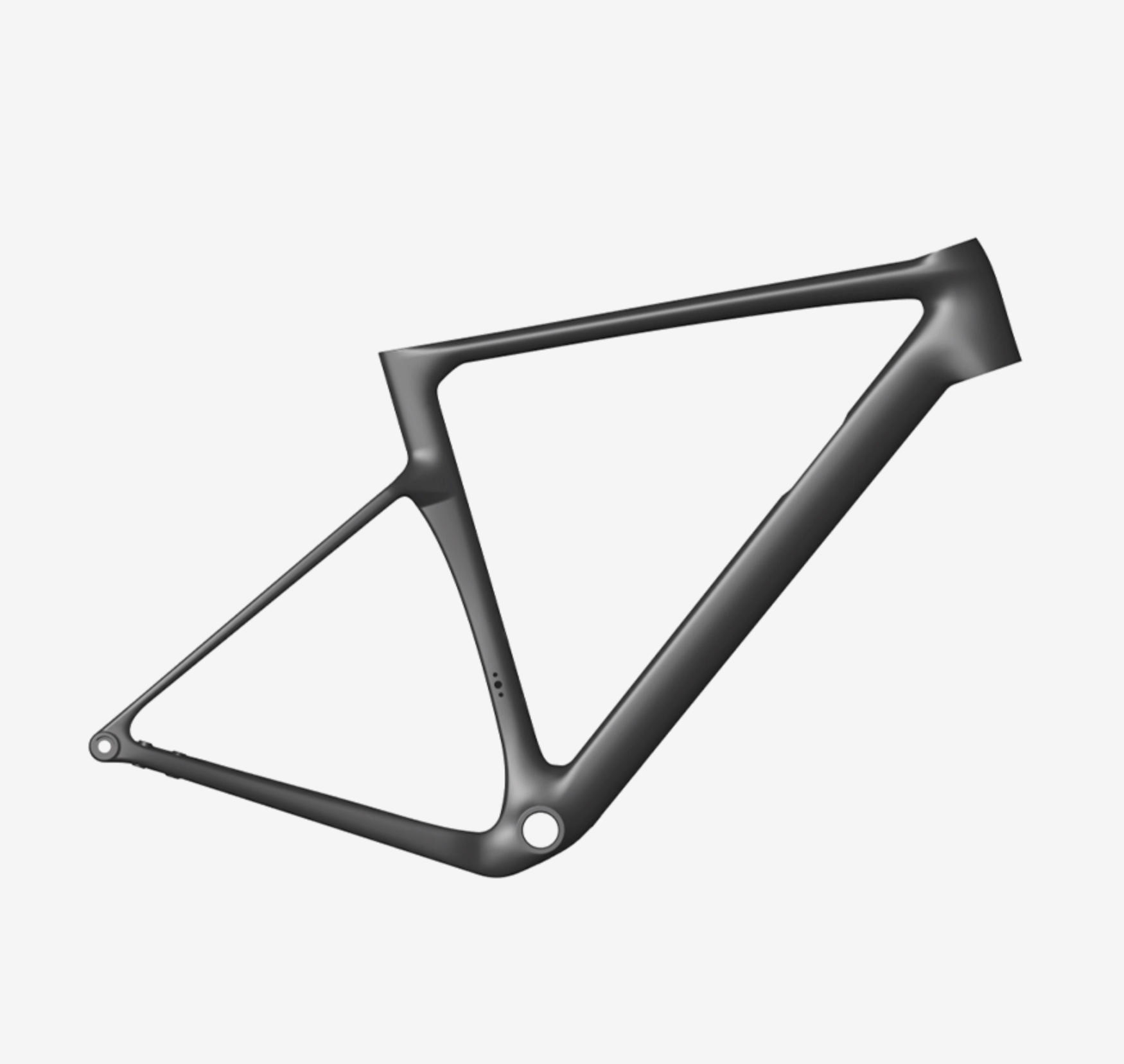

Advanced Carbon Layup
Evolve uses a thoughtful blend of Torayca T1100, T800, and M40 high-modulus carbon fibers. Instead of relying on just one material grade, this mix strikes a practical balance between weight savings, overall strength, and long-term durability. The result is a frame that stays stiff under load while maintaining a smooth, comfortable ride.
Targeted Stiffness
By placing structural reinforcement exactly where it's needed most, Evolve improved responsiveness compared to their standard road frame:
+7.5% Bottom Bracket Stiffness: Reduces frame flex when you're putting down heavy power, making your pedaling more efficient.
+1.2% Head Tube Stiffness: Sharpens steering precision and handling through fast corners and descents, without making the front end feel harsh.
Relentless Pursuit of Speed
Evolve integrated refined tube profiles into the frame to minimize drag, optimizing the CIMA GR for the higher sustained speeds common in modern gravel racing. The design delivers highly competitive drag reduction, making it an efficient choice for fast, open terrain.
Performance Gains

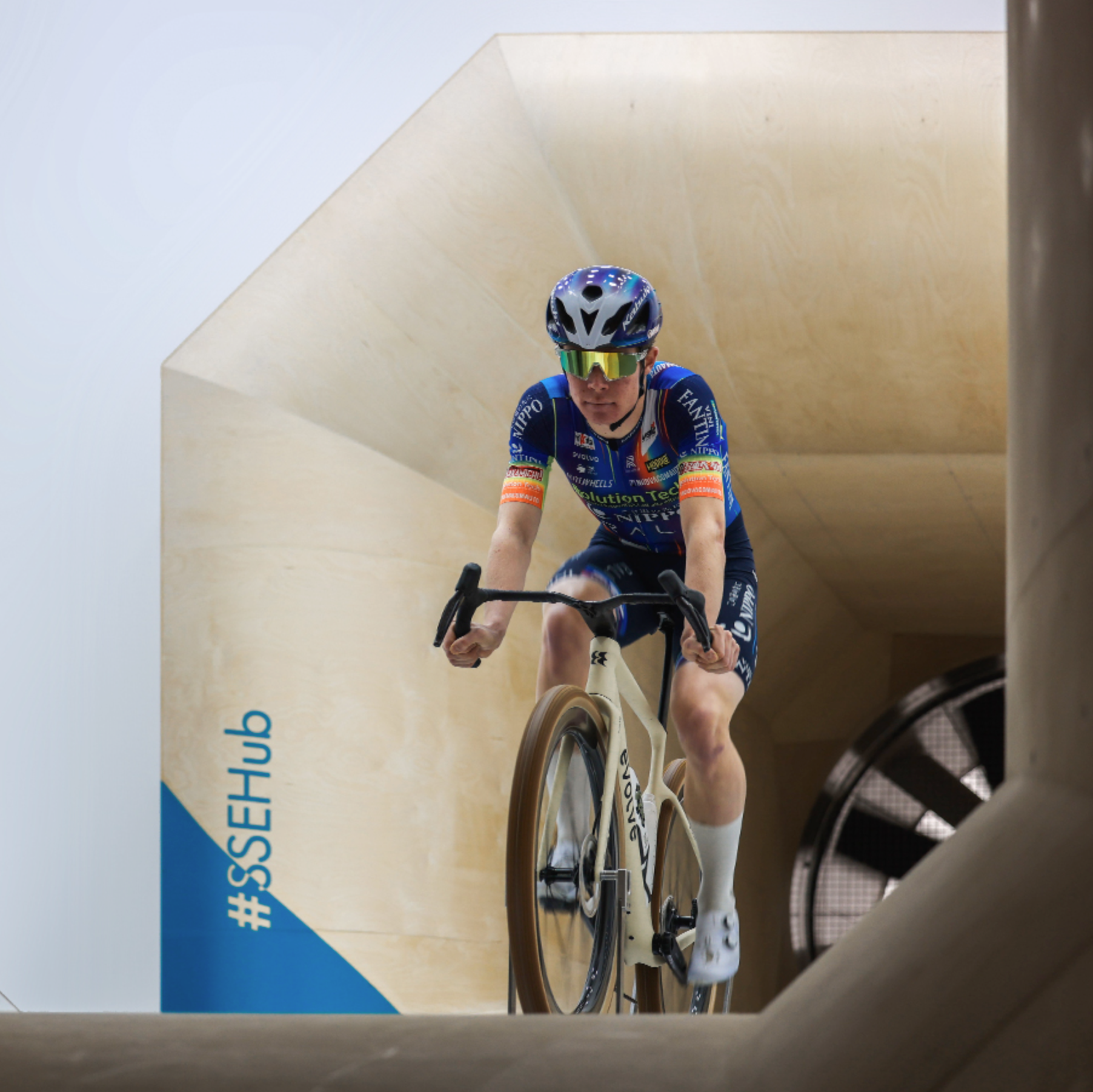

Up to 17.28W saved at 35km/h: Testing at the Silverstone wind tunnel demonstrates a measurable reduction in drag against industry leaders, helping riders sustain pace more efficiently over longer distances.
RUGGED COMPONENTS
SUPERIOR PERFORMANCE

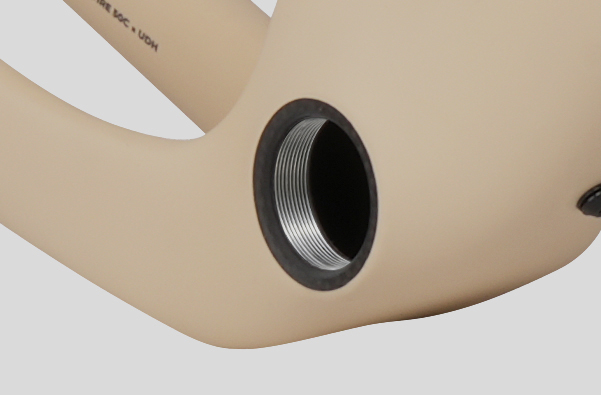

BSA THREADED BOTTOM BRACKET

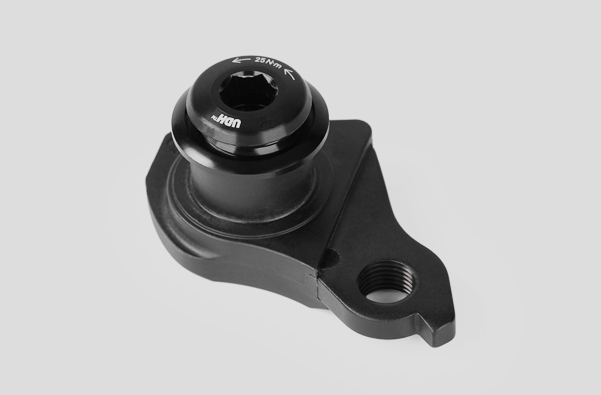

SRAM UDH DERAILLEUR HANGER
STANDARD STEEL HEADSET BEARINGS

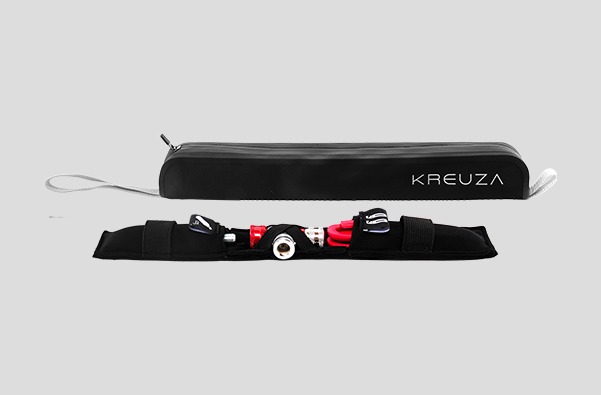

KREUZA INTERNAL TOOL BAG
CIMA GR
*The sizes listed are for reference only and represent common cases, as limb proportions vary among riders of the same height. To find your ideal fit, consult our customer service with details of your previous bike brand and size for personalized advice.
#evolve® CIMA GR

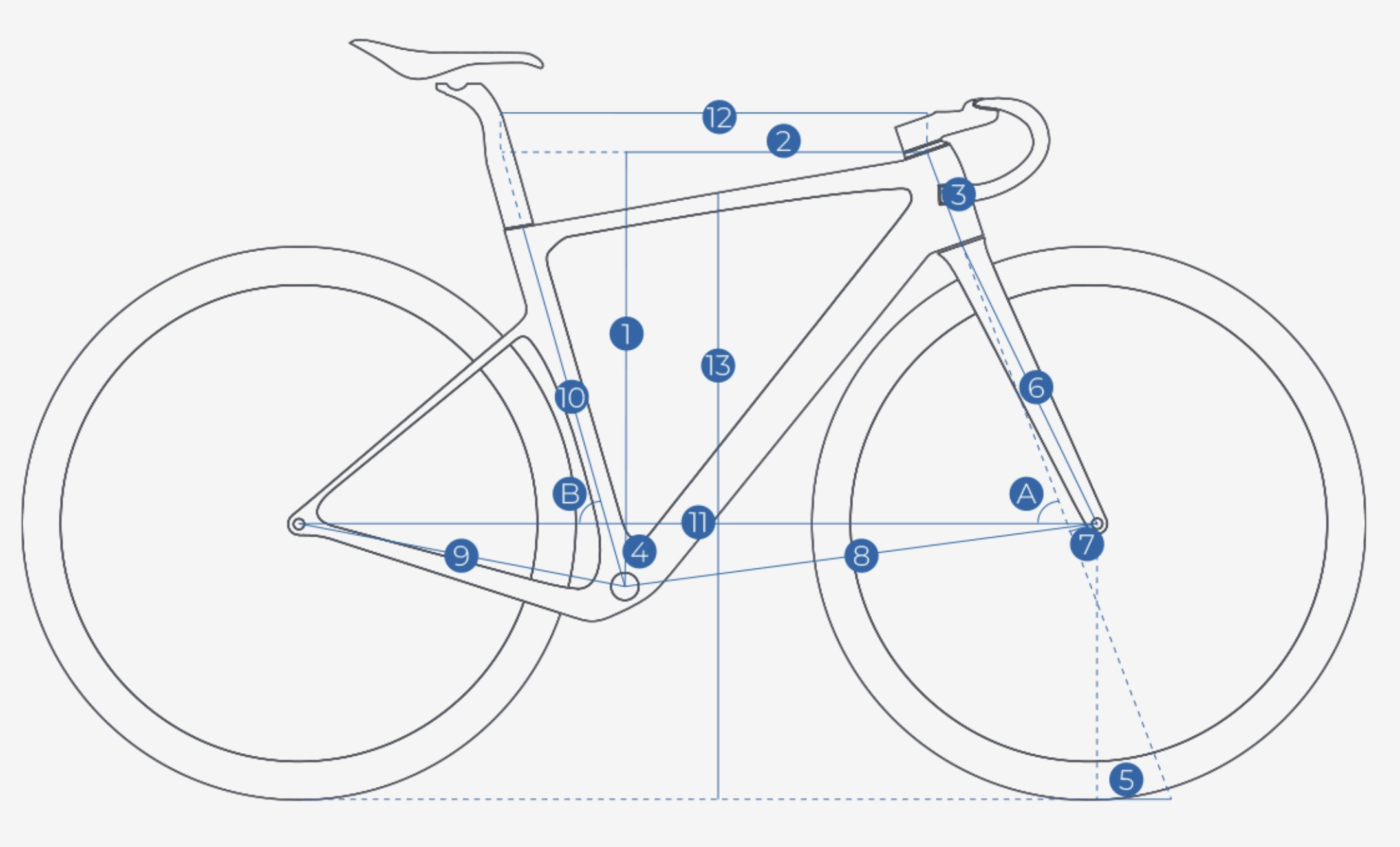

| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| HEIGHT (cm) | < 163 | 161–170 | 168–177 | 175–184 | 182–192 | > 190 |
| 1. STACK (mm) | 515 | 535 | 556 | 580 | 605 | 630 |
| 2. REACH (mm) | 365 | 375 | 384 | 393 | 402 | 410 |
| 3. HEAD TUBE LENGTH (mm) | 82 | 103 | 126 | 147 | 174 | 201 |
| A. HEAD TUBE ANGLE (°) | 70.5 | 70.75 | 71 | 71.75 | 72 | 72 |
| 4. BB DROP (mm) | 82 | 82 | 80 | 80 | 78 | 78 |
| 5. TRAIL-30C (mm) | 63 | 62 | 60 | 59 | 58 | 58 |
| 5. TRAIL-40C (mm) | 67 | 65 | 63 | 63 | 61 | 61 |
| 5. TRAIL-50C (mm) | 70 | 69 | 67 | 66 | 64 | 64 |
| 6. FORK LENGTH FULL (mm) | 395 | 395 | 395 | 395 | 395 | 395 |
| 7. FORK RAKE/OFFSET (mm) | 54 | 54 | 54 | 50 | 50 | 50 |
| 8. FRONT CENTER (mm) | 581 | 596 | 610 | 616 | 631 | 647 |
| 9. REAR CENTER (mm) | 425 | 425 | 425 | 425 | 425 | 425 |
| 10. SEAT TUBE LENGTH (mm) | 415 | 450 | 480 | 505 | 535 | 570 |
| B. SEAT TUBE ANGLE (°) | 75 | 75 | 74 | 74 | 73.5 | 73.5 |
| 11. WHEELBASE (mm) | 993 | 1007 | 1022 | 1028 | 1044 | 1060 |
| 12. TOP TUBE LENGTH (mm) | 503 | 518 | 543 | 559 | 581 | 597 |
| 13. STANDOVER HEIGHT-30C (mm) | 707 | 735 | 762 | 786 | 813 | 843 |
| 13. STANDOVER HEIGHT-40C (mm) | 717 | 745 | 772 | 796 | 823 | 853 |
| 13. STANDOVER HEIGHT-50C (mm) | 727 | 755 | 782 | 806 | 833 | 863 |
| Frame Size | Sahara Nude (Paintjob=55g) | Sailfish Pearl (Paintjob=70g) | (Upcoming) Turquoise Green (Paintjob=90g) | Components Weight (g) |
|---|---|---|---|---|
| XS | 795 | 810 | 830 | 180.2 |
| S | 805 | 820 | 840 | |
| M | 820 | 835 | 855 | |
| ML | 850 | 865 | 885 | |
| L | 890 | 905 | 925 | |
| XL | 940 | 955 | 975 |
CIMA GR Framset Specifications
Frame Sizes
XS \ S \ M \ML \ L \ XL
Material
T1100 & T800, M40
Fork
Offset 54mm (XS \ S \ M)
Offset 50mm (ML \ L\ XL)
Wheel Size
650B/700C
Tire Clearance
700×50C / 29er×2.0“
Max Chainring
1X: 50T | 2X: 48/31T (Shimano GRX) 50/34T (Shimano 105) 48/35T (SRAM ROAD)
Axle
Front: 12 x 100mm thru-axle
Rear: 12 x 142mm thru-axle
Frame Weight
750g (M-sized; unpainted)
Fork Weight
375g (Unpainted)

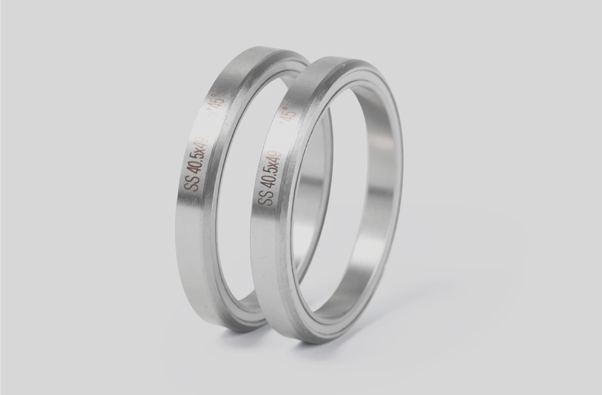

Headset Bearing
Standard Steel Bearings
40.5 mm ID x 49.5 mm OD x 6.5 mm
Seatpost Options
length / offset 310 mm / -5 mm 310 mm / 10 mm 310 mm / 25 mm 380 mm / -5 mm 380 mm / 10 mm 380 mm / 25 mm
Saddle Rail Clamps
7*7 / 7*9 / 7*10
Rotor Size
Front: 160 mm / 180 mm
Rear: 140 mm / 160 mm
Rider Weight Limit
109kg
Brake Type
Flat Mount Disc
Internal Cable Routing
1x Mechanical & Electronic Compatible
2x Electronic Drivetrain Only
Rear Derailleur Hanger
UDH Derailleur Hanger
Bottom Bracket
BSA 68mm
Certification
UCI Approved; CE Certified
Steerer Tube
28.6 mm (1 1/8")
Warranty
Limited lifetime warranty

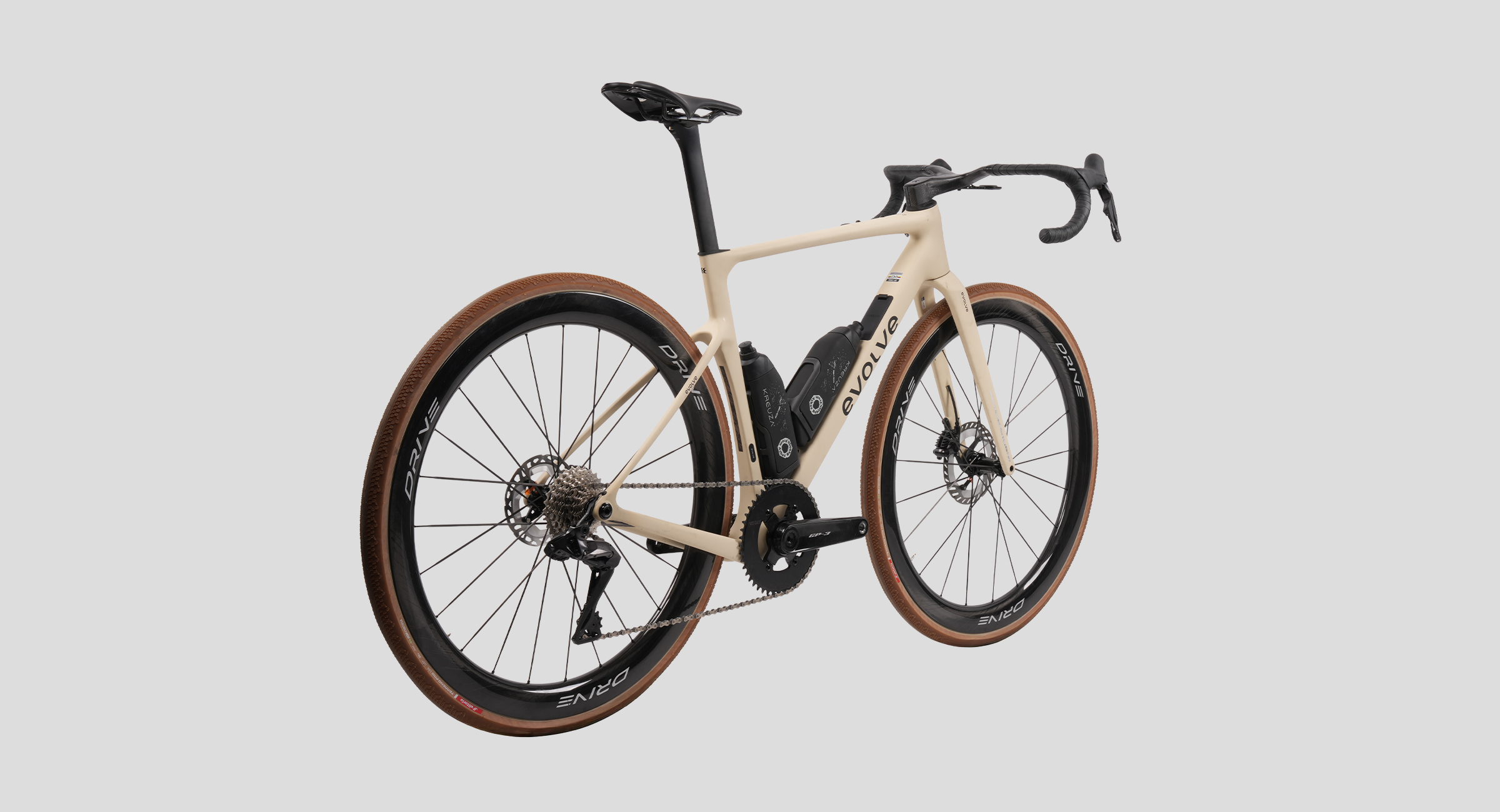

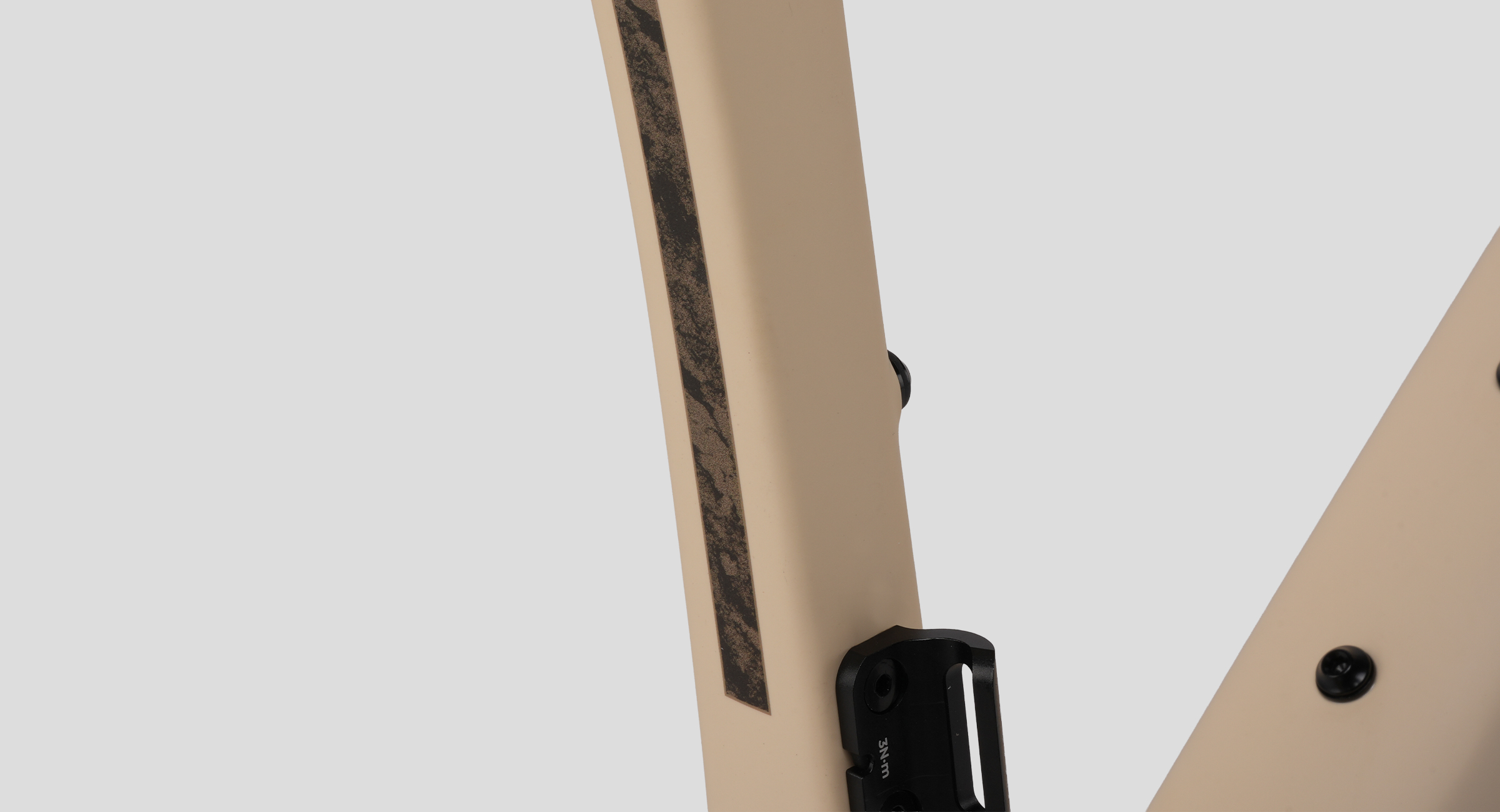

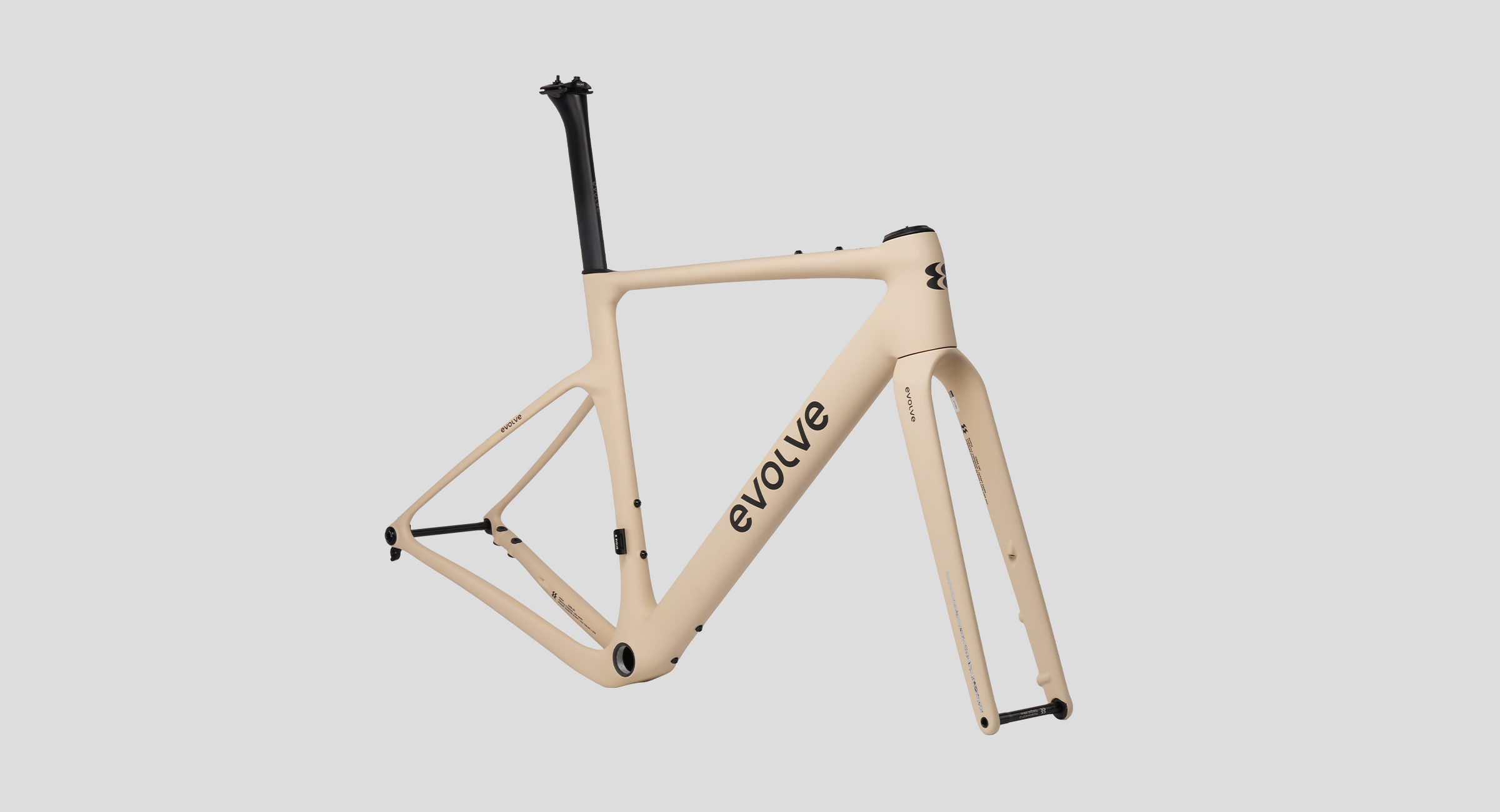

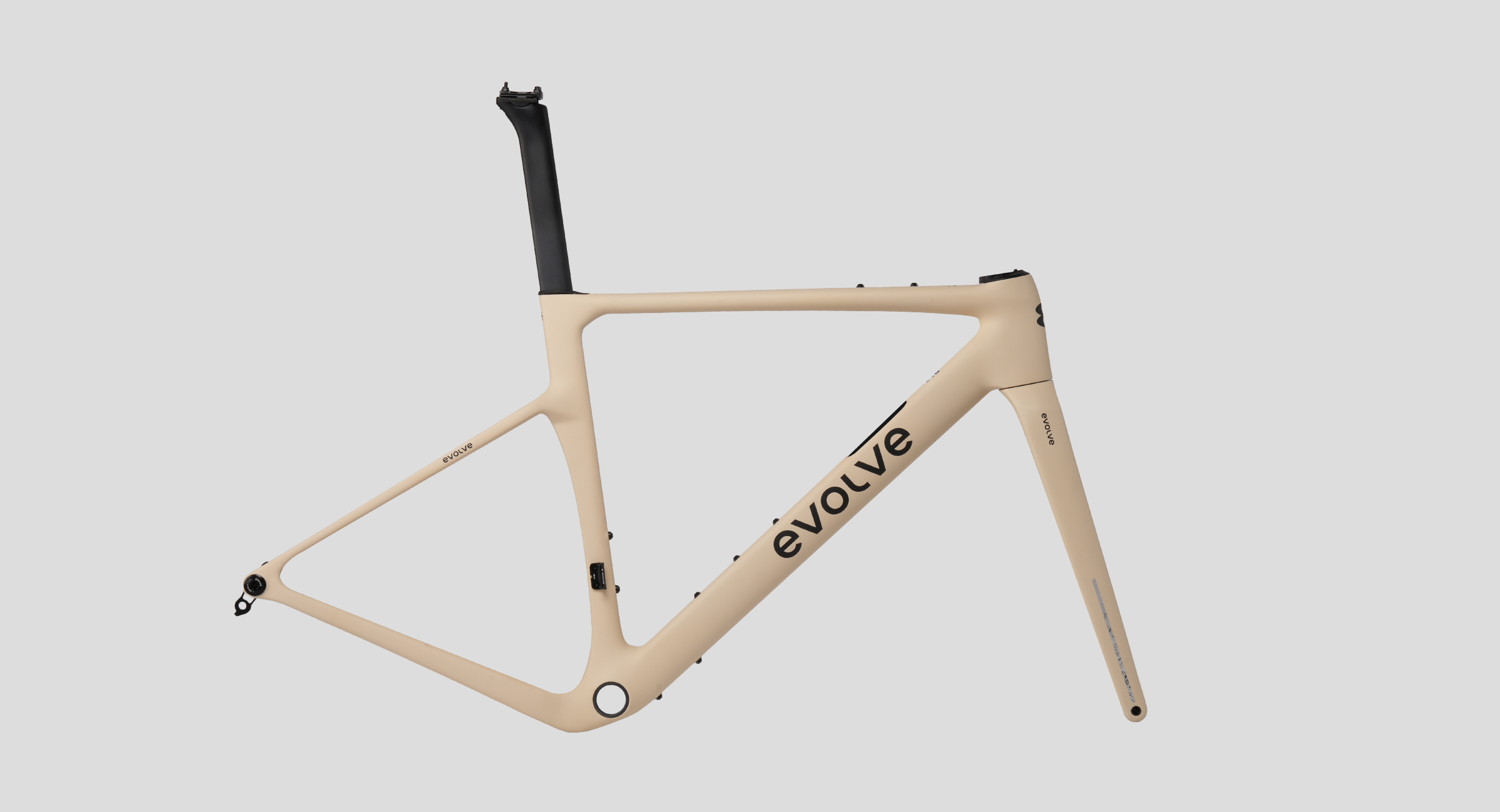

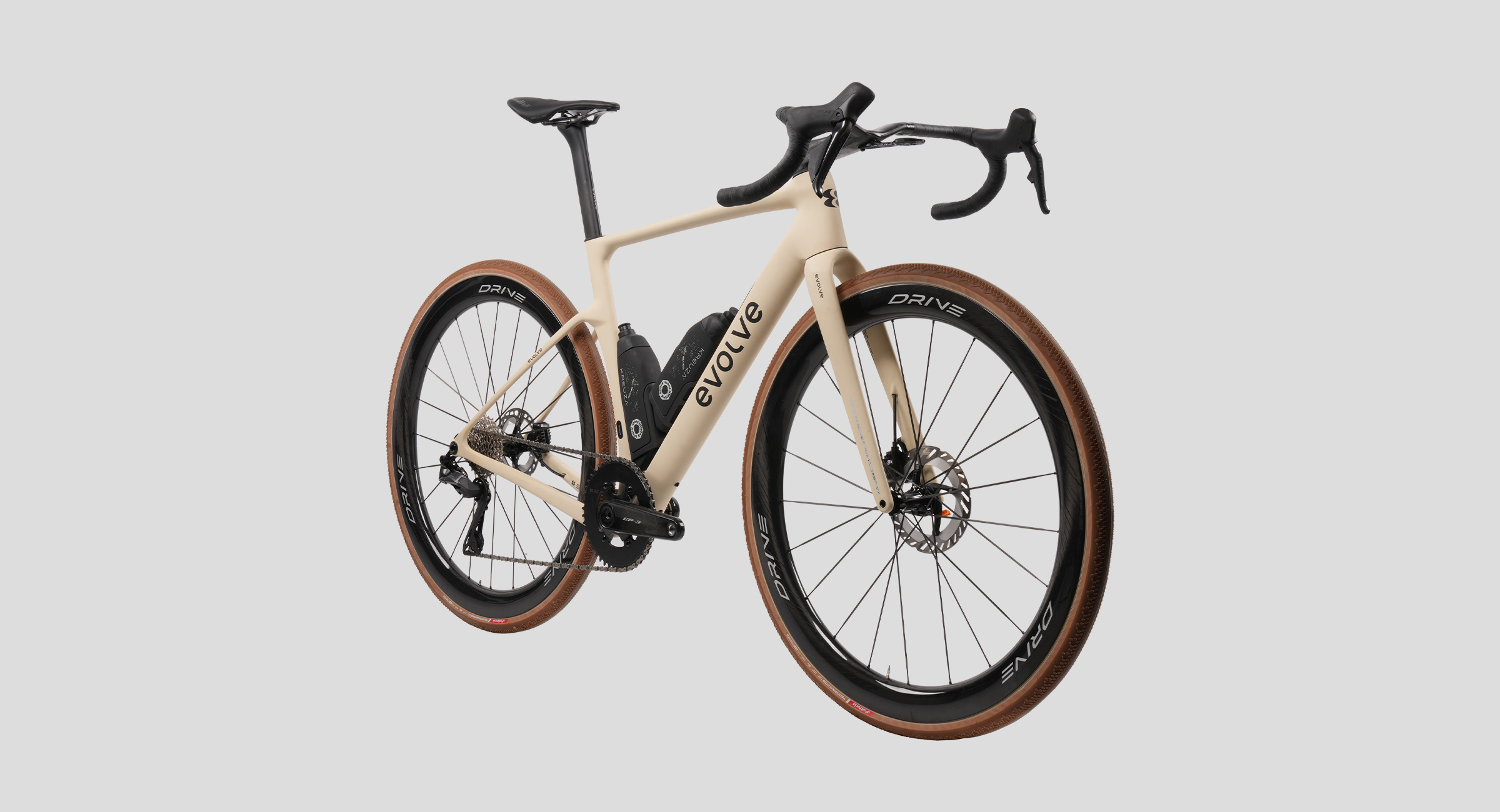

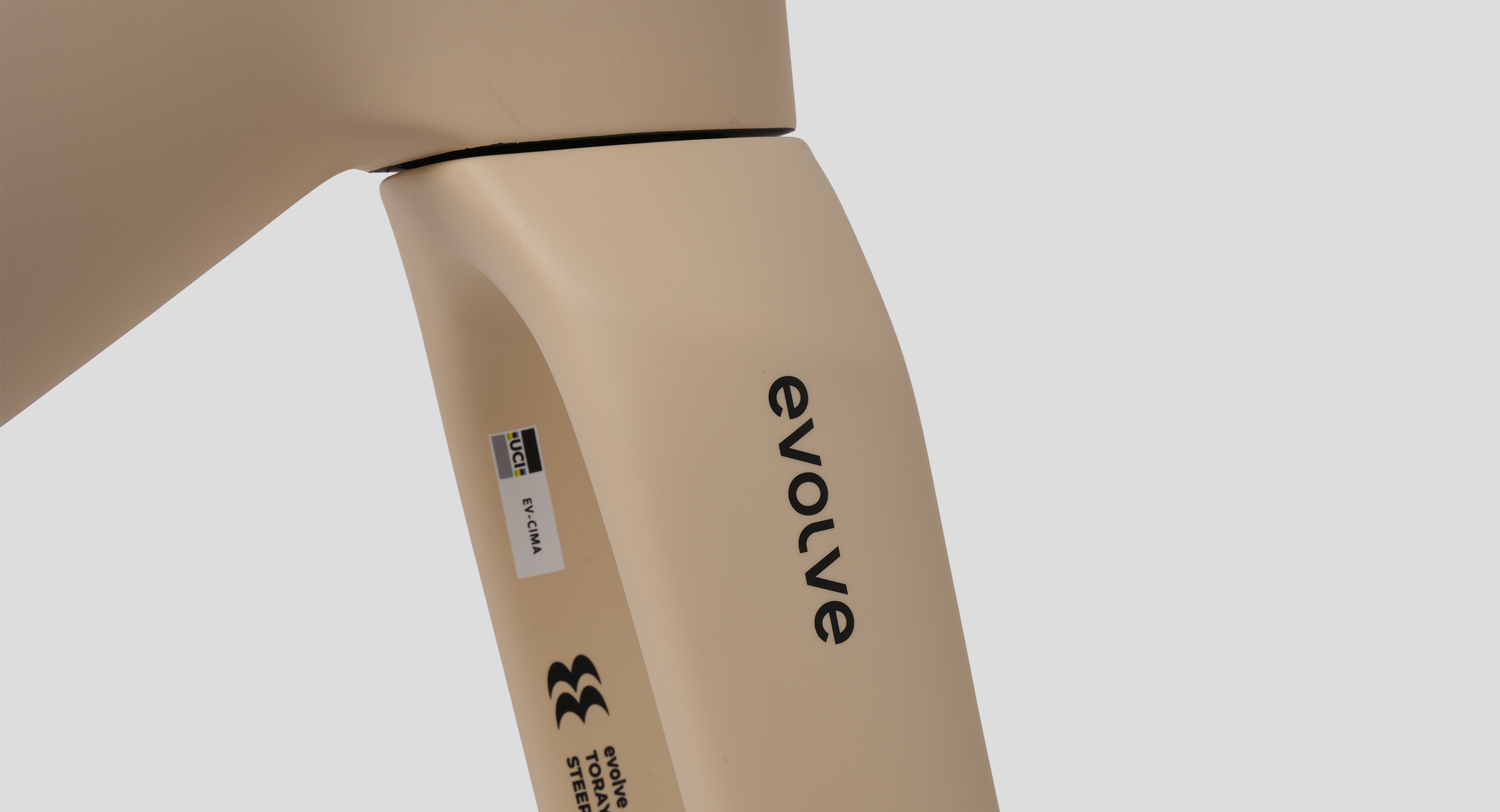

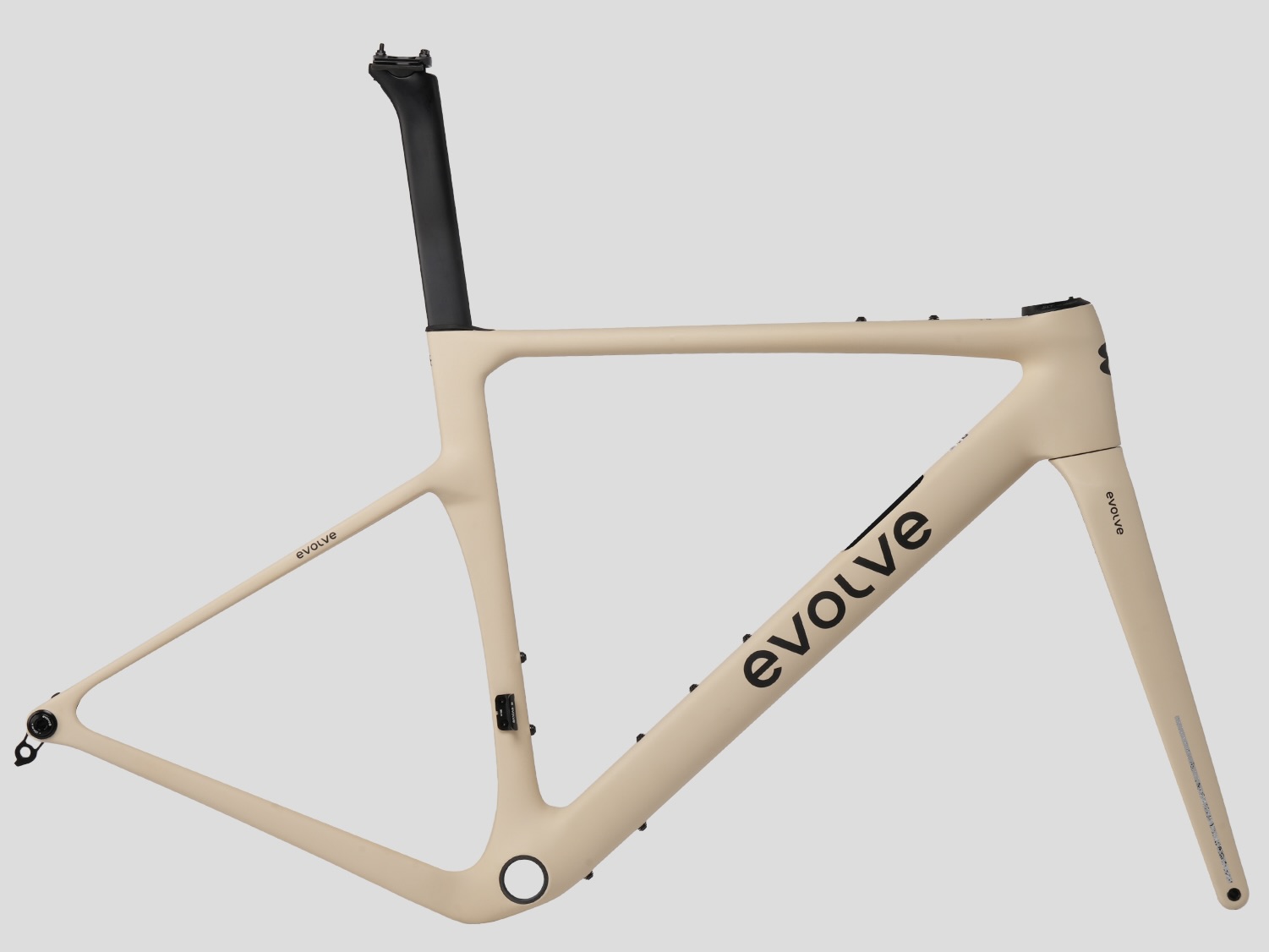

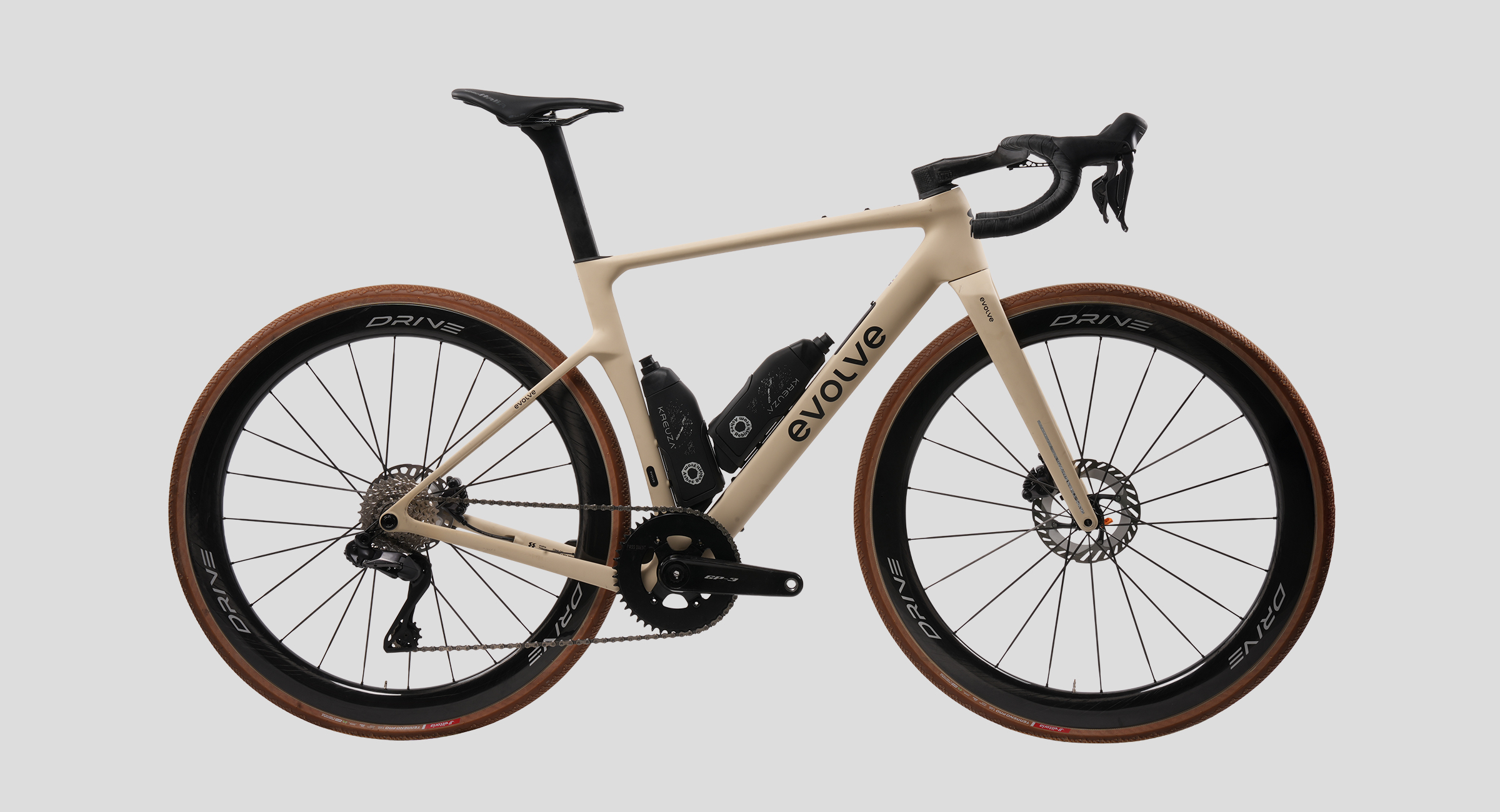

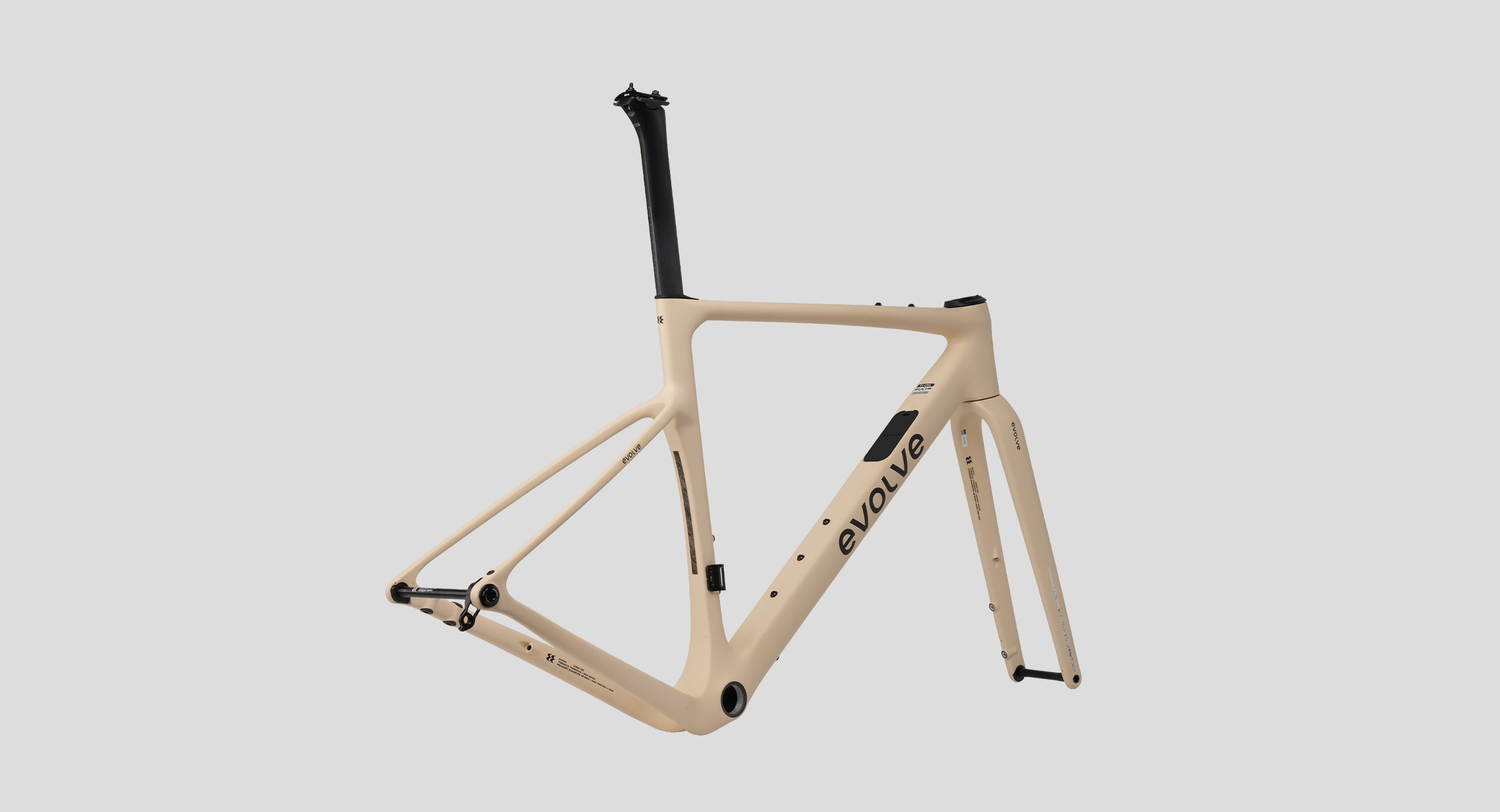

CIMA GR - Sahara Nude

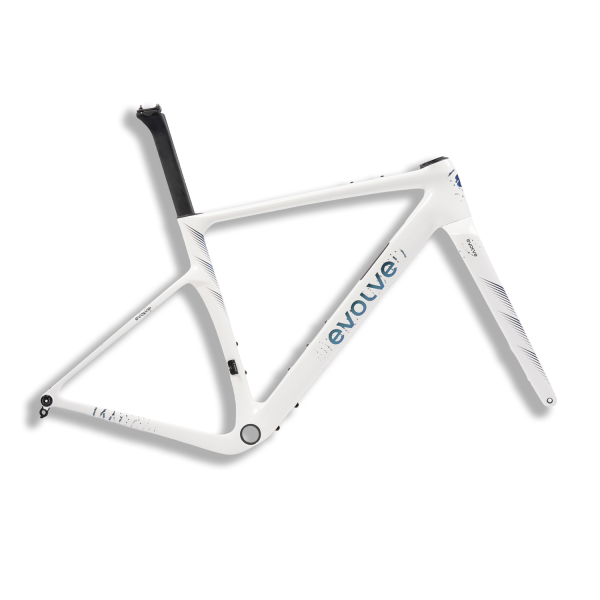

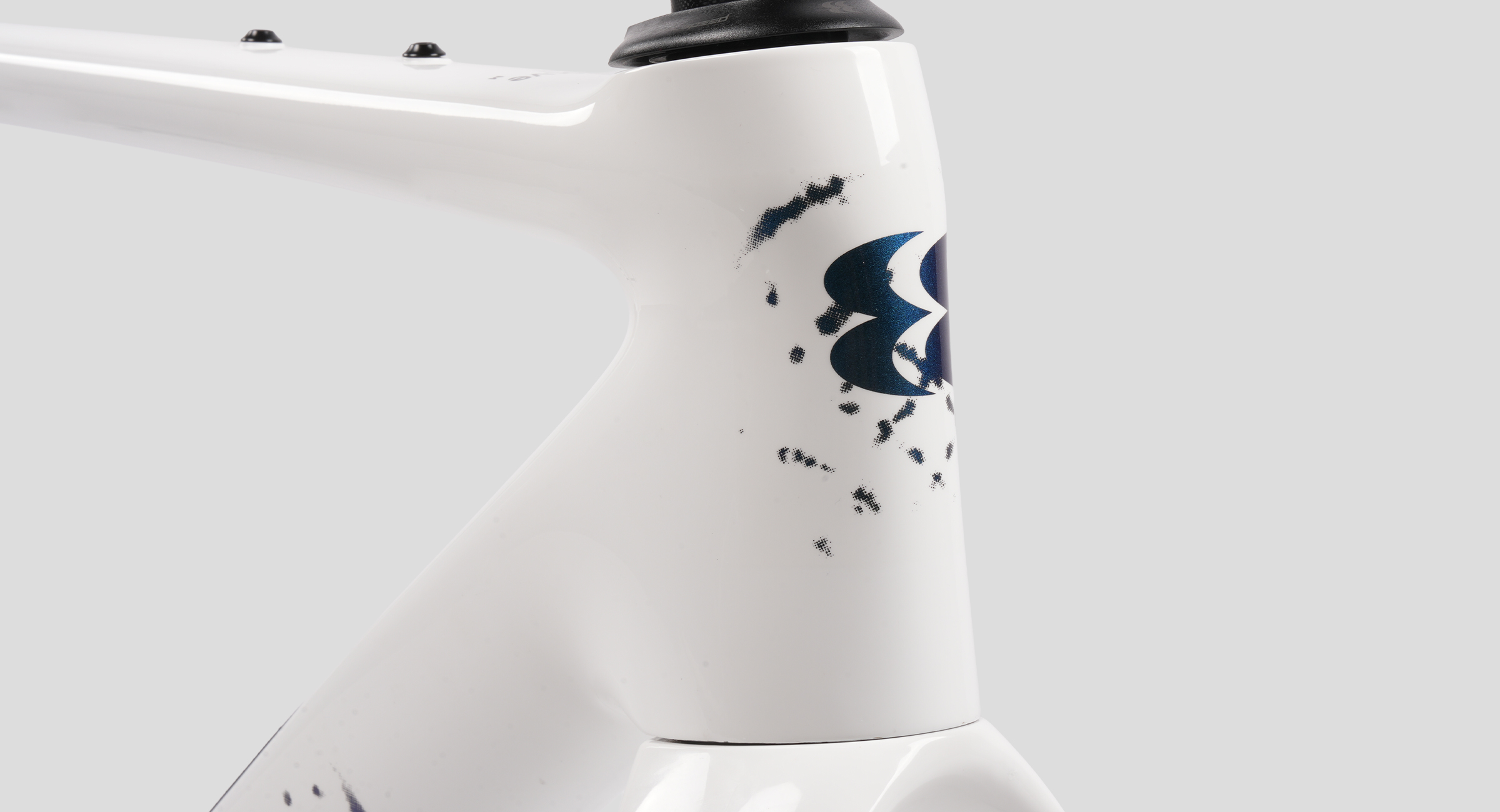

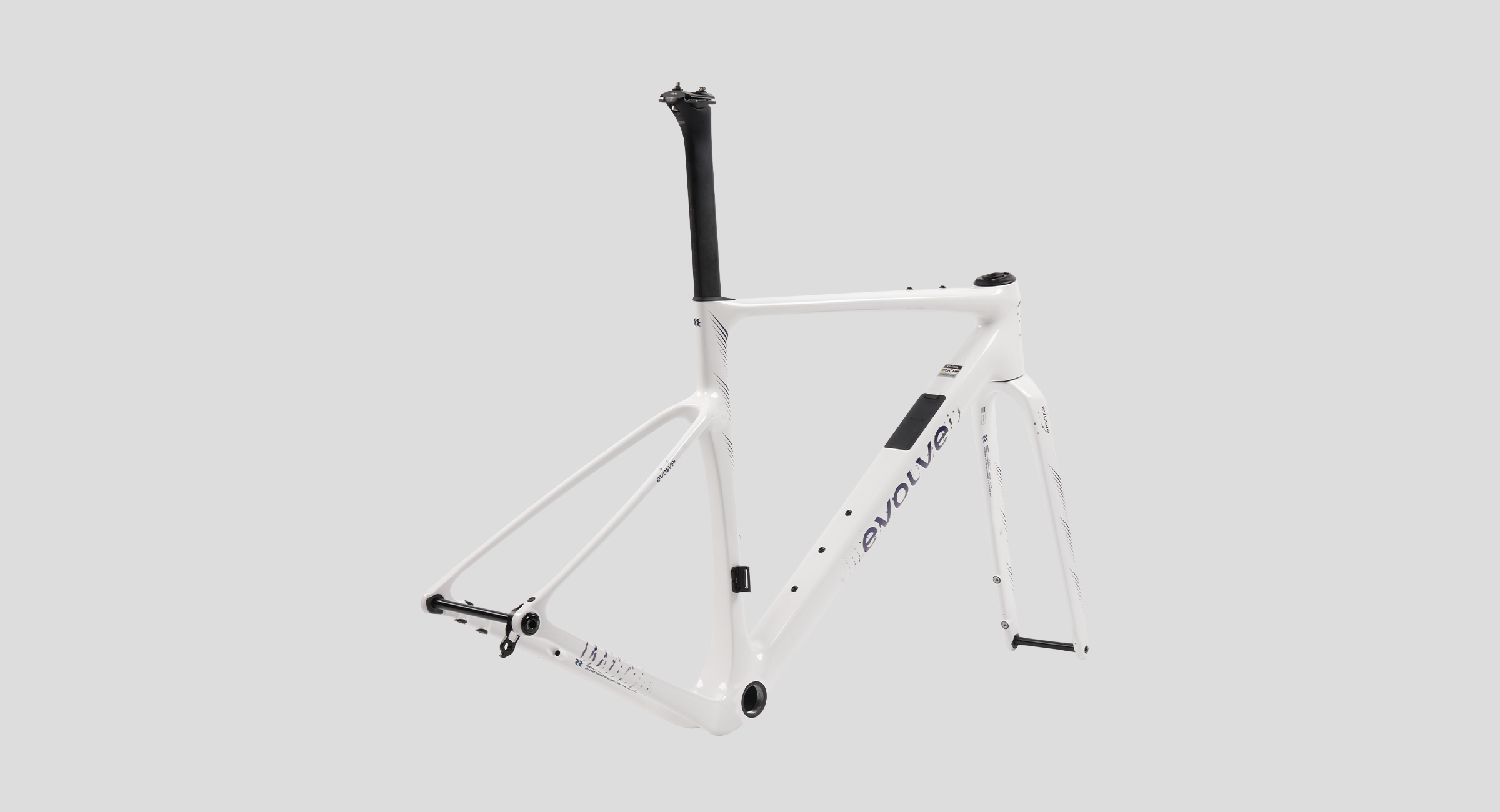

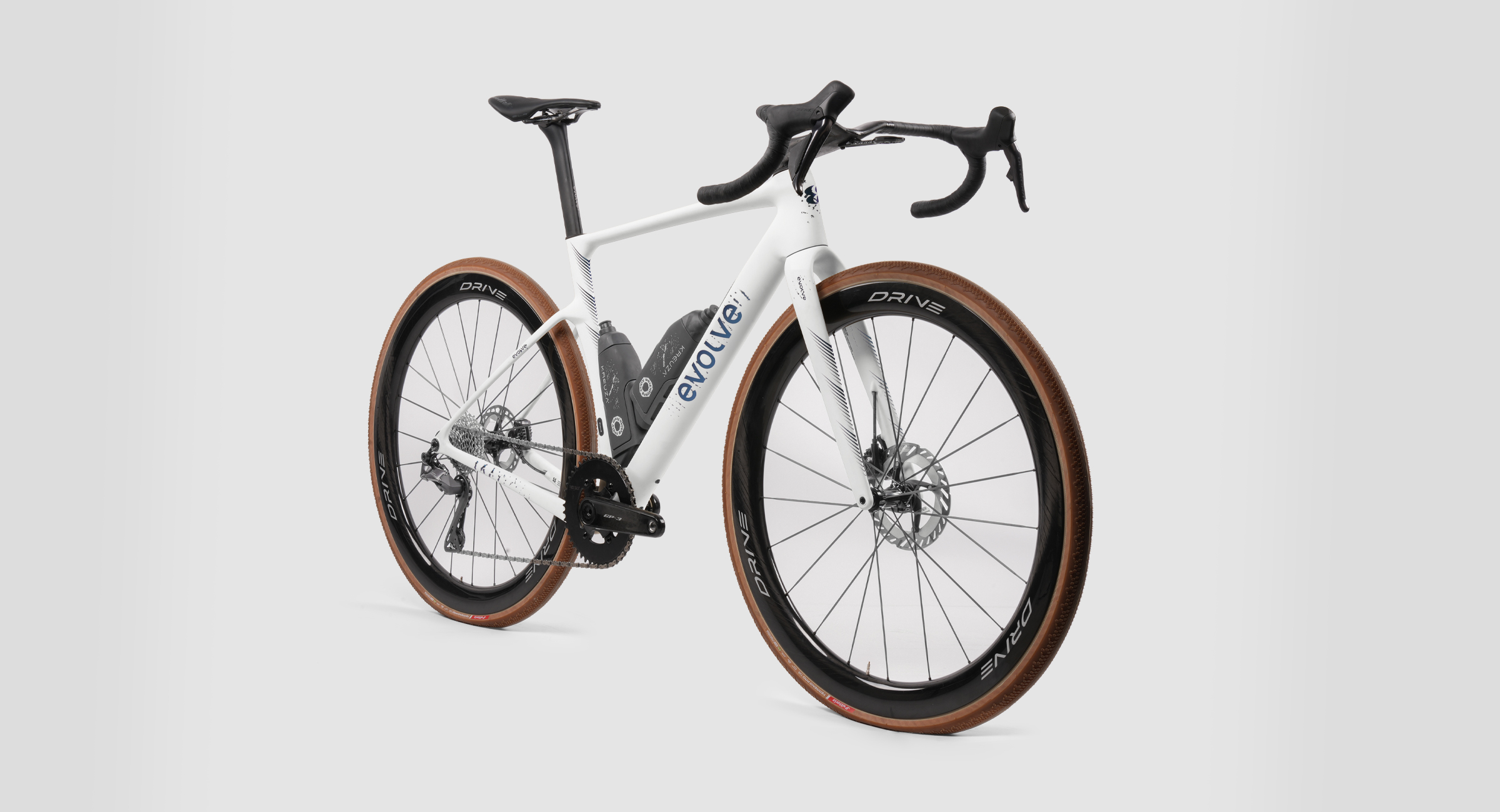

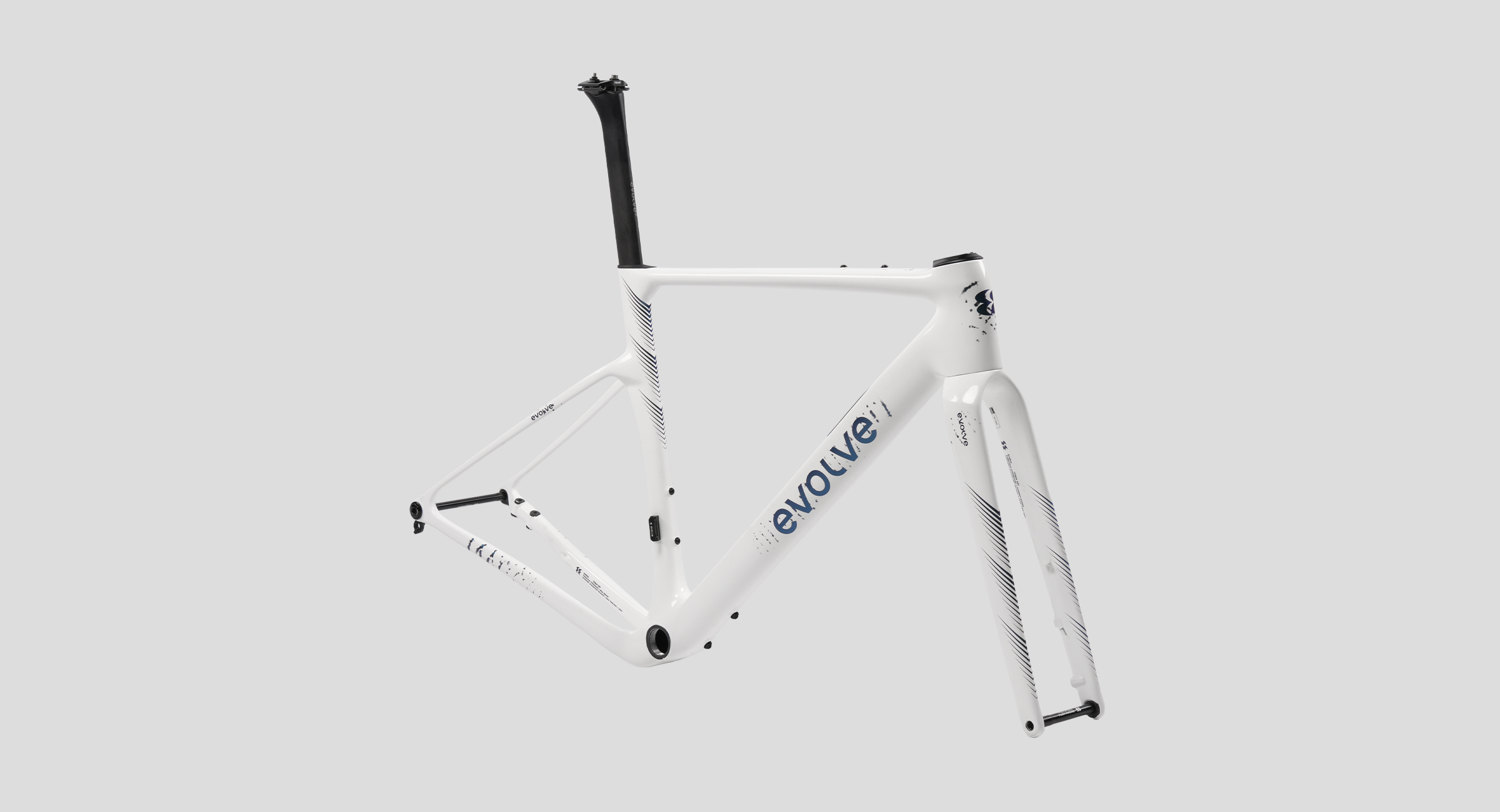

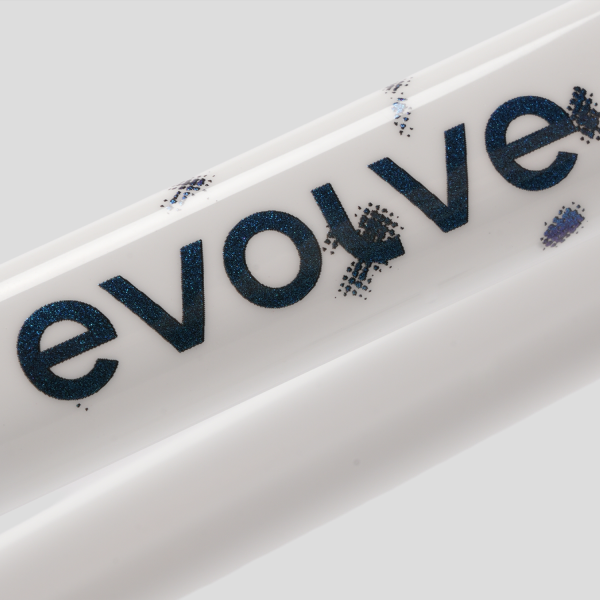

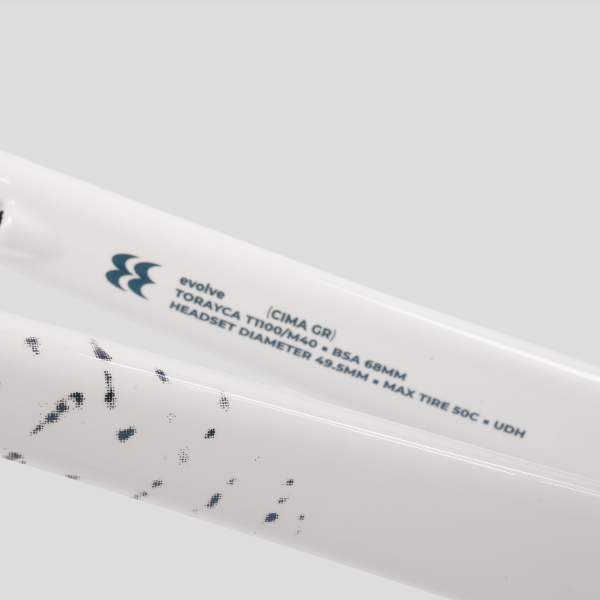

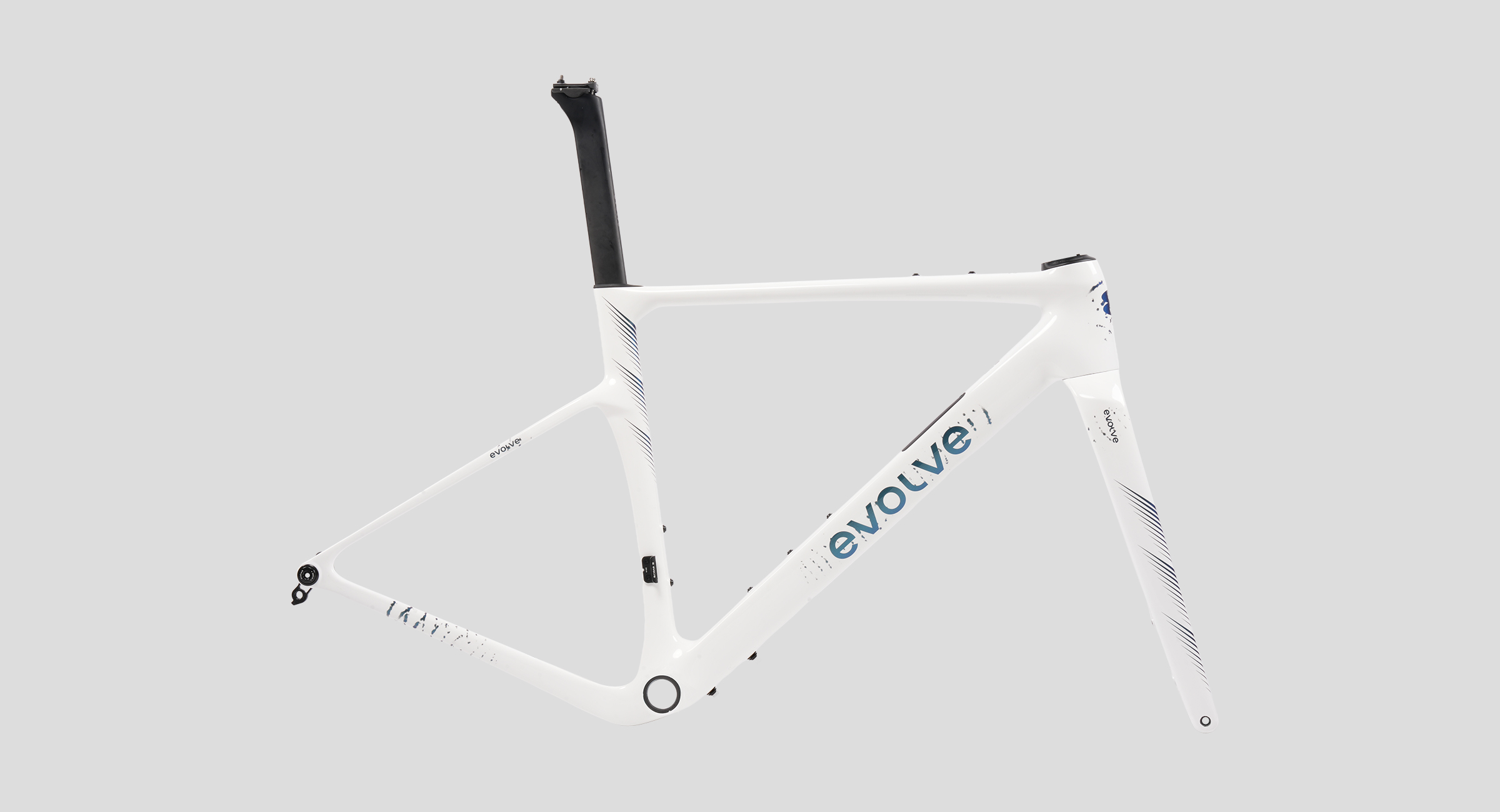

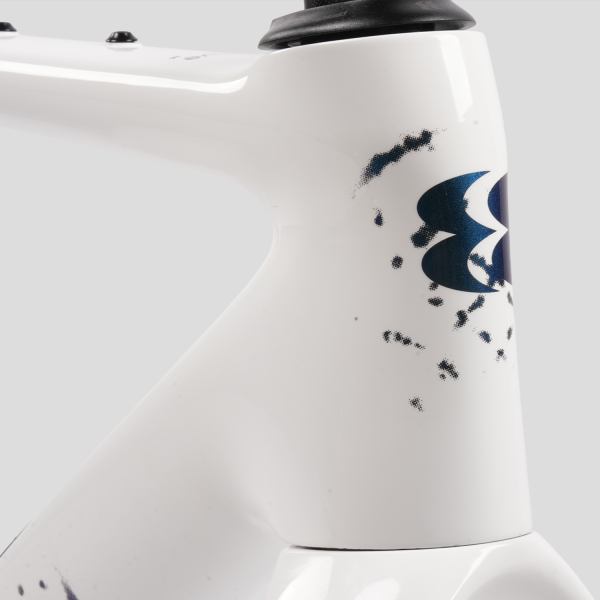

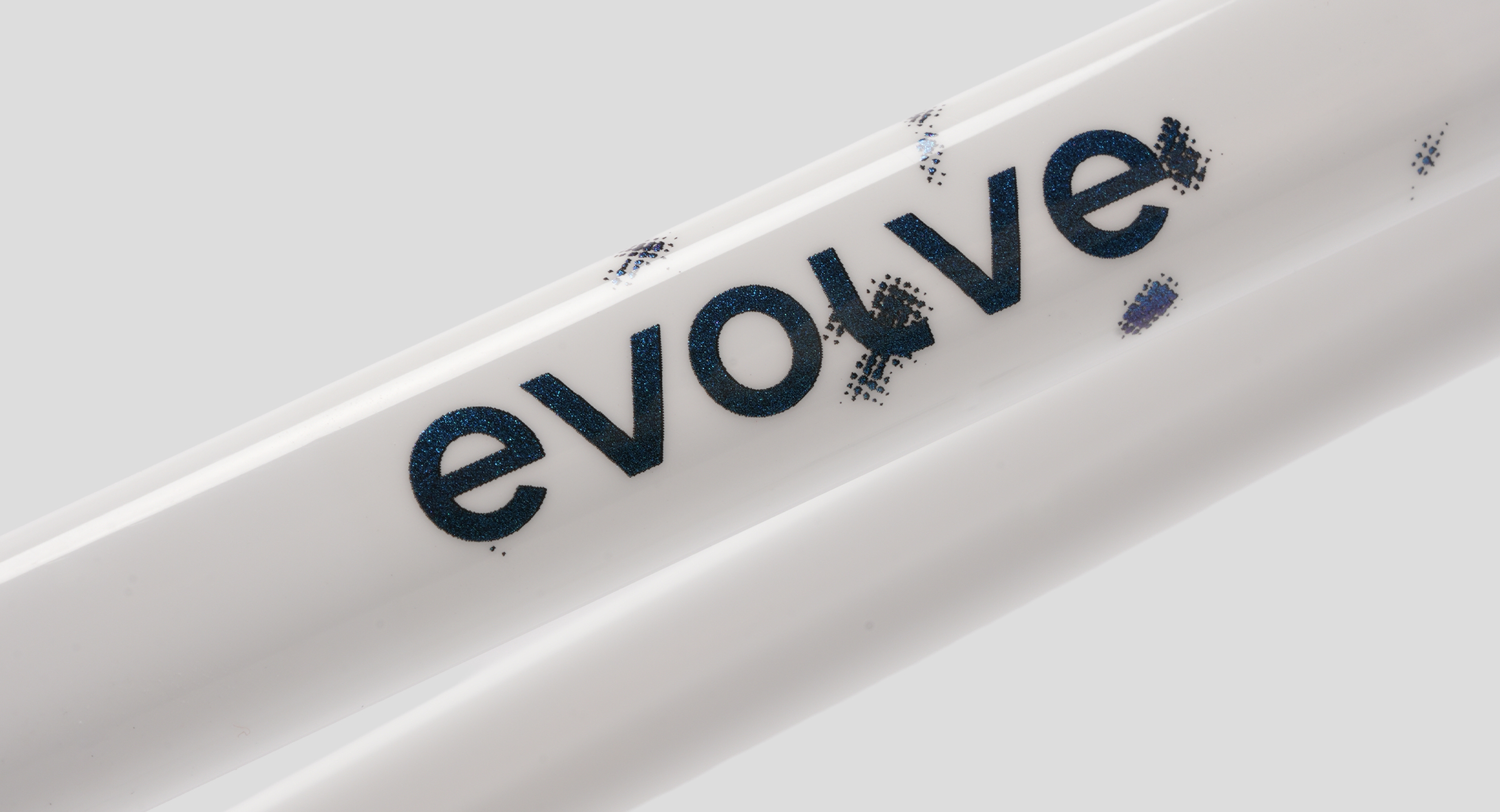

CIMA GR - Sailfish Pearl
Additional information
| Size | XS, S, M, ML, L, XL |
|---|---|
| Color | CIMA GR – Sahara Nude, CIMA GR – Sailfish Pearl |
| Seatpost Size | 310(length)*-5(5mm forward), 310(length)*10(10mm setback), 310(length)*25(25mm setback), 380(length)*-5(5mm forward), 380(length)*10(10mm setback), 380(length)*25(25mm setback) |
