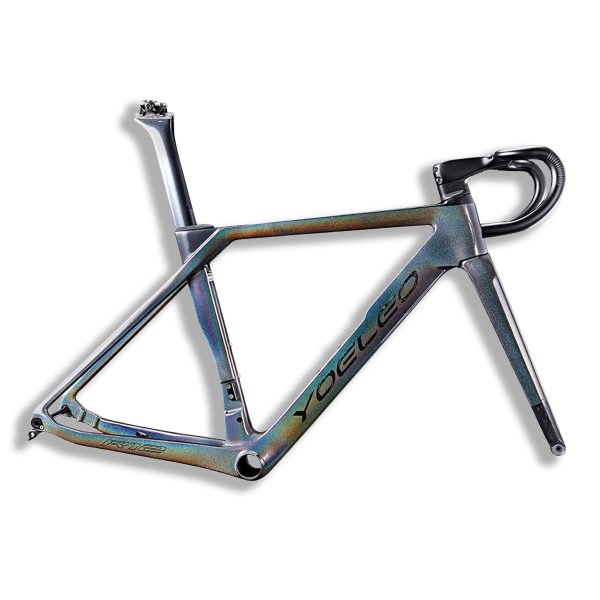

YOELEO R12 Disc Brake Bike Frameset
$1,420.00
“YOELEO R12: AERODYNAMIC DESIGN FOR UNRIVALED SPEEDS”
- Material: Toray 800 Carbon
- Color: Hemidium / Emerald Green / Custom Painting
- Weight: Hemidium 1020g / Emerald Green 1030g / Raw 970g (+/-50g, all 47cm)
- Fork Weight: 400g (+/-10g)
- Max Tire Width: 32mm
- BB386 bottom bracket
- Fully integrated, Machine and Di2 compatible
- UCI approved
- Handlebar length: 90mm/100mm/110mm/120mm
- Handlebar width: 380mm/400mm/420mm/440mm
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description
YOELEO R12 DB Disc Brake Bike Frameset
R12 Gallery (some of the colors are out of stock, please contact us before ordering）
Sizing and Geometry
| Size | Rider Height | 155cm-163cm | 160cm-168cm | 165cm-173cm | 170cm-178cm | 175cm-183cm | 180cm-188cm | 185cm-193cm |
|---|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 430 | 450 | 470 | 490 | 510 | 530 | 560 |
| B | TOP TUBE LENGTH (mm) | 505 | 516 | 528 | 540 | 552 | 567 | 582 |
| C | REACH (mm) | 370.6 | 375.9 | 378.6 | 381 | 386 | 388.2 | 393 |
| D | STACK (mm) | 501.6 | 505 | 520.9 | 536.9 | 550 | 567.2 | 581.6 |
| E | HEAD TUBE LENGTH (mm) | 100 | 100 | 115 | 130 | 145.7 | 160 | 175 |
| F | SEAT TUBE ANGLE | 75° | 74.5° | 74.0° | 73.5° | 73° | 72.5° | 72.0° |
| G | HEAD TUBE ANGLE | 70.5° | 71.5° | 72° | 72.5° | 73° | 73° | 72° |
| H | BOTTOM BRACKET | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| I | CHAIN STAY LENGTH (mm) | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| J | FRONT CENTER (mm) | 572.9 | 570.7 | 574.2 | 577.1 | 583.5 | 588.9 | 598.1 |
| K | WHEELBASE (mm) | 977 | 974.8 | 978.3 | 981.3 | 987.6 | 993.2 | 1002.4 |
| L | FORK RAKE (mm) | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| M | FORK LENGTH (mm) | 371 | 371 | 371 | 371 | 371 | 371 | 371 |
Specification
Frameset: R12 Frame+Fork+Handlebar+Seatpost
Frame Sizes: 43cm, 47cm, 50cm, 52cm, 54cm, 56cm, 59cm
Handlebar Size: 380mm, 400mm, 420mm, 440mm
Stem Size: 90mm / 100mm / 110mm / 120mm
Material: High Modulus Toray 800 Carbon Fiber
Color: Hemidium / Emerald Green / Custom Painting
Carbon Weave: UD
Groupset Compatible: Machine and Di2 compatible
BB: BB386
Rear Dropout: 12*142 Thru Axle
Rear Derailleur Hanger: Replaceable
Headtube: 1-1/2” Straight
Fork: Aero Disc Brake Fork, Flat Mount, 12*100 Thru Axle
Tapered Steerer Tube: 1 1/8" Top, 1 1/2" Crown
Fork Offset: 45˚
Brake: Flat Mount Disc Brake
Max Tire Width: 32mm
Cable: Internal cable
Frame Weight:
Hemidium 1020g (47cm) ±50g
Emerald Green 1030g (47cm) ±50g
Raw 970g (47cm) ±50g
Fork Weight: 400g ±10g
Accessories: Handlebar Spacers 3mm: 1PC, 5mm: 1PC, 10mm: 2PCS, Headset Bearing Cap 10mm: 1PC
Front Axle 1PC, Rear Axle 1PC
Limited Rider Weight: 110KG
Optional for H9 Intergrated Handlebar
| Handlebar Type | Road Bike Handlebar |
| Handlebar Material | 100% Carbon Fiber T800 |
| Finish | UD Matt |
| Decal | Black Glossy |
| Handlebar Stem | 90/100/110/120mm |
| Handlebar Width | 380/400/420/440mm (Drop width) |
| Angle | -7° |
| Reach | 80mm |
| Drop | 125mm |
| Steer Diameter | 28.6mm Compatible |
| Cable Type | Inner Cable / Outer Cable |
| Weight | 400g ± 15g |
| Comes with | Computer Holder, Spacers for rounded 1 1/8 inch (28.6mm) steerer, Top cap and outer cable bearing cover. |
| Standard | EN Standard |
Additional information
| Frame Size | 43cm, 47cm, 50cm, 52cm, 54cm, 56cm, 59cm |
|---|---|
| Frame Color | Emerald Green, Hemidium |
Brand
YOELEO
| Brand Name: YOELEO | Chinese Company Name:厦门优利奥体育用品有限公司 |
| Founded: 2011 | # of Employees: 36 |
| Headquarters: Xiamen, Fujian | Products Categories: Wheels, Frames |
