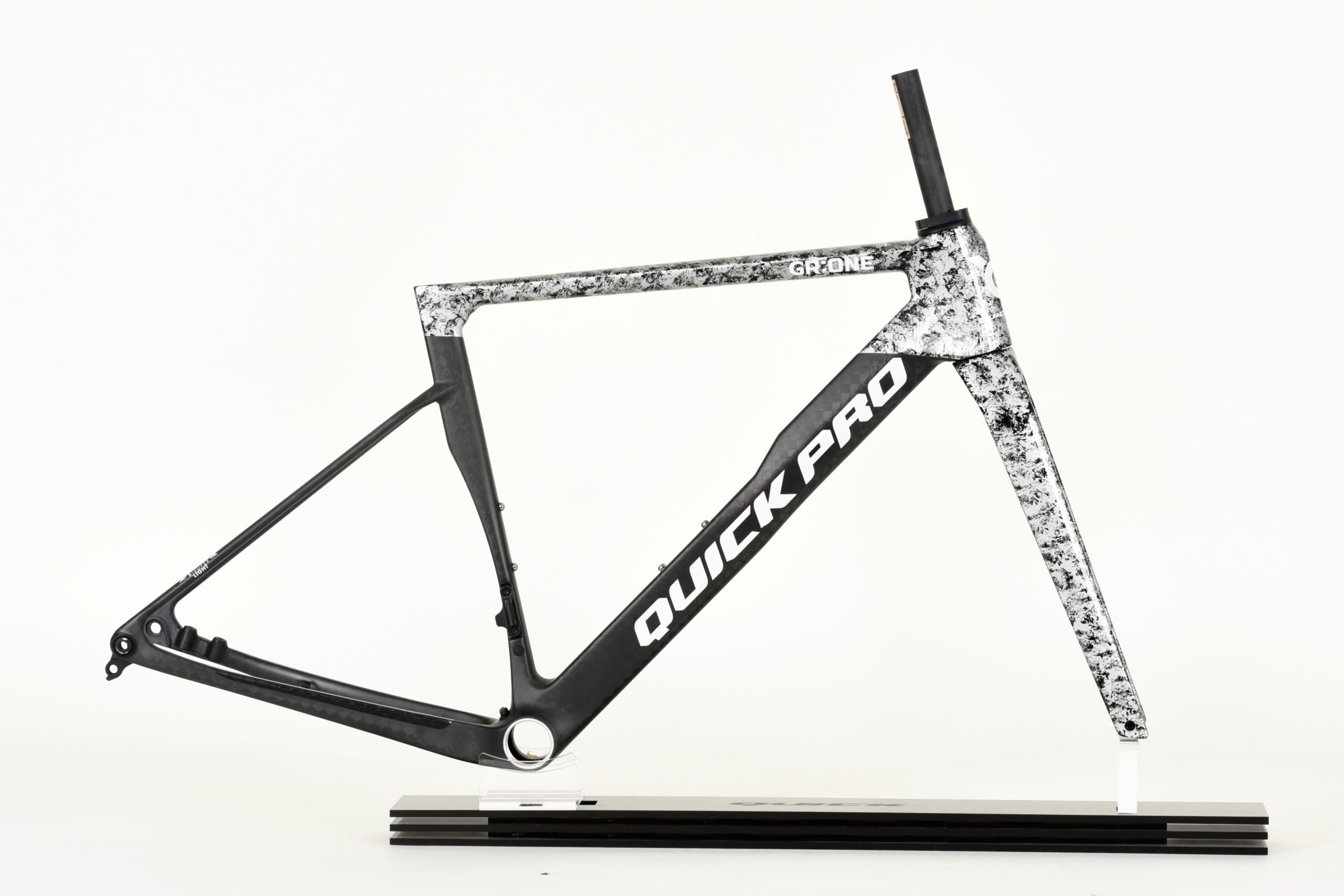

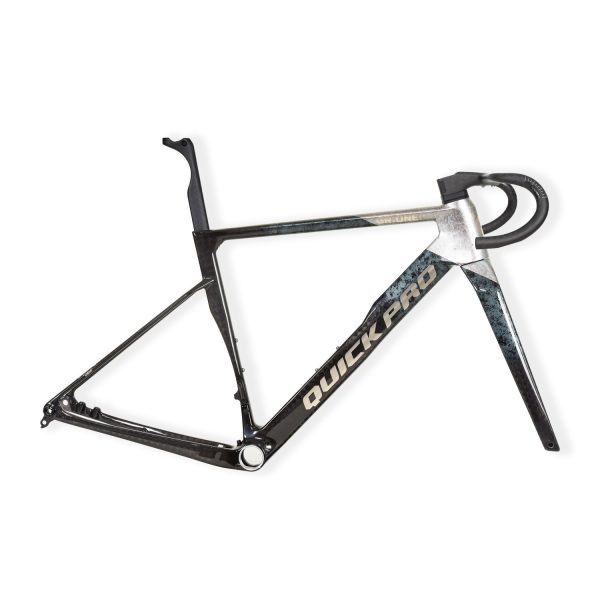

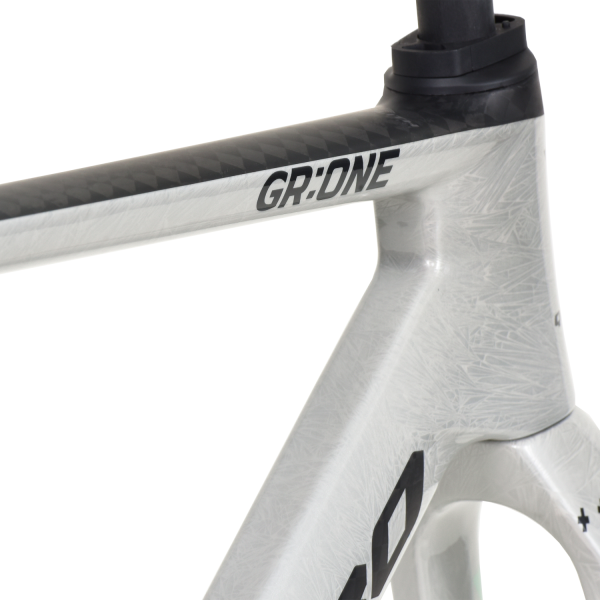

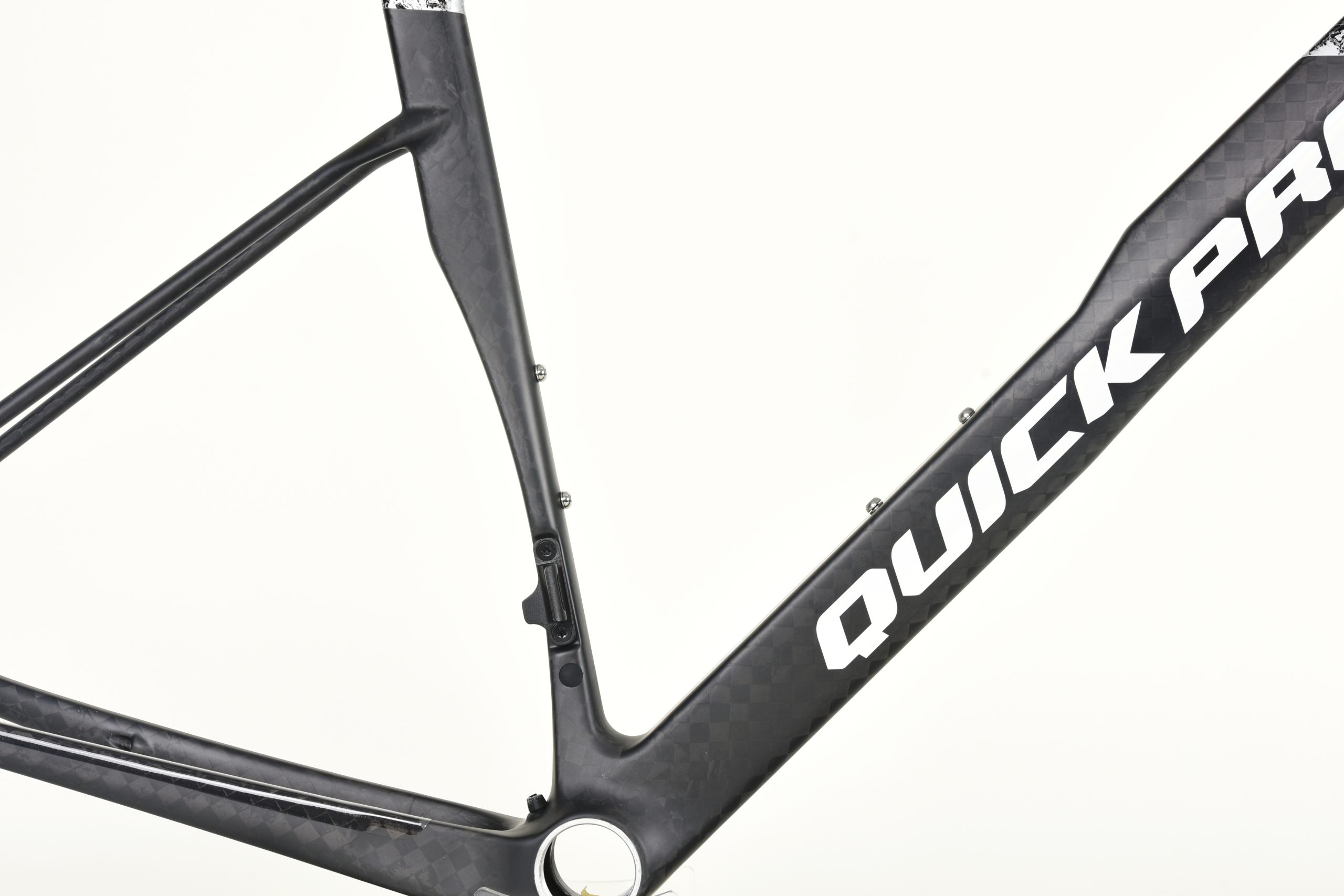

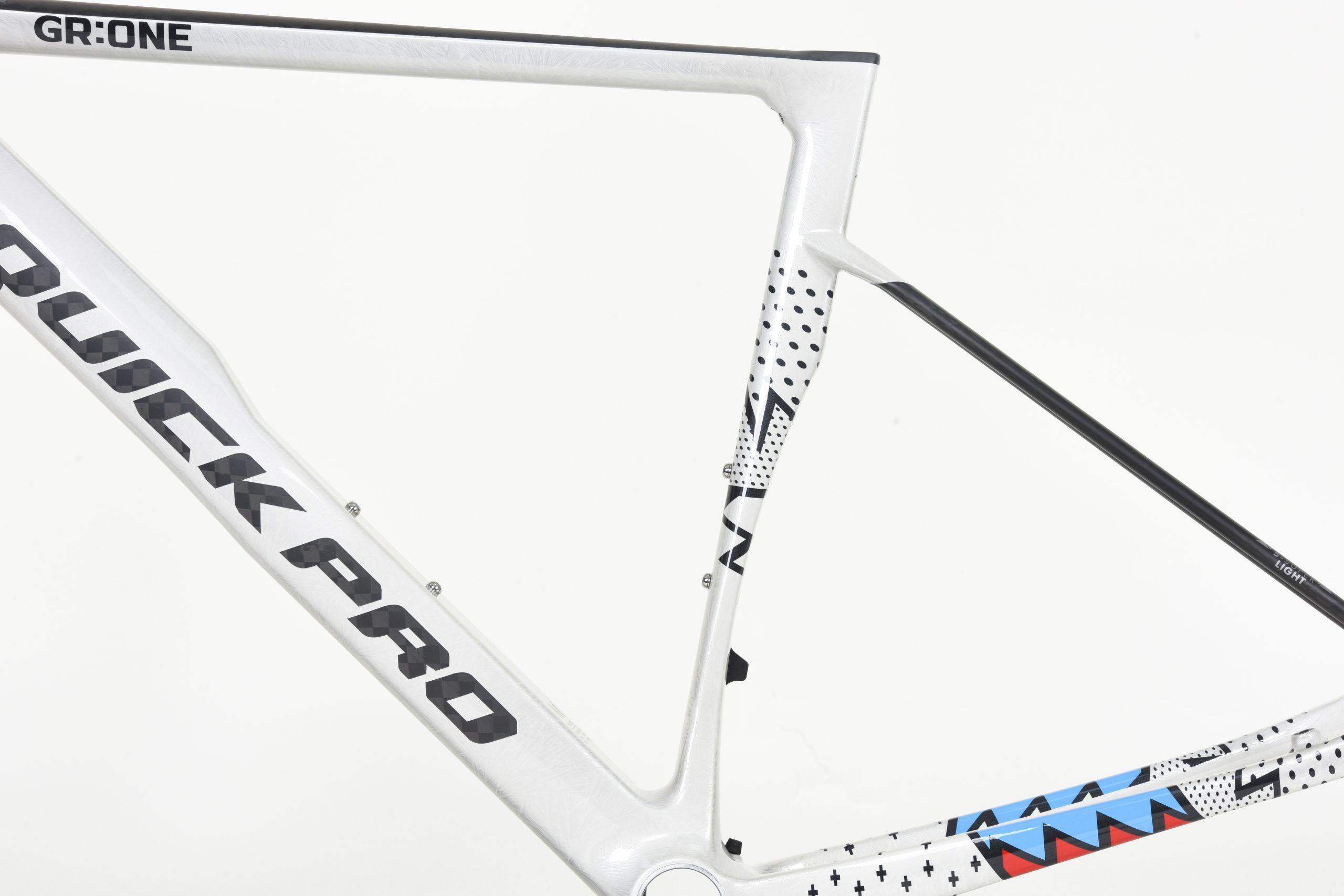

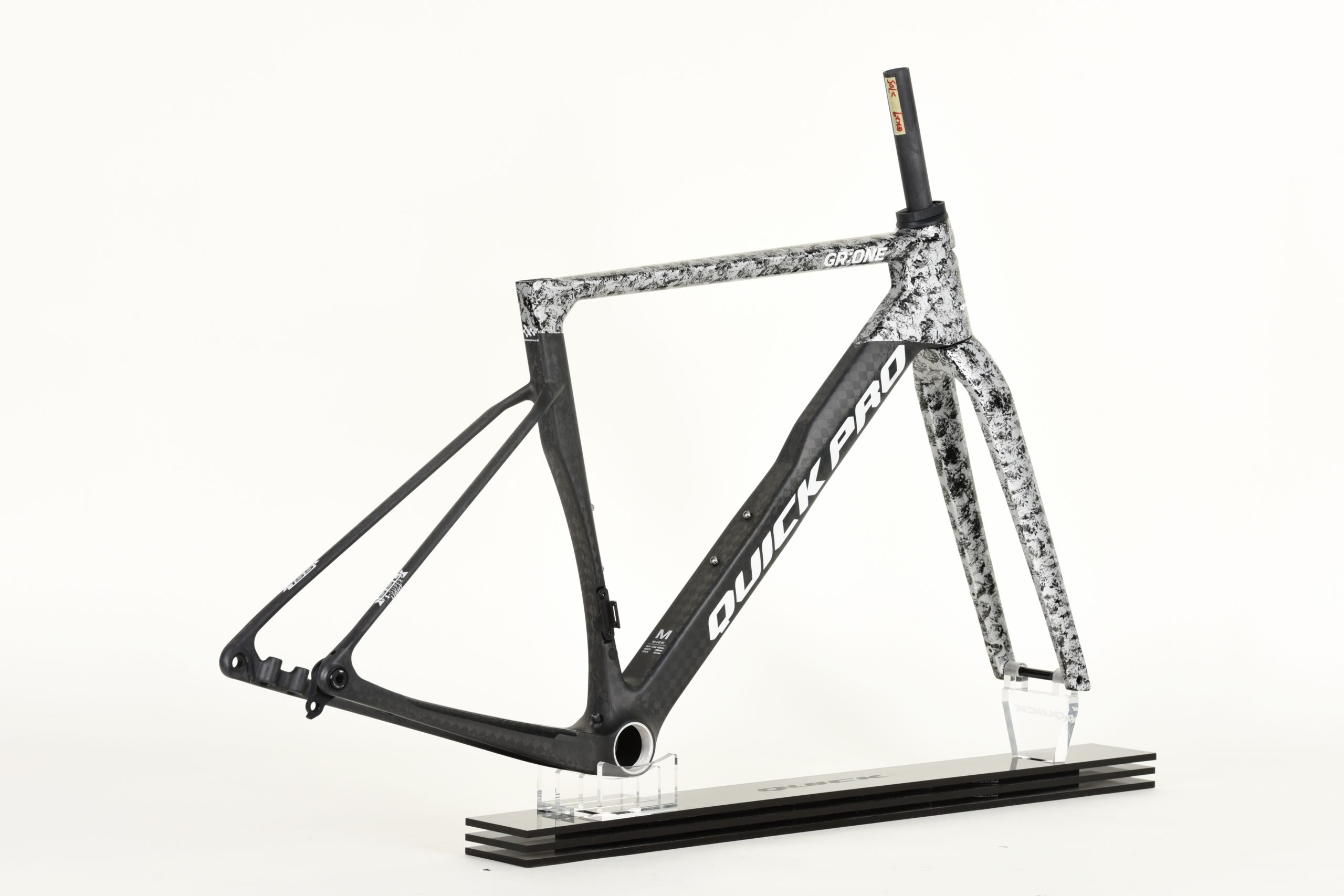

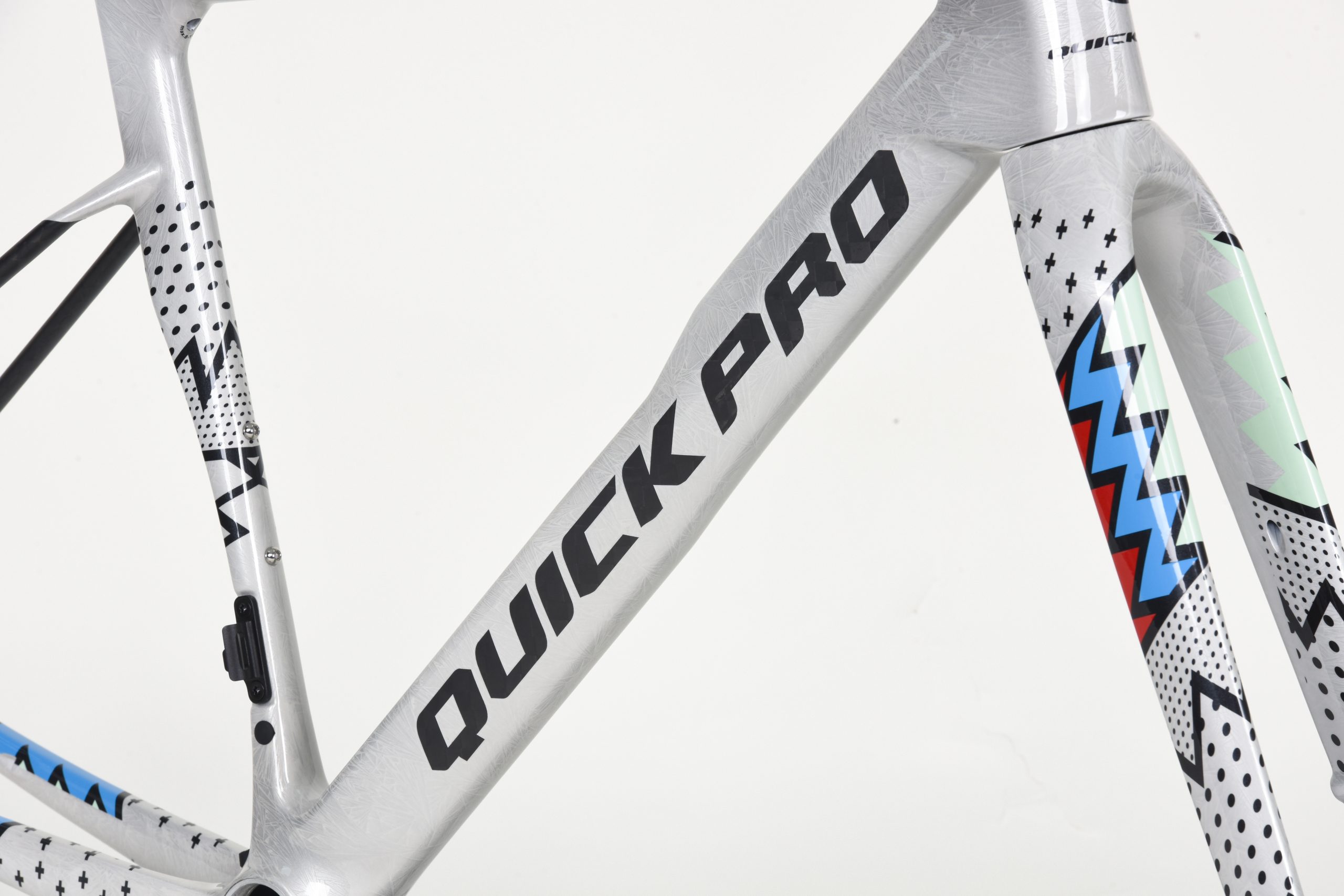

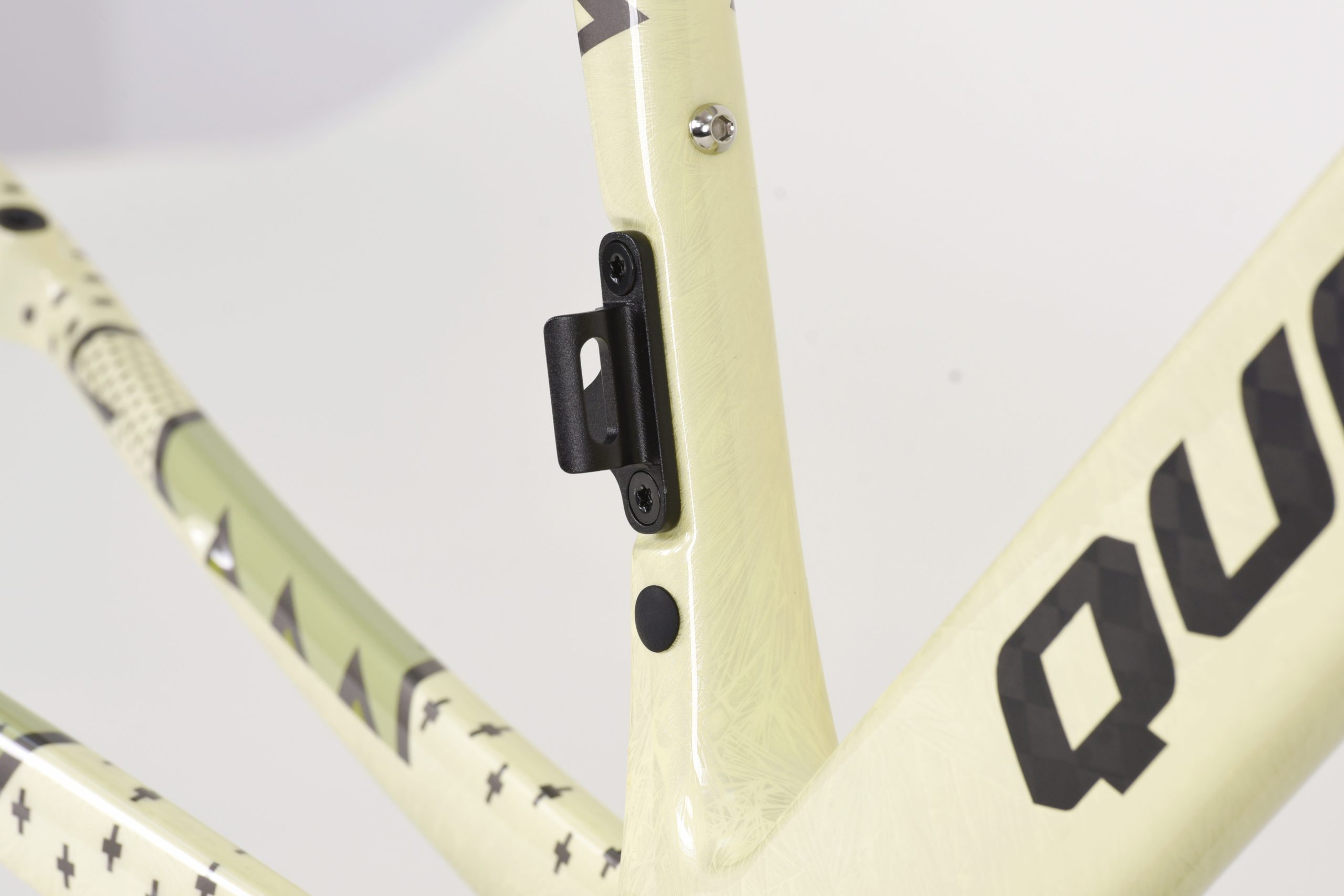

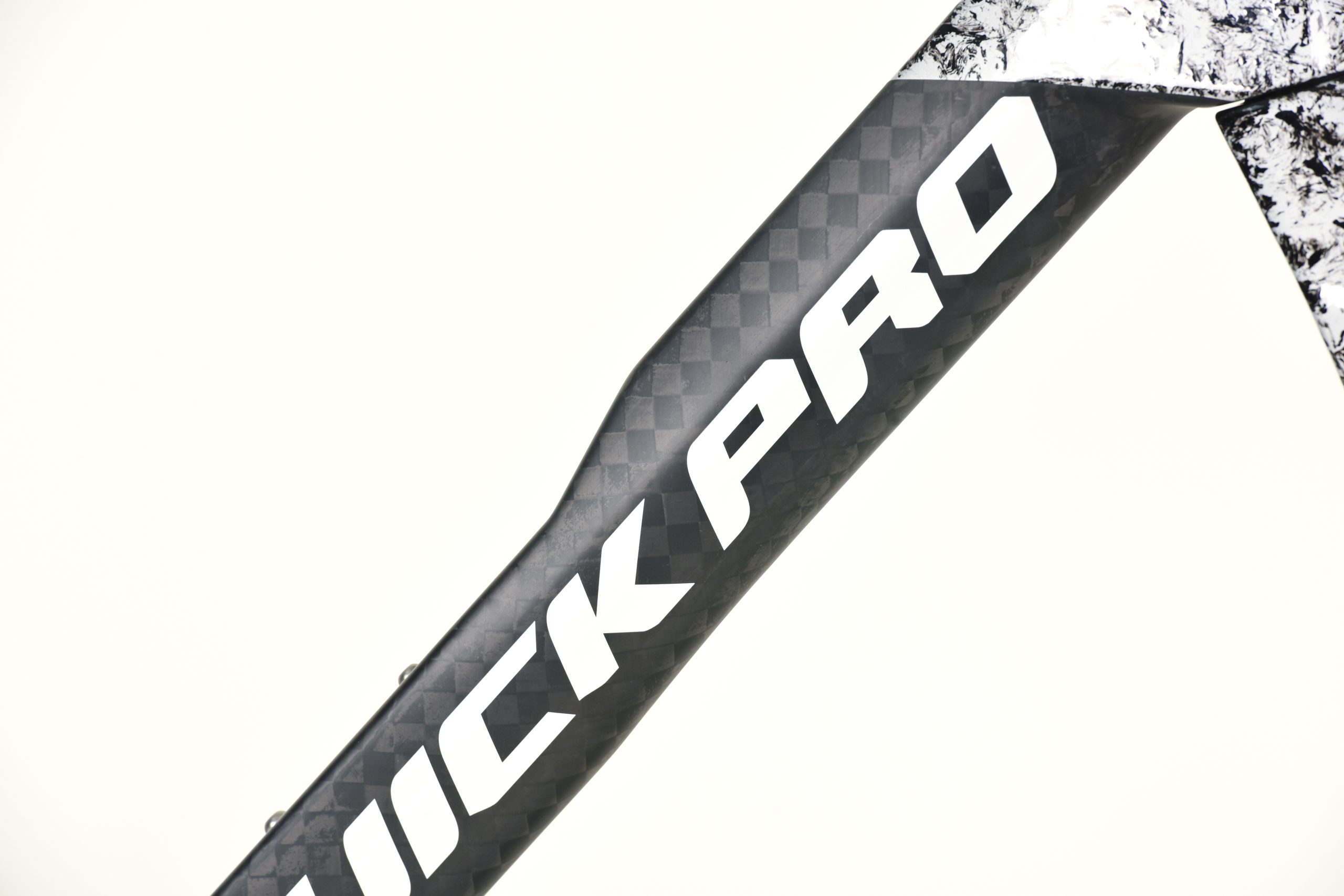

QUICK PRO GR:ONE Carbon GRAVEL Bike FRAMESET
Price range: $1,999.00 through $2,199.00
- QUICK Flagship Gravel & All-Road Frameset
- 919g±5% frame. 459g±5% fork (Size M, with paint & accessories)
- Transition from ER:ONE: Gravel with Aerodynamic
- High Modulus Carbon Fiber (T1100 + M65)
- True Full Monocoque Production
- T47 bottom bracket with 68mm shell width
- Max Tire: 700*45C (650Bx1.9″ MTB tires)
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description

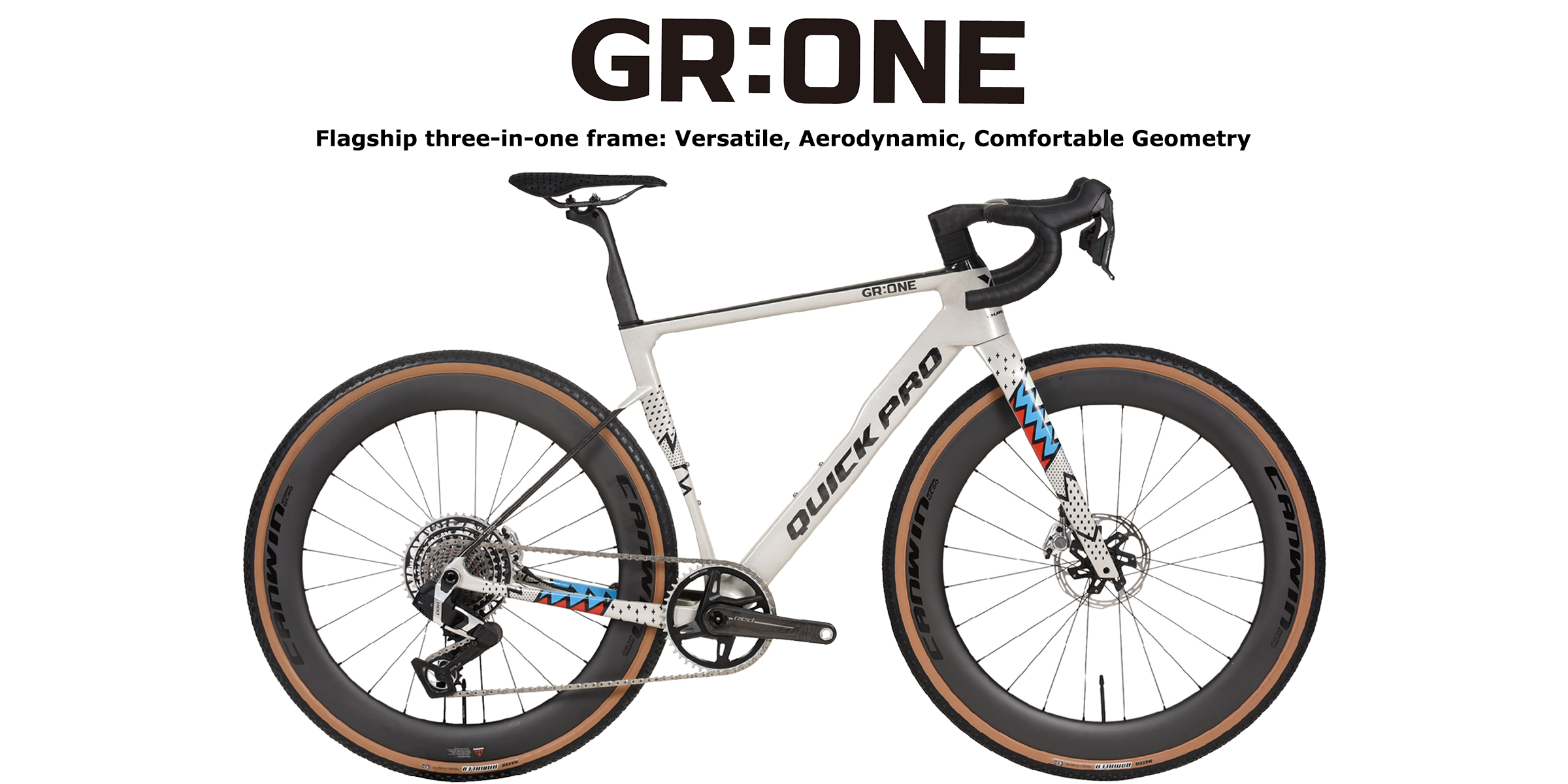

Quick brings a new edge to modern bike design
GR:ONE is another major attempt by Quick in the ONE series, integrating aerodynamics and off-road to create a cross-domain performance flagship.
Confidence on every road
GR:ONE all-terrain aero frame with 52/52 mm fully-internal headset, T47 bottom bracket, and max 700C×45C or 650B tire clearance for gravel and mixed-surface riding.
Optimized geometry and carbon layup absorb vibrations, improve stability, and deliver leading aerodynamics with low weight—ideal for racing and endurance rides.
Full Safety Inspection on Every Frameset
Building a frame so light requires precision manufacturing at every step of production. Every frame is given a full quality control inspection before leaving the factory, including X-Ray analysis of every frame produced.
True Monocoque Technology
QUICK have been producing true monocoque frames since 2014. With their in-house equipment they are able to manufacture their own monocoque moulds allowing the entire frame to be produced as a single piece with no post-mould bonding required.

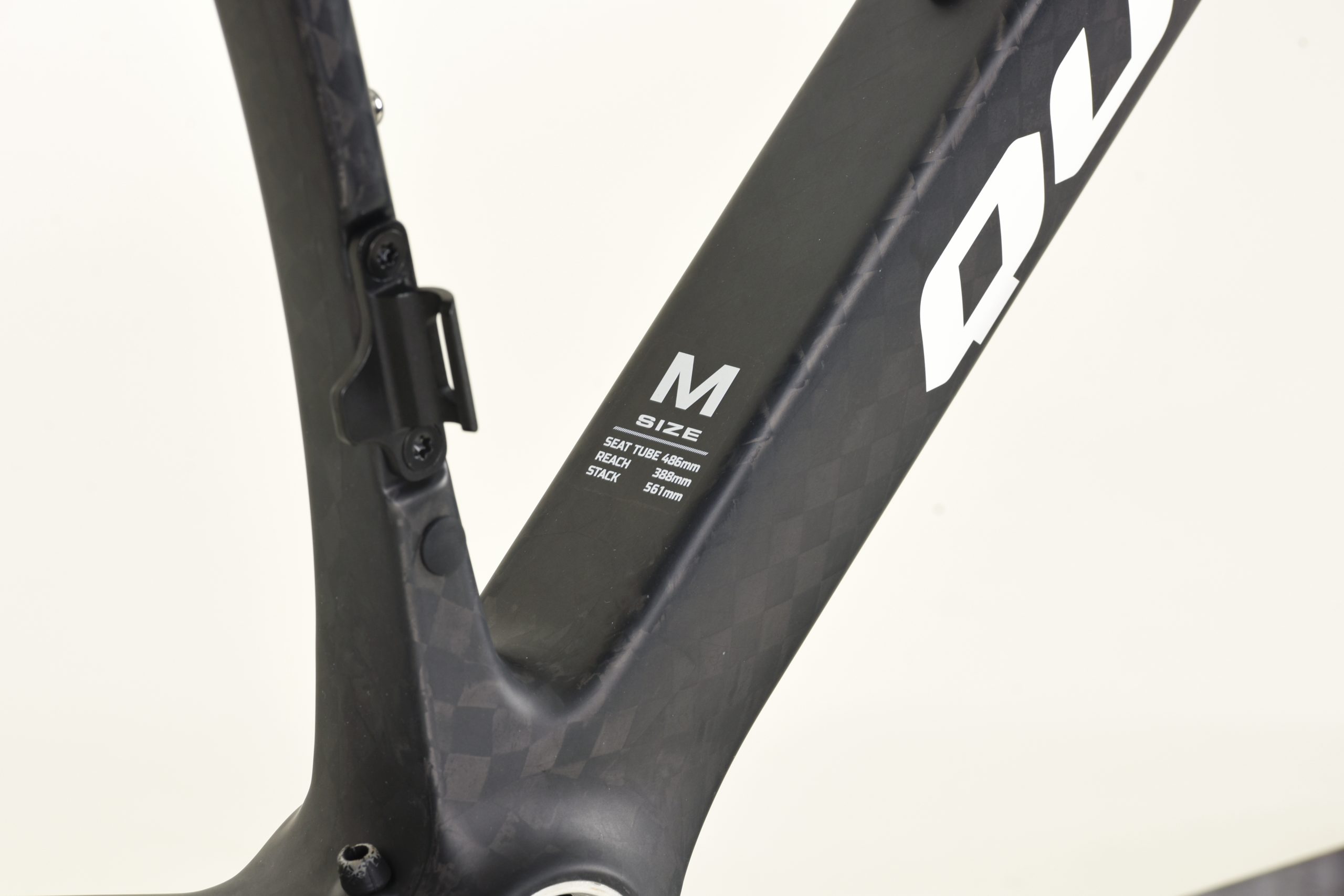

GR:ONE Frame Geometry
Height size reference table

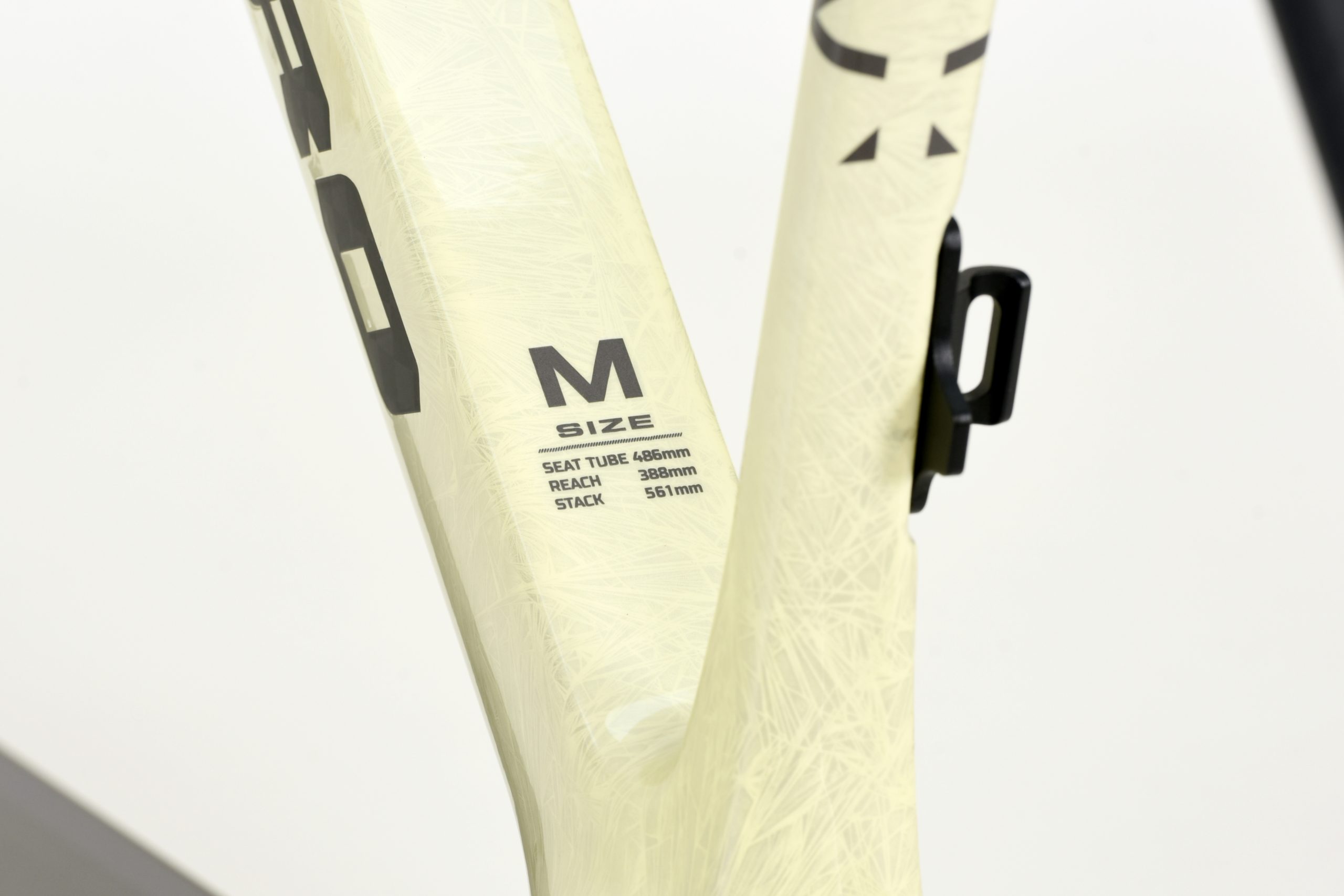

| A Size/seat tube length (mm) | XS/426 | S/456 | M/486 | L/516 | XL/546 |
| Reach (mm) | 370 | 379 | 388 | 398 | 405 |
| Stack (mm) | 524 | 543 | 561 | 580 | 599 |
| B Horizontal top tube length (mm) | 518 | 535 | 553 | 572 | 590 |
| C Seat tube angle (degrees) | 74.2 | 74 | 73.6 | 73.3 | 73.8 |
| D Head tube angle (degrees) | 70.5 | 71.0 | 71.0 | 71.0 | 71.0 |
| E Head tube length (mm) | 95 | 113 | 132 | 152 | 172 |
| F Chainstay length (mm) | 425 | 425 | 425 | 425 | 425 |
| G Wheelbase (mm) | 1006 | 1016 | 1032 | 1048 | 1062 |
| H Fork rake/offset (mm) | 55 | 55 | 55 | 55 | 55 |
| I Bottom bracket drop (mm) | 75 | 75 | 75 | 75 | 75 |
| J Fork length (mm) | 400 | 400 | 400 | 400 | 400 |
| K Stand-over height (mm) | 723 | 742 | 760 | 779 | 798 |
Specifications
Frame sizes: XS, S, M, L, XL
Frame material: Carbon FIber (Including T1100 & M65 High Modulus)

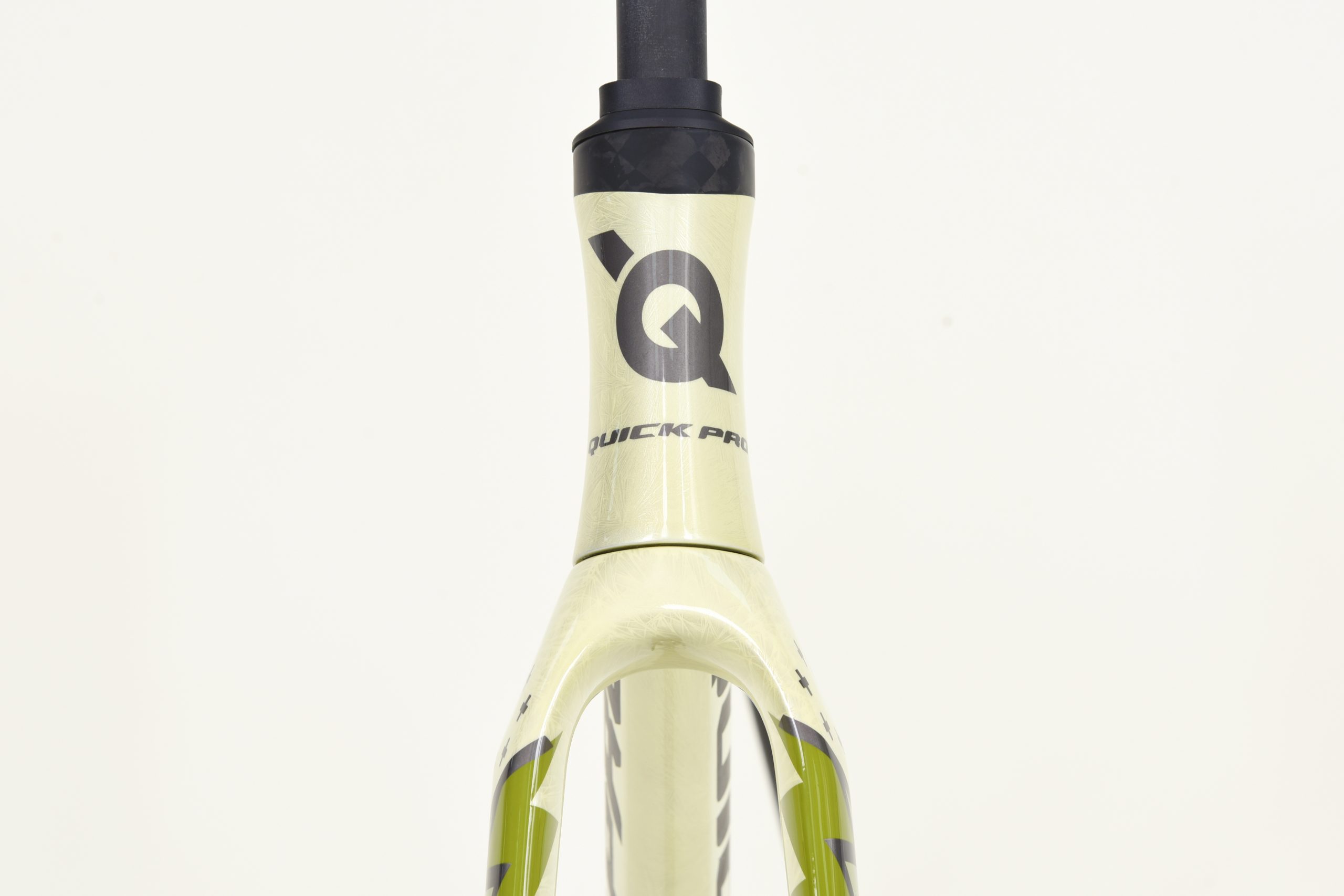

Headset: 52mm/ 52mm upper lower Fully Internal

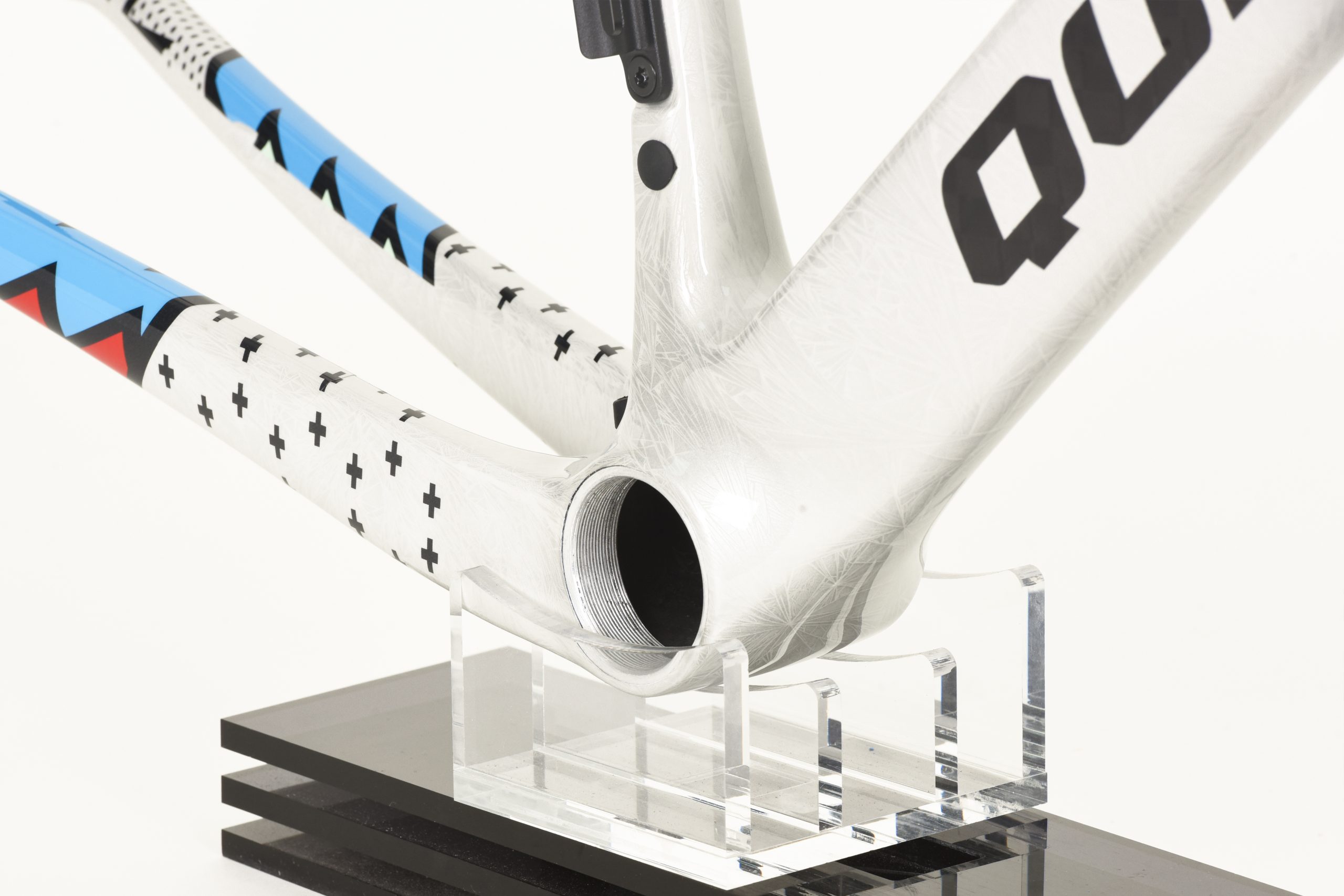

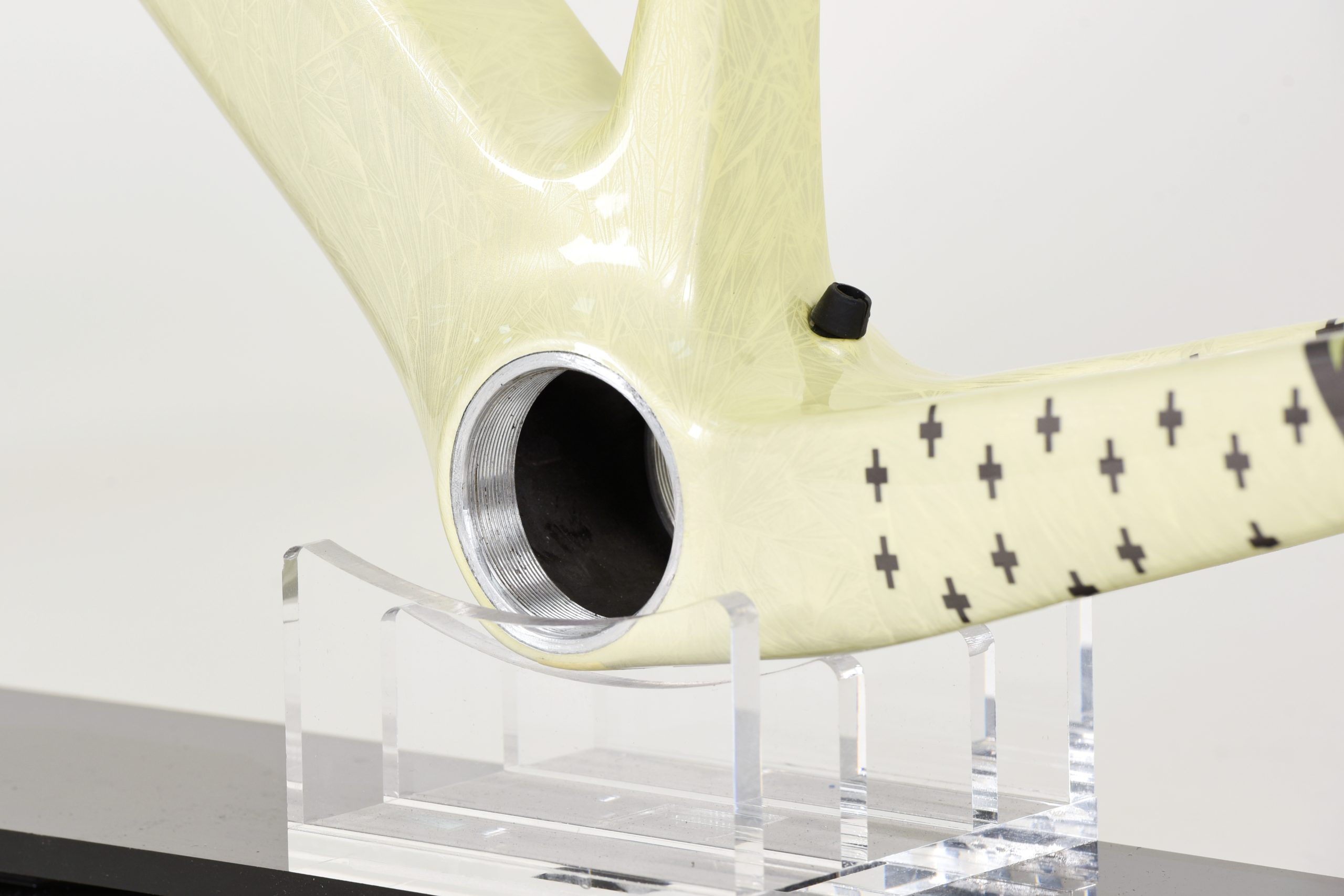

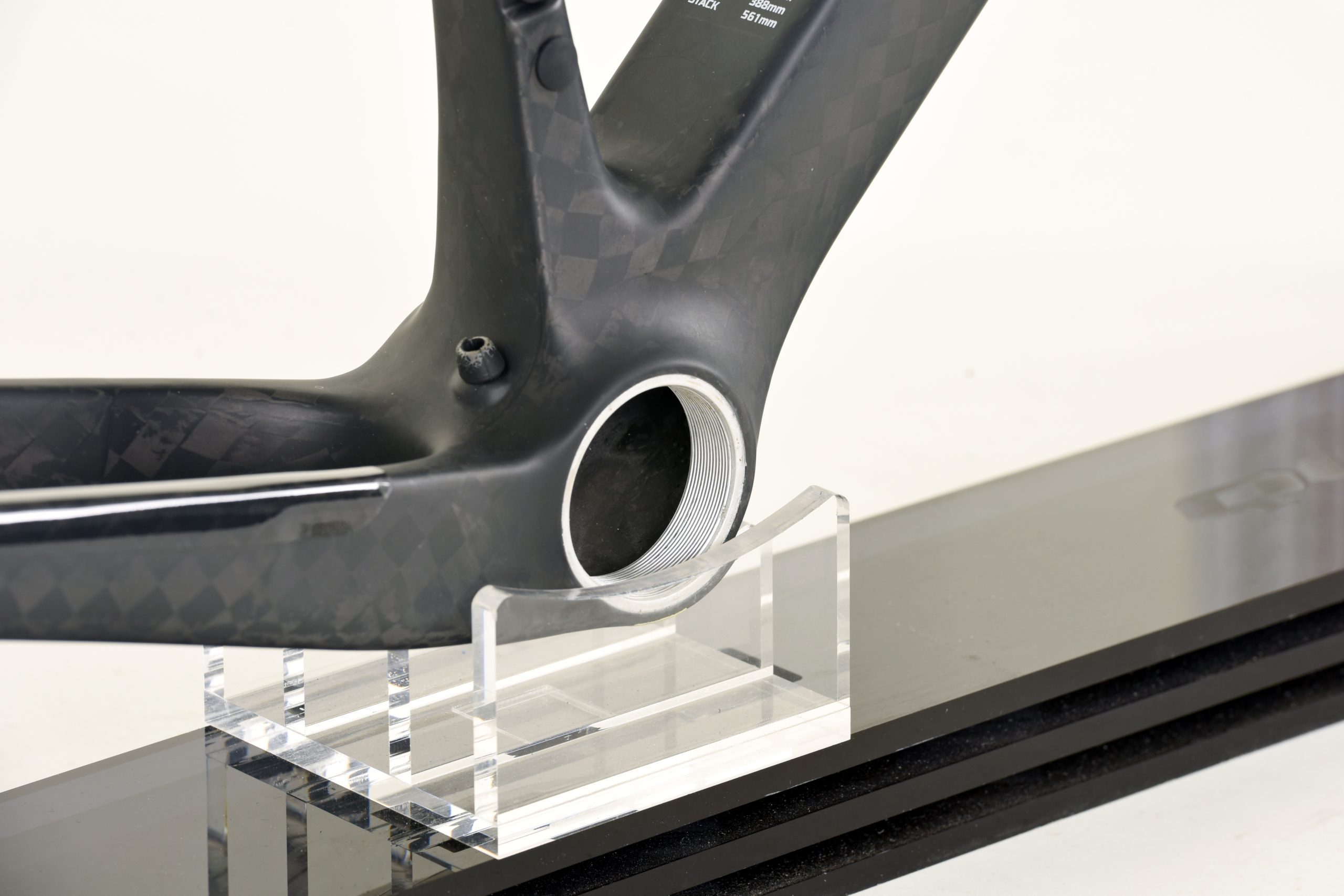

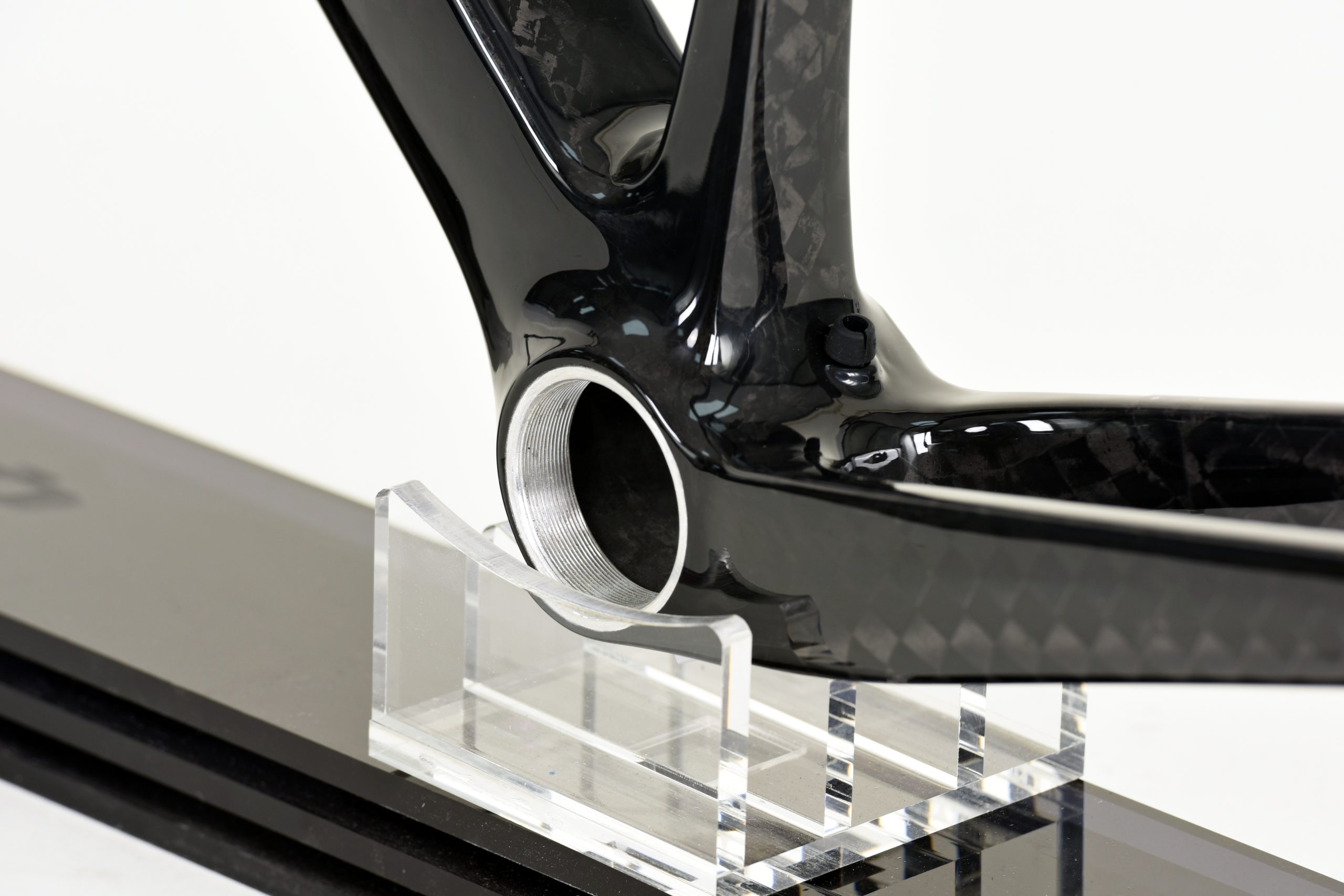

Bottom Bracket: T47 Threaded (68mm)

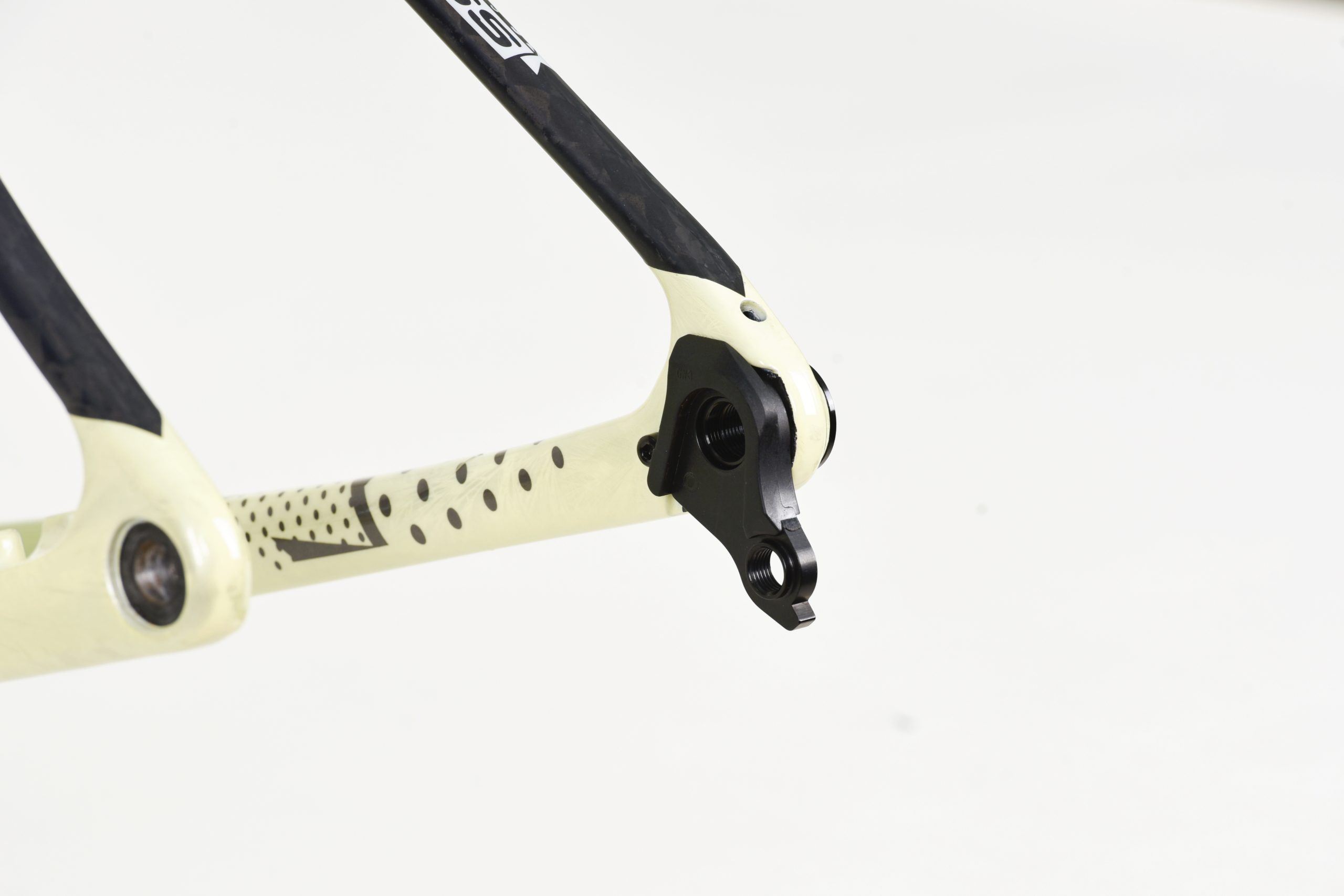

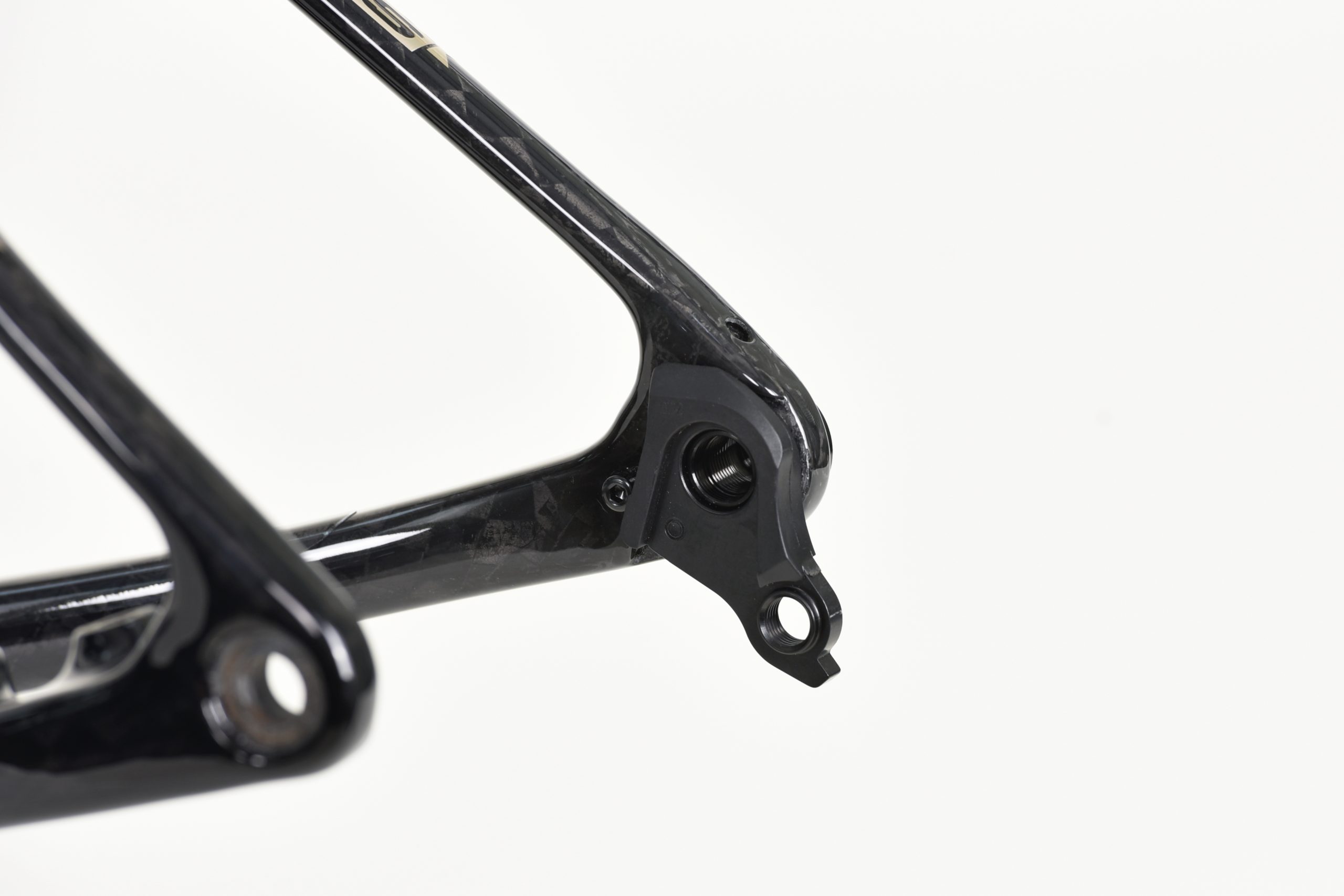

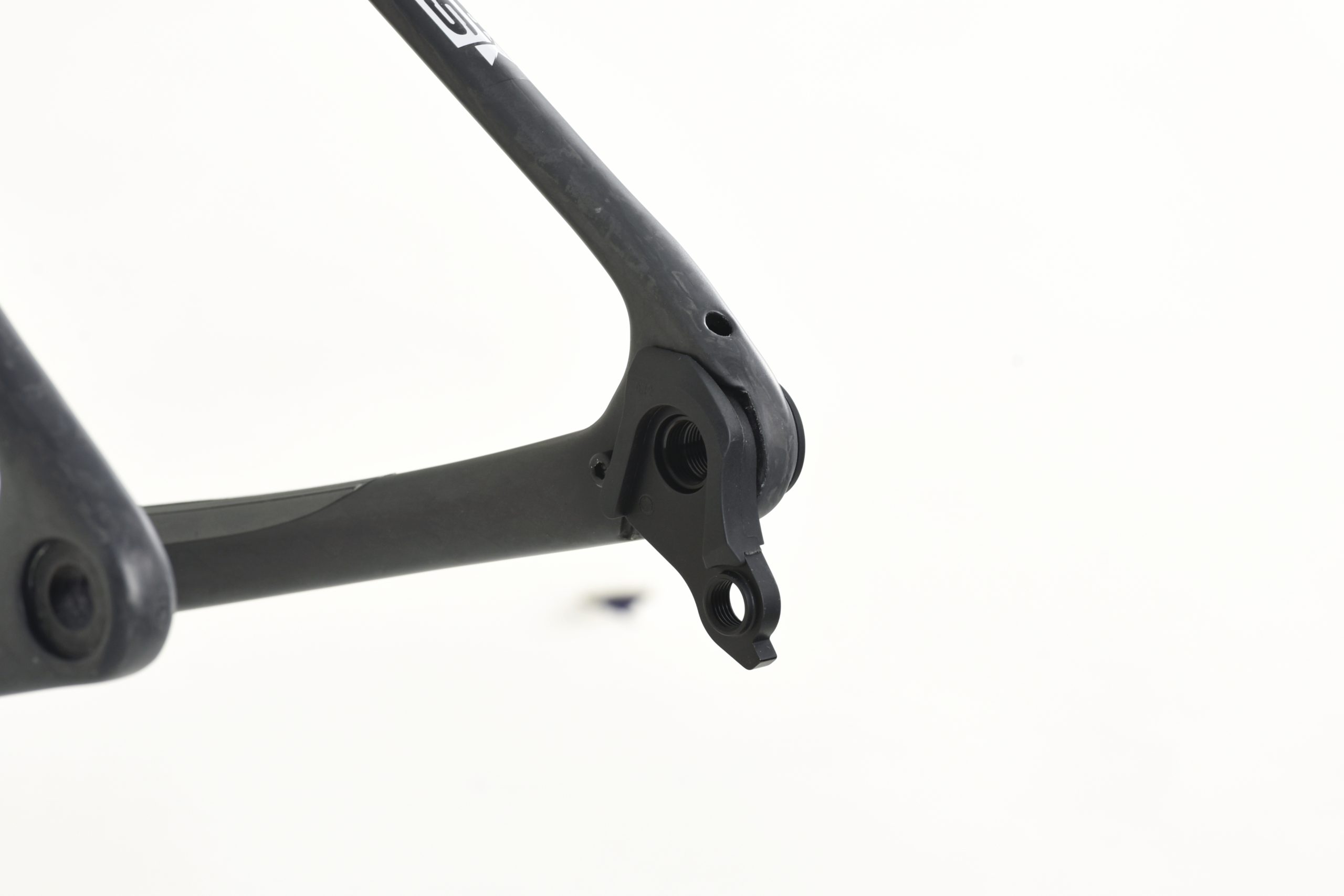

Dropouts: F- 100*12mm R- 142*12mm
Brake System: Flat mount disc brake
Max tire clearance: 700*45C (650Bx1.9" MTB tires)
Accessories: Fork, Seat Post, Headset, Thru-Axles
Rider Weight Limit: 120kg
Manufacturer's Frame Warranty: Five Years
Quick Pro "One" Family
AR:ONE: An all-around frame that balances lightweight design with aerodynamic efficiency, suitable for various riding scenarios.
ER:ONE: An aerodynamic-focused frame designed for speed on flat terrains, ideal for riders seeking high-speed performance.
Real World Weight Data

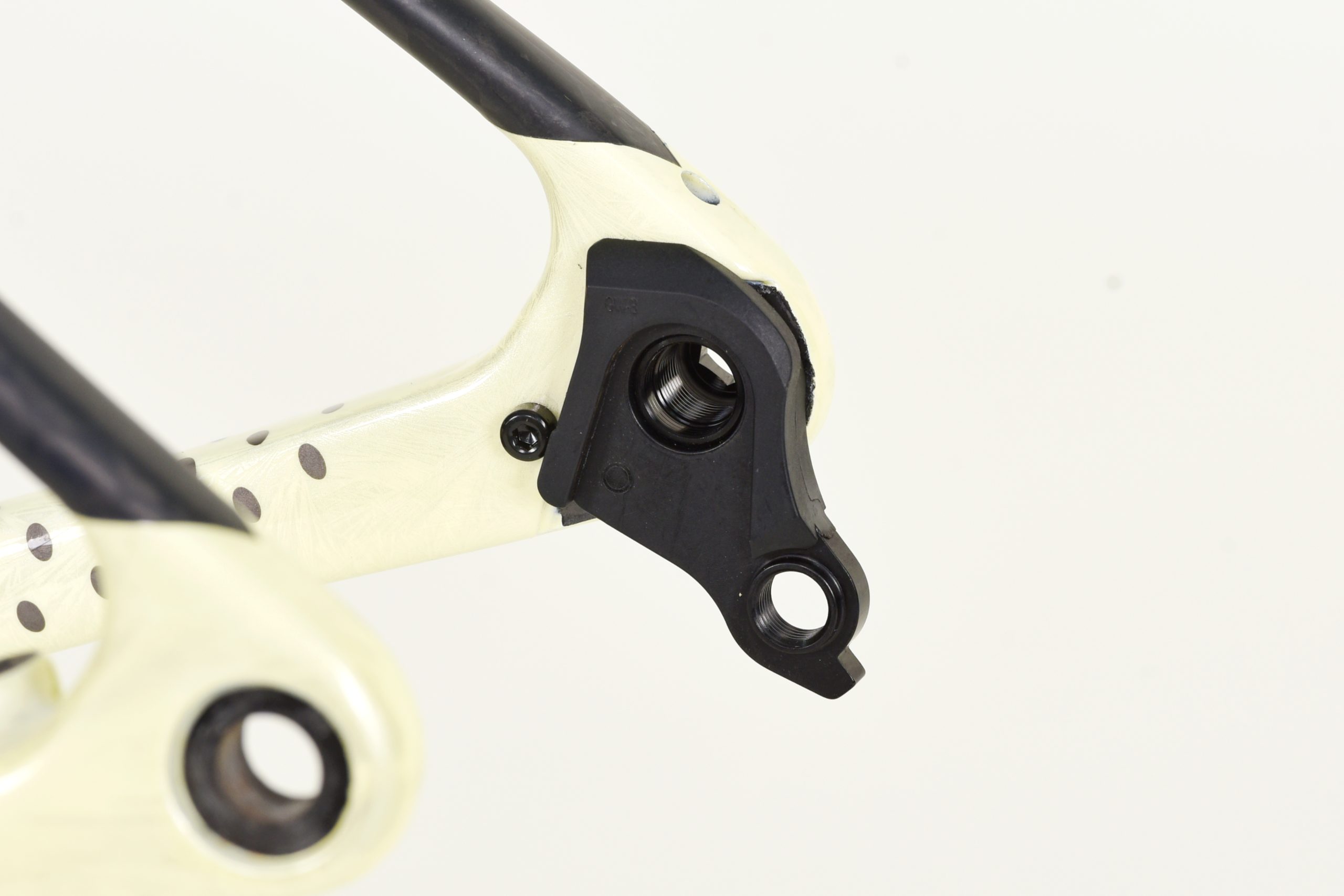

We'll update this section as we get more data. So far most frames have had real-world weights between 880-985g depending on size and colour. "Real world weights" means including paint and both mech hangers.

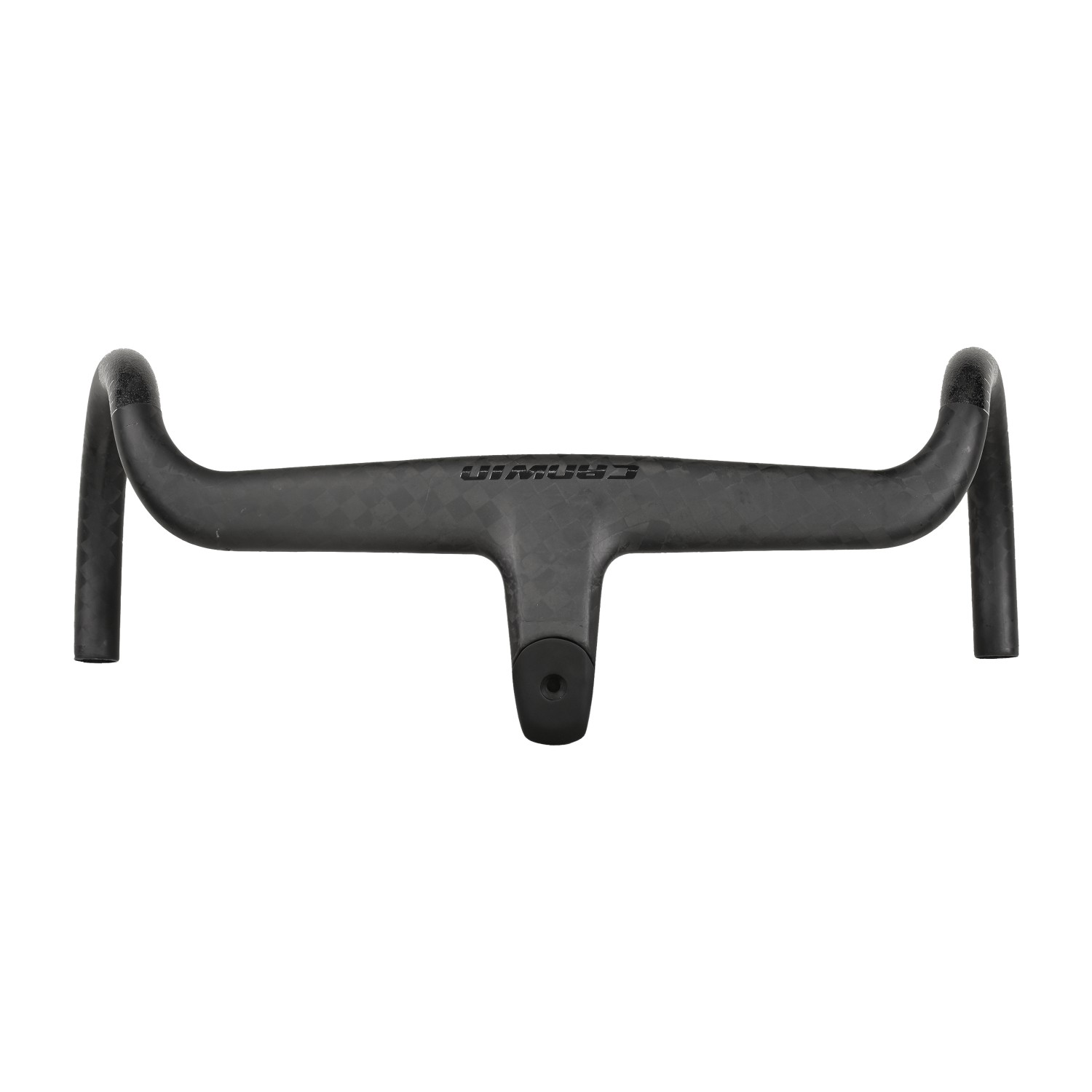

Quick AELOUS Wide Angle Integrated Handlebar
We understand a bike's cockpit is a very personal choice. Therefore we don't tie you in to a certain cockpit so you're free to chose from any of our excellent handlebars. However, when you purchase the GR:One, you can add the QUICK AELOUS Handlebar for just $200 more.
Quick's accessory brand is called CANWIN. Their cockpit comes in two versions. The ZEPHYR SSL and AELOUS SSL (Wide Angle). Made with True Monocoque Technology, it’s super stiff, and impressively lightweight at only 288g, They both share most of the same design with only one different: Drop Flare. Both come in a variety of modern sizes to cater to your fit.

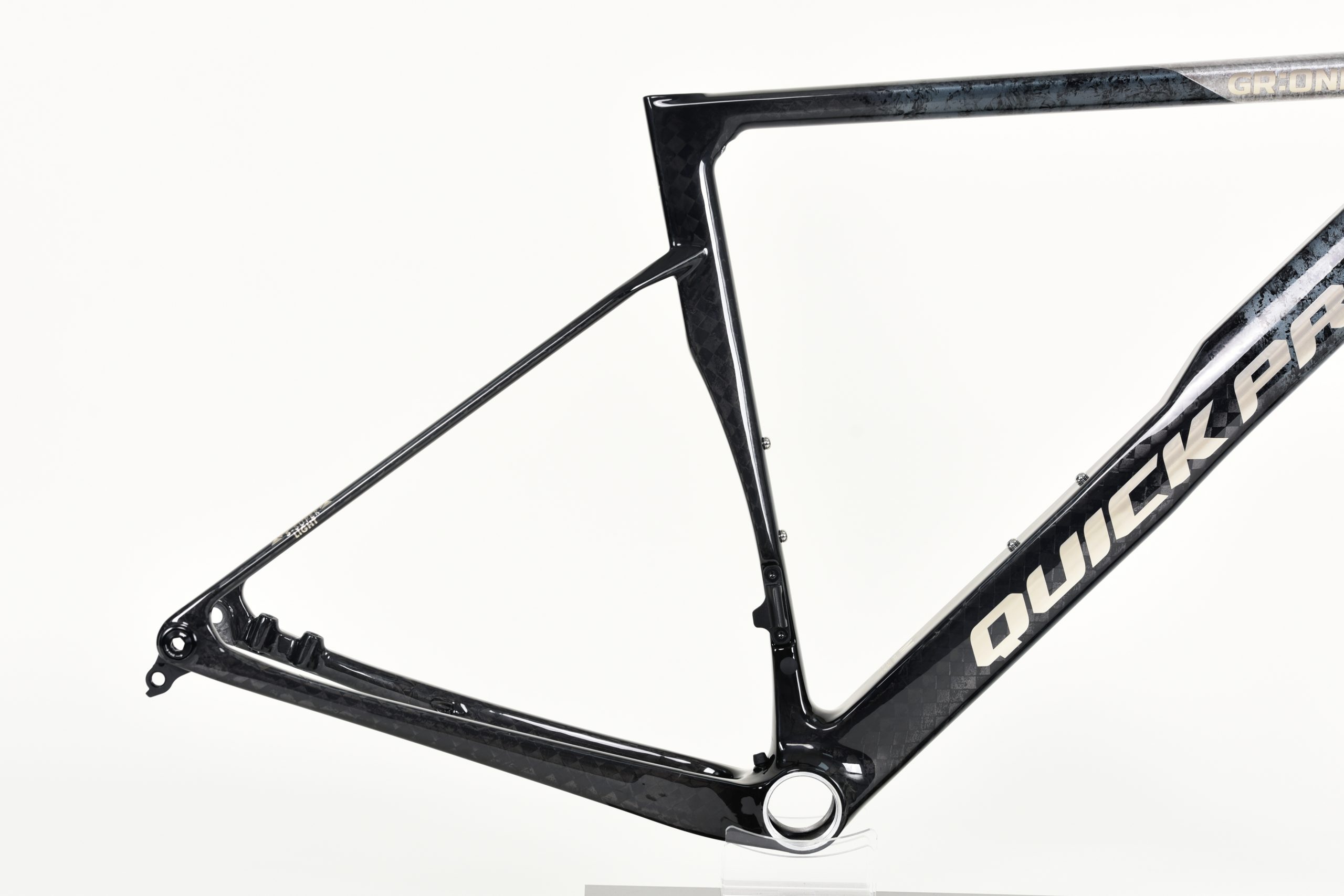

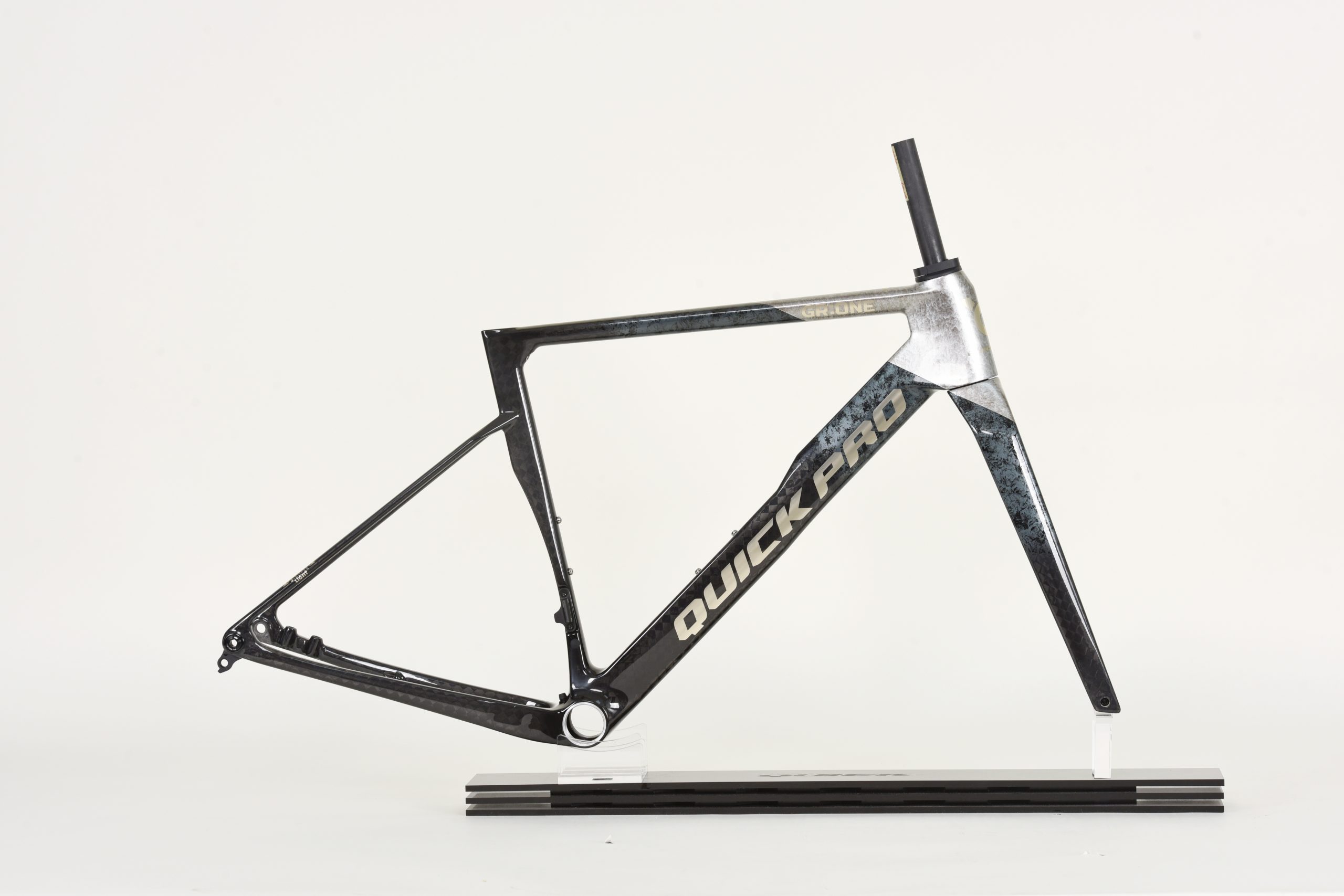

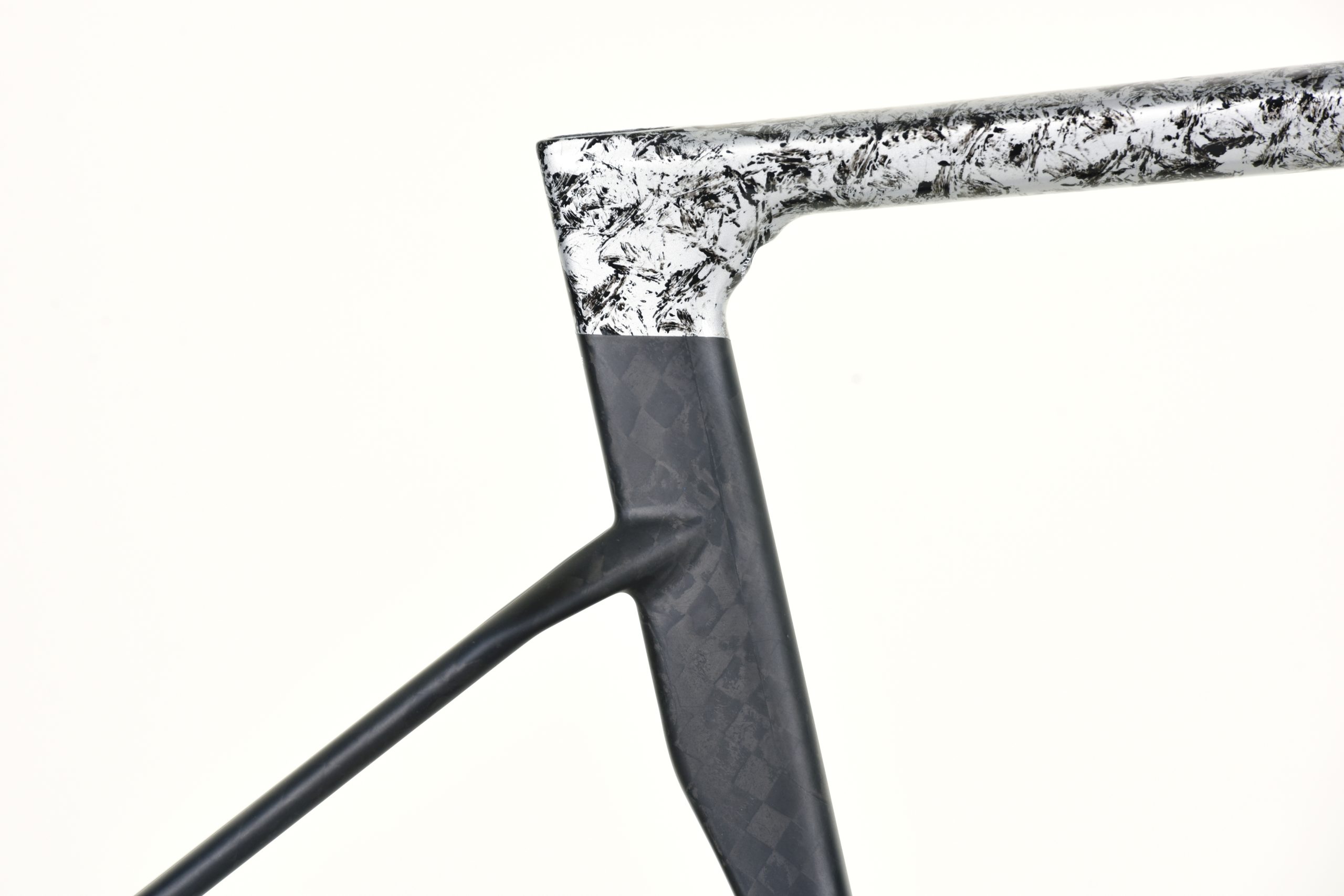

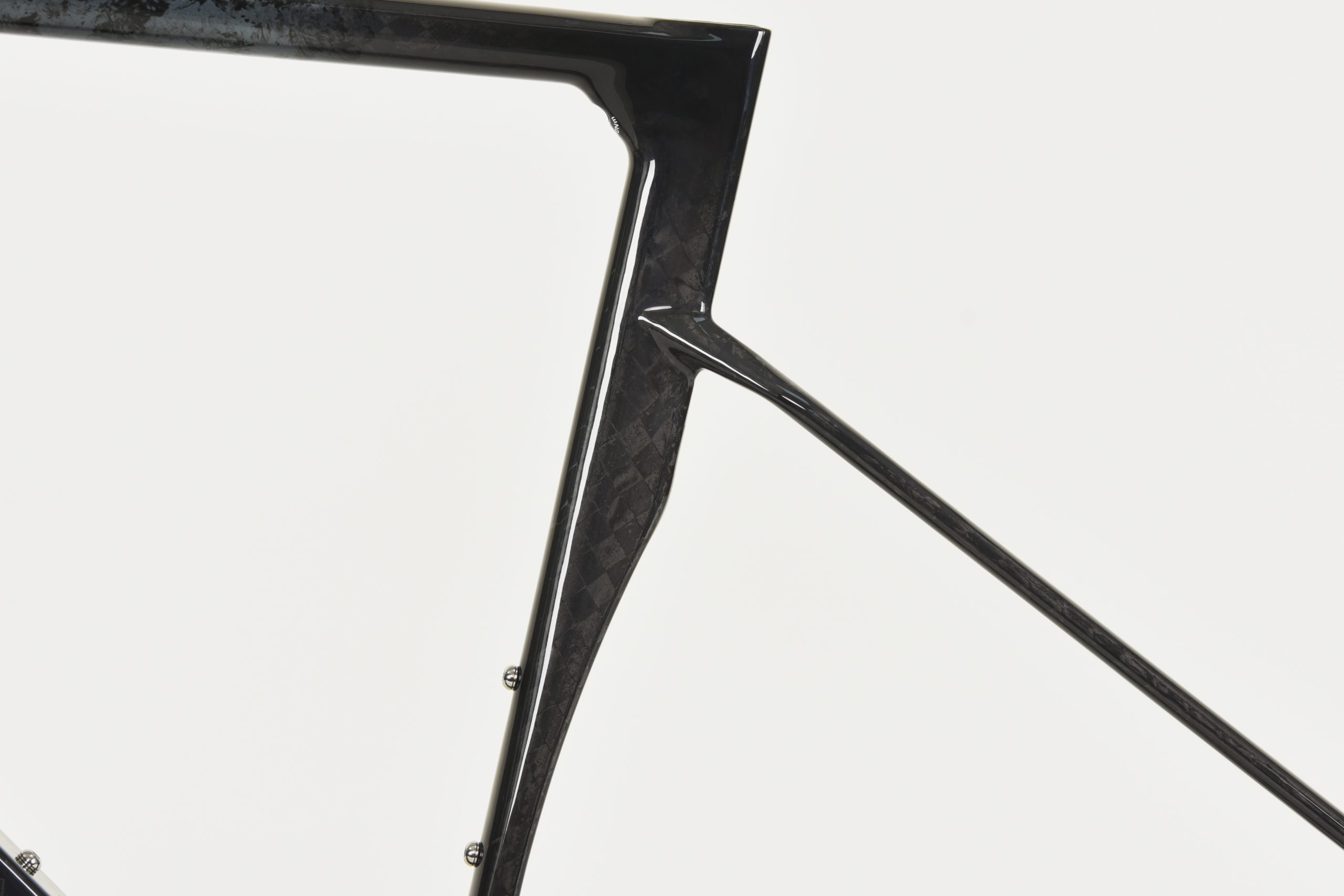

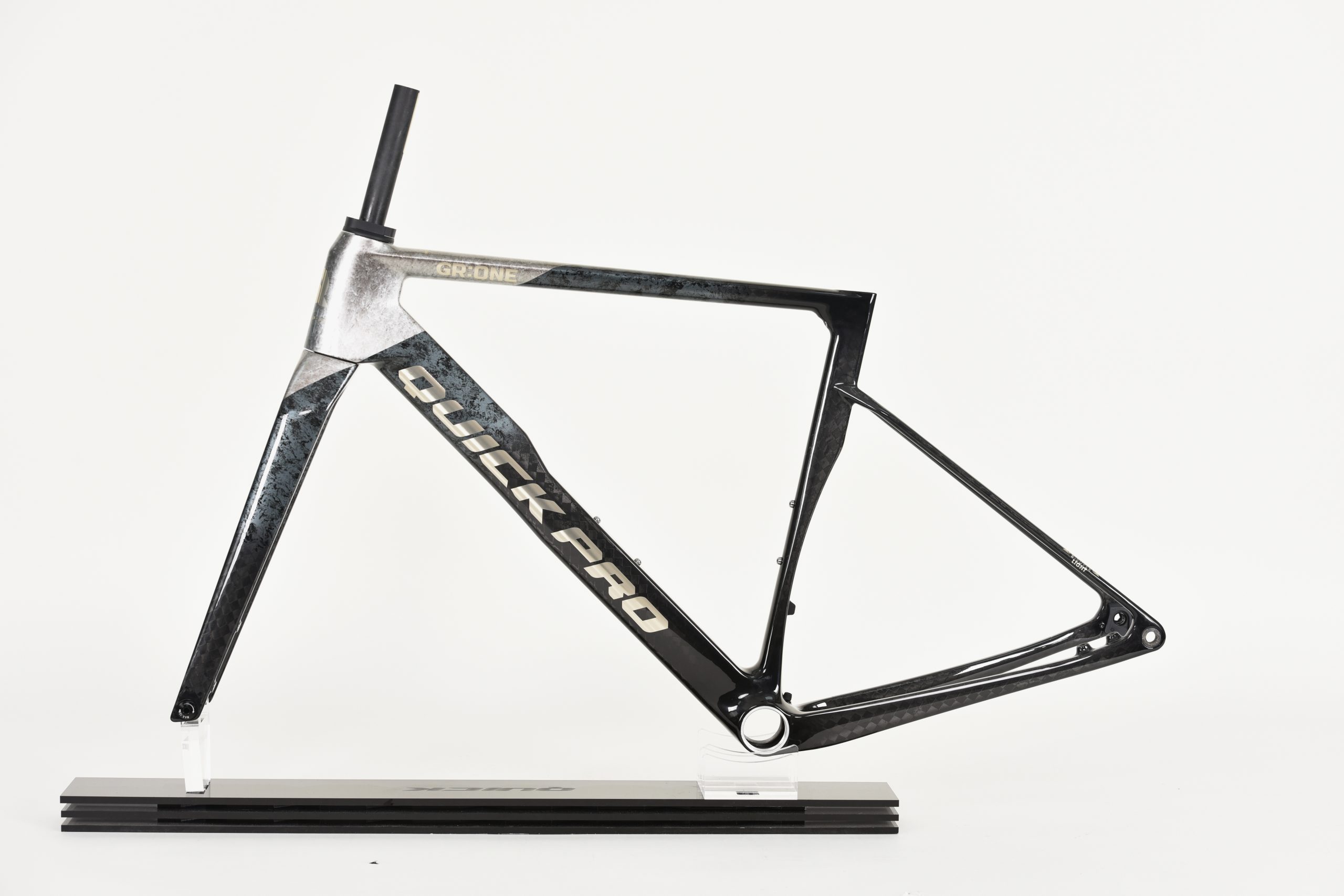

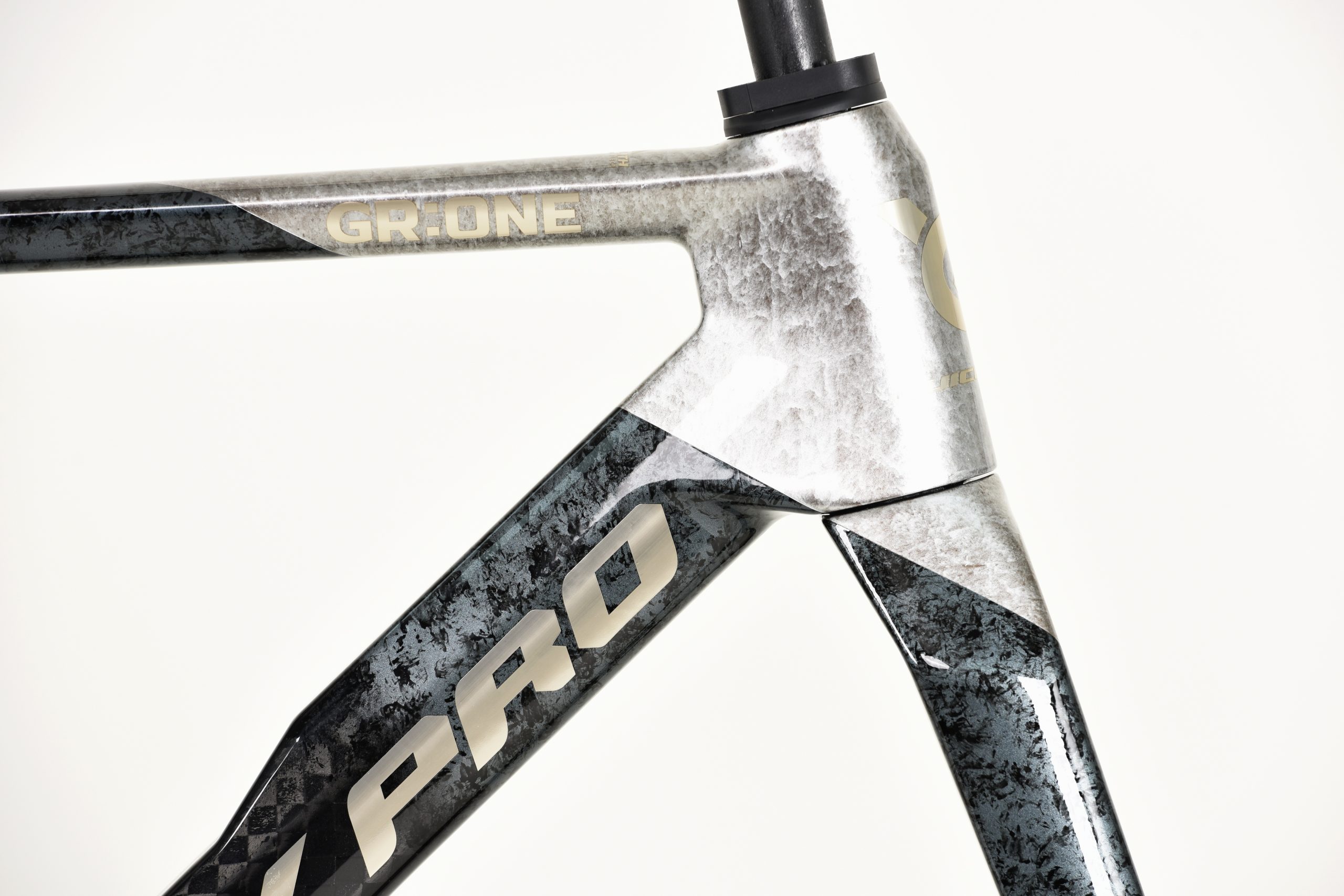

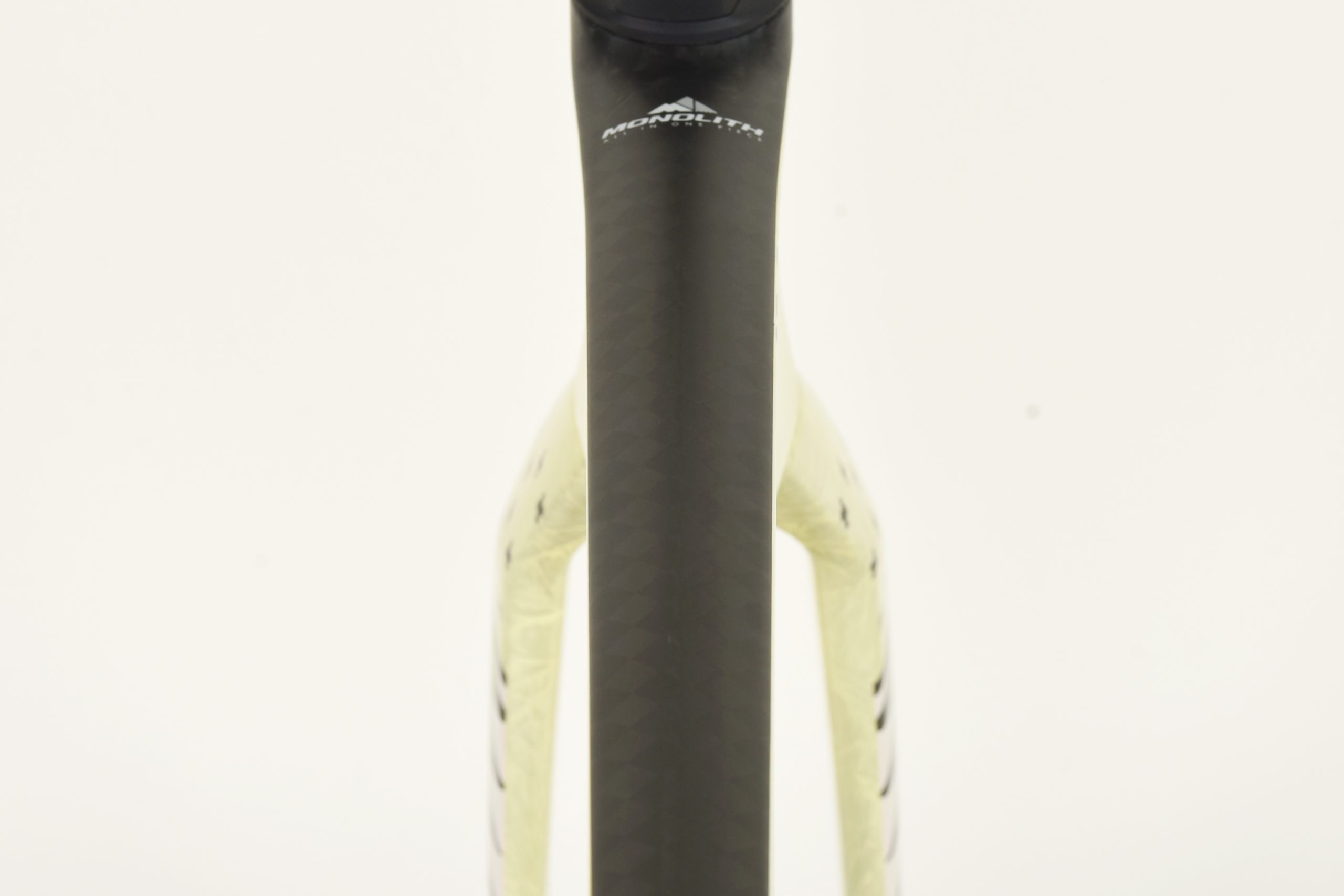

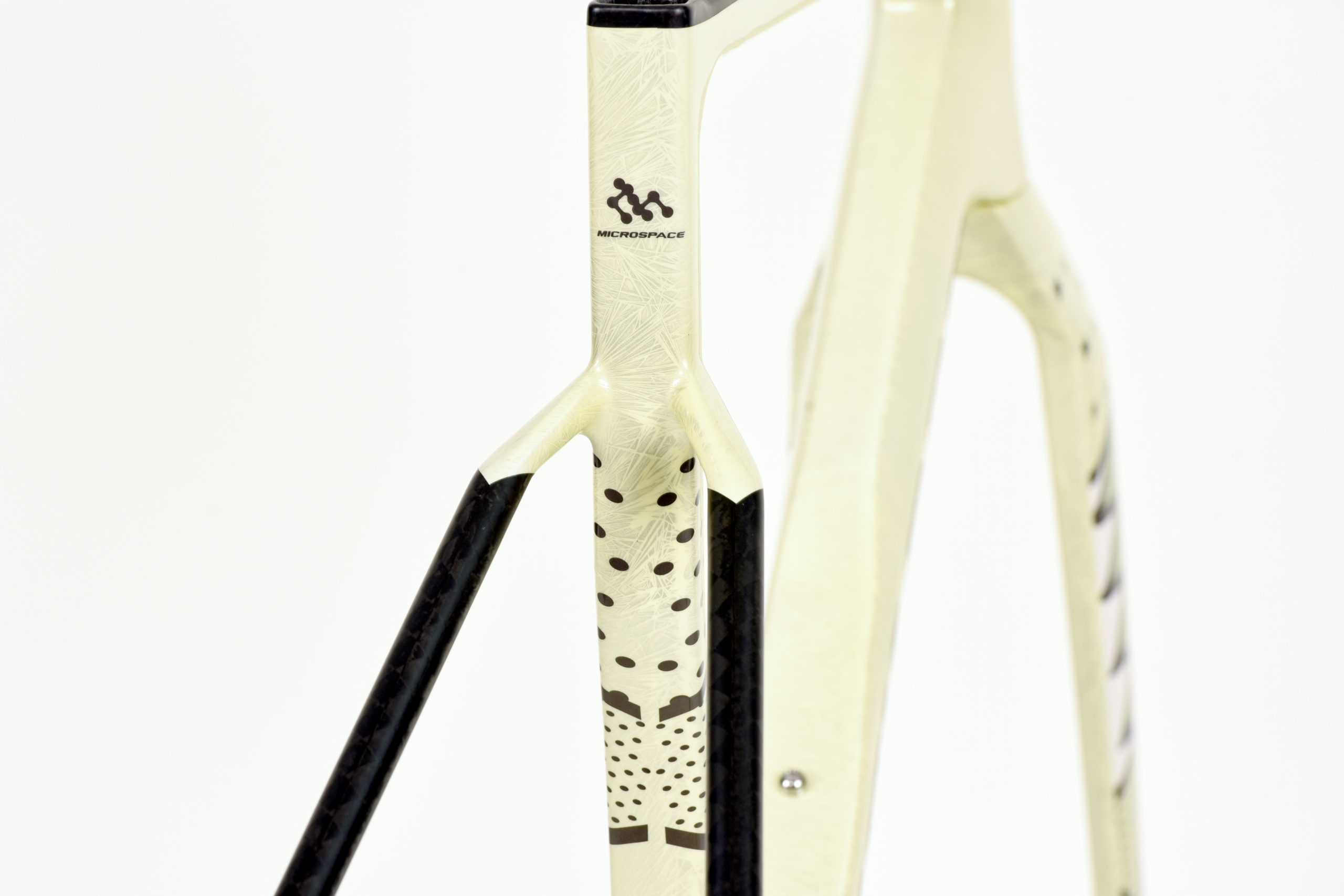

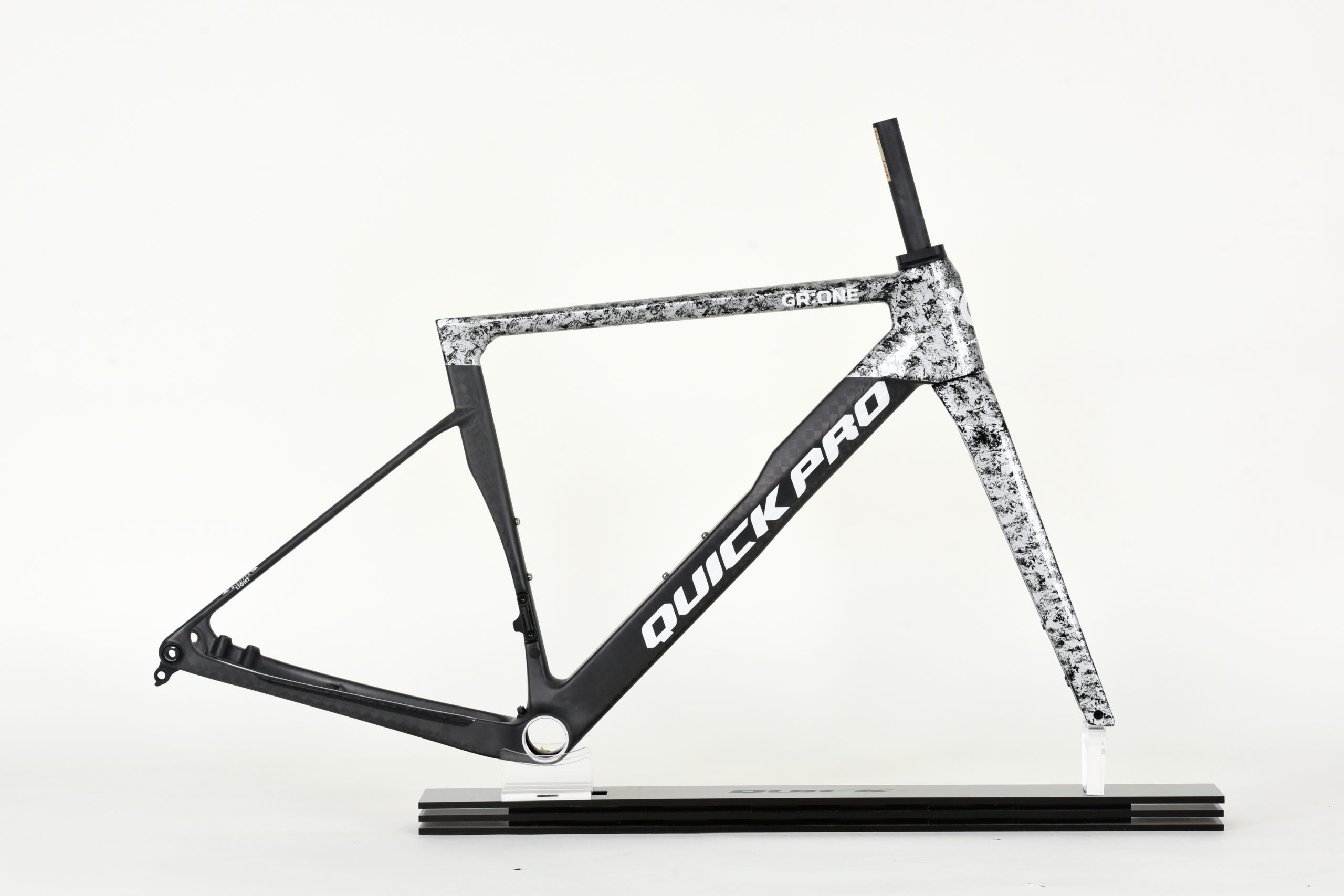

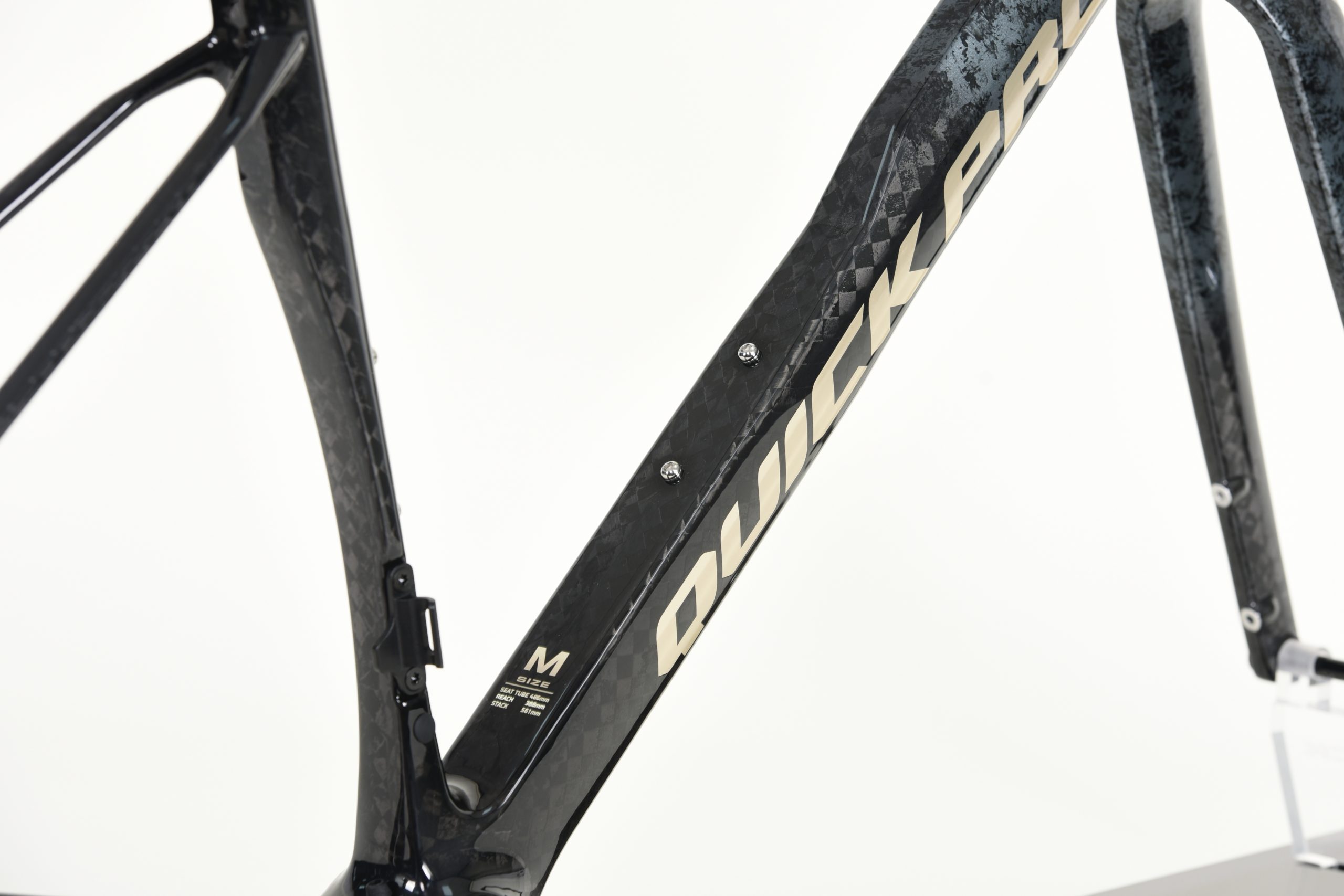

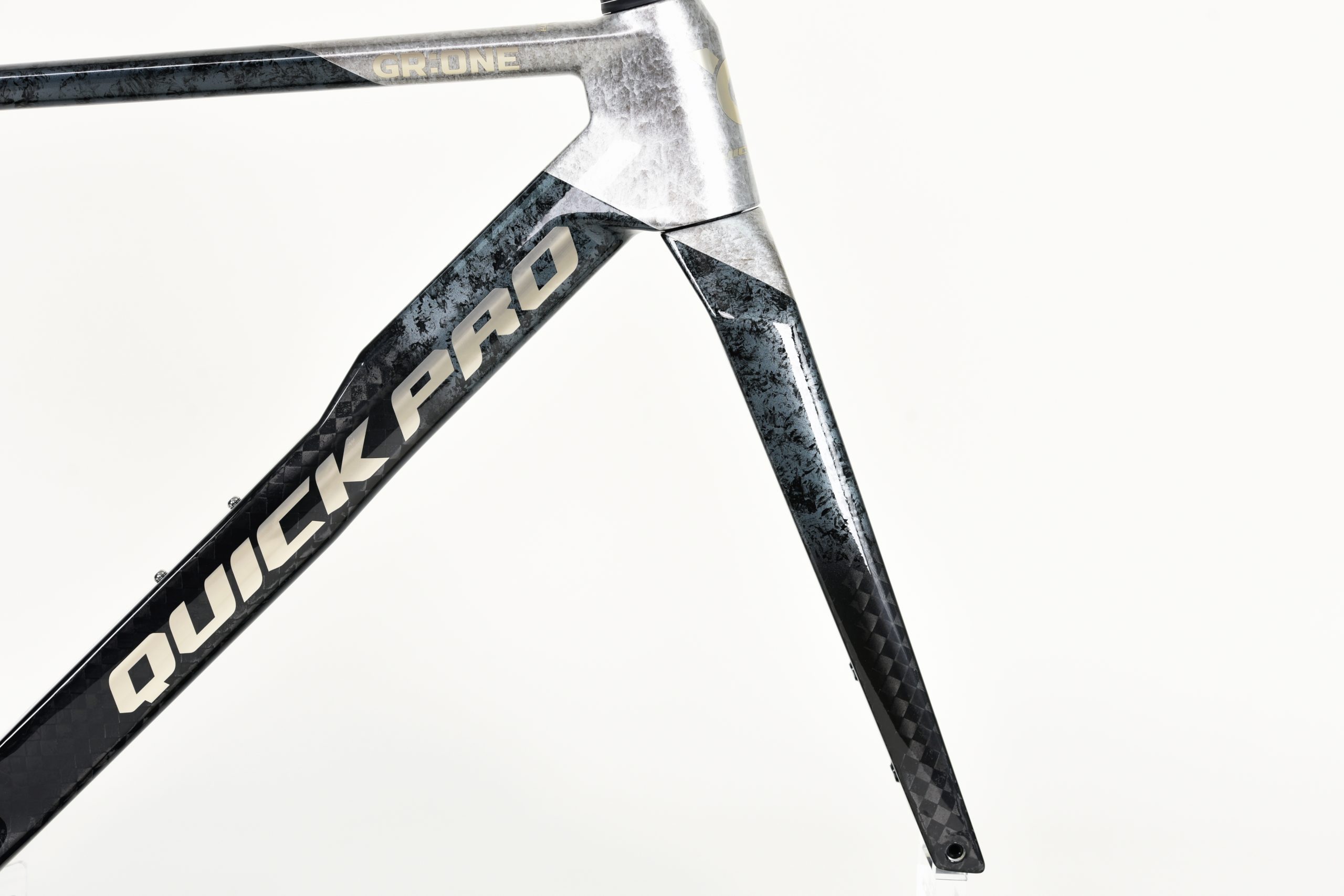

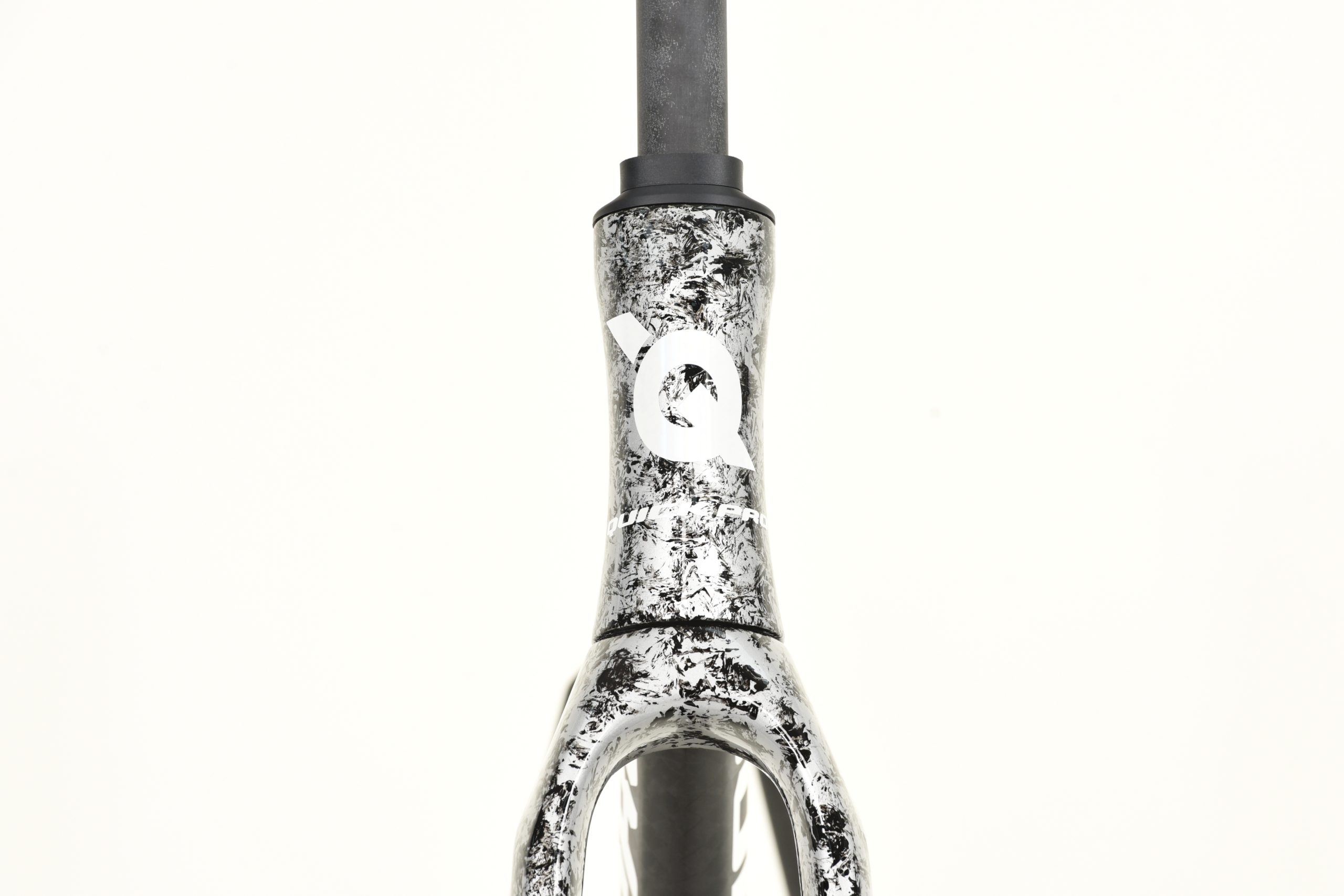

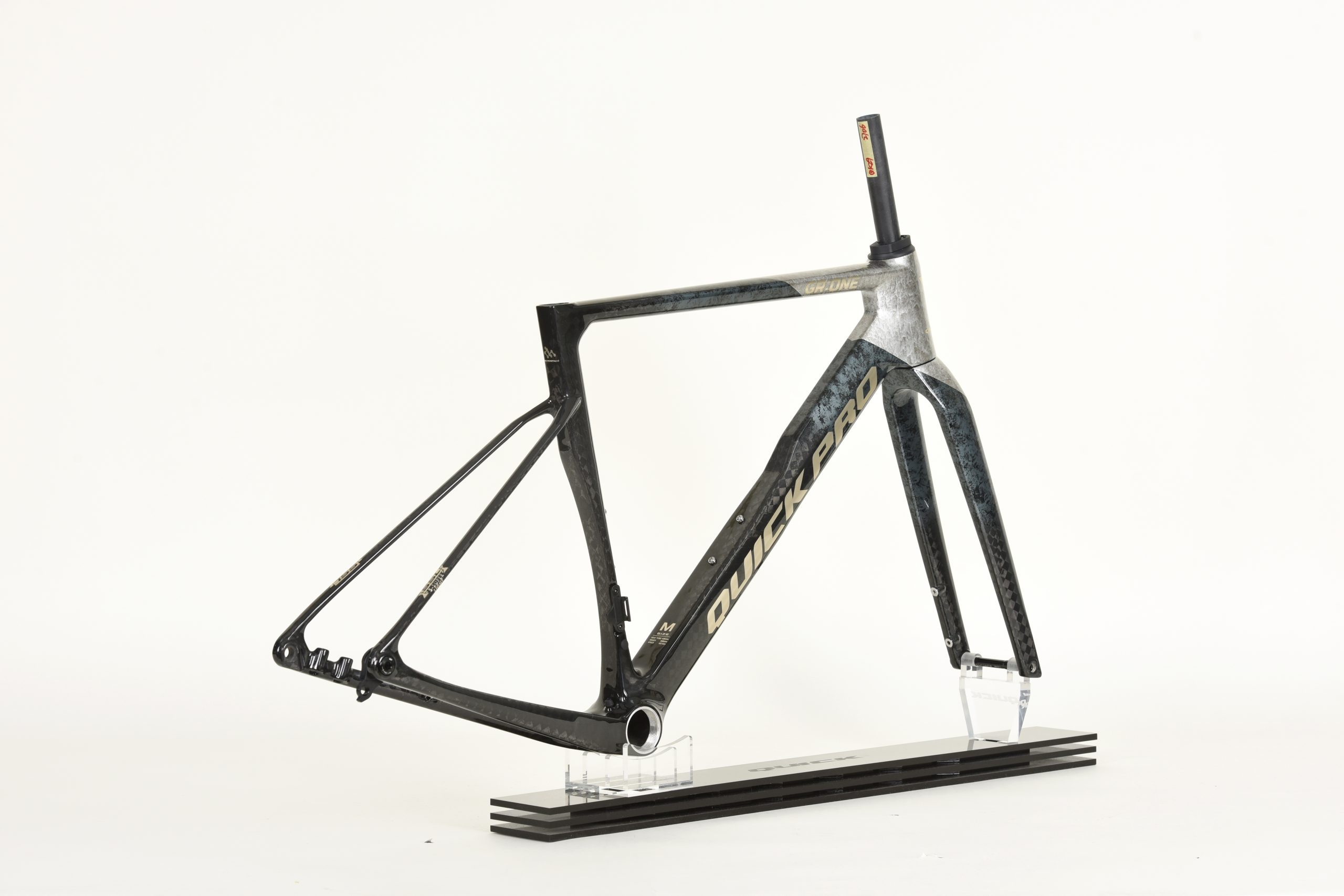

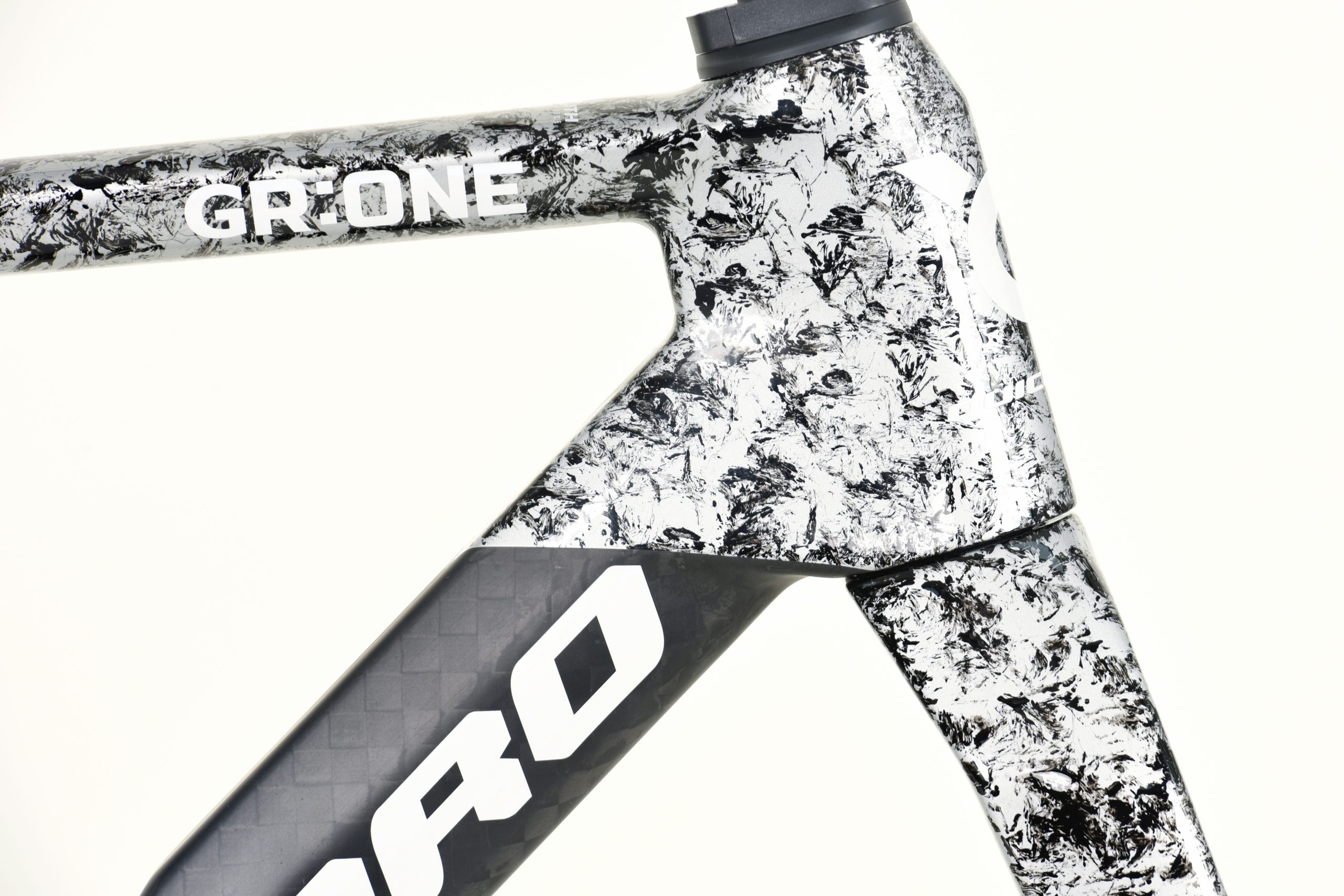

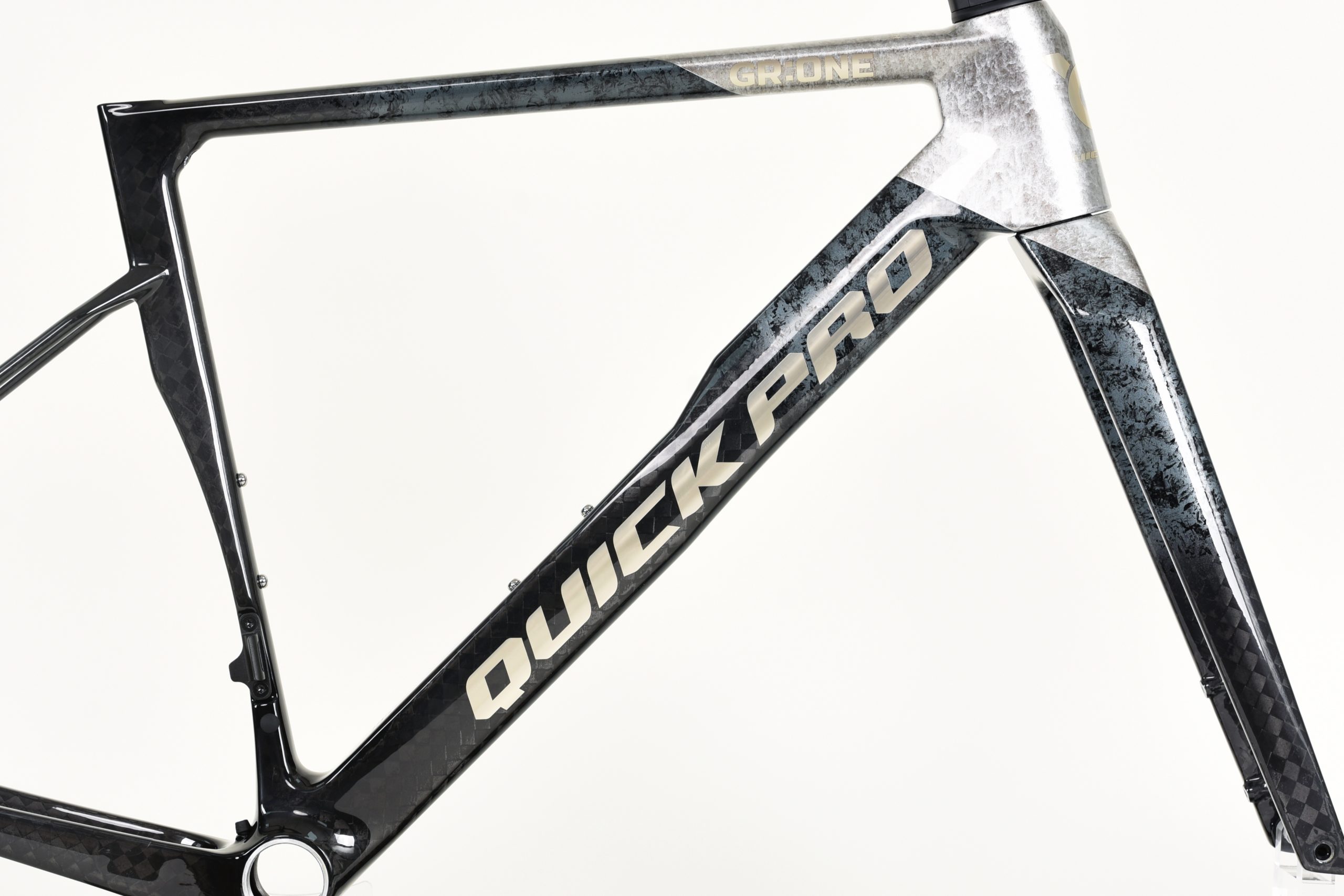

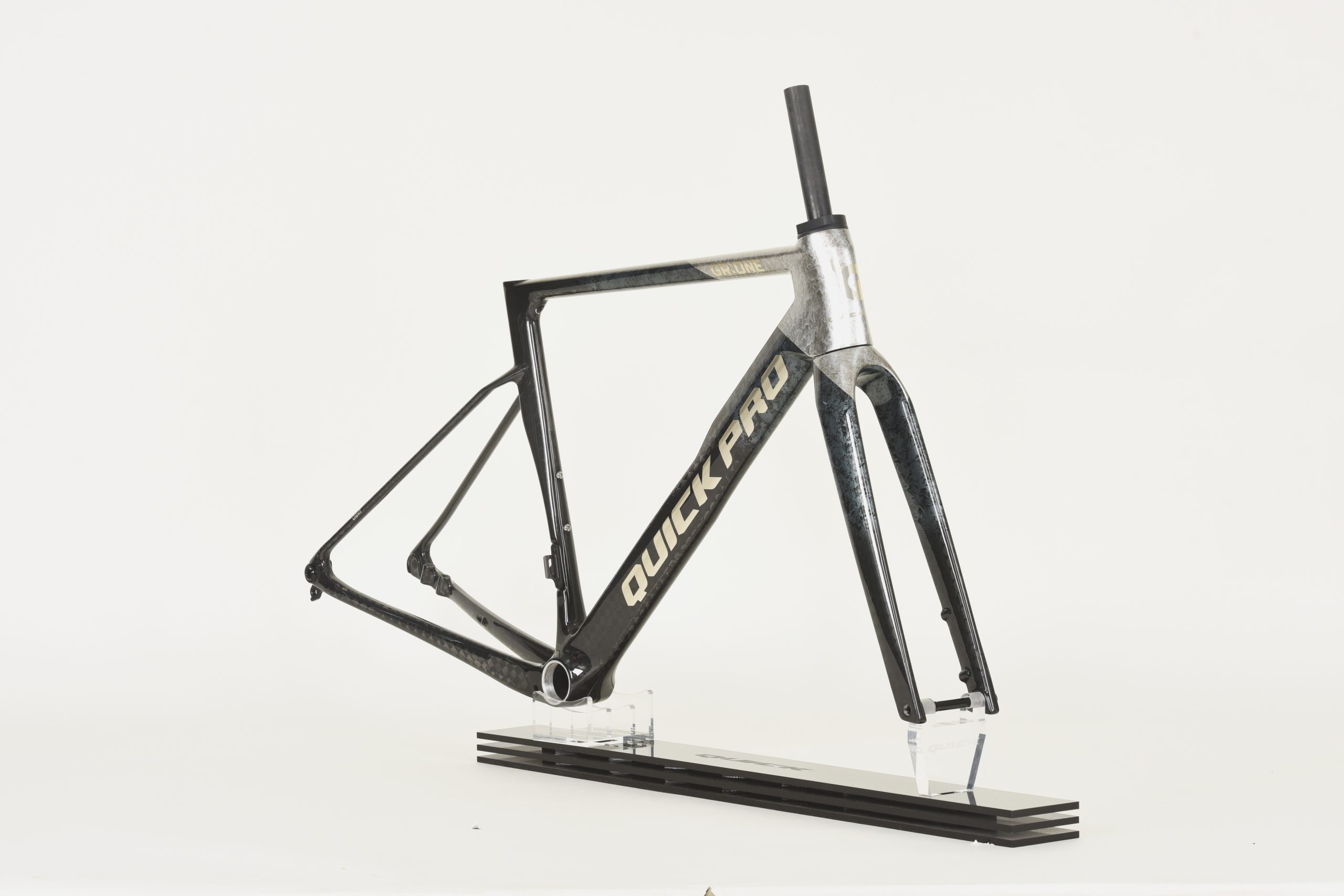

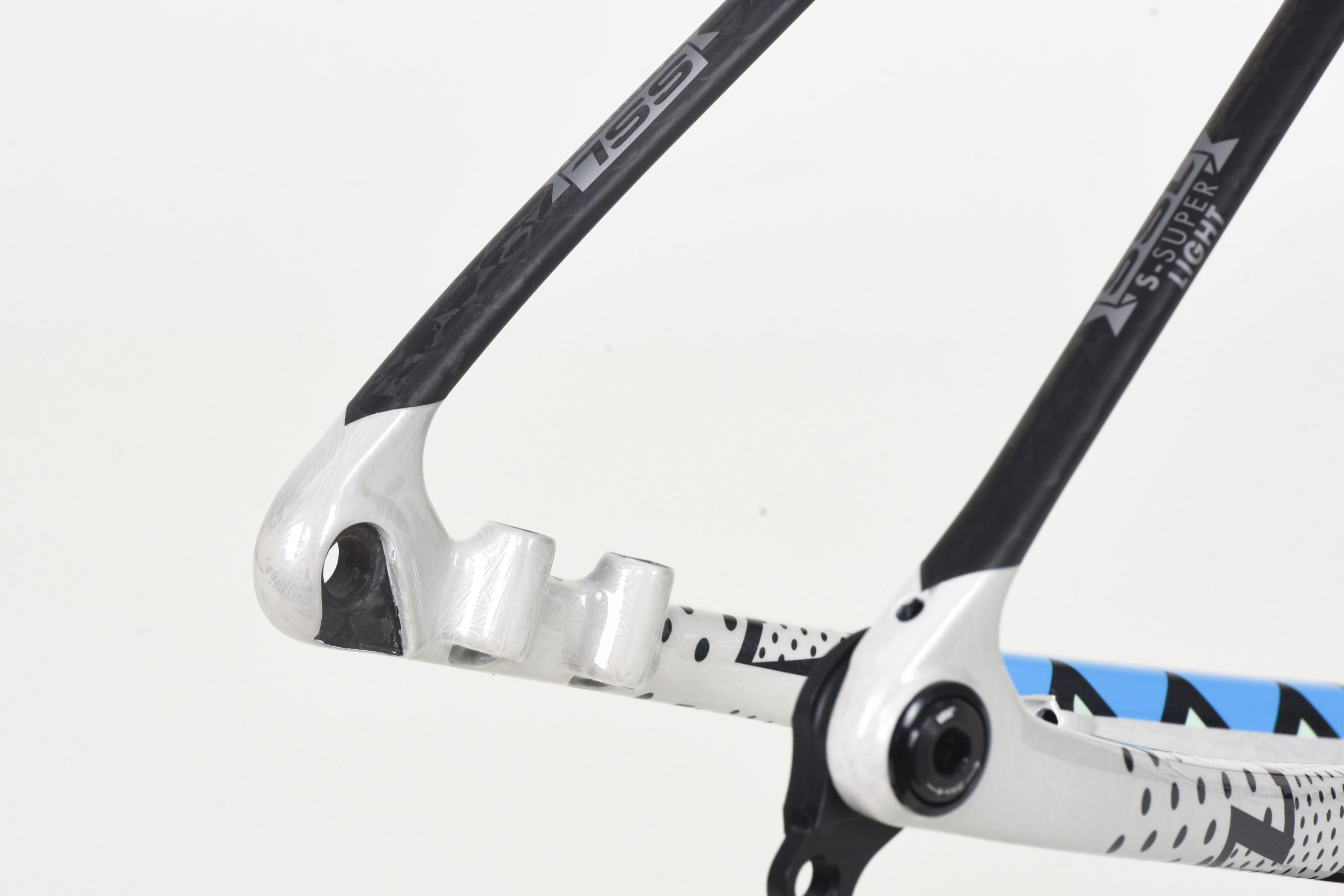

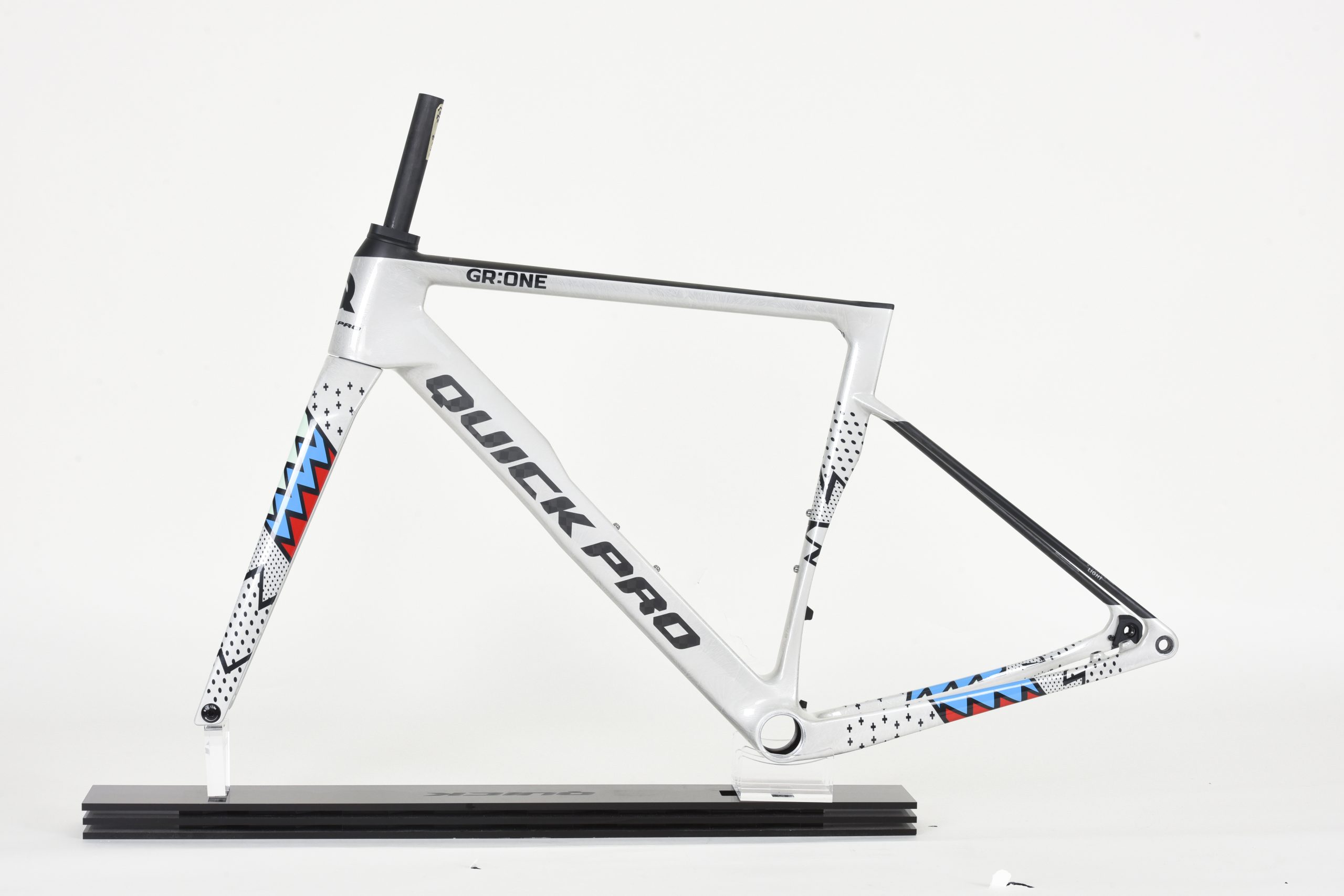

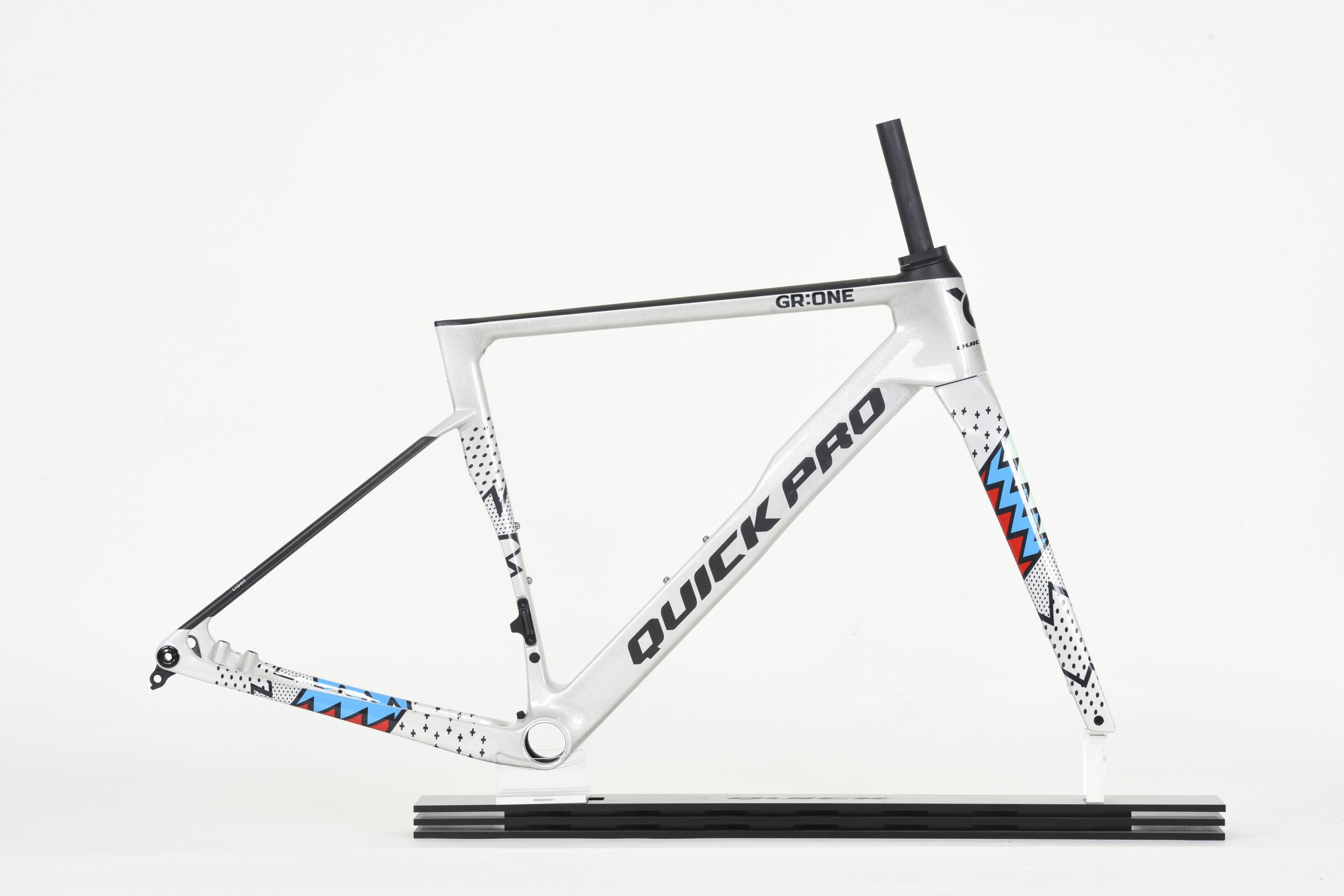

Gallery

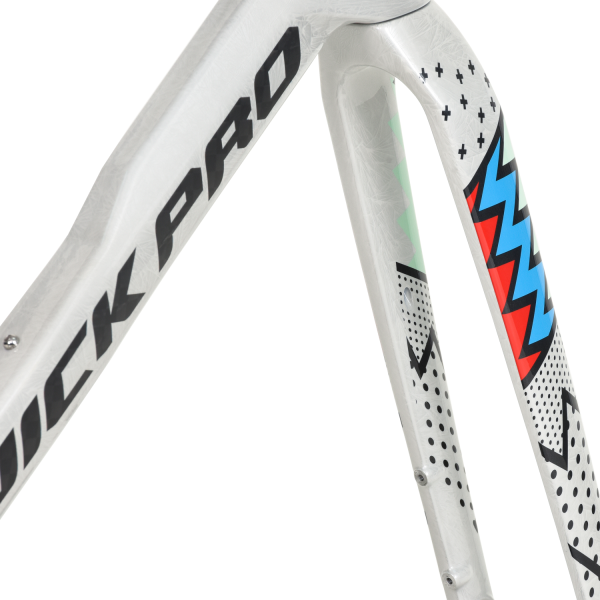

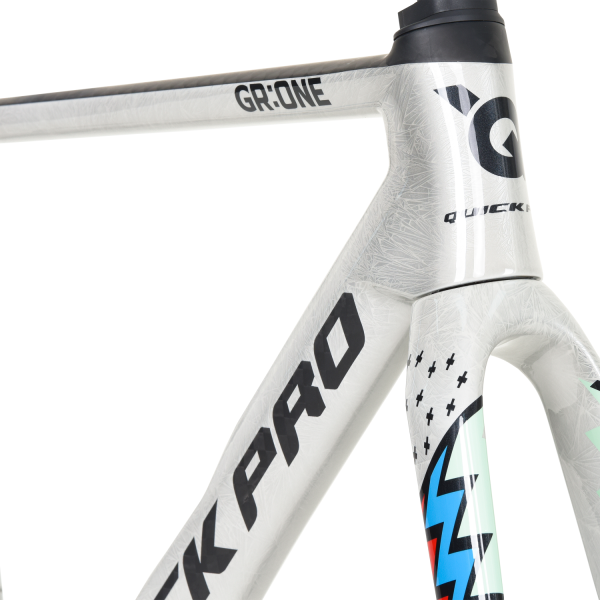

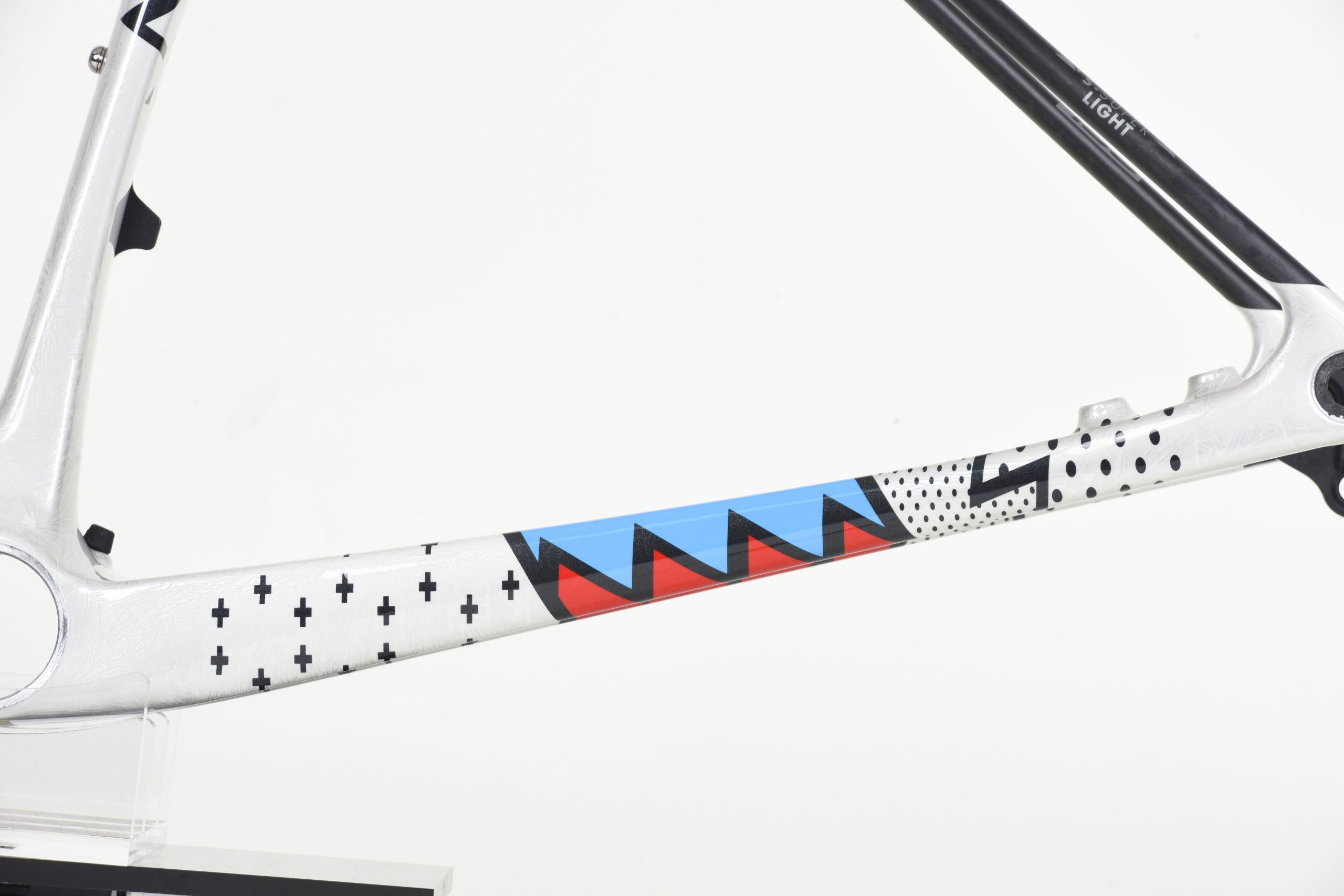

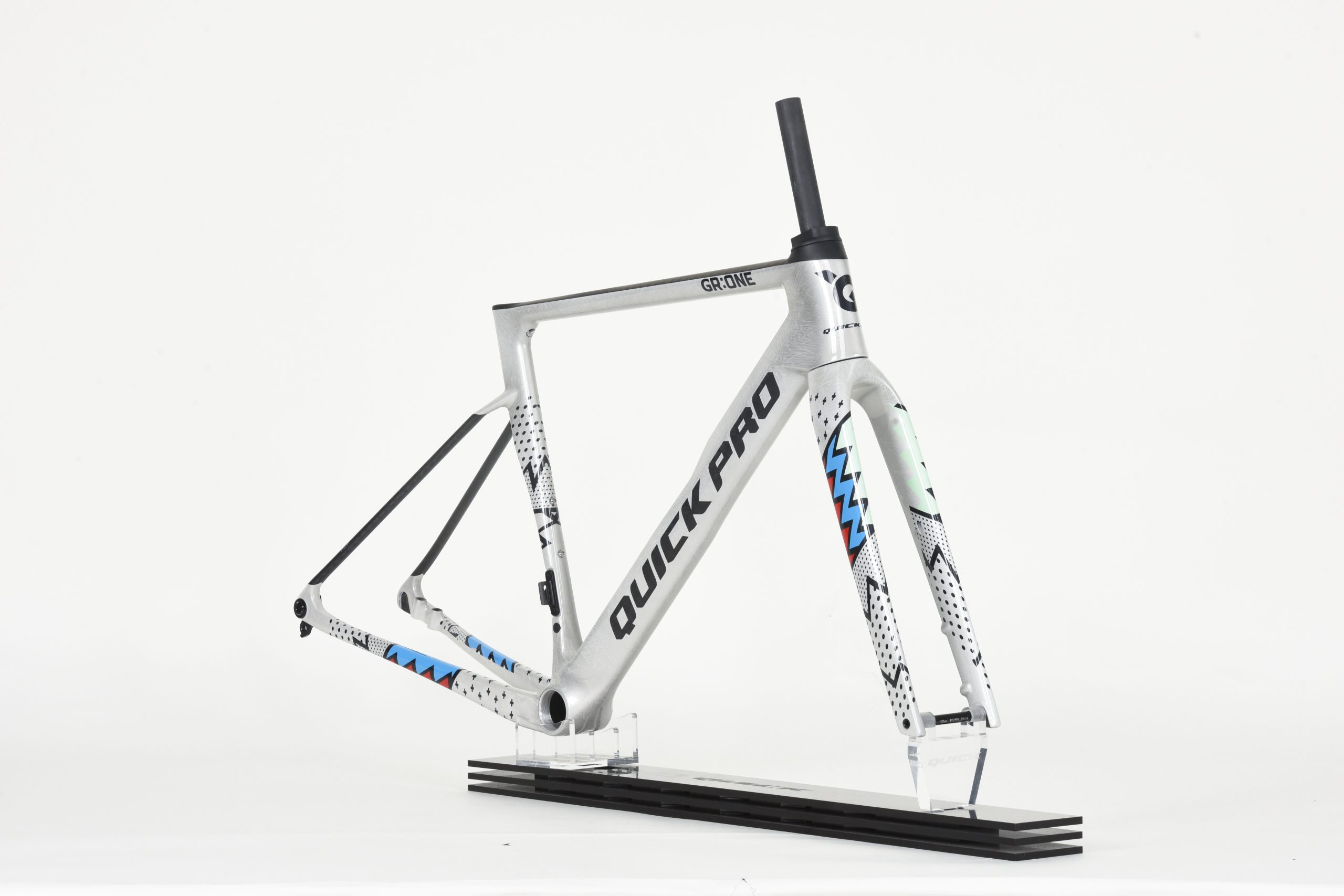

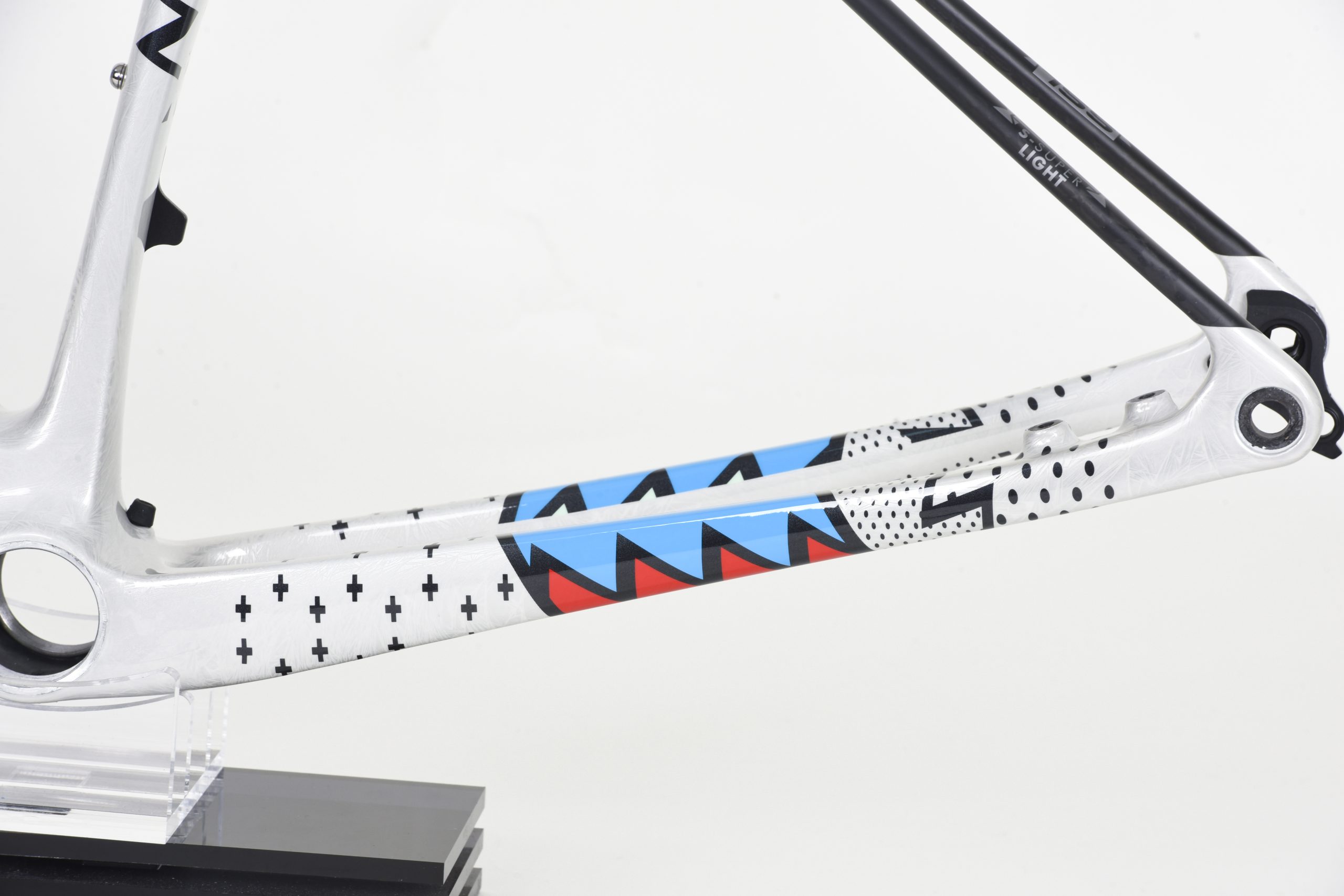

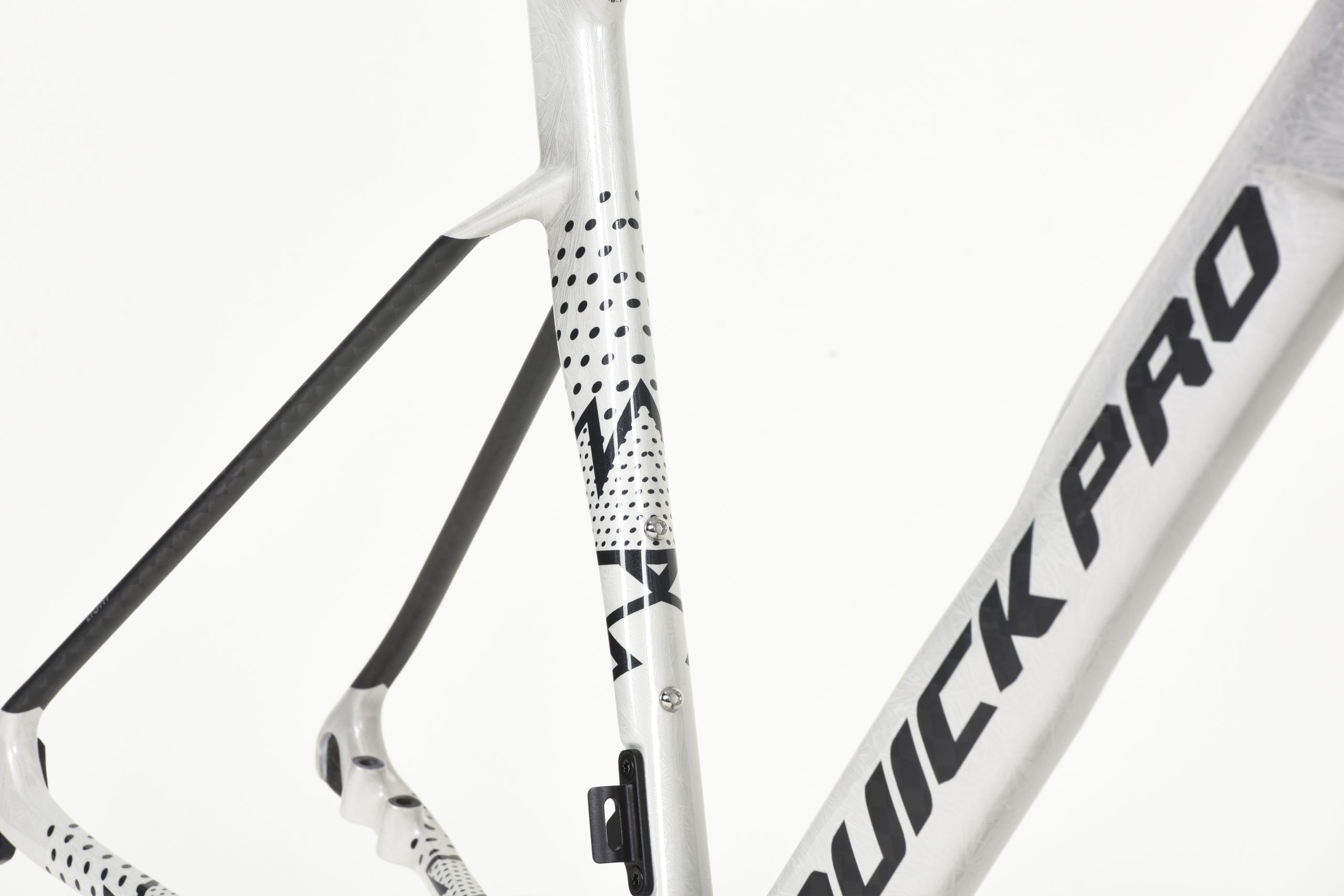

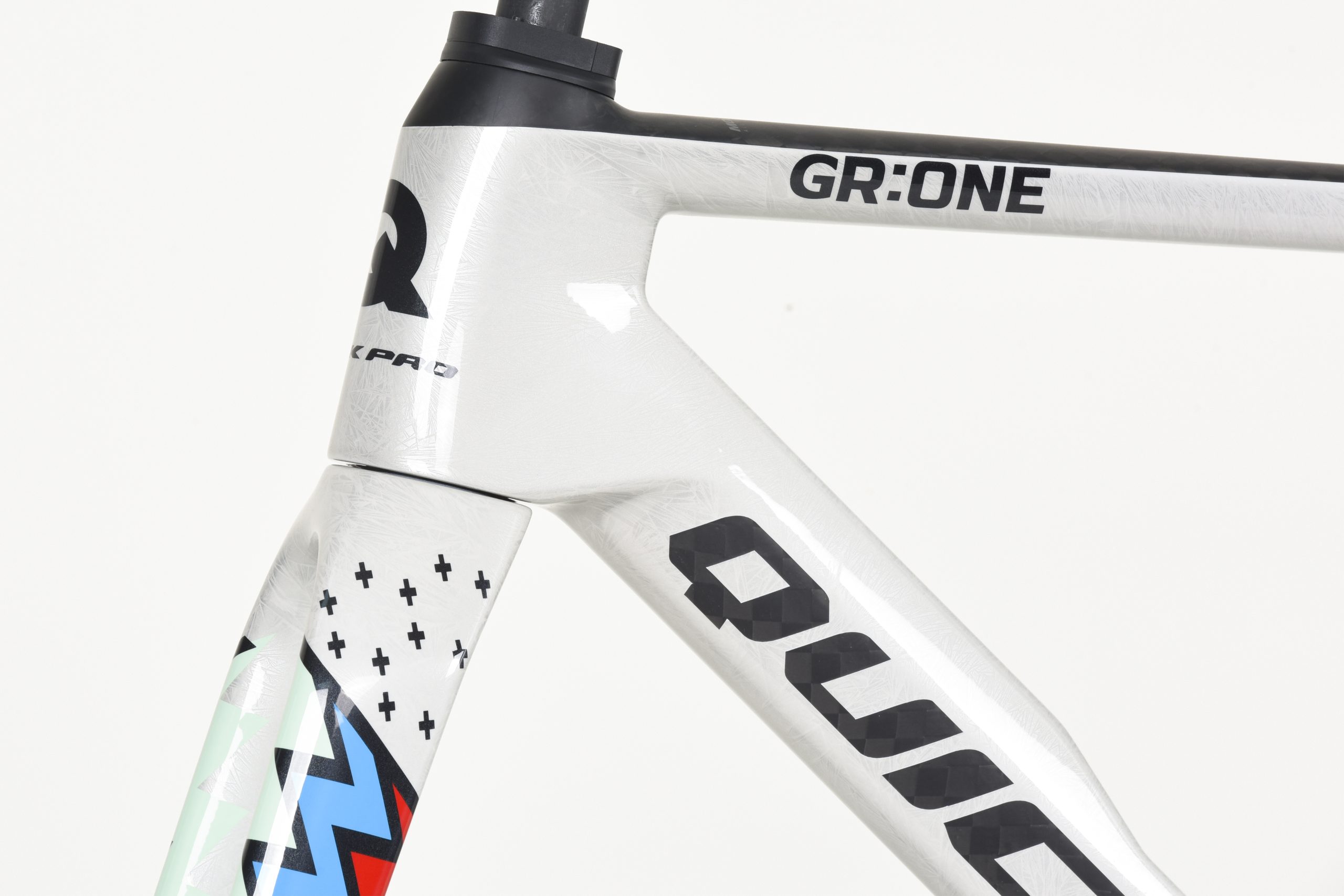

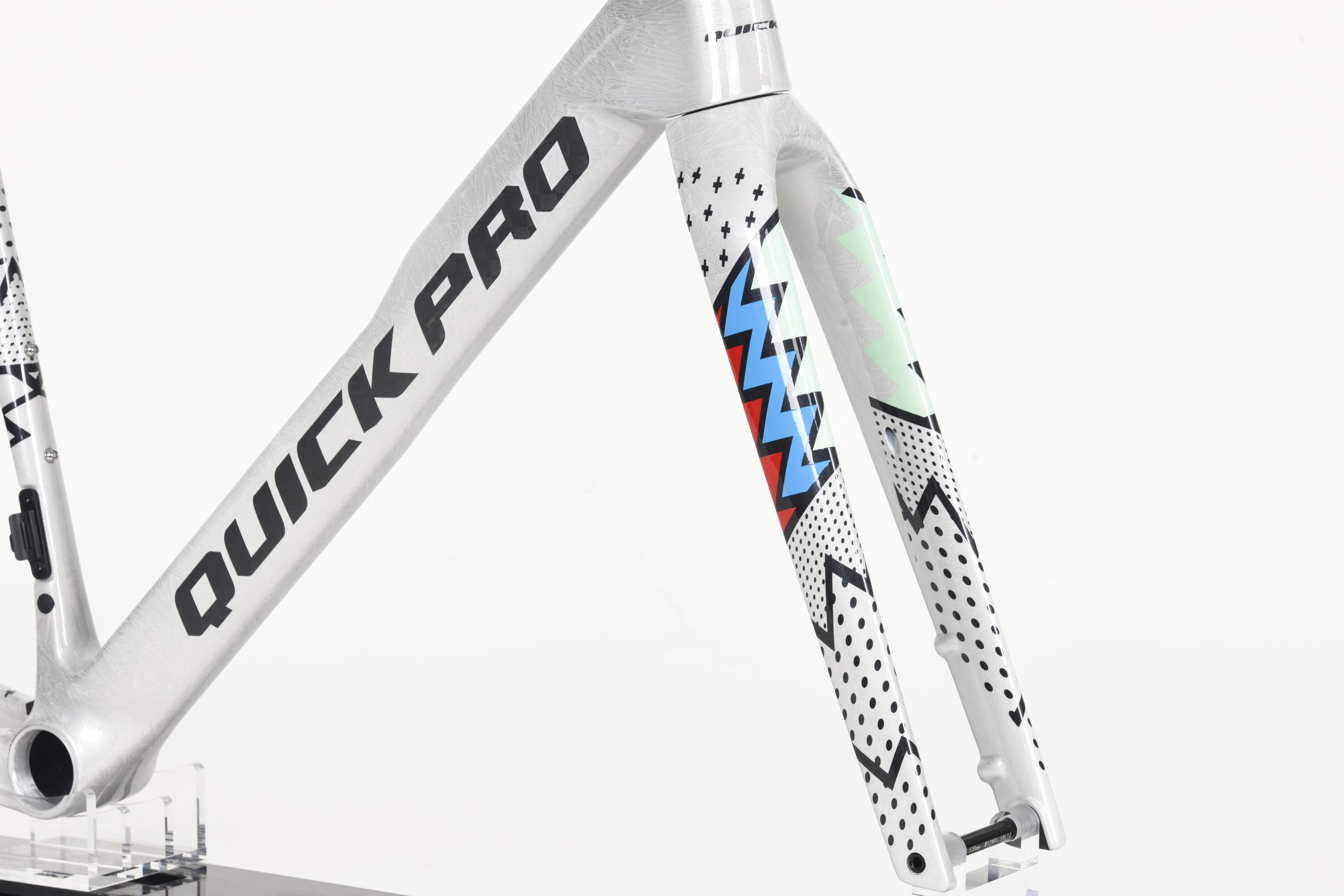

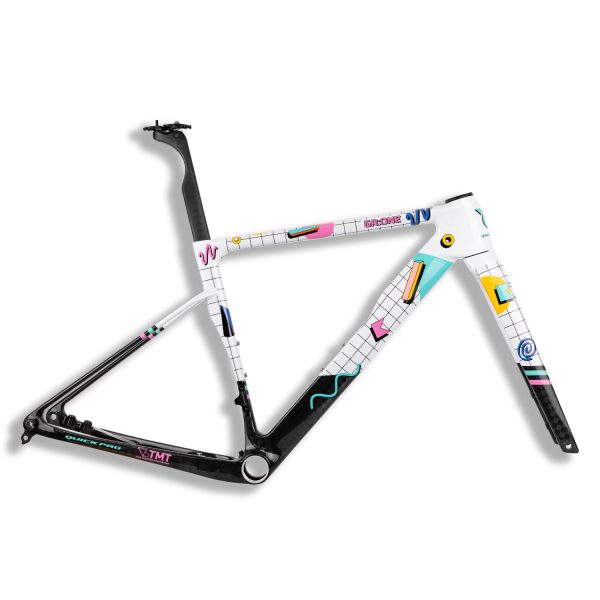

Retro - Panda Podium Exclusive

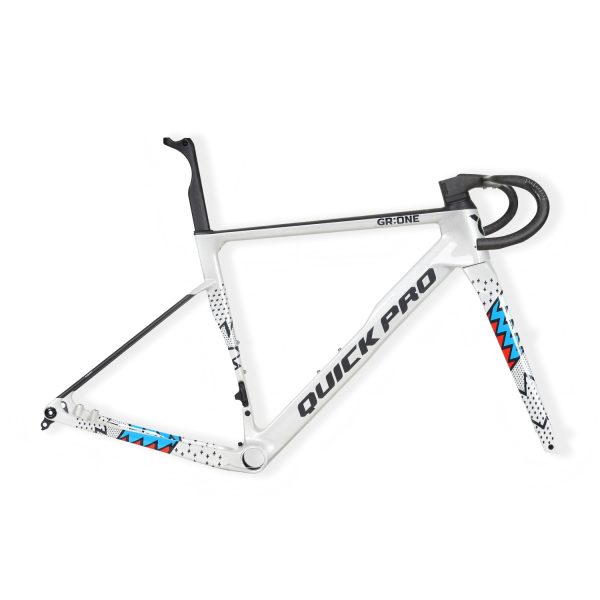

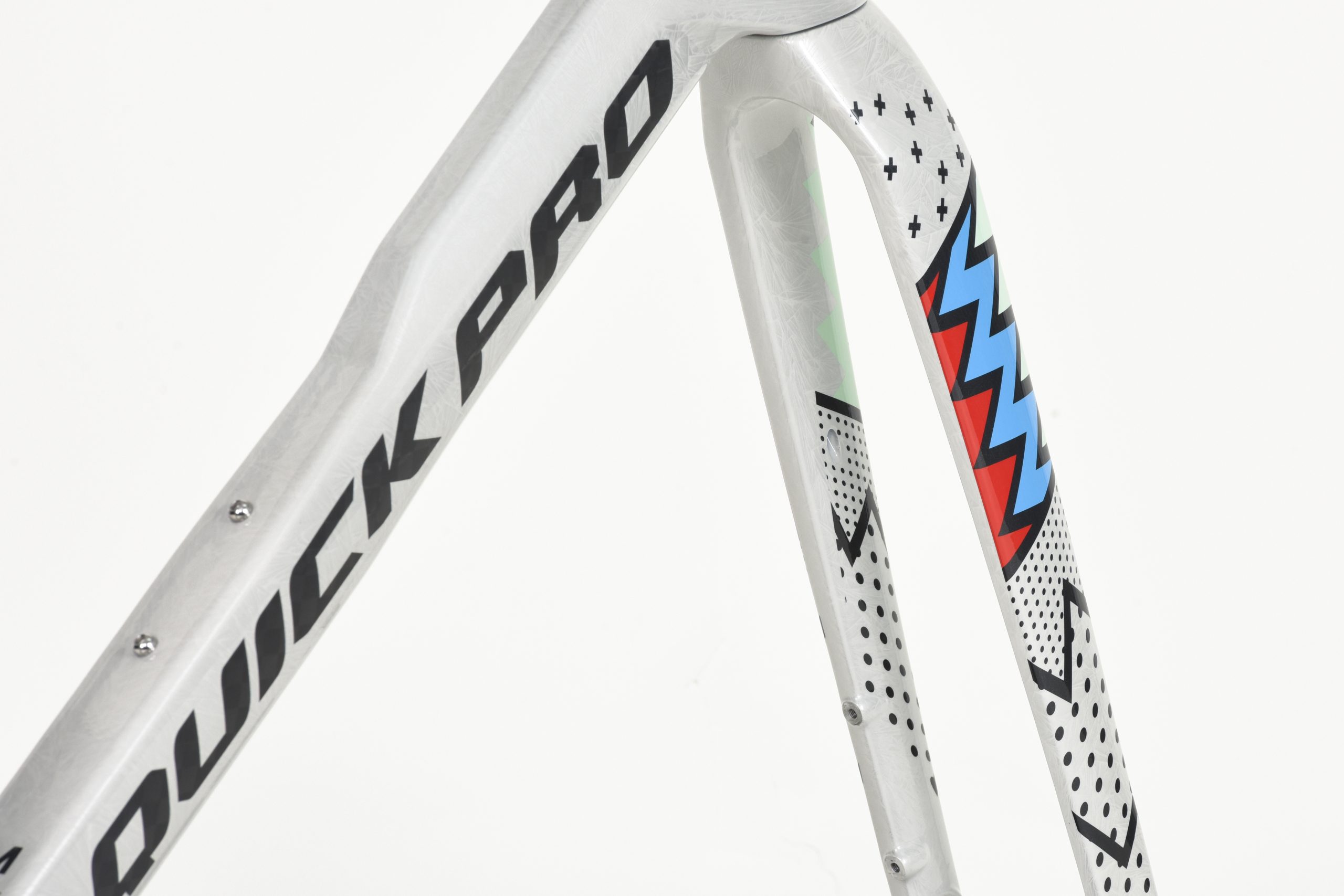

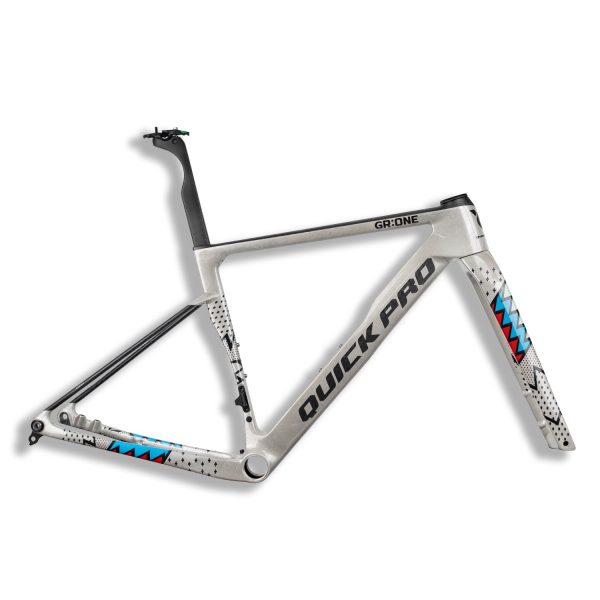

Radiant Silver

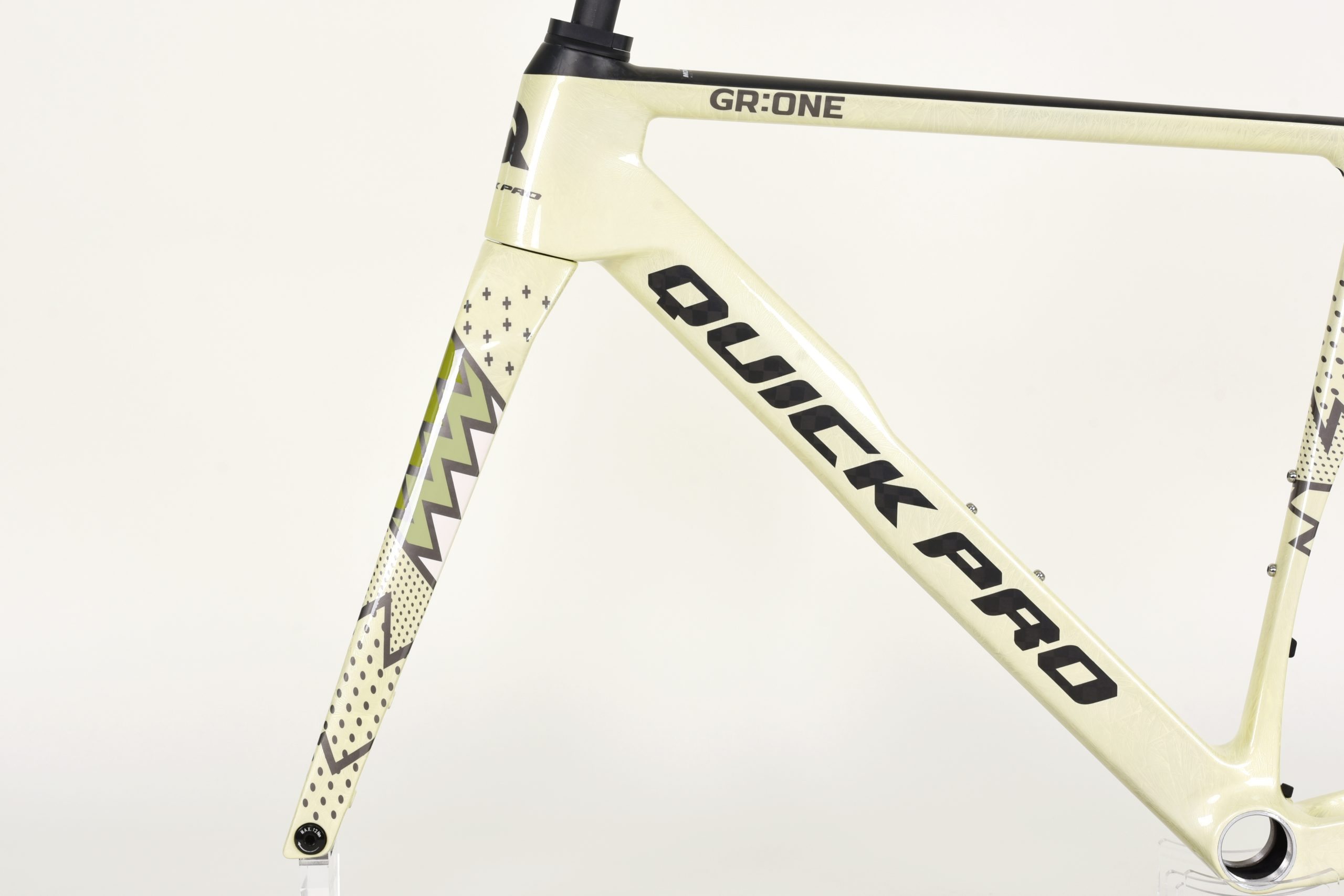

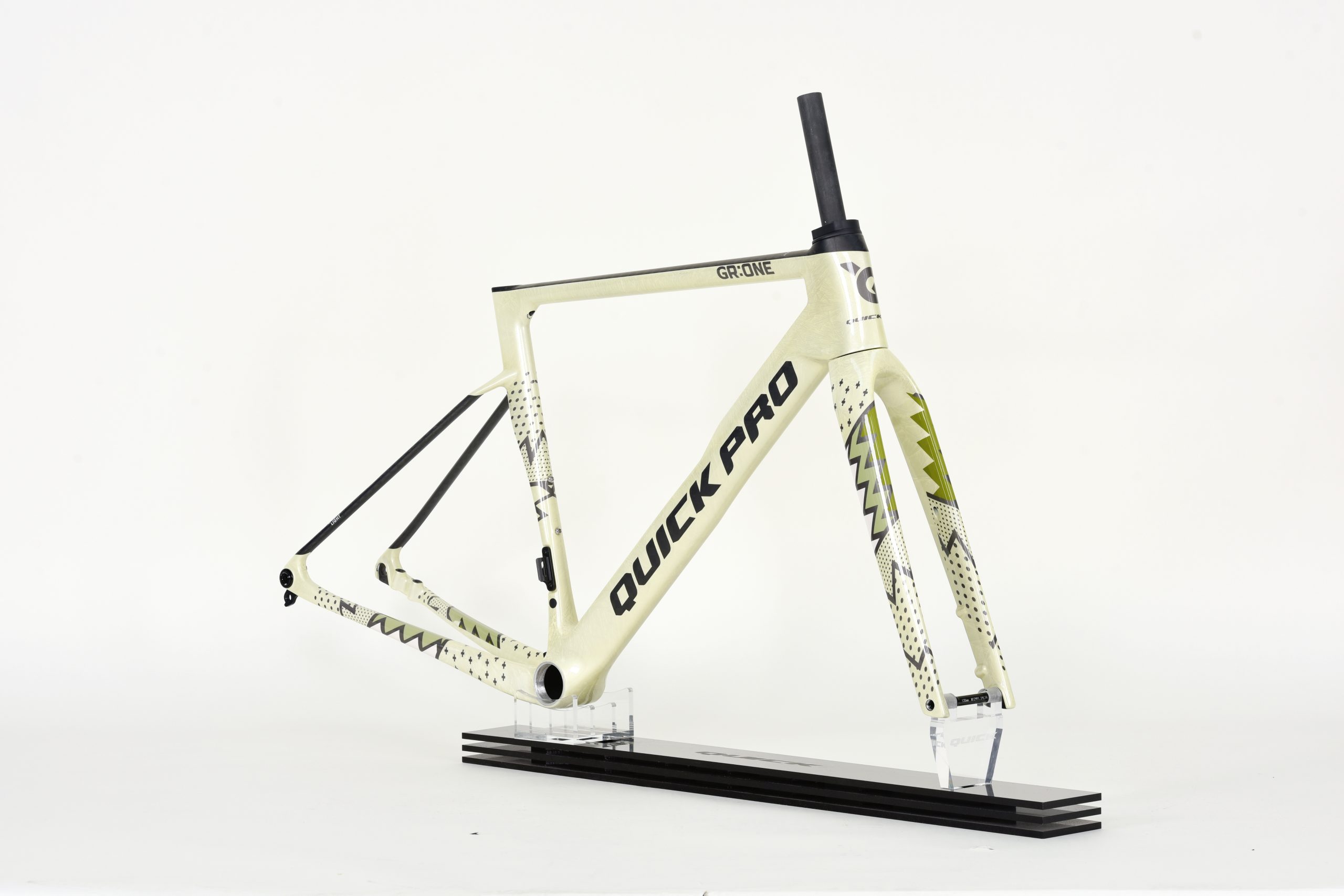

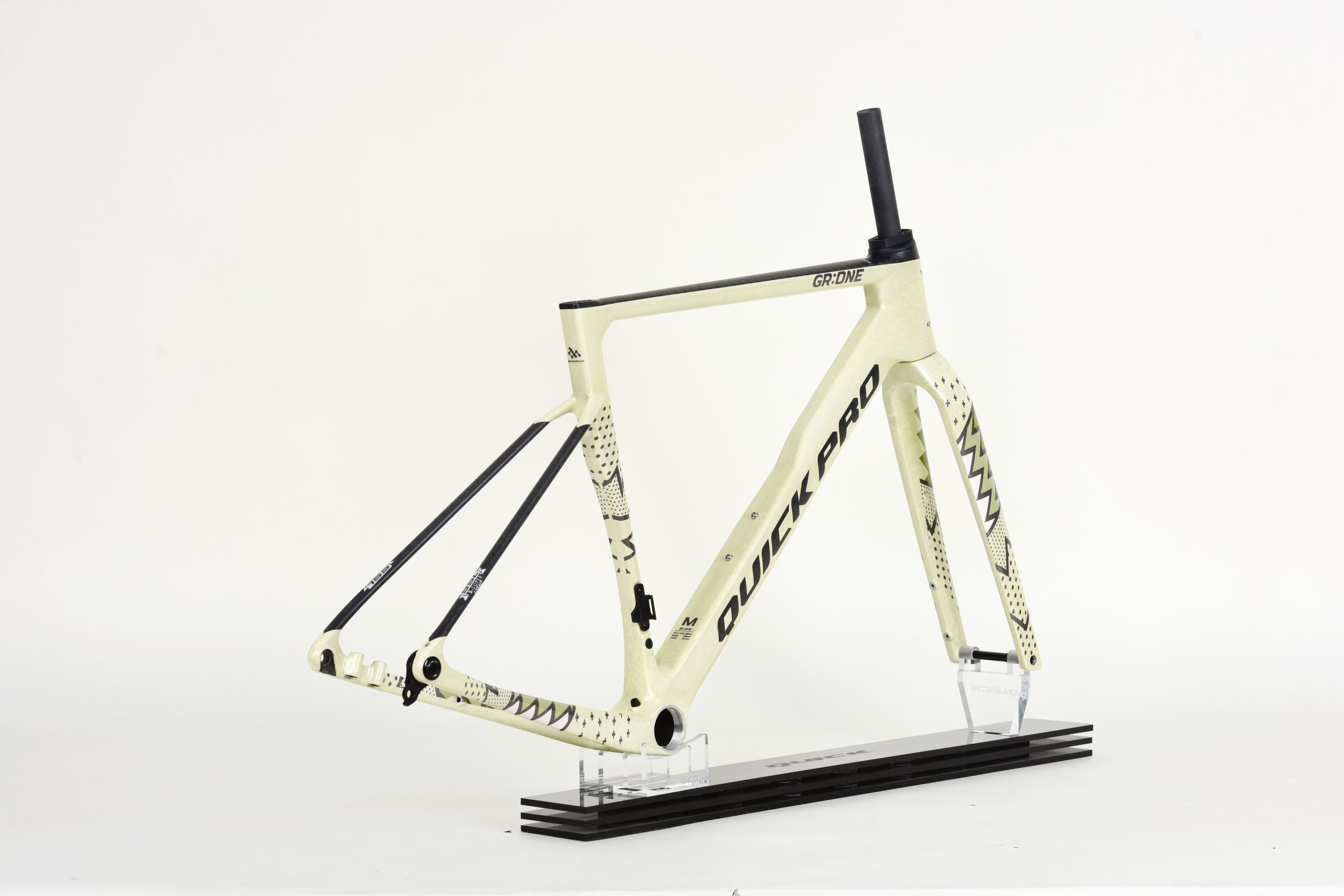

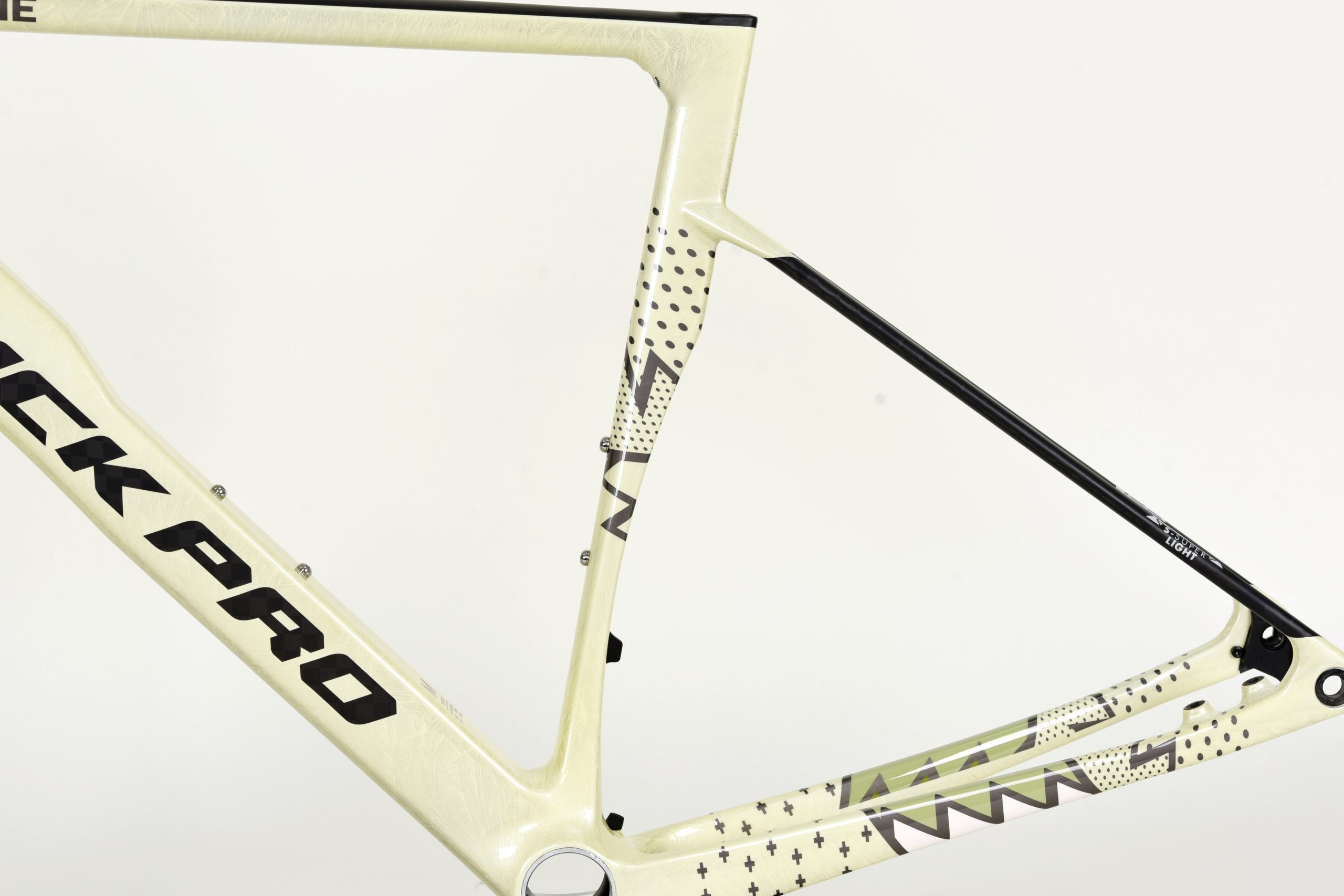

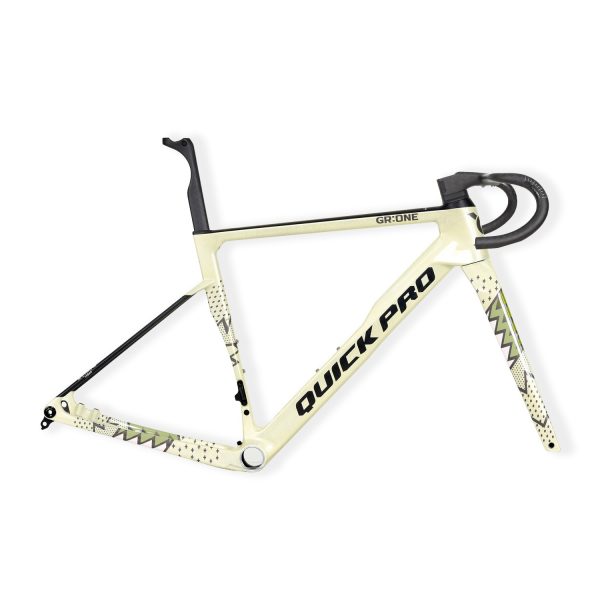

Natural Olive
Marble Gloss Grey
Urban Grey
Additional information
| Size | L/516, M/486, S/456, XL/546, XS/426 |
|---|---|
| Color | Custom—Contact us (+$200), Marble Gloss Grey, Natural Olive, Radiant Silver, Retro (+$100), Urban Grey |
Brand
Quick
| Brand Name: Quick | Chinese Company Name: 惠州市快客自行车有限公司 |
| Founded: 2018 | # of Employees: 50-100 |
| Headquarters: Huizhou, Guangdong | Products Categories: Framesets, Accessories |
