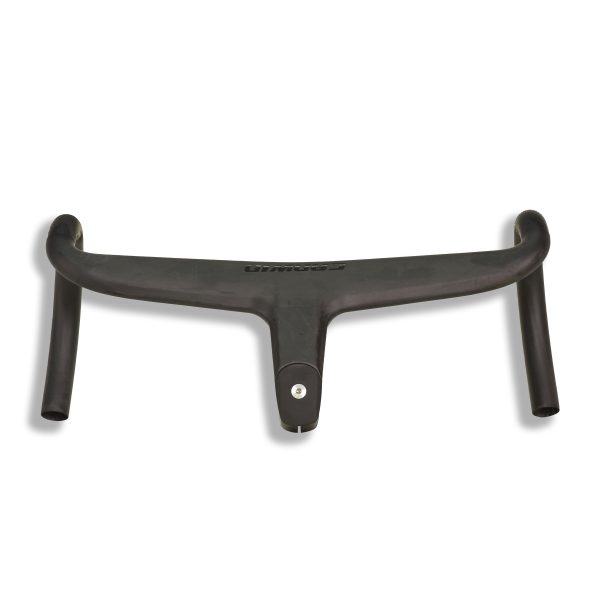

Quick ZEPHYR-SSL Aerodynamic Integrated Handlebar
$380.00
- Crazy light: 288g±3% (380*90mm)
- Fully internal cable routing compatible
- Fusion of Nanotechnology and Advanced Carbon Fiber
- One-Piece Molding Technology
- Reach: 75mm
- Drop: 125mm
- Stack: 37mm
- Drop Flare: 6.1°
- Stem Angle: -8°
- Not compatible with OD2 Diameter bike
- Come with: Computer Holder, Spacers, Top Cap*¹
- Please check for frame‑to‑cap interference before installation*²
- Select your bike model to continue. We’re happy to help if you can’t find what you need!
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description
Monocoque Design for Optimal Integration
Crafted with advanced monocoque molding technology, this integrated handlebar eliminates bonded joints, enhancing stiffness and reducing weight. The seamless structure prevents fiber bunching during production, ensuring smoother cable routing for electronic drivetrains.
High-Performance Carbon Layup
Using Toray T1100 and M65 carbon fibers, the handlebar's hybrid layup achieves a balance of lightness, stiffness, and impact resistance. Nano-resin technology further enhances durability under high loads, meeting the demands of modern road cycling.
Optimized for Aggressive Riding
Designed for sprinting and climbing, the handlebar offers exceptional torsional stiffness and stability, minimizing flex under load. This ensures precise handling and reliable performance for serious road cyclists.

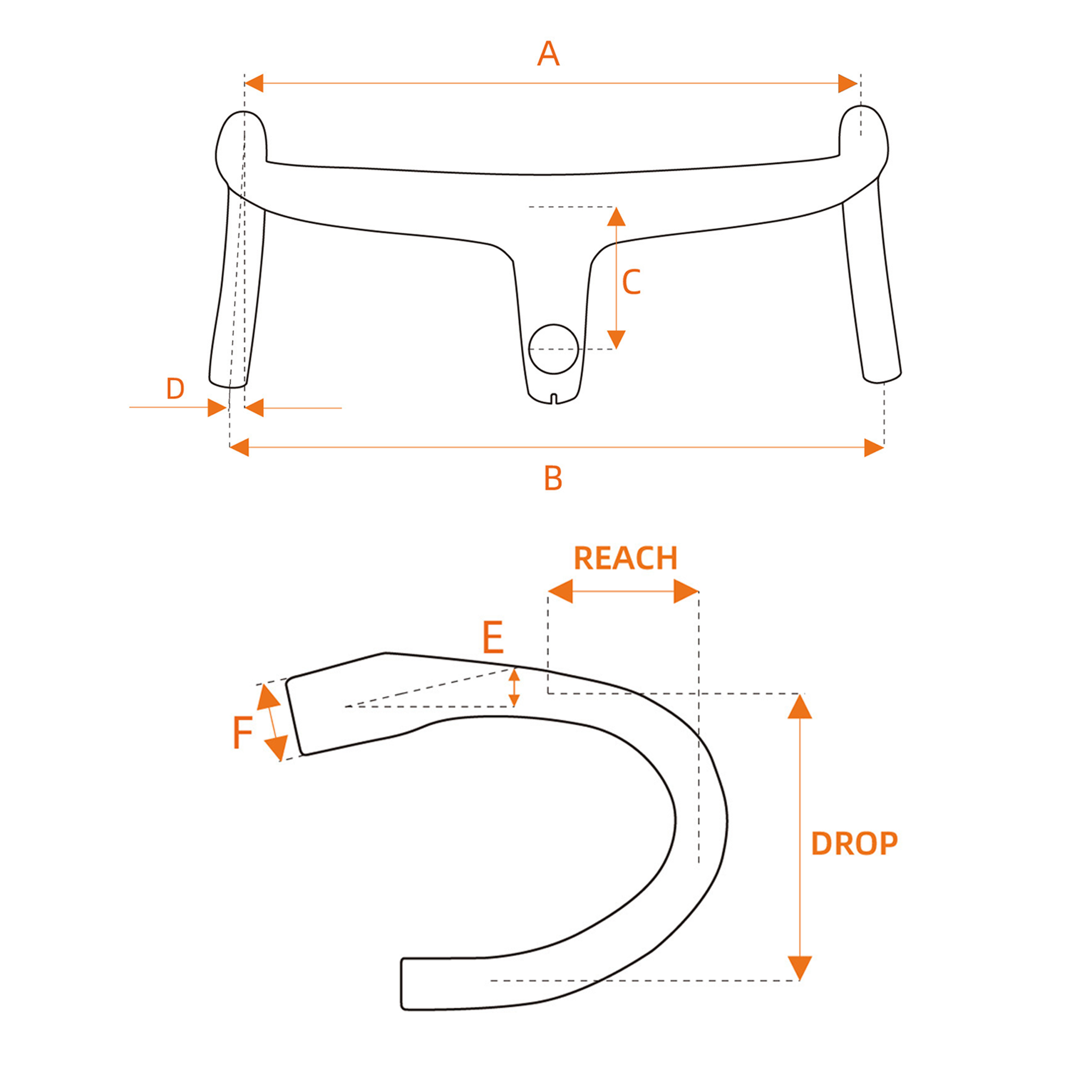

Geometry
| A Hood-to-hood (mm) | 340 | 360 | 380 | 400 | 420 |
| B Drop-to-drop (mm) | 366.5 | 386.5 | 406.5 | 426.5 | 446.5 |
| C Stem Length (mm) | 70-110 | 80-140 | 80-140 | 80-140 | 90-140 |
| D Flare Angle (°) | 6.1° | 6.1° | 6.1° | 6.1° | 6.1° |
| E Stem Angle (°) | -8° | -8° | -8° | -8° | -8° |
| F Stack (mm) | 37 | 37 | 37 | 37 | 37 |
| Reach (mm) | 75 | 75 | 75 | 75 | 75 |
| Drop (mm) | 125 | 125 | 125 | 125 | 125 |
Important Notes
*¹ Headset Adapter & Spacer:
The adapter is made of nylon, available in either injection‑molded or 3D‑printed version depending on the bike models. It is reverse-engineered from scanning original factory top caps.
*² Important Installation Reminder:
Interference between the top cap and frame may happen on individual frames. This risk is higher for repainted frames with thicker paint layers.
If contact occurs, you may lightly sand the top cap to achieve proper fit. Always double‑check the fit before fully tightening all components.
Additional information
| Handlebar Width | 340mm, 360mm, 380mm, 400mm, 420mm |
|---|---|
| Handlebar Length | 70mm, 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm |
Brand
Quick
| Brand Name: Quick | Chinese Company Name: 惠州市快客自行车有限公司 |
| Founded: 2018 | # of Employees: 50-100 |
| Headquarters: Huizhou, Guangdong | Products Categories: Framesets, Accessories |
