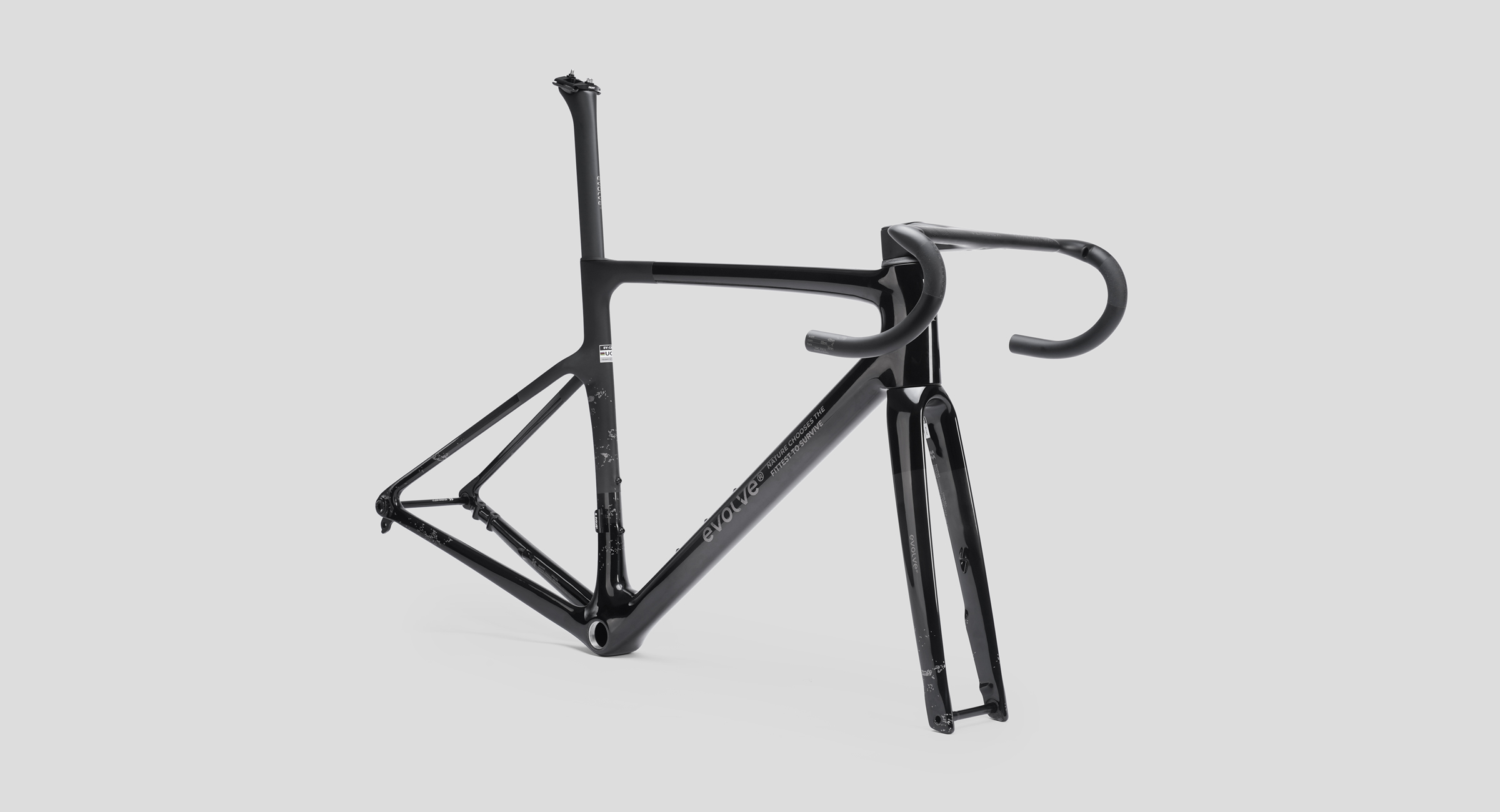

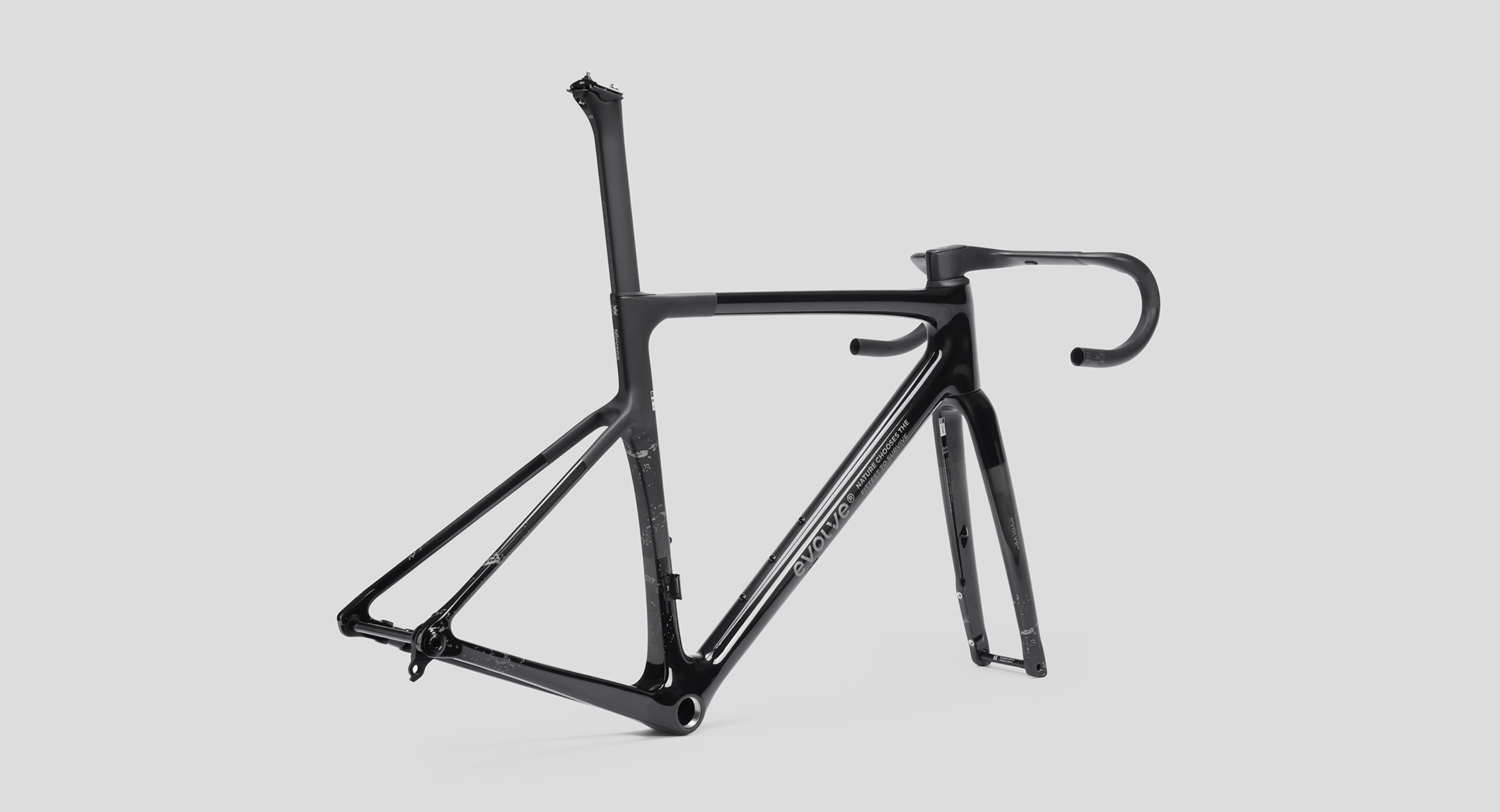

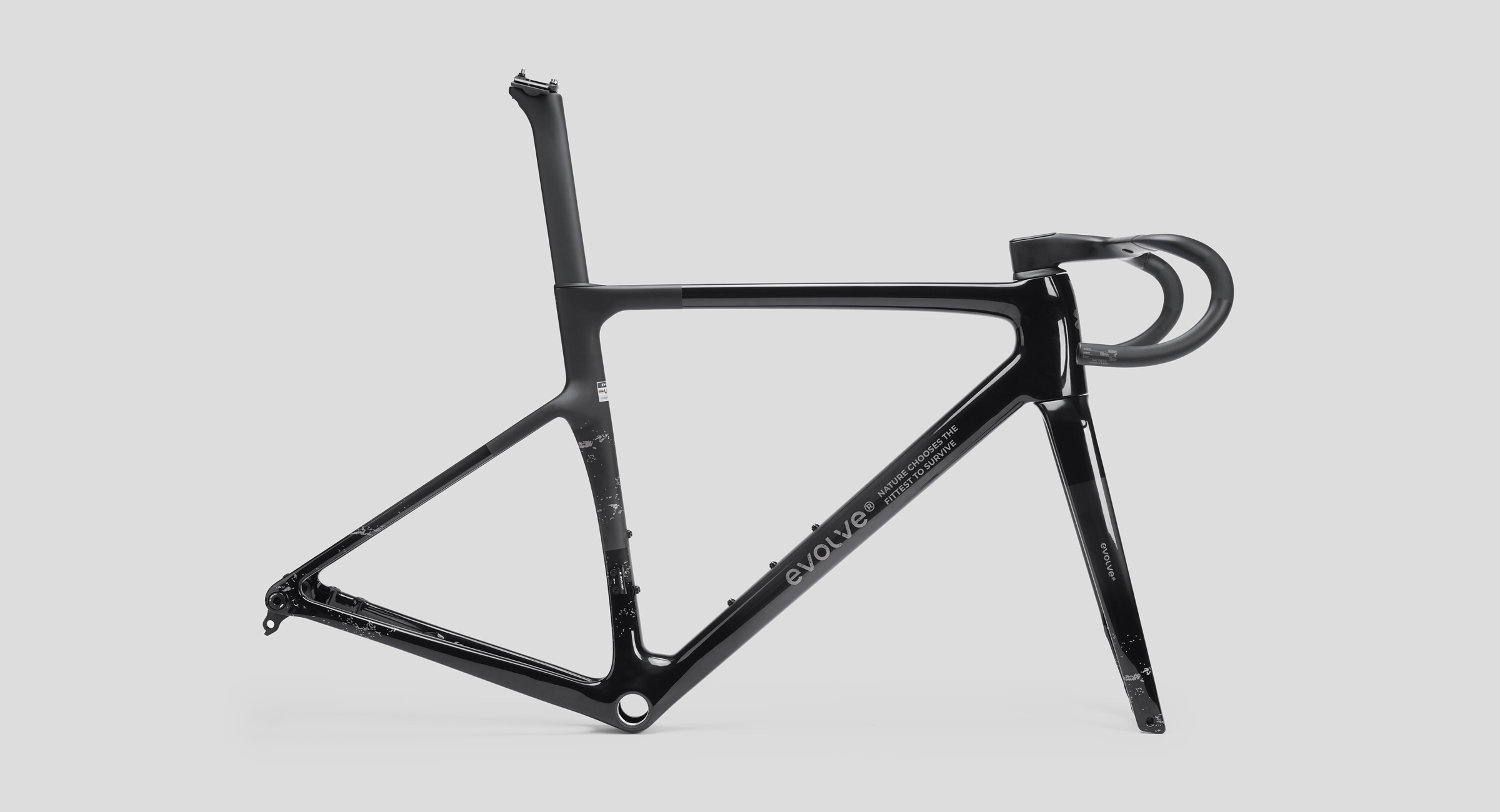

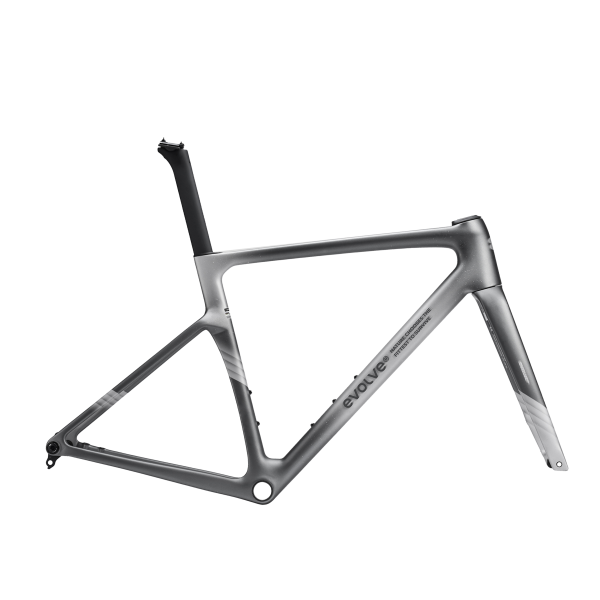

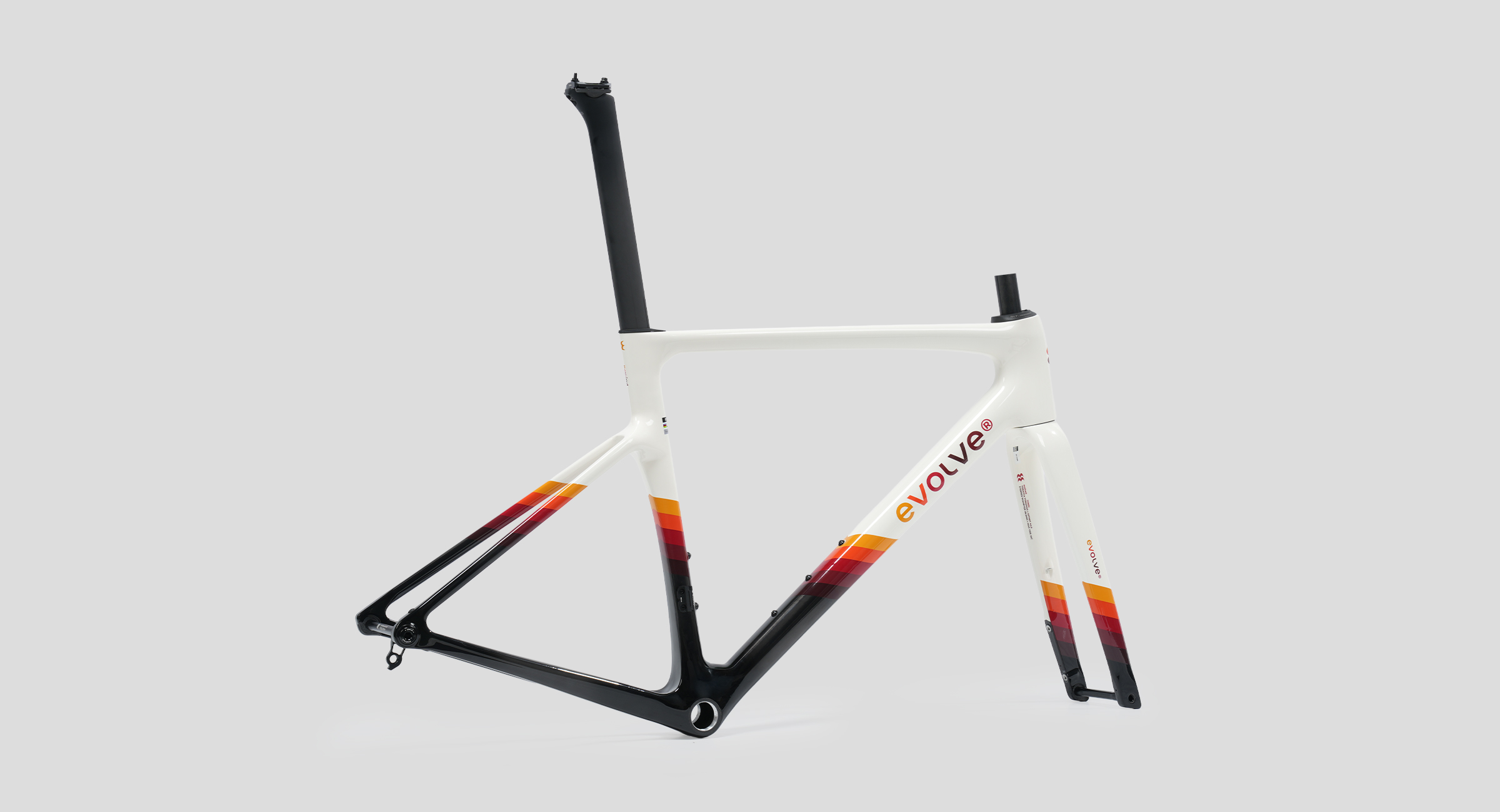

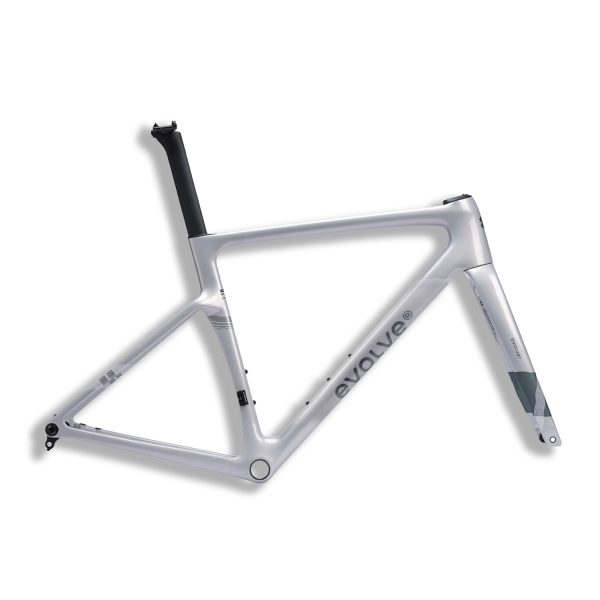

evolve CIMA Speed Artist Carbon Road bike Frameset
$2,299.00
Pre-order only — stock arriving end of June. Orders placed now will ship once available.
evolve CIMA: 650 g aerodynamic beast, refined at Silverstone.
- Ultra-light Frame: 650 g (Size M, unpainted)
- Wind-tunnel Tested: Silverstone Sports Engineering Hub (UK)
- Premium Carbon T1100 & T800: +12% stiffer than class
- Disc Brake: fits 700×32 C tyres
- Internal Routing: Sleek, e-shift only
- CeramicSpeed SLT Bearings: smoother steering
- BSA Threaded BB: 68 mm, easy service
- UCI-Approved + Lifetime Warranty
- Description
- Additional information
- Brand
- Reviews (0)
Description
LIGHT AS THE WIND, DEFINING IMAGINATION
650g

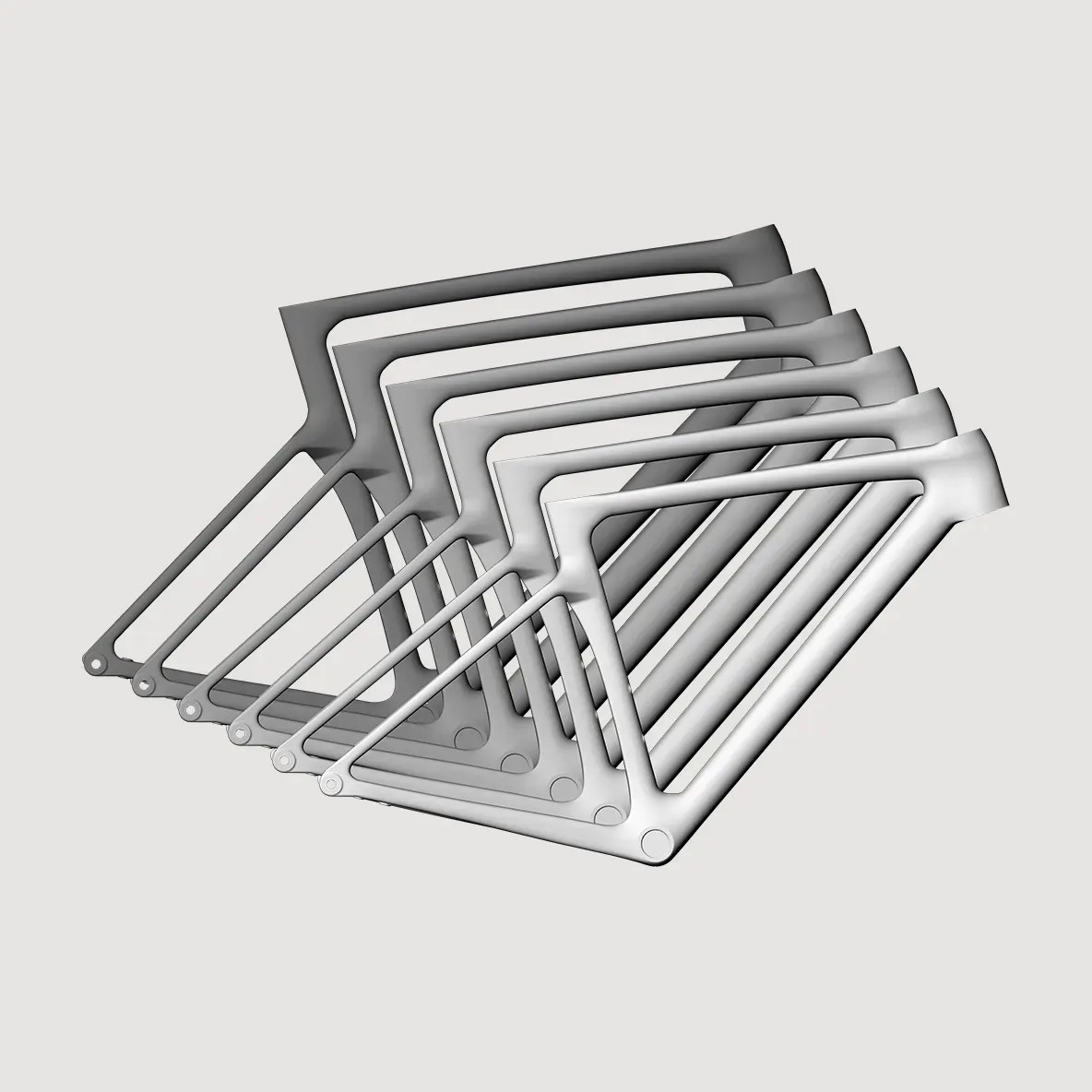

THE BEAUTY OF GEOMETRY
THE SOUL OF CYCLING
6 SIZES
Suitable for riders with heights from 146cm to 202cm
STR VALUES
1.36/1.40/1.42/1.44/1.46/1.50, Suitable for XS~XL Sizes
2 DIFFERENT OFFSET FORKS 3 DIFFERENT BB DROPS
Maintaining consistent handling across sizes

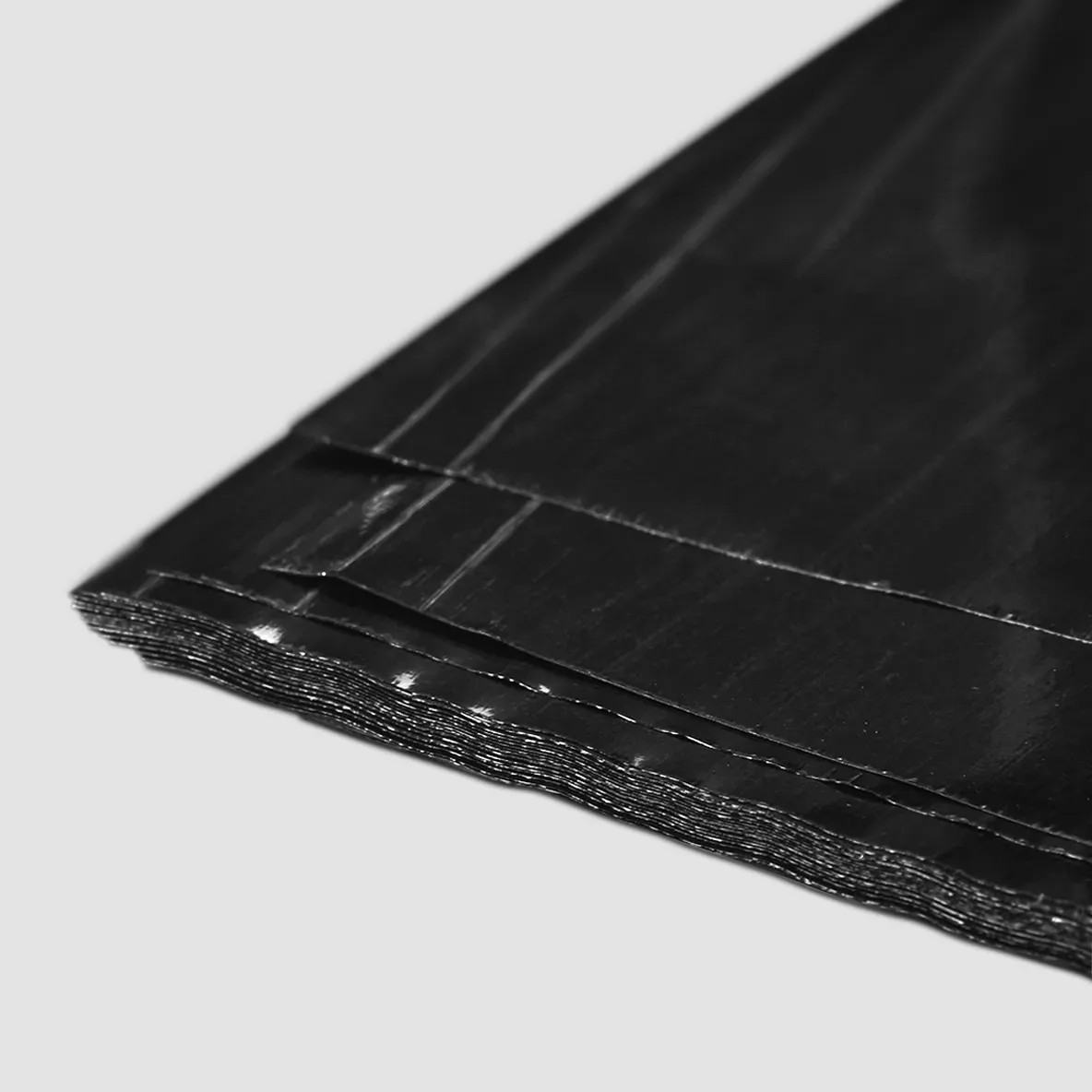

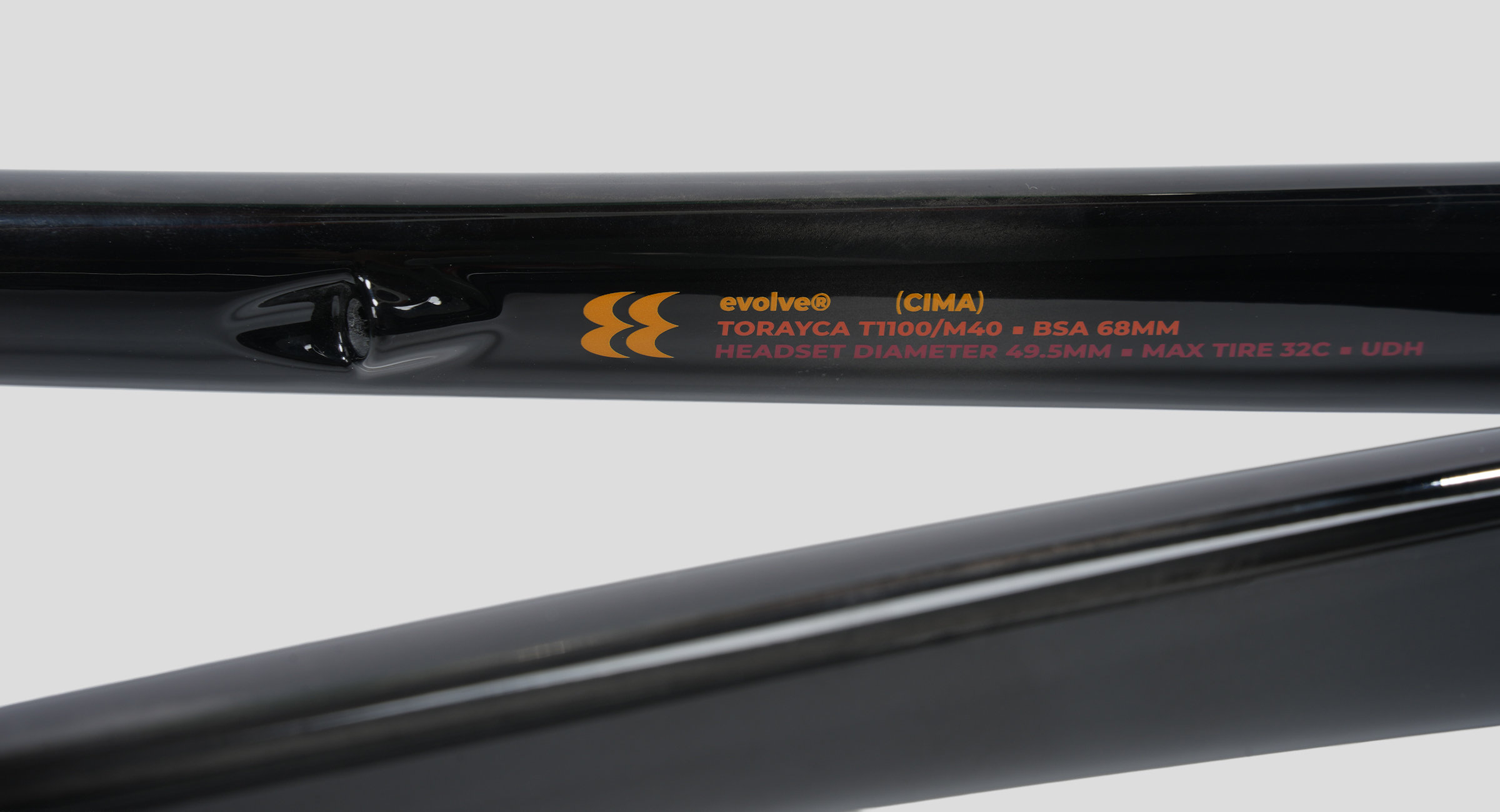

TOP-TIER MATERIALS
EXCEPTIONAL PERFORMANCE
T1100 & T800; M40
High-quality toray carbon fabric
12%↑
Special resin formula increases rigidity by 12% compared to traditional resins
PREMIUM COMPONENTS
SUPERIOR PERFORMANCE

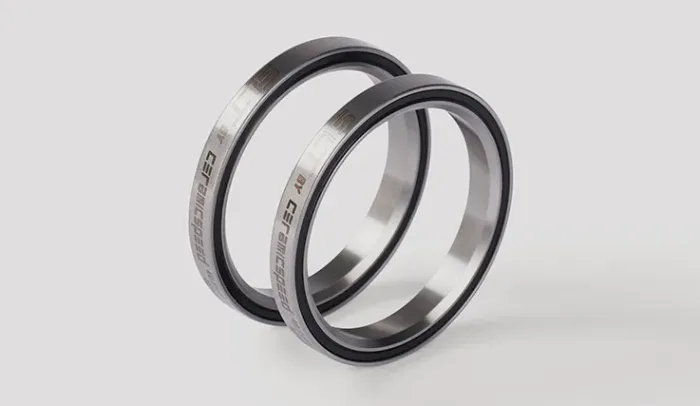

CERAMICSPEED SLT HEADSET BEARINGS

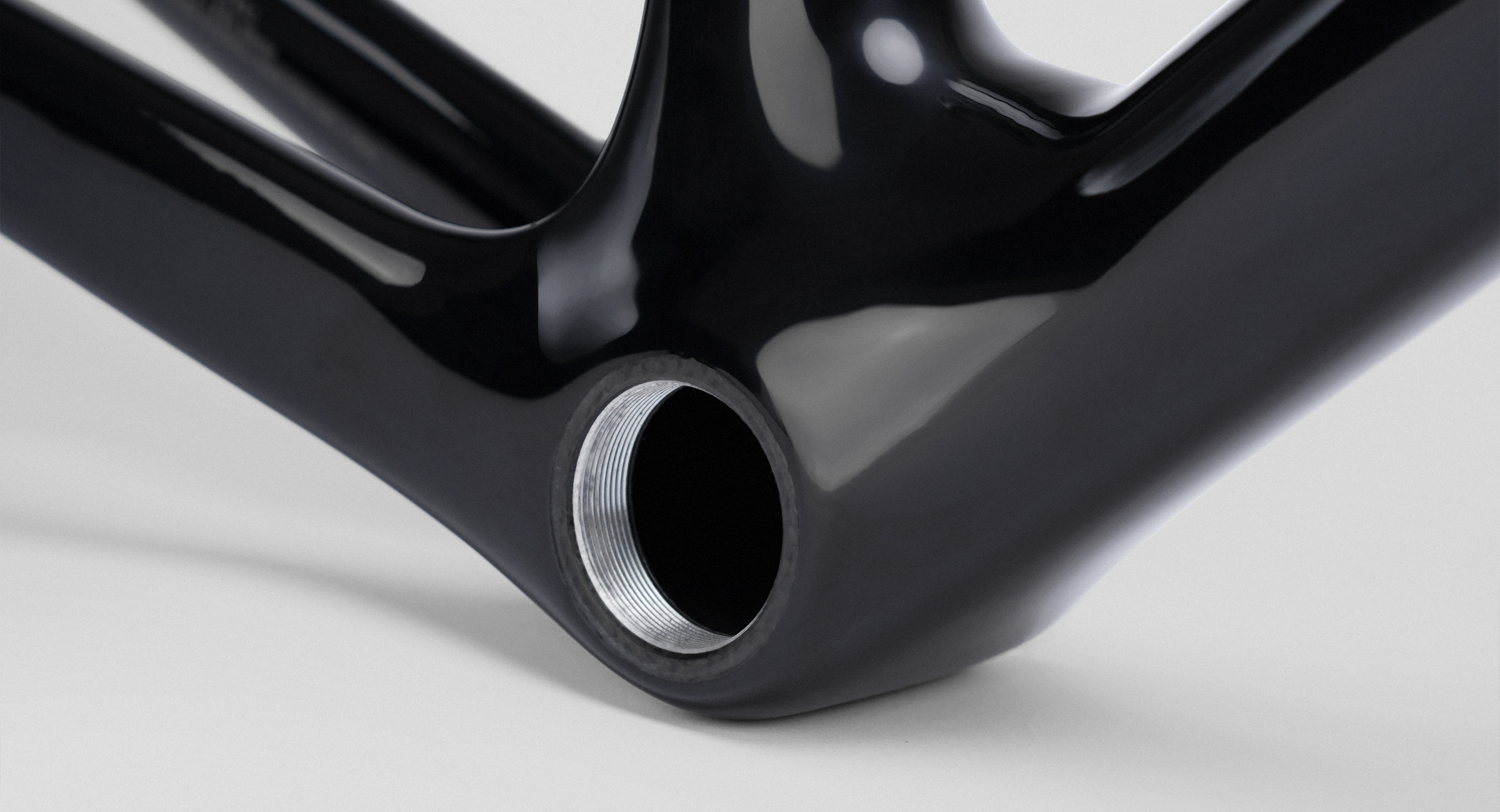

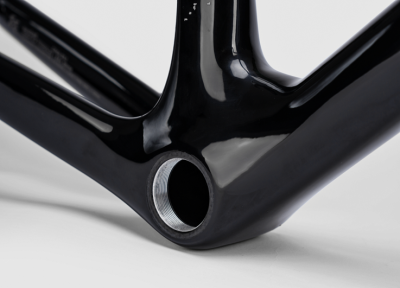

BSA THREADED BOTTOM BRACKET

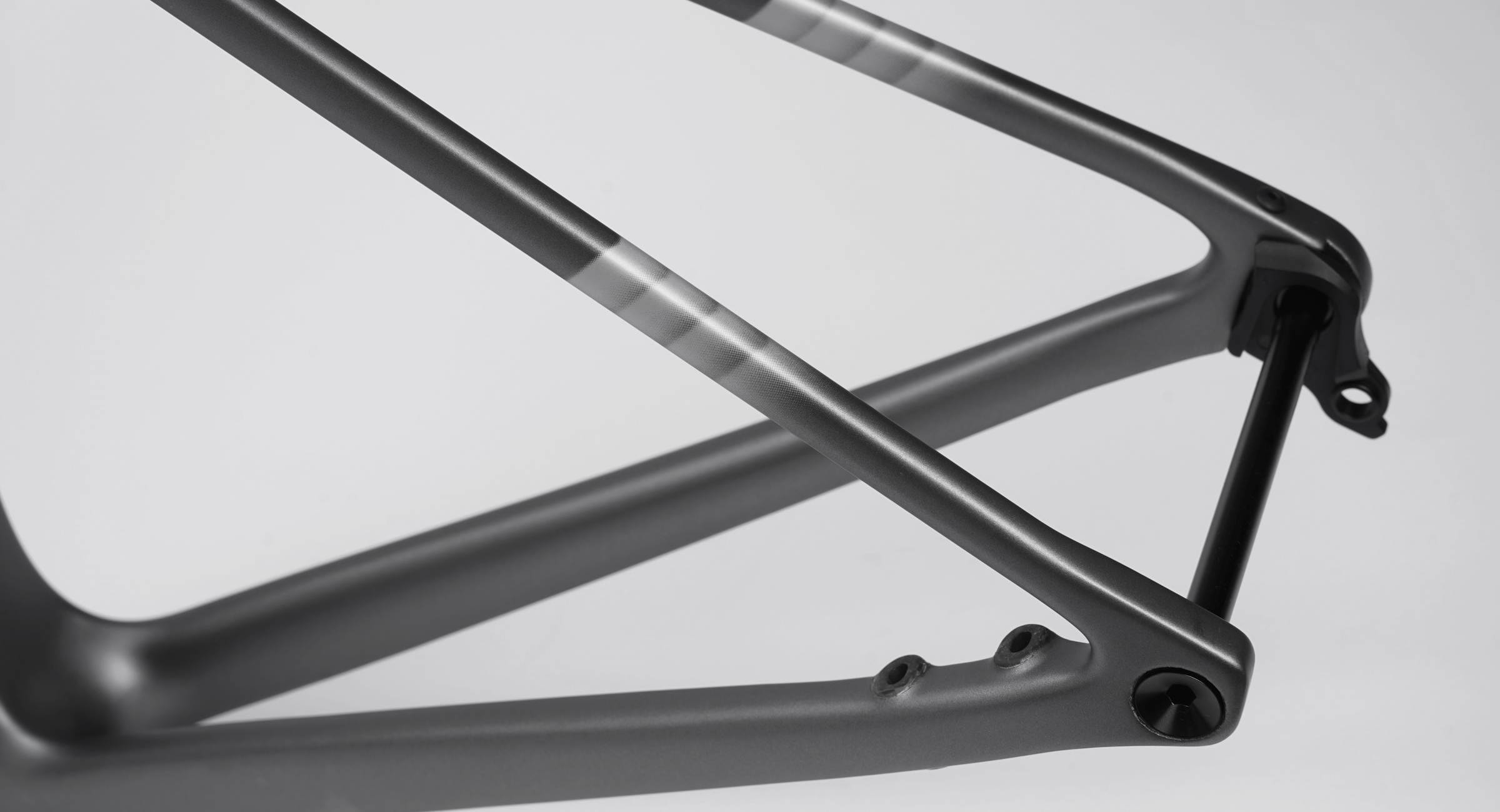

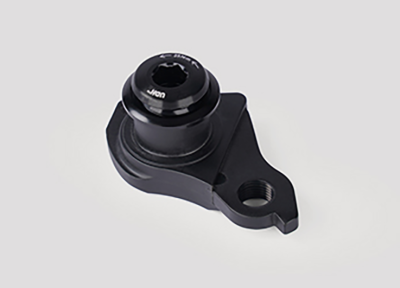

SRAM UDH DERAILLEUR HANGER
WORLDWIDE PROFESSIONAL RECOGNITION
IN-HOUSE TESTING
evolve® maintains strict standards across 21 testing items for frame and fork, ensuring enhanced reliability and riding safety.
SILVERSTONE SPORTS ENGINEERING HUB WIND TUNNEL TESTING
Validating and ensuring greater aerodynamic performance.

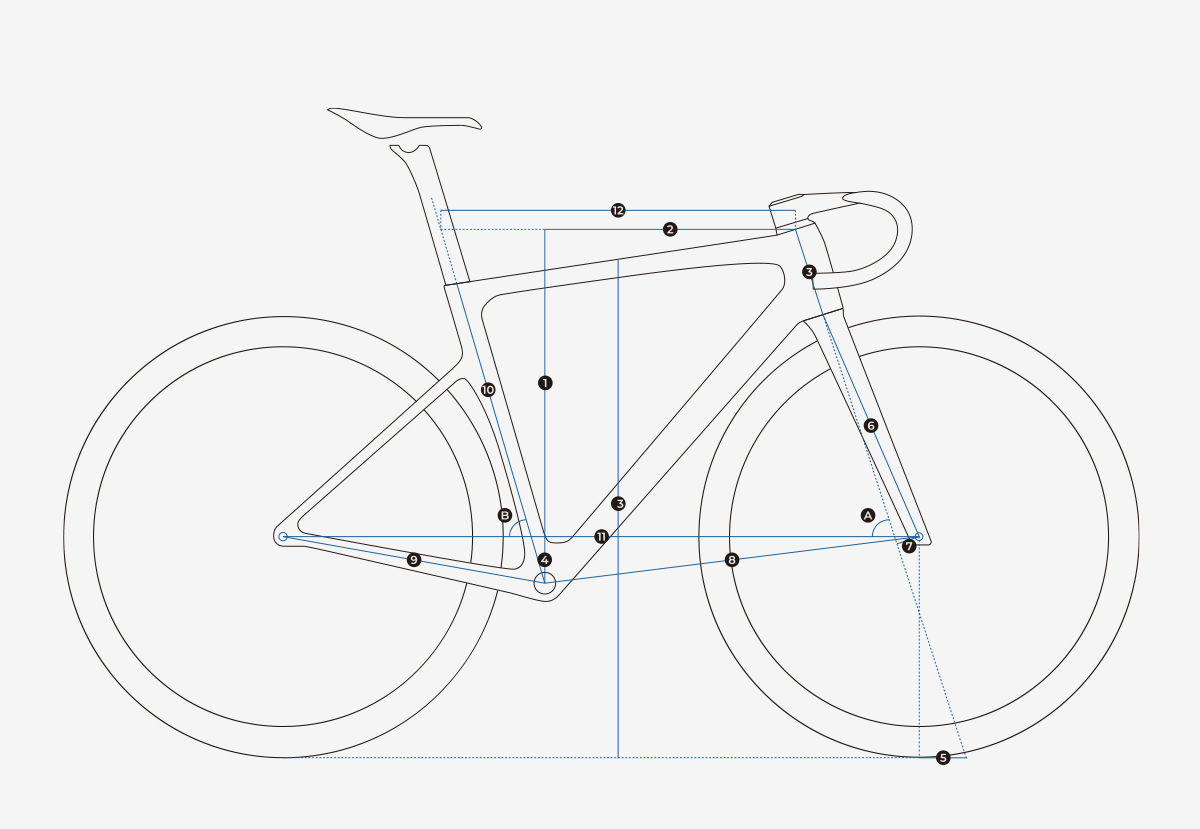

Geometry
*The sizes listed are for reference only and represent common cases, as limb proportions vary among riders of the same height. To find your ideal fit, consult our customer service with details of your previous bike brand and size for personalized advice.
#evolve® CIMA
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| HEIGHT (cm) | < 163 | 161–170 | 168–177 | 175–184 | 182–192 | > 190 |
| 1. STACK (mm) | 506 | 528 | 544 | 562 | 580 | 608 |
| 2. REACH (mm) | 371 | 378 | 384 | 390 | 397 | 406 |
| 3. HEAD TUBE LENGTH (mm) | 103 | 122 | 138 | 153 | 173 | 203 |
| A. HEAD TUBE ANGLE (°) | 71.1 | 72.2 | 73 | 73.8 | 73.8 | 73.8 |
| 4. BB DROP (mm) | 74 | 74 | 72 | 72 | 70 | 70 |
| 5. TRAIL (mm) | 70 | 63 | 58 | 57 | 57 | 57 |
| 6. FORK LENGTH FULL (mm) | 372 | 372 | 372 | 372 | 372 | 372 |
| 7. FORK RAKE/OFFSET (mm) | 44 | 44 | 44 | 40.2 | 40.2 | 40.2 |
| 8. FRONT CENTER (mm) | 571 | 573 | 579 | 579 | 591 | 608 |
| 9. REAR CENTER (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| 10. SEAT TUBE LENGTH (mm) | 443 | 465 | 481 | 499 | 517 | 540 |
| B. SEAT TUBE ANGLE (°) | 75 | 75 | 74 | 74 | 73.5 | 73.5 |
| 11. WHEELBASE (mm) | 969 | 973 | 978 | 978 | 991 | 1008 |
| 12. TOP TUBE LENGTH (mm) | 507 | 519 | 540 | 551 | 569 | 586 |
| 13. STANDOVER HEIGHT (mm) | 727 | 749 | 767 | 785 | 805 | 829 |
Weight by Size (Raw, Unpainted)
| Frame size | CIMA frames | Fork (300 mm steerer) |
|---|---|---|
| XS | 640 g | 355 g |
| S | 643 g | |
| M | 650 g | |
| ML | 666 g | |
| L | 699 g | |
| XL | 720 g |
*NOTE: This is evolve’s official weight. We’ll update with the painted version once it’s in stock.
CIMA Framset Specifications
Frame Sizes
XS, S, M, ML, L, XL
Brake Type
Disc only
Fork

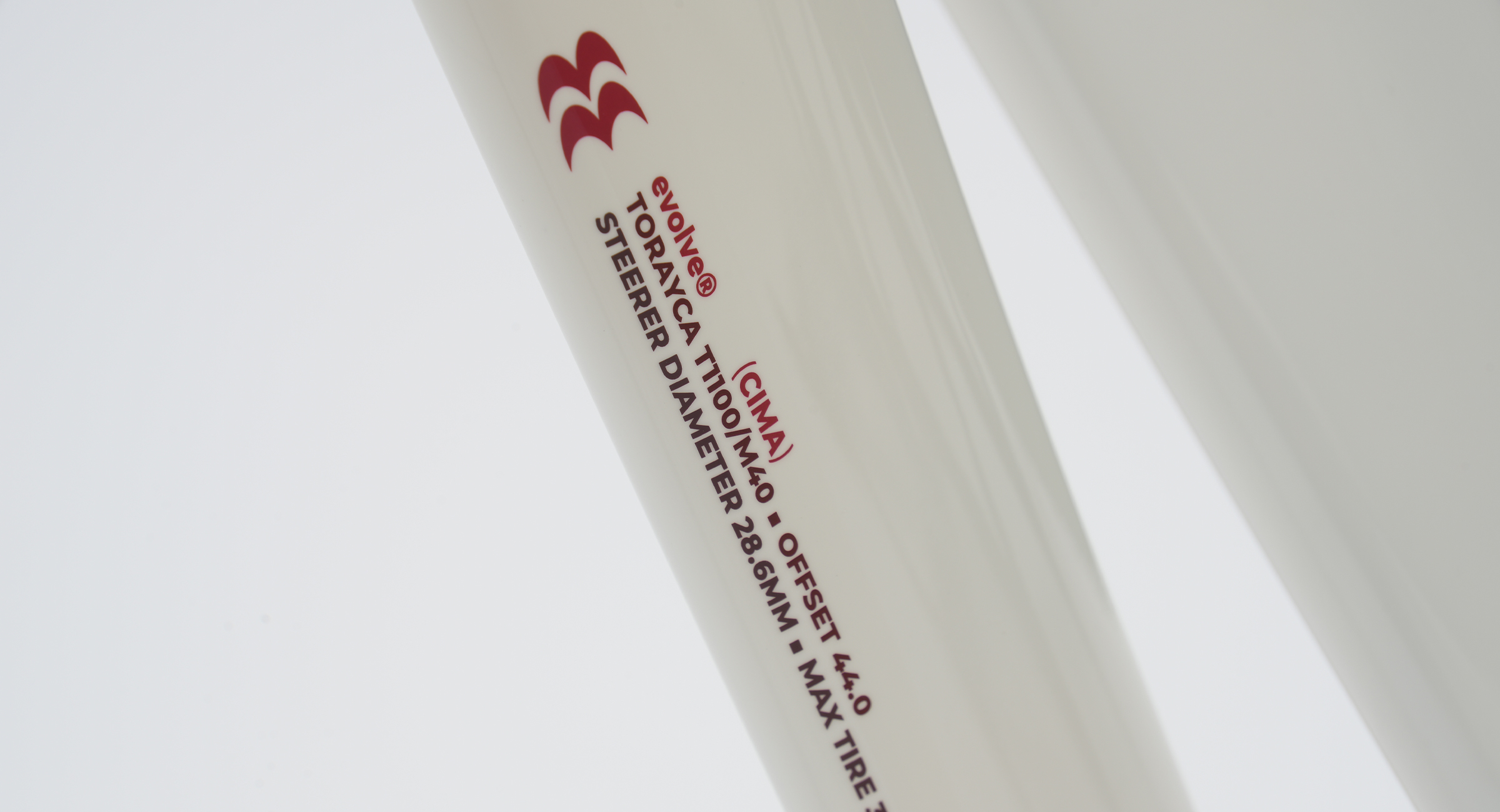

Offset 44.0mm (XS \ S \ M);
Offset 40.2mm (ML \ L \ XL)
Wheel Size
700C
Tire Clearance
24C-32C
Frame Weight
650g (M-sized; unpainted)
Fork Weight
355g (unpainted)
Headset Bearing
CeramicSpeed SLT Bearing
40.5 mm ID x 49.5 mm OD x 6.5 mm
Seatpost
evolve® Seatpost
Bottom Bracket
BSA Threaded Bottom Bracket, 68mm Width
Cable Routing
Internal; Electronic Only
Limited Rider Weight
109kg
Axle
Front: 12 x 100mm thru-axle
Rear: 12 x 142mm thru-axle

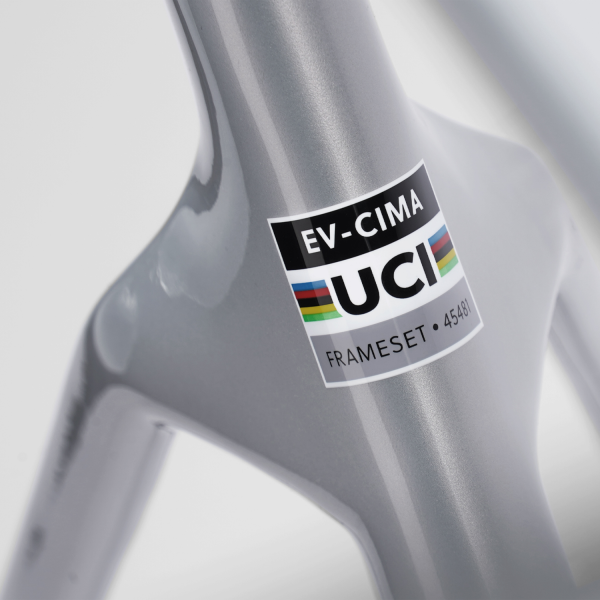

Certification

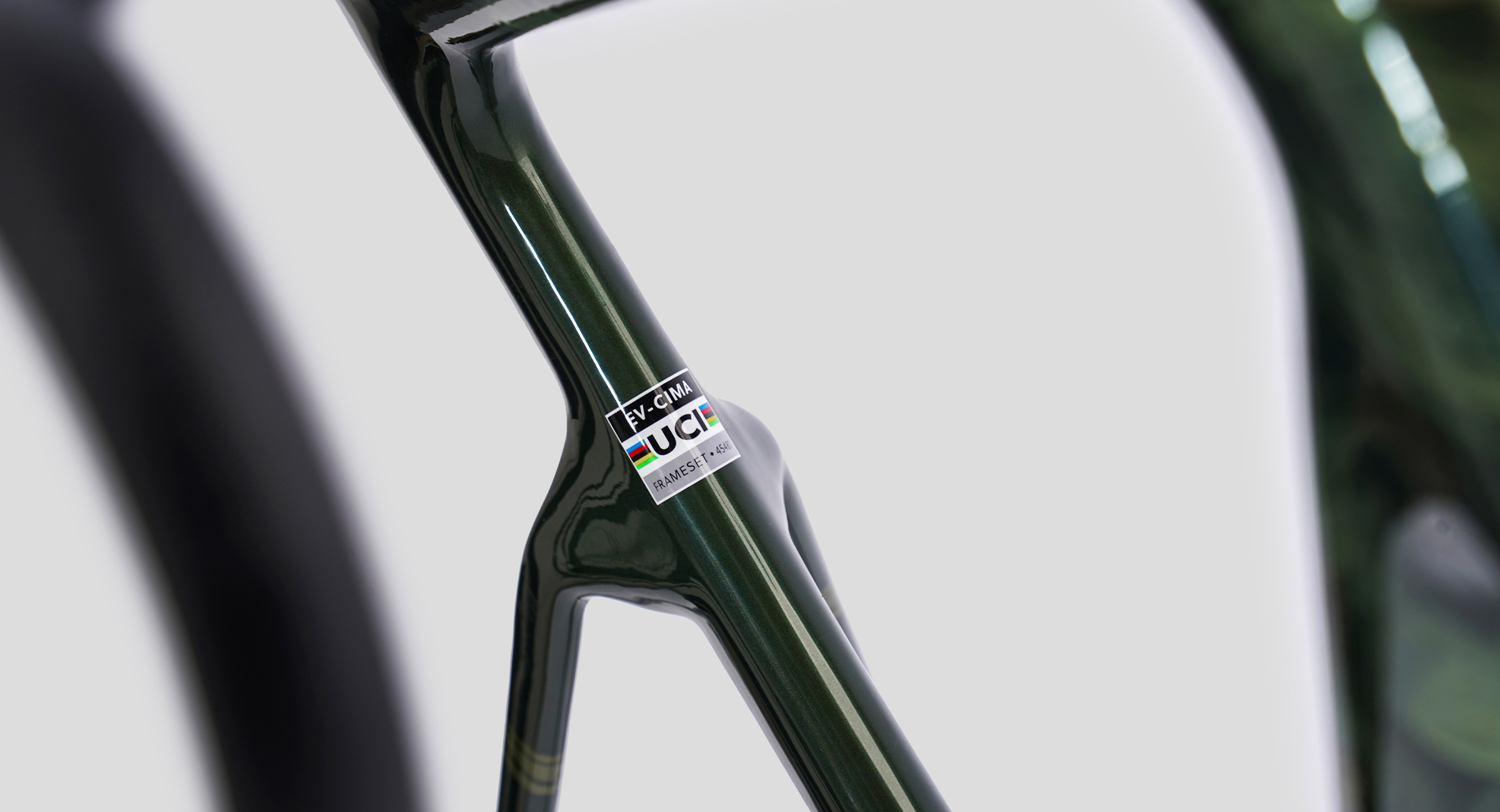

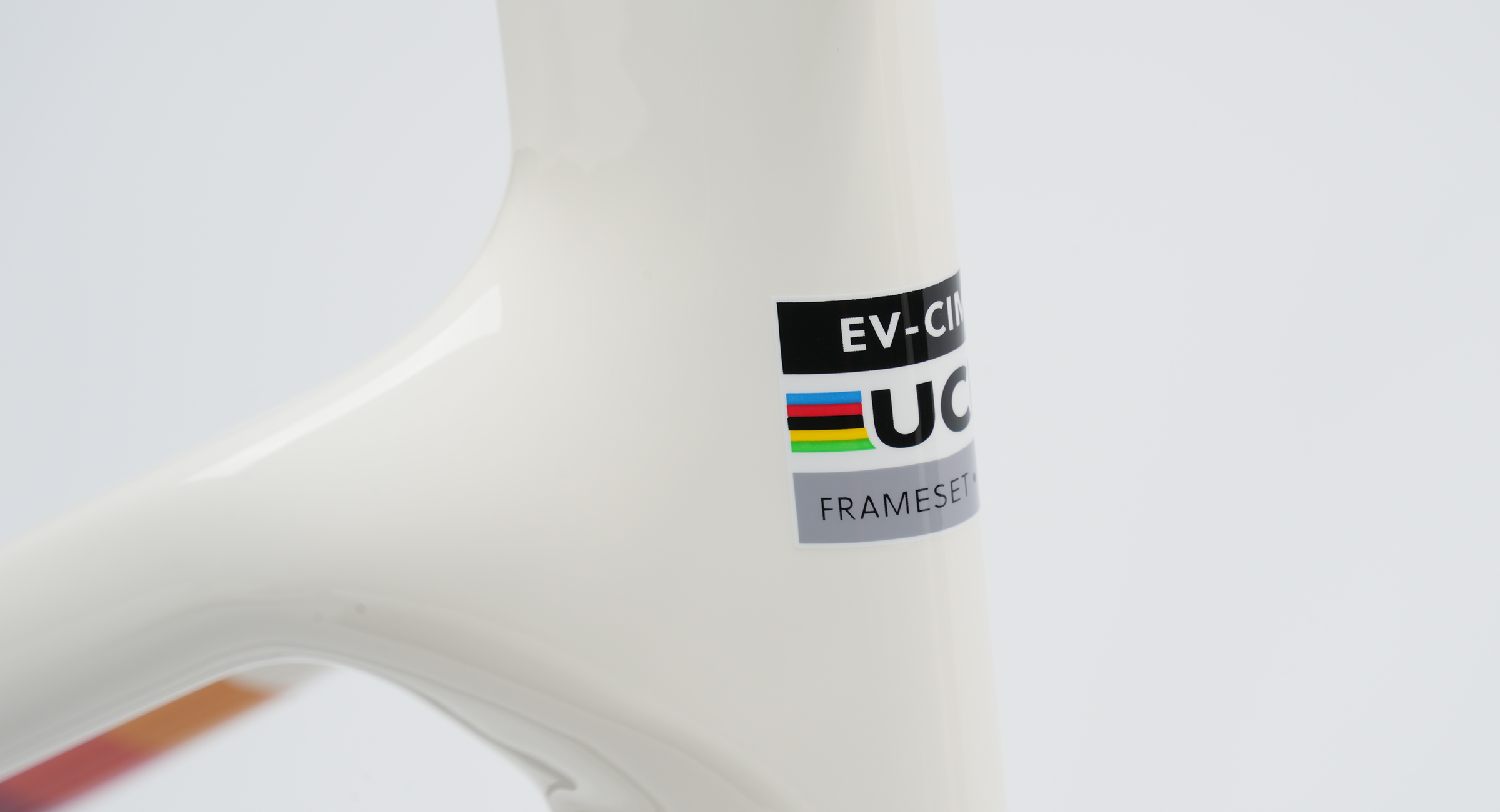

UCI Approved; CE Certified
Warranty
Limited lifetime warranty
Gallery

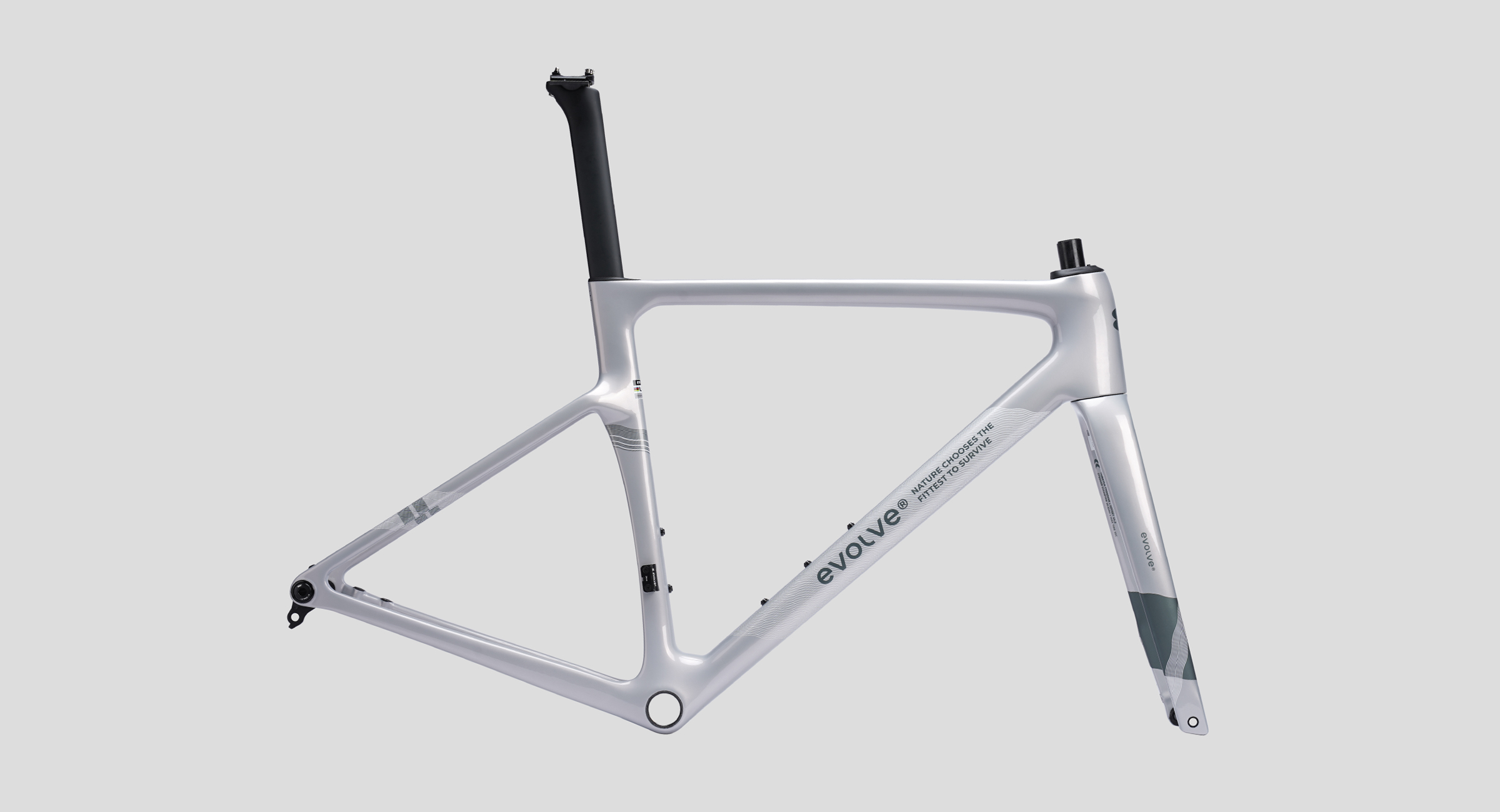

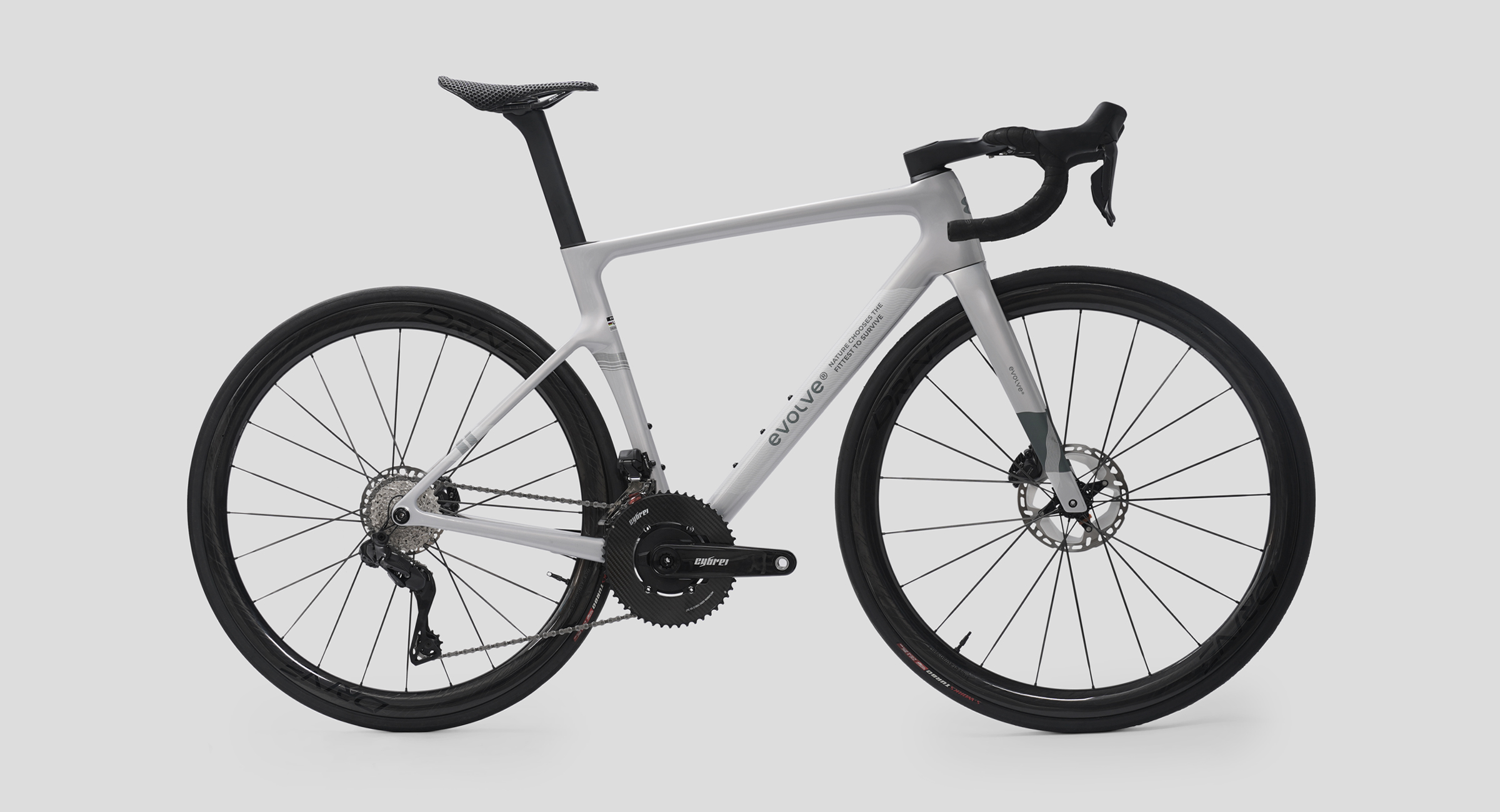

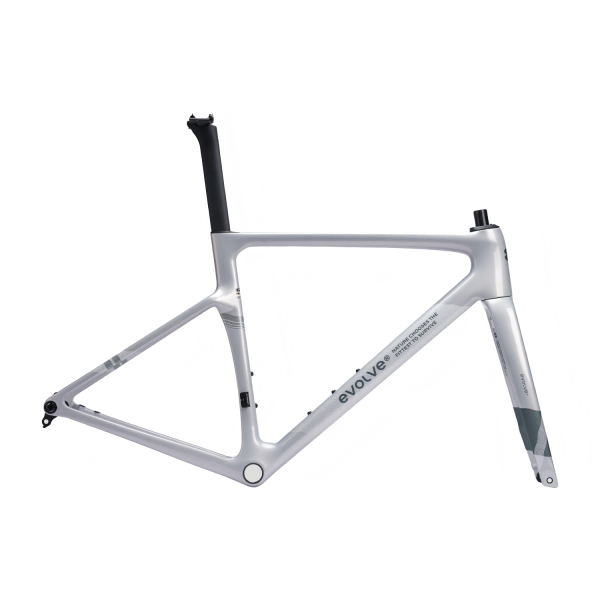

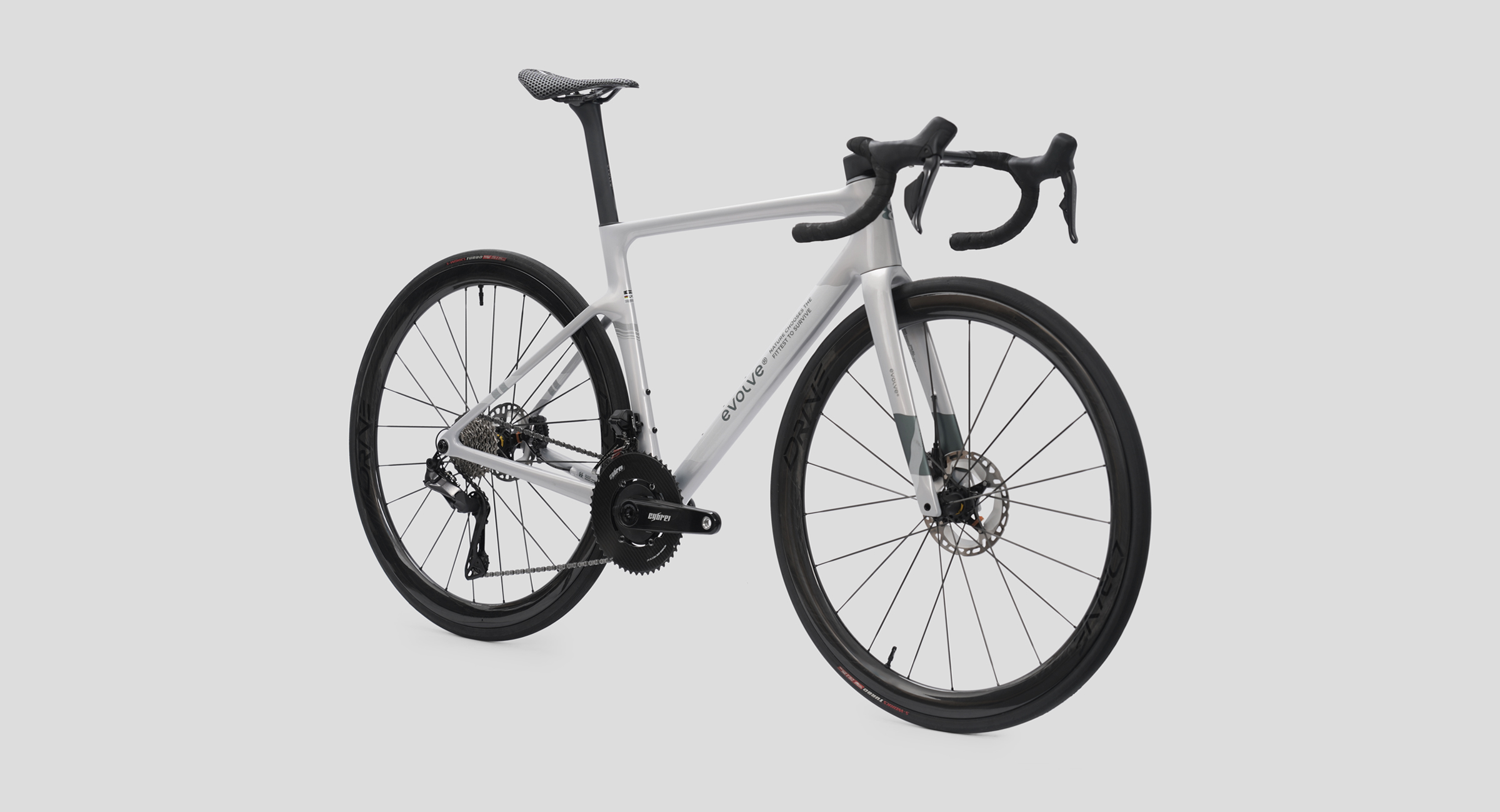

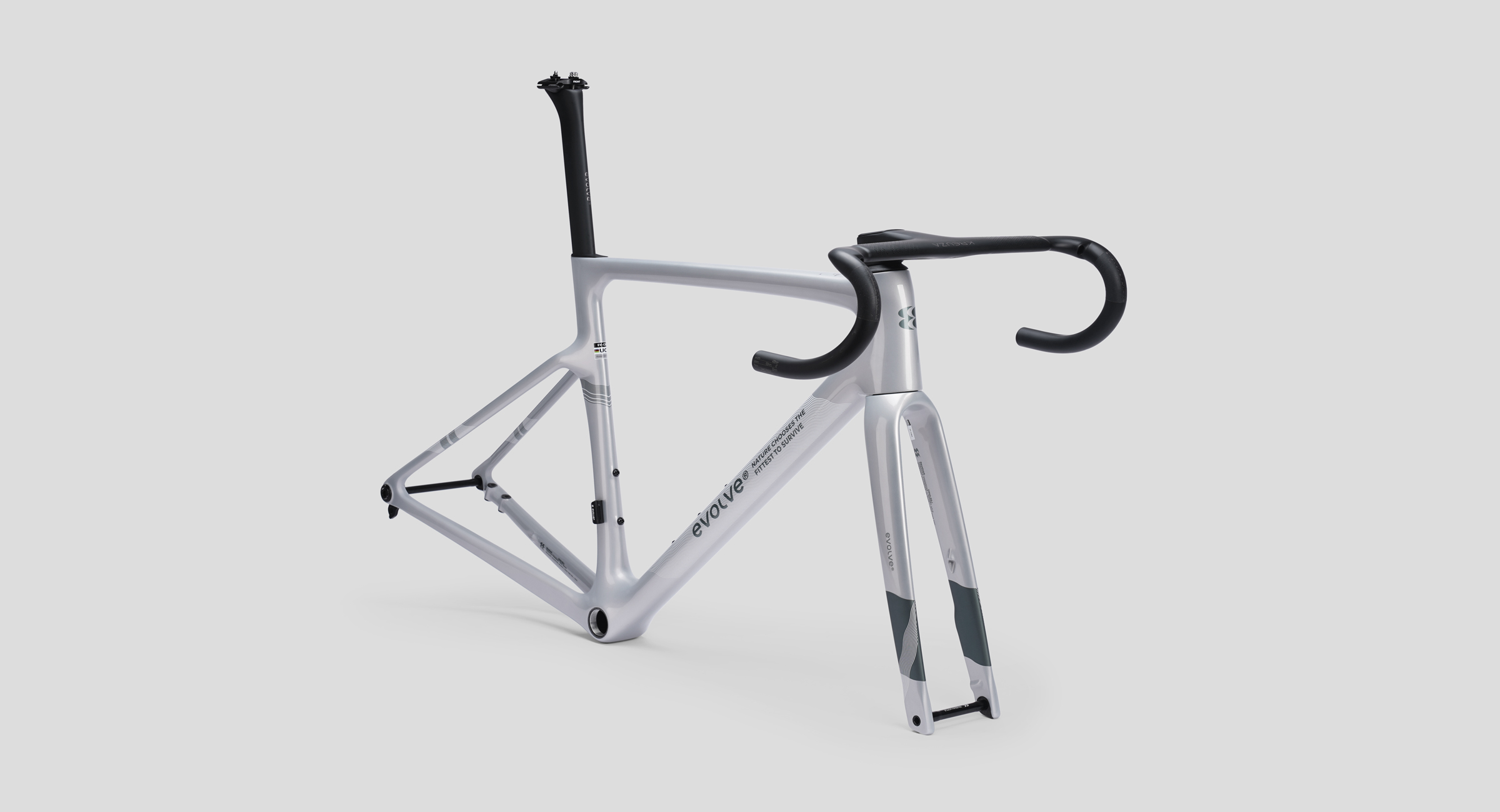

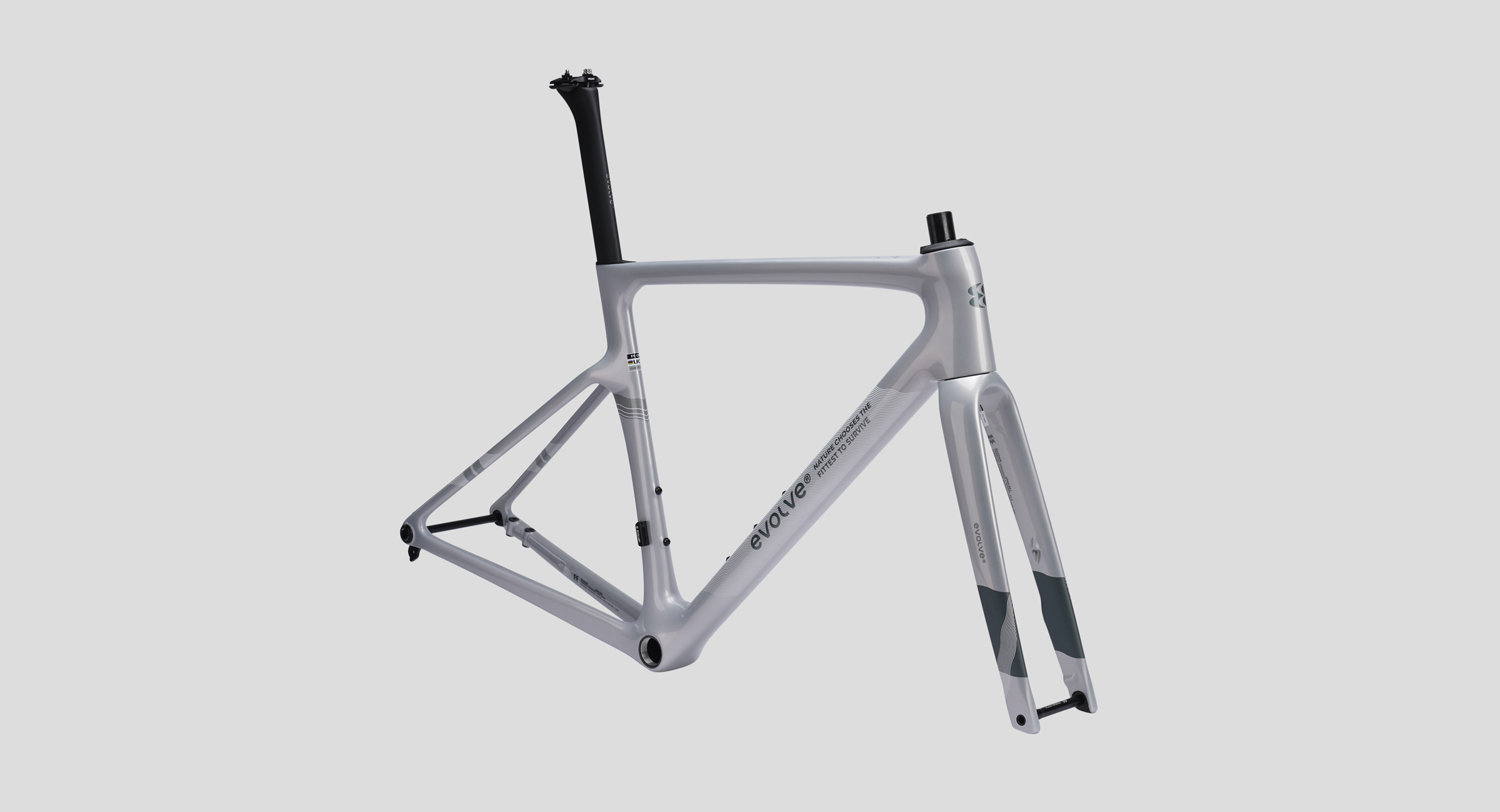

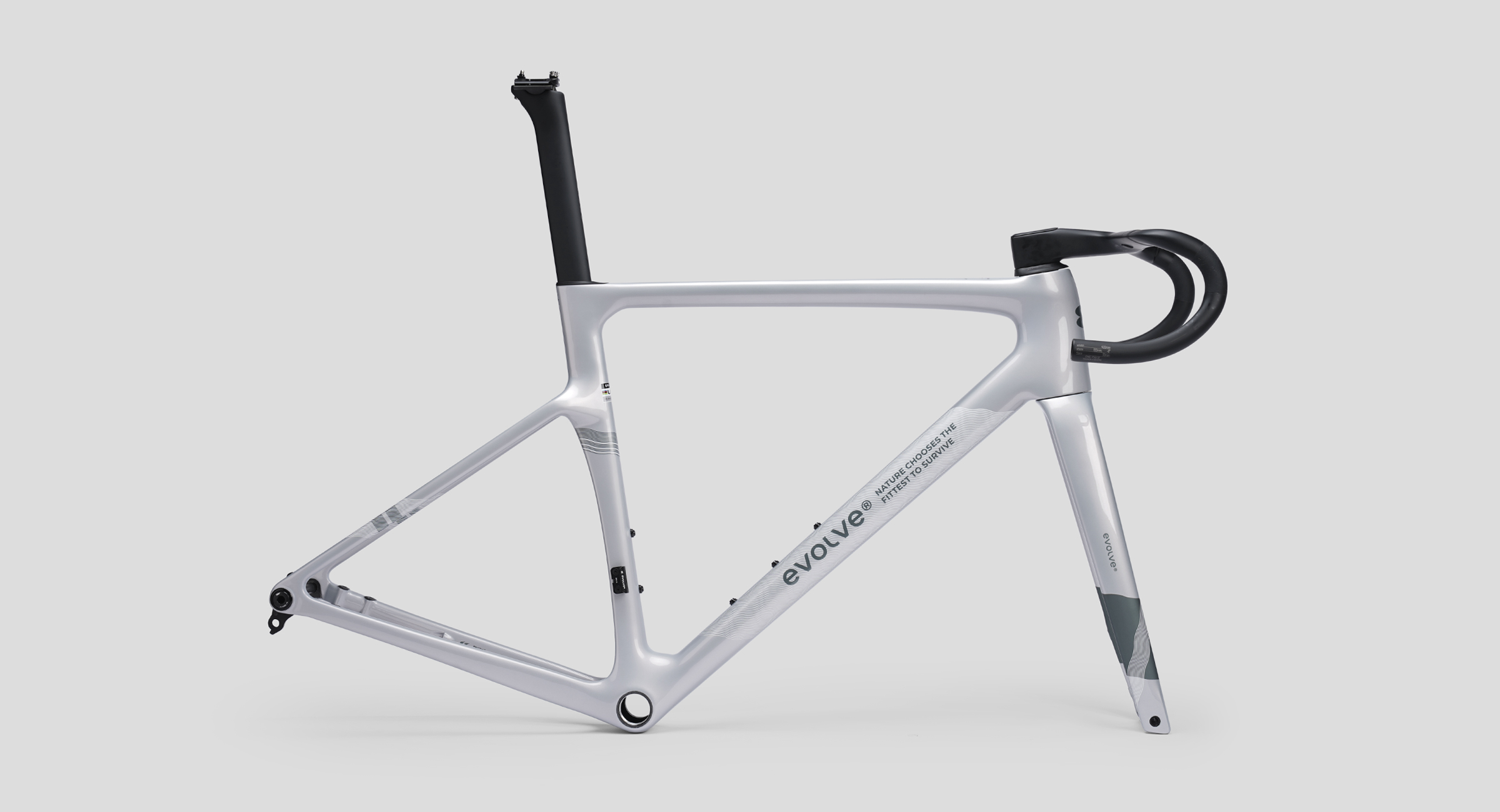

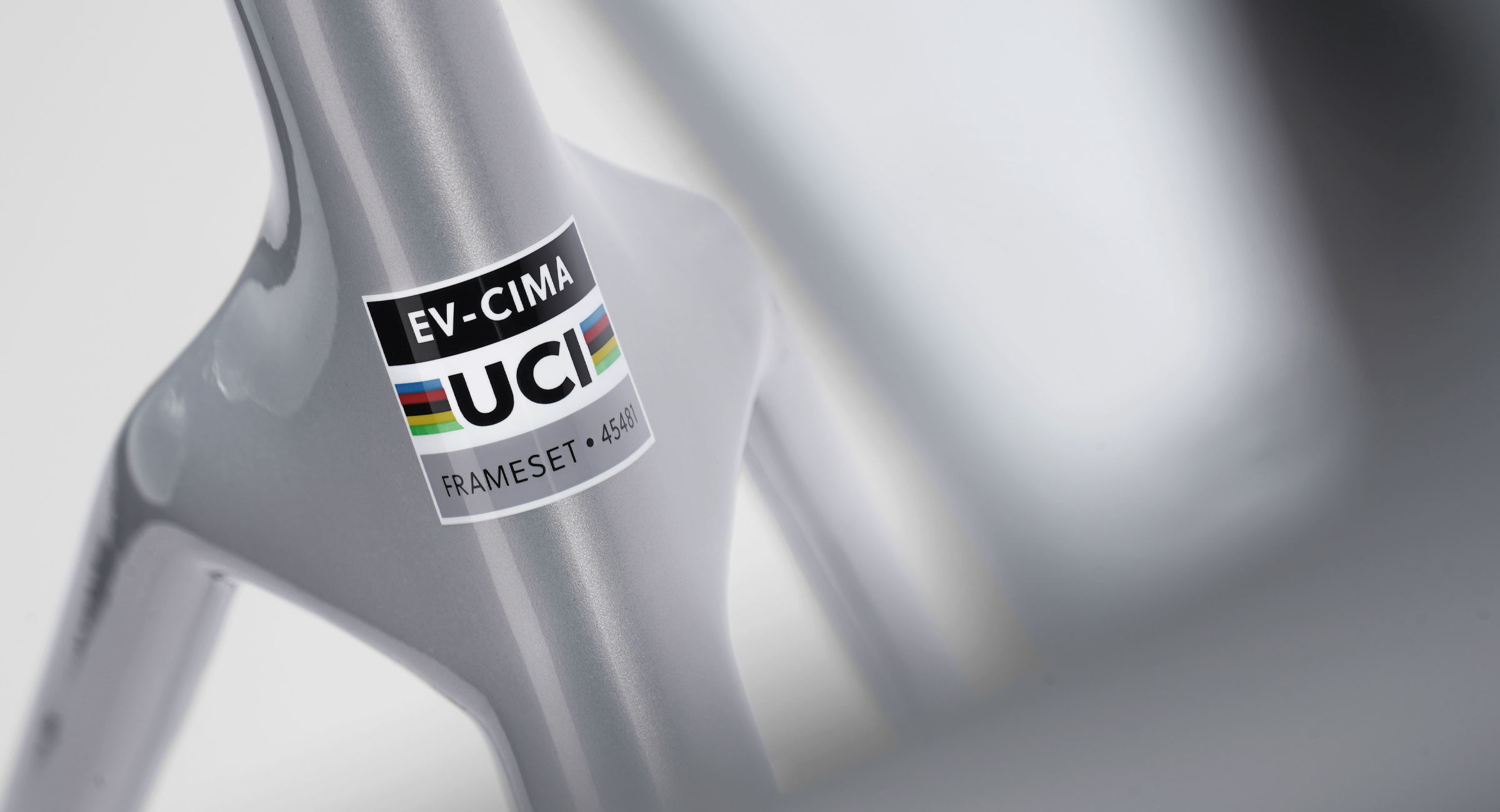

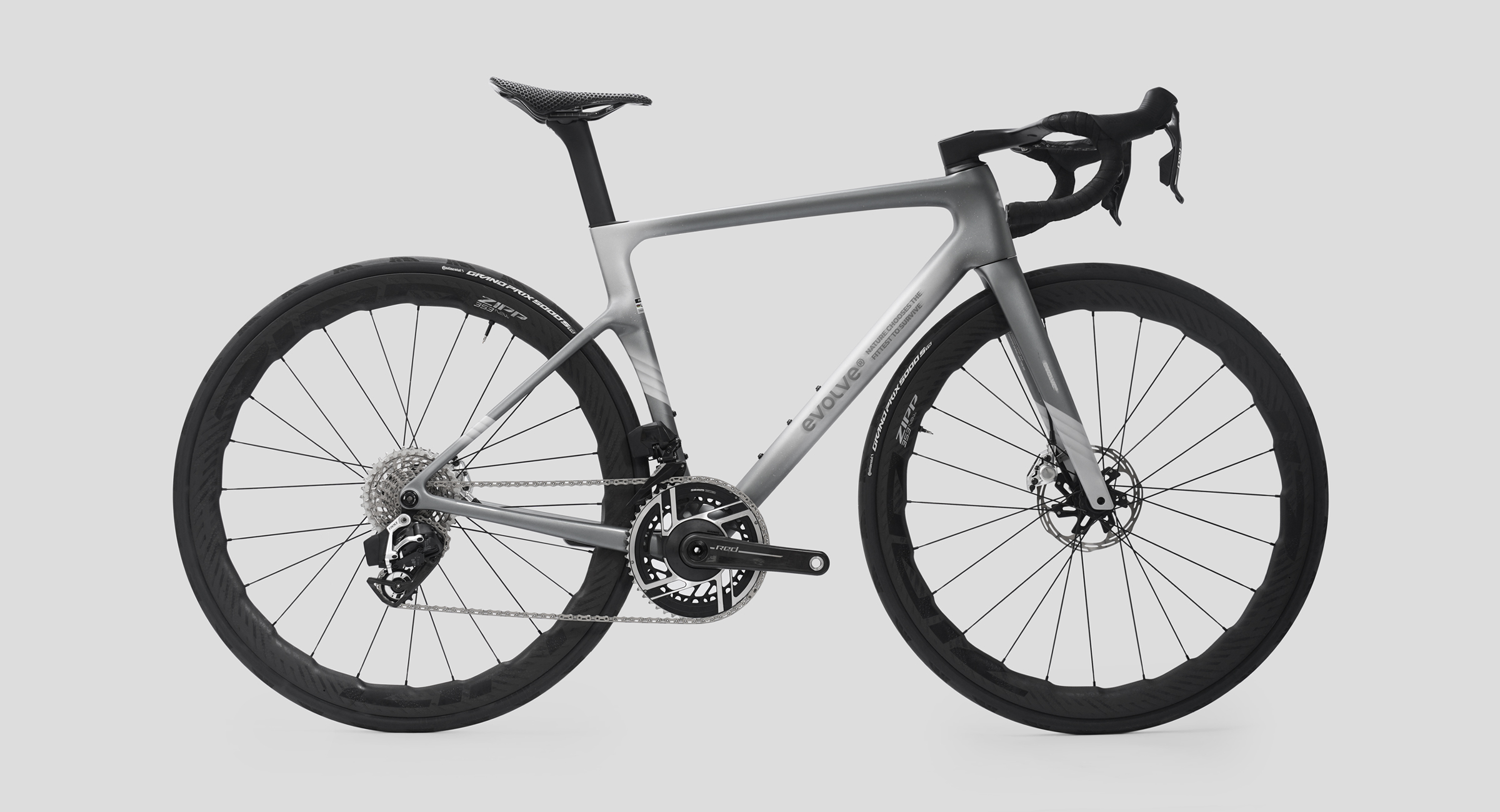

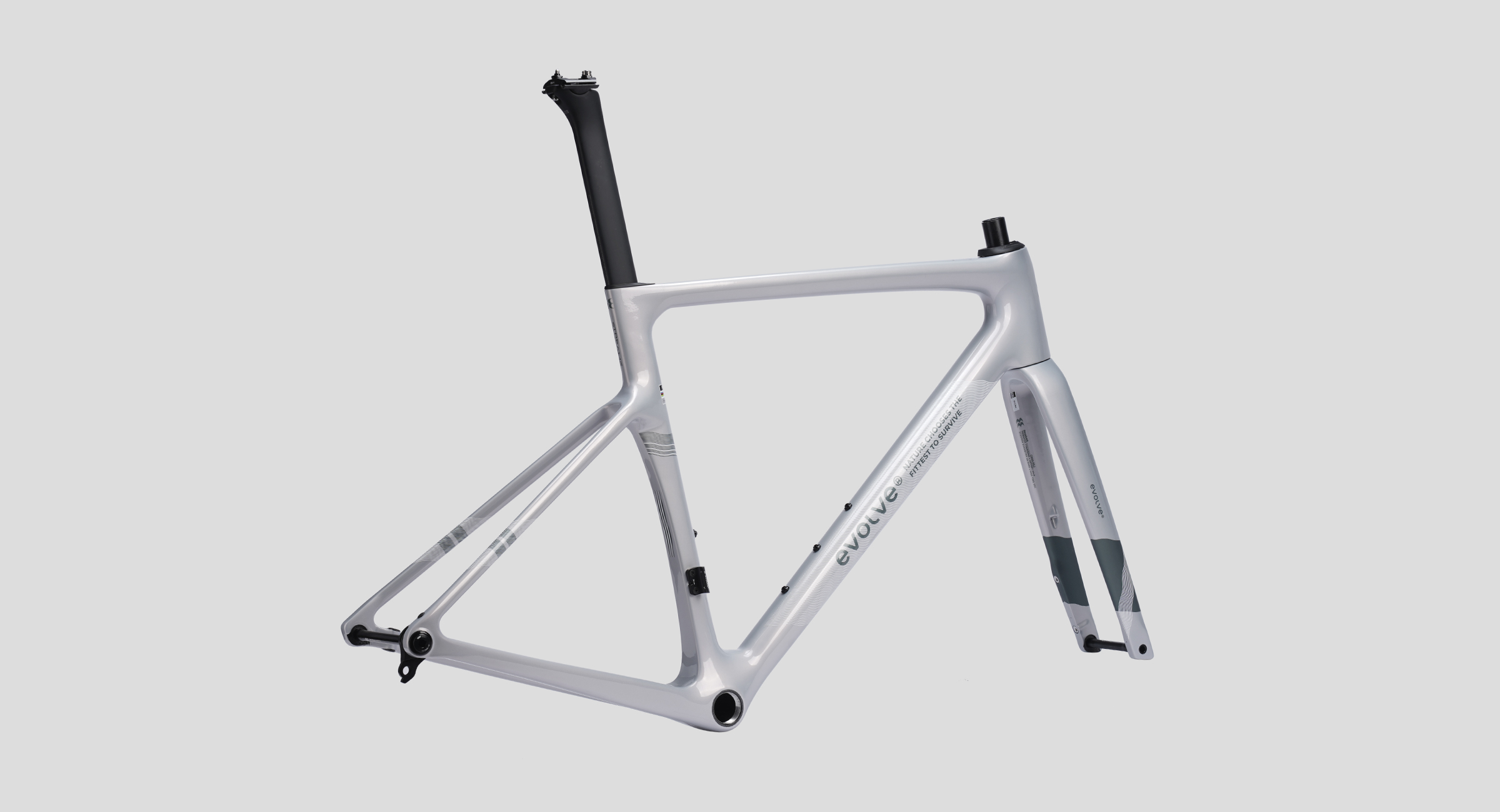

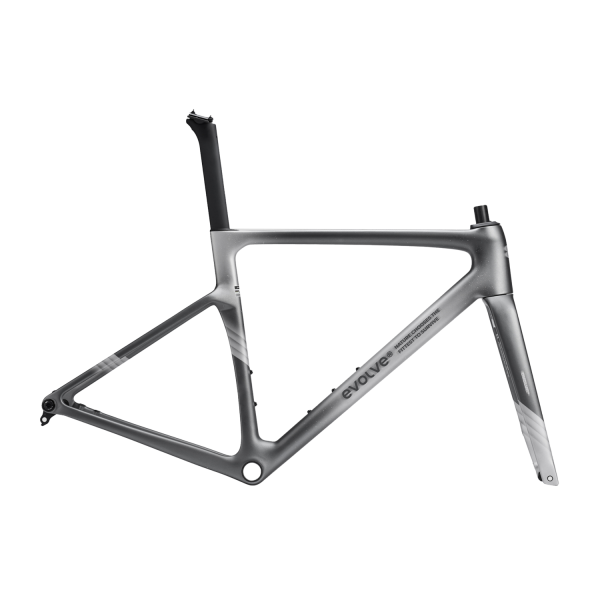

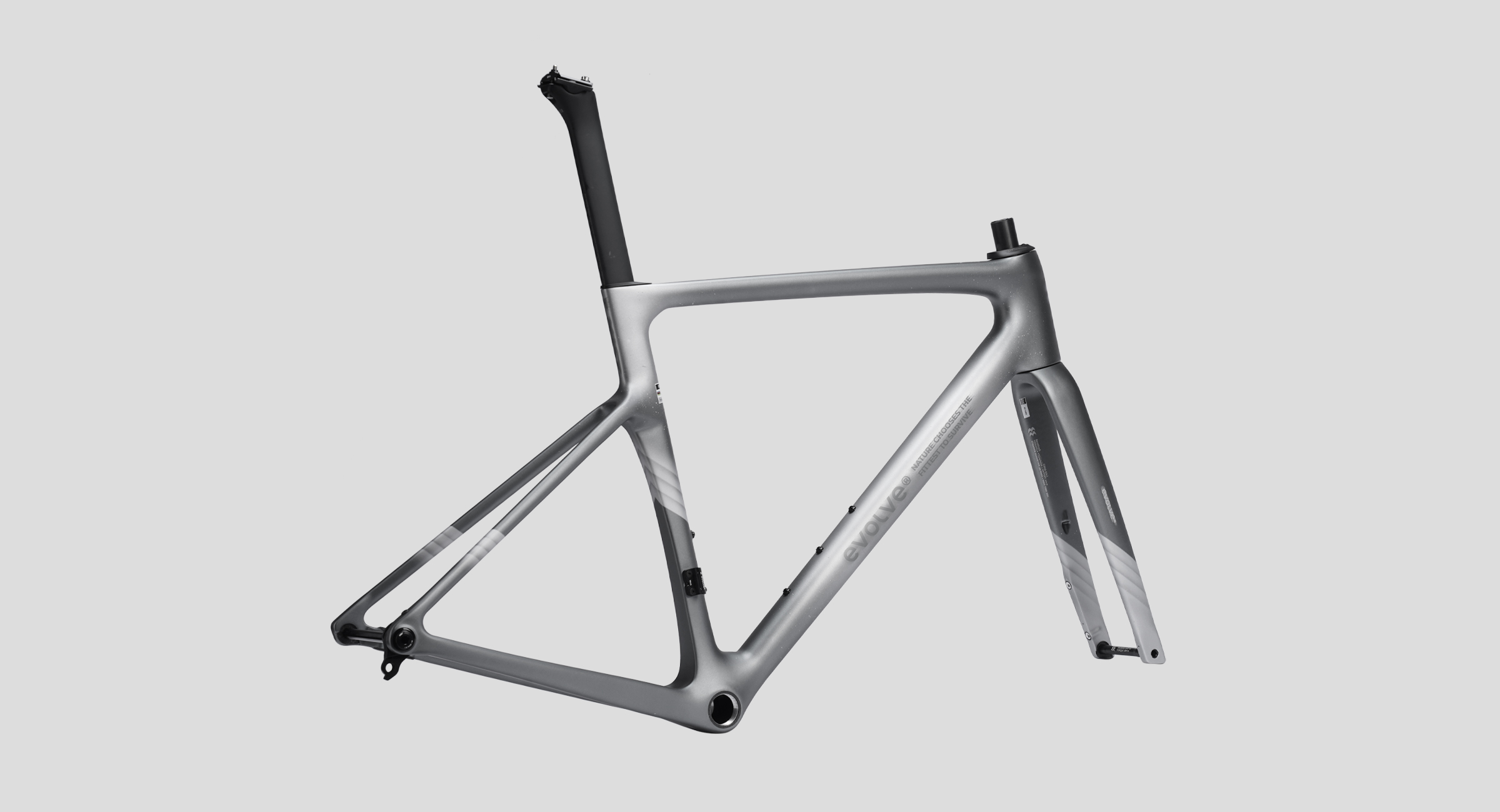

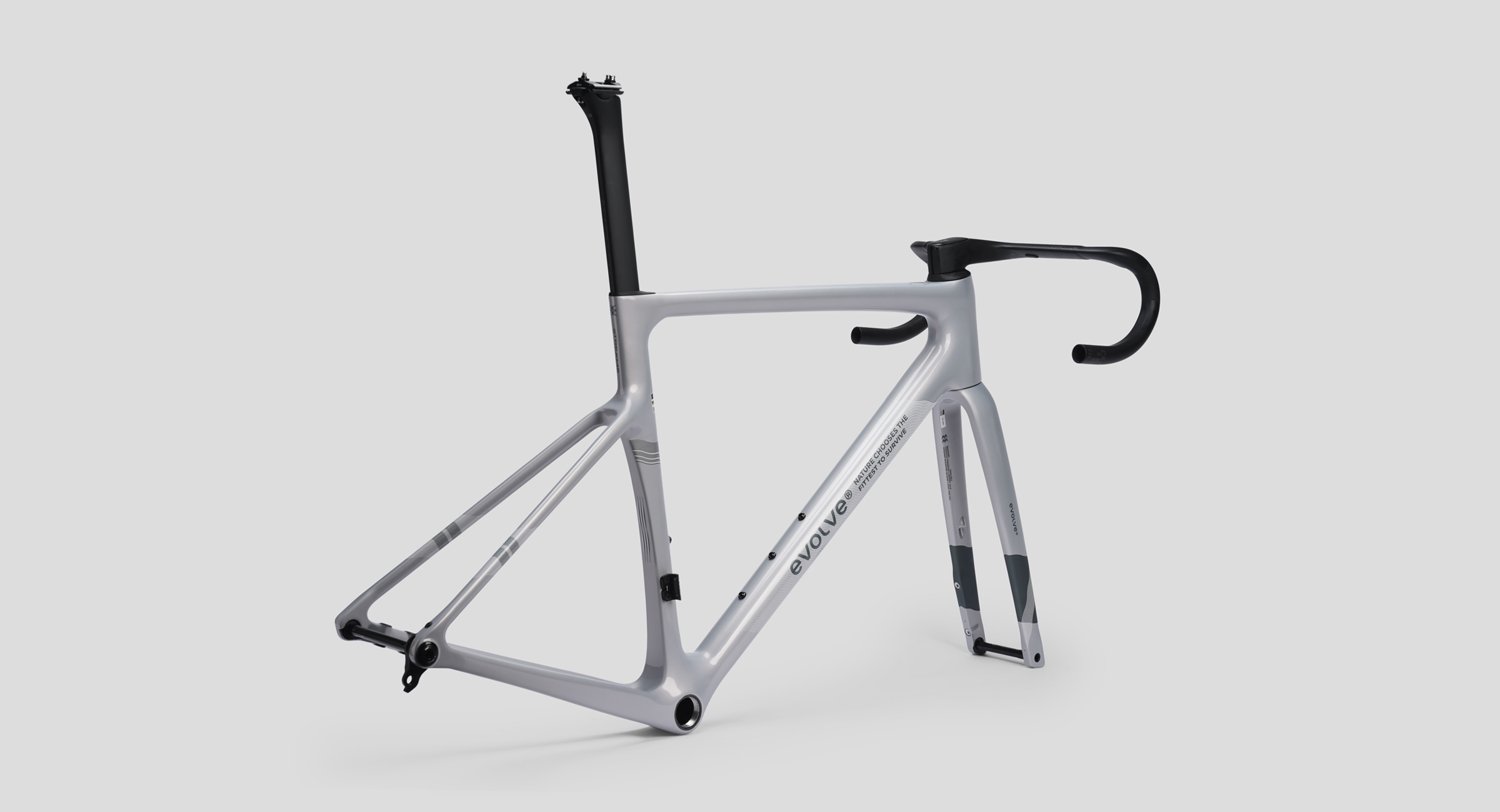

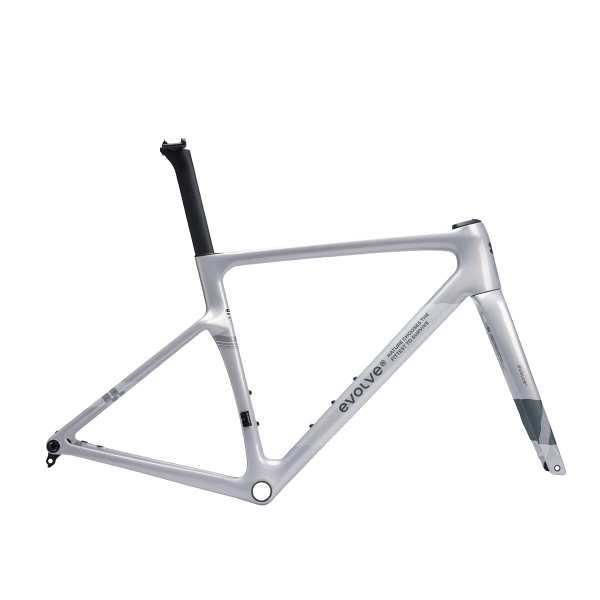

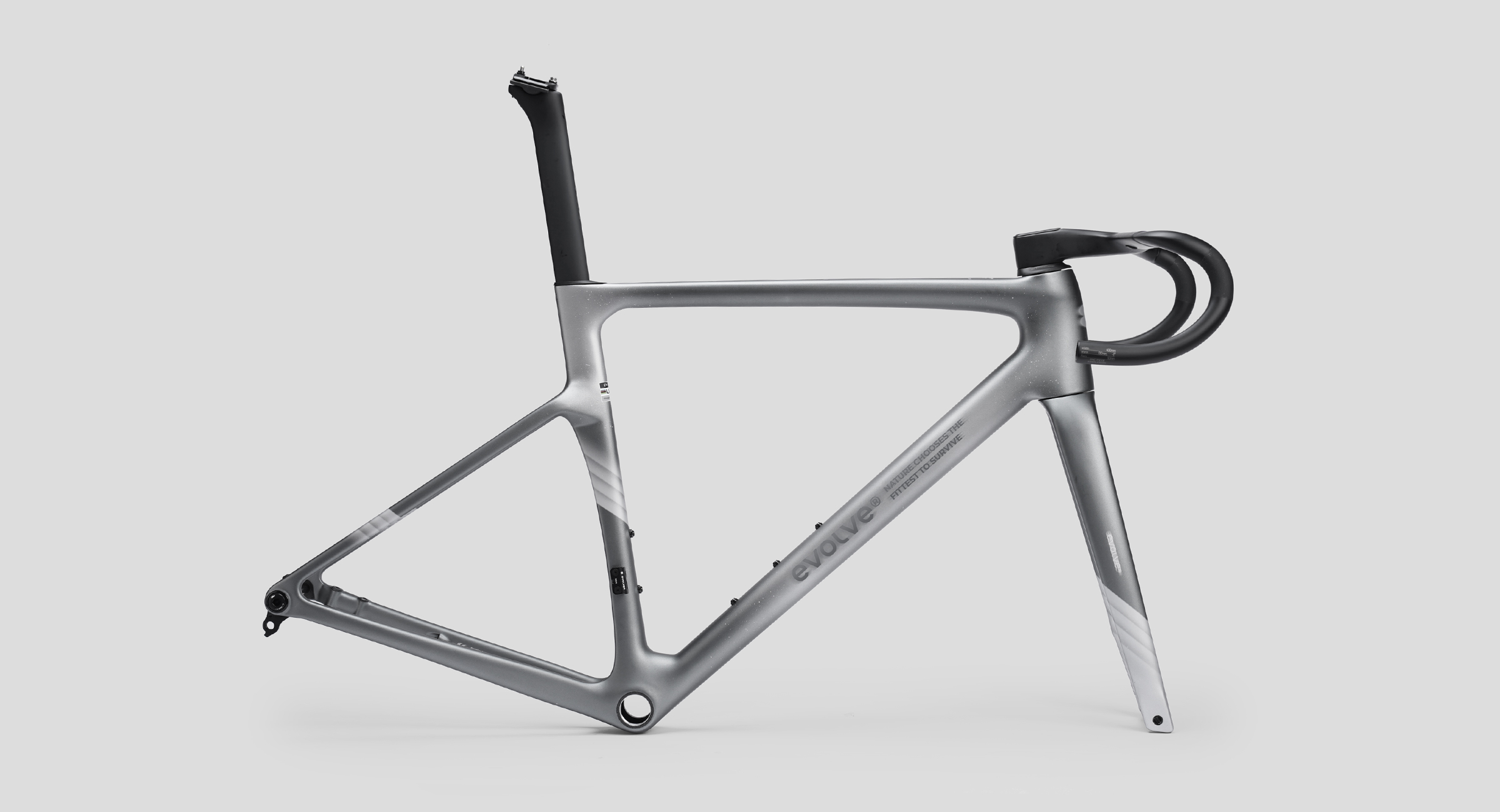

CIMA Speed – Streams
Not your ordinary silver. This is silver kissed with a transparent blue hue—like sunlight glinting off a crystal-clear stream. Feel the purity. Feel the flow. Let it carry you.

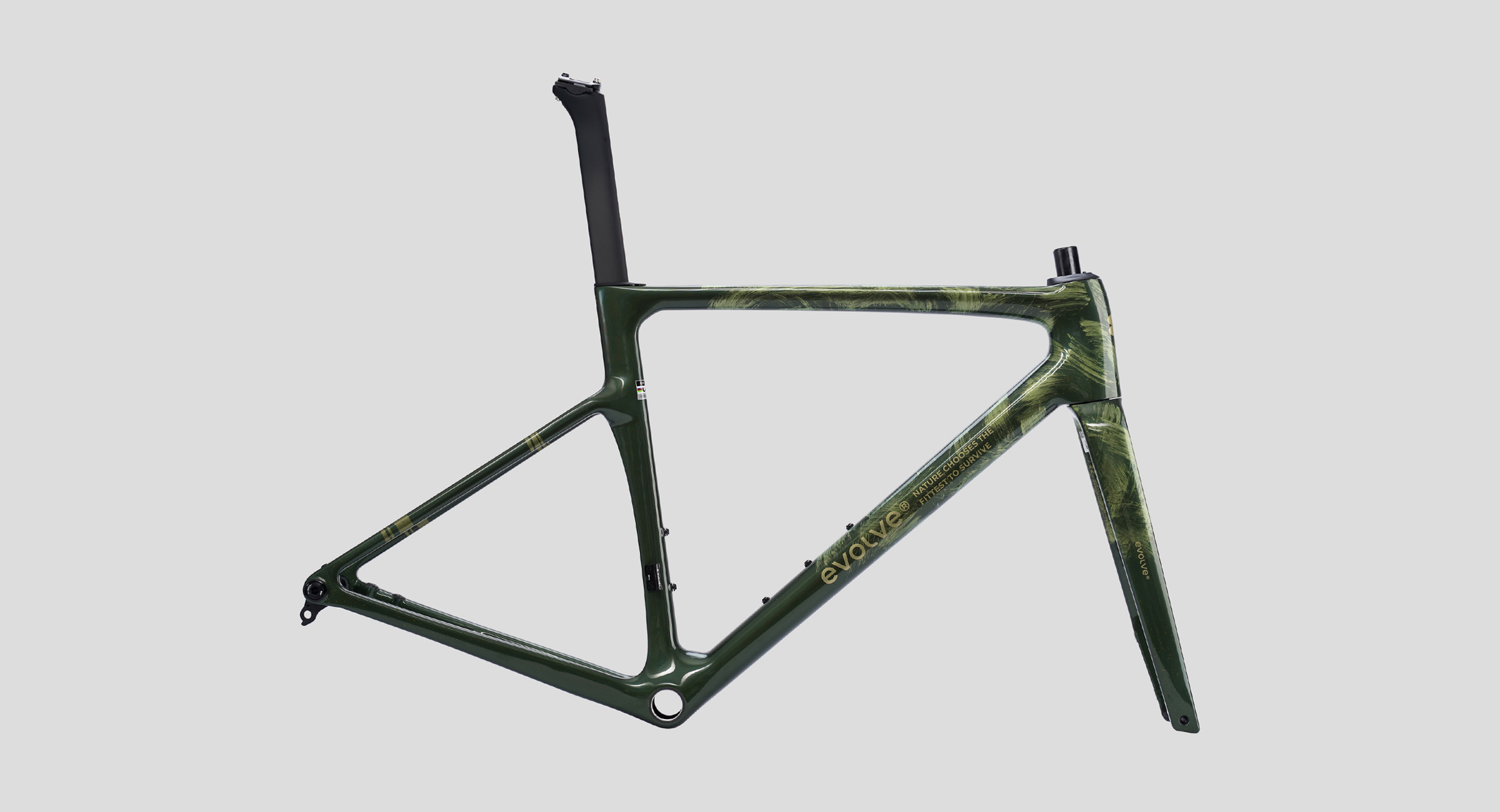

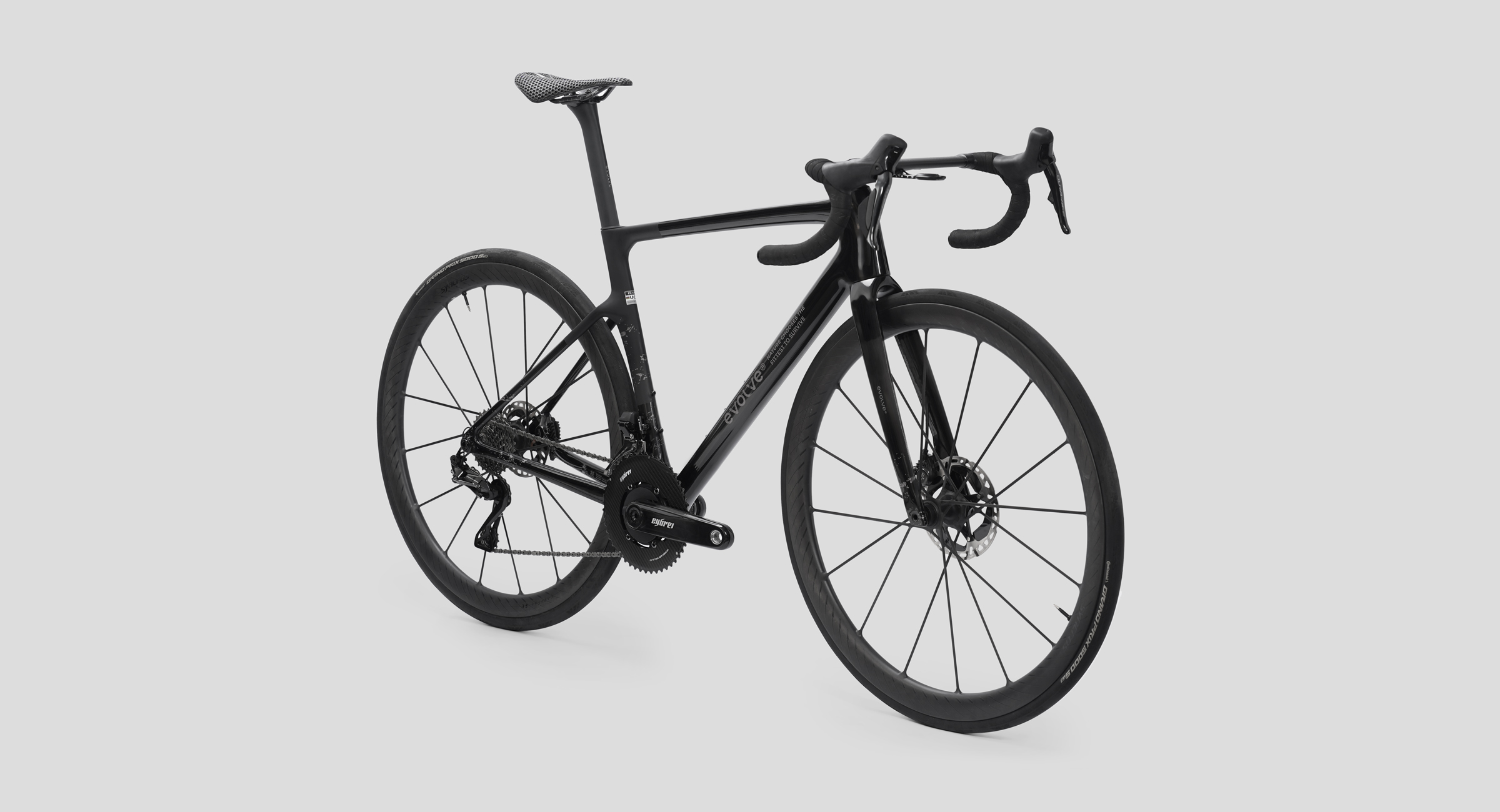

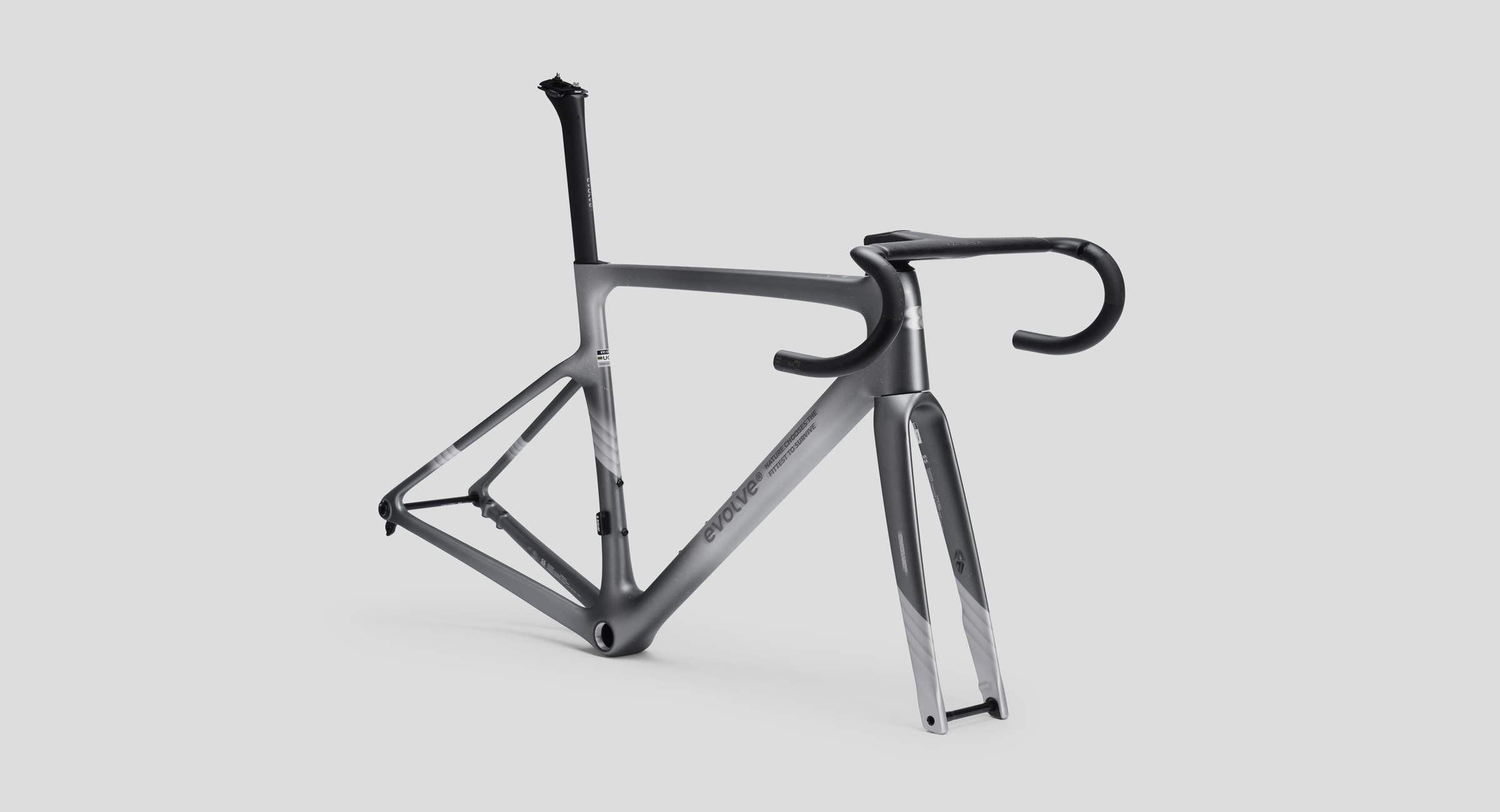

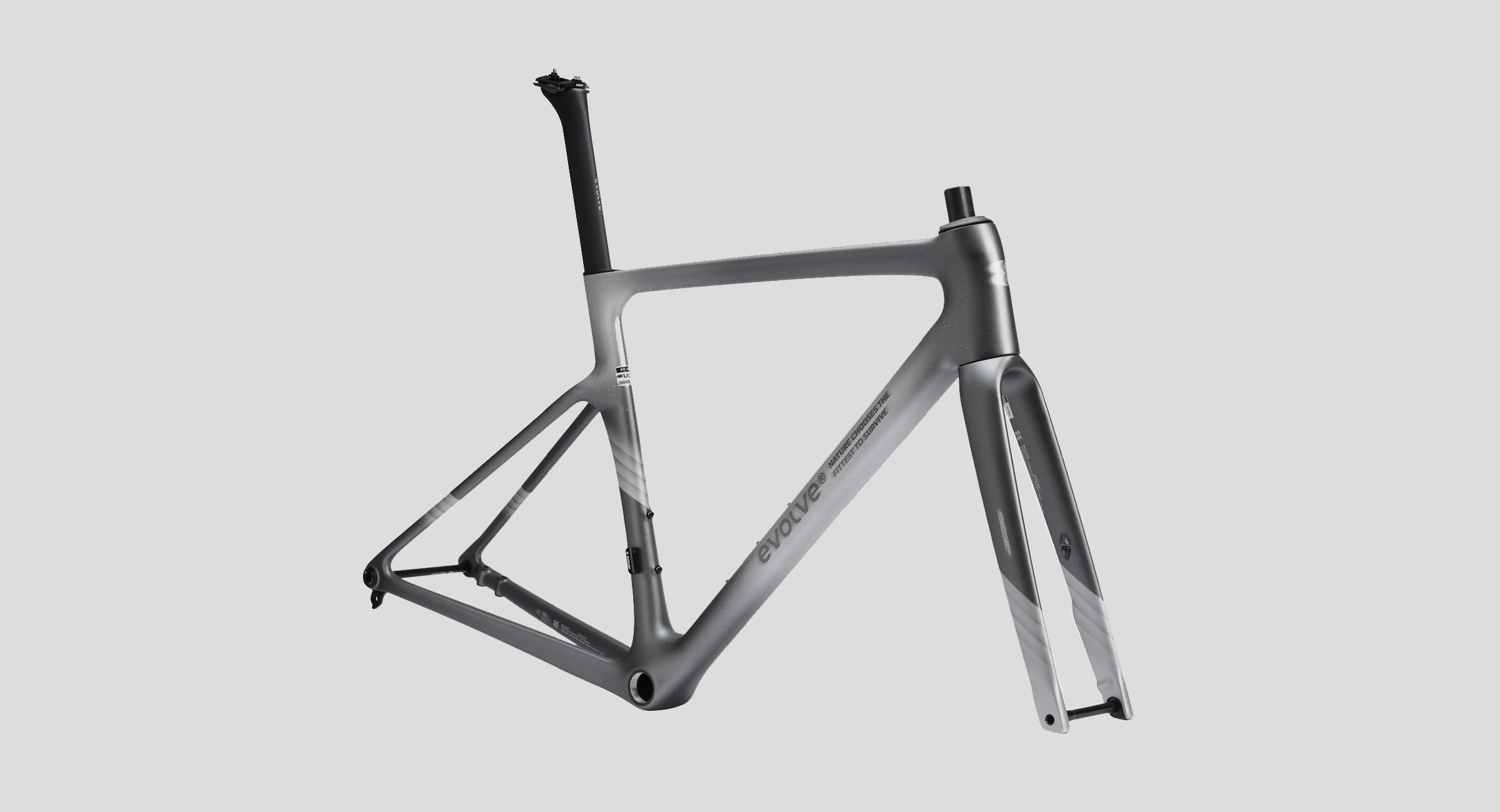

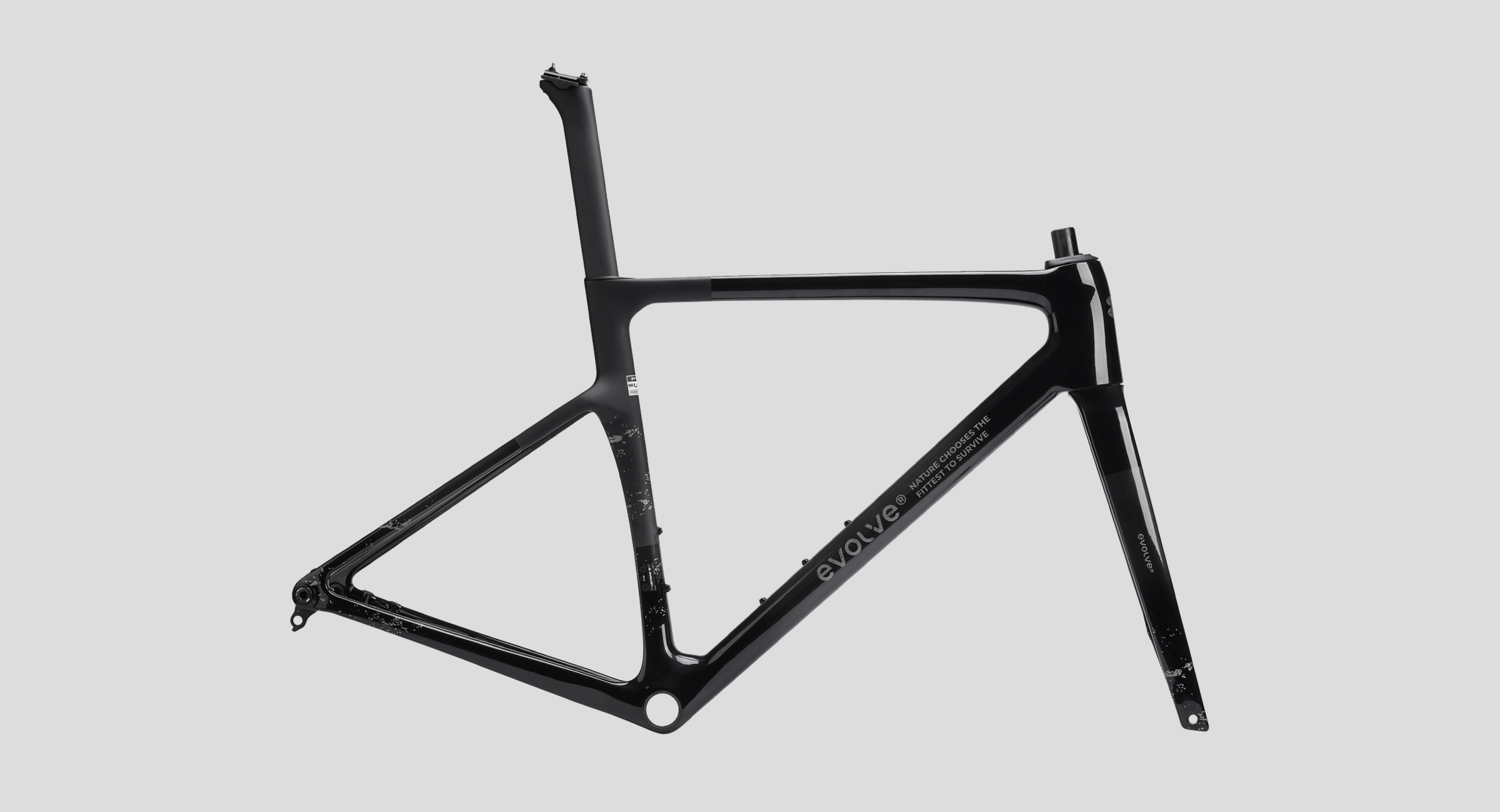

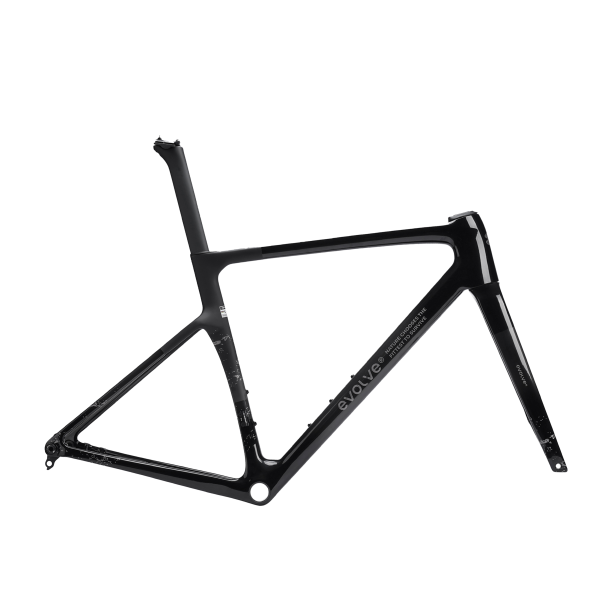

CIMA Speed – Nirvana
Rise with courage, reborn from the ashes. From the ashes of volcanic eruptions, new life emerges. May you always find the courage to rise and begin anew.

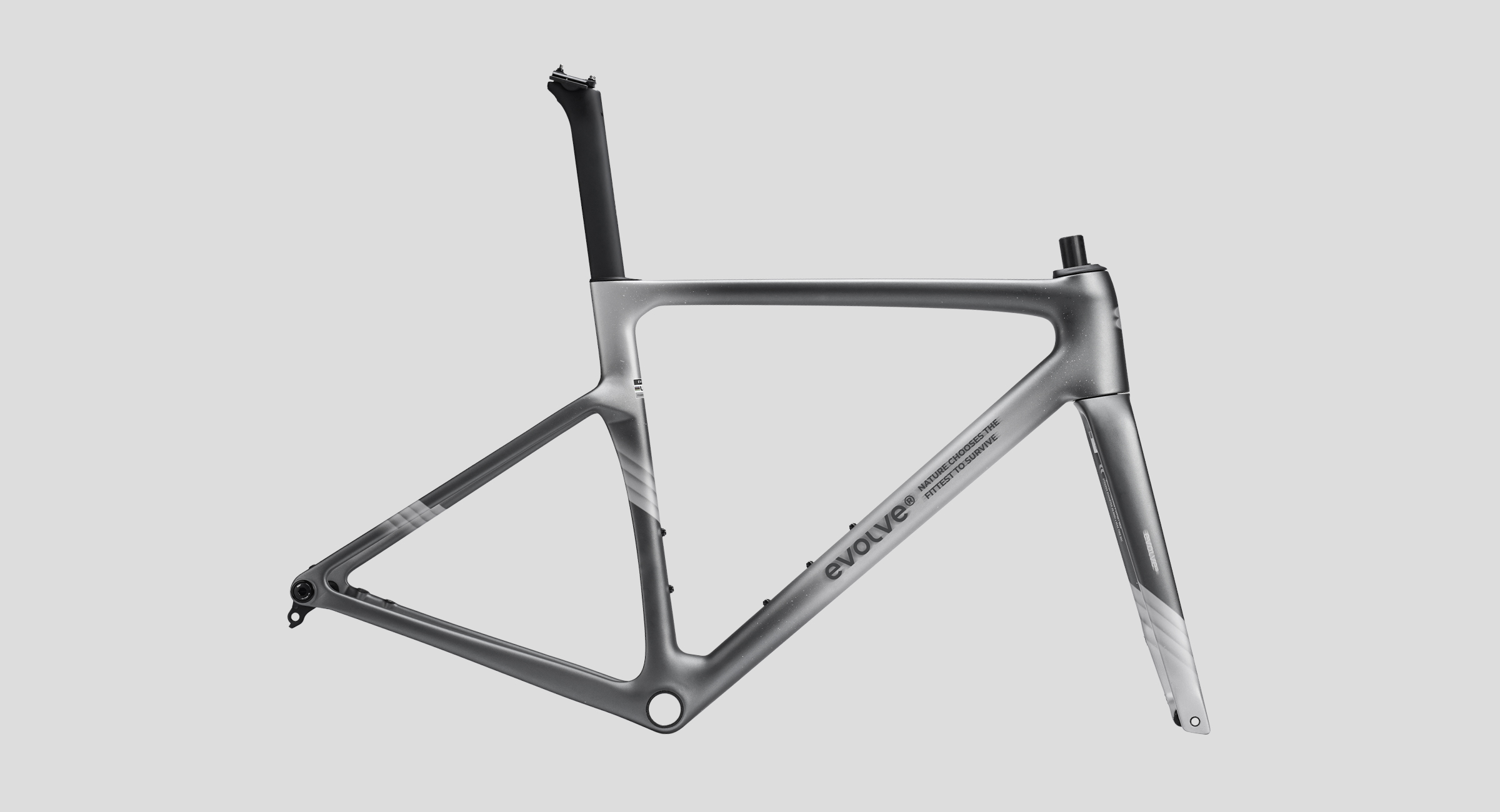

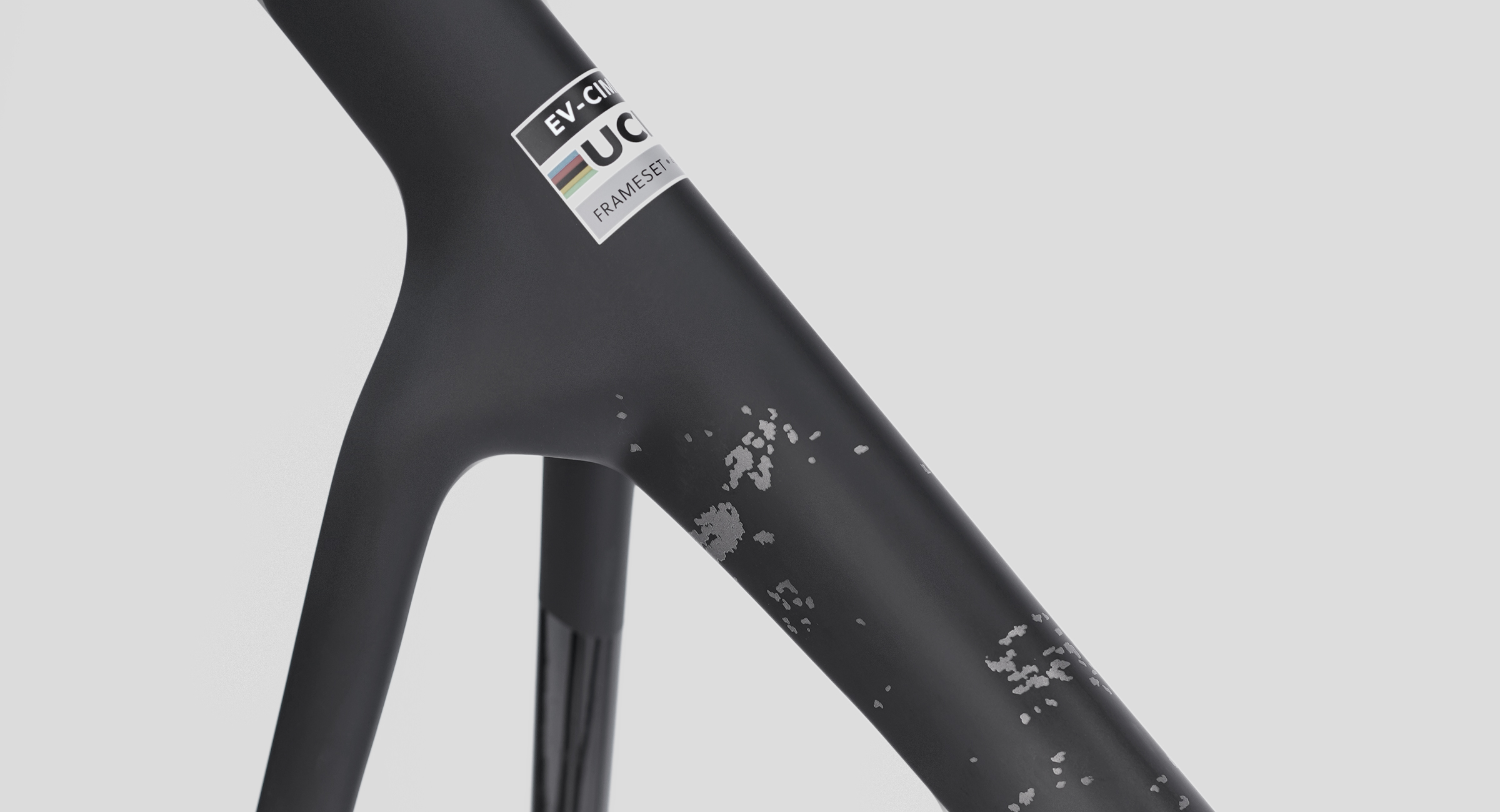

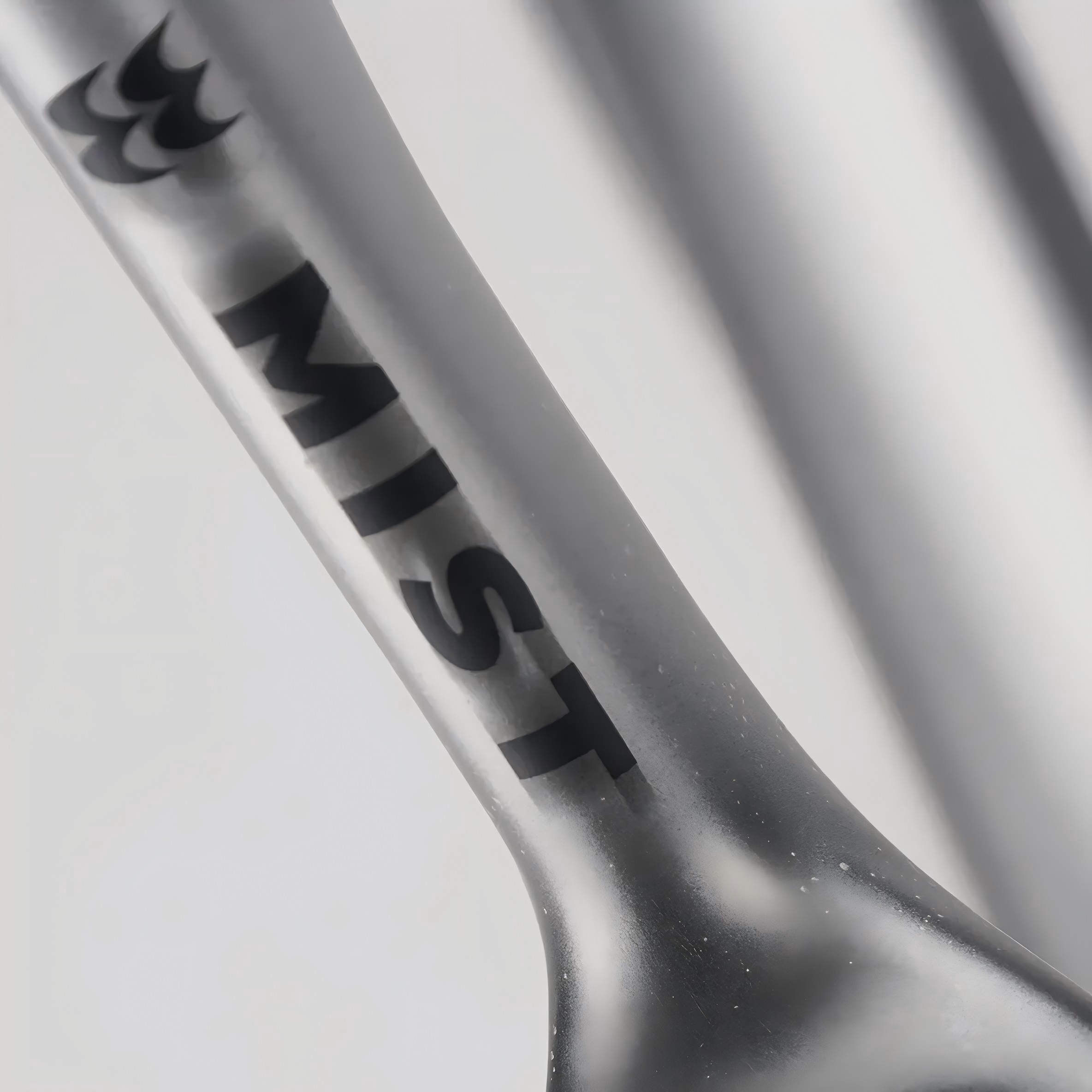

CIMA Artist – Mist
Through the hazy mist, I see you. Living beneath a veil of smog, we lose sight of the beauty around us. Should we ride away, somewhere we can slowly breathe in, breathe out, and rediscover clarity?

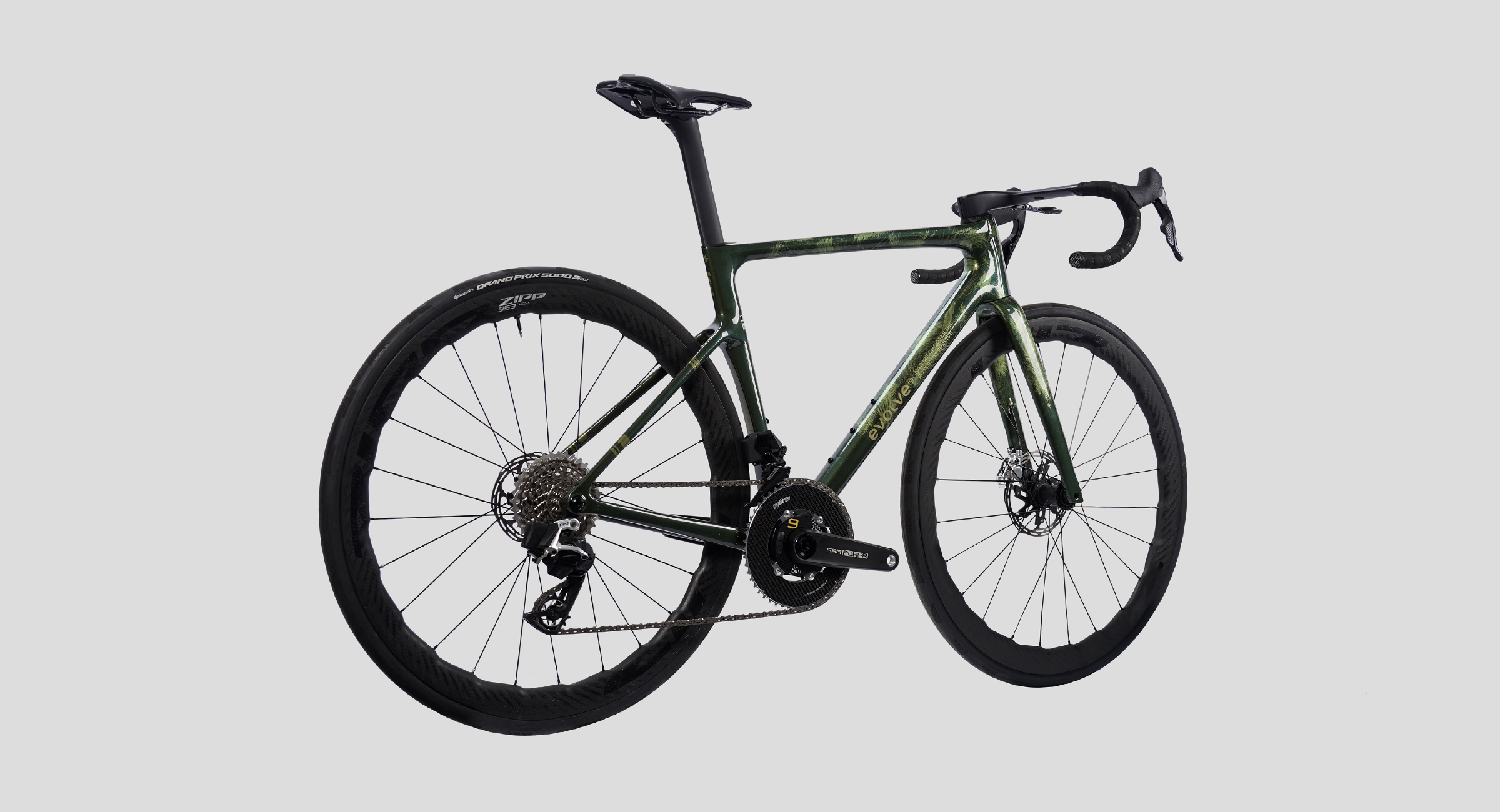

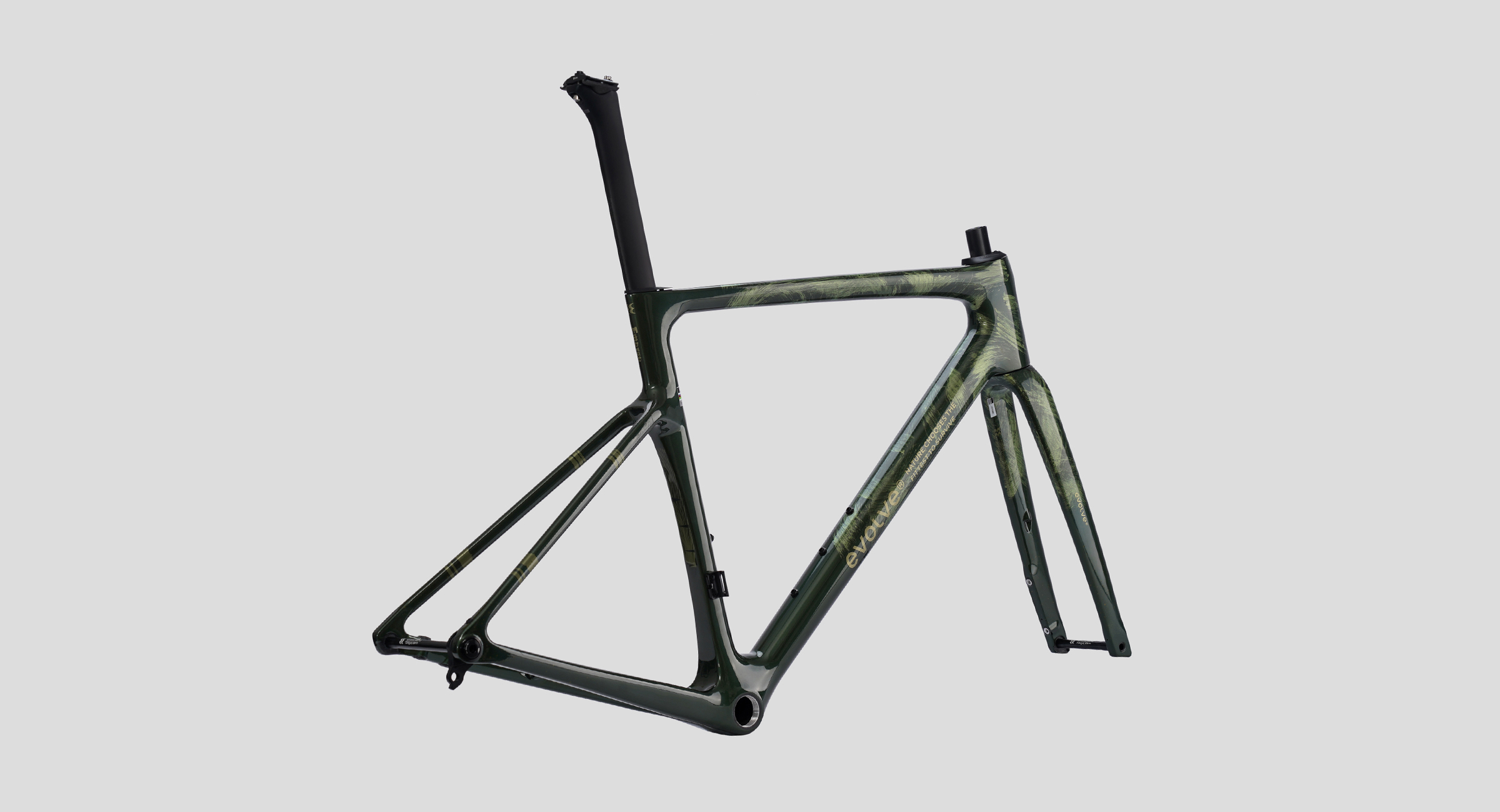

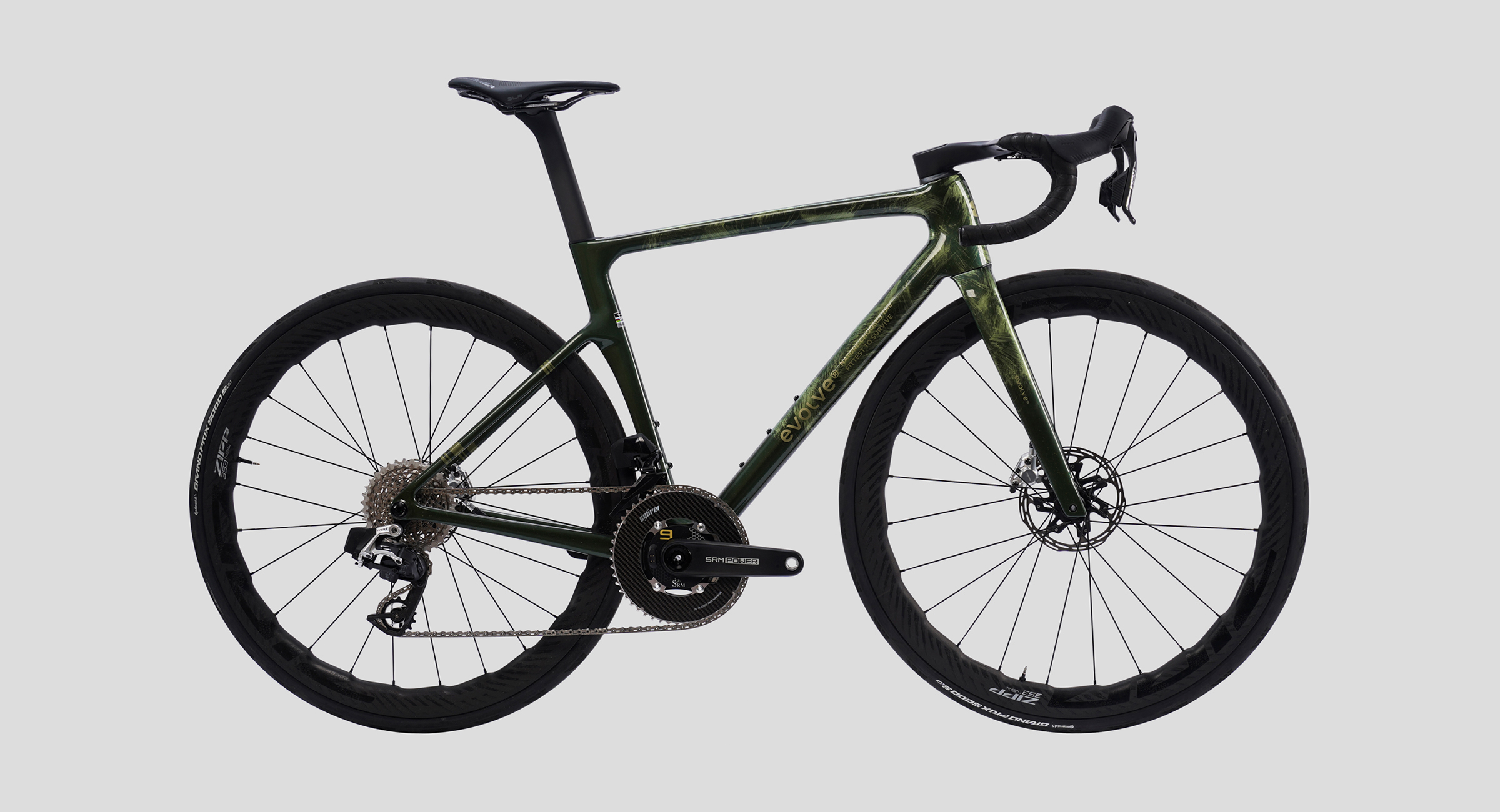

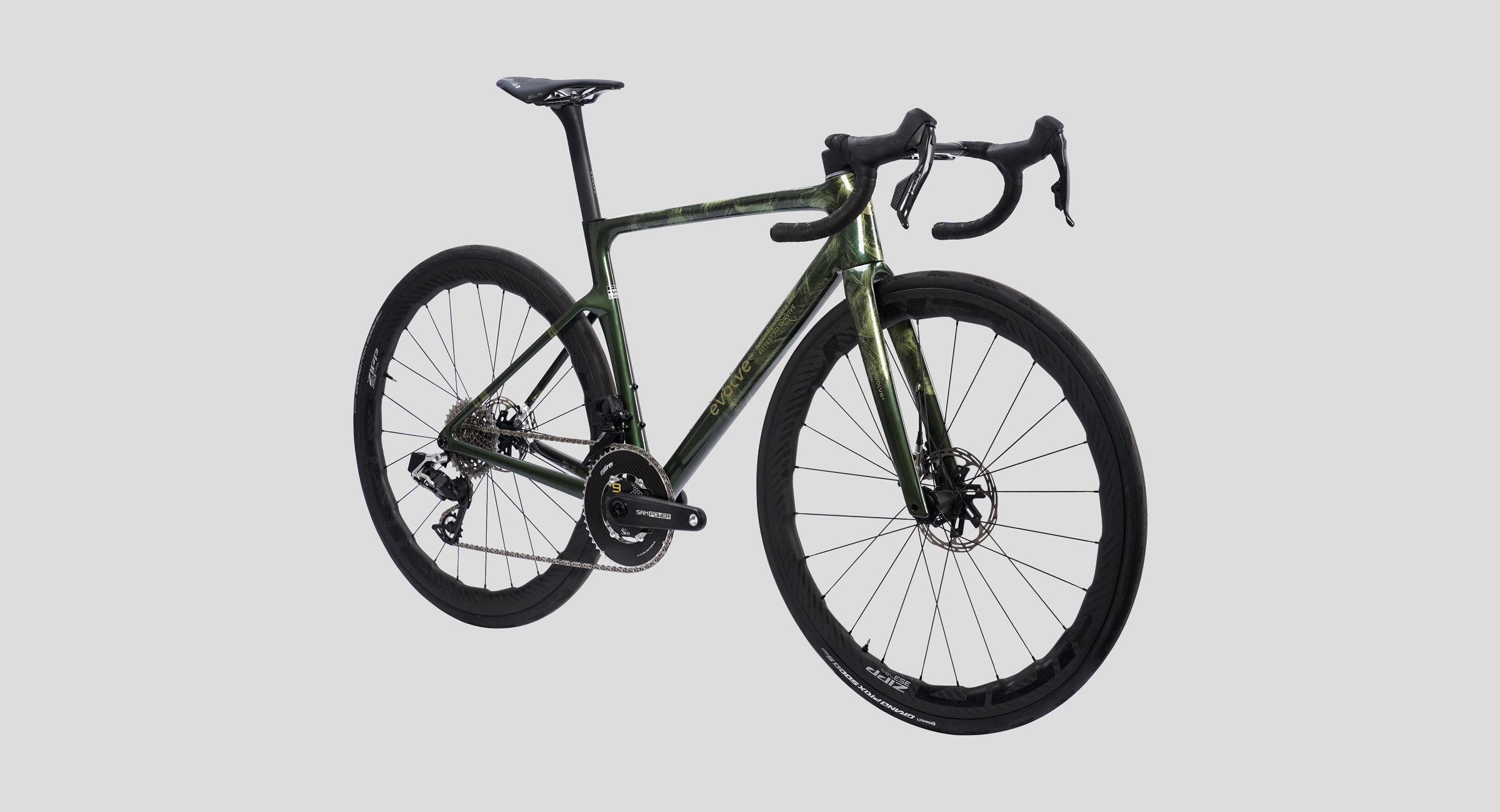

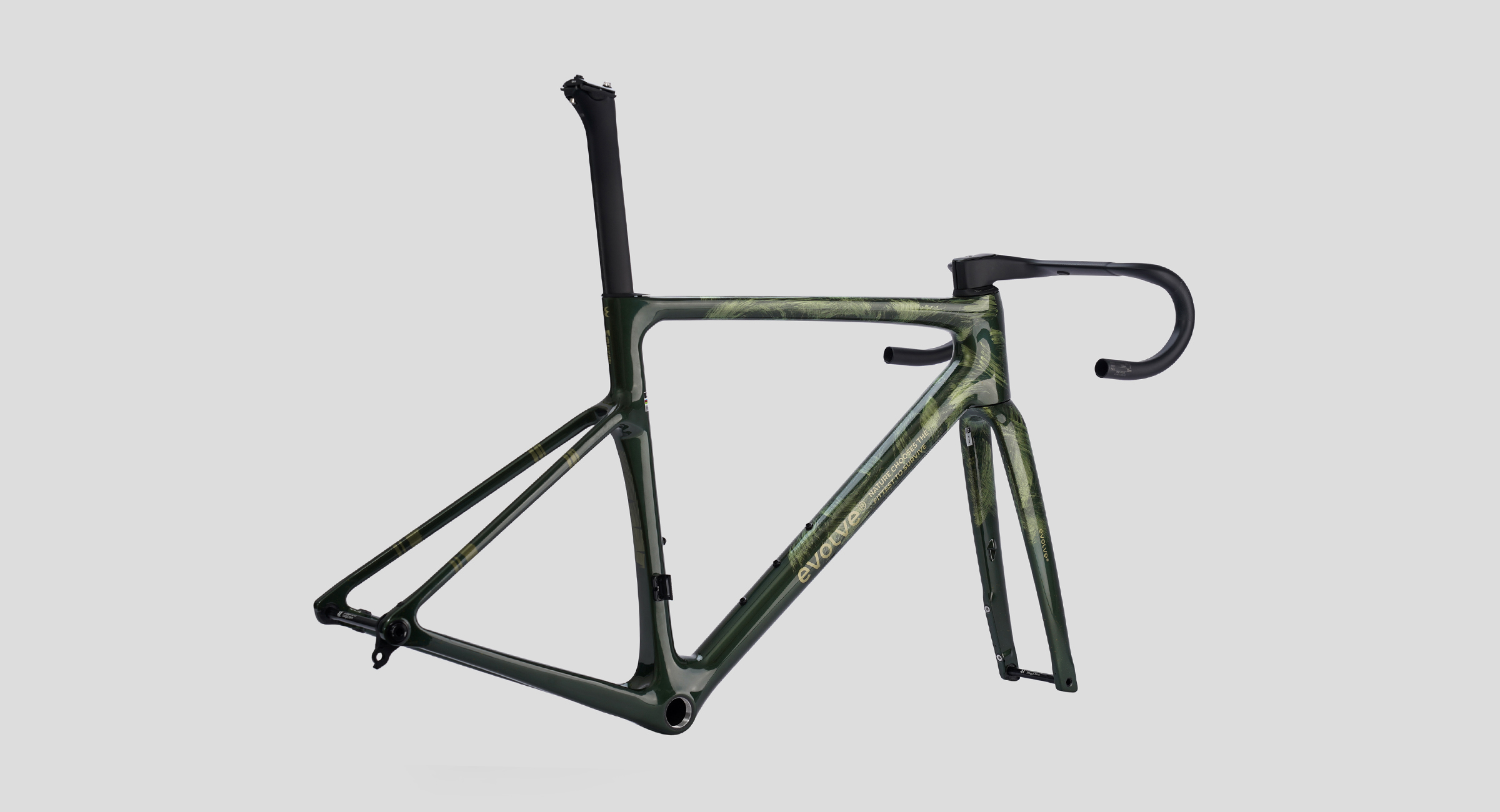

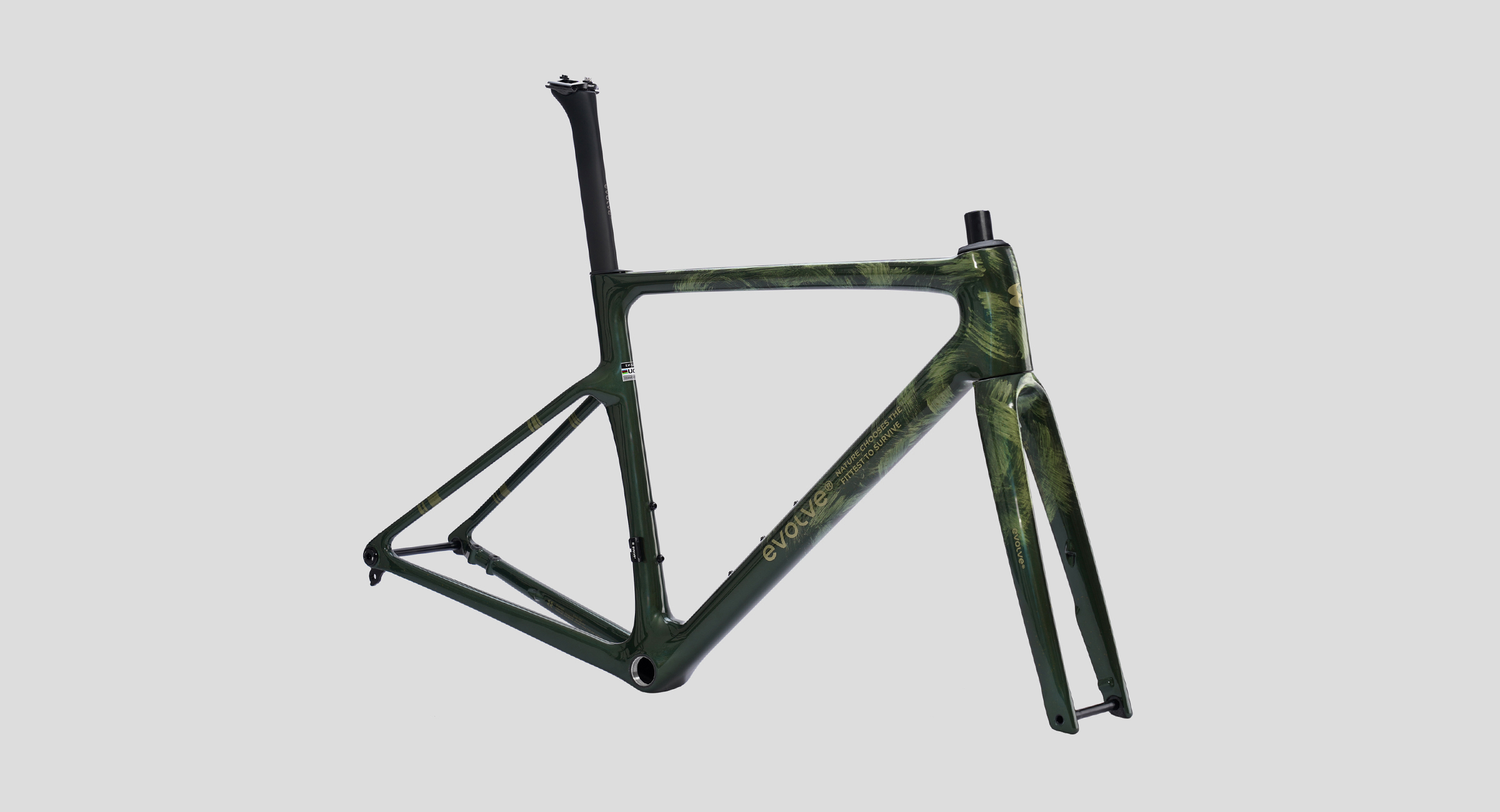

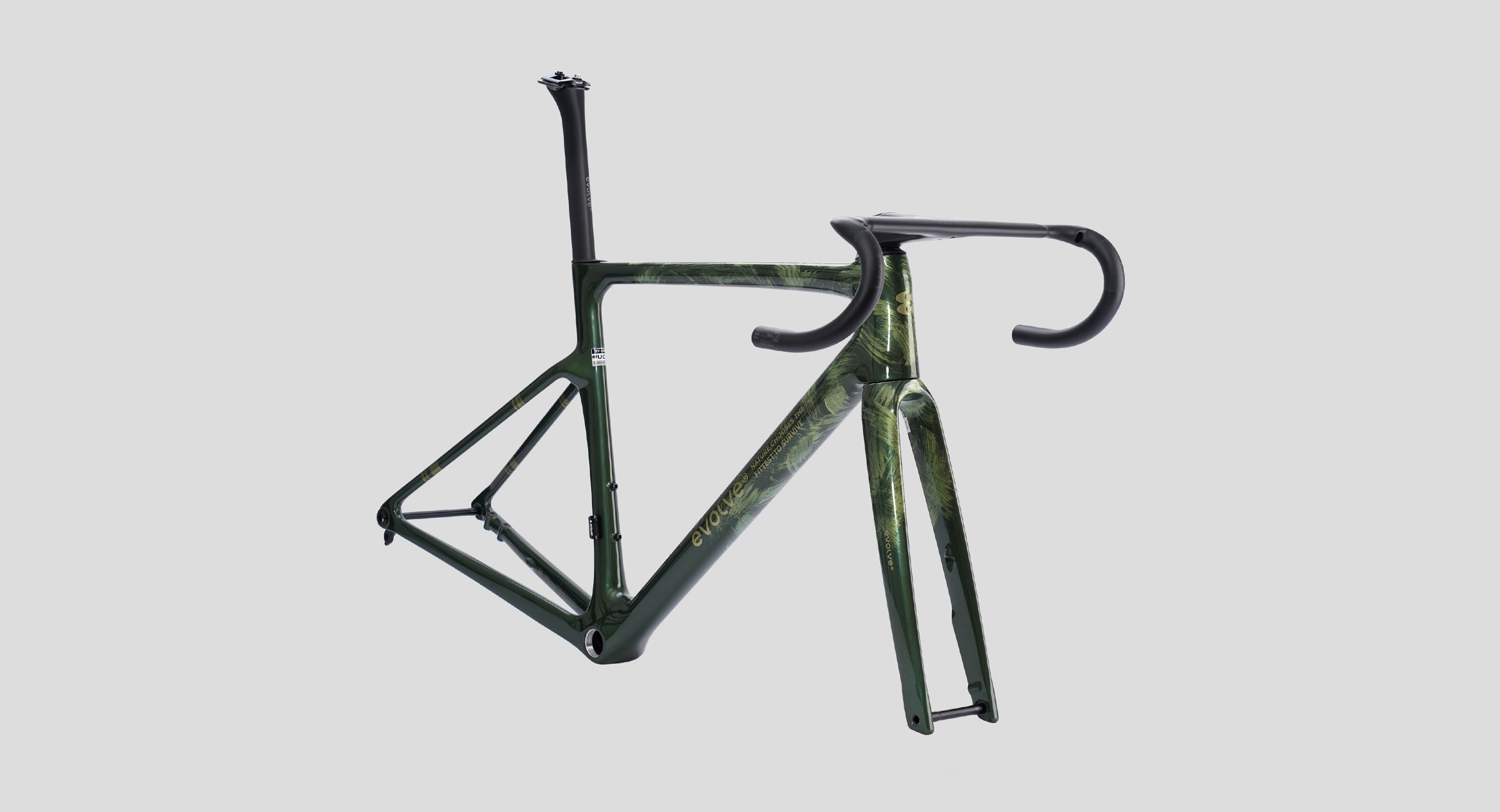

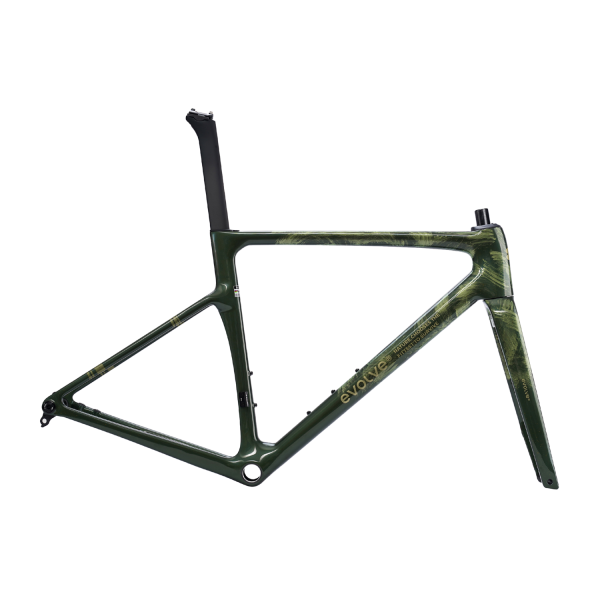

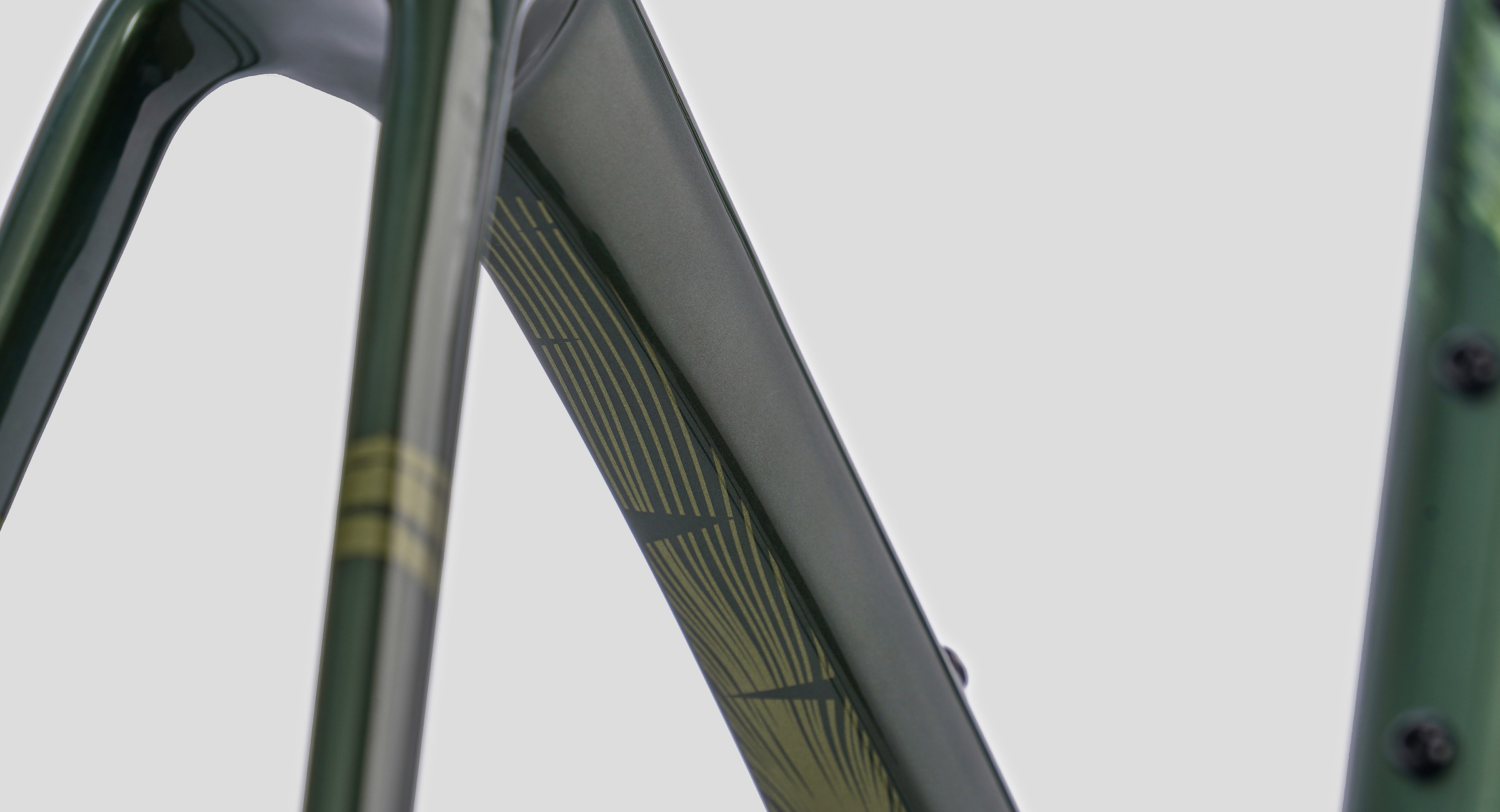

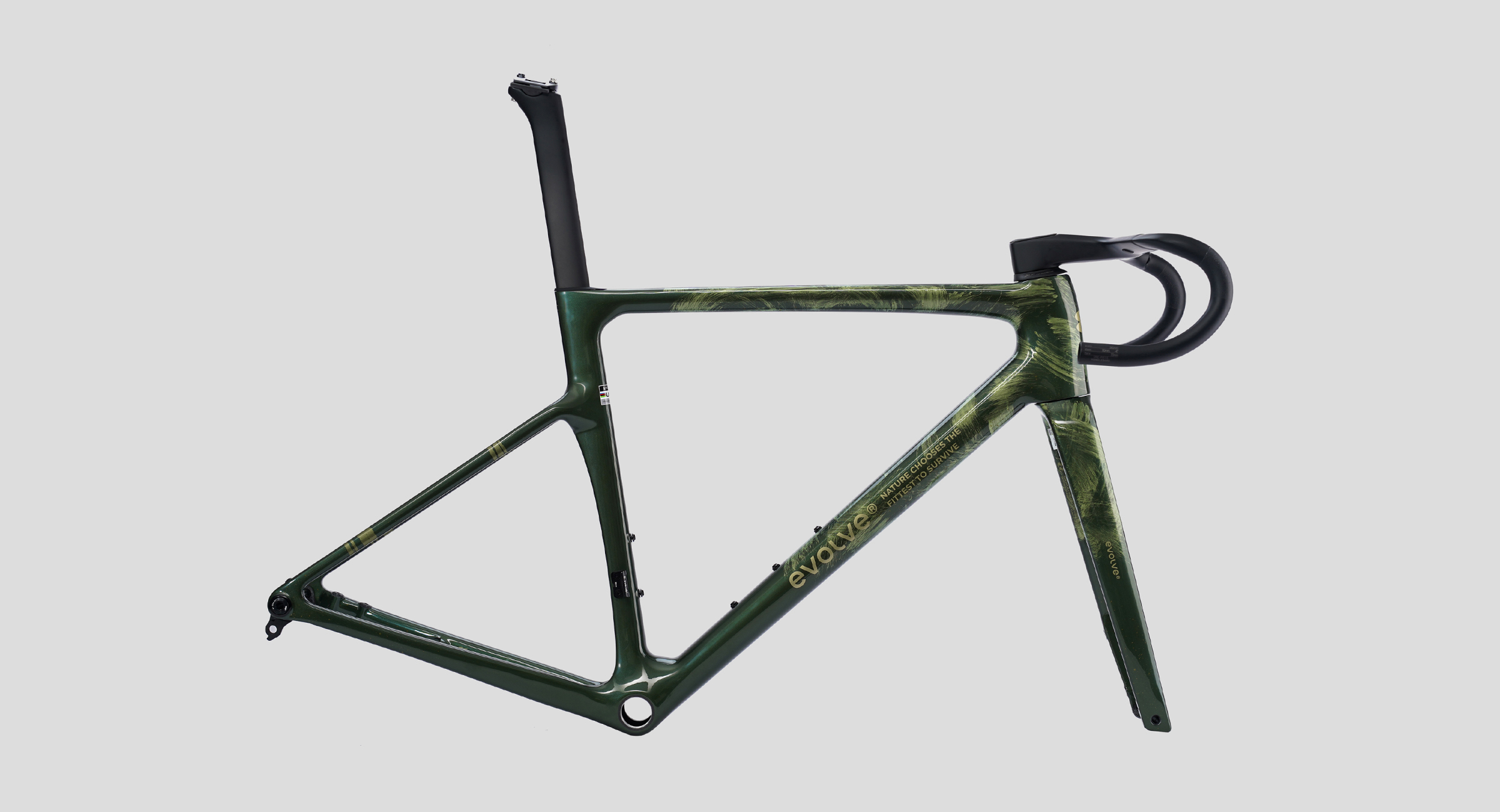

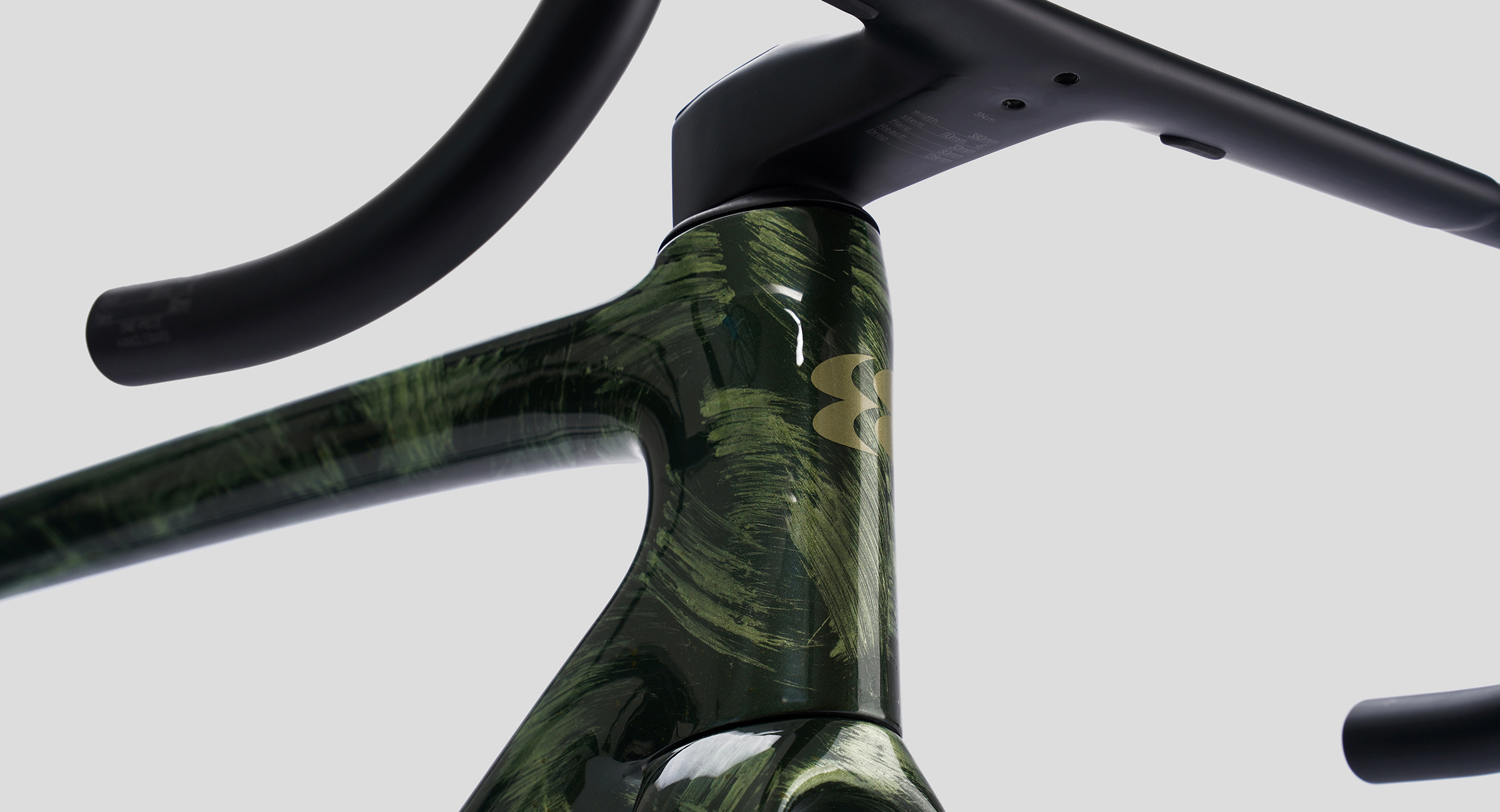

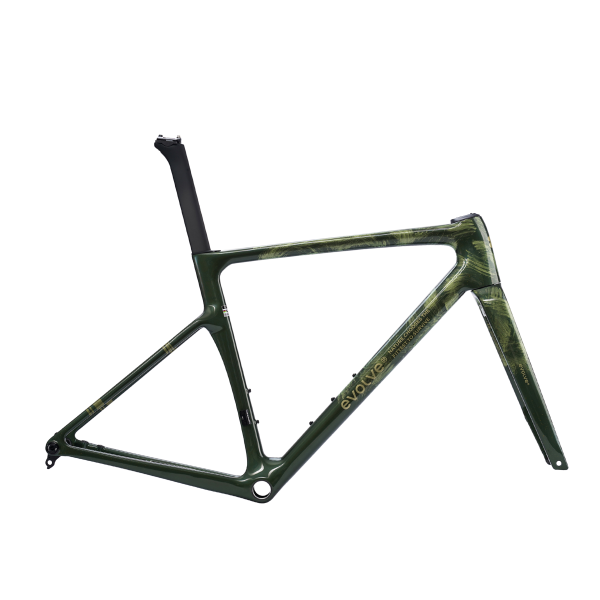

CIMA Artist – Emerge
From quiet soil, new life dares to rise. A single sprout reaching for the light, driven by the pulse of youth. Emerge is a symbol of beginnings — fresh legs, wild hearts, and the will to grow stronger with every ride. May you carry the courage to rise, the hunger to chase, and the fire to become.

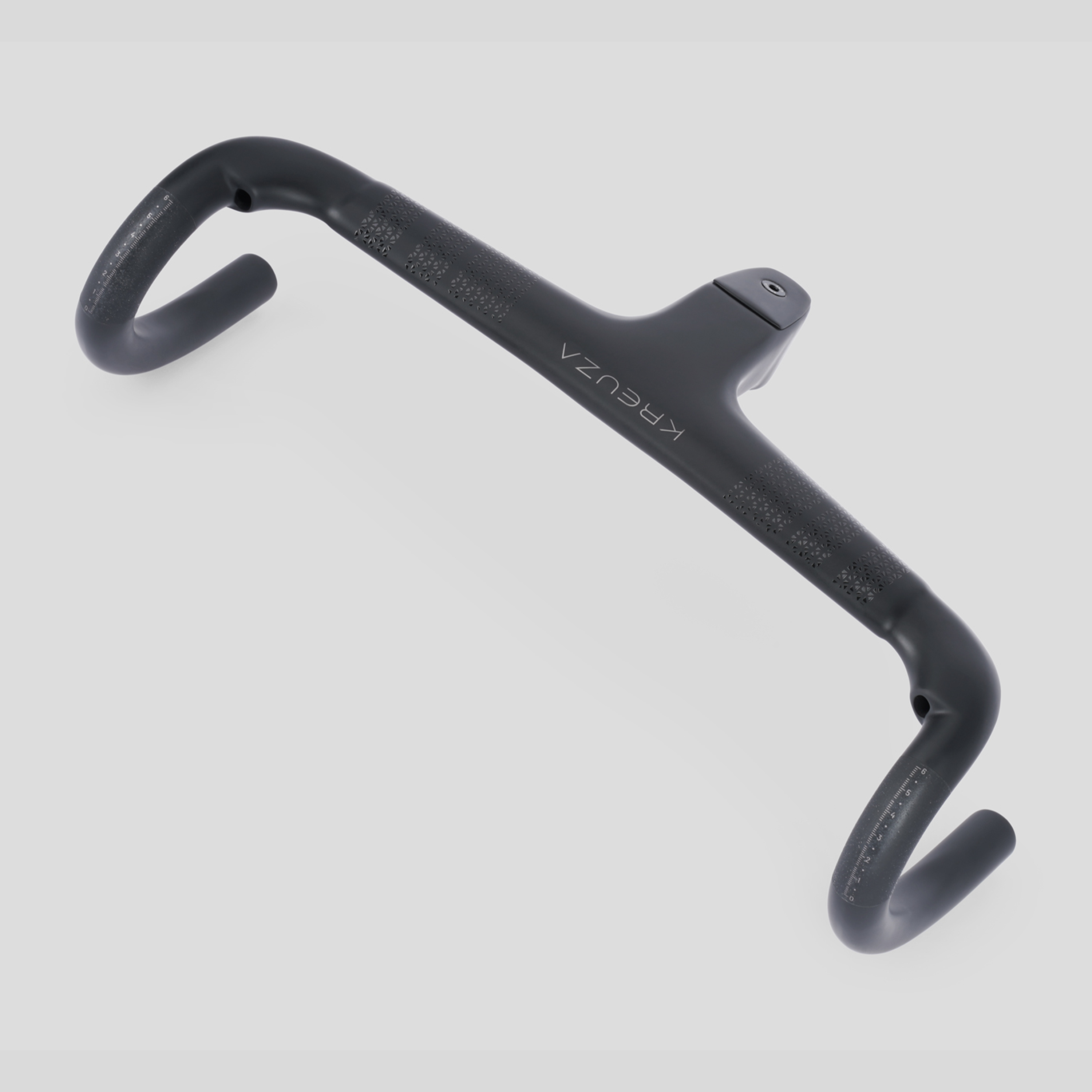

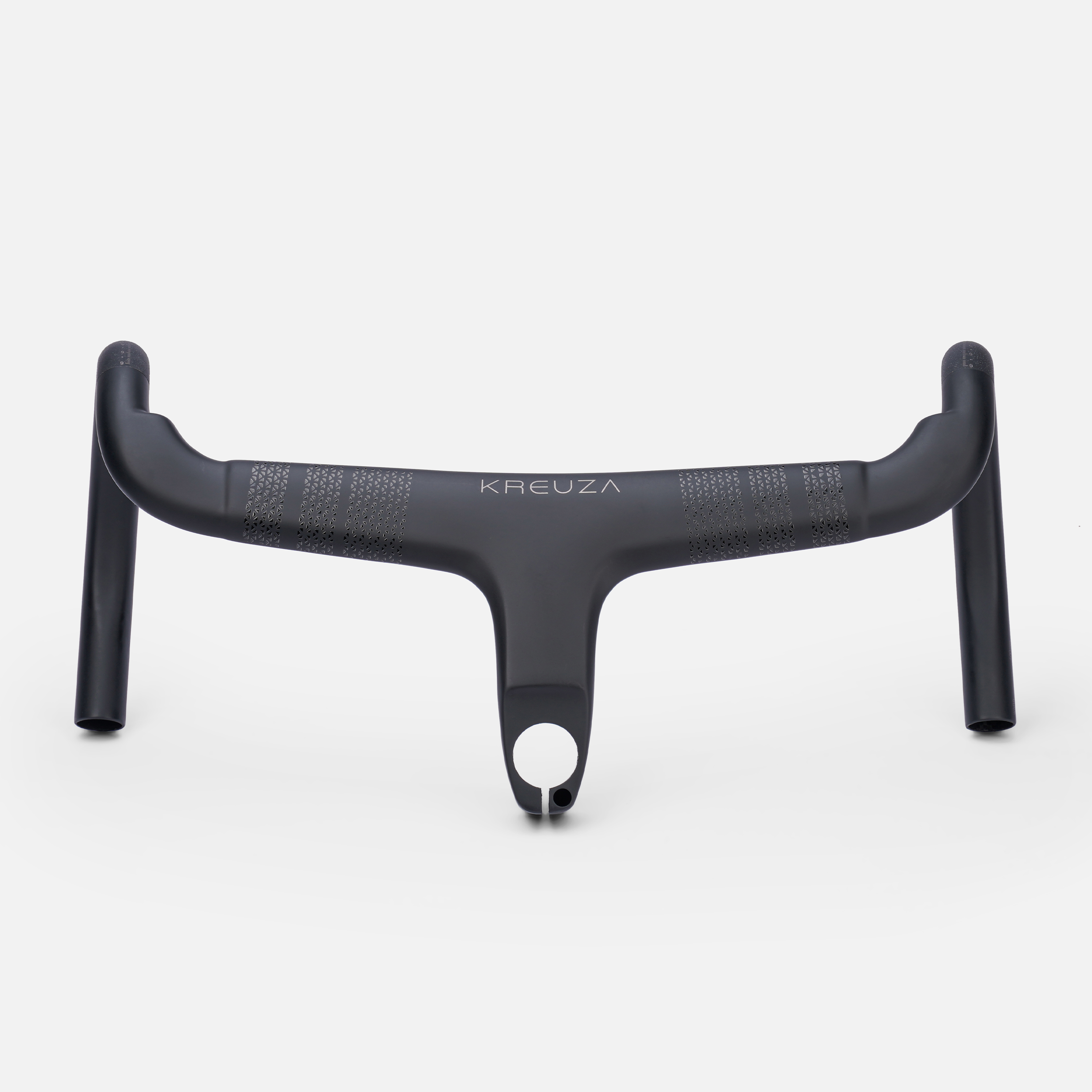

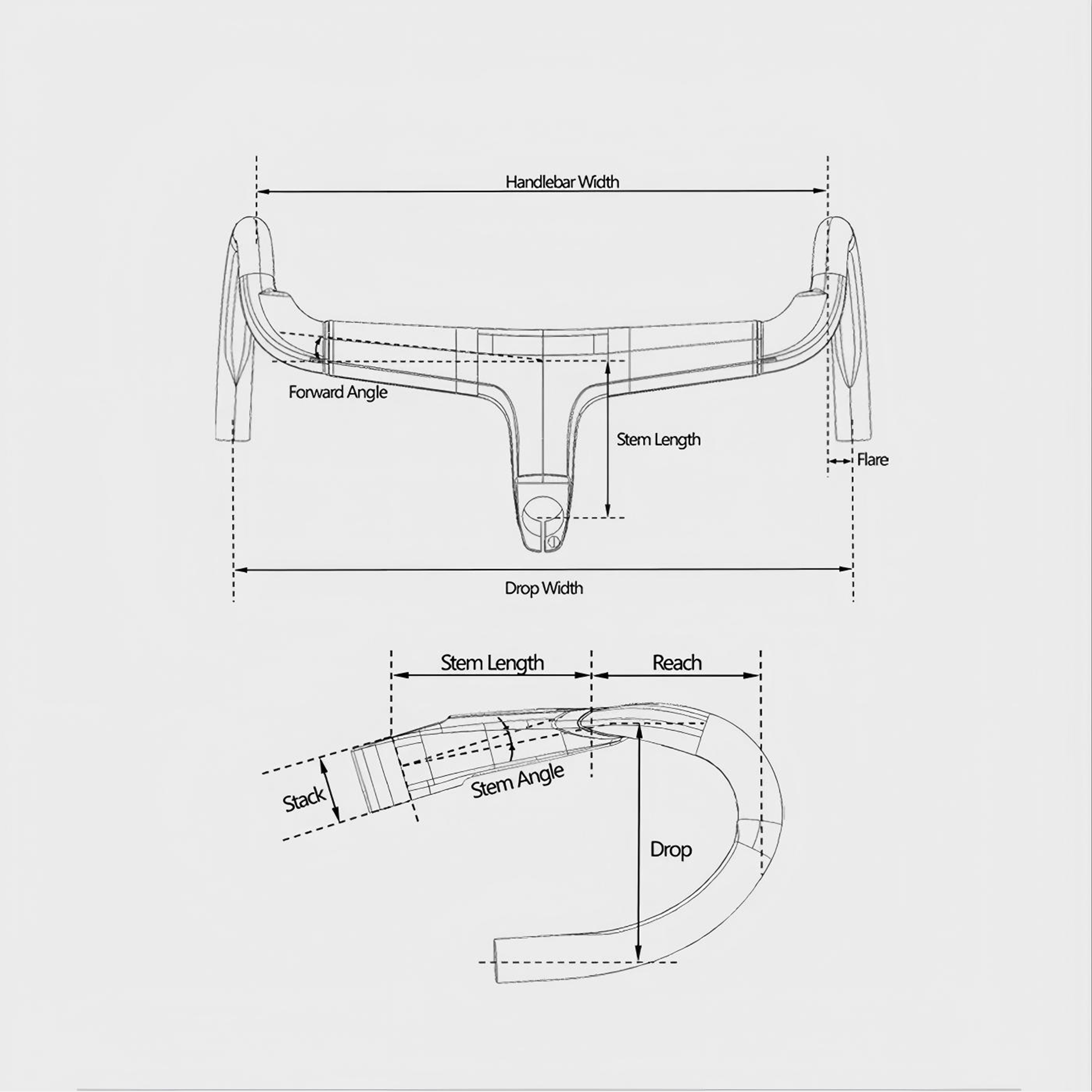

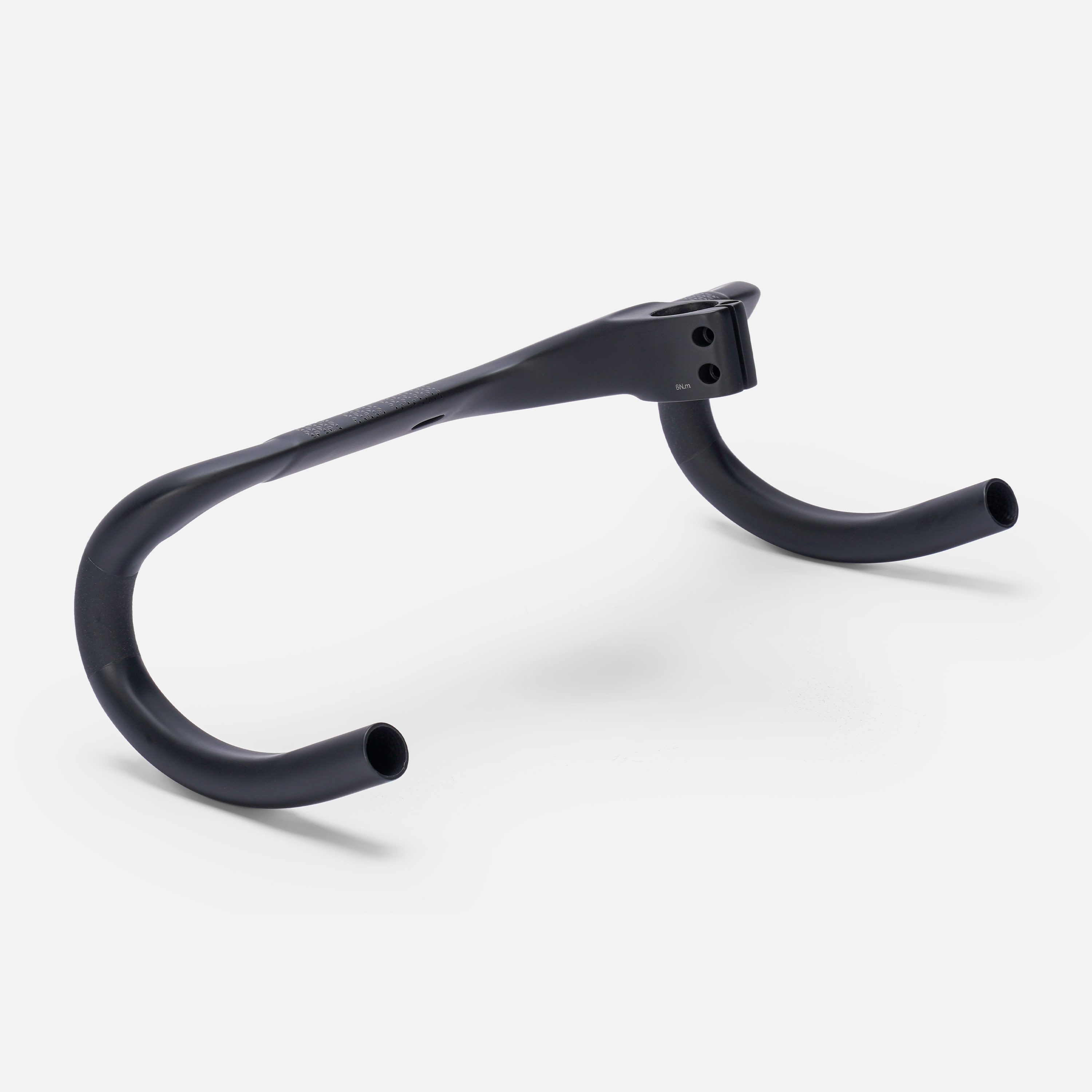

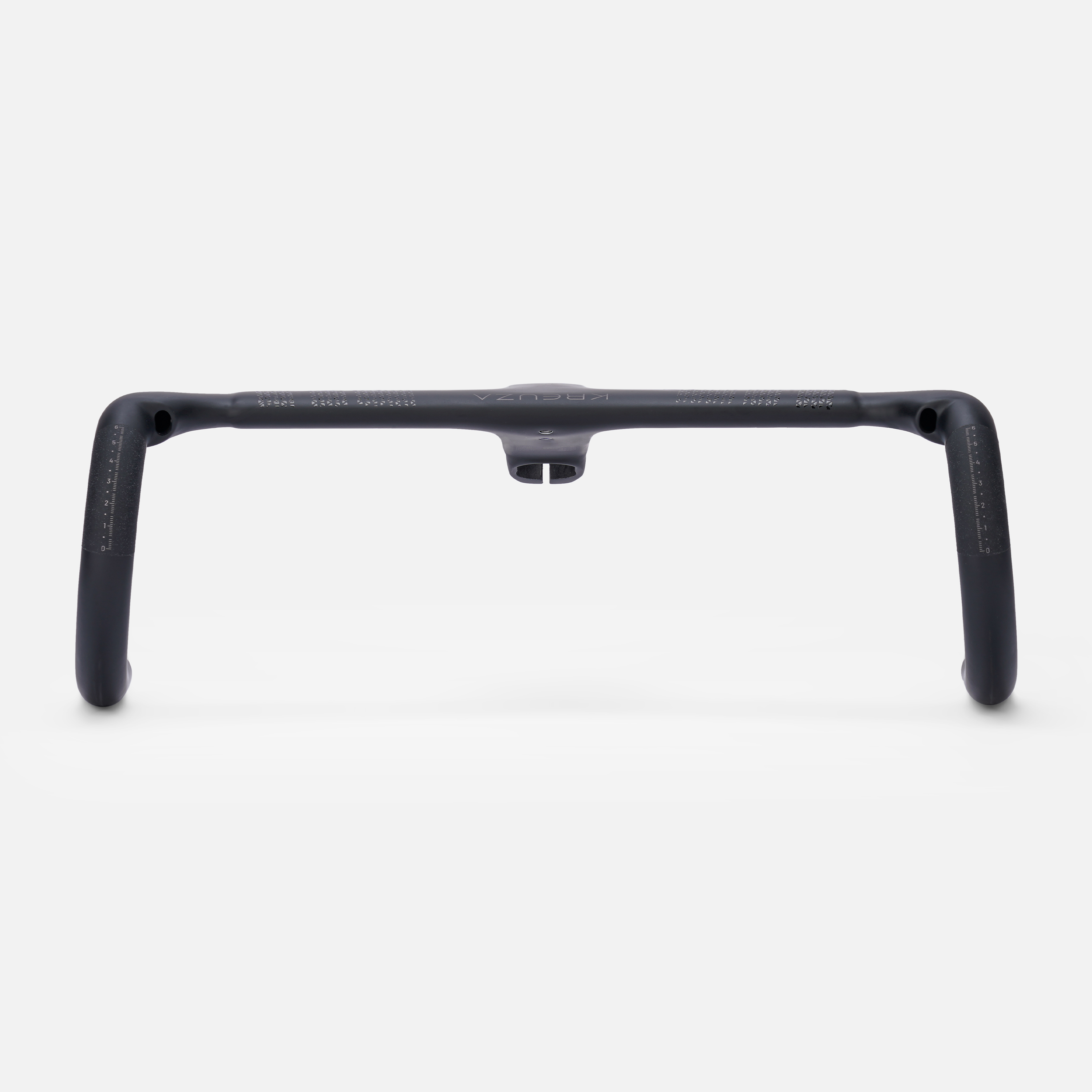

KREUZA Apex One-piece Handlebar (+$200)
Kreuza is the accessory band of evolve. The Kreuza Apex handlebar uses T800 carbon fiber material and weighs just 290g(305g painted) for the 38cm version with 110mm integrated stem. It offers 18 different combinations of widths and stem lengths. Widths range from 360mm to 400mm, while stem lengths go from 90mm to 140mm.
| 36 | 38 | 40 | |
|---|---|---|---|
| Width Hood-to-Hood (mm) | 360 | 380 | 400 |
| Width Drop-to-Drop (mm) | 390 | 410 | 430 |
| Reach (mm) | 80 | 80 | 80 |
| Drop (mm) | 128 | 128 | 128 |
| Drop Flare | 6.6° | 6.6° | 6.6° |
| Forward Angle | 6° | 6° | 6° |
| Stem Angle | -6° | -6° | -6° |
| Stack (mm) | 35.5 | 35.5 | 35.5 |
| Length (mm) | 90 / 100 / 110 / 120 / 130 / 140 | ||
*NOTE: Come with 1x computer mount (1x GARMIN, 1x WAHOO, 1x BRYTON), 5x spacers (3x 10mm, 2x 5mm), 1x Kreuza bar tape (black).
Additional information
| Frame Size | XS, S, M, L, XL |
|---|---|
| Frame Color | CIMA Artist – Emerge, CIMA Artist – Mist, CIMA Speed – Nirvana, CIMA Speed – Streams |
| Seatpost Size | 310(length)*-5(offset), 380(length)*-5(offset), 310(length)*10(offset), 380(length)*10(offset) |
