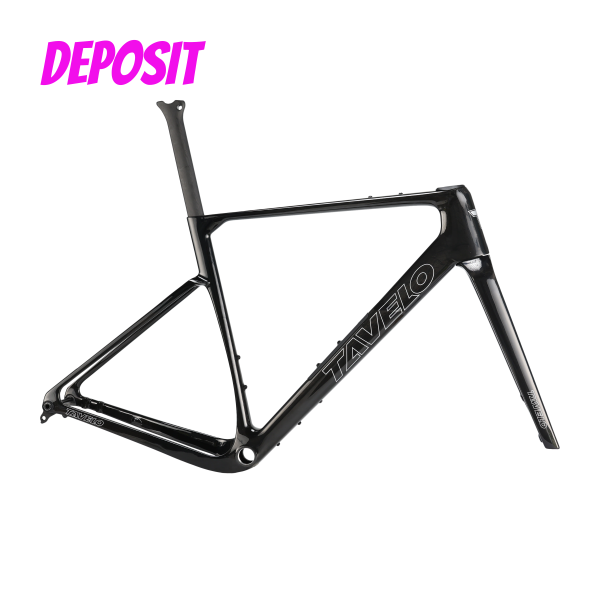

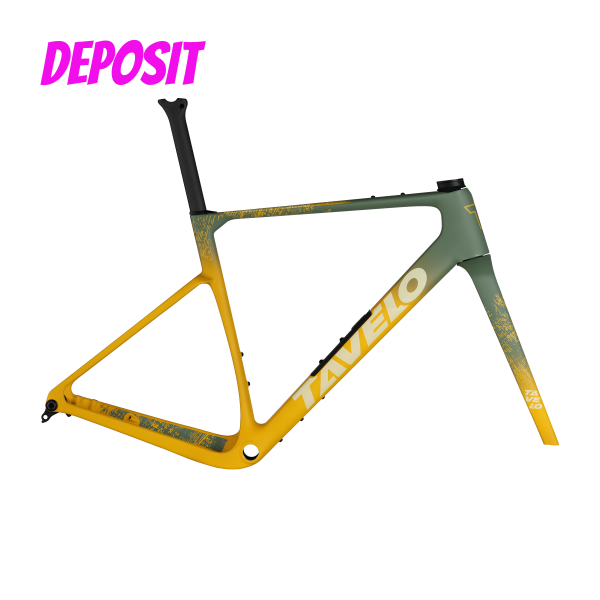

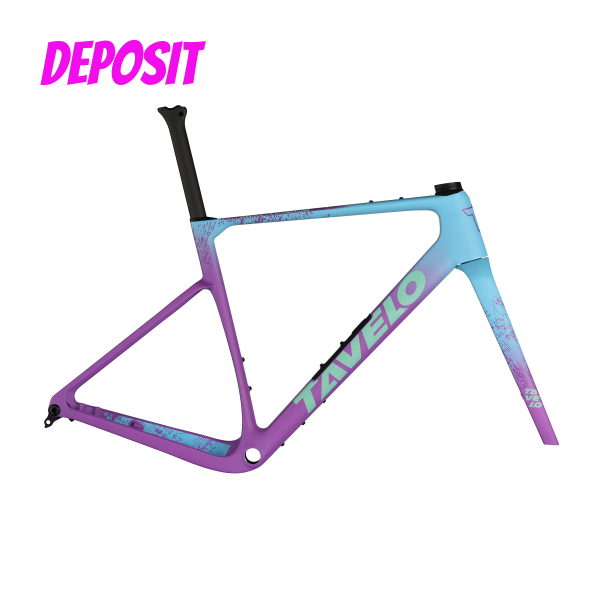

DEPOSIT – TAVELO GROW GRAVEL Bike Frameset
$50.00
This is a PRE-ORDER DEPOSIT for the new Tavelo Grow frameset. Frames will begin shipping in the middle of April. Early batches may be limited to certain sizes. Orders will be fulfilled on a first-come, first-served basis. Our office is situated just 8km from the Tavelo factory… so fear not, we’ll be getting the frames as quickly as possible. Once your frame is with us, you will contact you to pay the remaining balance before we send out your frame.
-
- Total price with integrated handlebar $1880 – Frame only $1650
- Toray T800 carbon frame construction balancing weight, stiffness, and durability
- Aero tube shaping designed for sustained speed on fast gravel
- Clearance for up to 55 mm (front) / 50 mm (rear) tyres
- Threaded BSA bottom bracket for reliability and easy servicing
- UDH dropout for broad drivetrain compatibility and future-proofing

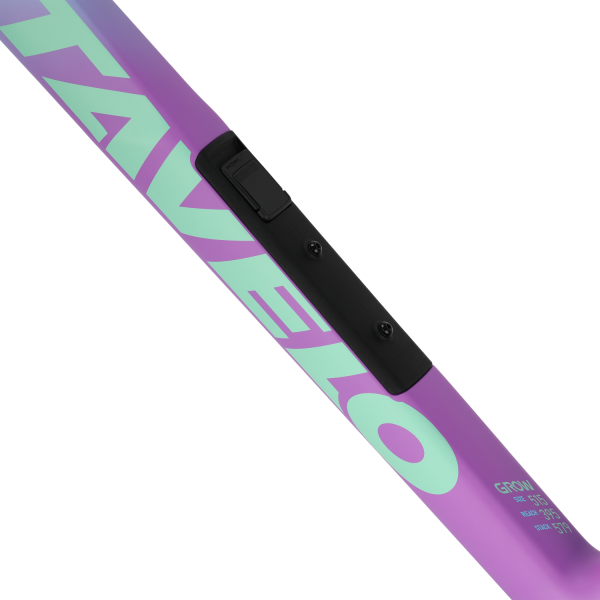

- Fully internal cable routing for a clean, integrated finish
- Lightweight chassis starting from approx. 830 g (raw frame)
- Designed for high-speed gravel riding with stable, predictable handling
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description
AERO GRAVEL
Built for speed where the terrain gets rough, this aero gravel frame is designed around one clear idea - carrying momentum across gravel.
Using a Toray T800 carbon layup and shaped with aerodynamic intent, it delivers a ride that is fast, stable, and efficient over long distances and unpredictable surfaces.
This isn’t a road bike with extra clearance - it’s a purpose-built gravel race platform.
TAVELO - GROW
- TAVELO GROW Frame & Fork
- OPTIONAL* Integrated Handlebar
- Carbon Fiber Seatpost

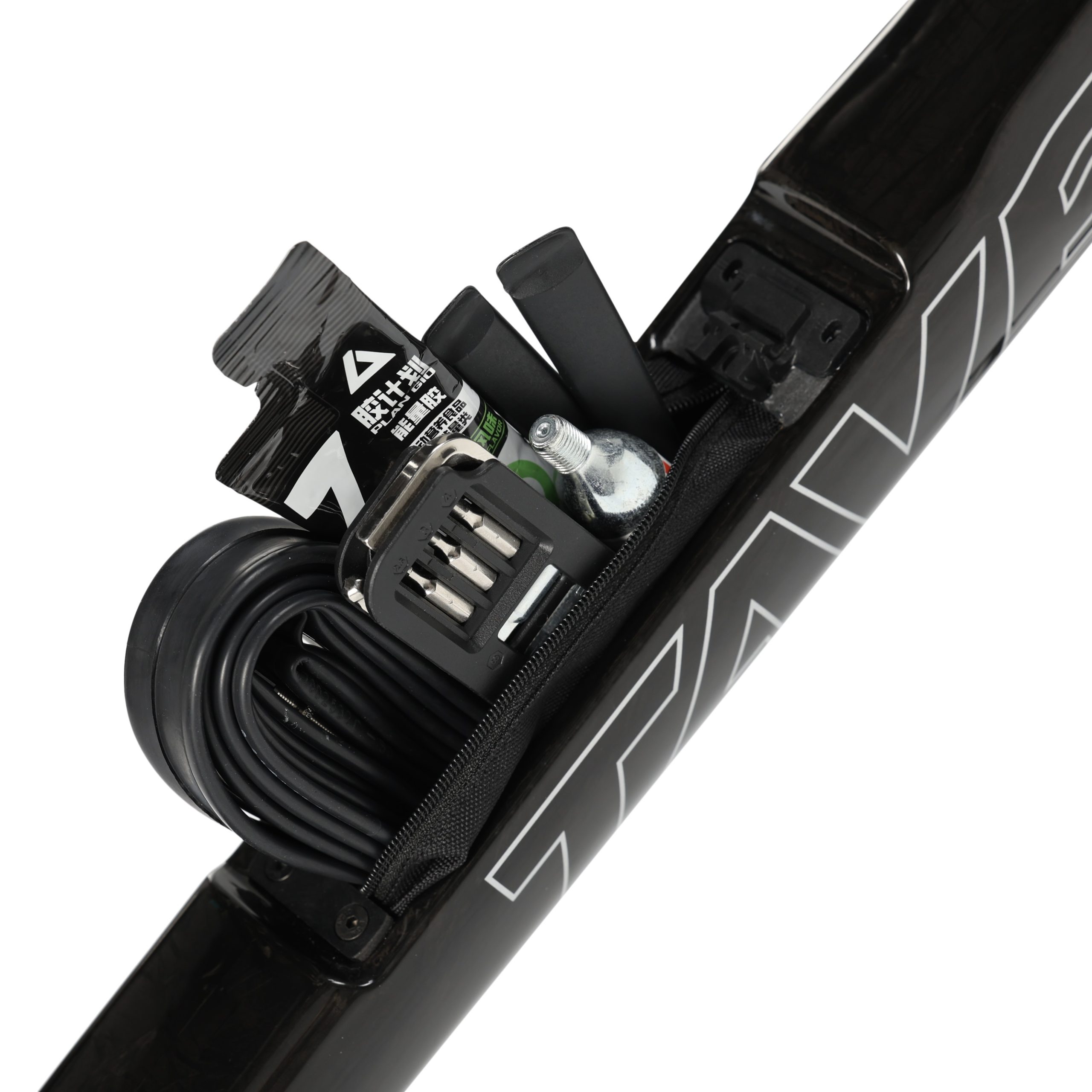

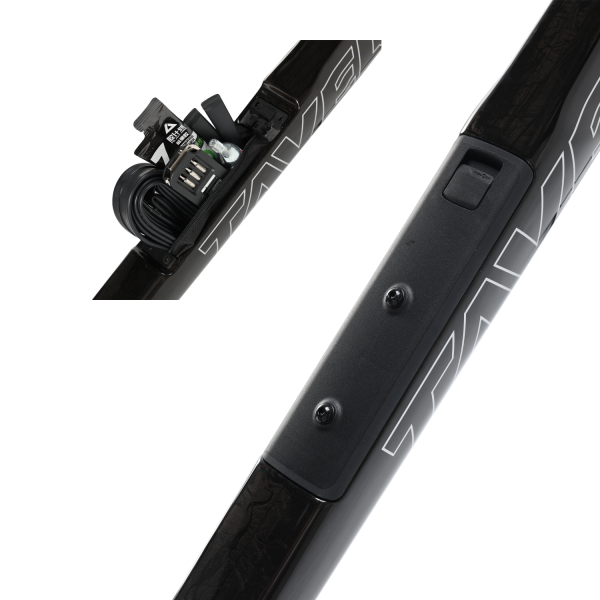

- Accessory Package
- Material: T800 carbon
- Frame Weight: 860 g (Size M, excluding livery and metal accessories)
TAVELO Warranty:
- Covers all damages caused by material or production issues (excludes human or force majeure causes).
- For major damage, a 40% discount applies toward a new replacement.
TAVELO - GROW
*The sizes listed are for reference only and represent common cases, as limb proportions vary among riders of the same height. To find your ideal fit, consult our customer service with details of your previous bike brand and size for personalized advice.

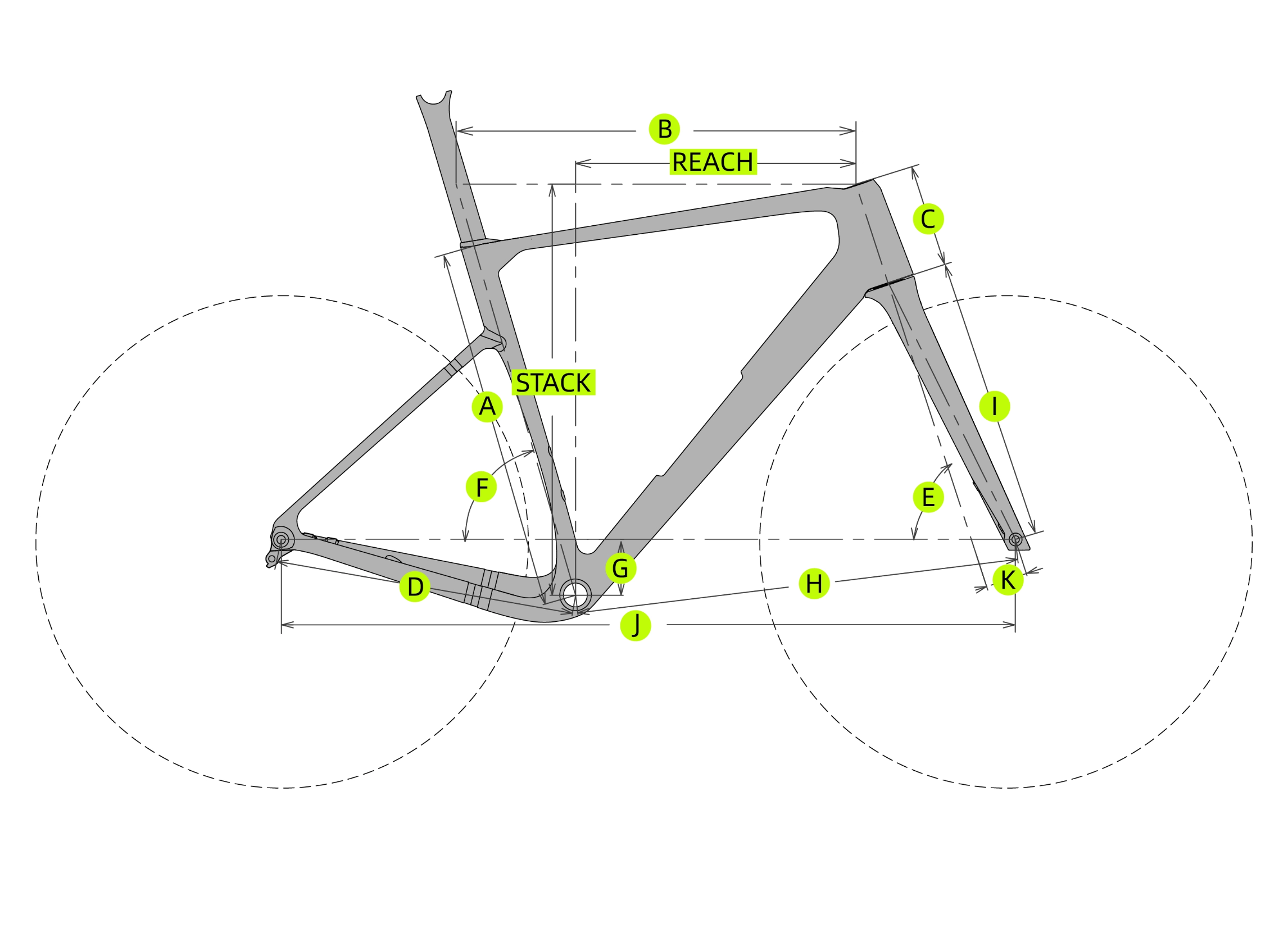

| GROW Geometry | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| A Seat Tube Length | 430 | 460 | 490 | 515 | 540 | 570 |
| B Top Tube Length | 520 | 530 | 550 | 567 | 586 | 606 |
| C Head Tube Length | 95 | 106 | 127 | 146 | 174 | 197 |
| D Chainstay Length | 423 | 423 | 423 | 423 | 423 | 423 |
| E Head Tube Angle | 70.5° | 71° | 71° | 71.3° | 71.3° | 71.6° |
| F Seat Tube Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| G Bottom Bracket Drop | 80 | 80 | 78 | 78 | 75 | 75 |
| H Front Center | 588 | 598 | 614 | 622 | 642 | 652 |
| I Fork Length | 400 | 400 | 400 | 400 | 400 | 400 |
| J Wheelbase | 998 | 1008 | 1025 | 1033 | 1054 | 1064 |
| K Fork Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Reach | 368 | 375 | 385 | 395 | 406 | 414 |
| Stack | 530 | 540 | 558 | 579 | 603 | 627 |
| Stand Over | 747 | 768 | 794 | 816 | 843 | 869 |
| Fork Trail | 69.67 | 66.31 | 66.31 | 64.3 | 64.3 | 62.29 |
| Frame | Tavelo Grow Toray T800 carbon construction with internal cable routing |

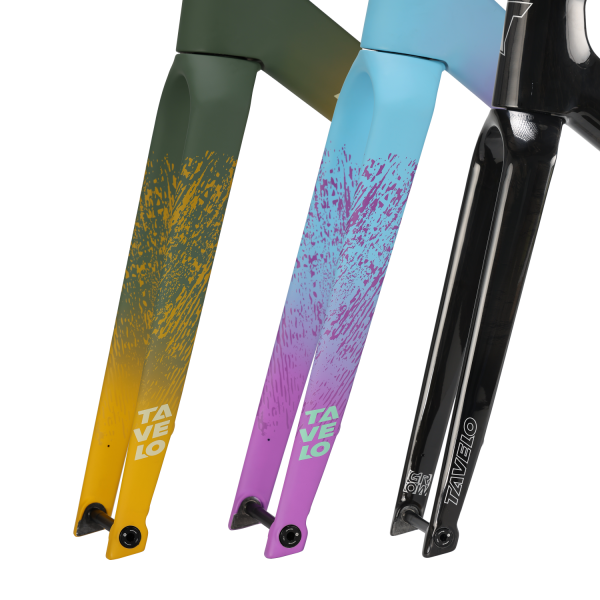

| Fork | Tavelo Grow Toray T800 carbon fork |
| Seatpost | Tavelo carbon seatpost, Toray T800, 5mm offset |
| Frame Weight | XS (830g), S (845g), M (860g), L (880g), XL (895g), XXL (960 ±25g) (raw finish) |
| Fork Weight | 355g (raw finish) |
| Seatpost Weight | 113g (without saddle clamp) |
| Headset |
Upper: 37–46.9mm Lower: 34.1–46.9mm |
| Bottom Bracket | Threaded BSA |
| Front Thru-Axle | 12×100mm (Tavelo GR-1) |
| Rear Thru-Axle | 12×142mm (Tavelo GR-1) |
| Brake Mount | Flat-mount disc |
| Derailleur Hanger | UDH (Universal Derailleur Hanger) |
| Max Tire Clearance |
Front: 55mm Rear: 50mm |

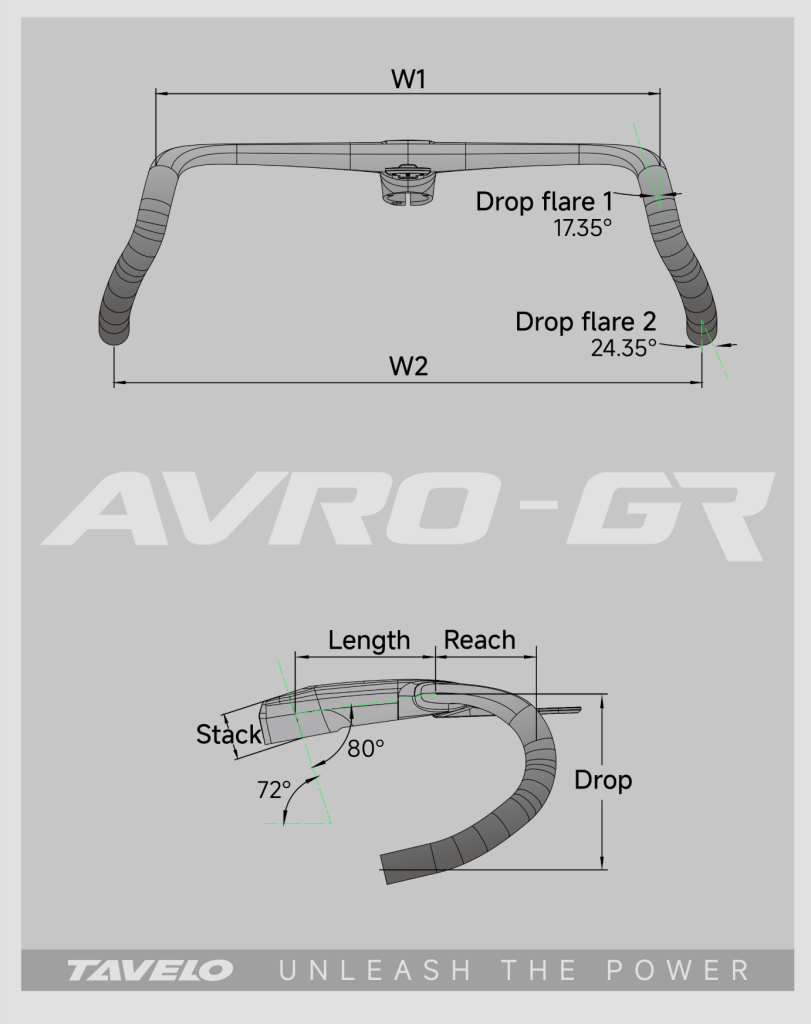

| Handlebar Geometry | 36 | 38 | 40 | 42 |
|---|---|---|---|---|
| W1 Hood-to-hood (mm) | 360 | 380 | 400 | 420 |
| W2 Drop-to-drop (mm) | 425 | 445 | 465 | 485 |
| Reach (mm) | 78 | 78 | 78 | 78 |
| Drop (mm) | 137 | 137 | 137 | 137 |
| Drop flare 1 | 17.35° | 17.35° | 17.35° | 17.35° |
| Drop flare 2 | 24.35° | 24.35° | 24.35° | 24.35° |
| Angle | 80° | 80° | 80° | 80° |
| Stack (mm) | 36.4 | 36.4 | 36.4 | 36.4 |
| Length (mm) | 80 / 90 / 100 / 110 / 120 / 130 | |||
| Weight | 320g (380mm × 110mm) | |||
Additional information

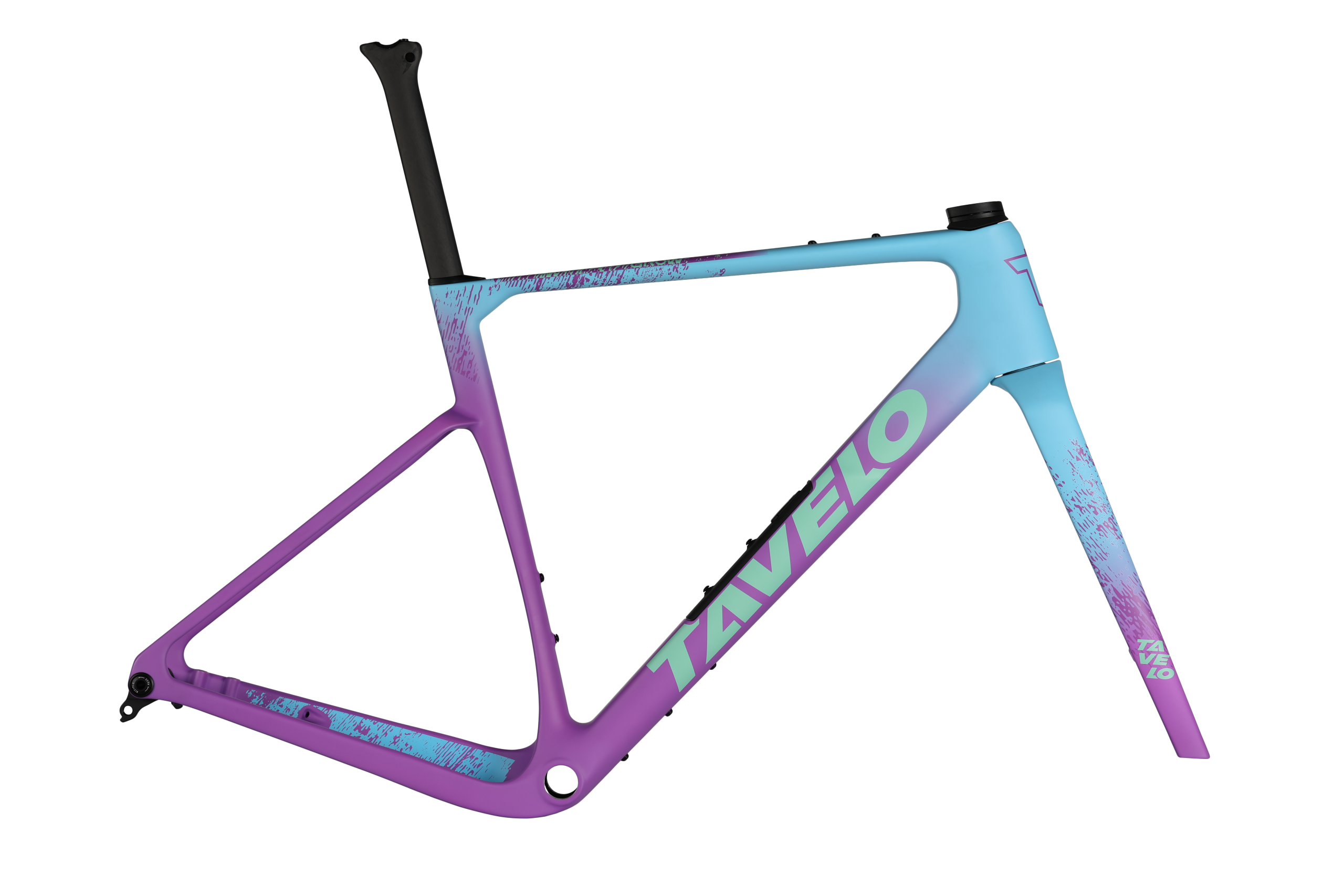

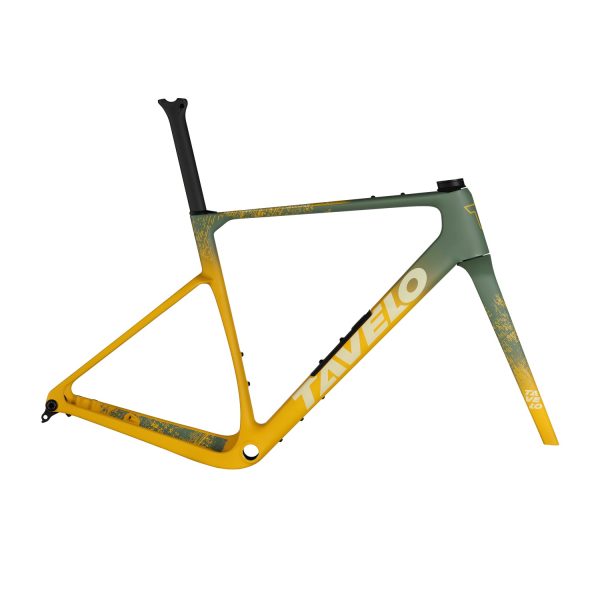

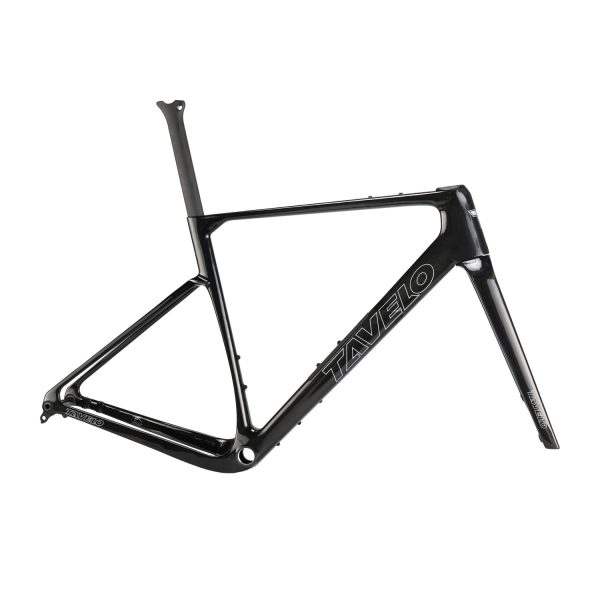

| Color | Black, Purple, Yellow |
|---|---|
| Size | 430, 460, 490, 515, 540, 570 |
Brand
TAVELO
| Brand Name: Tavelo | Chinese Company Name: 踏为乐（厦门）体育用品有限公司 |
| Founded: 2023 | # of Employees: 10-20 |
| Headquarters: Xiamen, Fujian | Products Categories: Frames |
