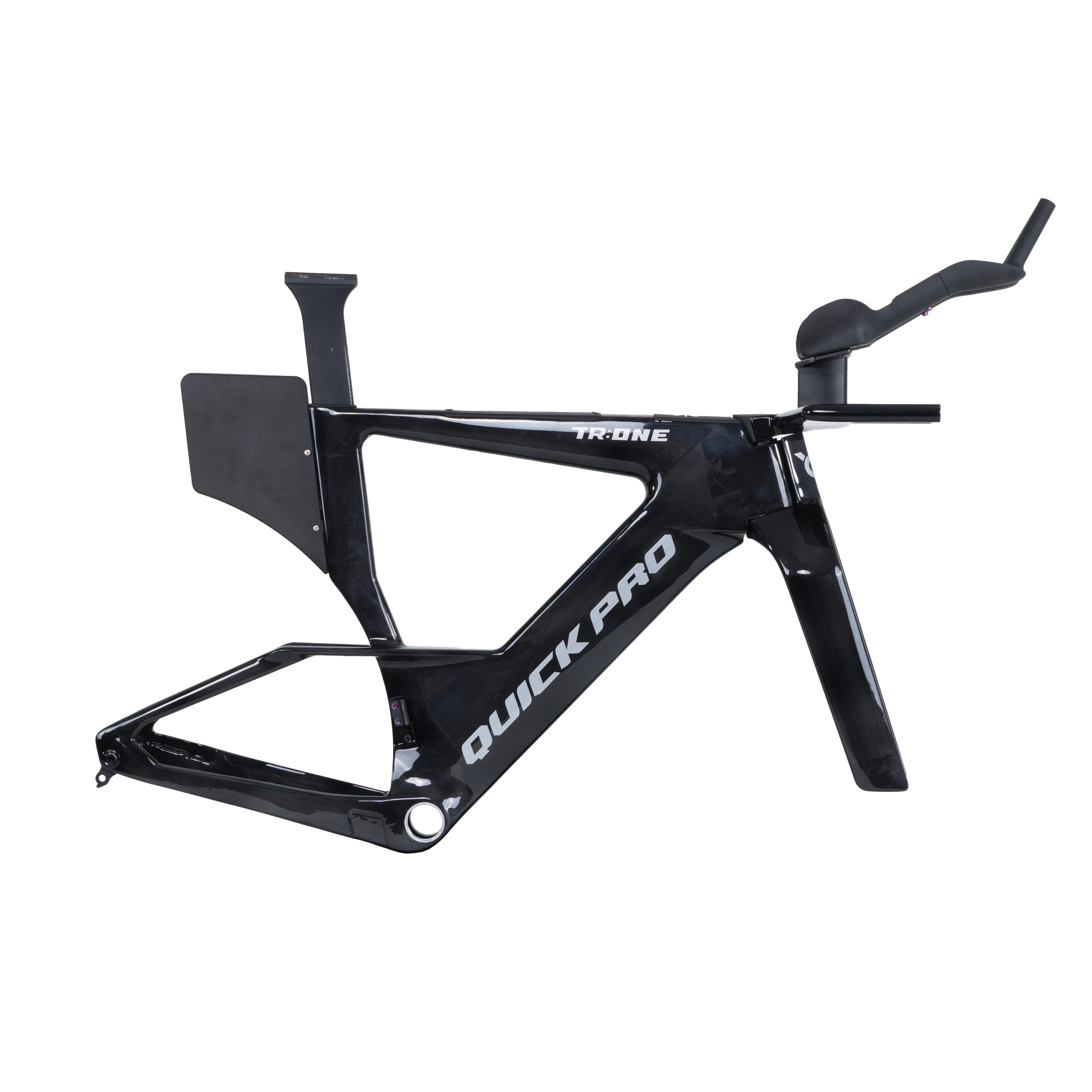

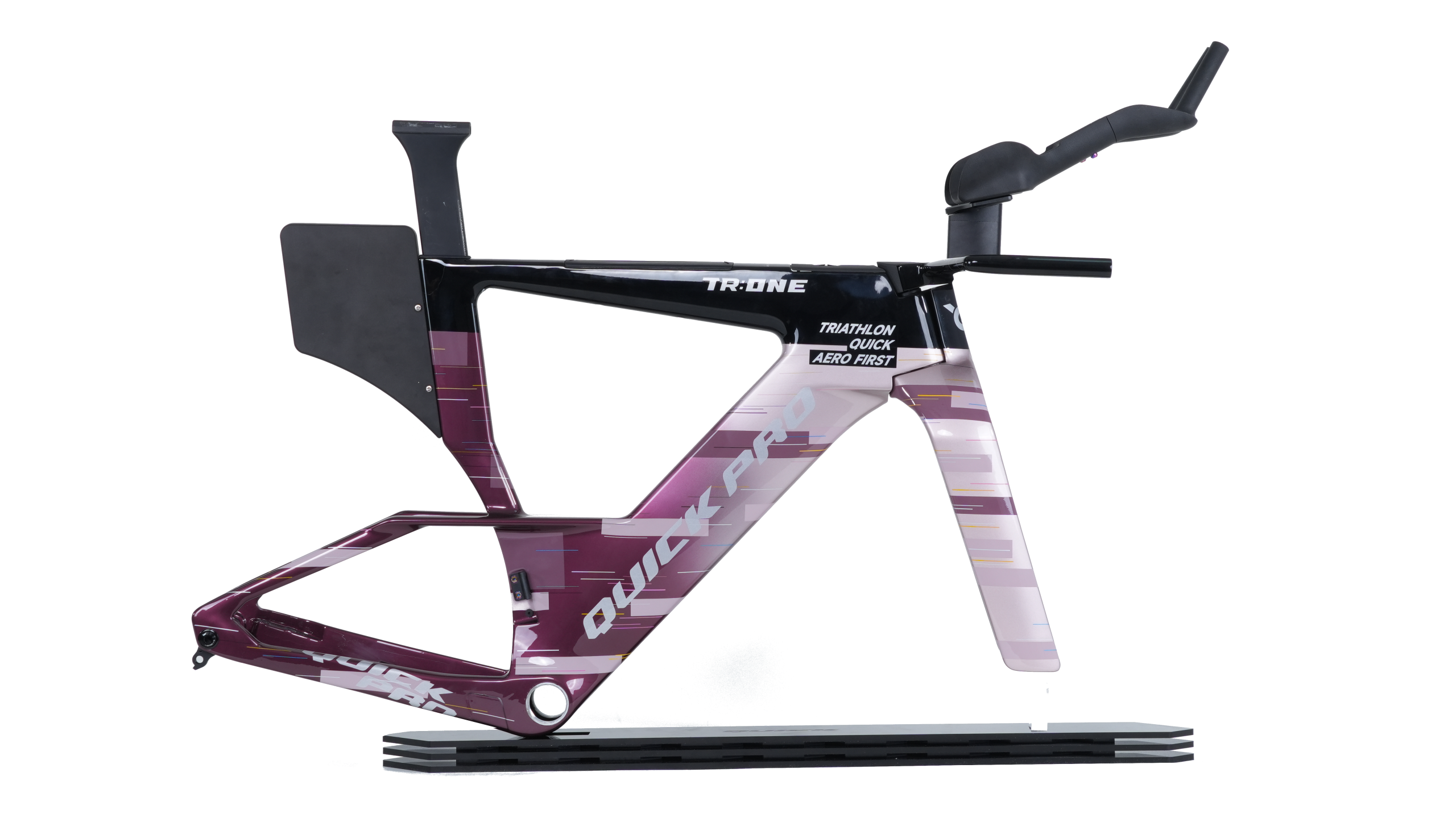

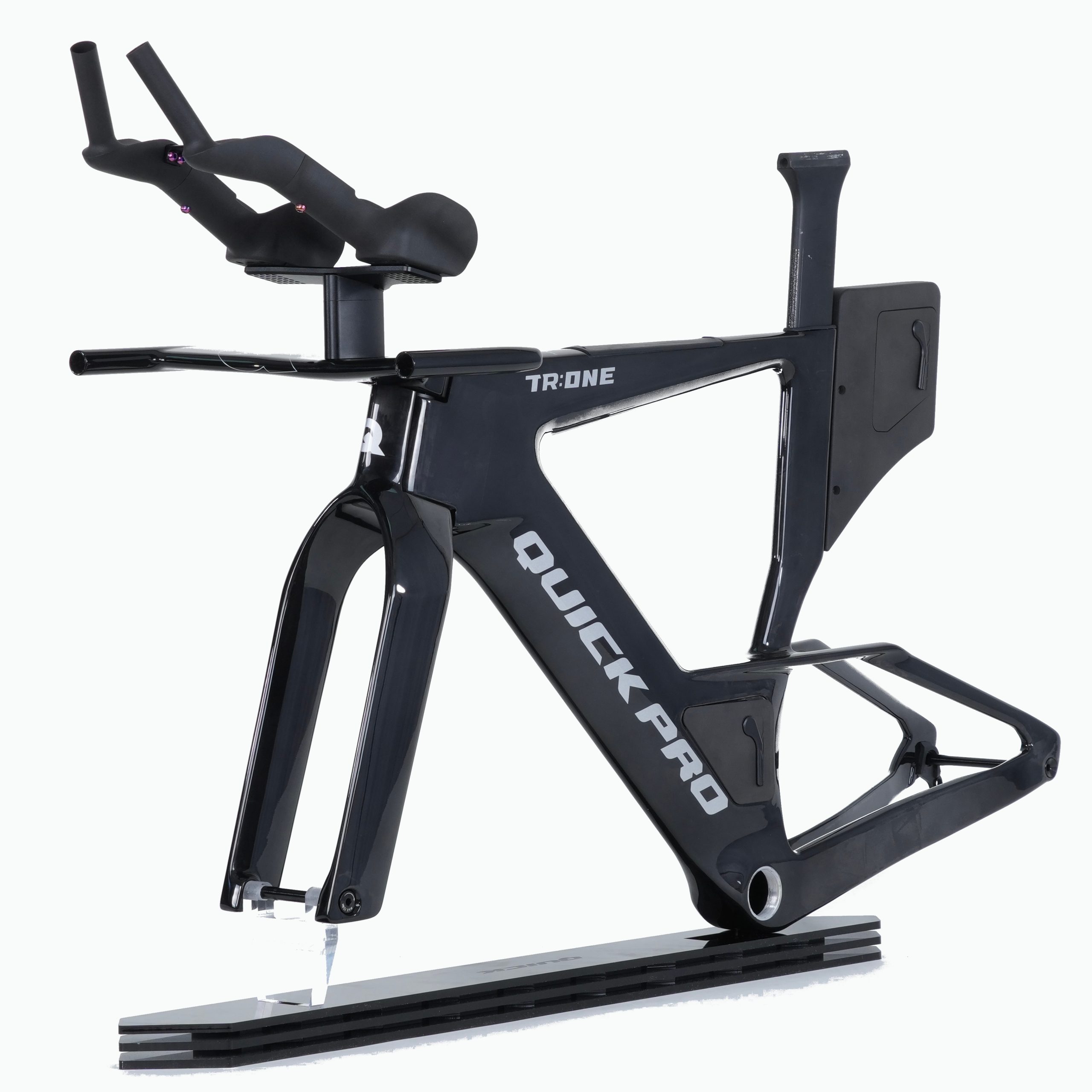

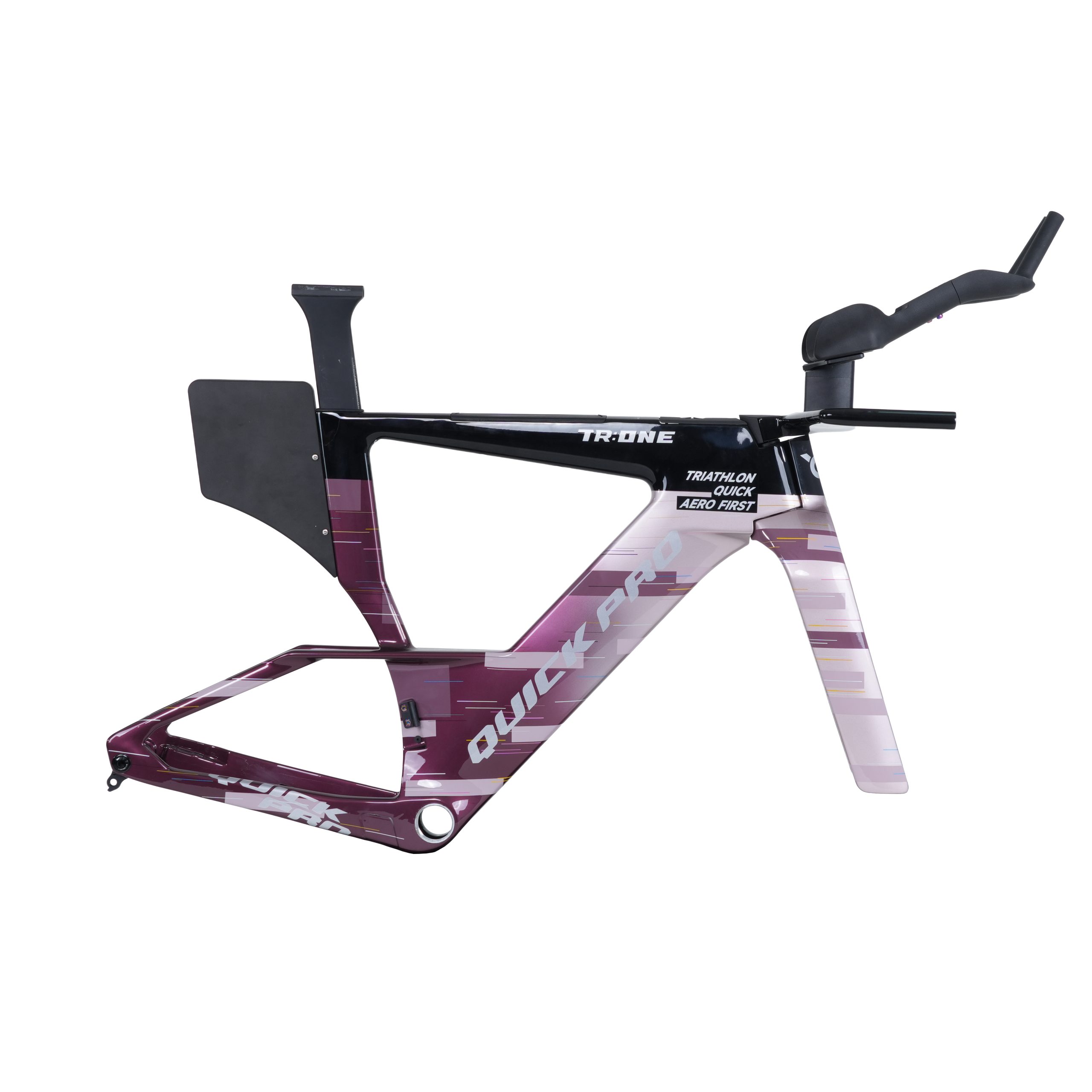

QUICK PRO TR:ONE Triathlon Bike FRAMESET
$3,599.00
PURPOSE BUILT TO PERFORM
- Triathlon-specific frameset
- Low, long aerodynamic geometry
- CFD-developed and wind-tunnel tested
- Built on a Proven Design Pedigree
- Highly adjustable aero cockpit
- Integrated 1.2-litre hydration system
- Built-in storage for race essentials
- 78° seat-tube angle for an open hip angle
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description
Purpose-Built Performance
What defines a racing machine? In triathlon, speed is a baseline requirement, but true performance is found in the details: the efficiency of a watt, the management of airflow, and the preservation of the athlete for the run. The TR:ONE is a dedicated triathlon platform designed without the constraints of traditional regulations, focused entirely on the pursuit of a faster finish.
The Engineering Pedigree

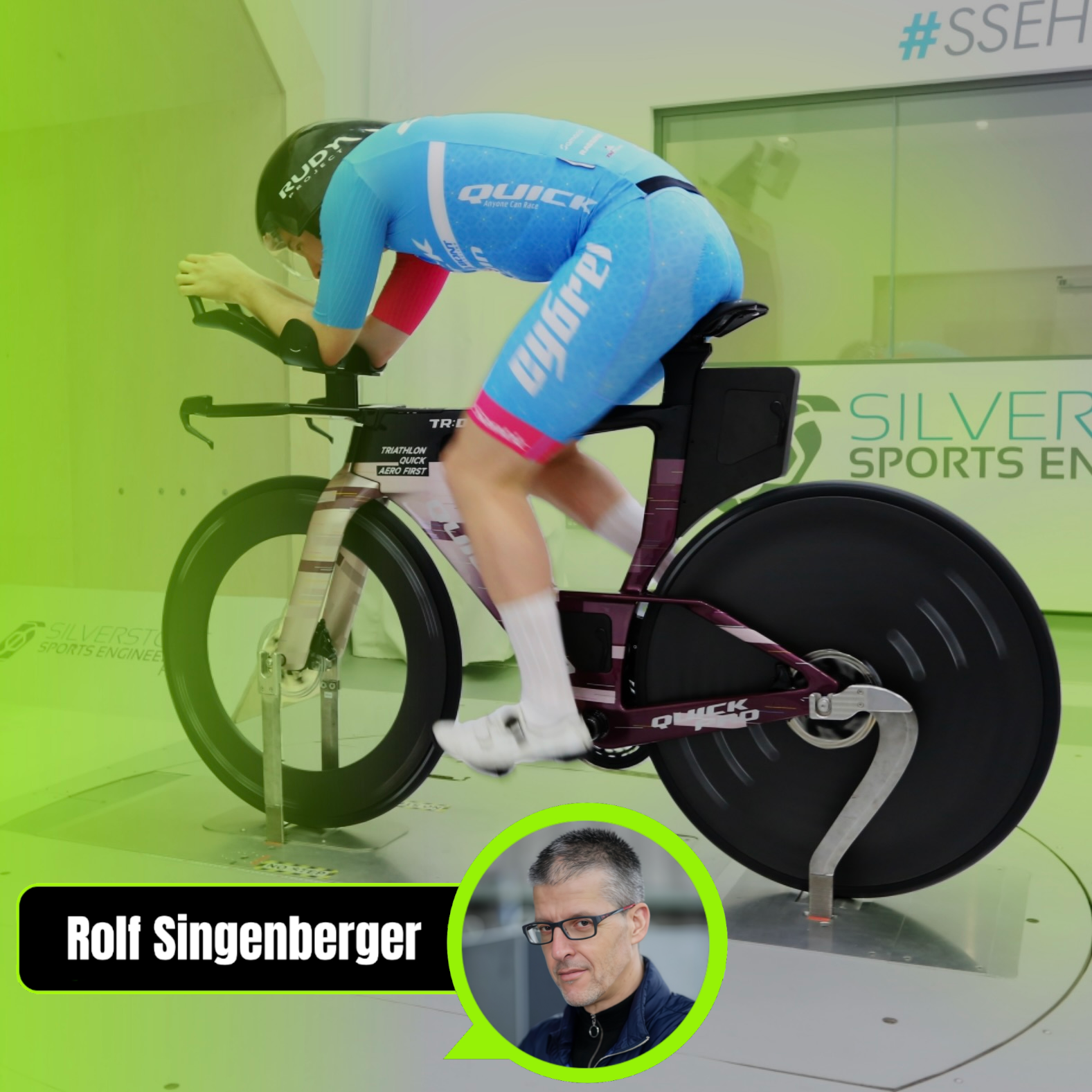

Designed by Rolf Singenberger
The TR:ONE is the result of a collaboration with Rolf Singenberger, former Head of R&D at BMC Switzerland (2001-2014). With over three decades of experience and a portfolio that includes Tour de France, World Championship, and Olympic-winning frames, Singenberger brings a level of technical rigor rarely seen in independent projects. Through his firm, RS Development LLC, every line of the TR:ONE has been refined to balance power transfer with aerodynamic gain.
Aerodynamic Validation
Digital Logic, Physical Proof

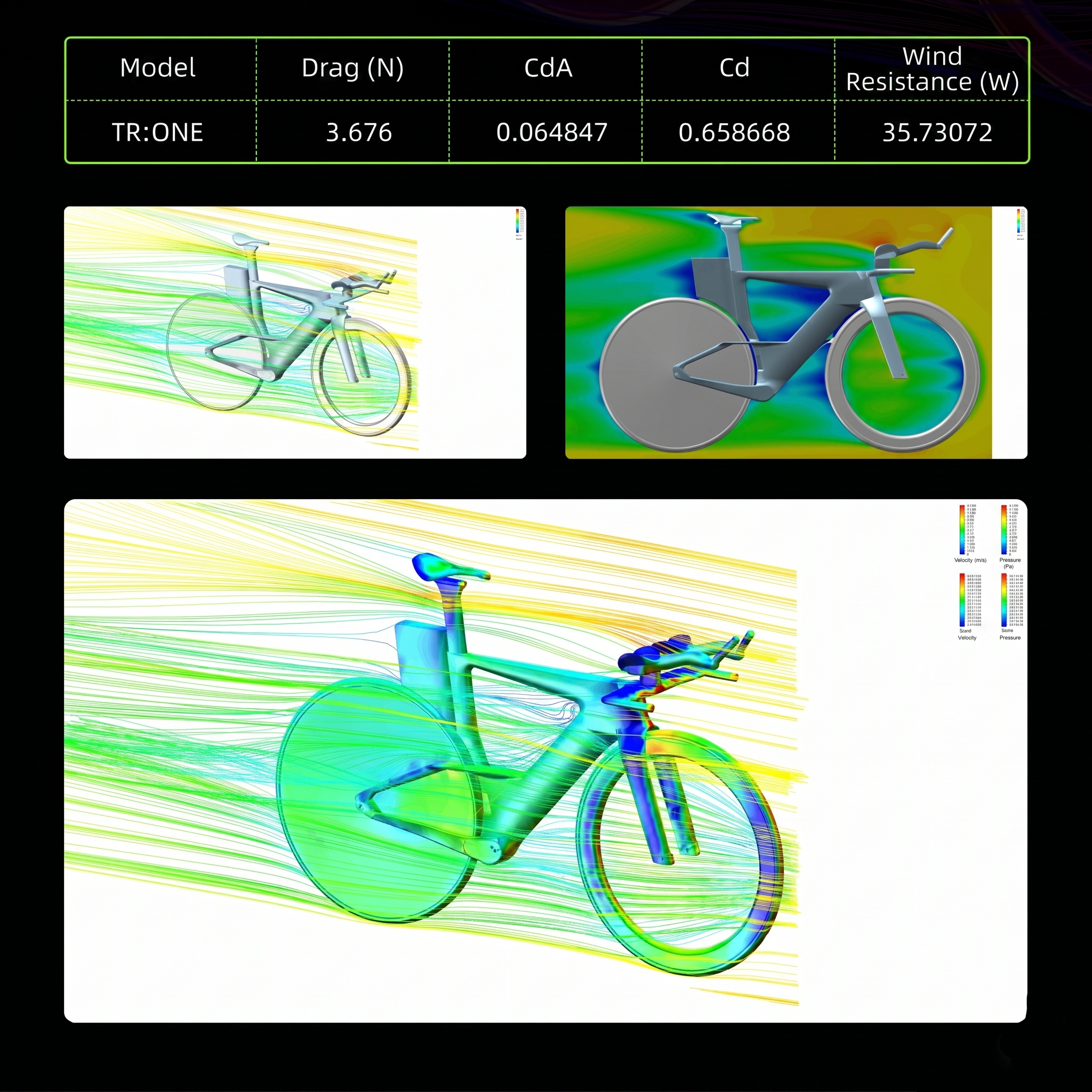

The development of the TR:ONE followed a strict "data-first" methodology. Quick utilized extensive Computational Fluid Dynamics (CFD) to sculpt the frame’s profile, ensuring that every tube cross-section was optimized for real-world wind conditions.

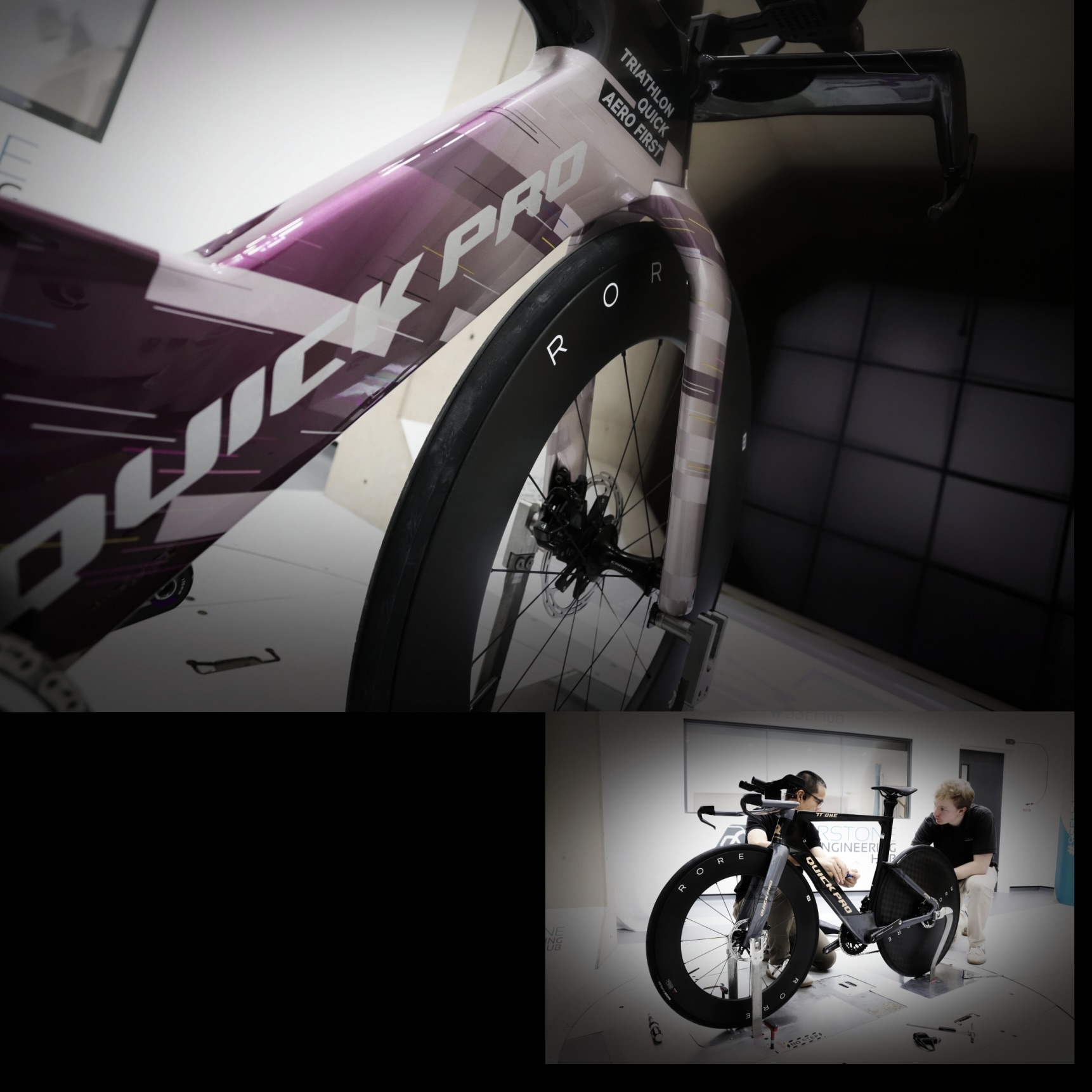

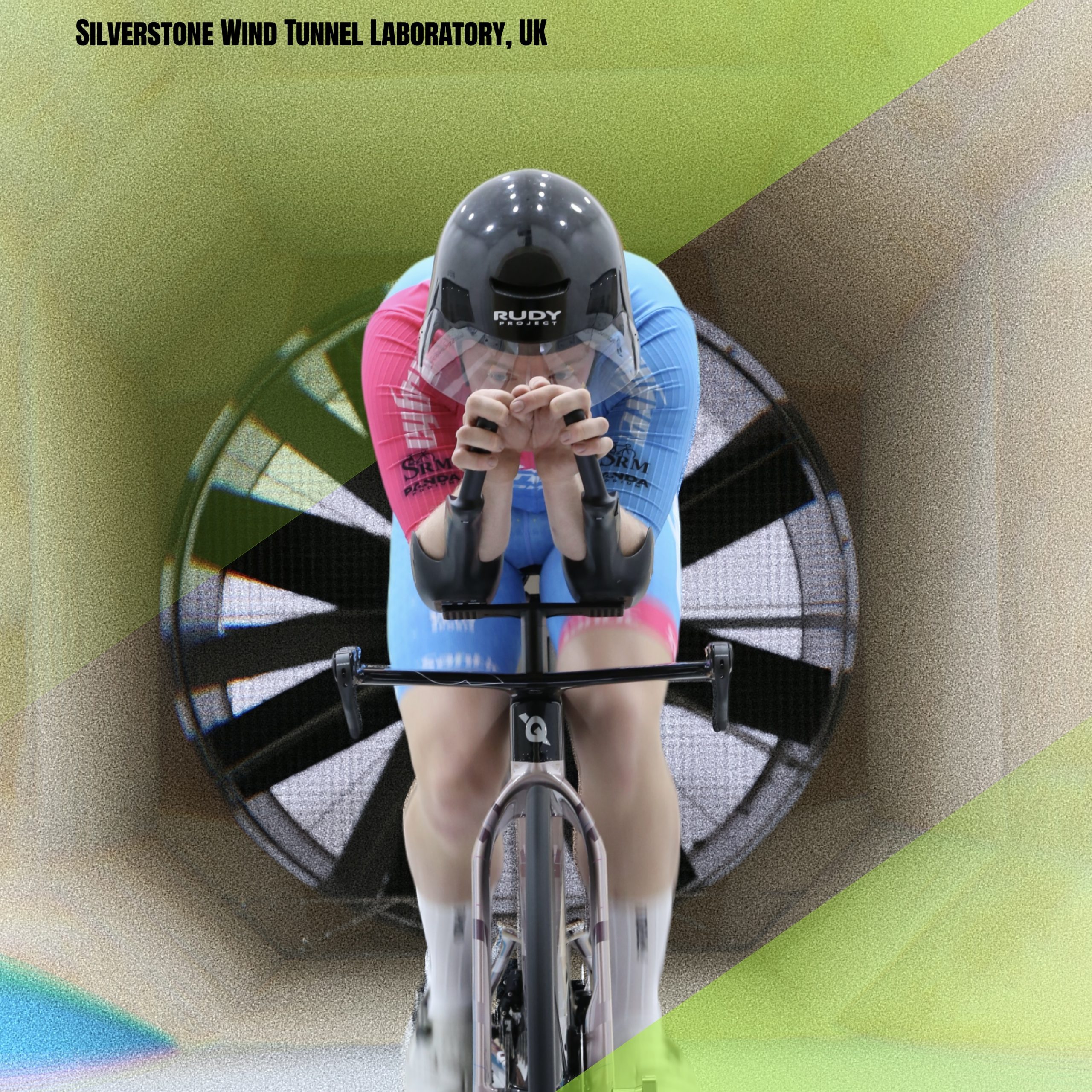

To move beyond the digital world, they took the TR:ONE to the Silverstone Wind Tunnel Laboratory (UK). By testing with a mannequin and fully integrated storage, they verified that the TR:ONE remains efficient in race trim.

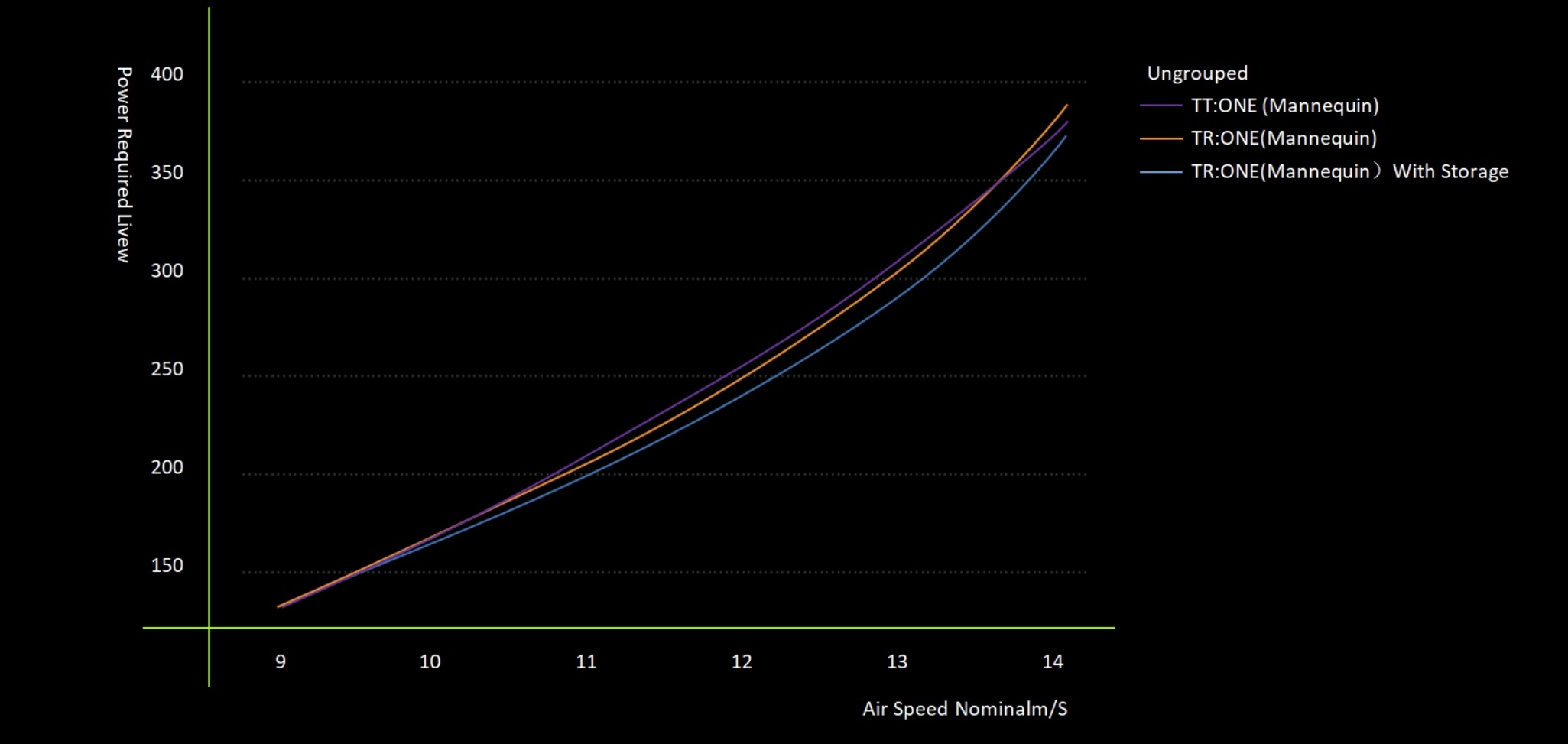

- The Performance Data (at 14 m/s):
Aerodynamic Drag: 3.676
Power Requirement: 35.73 W
CdA: 0.064847
Tri Specific Geometry
Triathlon-Specific Geometry
Because the TR:ONE is a dedicated triathlon tool, Quick chose to bypass UCI equipment restrictions. This allowed their team to design deeper aerofoil shapes and wider profiles that optimize laminar flow, maximizing the conversion of your power into forward velocity.
The "Run-Ready" Philosophy
The race doesn’t end after the bike. The TR:ONE features a 78 deg. seat tube angle designed to move the rider’s weight forward and open the hip angle. This specific geometry reduces strain on the hip flexors, allowing for a more efficient transition to the run. Coupled with a longer front-center for high-speed stability, the TR:ONE is as composed as it is fast.
Seamless Integration
The Supply & Storage Ecosystem
Aerodynamics are easily compromised by external hydration and tool kits. The TR:ONE solves this through a fully integrated ecosystem designed to keep you in your aero tuck.
Internal Hydration: A 1.2L bladder is housed within the top tube, featuring a streamlined port for energy gels.
Integrated Storage: A dedicated internal compartment carries spare tubes, CO2, and tools without impacting the bike’s frontal area.
Optimized Profile: Testing confirms the bike is aerodynamically superior when fully equipped for long-distance racing.
Design Without Constraints
Precision Ergonomics

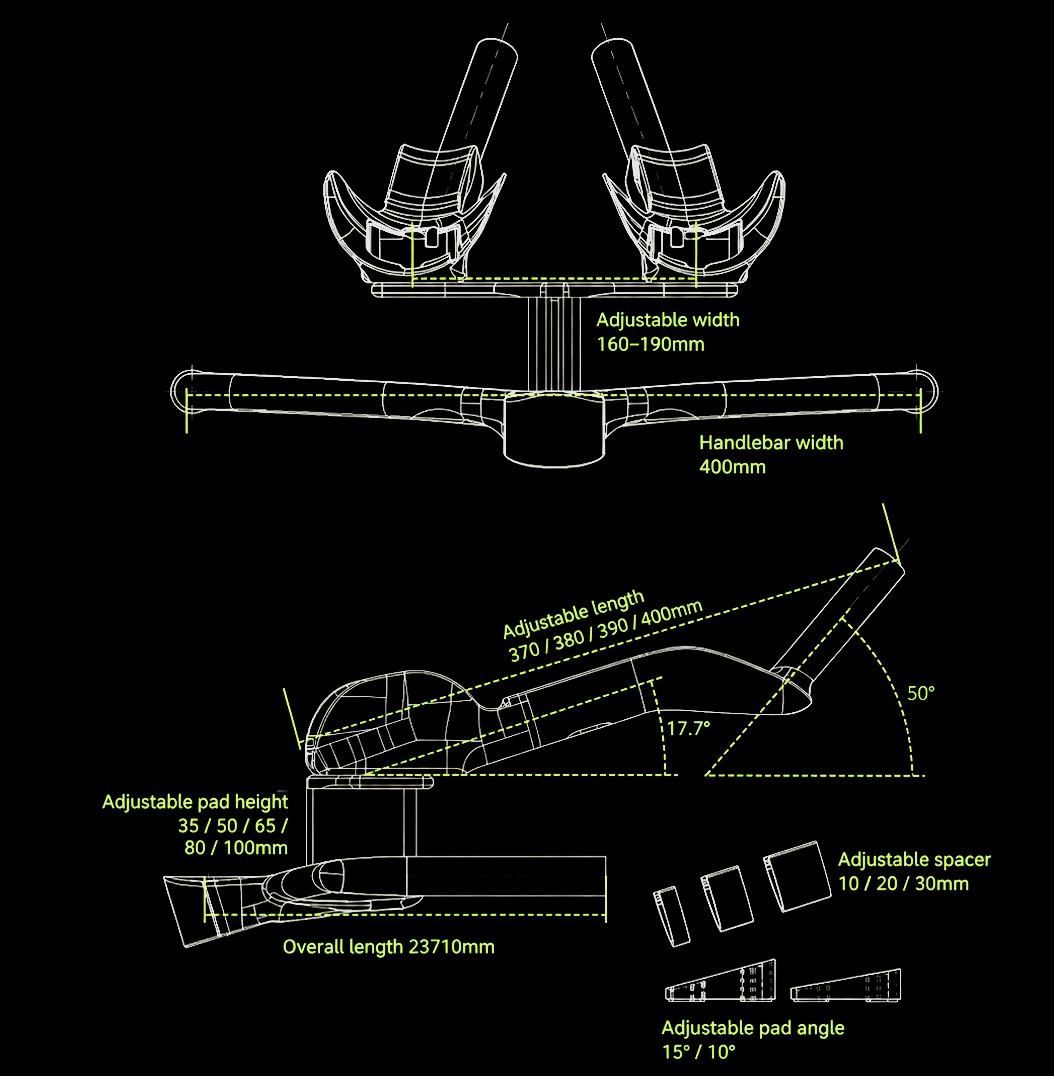

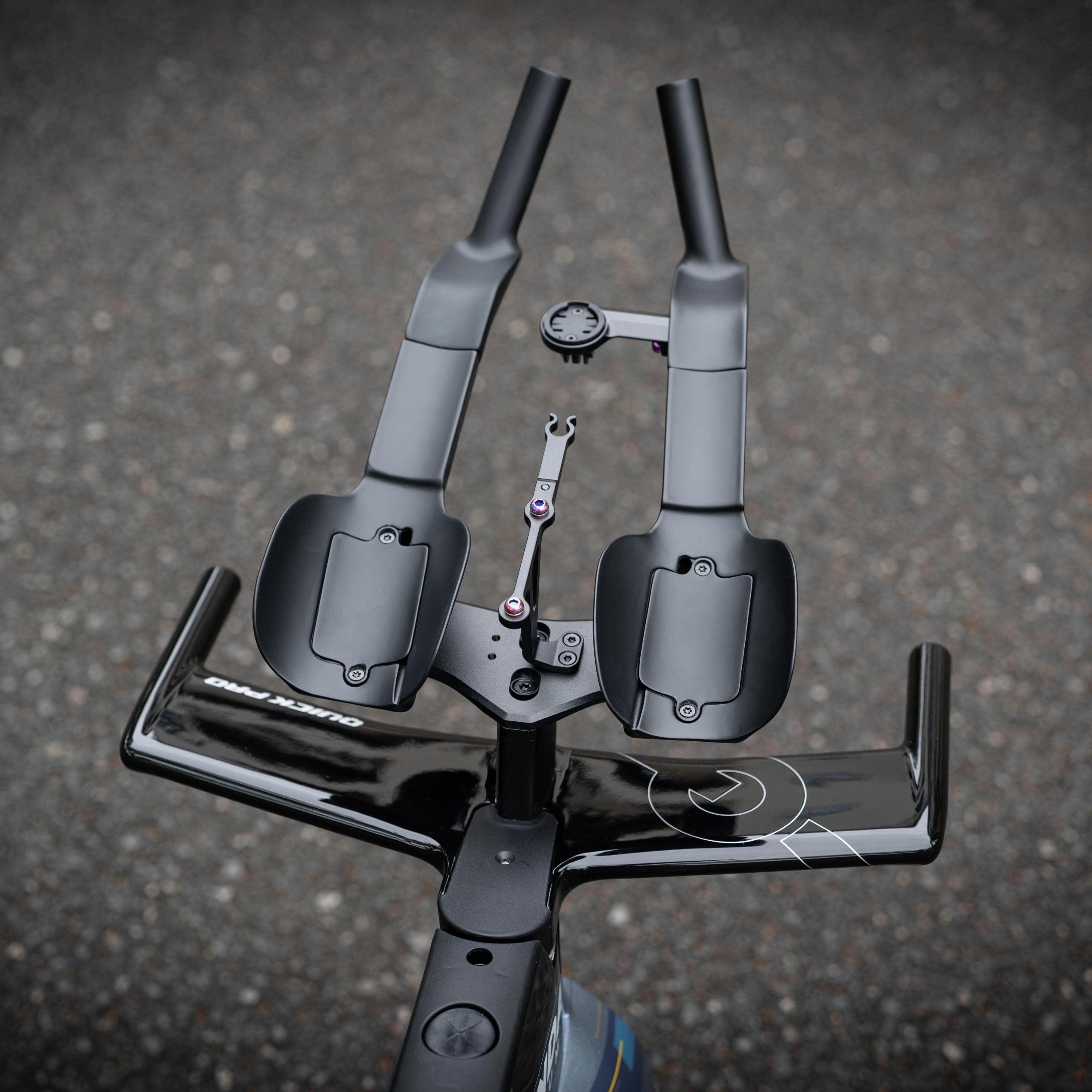

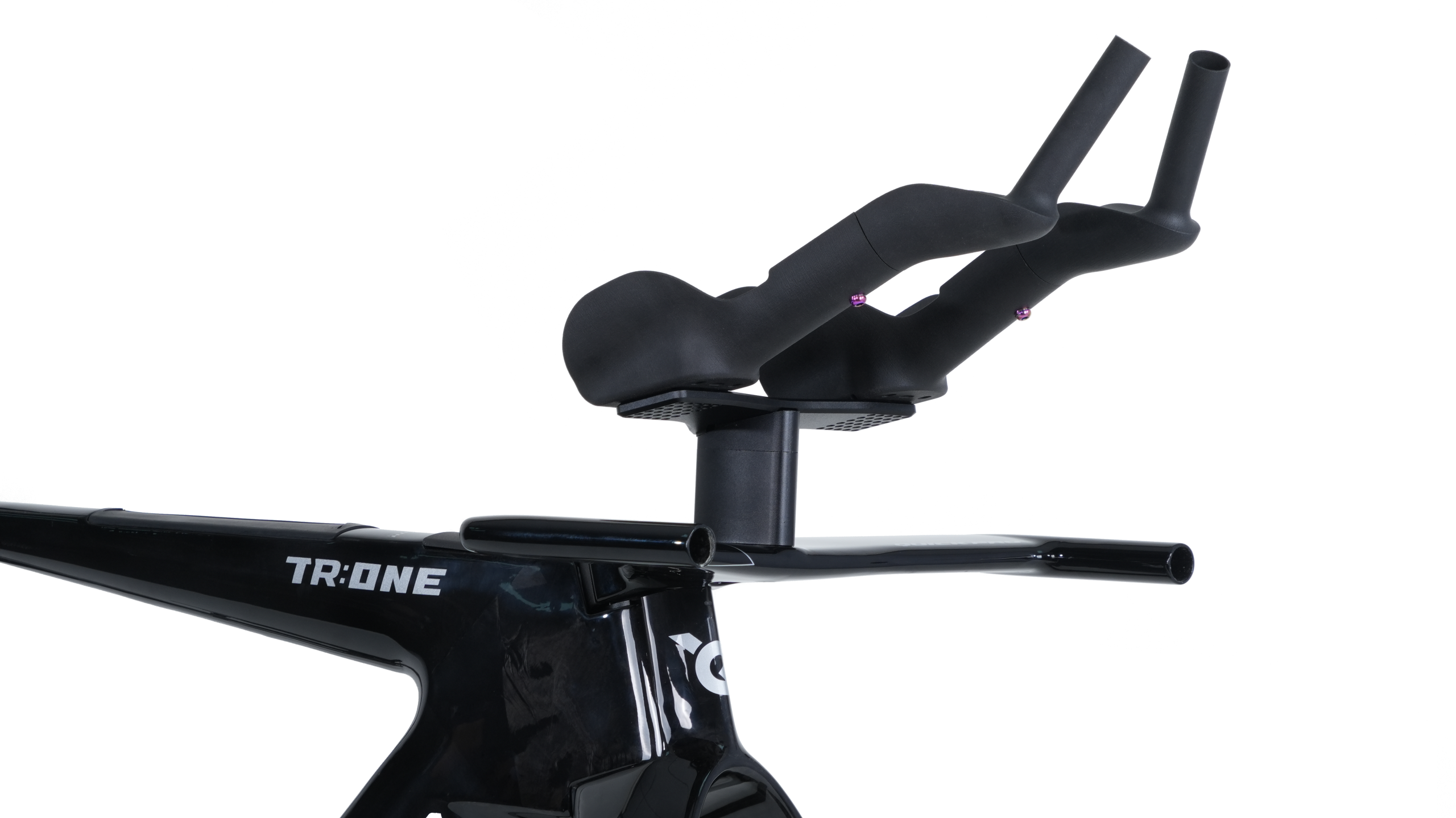

The Multi-Adjustable Cockpit
The fastest position is only effective if it can be sustained. The proprietary TR:ONE cockpit offers granular adjustability to ensure a perfect fit for any athlete.
Width: 160 mm to 190 mm
Reach: 370 mm to 400 mm
Angle Adjustment: 10 deg. and 15 deg wedges for optimized forearm support.
Vertical Stack: Modular spacers allow for precision stack height adjustment to meet your specific bike fit.
Quick Pro TR:ONE
- TR:ONE frame
- TR:ONE cockpit
- Seatpost
- Hydration bladder, thru-axles and associated accessories
QUICK Warranty:
- QUICK offers a 5-year warranty covering manufacturing defects in materials and workmanship. Please note, this excludes damage resulting from crashes, misuse, or normal wear and tear.
TR:ONE

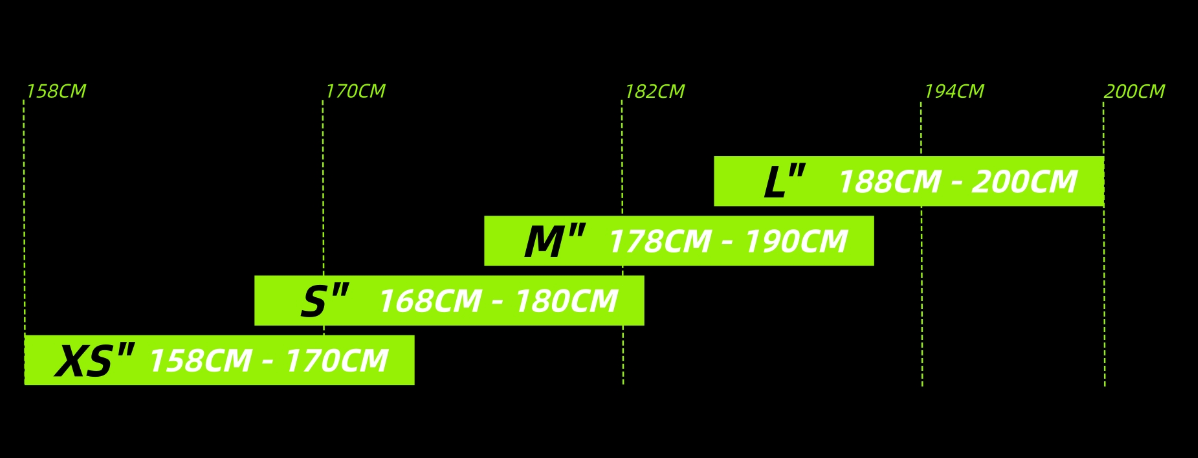

*The sizes listed are for reference only and represent common cases, as limb proportions vary among riders of the same height. To find your ideal fit, consult our customer service with details of your previous bike brand and size for personalized advice.

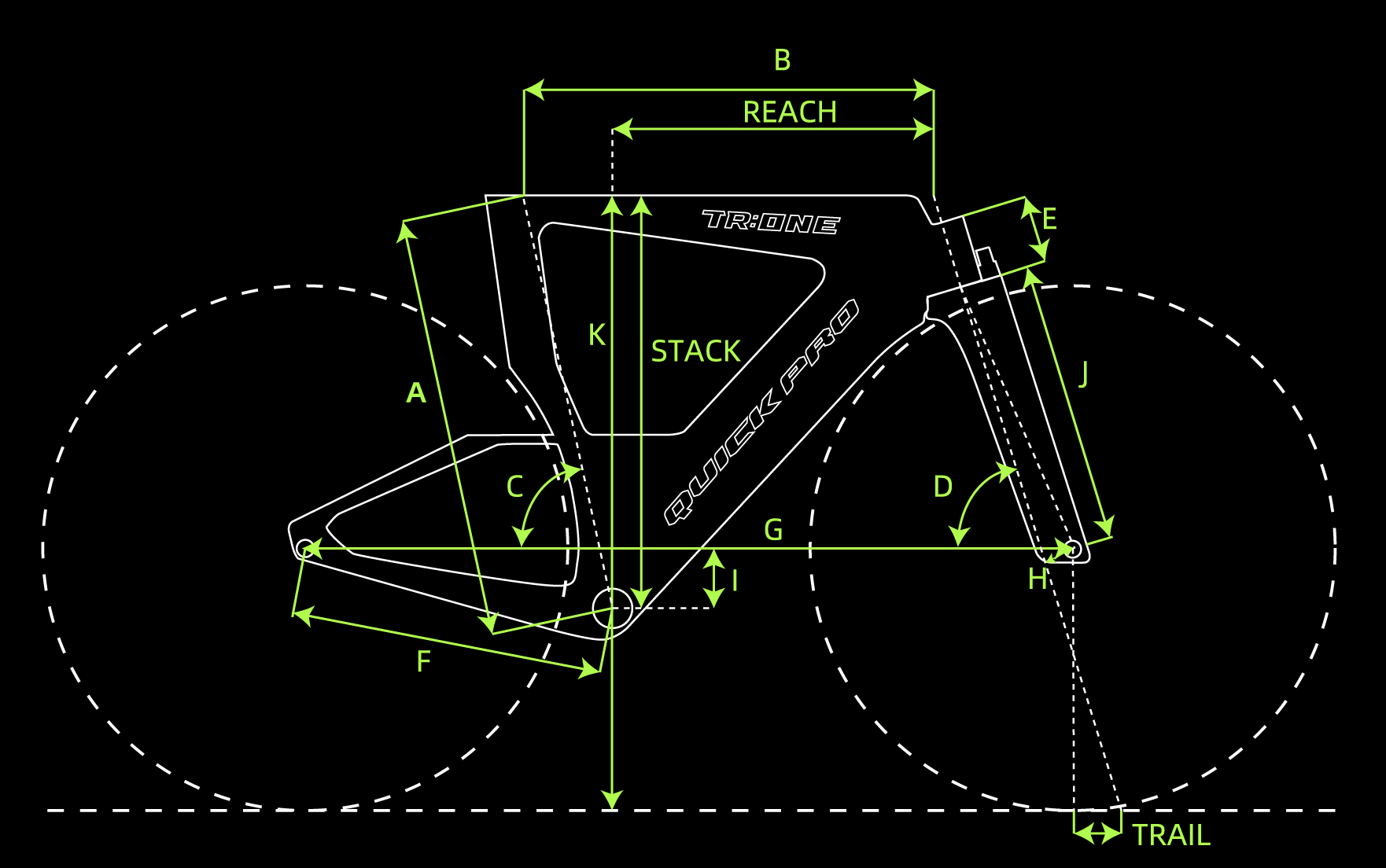

| Geometry | XS/528 | S/537 | M/557 | L/572 |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 528 | 537 | 557 | 572 |
| B Top Tube Length (mm) | 484 | 507 | 535 | 563 |
| C Seat Tube Angle | 78° | 78° | 78° | 78° |
| D Head Tube Angle | 72.5° | 73° | 73° | 73° |
| E Head Tube Length (mm) | 62 | 72 | 88 | 108.5 |
| F Chainstay Length (mm) | 410 | 410 | 410 | 410 |
| G Wheelbase (mm) | 957 | 976 | 1006 | 1035 |
| H Fork Offset (mm) | 40 | 40 | 40 | 40 |
| I Bottom Bracket Drop (mm) | 78 | 78 | 78 | 78 |
| J Fork Length (mm) | 370 | 370 | 370 | 370 |
| K Standover Height (mm) | 785 | 794 | 809 | 829 |
| STR Value | 1.38 | 1.33 | 1.29 | 1.26 |
| Reach (mm) | 374 | 395 | 420 | 443.5 |
| Stack (mm) | 516 | 525 | 540 | 560 |
| Trail (mm) | 67.5 | 64.3 | 64.3 | 64.3 |
TR:ONE Frameset Specifications
Frame Sizes
XS, S, M, L
Brake Type
Flat-mount disc brake only
Wheel Size
700C
Tire Clearance
Up to 700 × 32C
Frame Weight
1,219 g for size M excluding paint and metal hardware
Headset Bearing
1-1/2", 52/52 mm
Bottom Bracket
T47-68 threaded
Warranty
5-year warranty
Cable Routing
Internal; Electronic Only
Rider Weight Limit
120 kg
Axle
Front: 12 × 100 mm; Rear: 12 × 142 mm

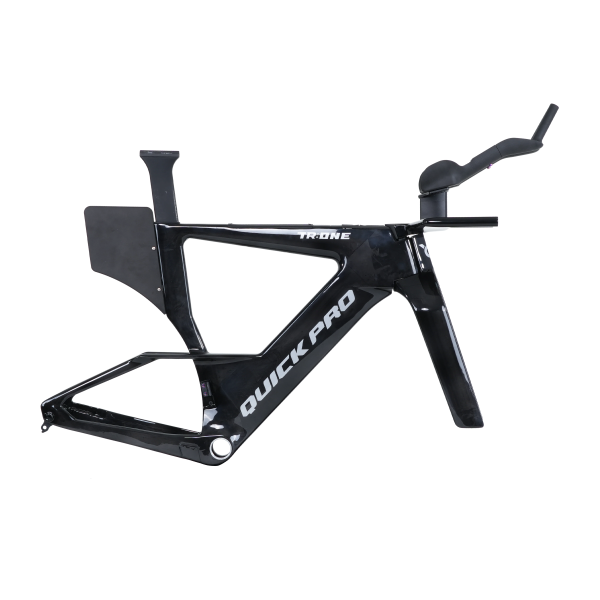

Hunter Black

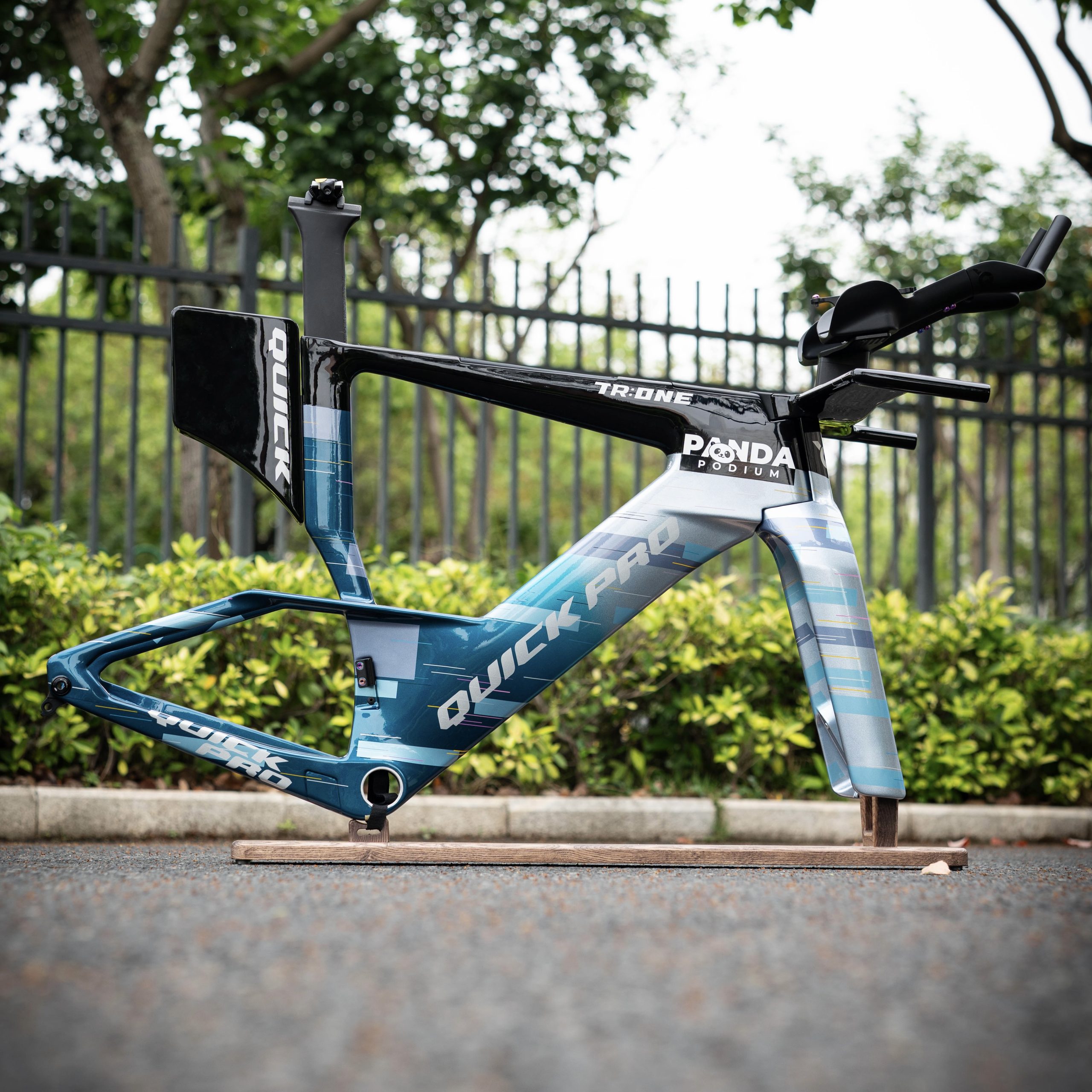

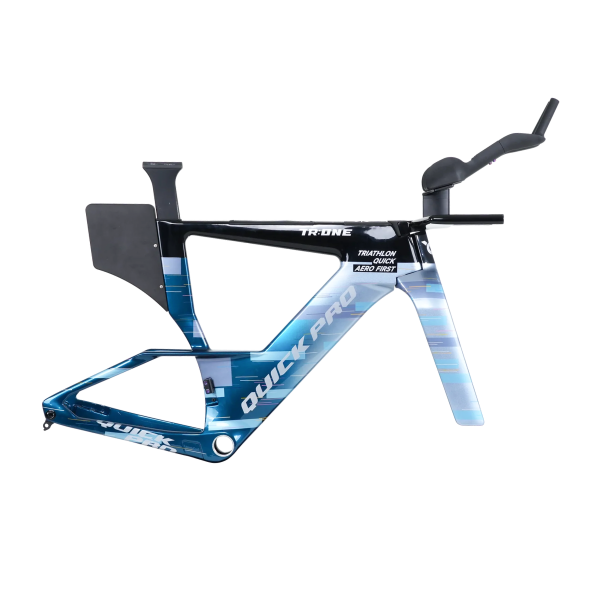

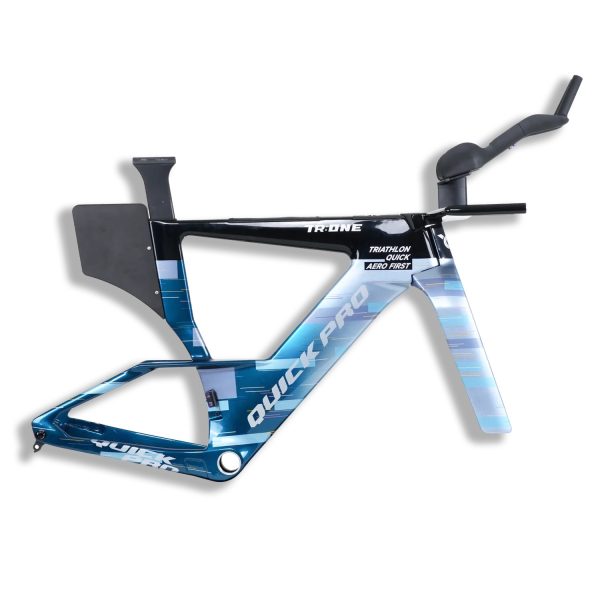

Aurora Blue

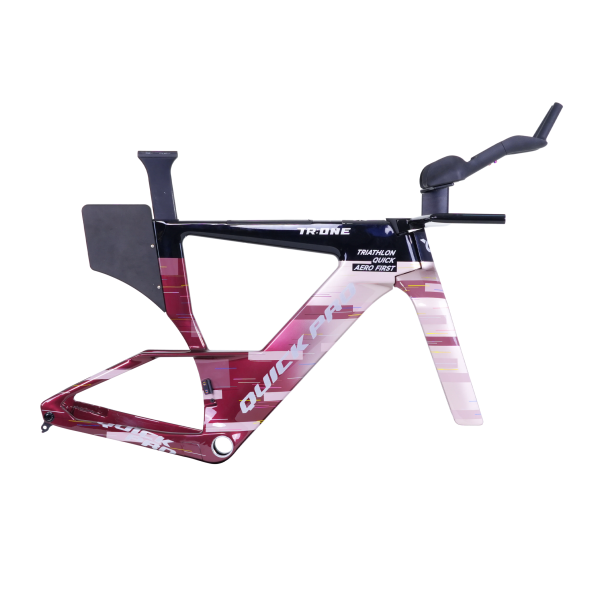

Pulse Purple
Additional information
| Color | Aurora Blue, Hunter Black, Pulse Purple |
|---|---|
| Size | XS, S, M, L |
Brand
Quick
| Brand Name: Quick | Chinese Company Name: 惠州市快客自行车有限公司 |
| Founded: 2018 | # of Employees: 50-100 |
| Headquarters: Huizhou, Guangdong | Products Categories: Framesets, Accessories |
