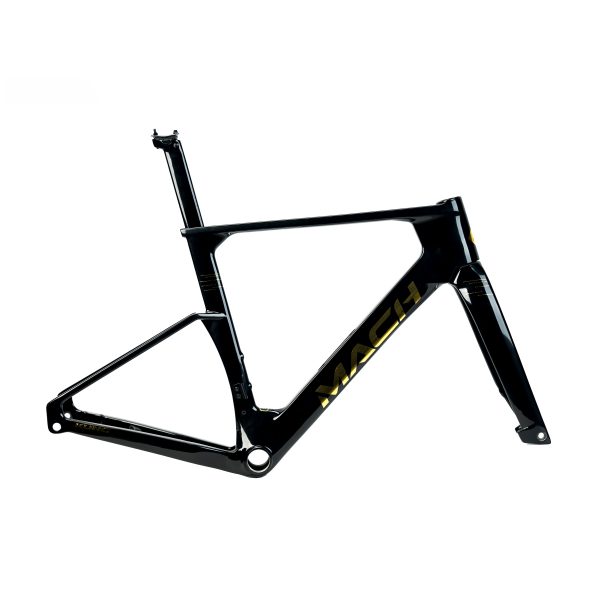

KUNG MACH AERO Road Bike FRAMESET
Price range: $1,399.00 through $1,549.00
AFFORDABLE AERO
- Aero race-focused frame
- T47 bottom bracket
- Up to 32mm tyre clearance
- Deep head tube + dropped seat stays
- Optional integrated handlebar
- Striking Paint Schemes
- Balanced Handling
Panda Podium Review
I've spent quite a bit of time on the MACH now and what stands out most is how natural it feels to ride fast. It's a bike that rewards being ridden aggressively, but it never feels nervous or demandin... keep reading
What Customers Think
- Description
- Additional information
- Brand
- Reviews (1)
Description
KUNG
Founded in 2009 by riders, KUNG is one of China’s earlier performance-focused carbon fibre bicycle brands, with more than a decade of experience in developing and refining race-oriented bikes.
Backed by its own racing team and years of real-world competition feedback, the company has built strong expertise in carbon frame design, manufacturing and bike fitting, helping shape products that balance performance, handling and value.
Today, KUNG continues to focus on producing modern high-performance road bikes designed by cyclists who understand the demands of fast riding and racing.
Efficient Aero

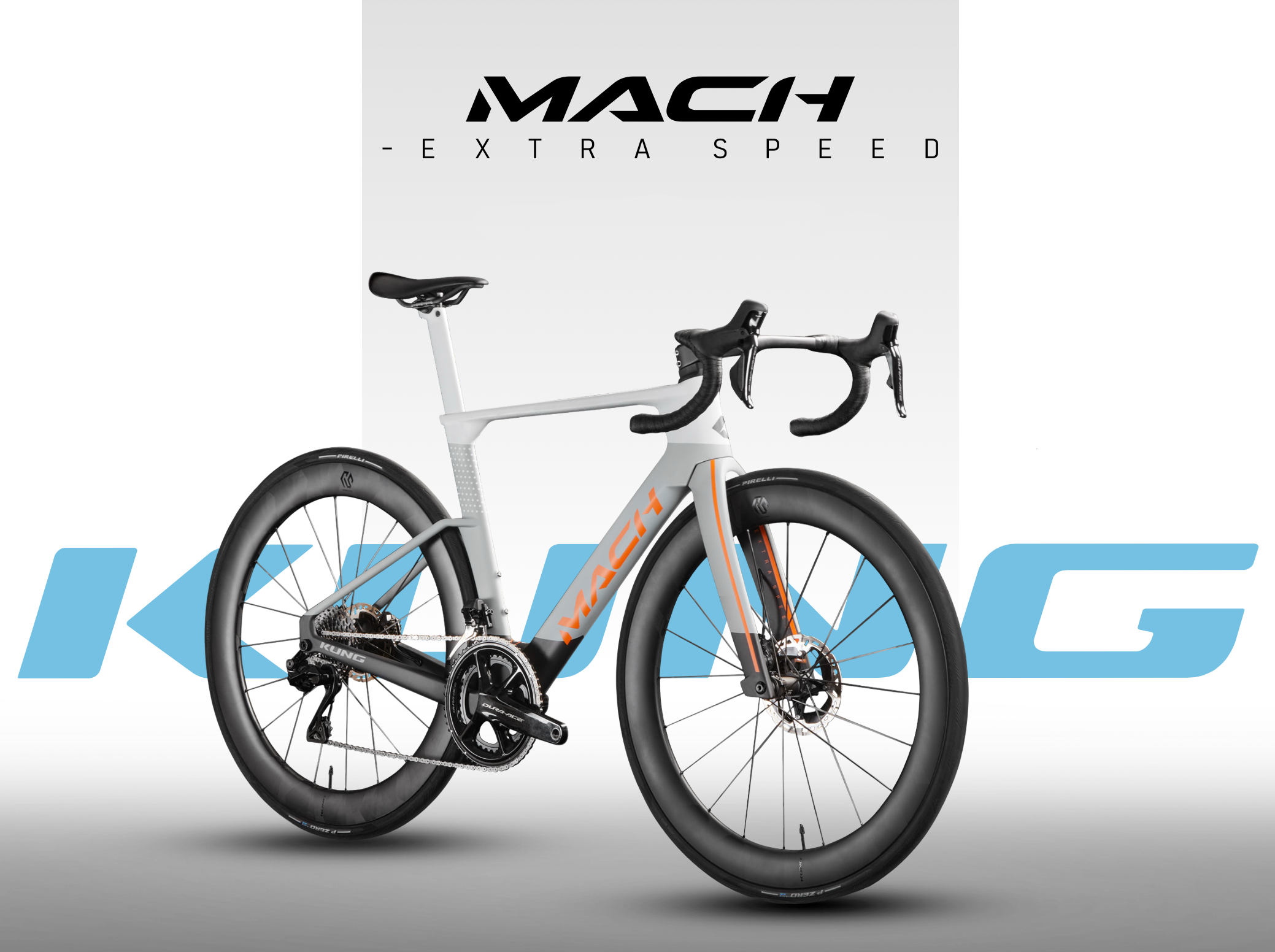

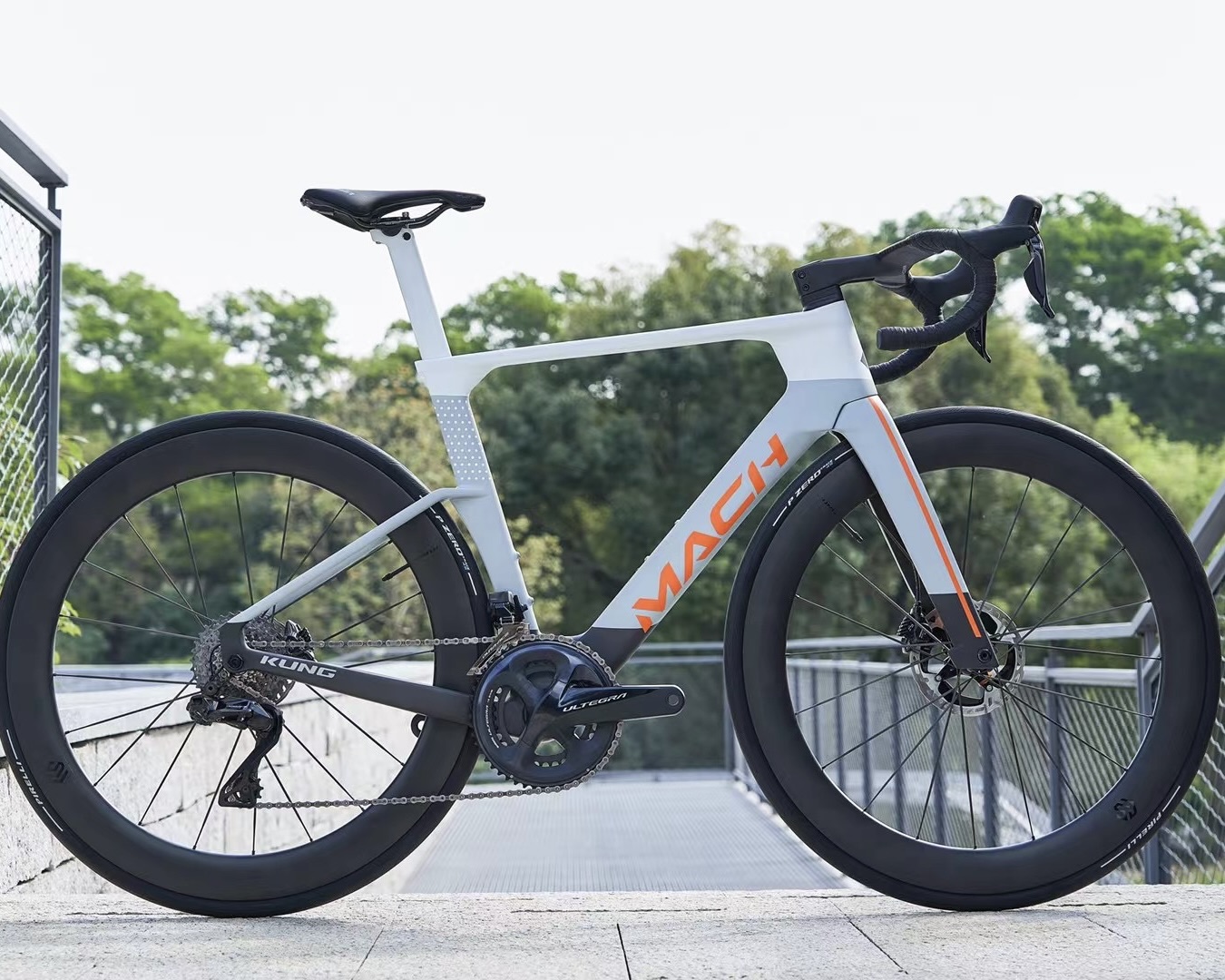

The KUNG MACH is designed for riders who want the advantages of a modern aero road bike without moving into superbike pricing territory.
The frame uses aerodynamic tube shaping, dropped seat stays and a clean integrated front end to reduce drag and maintain speed efficiently on fast roads.
It feels most at home in race-paced riding, hard group rides and rolling terrain where holding momentum matters.
Race Pedigree
The KUNG MACH was developed with input from KUNG’s Continental race team, drawing on years of real-world racing and rider feedback. As one of the few Chinese brands with its own established racing programme, KUNG has used competition to help shape the MACH’s aerodynamics, handling and race-focused geometry. The result is a bike built to deliver the speed, responsiveness and efficiency demanded by competitive riders.
Balanced Geometry
The MACH combines contemporary aero-bike styling with geometry that is approachable for a wide range of riders. The frame maintains the quick, responsive handling expected from a performance road bike while offering modern stack and reach figures that support efficient and sustainable riding positions.
Clean Integration and Practical Design

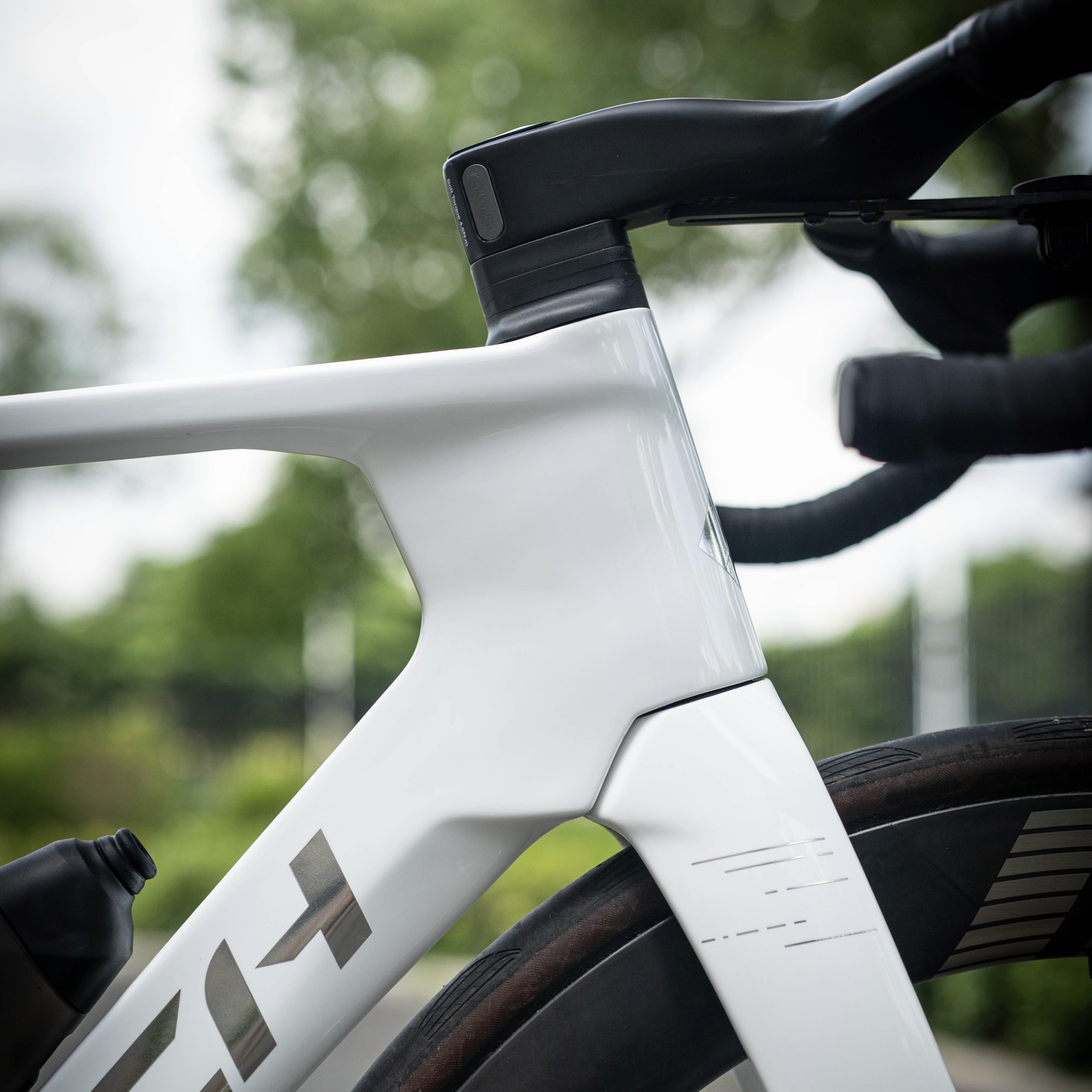

Internal cable routing and an integrated cockpit give the MACH a streamlined appearance while also contributing to aerodynamic efficiency.
KUNG has focused on keeping the bike visually clean and mechanically straightforward, with modern standards such as a T47 bottom bracket. The result is a frameset that looks current and performs well without unnecessary complexity.
Wicked Paint Options

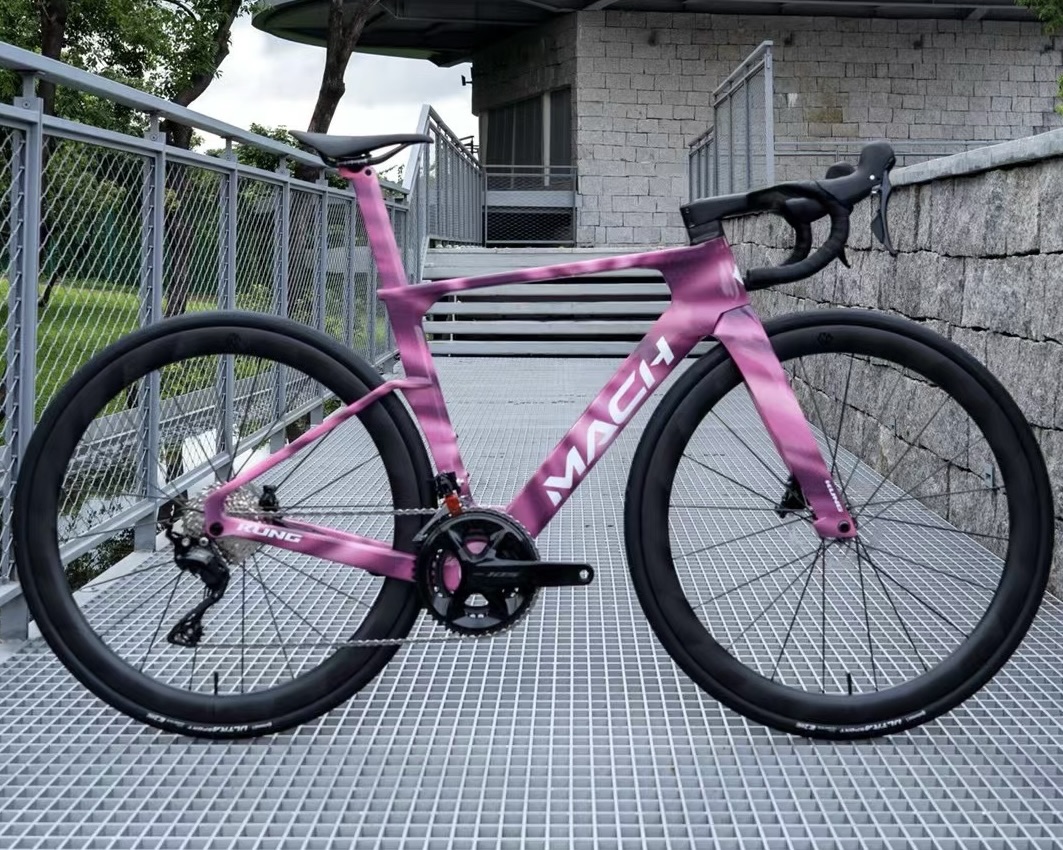

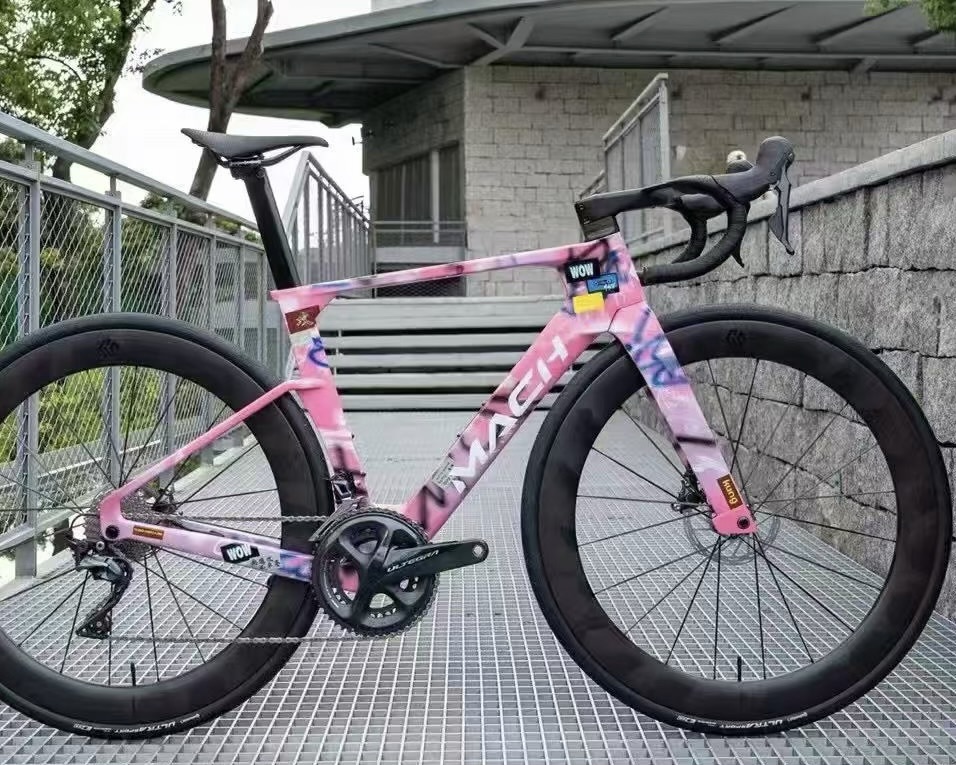

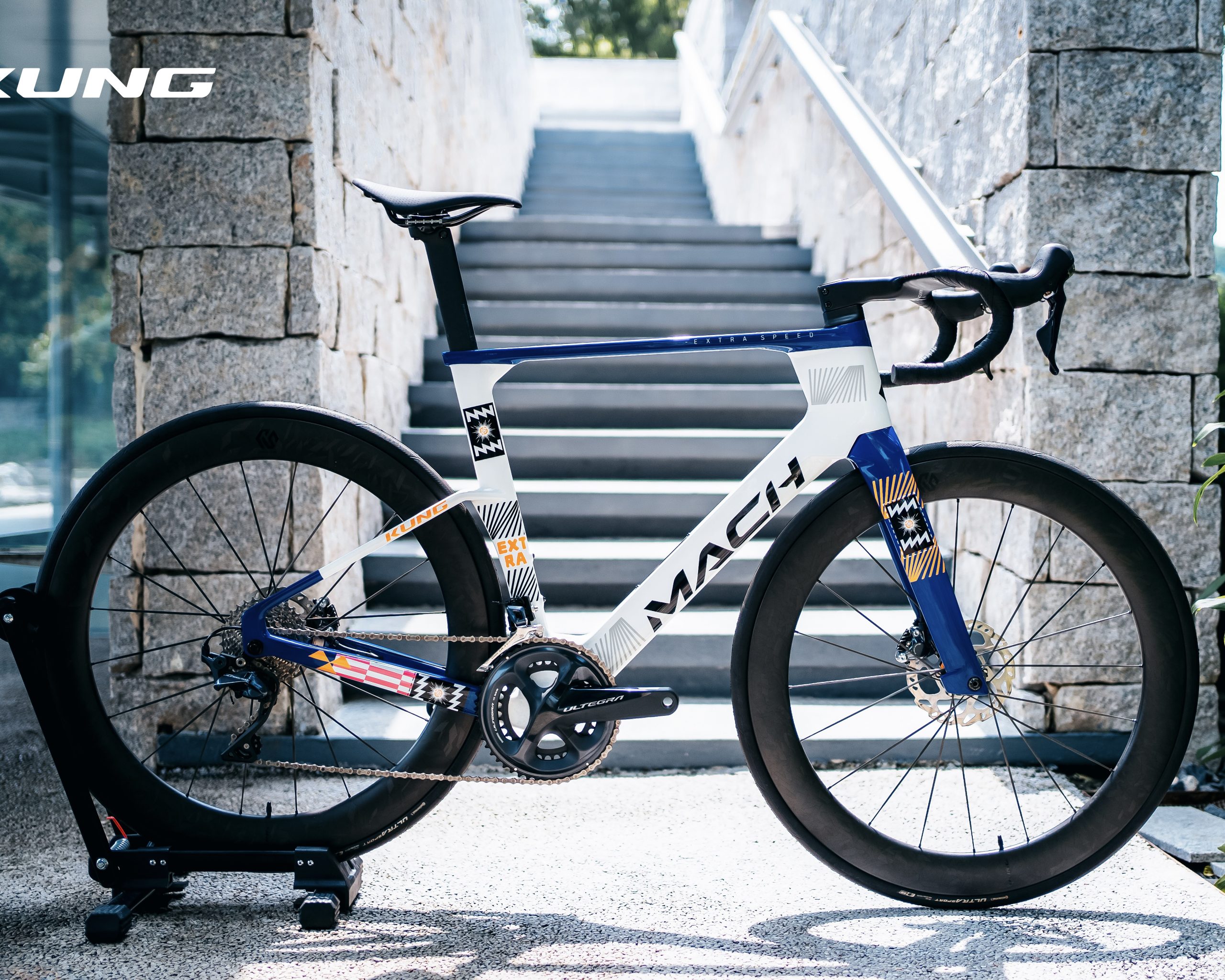

The MACH is available in a wide range of paint finishes, from understated factory colours to more intricate and eye-catching designs. This gives riders the opportunity to build a bike that feels personal without moving into high-end custom paint pricing.
The variety of finishes helps the MACH stand out in a category where many bikes can begin to look very similar, while still maintaining a clean, race-focused aesthetic. Whether you prefer a subtle build or something that turns heads, the MACH offers a level of individuality rarely found at this price point.
Responsive Feel
One of the standout characteristics of the MACH is its direct power transfer. The oversized frame sections and T47 bottom bracket help create a solid and responsive platform when accelerating or riding at higher speeds. The bike has a distinctly race-oriented character, rewarding riders who like a firmer and more connected ride feel without becoming overly harsh or difficult to handle.
KUNG MACH

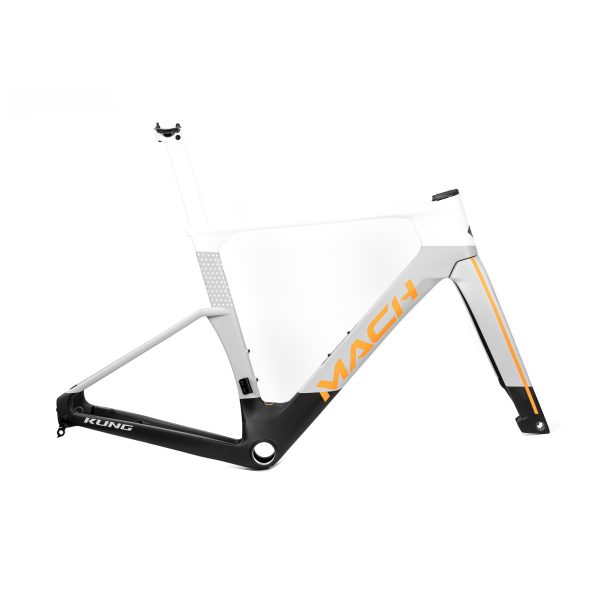

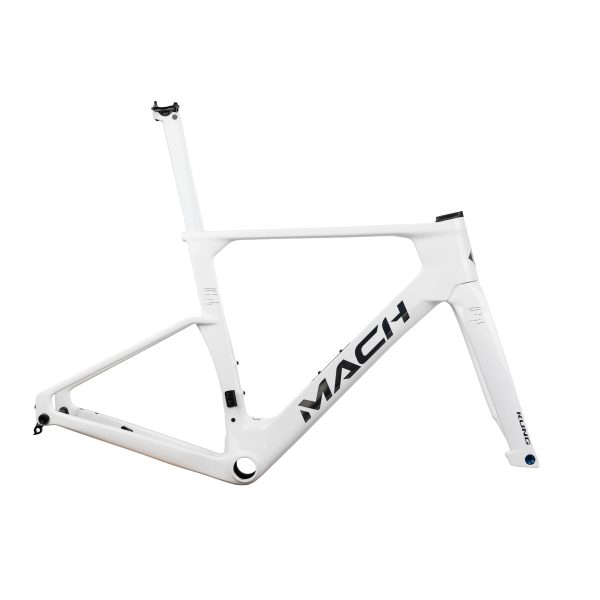

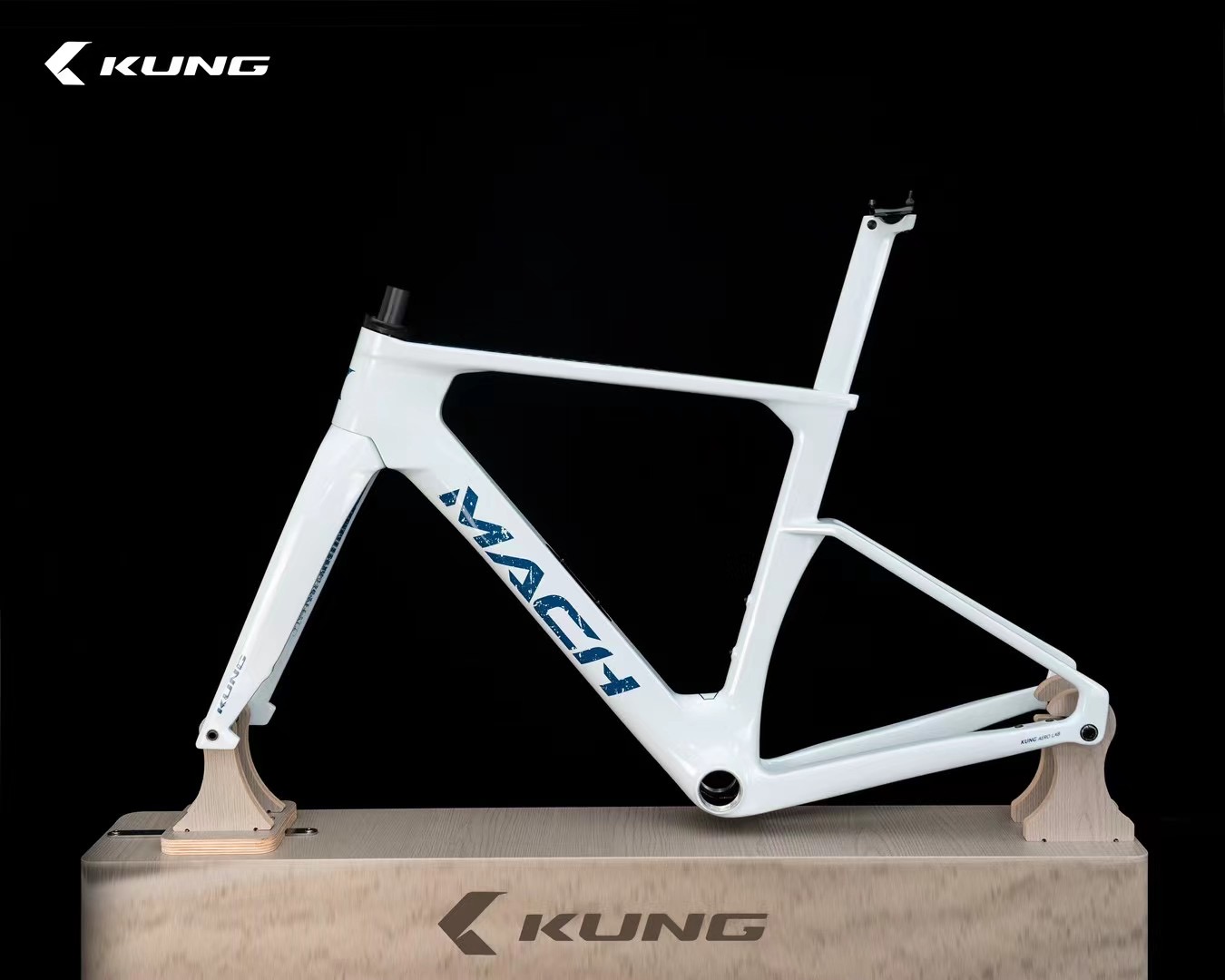

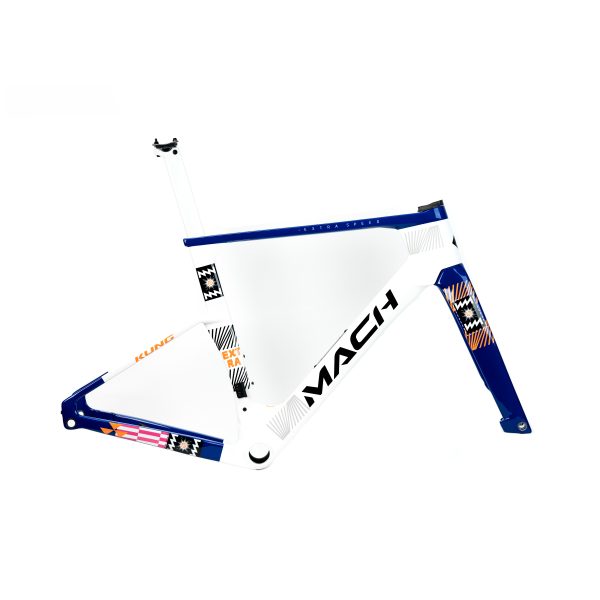

- KUNG MACH Frame and fork

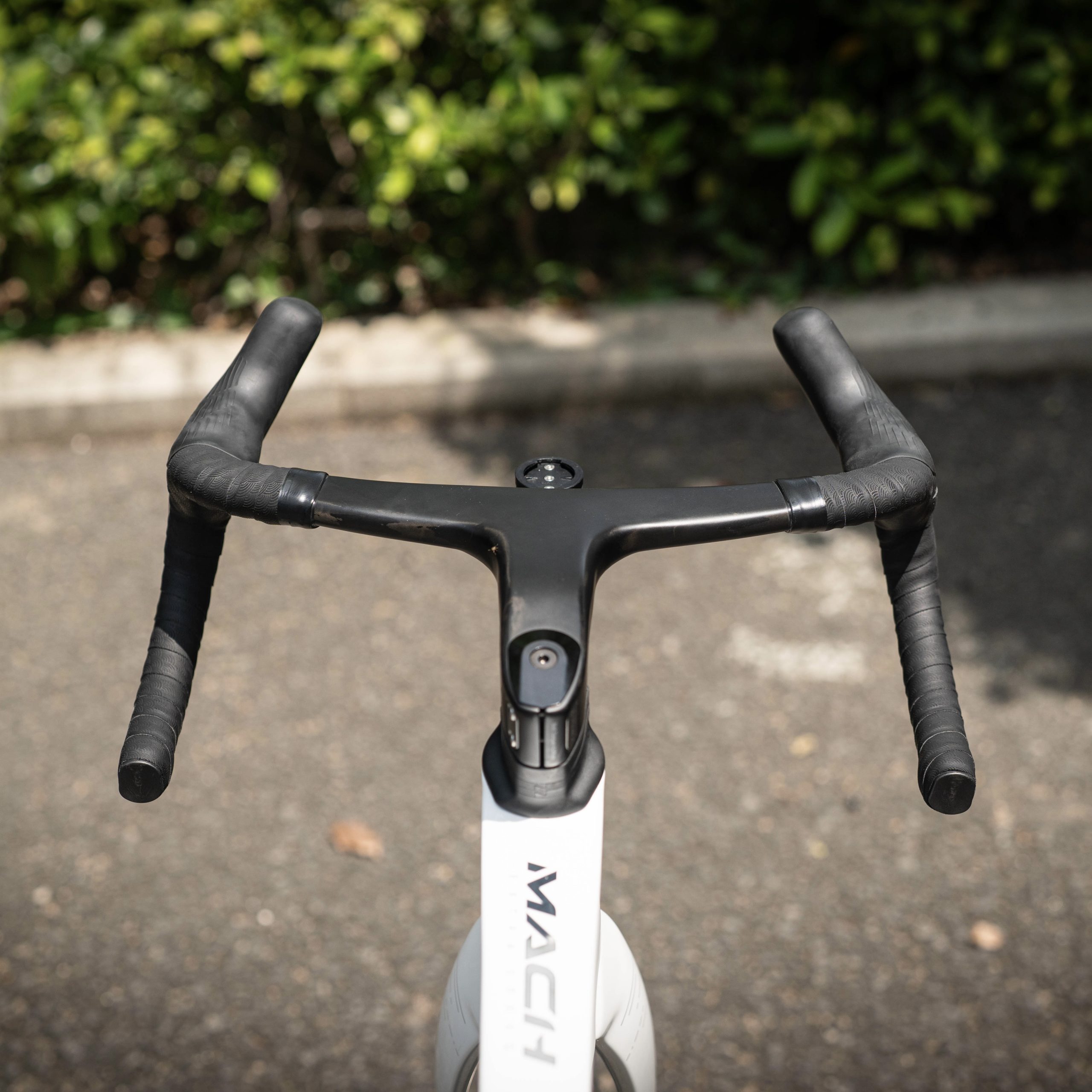

- Optional KUNG aero cockpit
- KUNG Seatpost
- Accessory Package
KUNG Warranty:
- KUNG offers a 5-year warranty covering manufacturing defects in materials and workmanship. Please note, this excludes damage resulting from crashes, misuse, or normal wear and tear.
KUNG - MACH
*The sizes listed are for reference only and represent common cases, as limb proportions vary among riders of the same height. To find your ideal fit, consult our customer service with details of your previous bike brand and size for personalized advice.

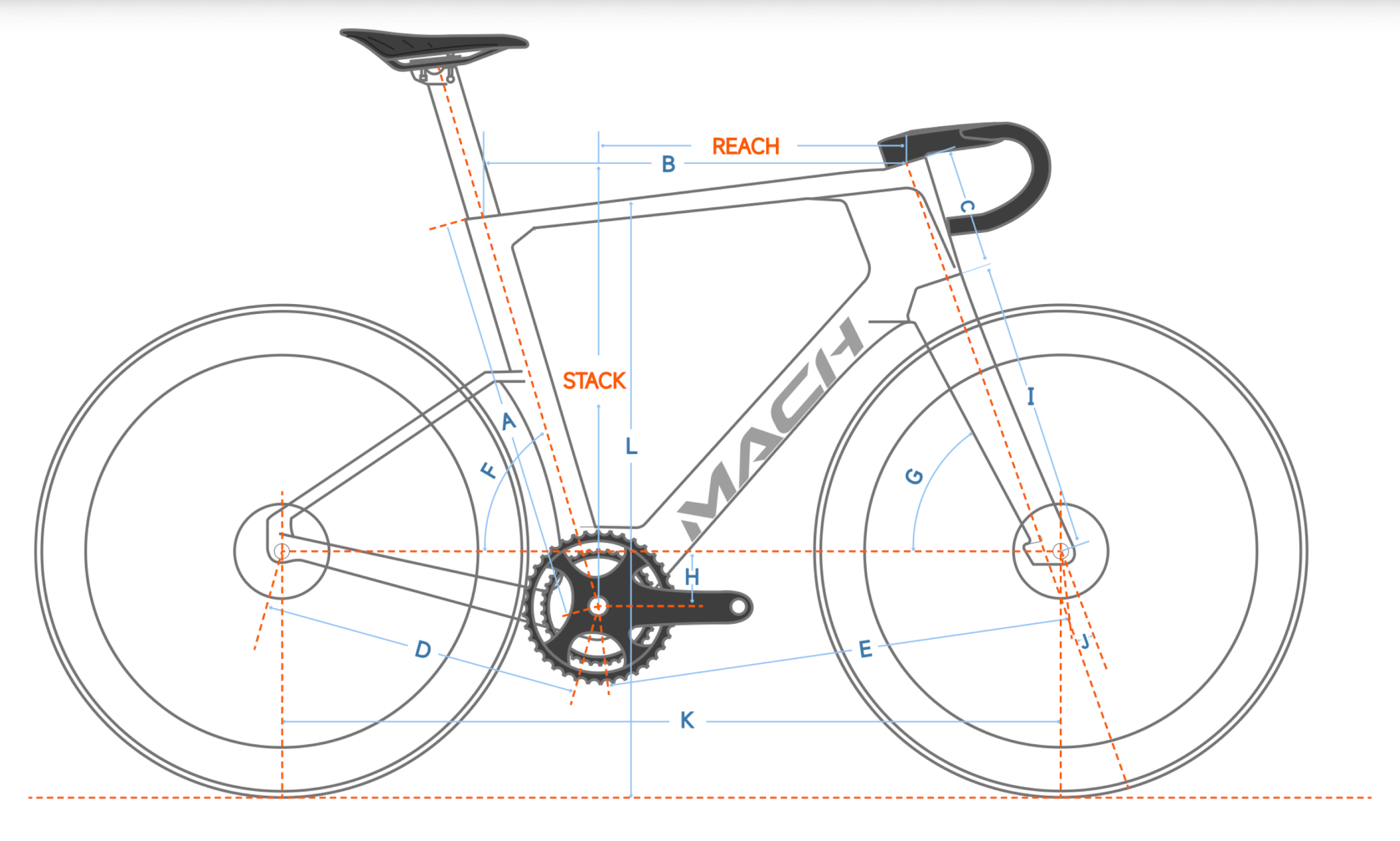

| Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A | 430 | 470 | 500 | 520 | 550 |
| B | 503.6 | 525.5 | 546.5 | 558 | 570 |
| C | 95 | 116 | 135 | 156 | 184 |
| D | 412 | 412 | 412 | 412 | 412 |
| E | 576.5 | 581 | 581.5 | 593.5 | 605.6 |
| F | 74.5 | 74 | 73.5 | 73.5 | 73.5 |
| G | 72 | 72 | 73 | 73 | 73 |
| H | 74.5 | 74.5 | 72 | 72 | 70 |
| I | 375 | 375 | 375 | 375 | 375 |
| J | 57.5 | 51.5 | 45.5 | 45.5 | 45.5 |
| K | 977.5 | 981 | 983 | 994 | 1008 |
| L | 708 | 750 | 775 | 800 | 825 |
| Reach | 365 | 375 | 385 | 390 | 395 |
| Stack | 500 | 525 | 545 | 565 | 590 |
| Recommended Height | 155–165 | 165–175 | 173–182 | 183–188 | 185–192 |
MACH Frameset Specifications
Frame Sizes
XS, S, M, L, XL
Brake Type
Disc only
Wheel Size
700C
Tire Clearance
Up to 32 mm road tyres
Frame Weight
Manufacturer's claim 972 g (painted frame) Our frame - size M in white: 1,150 g
Headset Bearing
Upper and Lower: 52*40
Bottom Bracket
T47 x 86.5
Warranty
5 years - terms and conditions apply
Cable Routing
Internal; Electronic Only
System Weight Limit
Rider + bike < 110kg
Axle
12 x 100 mm front / 12 x 142 mm rear

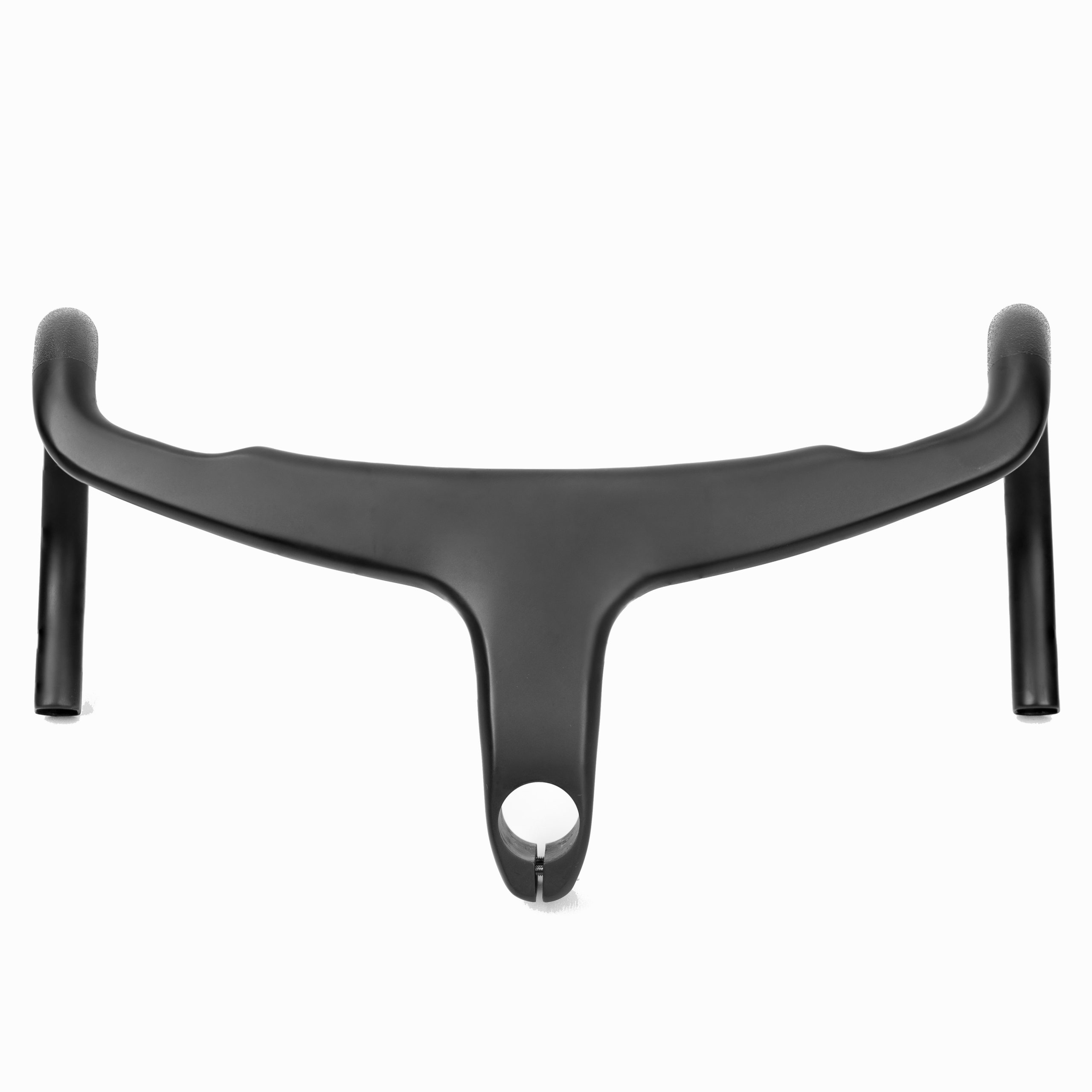

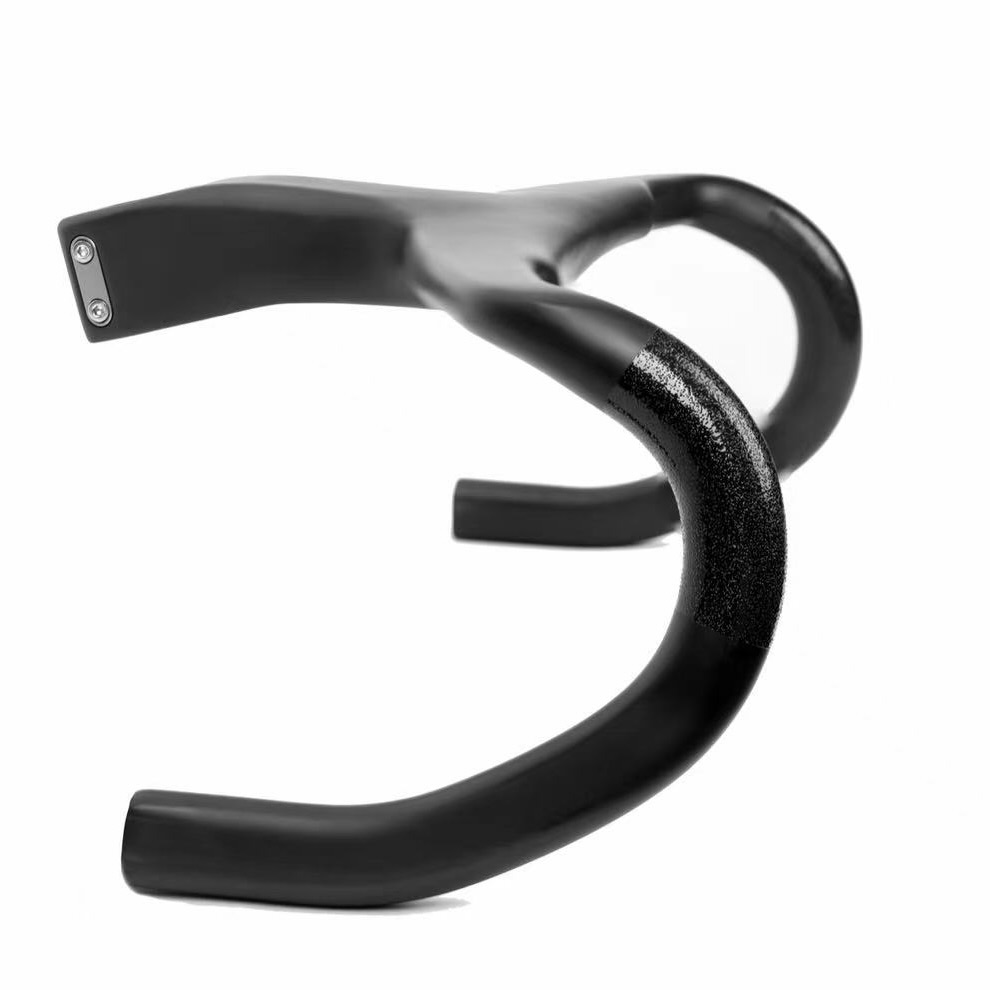

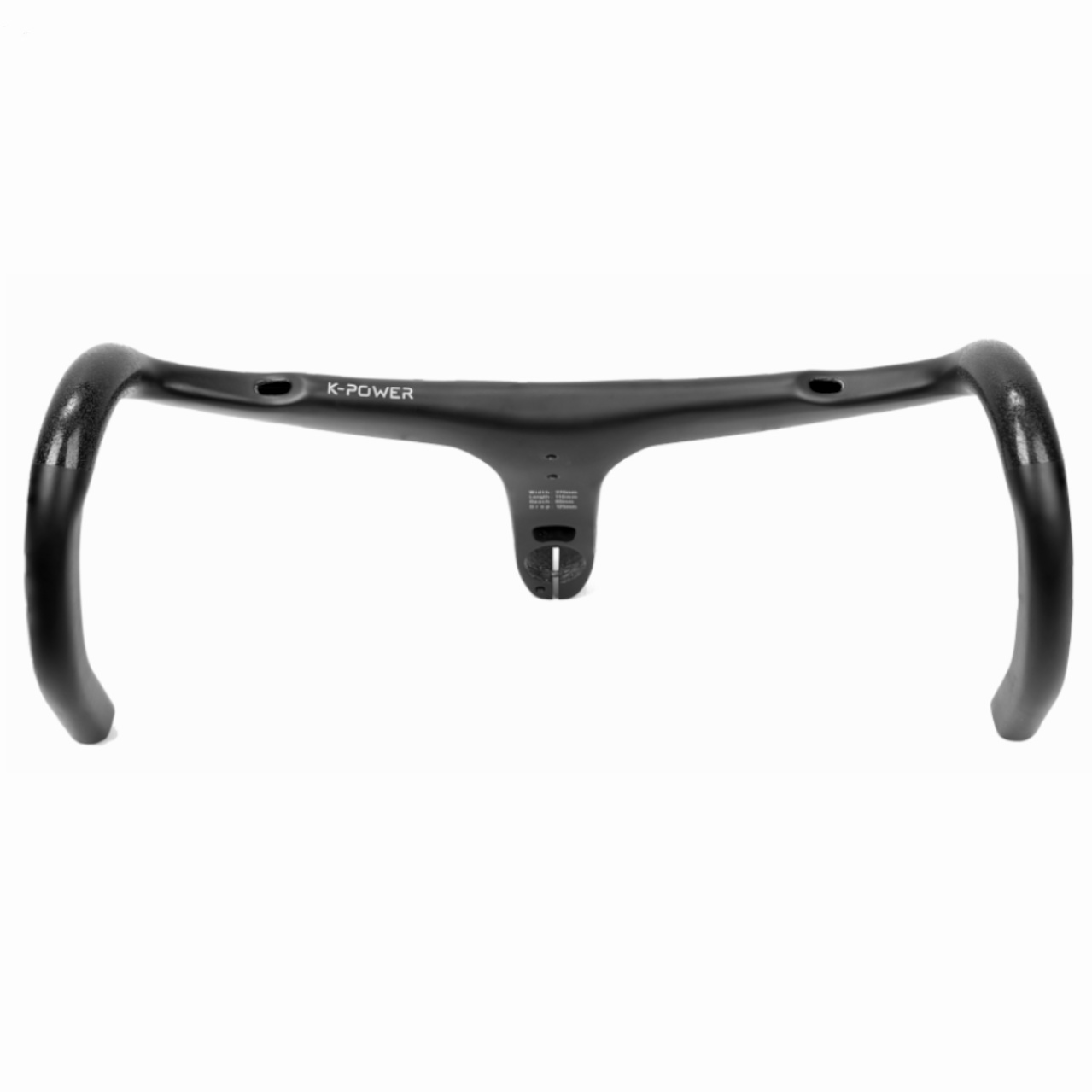

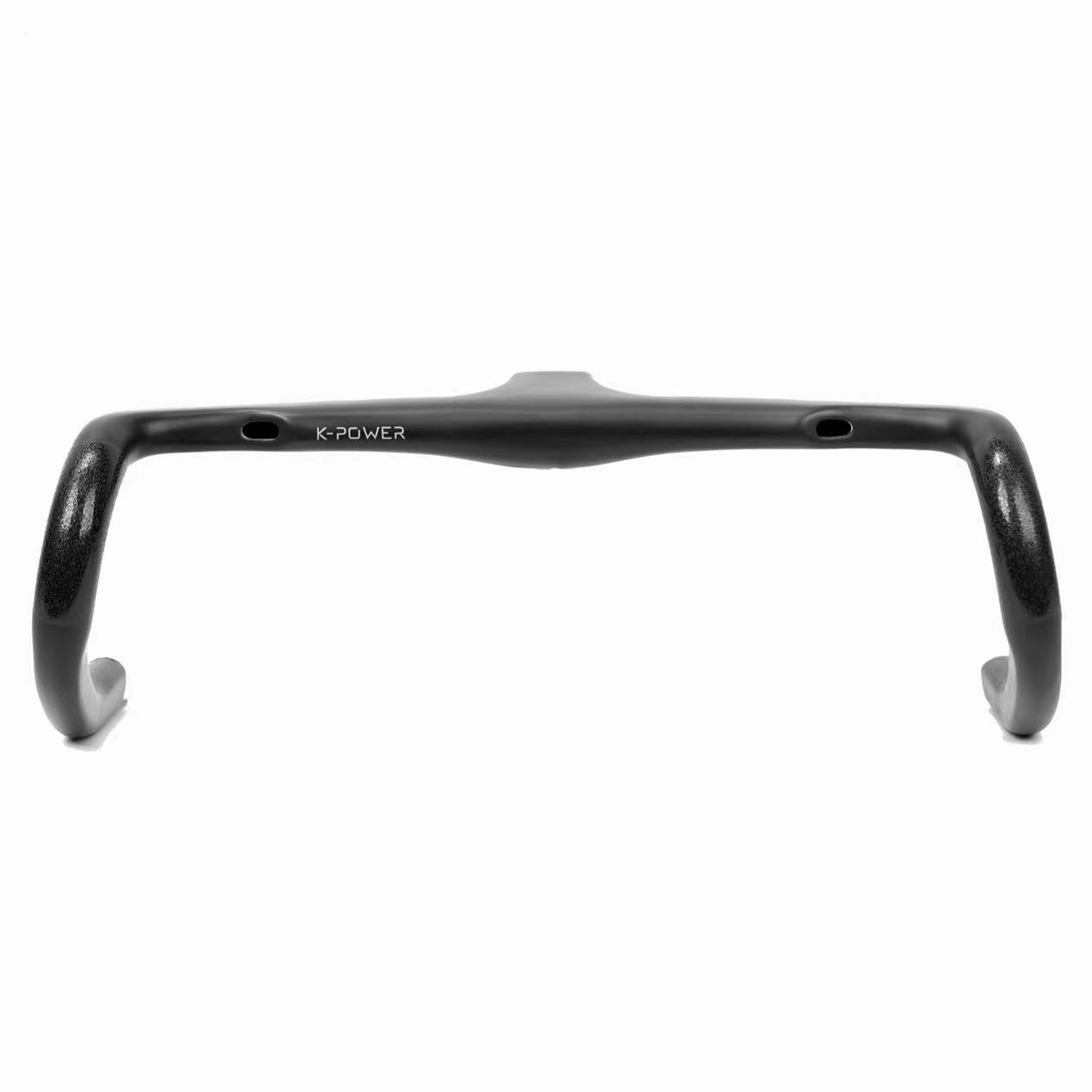

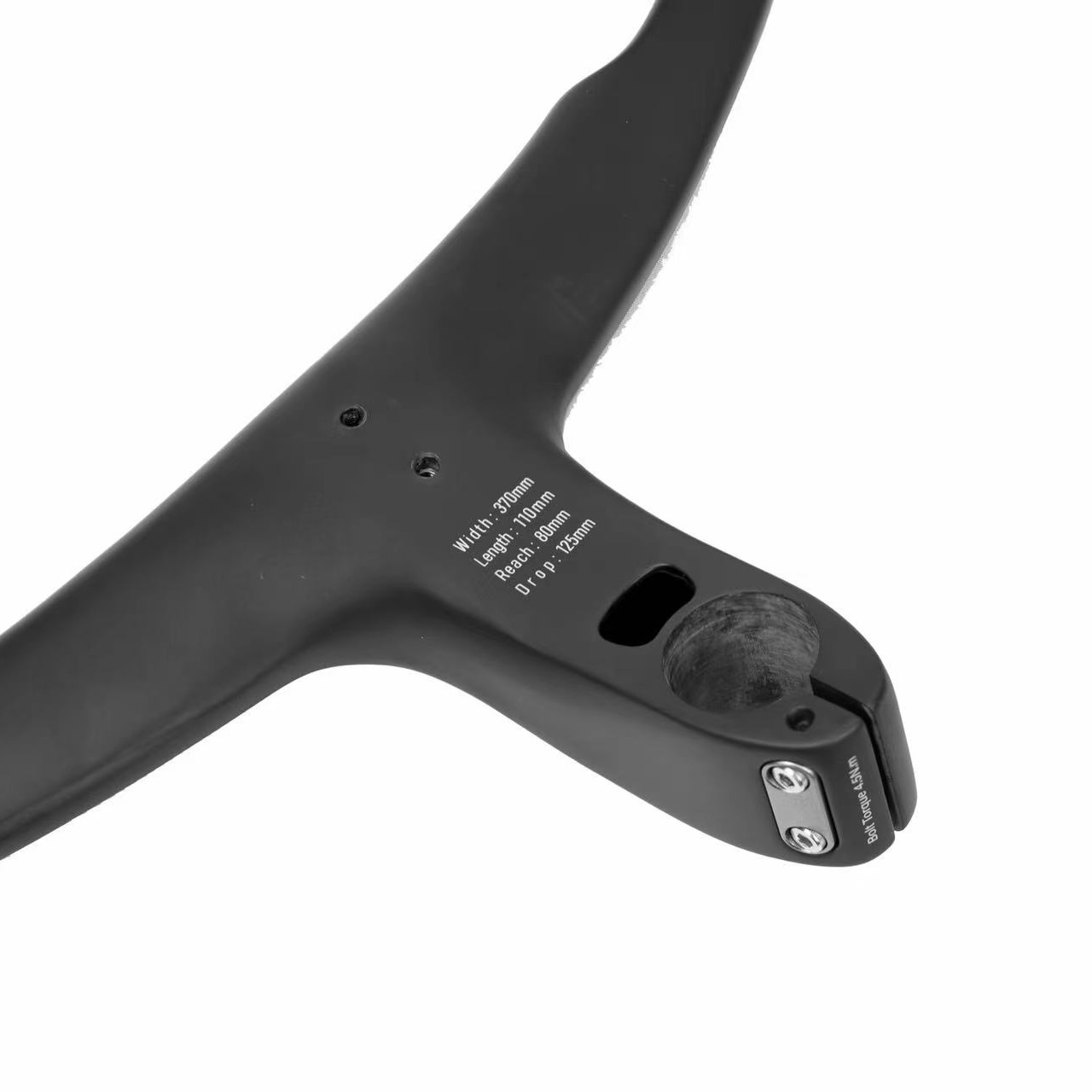

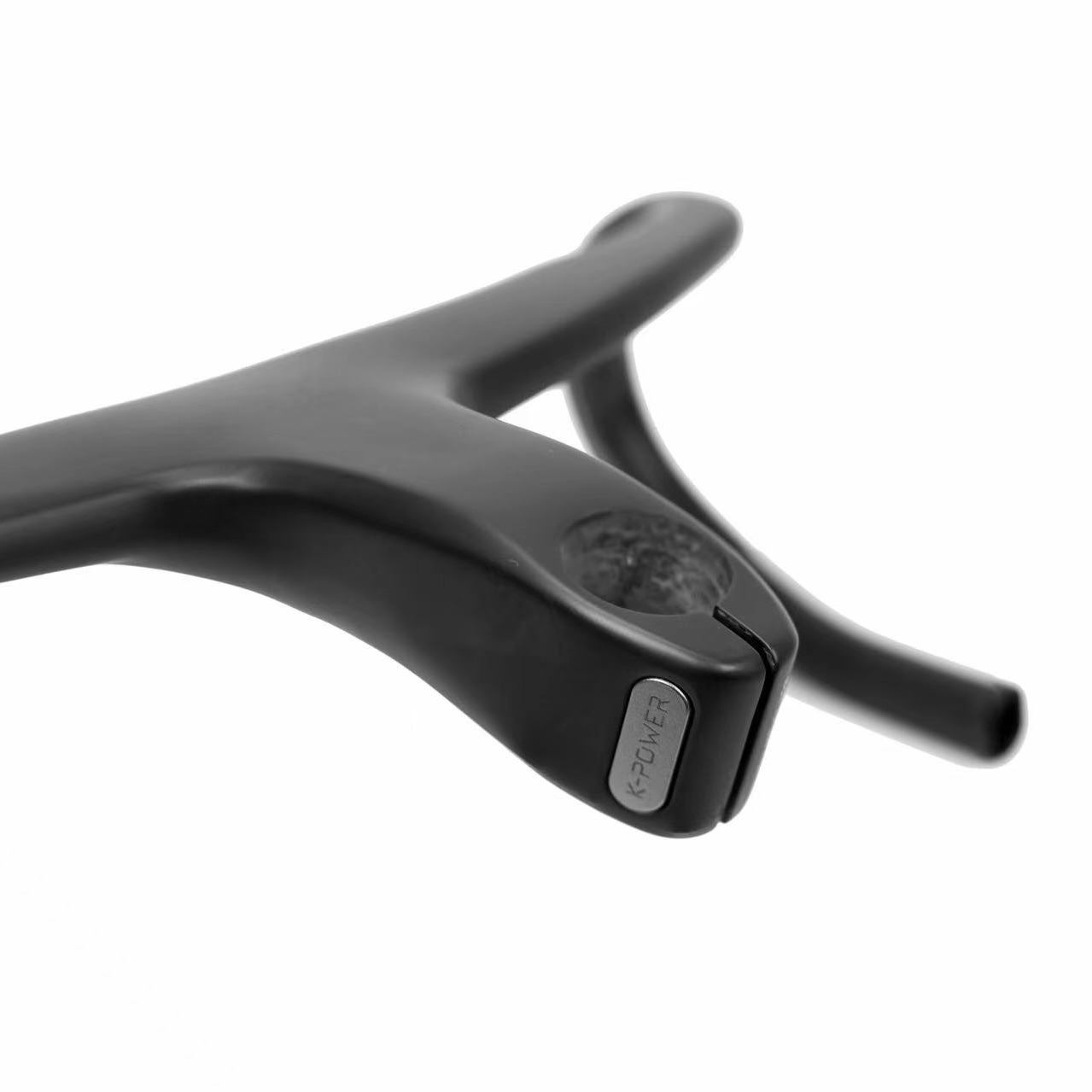

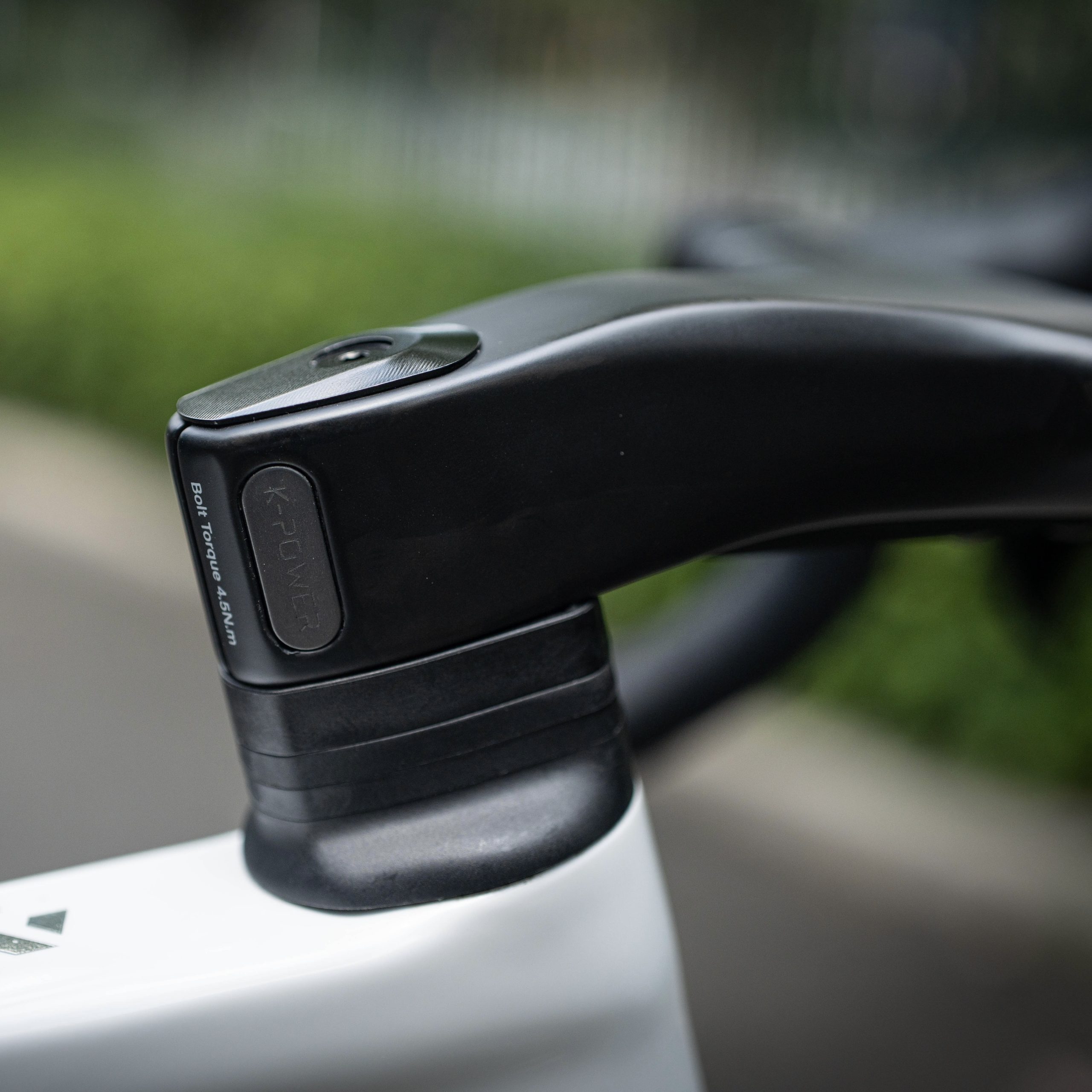

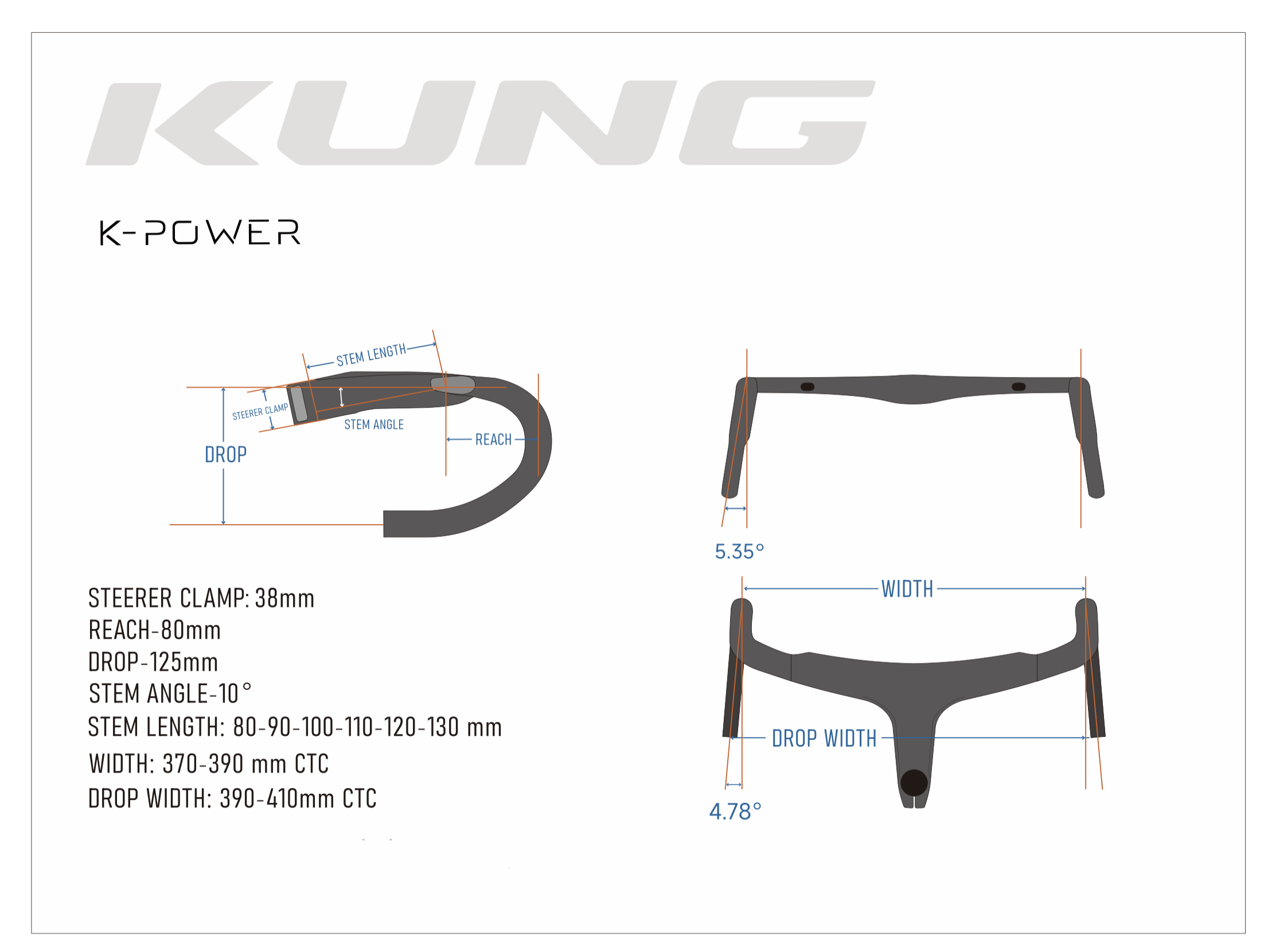

K-Power is KUNG’s in-house accessory brand, and its integrated cockpit has an ergonomic design and stiff feel to complement the MACH frame. It comes in two race-focused widths and a wide range of stem lengths.
| Specification | Value |
|---|---|
| Steerer Clamp | 38mm |
| Reach | 80mm |
| Drop | 125mm |
| Stem Angle | 10° |
| Stem Length | 80-90-100-110-120-130 mm |
| Width | 370-390 mm CTC |
| Drop Width | 390-410mm CTC |

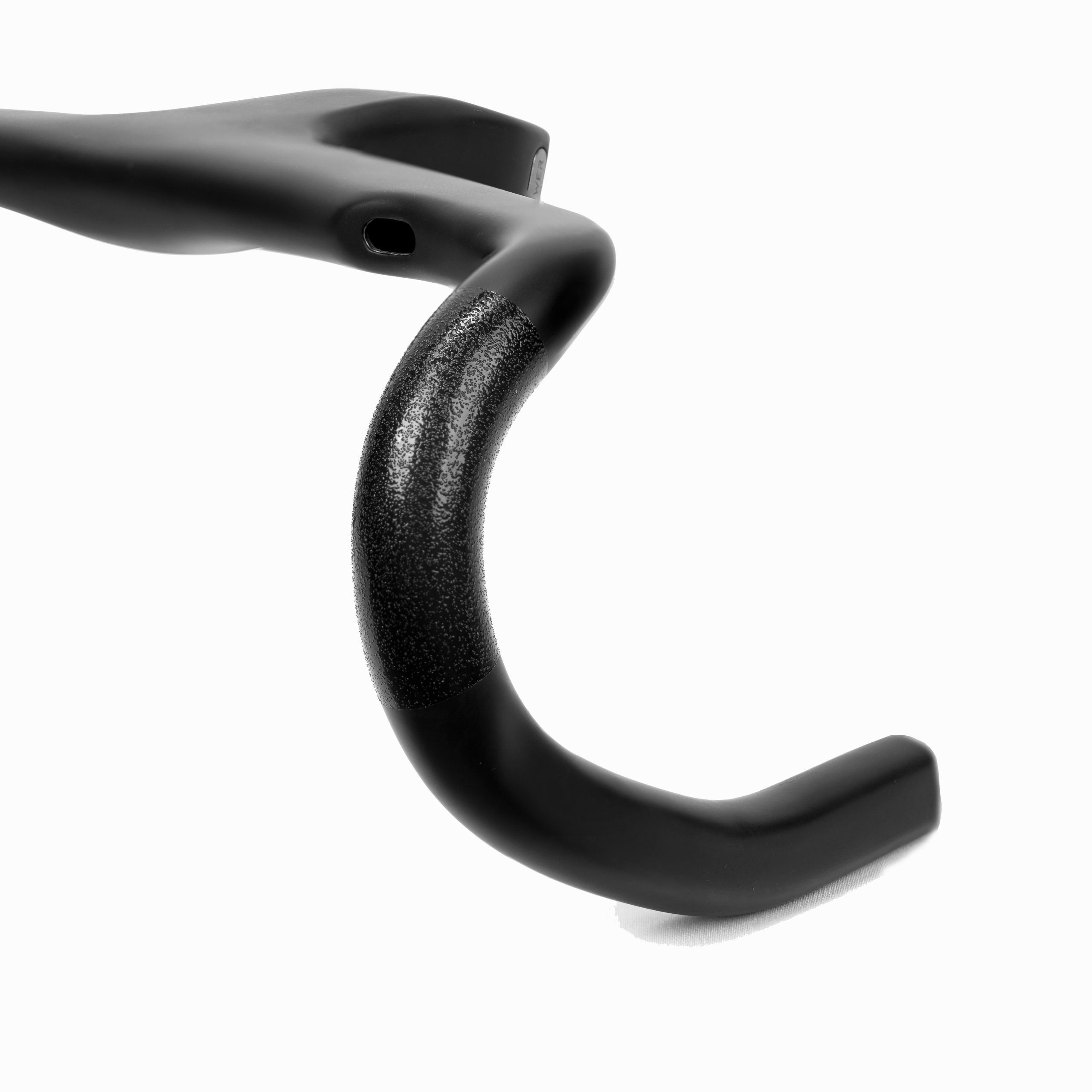

*The K-POWER handlebar ends are not round and require specific bar-end plugs. They are supplied with the bar, but you can 3D print another set from the files below if you lose or damage them.
Quiet Grey

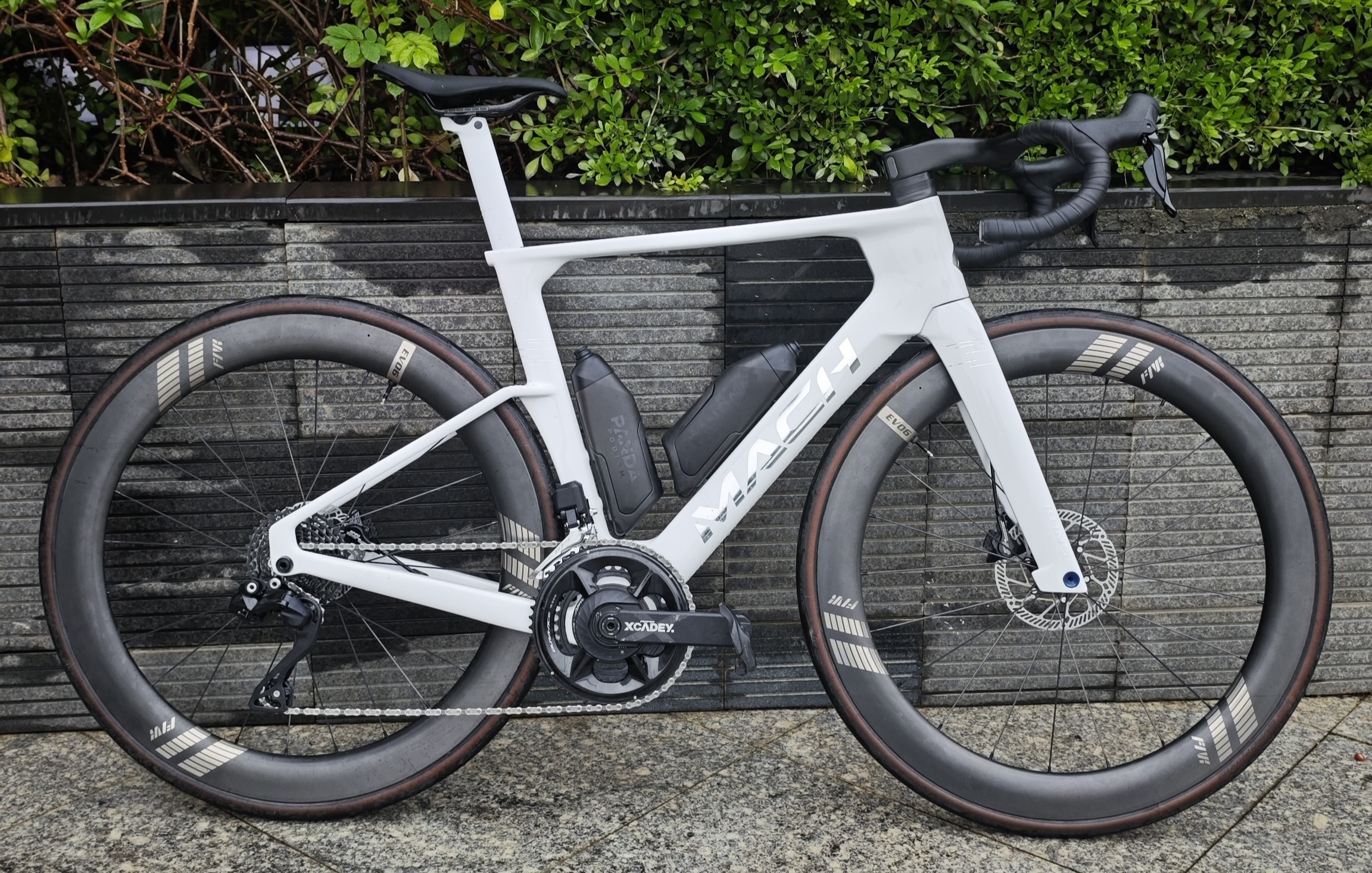

White Storm
Obsidian Star

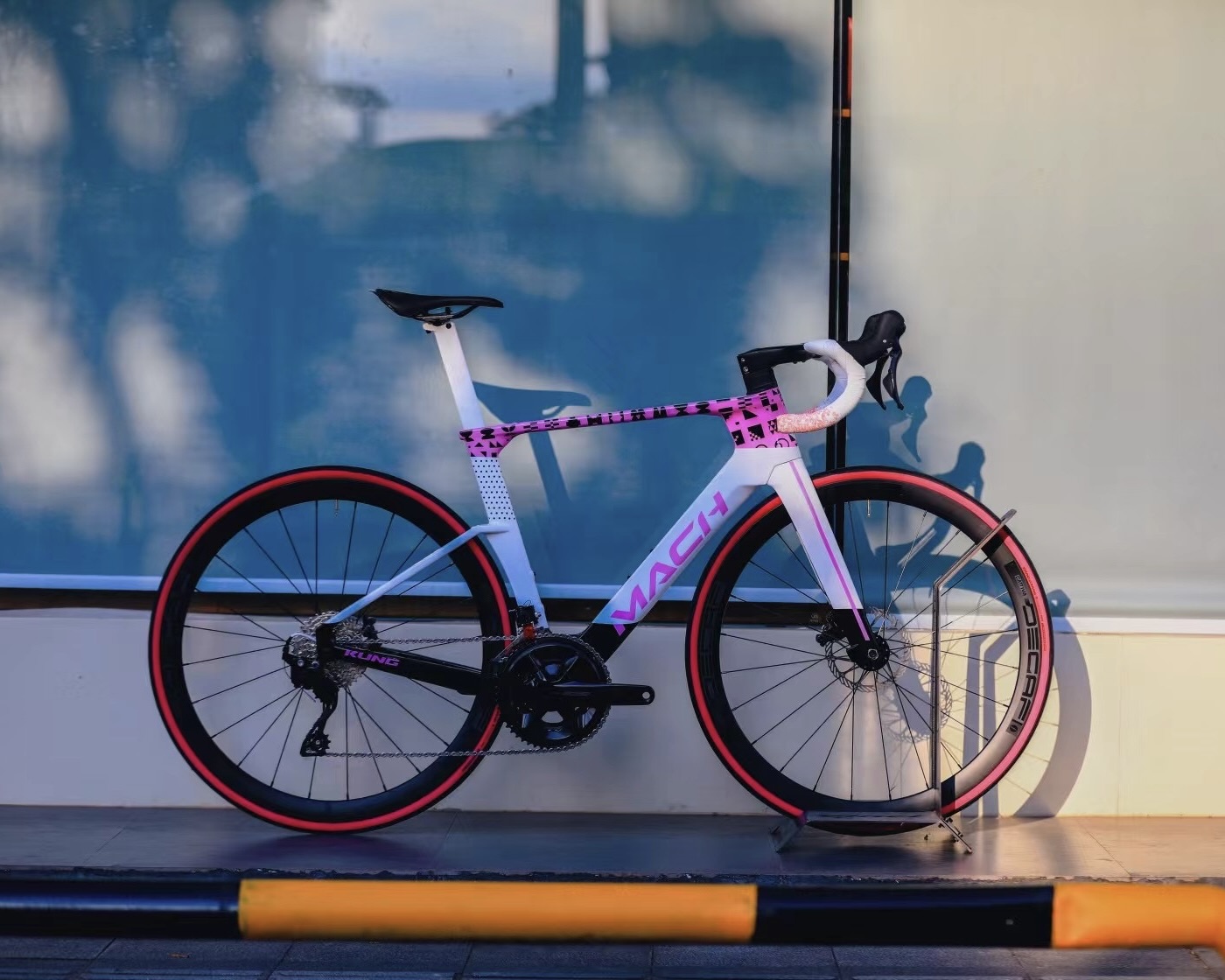

Dream White Pink
Blue Shadow White Light

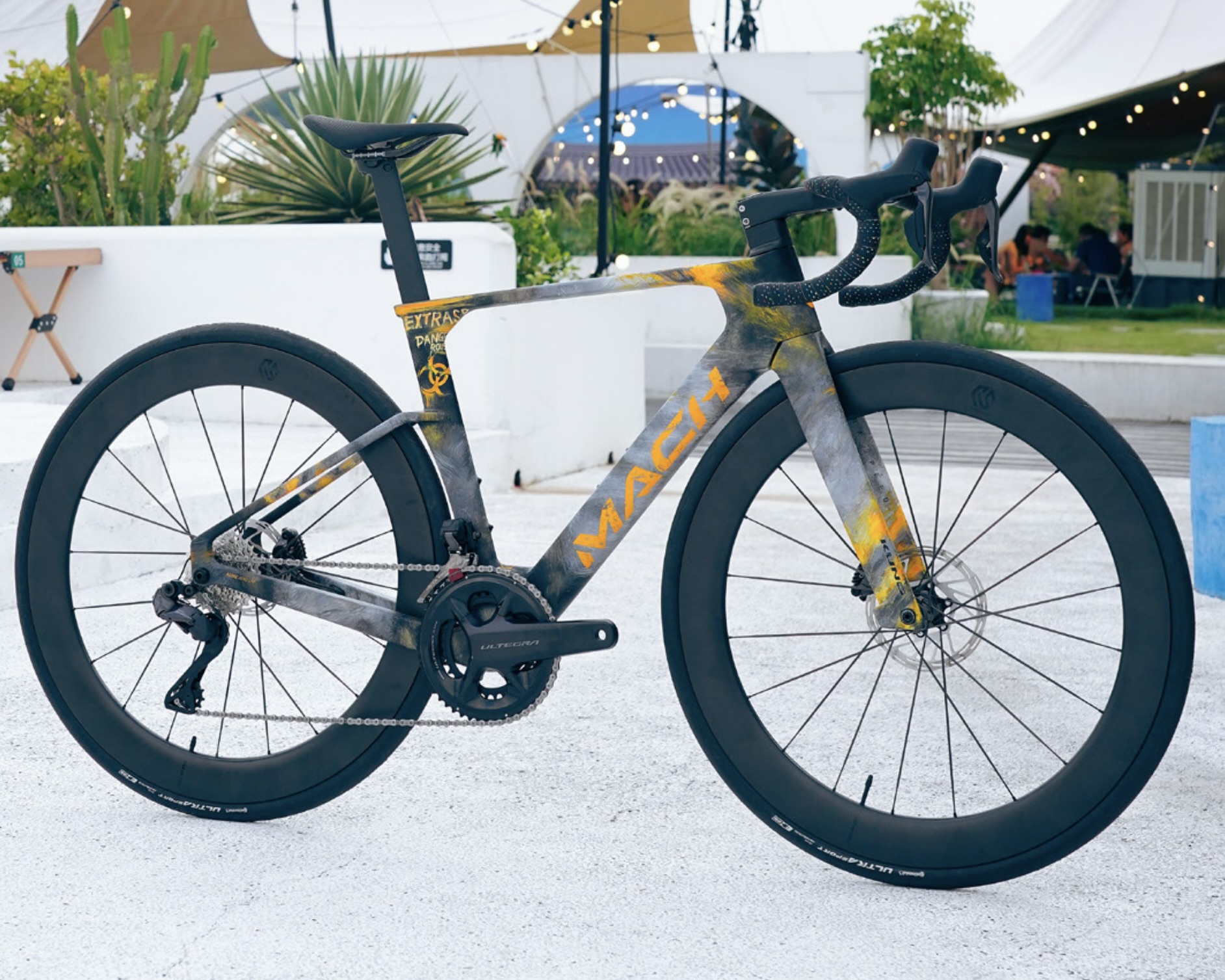

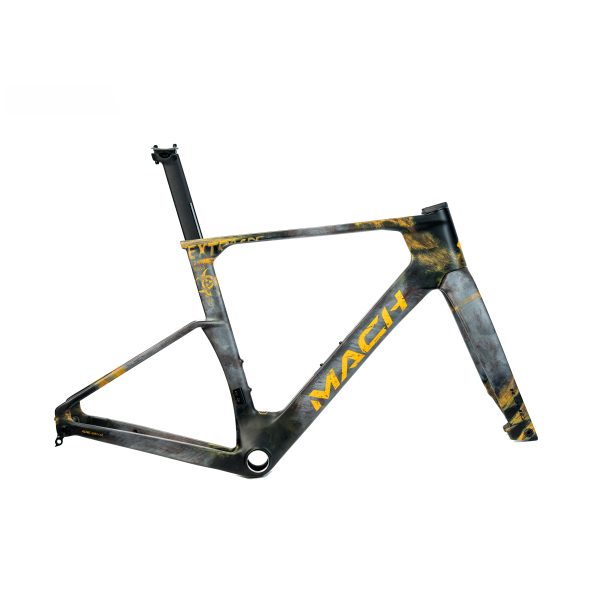

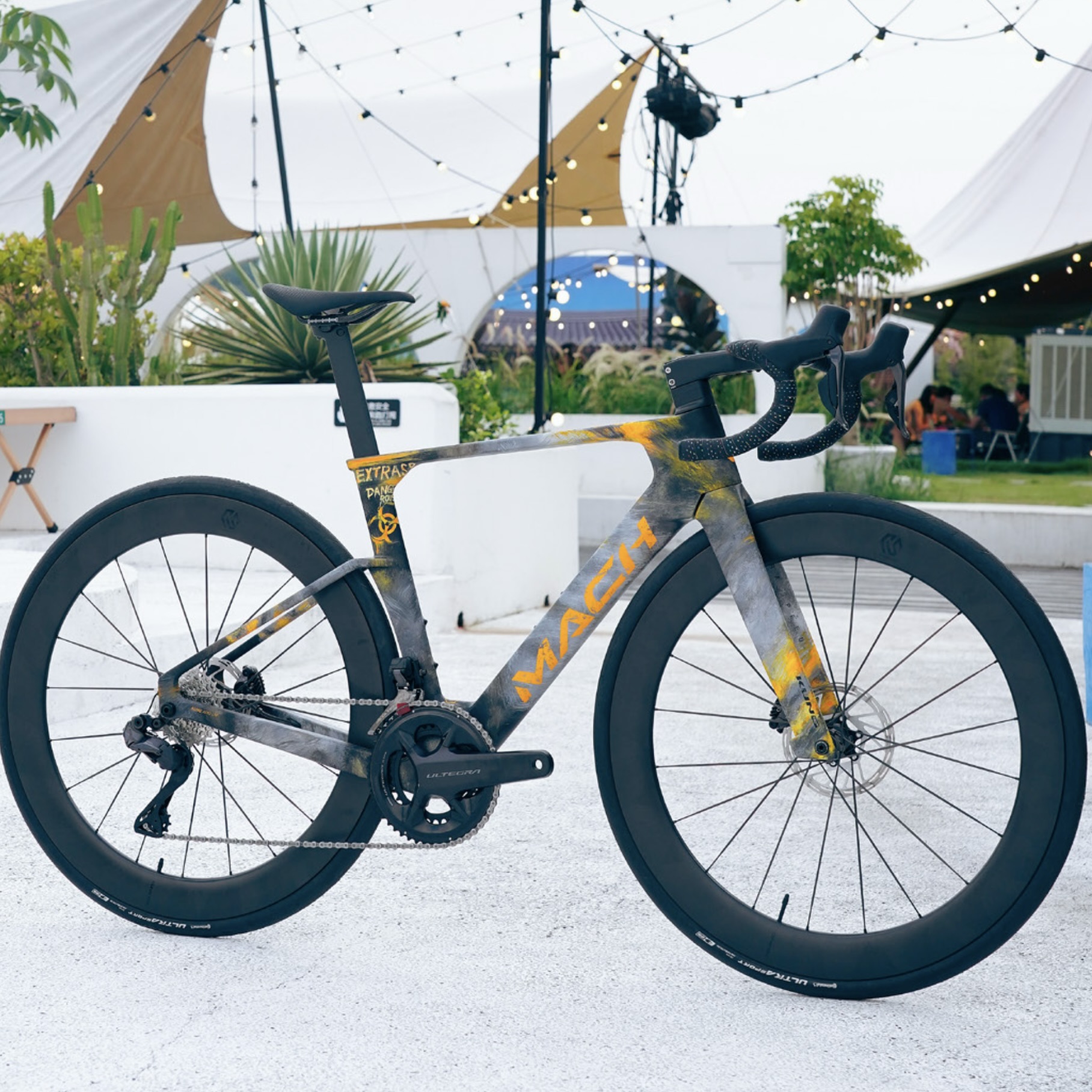

Biohazard

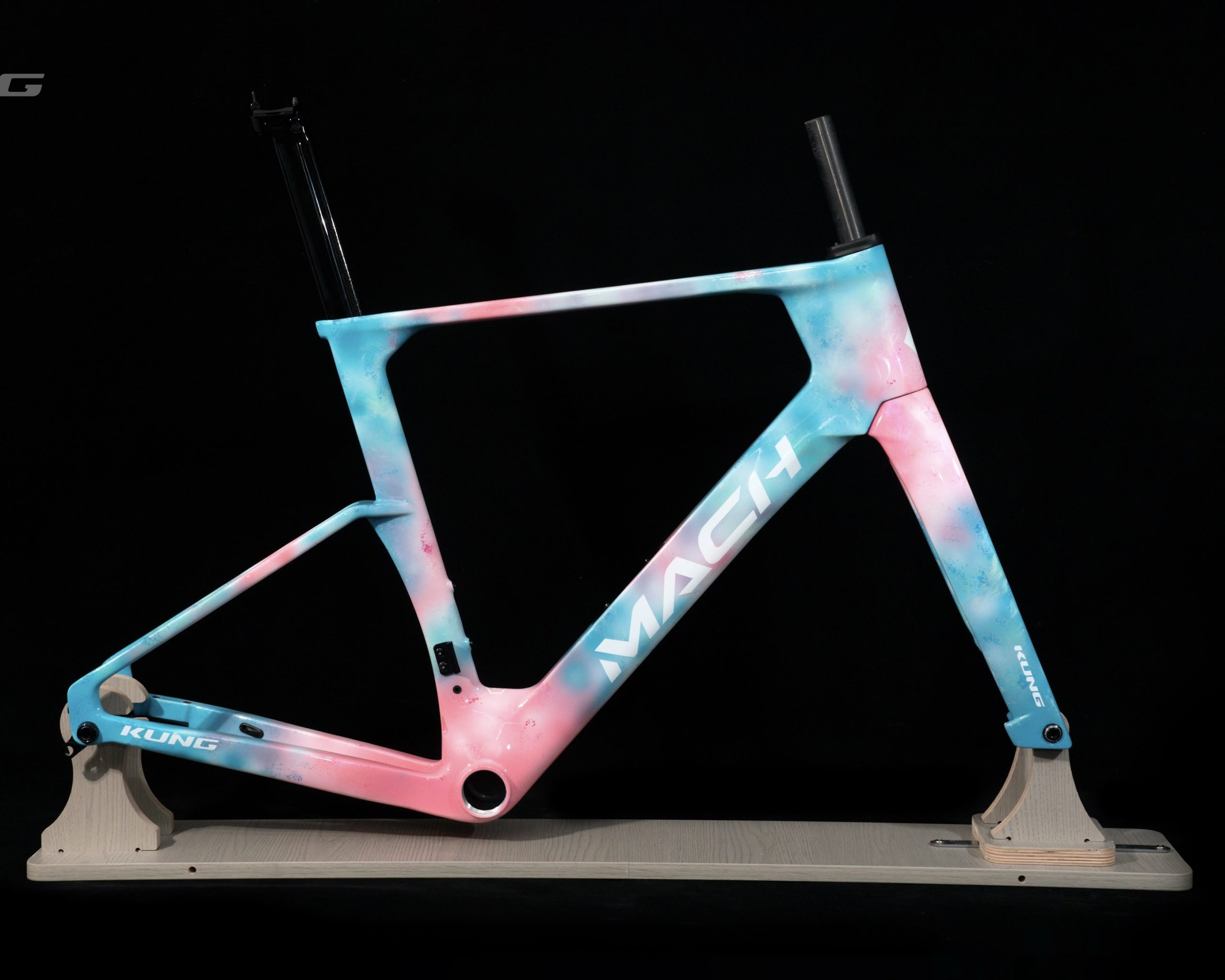

Dream Tie-Dye
Sun God
Pink Hearts

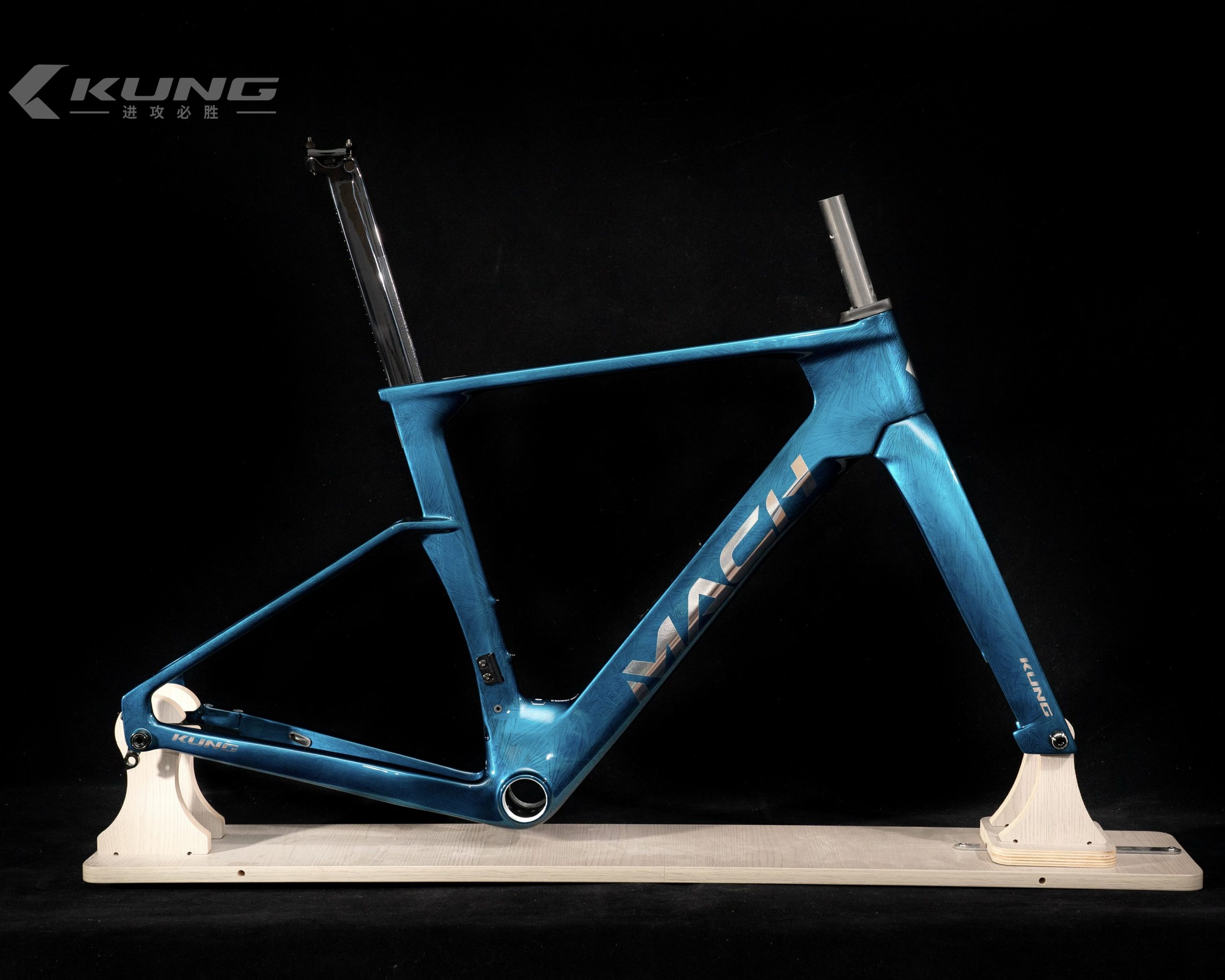

Cracked Blue
Dream Ocean
Abstract Geometry

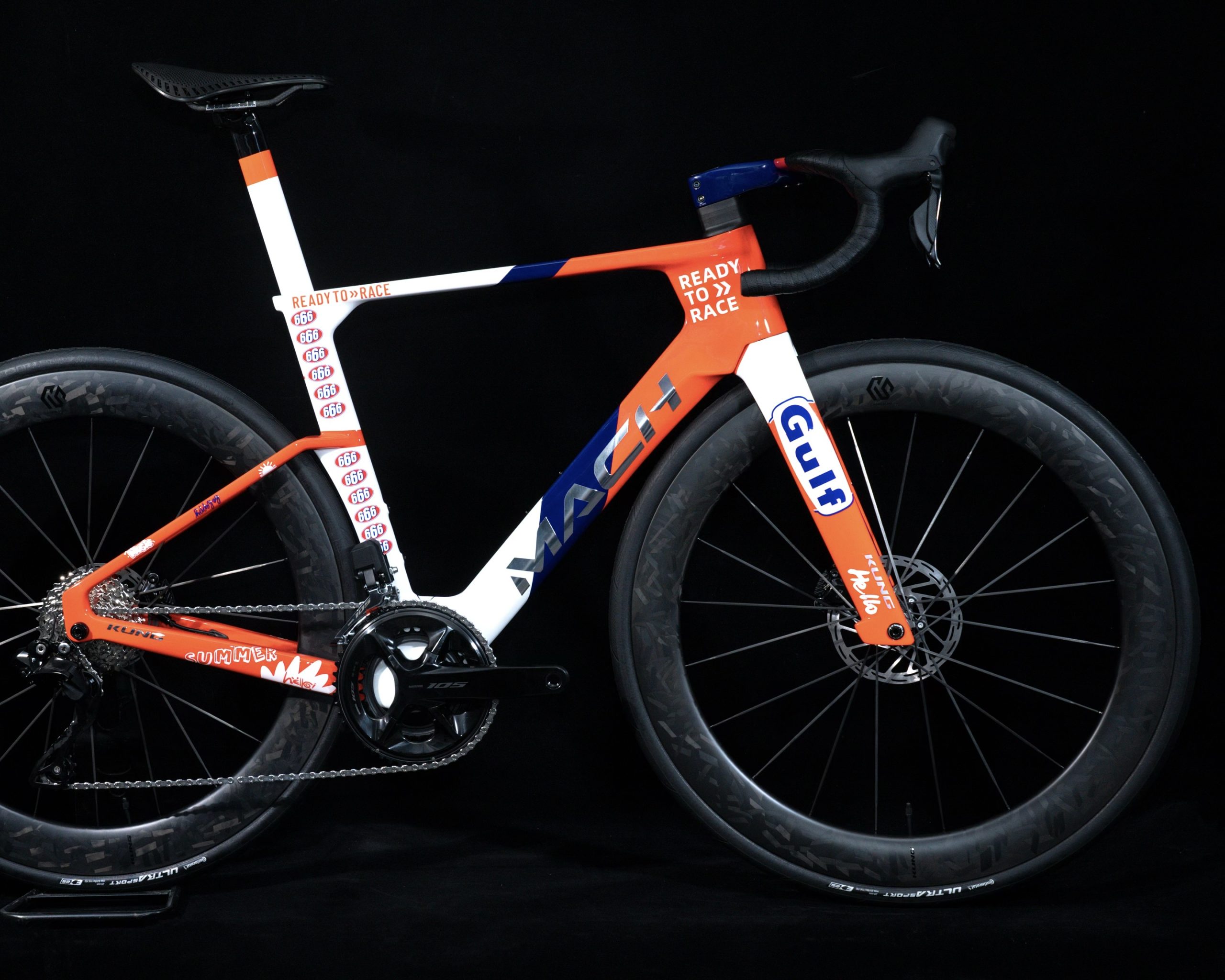

Gulf Oil
Wild Graffiti Pink

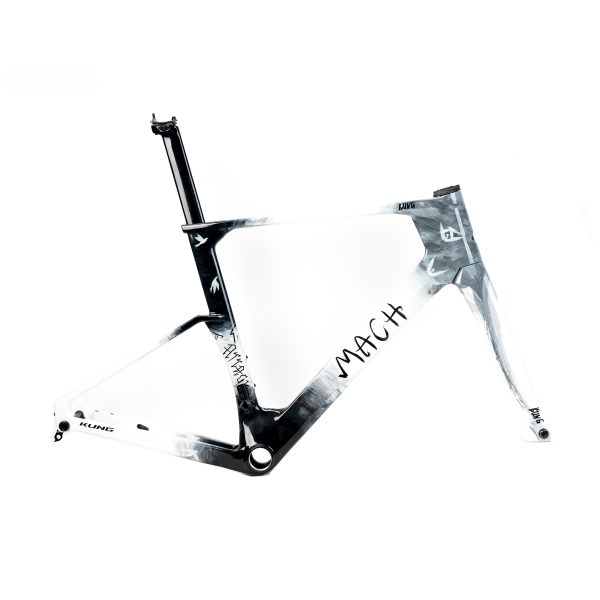

Black and White Graffiti
*For more paint jobs, please contact us via live chat.
Additional information
| Size | XS, S, M, L, XL |
|---|---|
| Model | Colourful Paint, Regular Paint |
| Color | Abstract Geometry, Biohazard, Black & White Graffiti, Blue Shadow White Light, Cracked Blue, Crackle Blue, Dream Ocean, Dream Tie-Dye, Dream White Pink, Gulf Oil, Obsidian Star, Others (Contact us), Pink Hearts, Quiet Grey, Sun God, White Storm, Wild Graffiti Pink |
Brand
KUNG
James Knipe –
I’ve spent quite a bit of time on the MACH now and what stands out most is how natural it feels to ride fast. It’s a bike that rewards being ridden aggressively, but it never feels nervous or demanding. The handling is one of the highlights – I can throw it into a corner and it just holds its line without any surprises.
The frame isn’t especially light, but out on the road I never found myself thinking about that. What I did notice was how direct it feels when accelerating and how well it carries speed. It has a very racy character, but one that’s predictable and easy to get comfortable with.
What impressed me most is how much bike you’re getting for the money. There are plenty of bikes that cost significantly more without offering a noticeably better ride experience. The MACH isn’t trying to reinvent anything – it’s just a well-executed aero race bike that delivers a lot of performance for its price.
