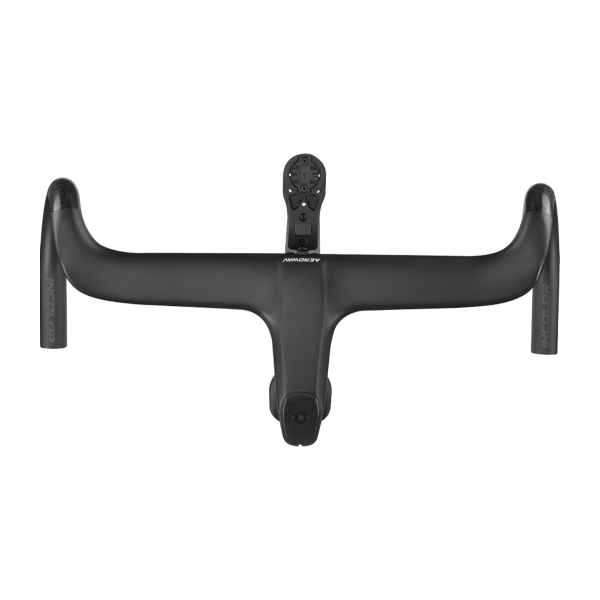

INCOLOR GRAVEL Integrated Handlebar - Image 1

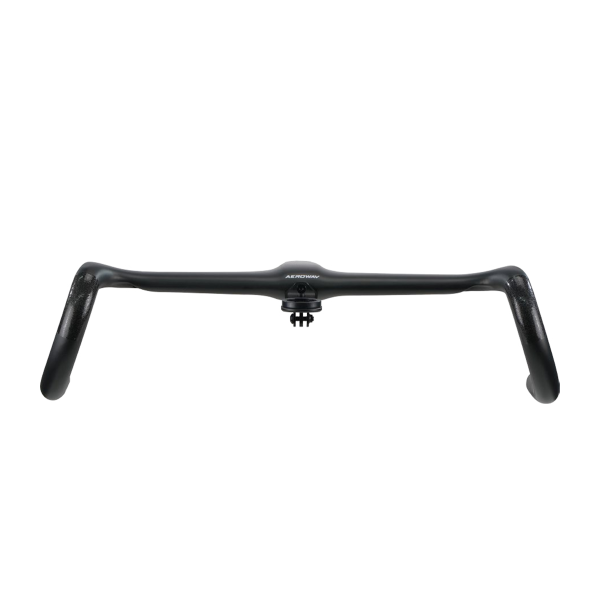

INCOLOR GRAVEL Integrated Handlebar - Image 2

INCOLOR GRAVEL Integrated Handlebar

INCOLOR RC-1 Carbon Short Nose Saddles
evolve KREUZA Apex Integrated Handlebar
0 out of 5
( There are no reviews yet. )

$999.00

Stock handlebar of INCOLOR VOYAGER GRAVEL Frame

  • Weight: 340g (±5%)
  • Angle: -10°
  • Stack: 37.5mm
  • Reach: 70mm
  • Drop: 115mm
  • Flare: 60mm

No reviews yet.
SKU: N/A Categories: ,

Description

A MASTERPIECE OF PRECISION

INCOLOR SSR



The SSR represents Incolors’s most advanced expression of precision, stiffness, and aerodynamic refinement.

Every angle was examined.

The SSR was designed to deliver peak performance with seamless elegance.

This bike is an unapologetic demonstration of INCOLOR's engineering DNA.

Every edge slices cleaner, every junction transfers power more directly, and every ride proves that the plies of carbon are working in perfect harmony.

To ride the SSR is to embrace a question that defines progress:

Can it be better?

INCOLOR'S TESTING

FRONTAL AREA

The SSR has had a reduction in frontal area which was tested not only against their own SR frame, but also against the S5 and the SL8. The frame’s frontal area is minimized to just 586.59cm².

DRAG REDUCTION

Tested at the Silverstone Sports Engineering Hub (UK), the SSR demonstrates up to 5.35 W less drag than the SR+ and averages 3.99 W savings over the S5 at 45 km/h across yaw angles of 0–20°.

STIFFNESS

To compete with industry leaders, INCOLOR fine-tuned the bike's exact characteristics by focusing on stiffness in the headtube, bottom bracket, and the fork's lateral performance.

KEY FEATURES

DUAL STEERER TUBE

  • The SSR’s radical dual steer tube design narrows the head tube to just 34mm, cutting frontal area by 6.4% over their SR+, while also boosting front-end stiffness.
  • By distributing forces between inner and outer tubes, it delivers unmatched steering precision and control.

INTEGRATED SEATPOST

  • The SSR features an integrated seatpost, allowing it to drop more weight and increasing compliance by 28%, weighing in at just 750g for a size 54 frame (unpainted without accessories).

ELITE CARBON COMPOSITION

  • Crafted from 80T pitch-based and T1100 carbon, the SSR contains nearly three times the high-modulus fiber content of the SR+, achieving extraordinary stiffness and instantaneous power transfer.

VERIFIED AERO PERFORMANCE

  • Tested at the Silverstone Sports Engineering Hub (UK), the SSR demonstrates up to 5.35 W less drag than the SR+ and averages 3.99 W savings over the S5 at 45 km/h across yaw angles of 0–20°.
85F468B2-934B-42ED-91A2-0FC87DAEF1C2_1_201_a
388BFF9C-3BD4-43ED-96F4-9810ECDD756B_1_201_a
64F19BDF-8C4D-49F2-AE43-9C3B7D1DA5FE_1_201_a
F1A14583-E6CB-4EBA-8E00-801743B642B0_1_201_a
DD683BDB-EC0F-4C36-9584-4E2C949CCE6F_1_201_a
0AF9C69B-C8F7-4889-A4CB-0D19D66D7CB5_1_201_a
C4EF20EF-9B05-4BE6-8243-D19F15E31767_1_105_c
F9C69660-B32F-45DE-8664-AF3E65EA8225_1_105_c
WHAT'S INCULDED

INCOLOR - SSR

  • INCOLOR SSR Frame, Fork and Integrated Seatpost
  • INCOLR Aero Cockpit
  • Titanium 3D-Printed Accessory Package

INCOLOR Lifetime Warranty:

  • Covers all damages caused by material or production issues (excludes human or force majeure causes).
  • For major damage, a 30% discount applies toward a new replacement.
CUSTOM GEOMETRY AVAILABLE

Available in seven sizes (45–60) for riders 155–195 cm tall, the SSR offers three fit profiles

Aggressive, Moderate, and Comfort.

It's integrated seatpost allows precise saddle height and setback adjustments, making it the first performance frame to offer customizable geometry without sacrificing efficiency.



Standard Geometry

*The sizes listed are for reference only and represent common cases, as limb proportions vary among riders of the same height. To find your ideal fit, consult our customer service with details of your previous bike brand and size for personalized advice.

SSR (standard) Geometry 45 48 51 54 56 58 60
Recommended Height 155–162 162–168 167–173 172–178 177–183 182–188 185–195
A Reach 364 370 375 382 389 397 404
B Stack 511 519 528 543 563 583 598
C Seat Tube Angle 75 74.5 74.5 74° 73.75° 73.5° 73°
D Head Tube Angle 70.8° 71° 71.2° 72° 72° 72.25° 72.5°
E Front Center 578.3 585.2 592.1 591.4 605.3 615 626
F Rear Center 405 405 405 405 405 405 405
G Bottom Bracket Drop 78 78 75 75 72 72 72
H Wheelbase 970.4 977.4 985.3 984.6 999.6 1010 1020.6
I Front Fork Offset 55 55 55 50 50 50 50
J Trail 60.2 58.9 57.7 58 58 56.4 55
K Head Tube Length 110 117 129 140 164 184.5 199
L Stand over 715 724 738 754 777 799 829
M Top Tube Length 501 514 522 538 553.2 571 589
Minimum Saddle Height 59cm-2cm 63cm-2cm 67cm-2cm 71cm-2cm 73cm-2cm 75cm-2cm 75cm-2cm
Maximum Saddle Height 71cm+2cm 75cm+2cm 79cm+2cm 83cm+2cm 87cm+2cm 91cm+2cm 93cm+2cm
Handlebar Geometry
GALLERY

INCOLOR SSR - Scarlet

INCOLOR SSR - Mercury

INCOLOR SSR - Noir

INCOLOR SSR - Marble

Additional information

Handlebar Length

80mm, 90mm, 100mm, 110mm
Handlebar Width

380mm (Drop Width 440mm)
Compatible Bike Model

Custom Spacer (Sync with your bike model)

Brand

Incolor

Brand Name: Incolor Chinese Company Name: 广州应凯路科技有限公司
Founded: 2016 # of Employees: 10+
Headquarters: Panyu, Guangzhou Products Categories: Crankset, Cassette
Guangzhou Inkalu Technology Co., Ltd. (INCOLOR) was founded in 2016. It is committed to product design and development, brand visual system construction, customized solutions, and continuous innovation around user needs. INCOLOR has always been good at cultural integration products, firmly believes that artistic creativity is inseparable from cultural roots, and insists on technological innovation to promote industry development. The "Face" helmet and "Mingfeng" helmet designed and produced have helped Chinese athletes win gold medals in the 2016 Rio Olympics and the 2020 Tokyo Olympics.
