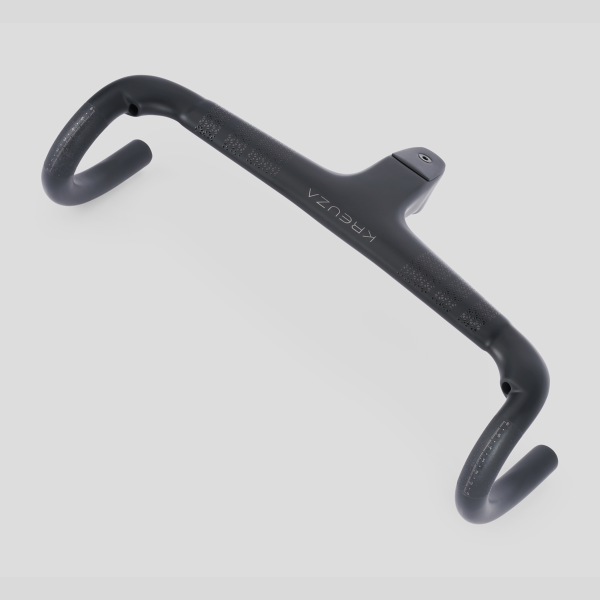

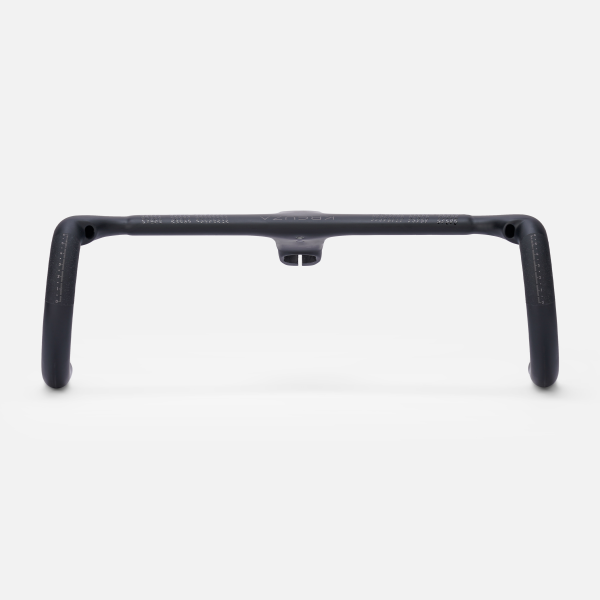

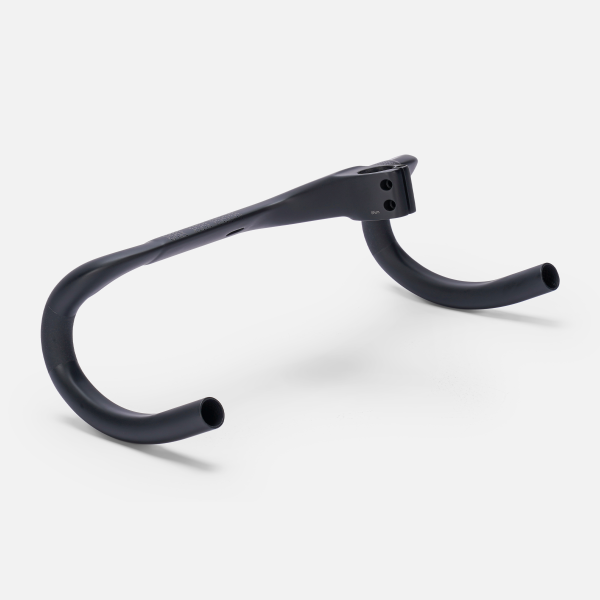

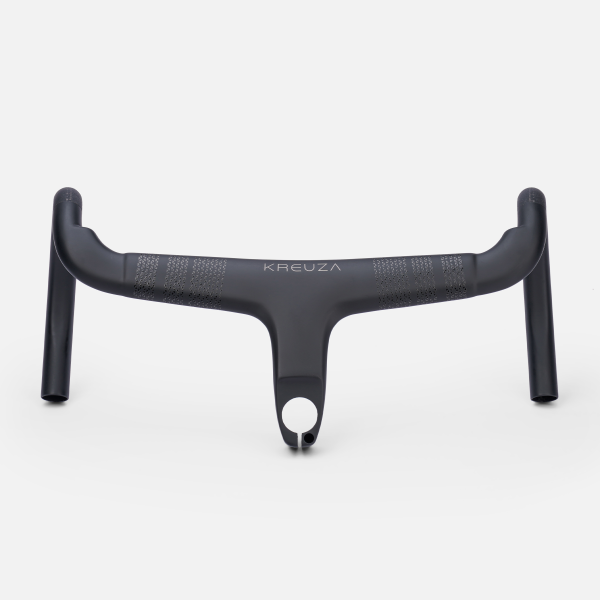

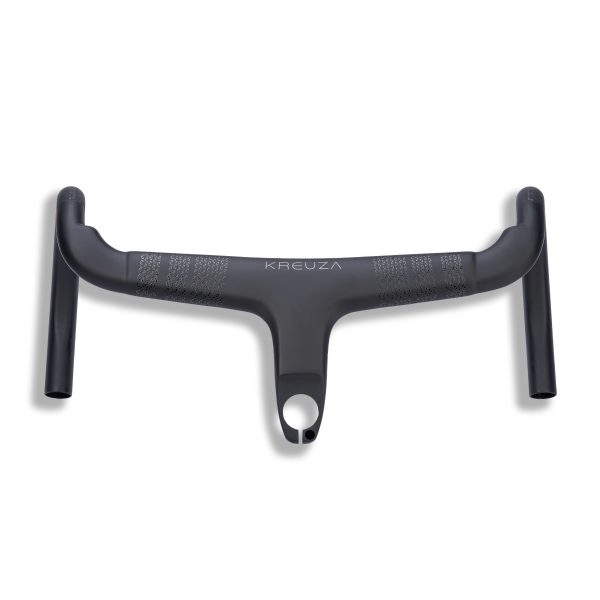

evolve KREUZA Apex Integrated Handlebar
$330.00
- Weight: 305g (380*110mm, ±5%)
- Stem Angle: -6°
- Forward Angle: 6°
- Stack: 35.5mm
- Reach: 80mm
- Drop: 128mm
- Flare: 6.6°
- Not compatible with OD2 Diameter bike
- Come with: Computer Holder, Spacers, Top Cap*¹
- Please check for frame‑to‑cap interference before installation*²
- Select your bike model to continue. We’re happy to help if you can’t find what you need!
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description
Features an innovative NACA aerodynamic design, with the slimmest section measuring just 16mm.
Optimized using Computational Fluid Dynamics (CFD) analysis, reducing air resistance by 4.5 watts for unparalleled performance.
Designed with ergonomic precision, just to ensure the most comfortable riding posture and provide you with a customized riding experience.
| Brand | KREUZA | Width (Hood to Hood) | 360mm / 380mm / 400mm |
| Material | TORAYCA T800 | Width (Drop to Drop) | 390mm / 410mm / 430mm |
| Weight | 305g ± 10g (380mm × 110mm, Painted) | Stem Length | 90mm / 100mm / 110mm / 120mm / 130mm / 140mm |
| Stem Angle | -6° | Drop Flare | 6.6° |
| Drop | 128mm | Forward Angle | 6° |
| Reach | 80mm | Steerer Diameter | 1 1/8" (28.6mm) |
| Stack | 35.5mm | Finish | UD Matte |
| Handlebar Size | 360*90 | 360*100 | 360*110 | 360*120 | 360*130 | 360*140 | 380*90 | 380*100 | 380*110 | 380*120 | 380*130 | 380*140 | 400*90 | 400*100 | 400*110 | 400*120 | 400*130 | 400*140 |
| Weight(g) (Paintjob=15g) | 300 | 302 | 304 | 306 | 308 | 310 | 305 | 307 | 309 | 311 | 313 | 315 | 310 | 312 | 314 | 316 | 318 | 320 |
| Components Weight(g) | 29.3 | |||||||||||||||||
Important Notes

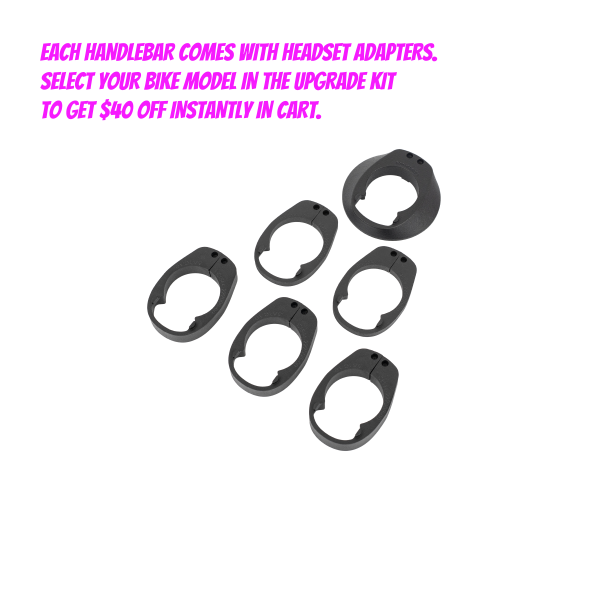

*¹ Headset Adapter & Spacer:
The adapter is made of nylon, available in either injection‑molded or 3D‑printed version depending on the bike models. It is reverse-engineered from scanning original factory top caps.
*² Important Installation Reminder:
Interference between the top cap and frame may happen on individual frames. This risk is higher for repainted frames with thicker paint layers.
If contact occurs, you may lightly sand the top cap to achieve proper fit. Always double‑check the fit before fully tightening all components.
Additional information
| Handlebar Width | 360mm, 380mm, 400mm |
|---|---|
| Handlebar Length | 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm |
Brand
evolve
