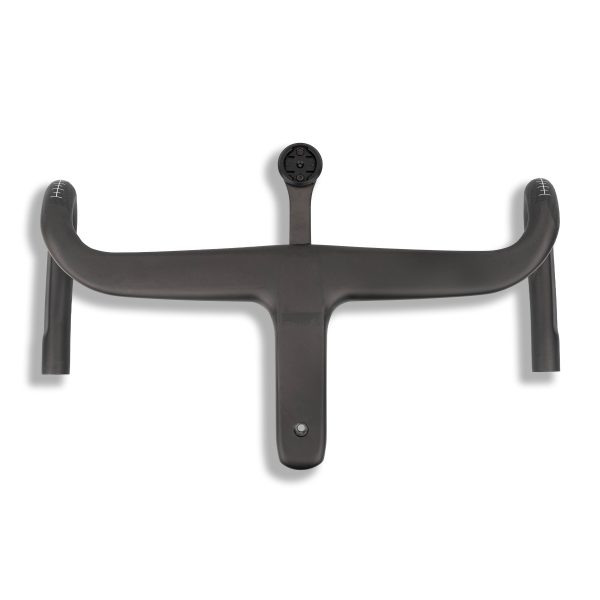

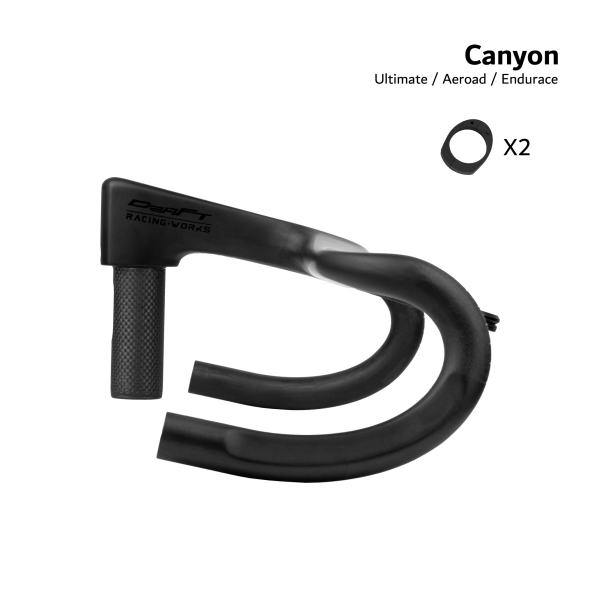

CRW Works New Gen Integrated Handlebar for Canyon
$549.00
- Designed for Canyon Ultimate / Aeroad / Endurace (Not sure if yours fits? Contact us!)
- Fully internal cable routing compatible
- Reach/Drop: 70/115mm
- Stack: 53mm
- Drop Flare: 9°
- Stem Angle: -10°
- Width: 340/360/380mm
- Length: 100/110/120/130/140mm
- Weight: 300g (360mm*100mm)
- Includes: Titanium mounting screws, Computer Holder, Spacers, Top Cap*¹
- Please check for frame‑to‑cap interference before installation*²
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description

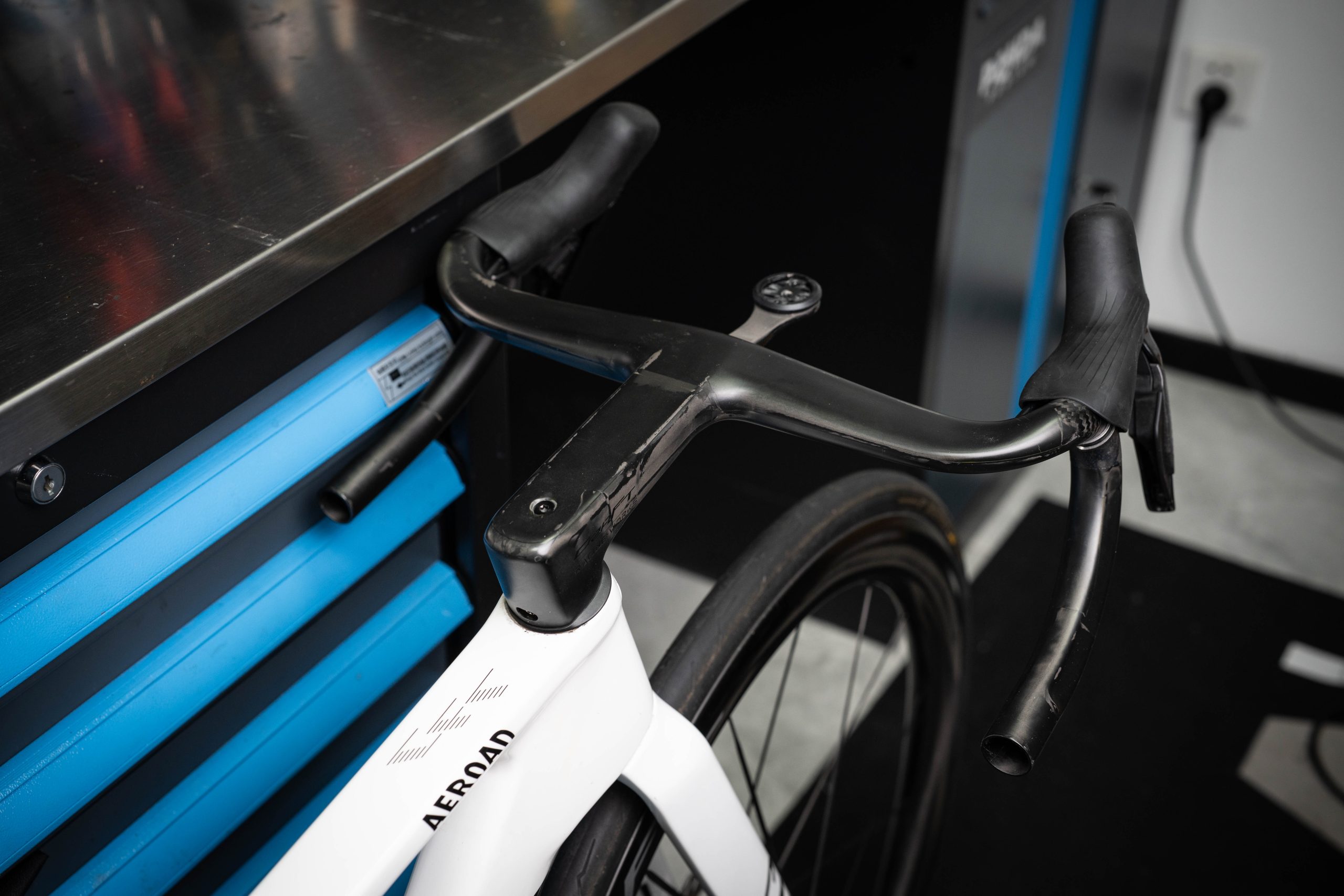

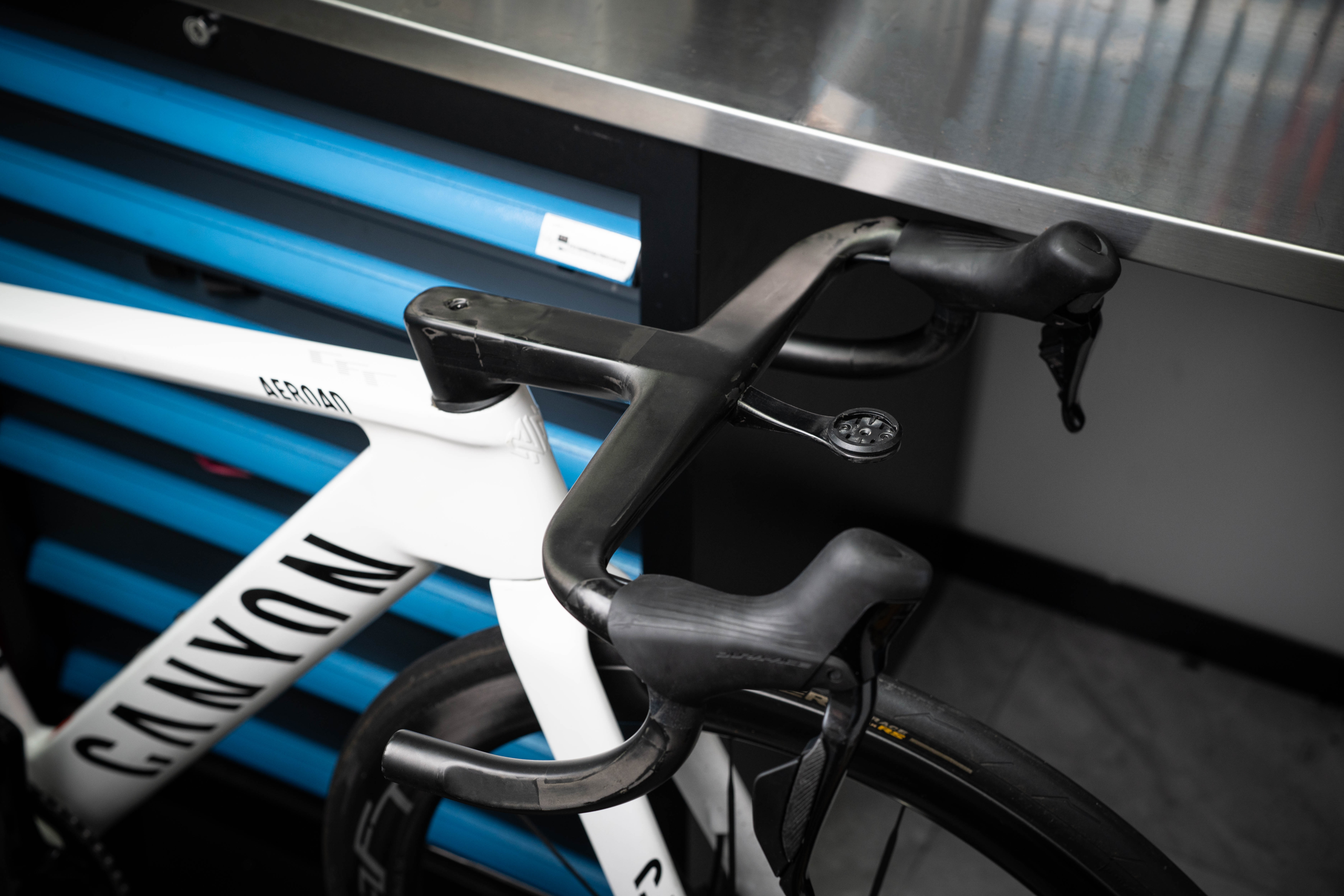

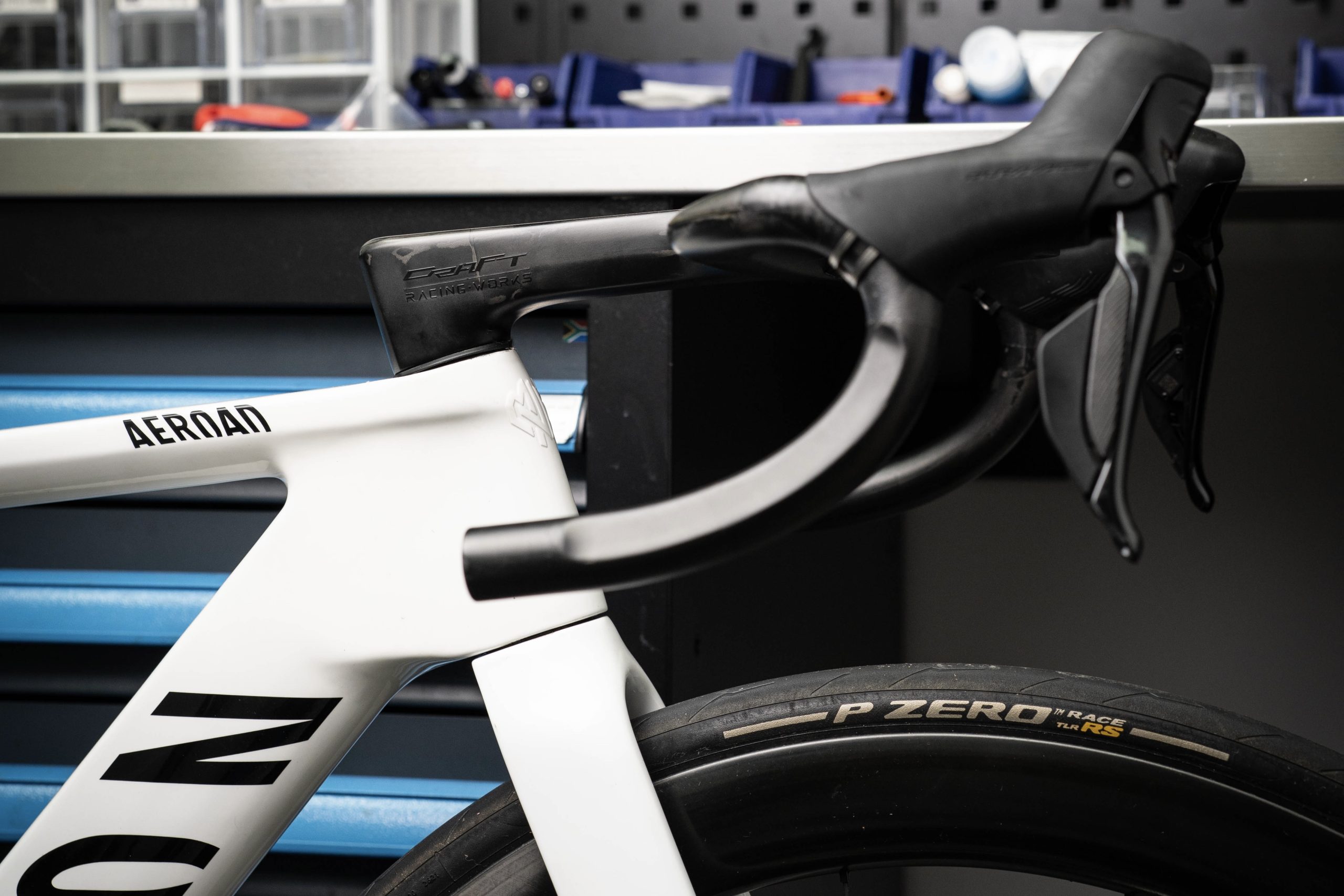

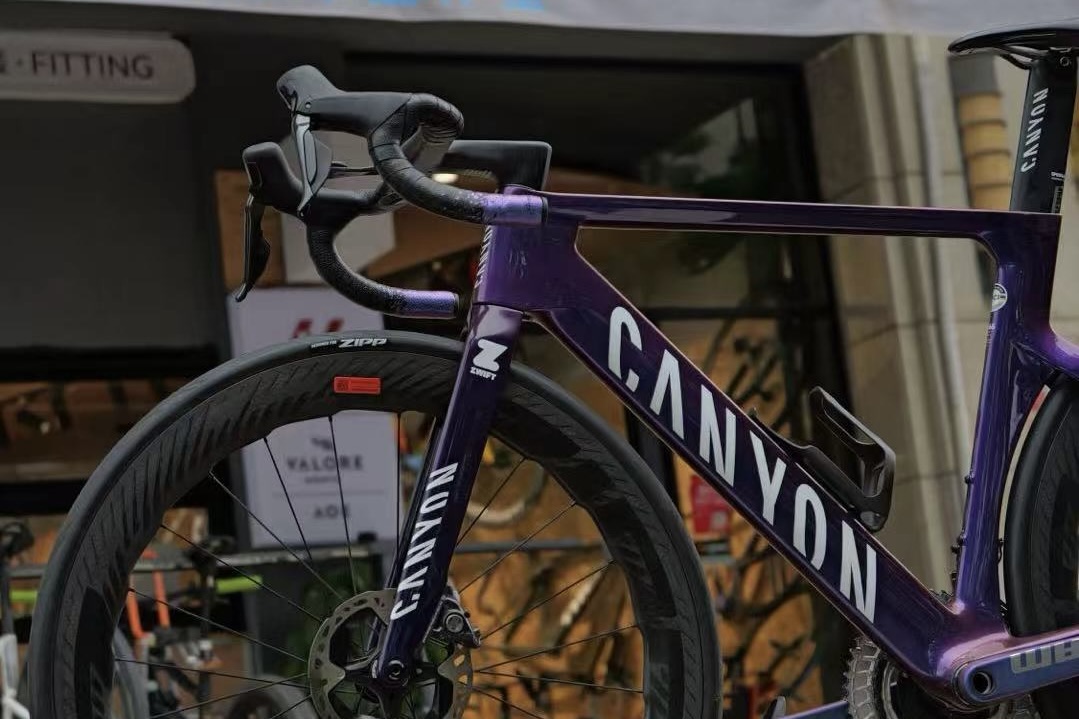

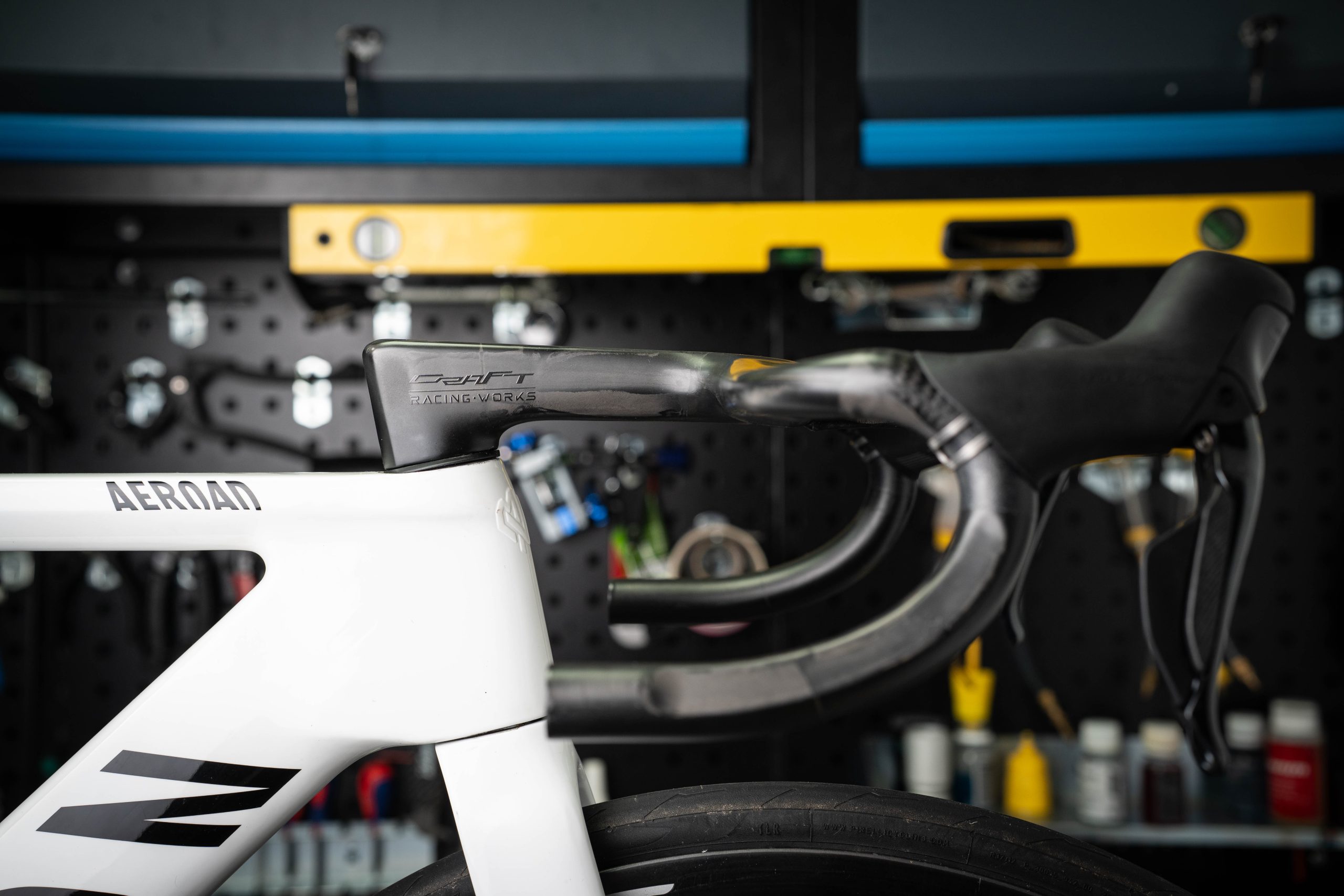

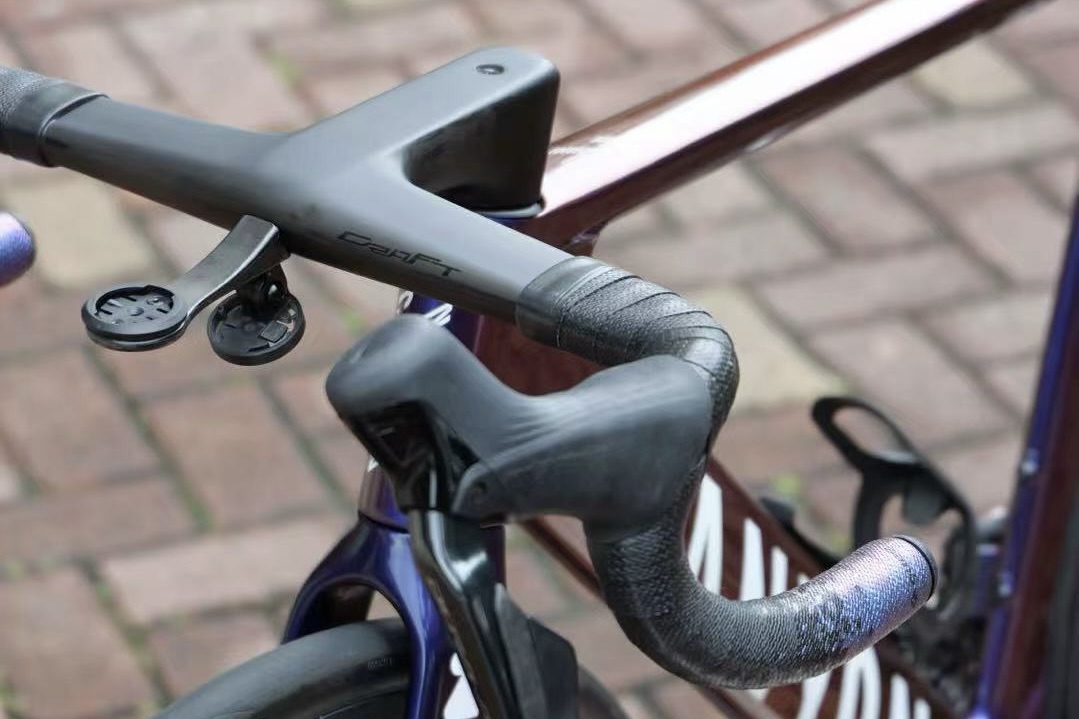

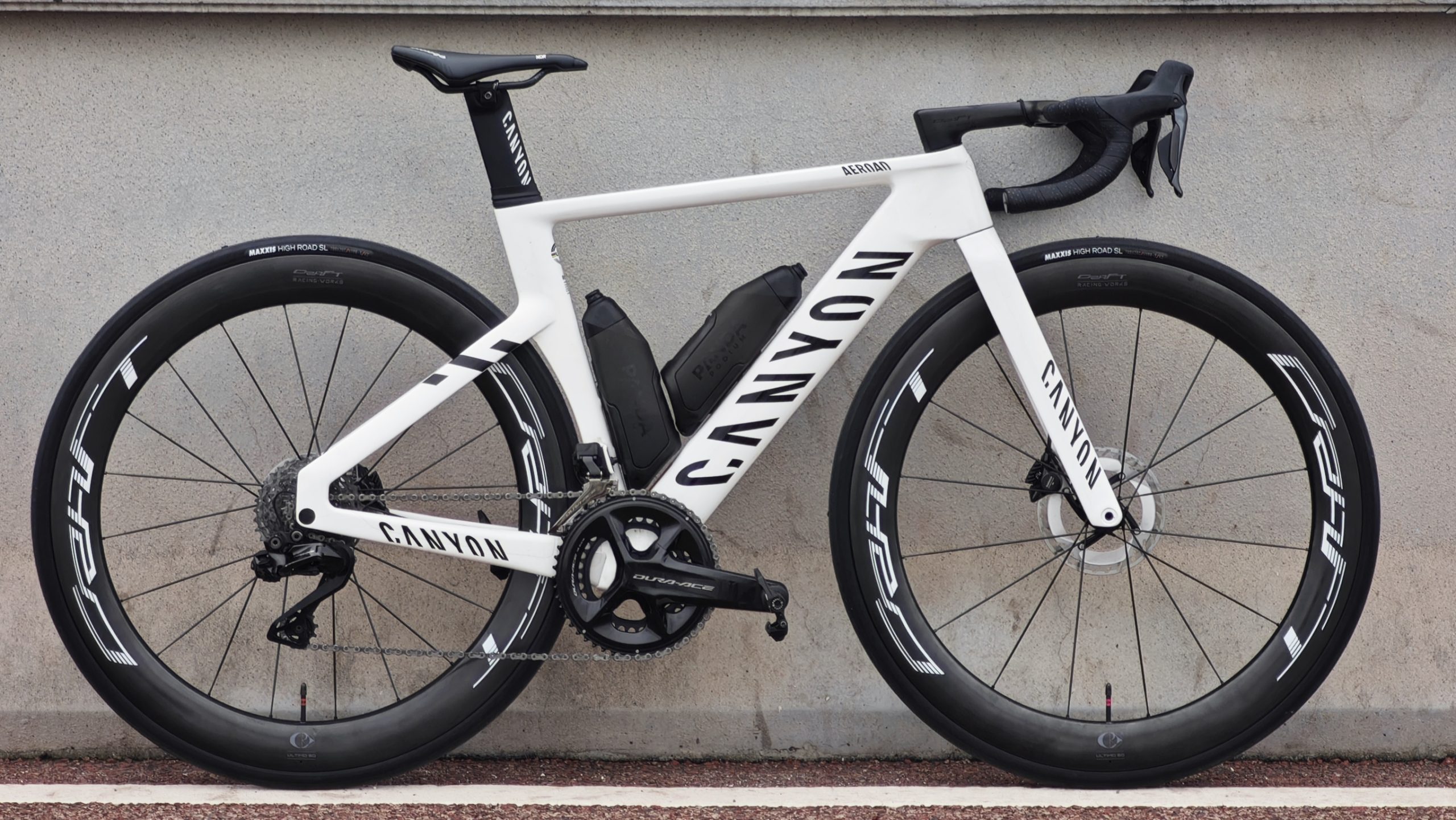

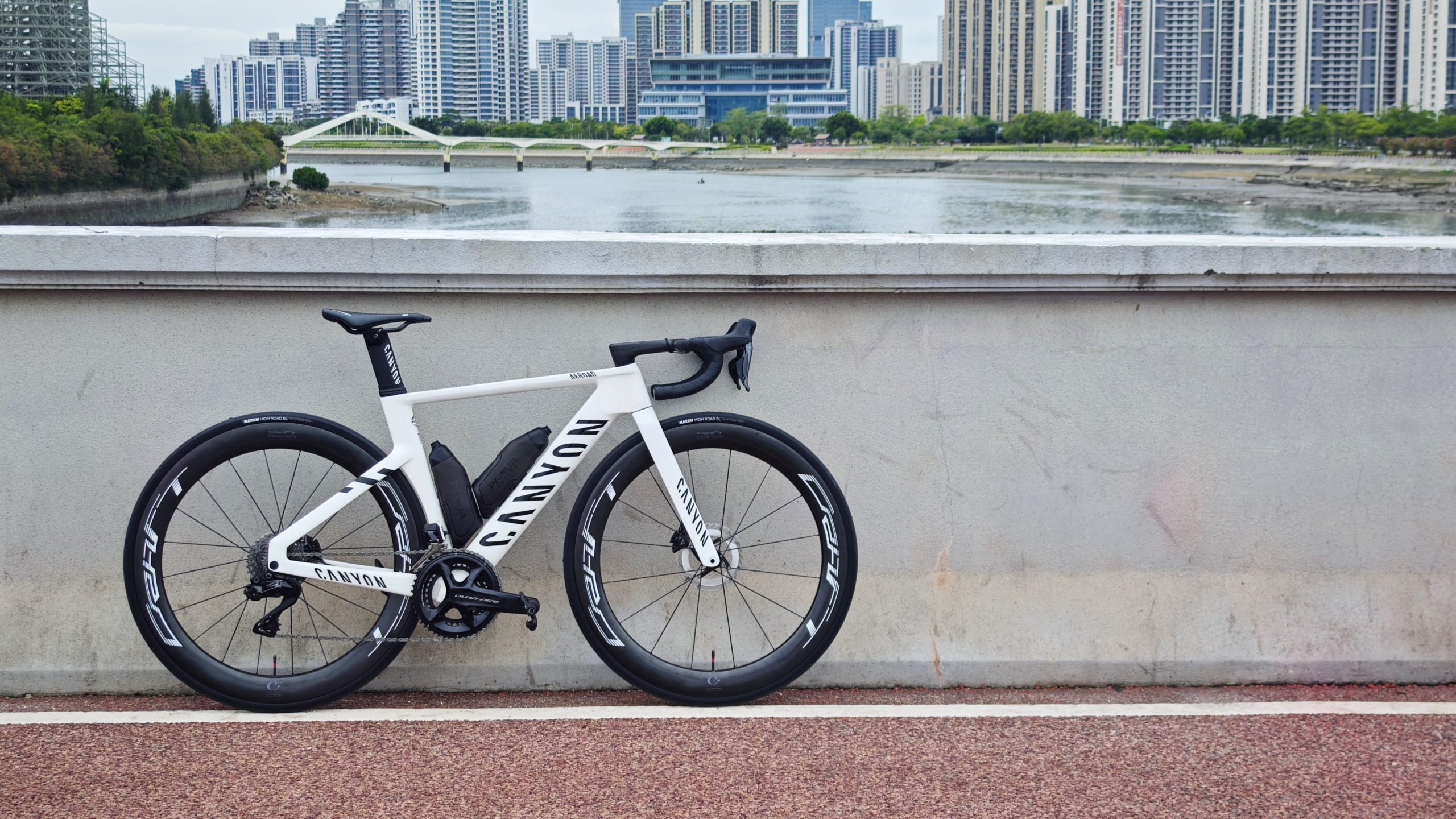

CRW now offers a brand-new integrated cockpit solution for select CANYON models, designed to reduce weight and give riders more control over their fit.
Using the same proven bar profile as the CRW HB-01, this new cockpit brings CRW’s ergonomic shaping, clean integration and modern sizing options to compatible CANYON bikes. For riders still using the stock integrated setup, it offers a practical way to save up to 100g, refine the front end of the bike and create a more tailored riding position.
It is not about completely changing the character of the bike, but about making a meaningful upgrade to the front end: less weight, cleaner integration and modern fit options, all while retaining a familiar integrated cockpit layout.

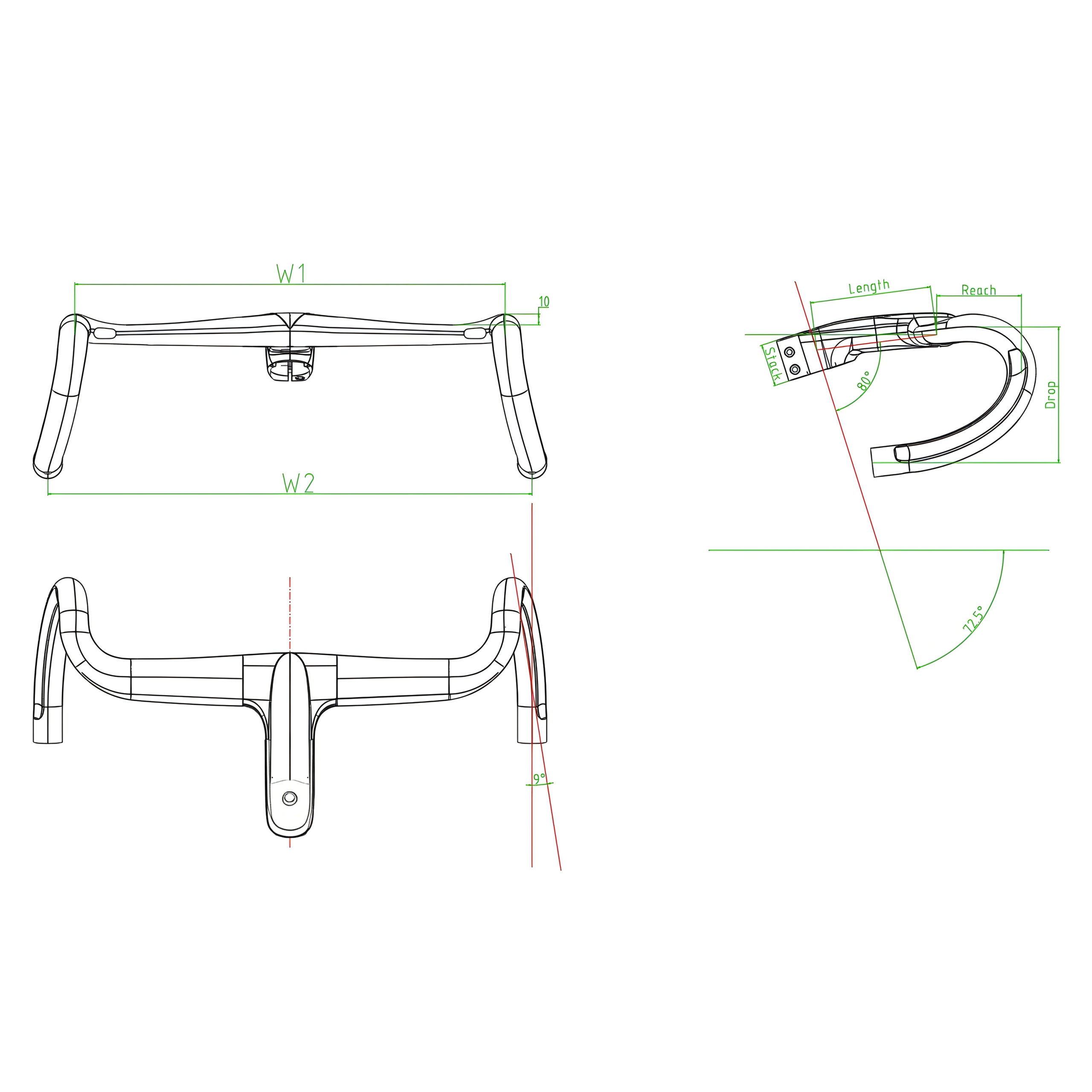

| Size | 34 | 36 | 38 |
|---|---|---|---|
| W1 Hood-to-hood (mm) | 340 | 360 | 380 |
| W2 Drop-to-drop (mm) | 380 | 400 | 420 |
| Reach (mm) | 70 | 70 | 70 |
| Drop (mm) | 115 | 115 | 115 |
| Drop flare | 9° | 9° | 9° |
| Angle | 10° | 10° | 10° |
| Stack (mm) | 53 | 53 | 53 |
| Length (mm) | 80 / 90 / 100 / 110 / 120 / 130 / 140 | ||
| Weight (g) | 300 g (360 × 100) | ||
Important Notes
*¹ Headset Adapter & Spacer:
The adapter is made of nylon, available in either injection‑molded or 3D‑printed version depending on the bike models. It is reverse-engineered from scanning original factory top caps.
*² Important Installation Reminder:

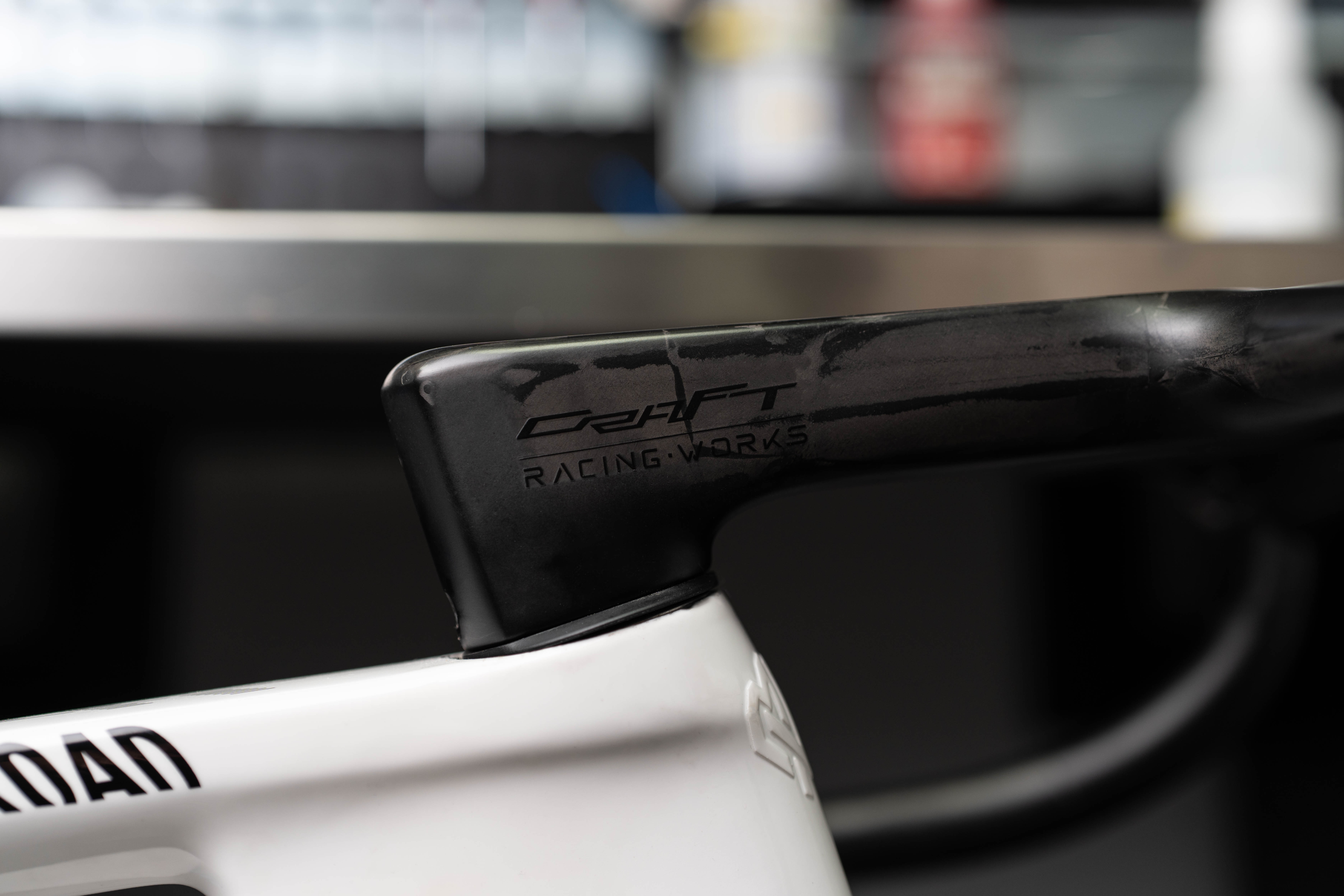

Interference between the top cap and frame may happen on individual frames. This risk is higher for repainted frames with thicker paint layers.
If contact occurs, you may lightly sand the top cap to achieve proper fit. Always double‑check the fit before fully tightening all components.
Additional information
| Handlebar Width | 340mm (Drop Width 380mm), 360mm (Drop Width 400mm), 380mm (Drop Width 420mm) |
|---|---|
| Handlebar Length | 100mm, 110mm, 120mm, 130mm, 140mm |
| Bike Model for CRW | Canyon Ultimate / Aeroad / Endurace |
Brand
CRW Works
| Brand Name: CRW Works | Chinese Company Name: 厦门铠富特运动科技有限公司 |
| Founded: 2021 | # of Employees: 5-10 |
| Headquarters: Xiamen, Fujian | Products Categories: Wheels |
