9Velo 2026 Gravel Disc Sapim Spoke GB series
Price range: $1,089.00 through $1,209.00
“Sapim CX-Ray Spokes: Proven Performance at an Affordable Price.”
- Available in two depths: 40mm deep (GB40) and 50mm deep (GB50)
- Just 1307g±5% (with alloy Shimano Freehub)
- 28mm Internal Wide, 34mm Outer Wide
- Optional Berd Polymer Spoke
- Titanium freehub body upgrade available.
- Tire Size Range: 700×38c-700×52c
- Rider Weight Limit: 120kg/265lbs
- *The wheelset is build with order, the wait time will be around 5-10 days.
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description
FEATURES

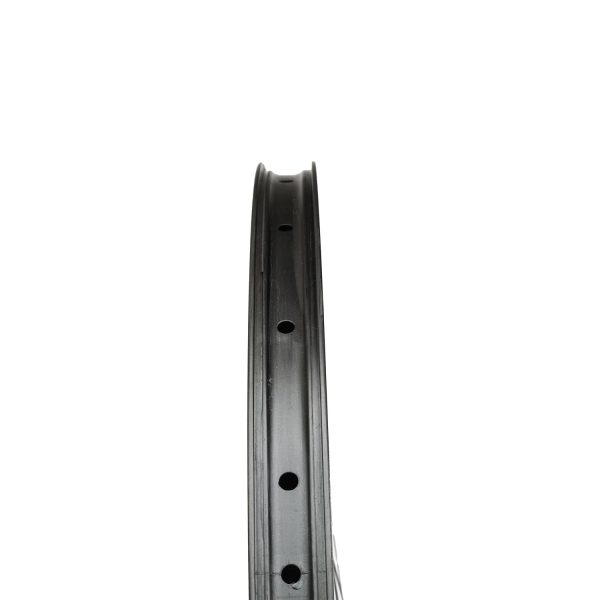

RIM
With a wide 28mm internal width and a 34mm external rim width, GB gravel wheels strike a balance between comfort, control, agility, and speed.
40mm and 50mm deep rim depth options are available; riders can choose based on terrain and riding style.
The hooked profile design of rims provides a larger selection of compatible tires, accommodating different riding styles and preferences. The hooked design also ensures a secure tire fit, preventing blowouts and enhancing safety.
Tubeless/clincher compatibility offers you more choices of tires.
The gravel-specific carbon layup with high-level precision makes an extraordinary stiffness-to-weight ratio, ensuring your confidence on the road and on the gravel.

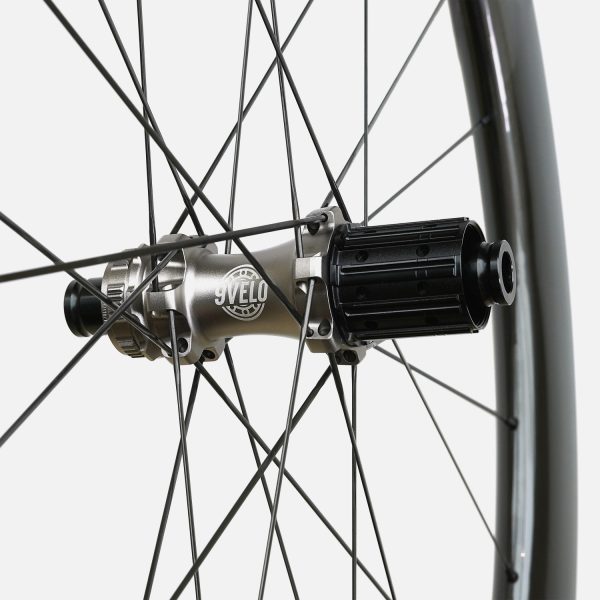

HUB
Hubs are designed and manufactured to match the tolerance of high-quality bearings.
Ratchet system hubs offer a fast engagement and efficient wheel for a smooth riding experience, which is beneficial for instant speed acceleration.
High-precision hub axle is hard anodized to add stiffness and reached a tolerance within 0.003mm.
Hubs provide convenient and easy freehub body exchange between different groupset systems and no-tool needed maintenance.
Titanium freehub body upgrade is available, which provides exceptional resistance to the cassette biting effect. This means you can enjoy a longer-lasting performance without worrying about the freehub body being damaged by the cassette (the titanium freehub body is 18 grams heavier than the standard alloy freehub body).
SPOKE & NIPPLE
- 1307g (Steel spokes)
- 1368g (Steel spokes)
SPECIFICATIONS
| GRAVEL DISC SAPIM SPOKE GB SERIES (MODEL YEAR 2026) | ||
|---|---|---|
| MODEL | GB40 (Sapim spoke) | GB50 (Sapim spoke) |
| WHEEL TYPE | 700C Gravel Wheelset | |
| BRAKE TYPE | Disc Brake | |
| TIRE COMPATIBILITY | Tubeless / Clincher Compatible | |
| RIM TYPE | Hooked | |
| RIM BED | External Spoke Holes Drilled on the Rim Bed | |
| RIM FINISH | Glossy Paintless | |
| RIM DECAL | Reflective Gray Logo | |
| RIM OUTER WIDTH | 34mm | |
| RIM INNER WIDTH | 28mm | |
| RIM DEPTH | 40mm | 50mm |
| TIRE SIZE RANGE | 700×38c – 700×52c | |
| SPOKE HOLE COUNT | 24H / 24H | |
| SPOKE | Sapim spokes (black) | |
| NIPPLE | Aluminum | |
| HUB | 9Velo (Ratchet System, 36 Teeth), Center Lock, 12×100 / 12×142 | |
| FREEHUB | Shimano HG / Sram XDR / Campagnolo N3W / Shimano MSR | |
| BEARING | Steel Bearings – Front: 6803×2, Rear: 15267×2, 6802×2 | |
| RIDER WEIGHT LIMIT | 120kg / 265lbs | |
| WEIGHT (Pair)* | 1307* | 1368g* |
*Weighted with alloy Shimano Freehub, tubeless tape not included, ±30g
* The titanium freehub is 18 grams heavier than the alloy freehub.
*Specs are subject to change without notice.
IN THE BOX
Wheelset
Tubeless valves
Tubeless tape (pre-installed)
Additional information
| Wheelset Model for 9VELO | GB40 (40mm), GB50 (50mm) |
|---|---|
| Spokes Type | Sapim Cx-ray Spokes |
| Freehub Type | Shimano HG Compatible, Shimano Micro Spline Road, Sram XDR Compatible, Campagnolo N3W 13 Speed Compatible |
| Hub Ratchet | 36t, 45t |
| Hub Color | Black, Silver Gray |
| Freehub Body Material | Alloy, Titanium |
