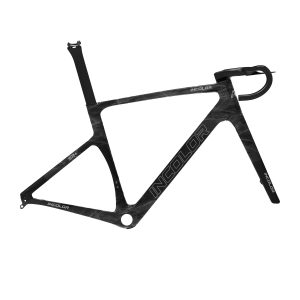

INCOLOR SSR Road Frameset
Price range: $4,399.00 through $5,499.00
Engineering Excellence. Relentless refinement.
- INCOLOR’s Ultimate Road Frame
- Dual steerer design narrows the head tube width to just 34 mm
- Integrated seatpost reduces weight and increases stiffness
- Wind-tunnel tested: Against INCOLOR’s SR+ and industry leaders
- Ultra-lightweight: 750g (Integrated Seatpost / Size 54 unpainted without accessories)
- Lifetime warranty and crash replacement discount
No reviews yet.
- Description
- Additional information
- Brand
- Reviews (0)
Description
INCOLOR SSR
The SSR represents Incolors’s most advanced expression of precision, stiffness, and aerodynamic refinement.
Every angle was examined.
The SSR was designed to deliver peak performance with seamless elegance.
This bike is an unapologetic demonstration of INCOLOR's engineering DNA.
Every edge slices cleaner, every junction transfers power more directly, and every ride proves that the plies of carbon are working in perfect harmony.
To ride the SSR is to embrace a question that defines progress:
Can it be better?

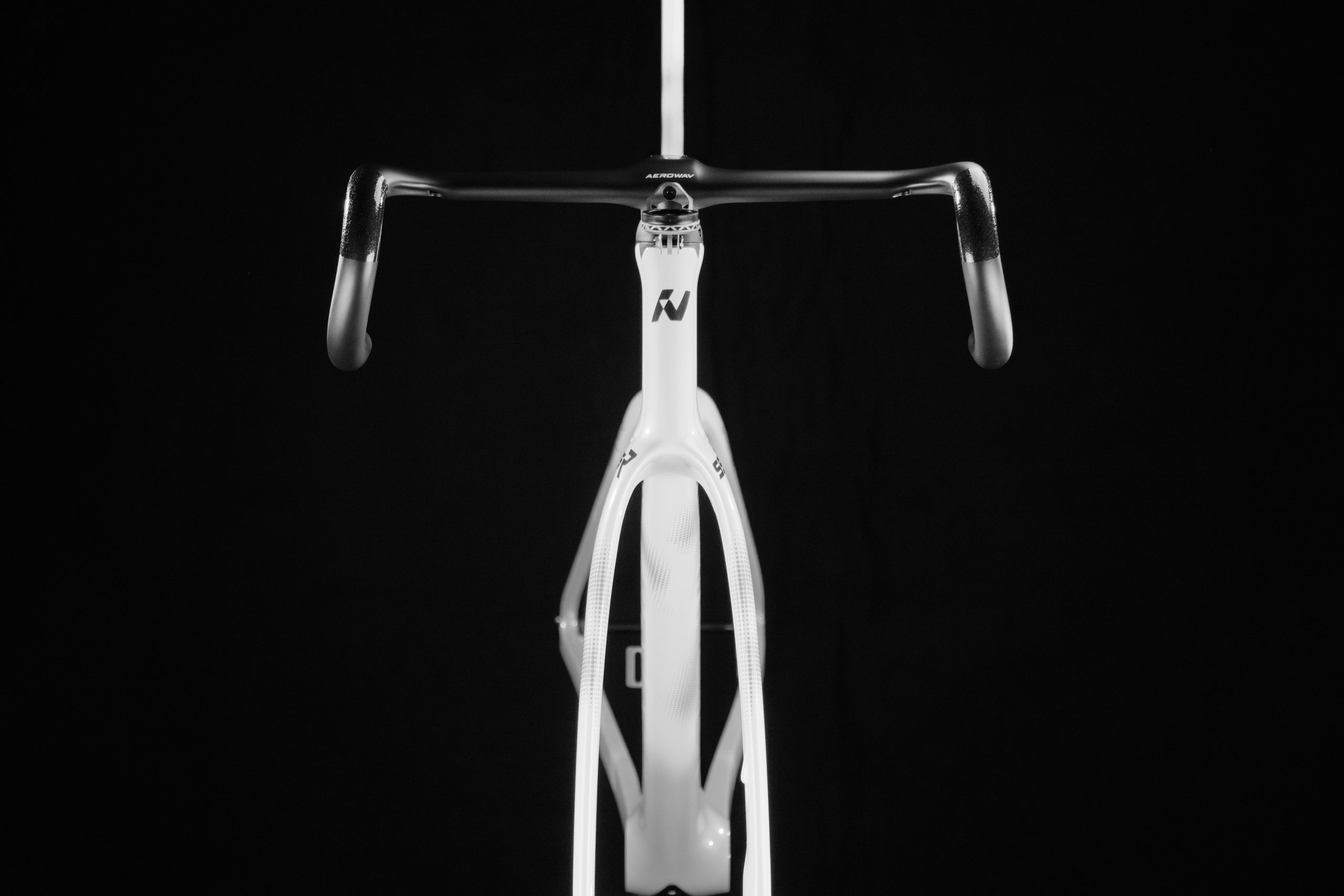

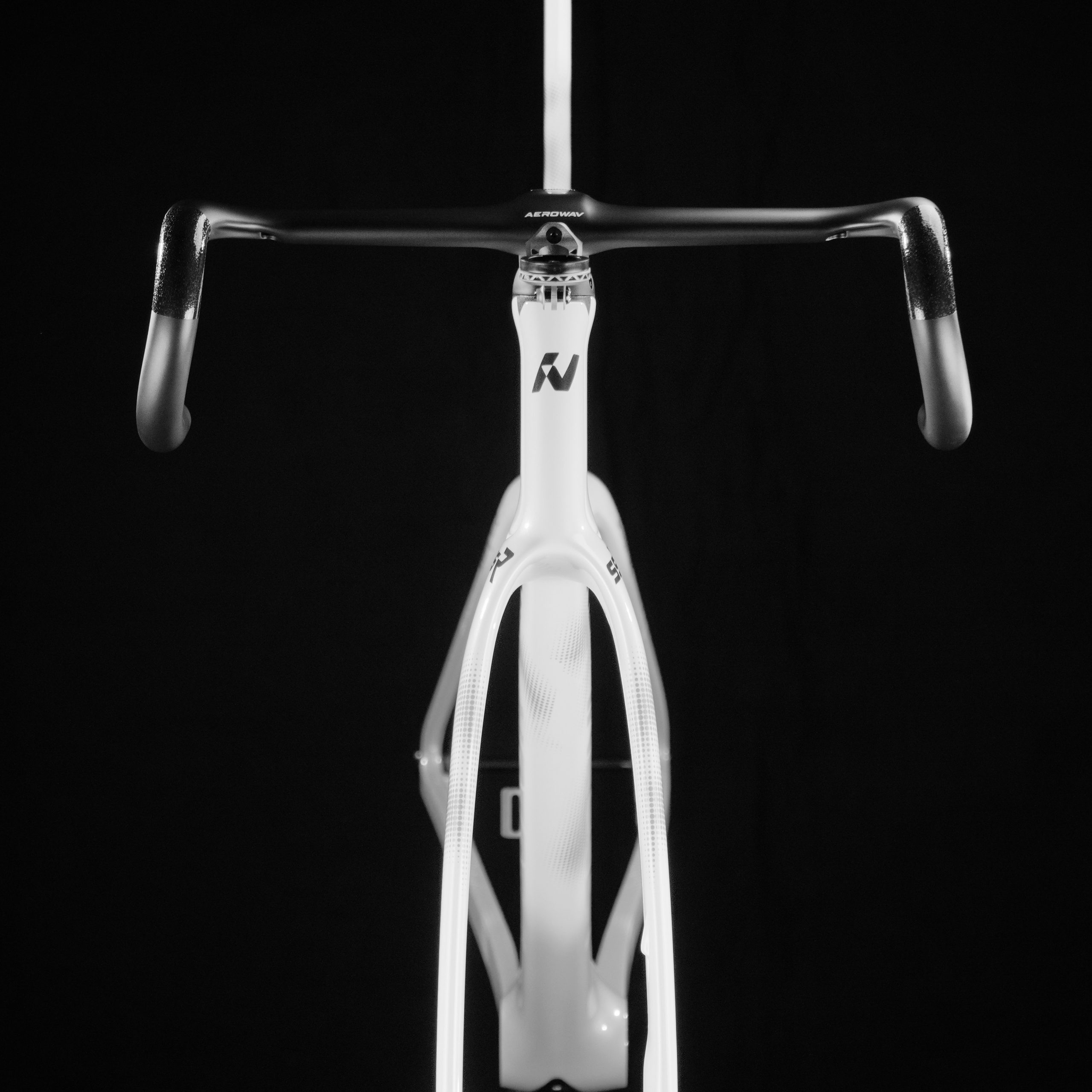

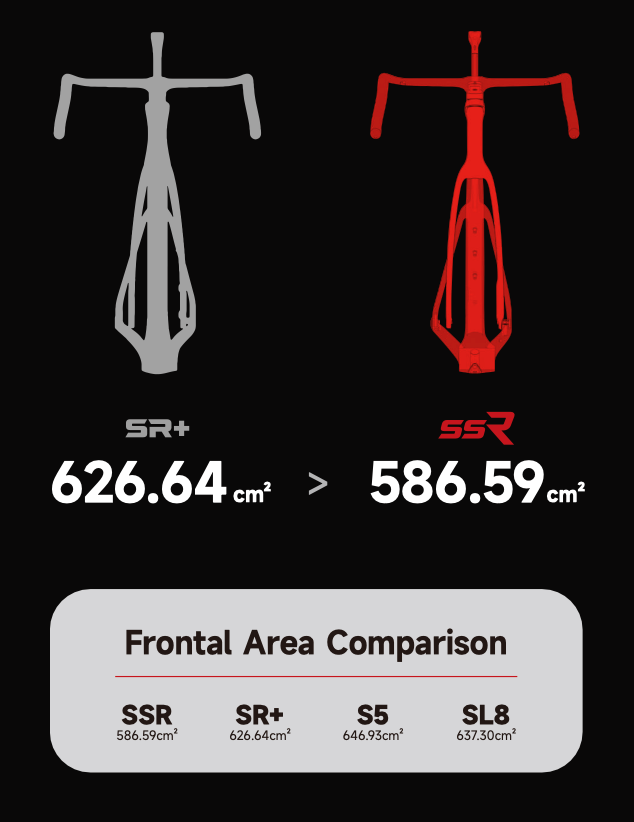

FRONTAL AREA
The SSR has had a reduction in frontal area which was tested not only against their own SR frame, but also against the Cervélo S5 and the Specialized Tarmac SL8. The frame’s frontal area is minimized to just 586.59cm².

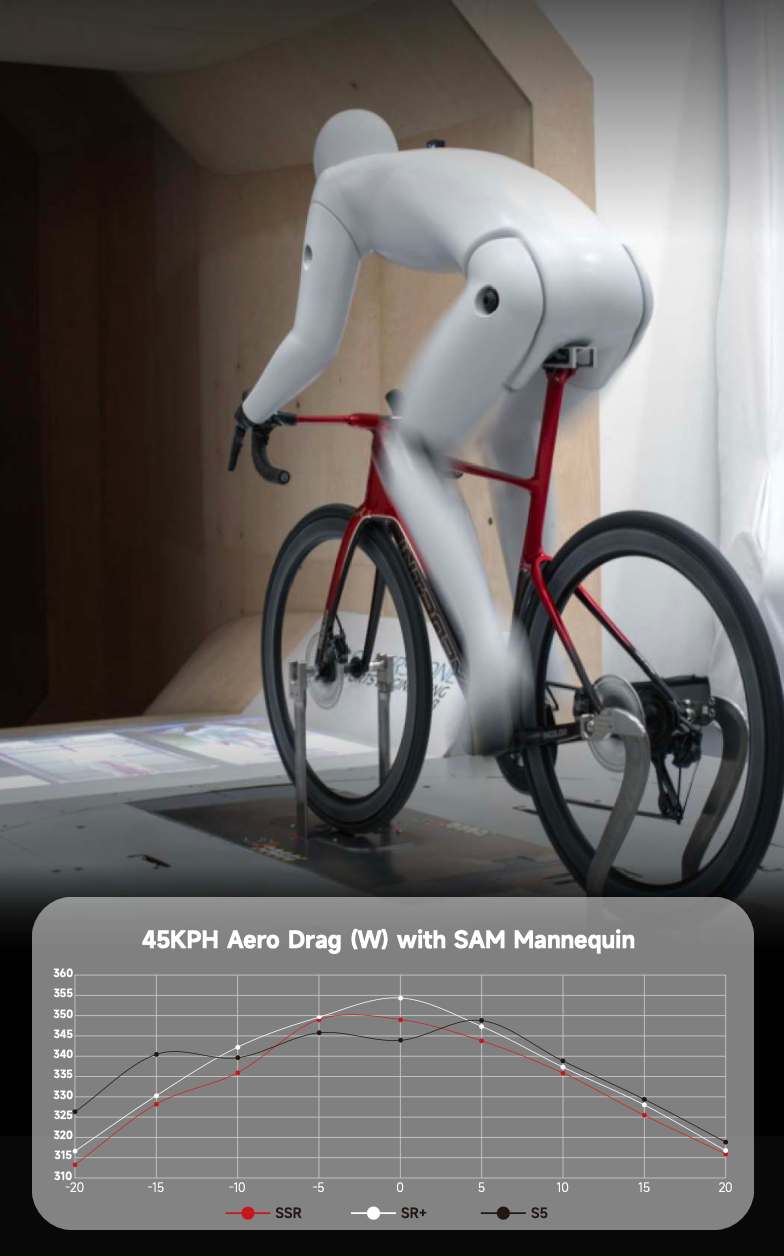

DRAG REDUCTION
Tested at the Silverstone Sports Engineering Hub (UK), the SSR demonstrates up to 5.35 W less drag than the SR+ and averages 3.99 W savings over the Cervélo S5 at 45 km/h across yaw angles of 0–20°.

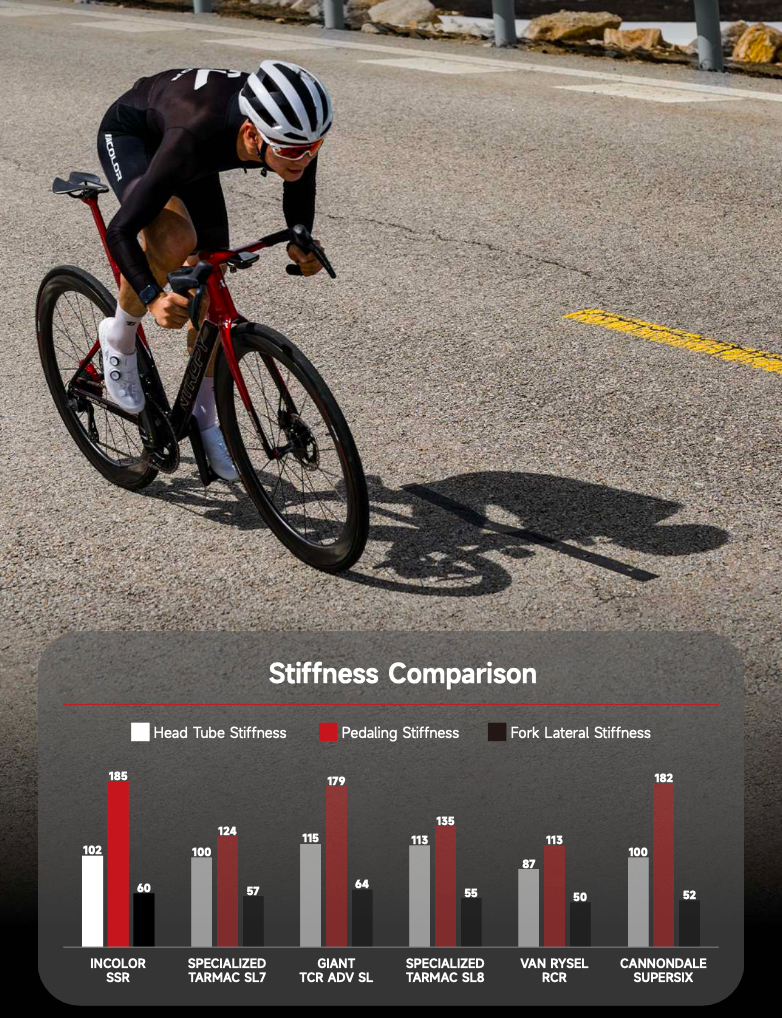

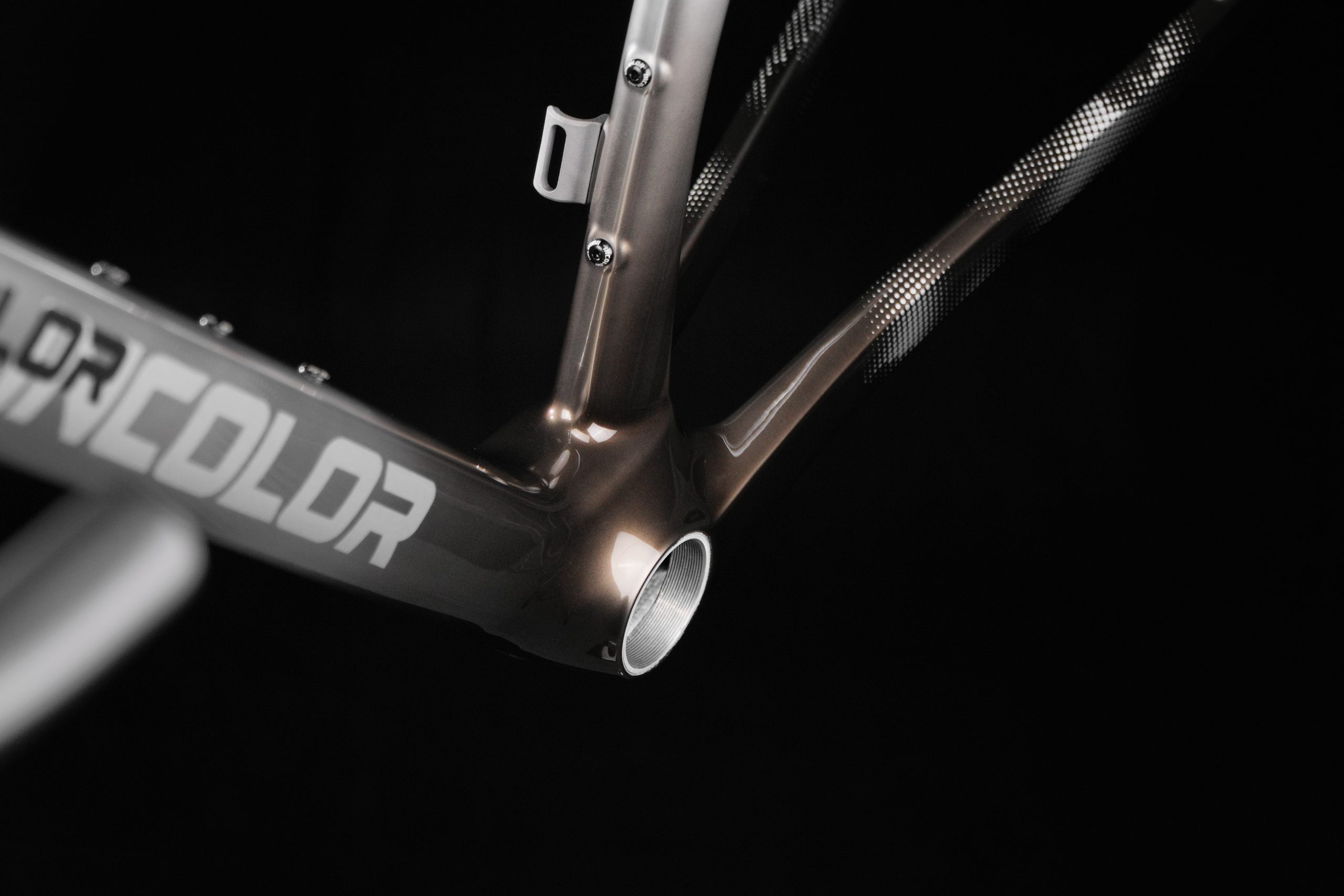

STIFFNESS
To compete with industry leaders, INCOLOR fine-tuned the bike's exact characteristics by focusing on stiffness in the headtube, bottom bracket, and the fork's lateral performance.

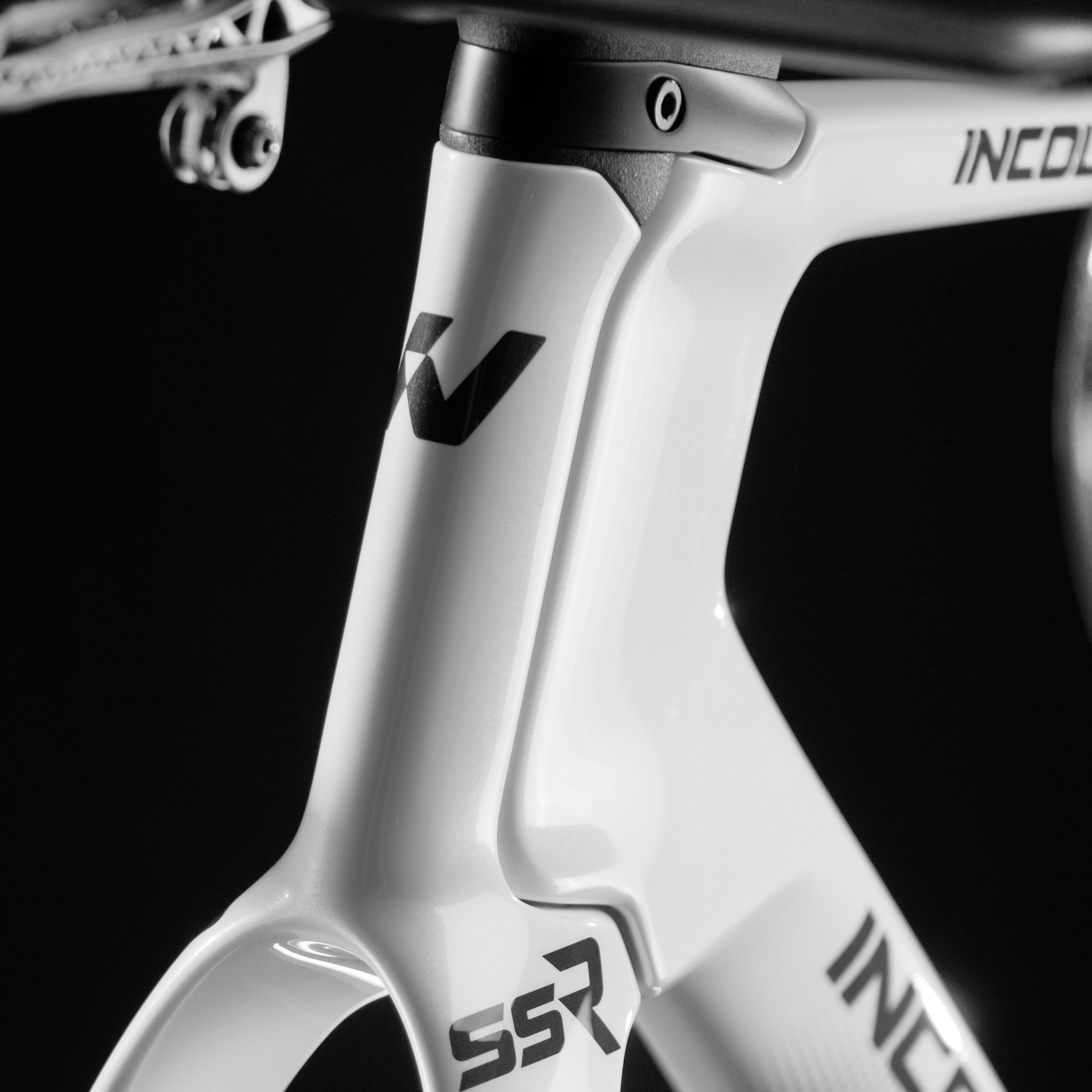

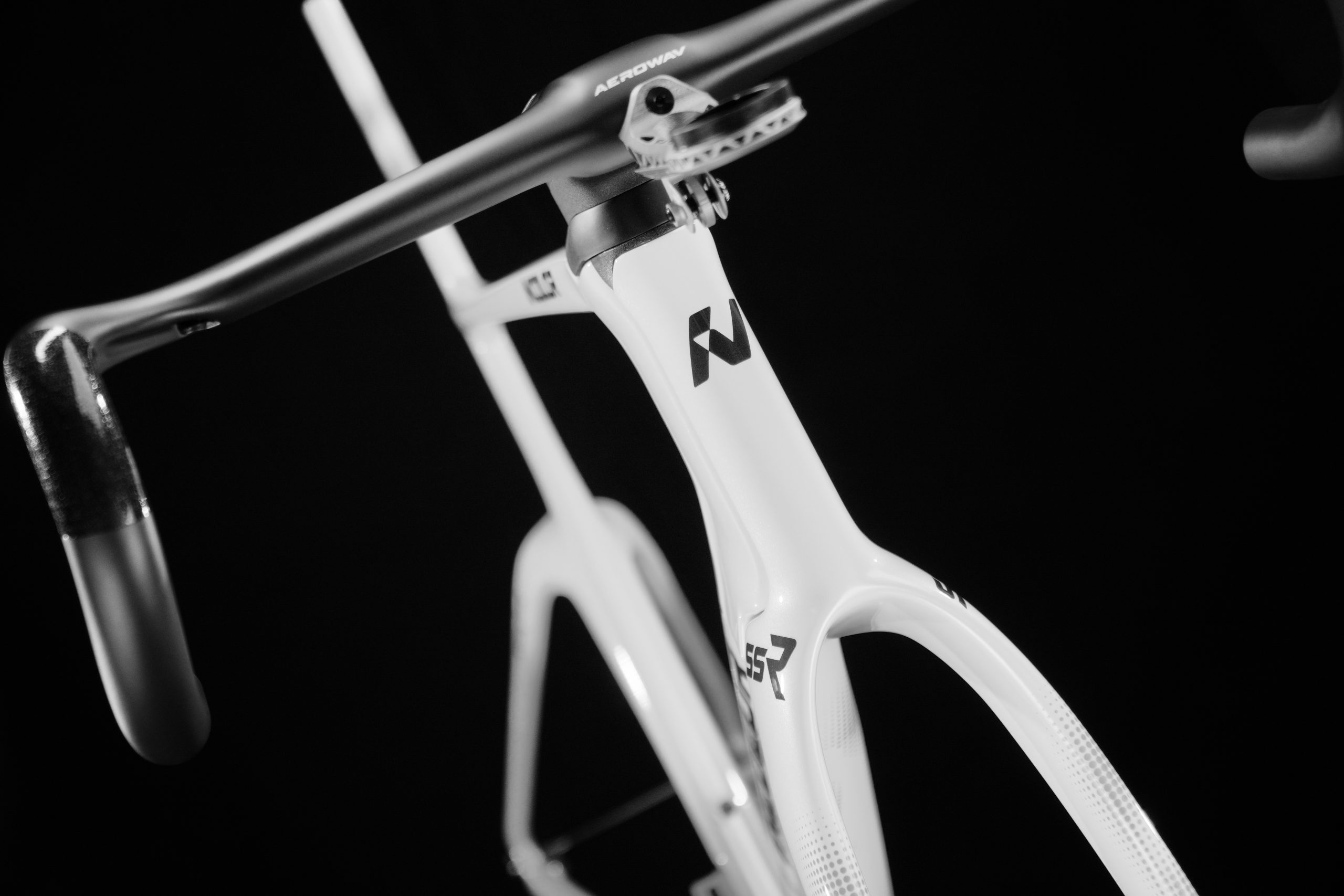

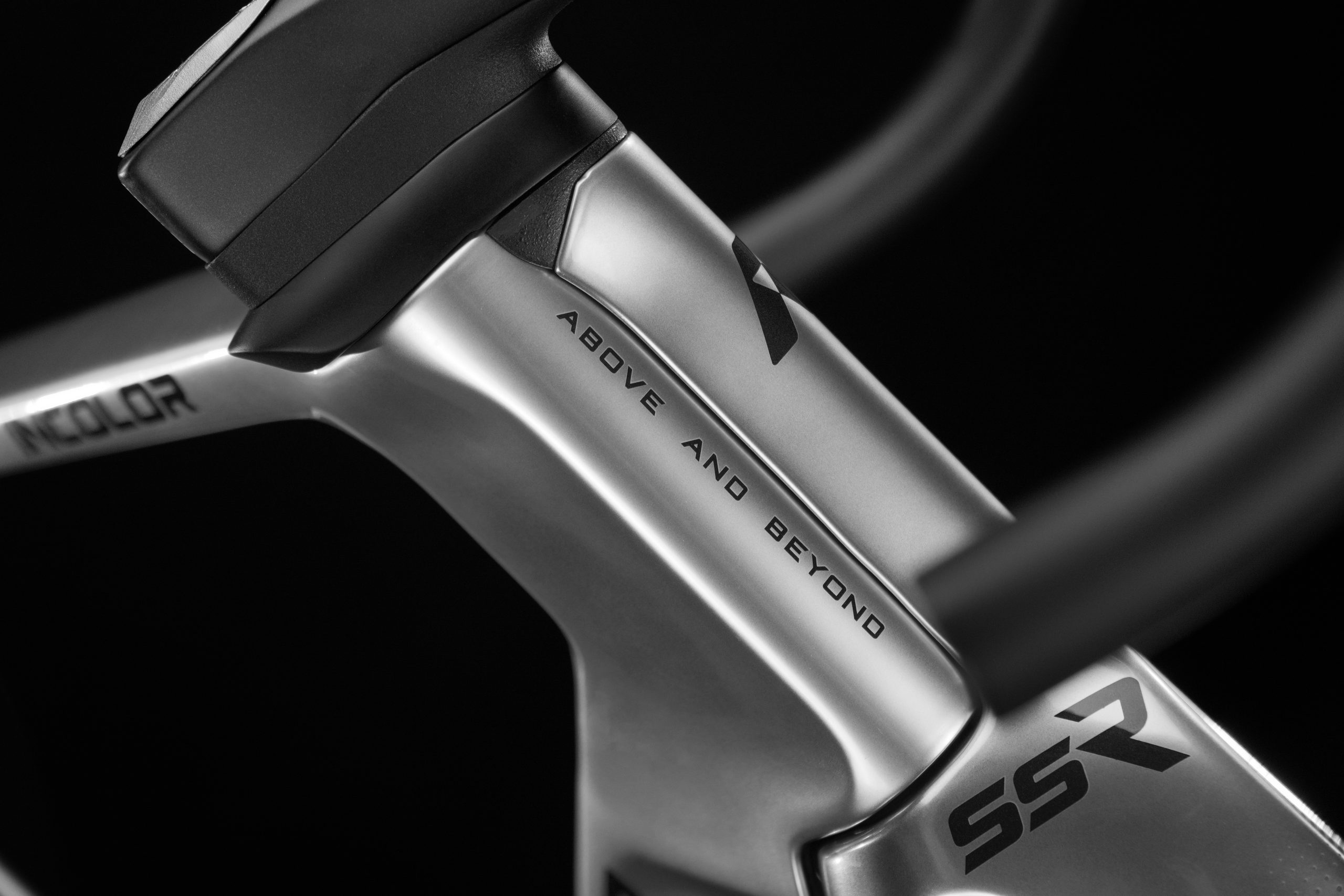

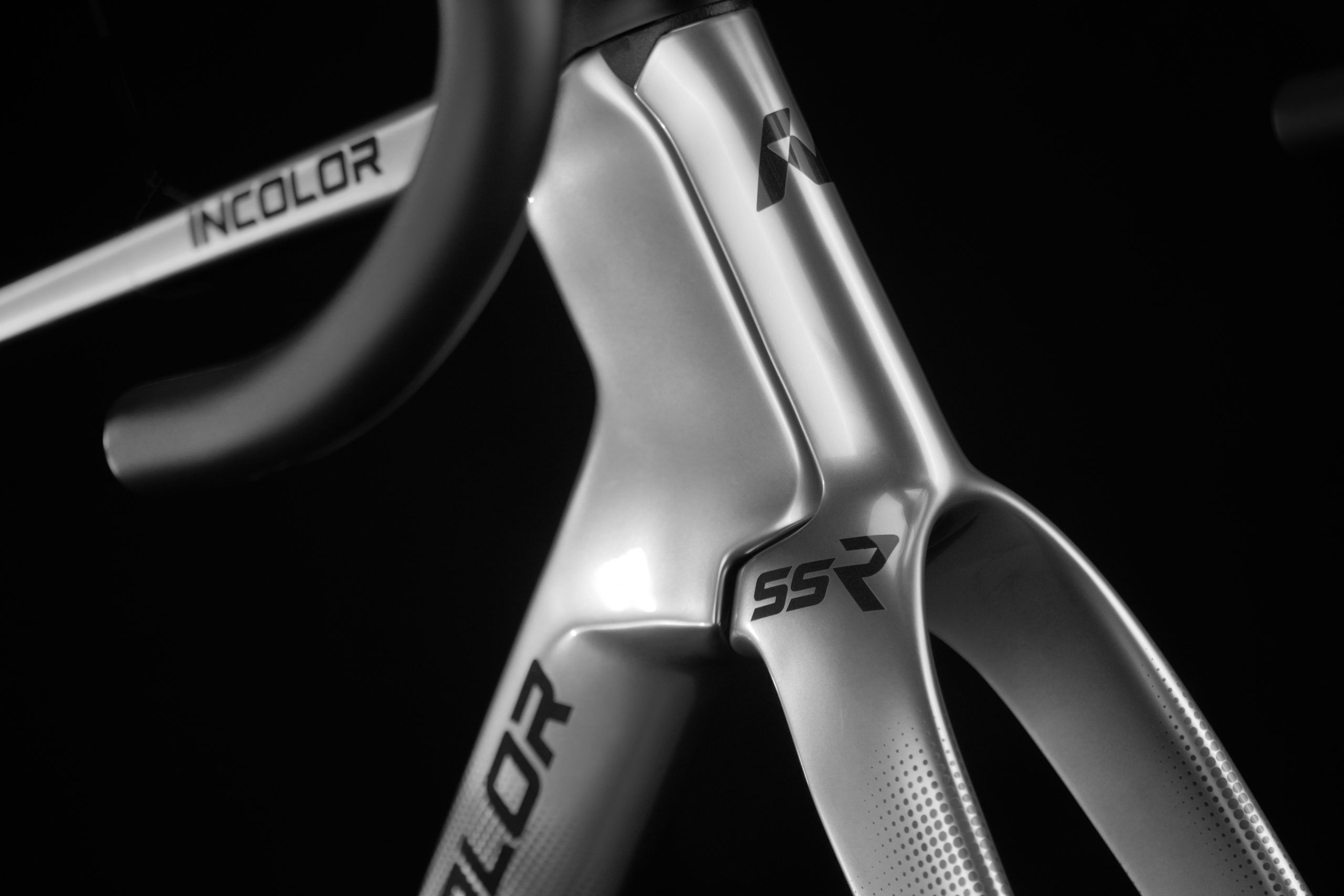

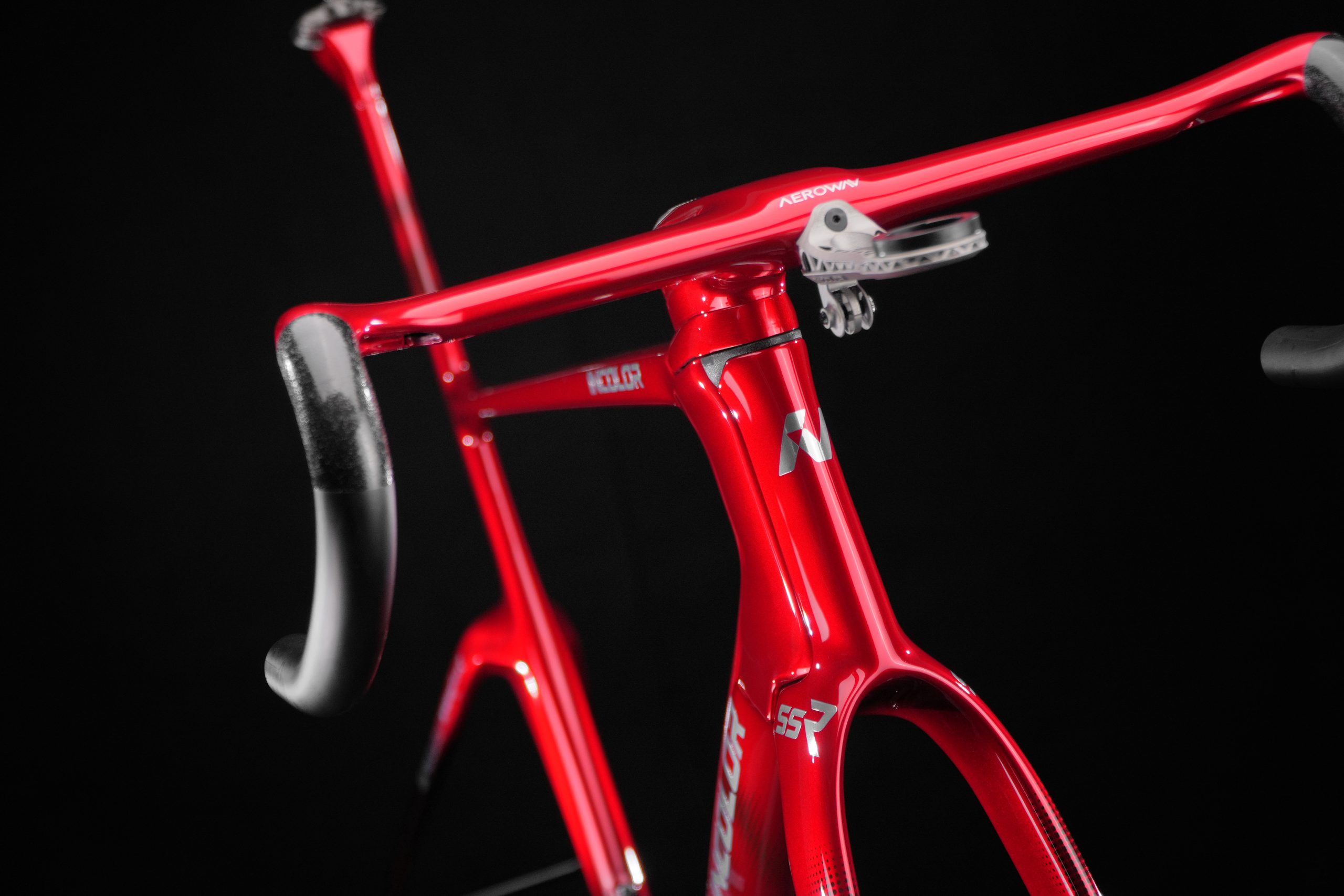

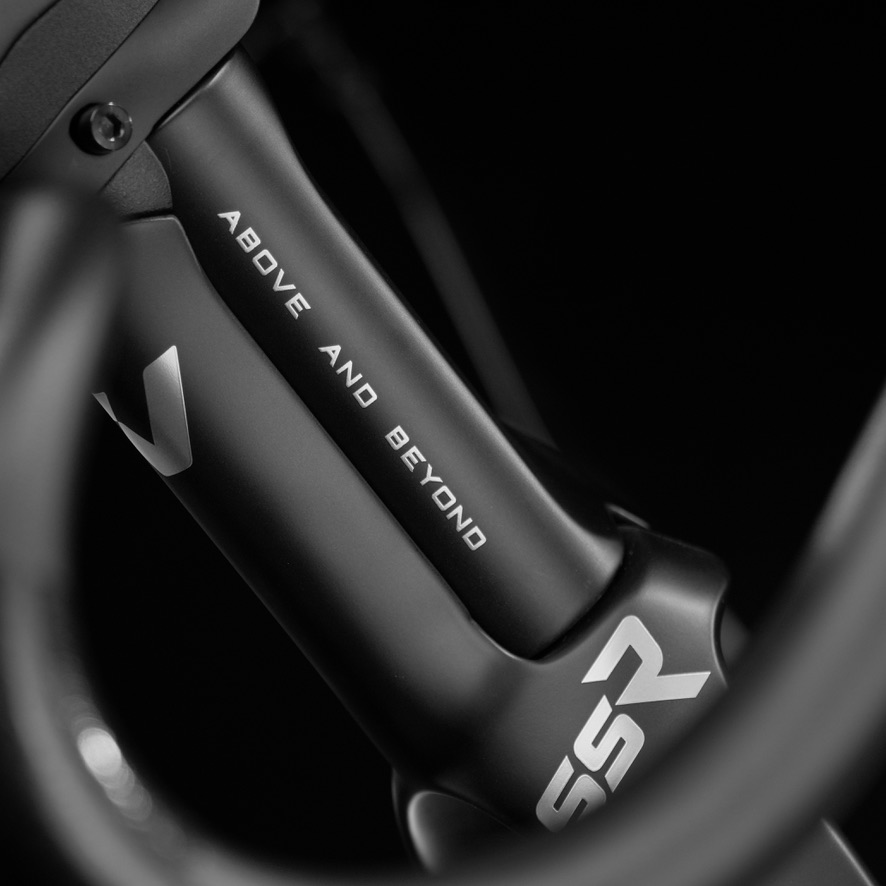

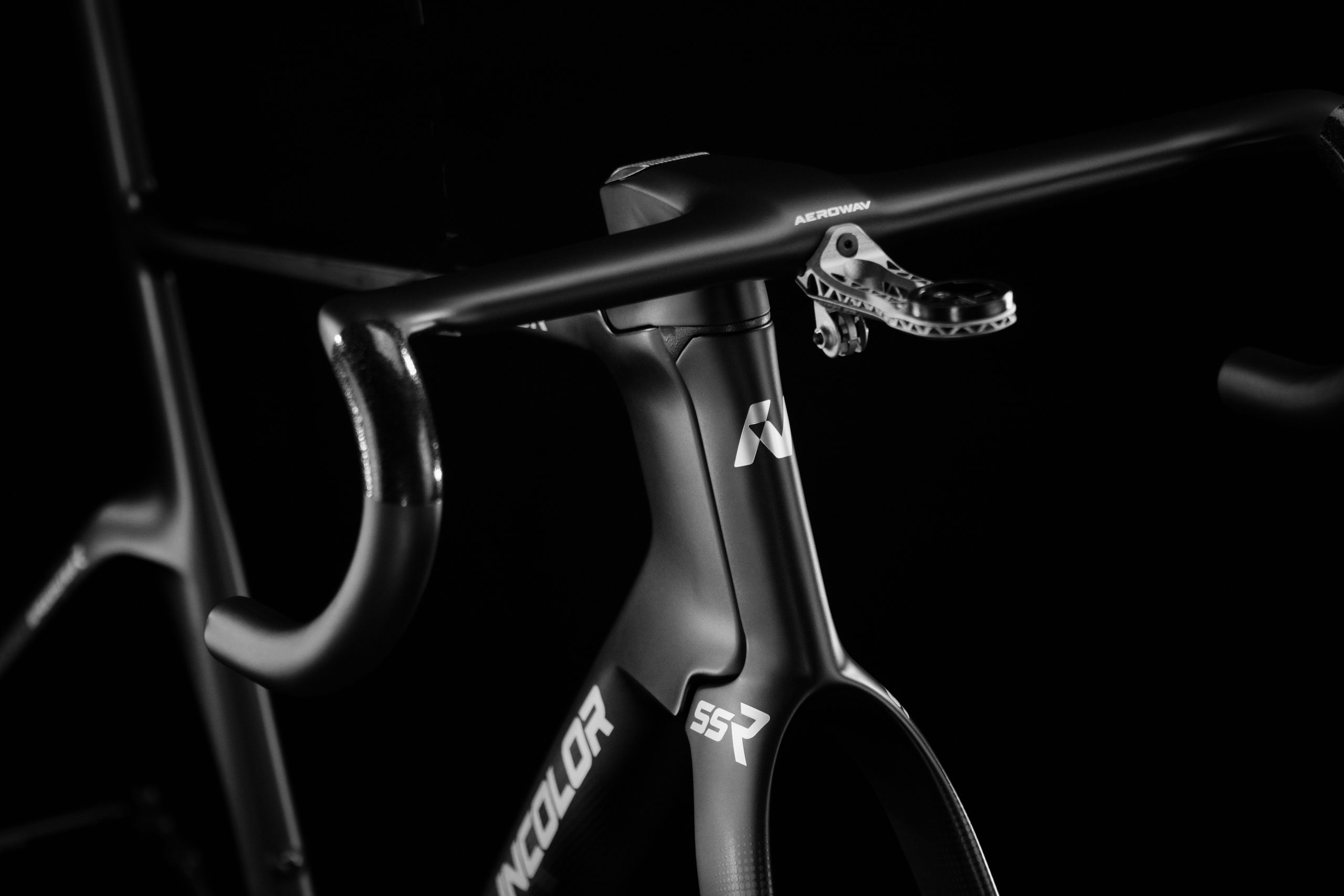

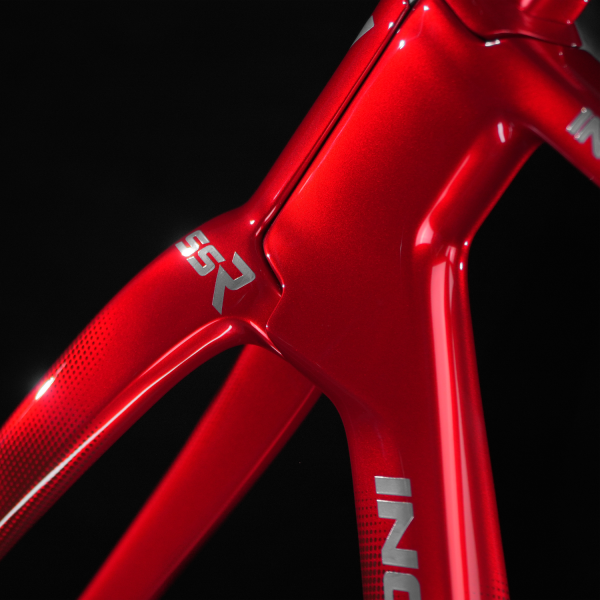

DUAL STEERER TUBE
- The SSR’s radical dual steer tube design narrows the head tube to just 34mm, cutting frontal area by 6.4% over their SR+, while also boosting front-end stiffness.
- By distributing forces between inner and outer tubes, it delivers unmatched steering precision and control.

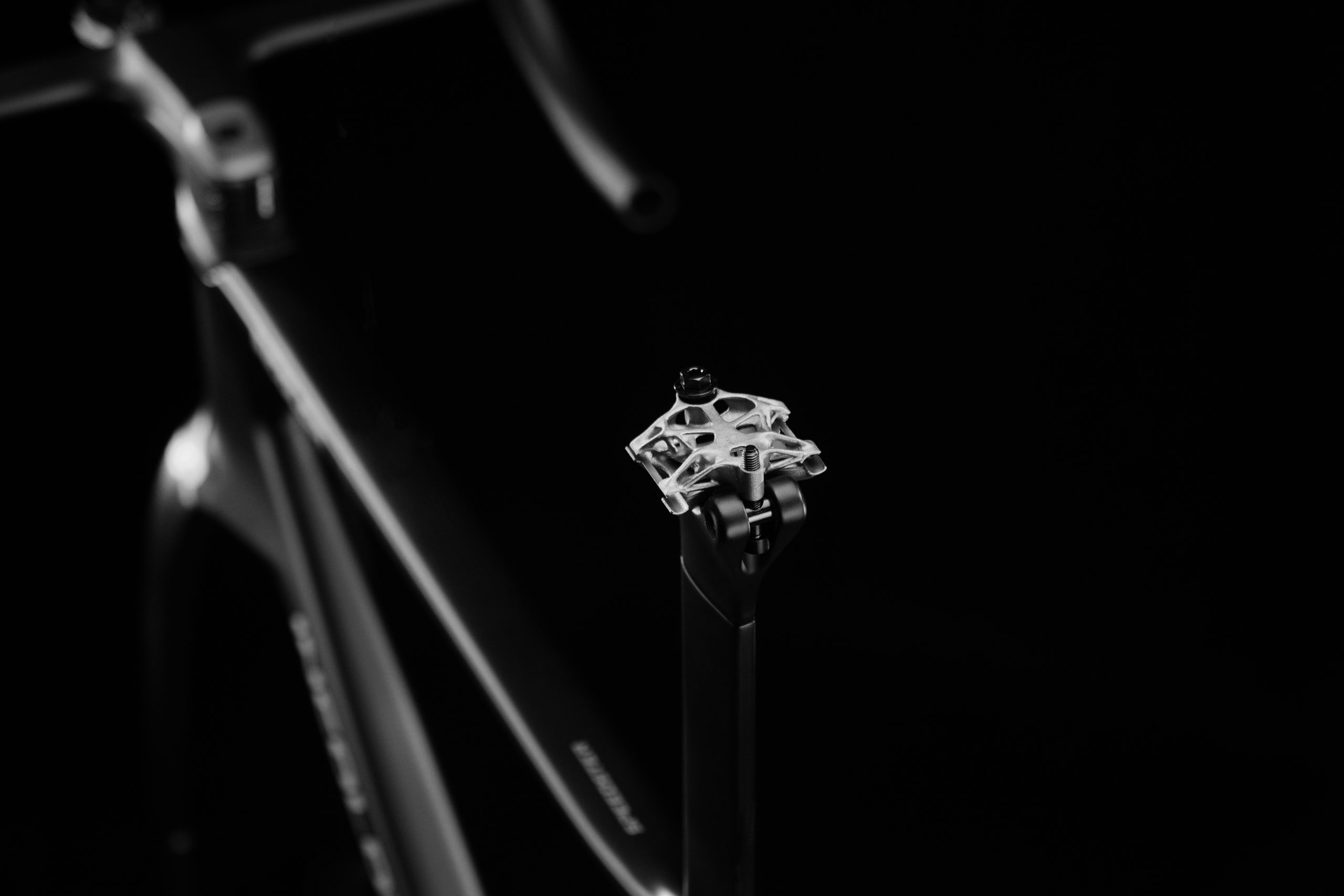

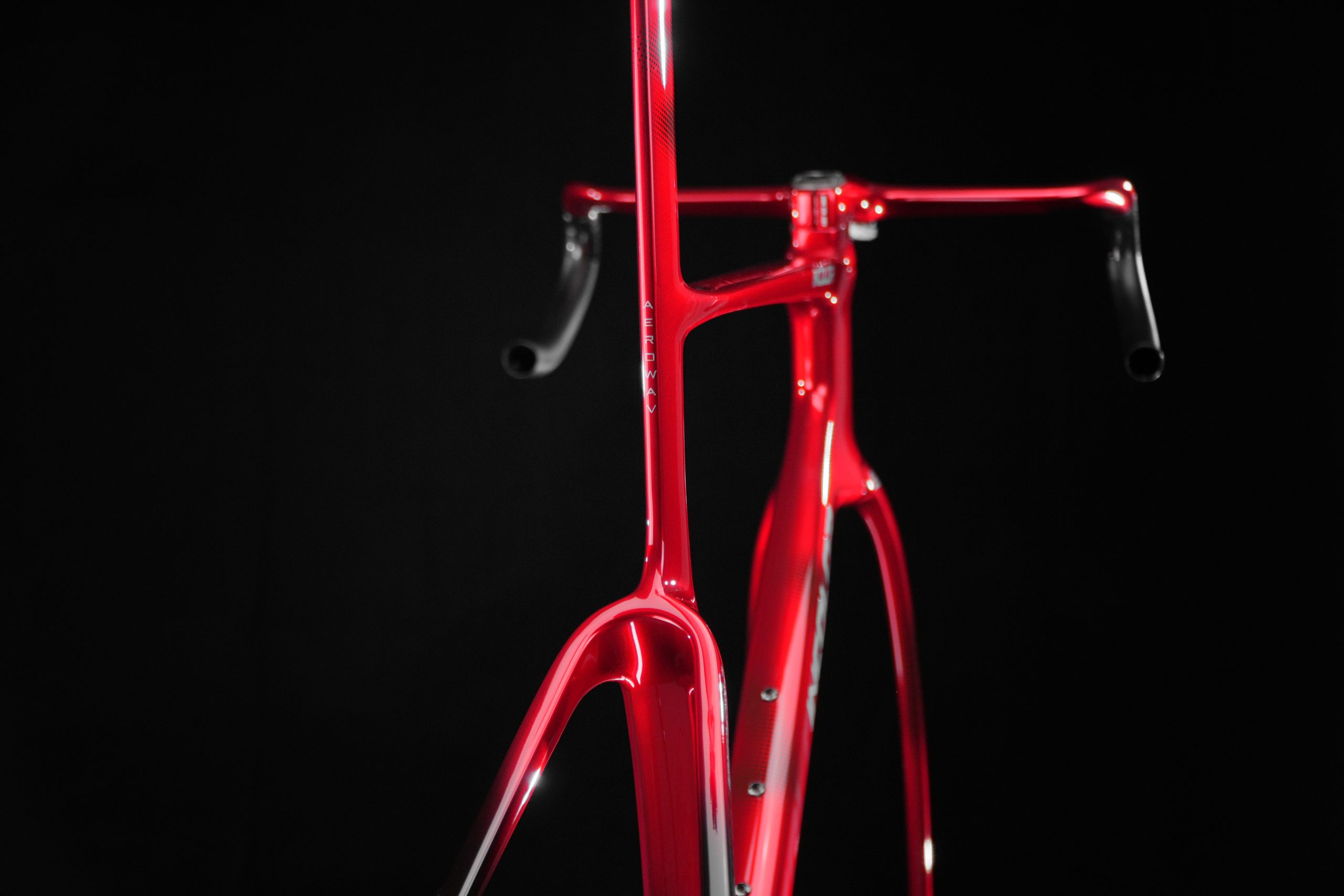

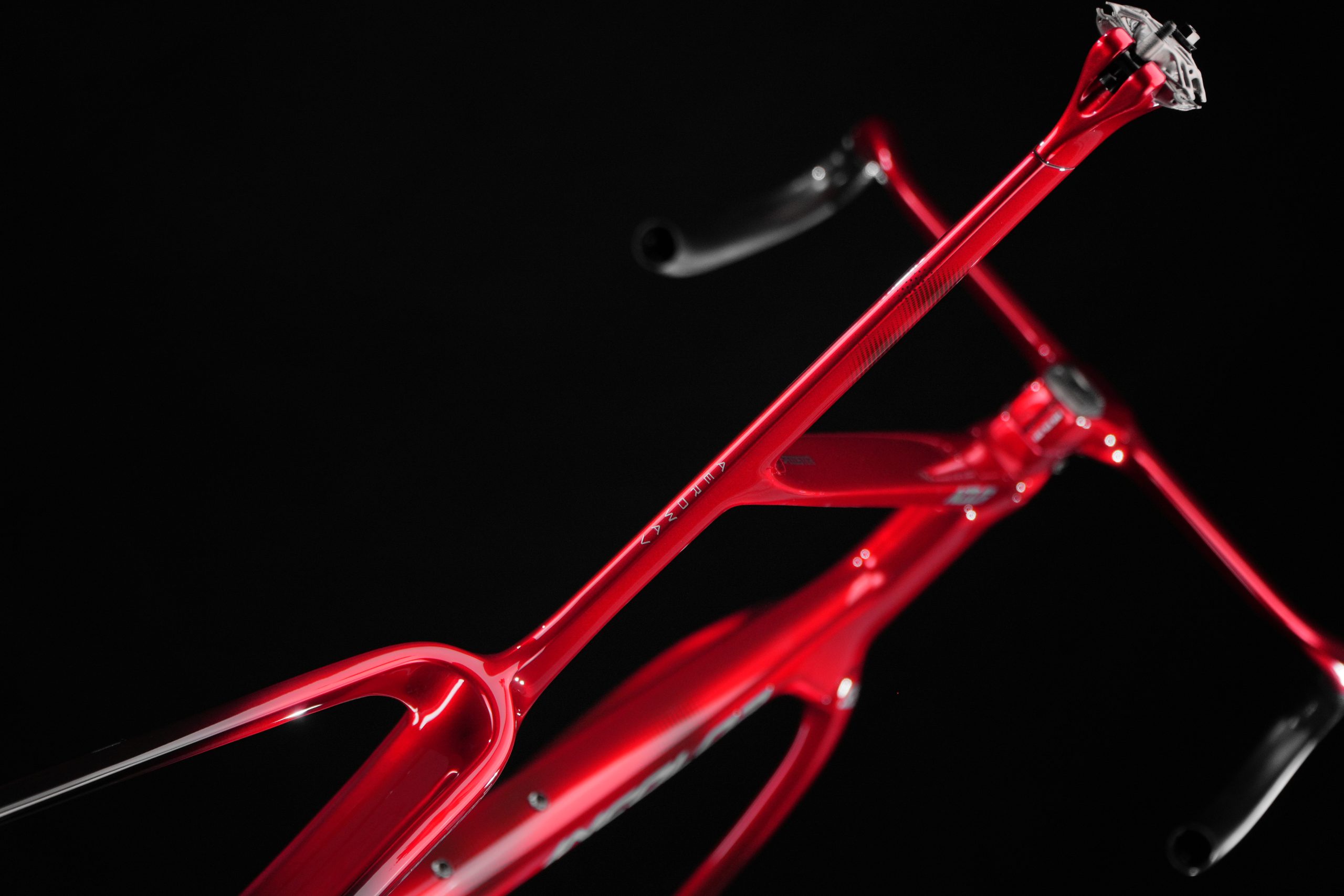

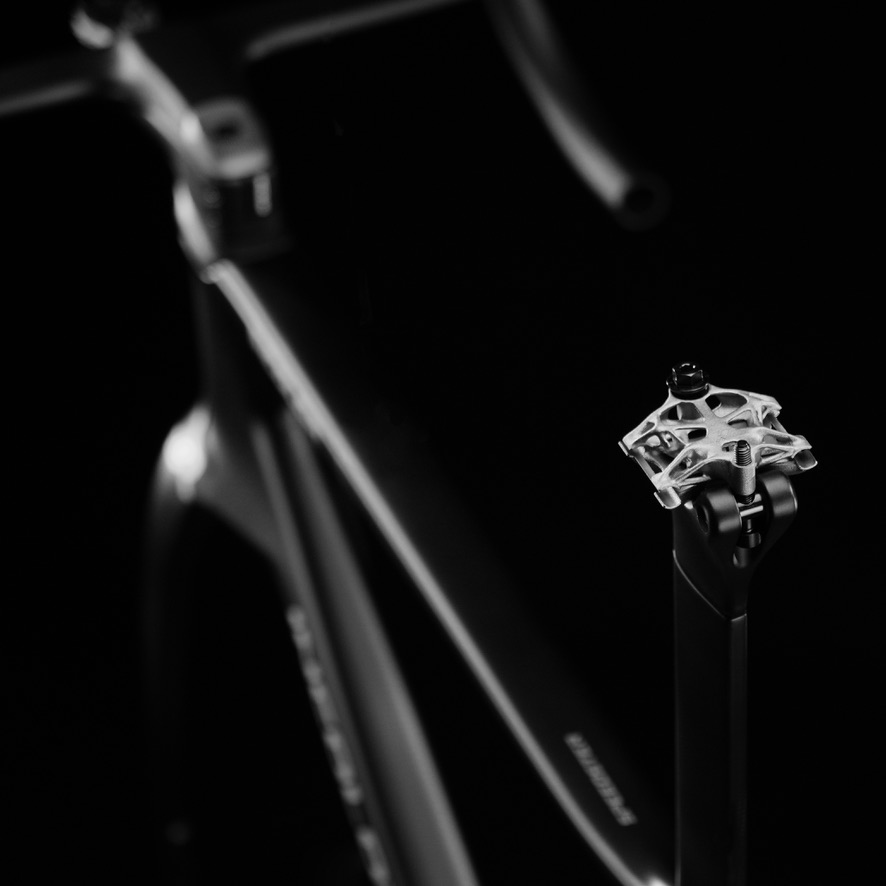

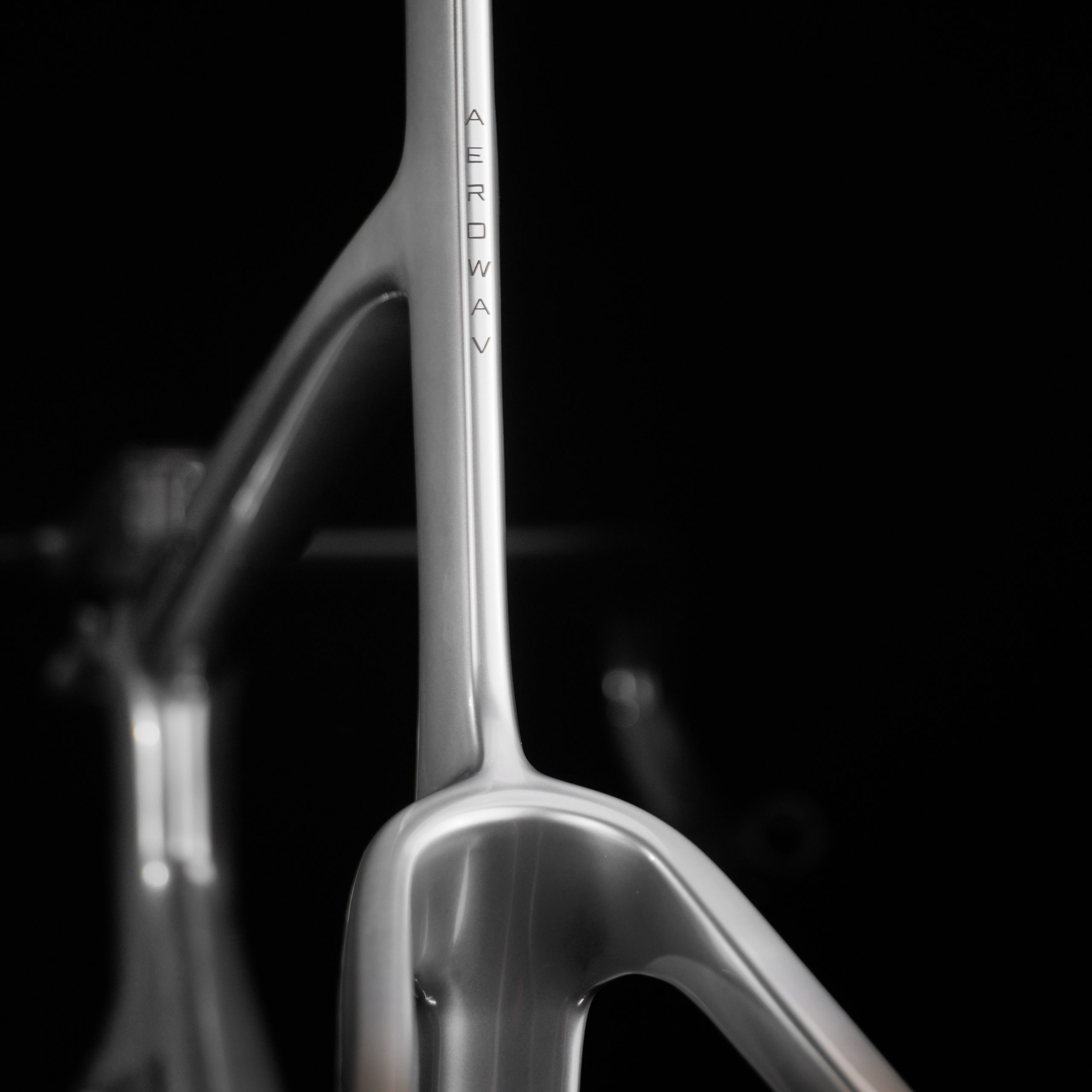

INTEGRATED SEATPOST
- The SSR features an integrated seatpost, allowing it to drop more weight while maintaining stiffness, weighing in at just 750g for a size 54 frame (unpainted without accessories).
ELITE CARBON COMPOSITION
- Crafted from 80T pitch-based and T1100 carbon, the SSR contains nearly three times the high-modulus fiber content of the SR+, achieving extraordinary stiffness and instantaneous power transfer.
VERIFIED AERO PERFORMANCE
- Tested at the Silverstone Sports Engineering Hub (UK), the SSR demonstrates up to 5.35 W less drag than the SR+ and averages 3.99 W savings over the Cervélo S5 at 45 km/h across yaw angles of 0–20°.

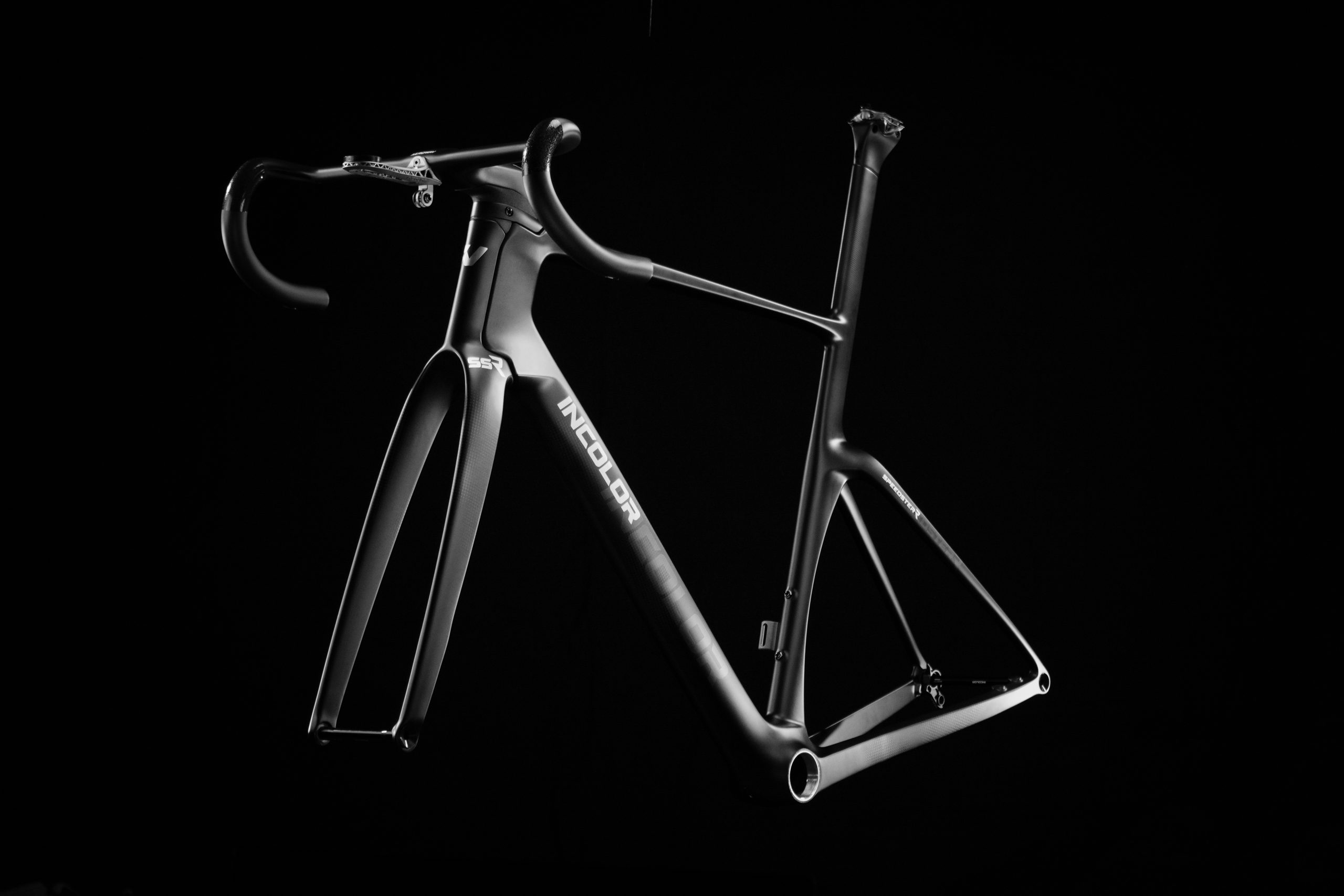

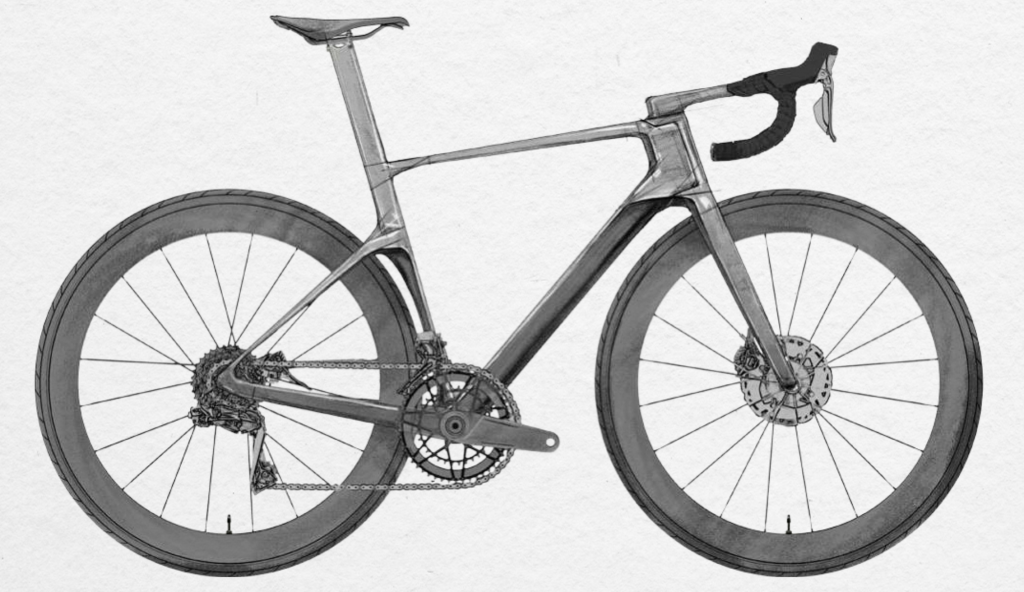

INCOLOR - SSR

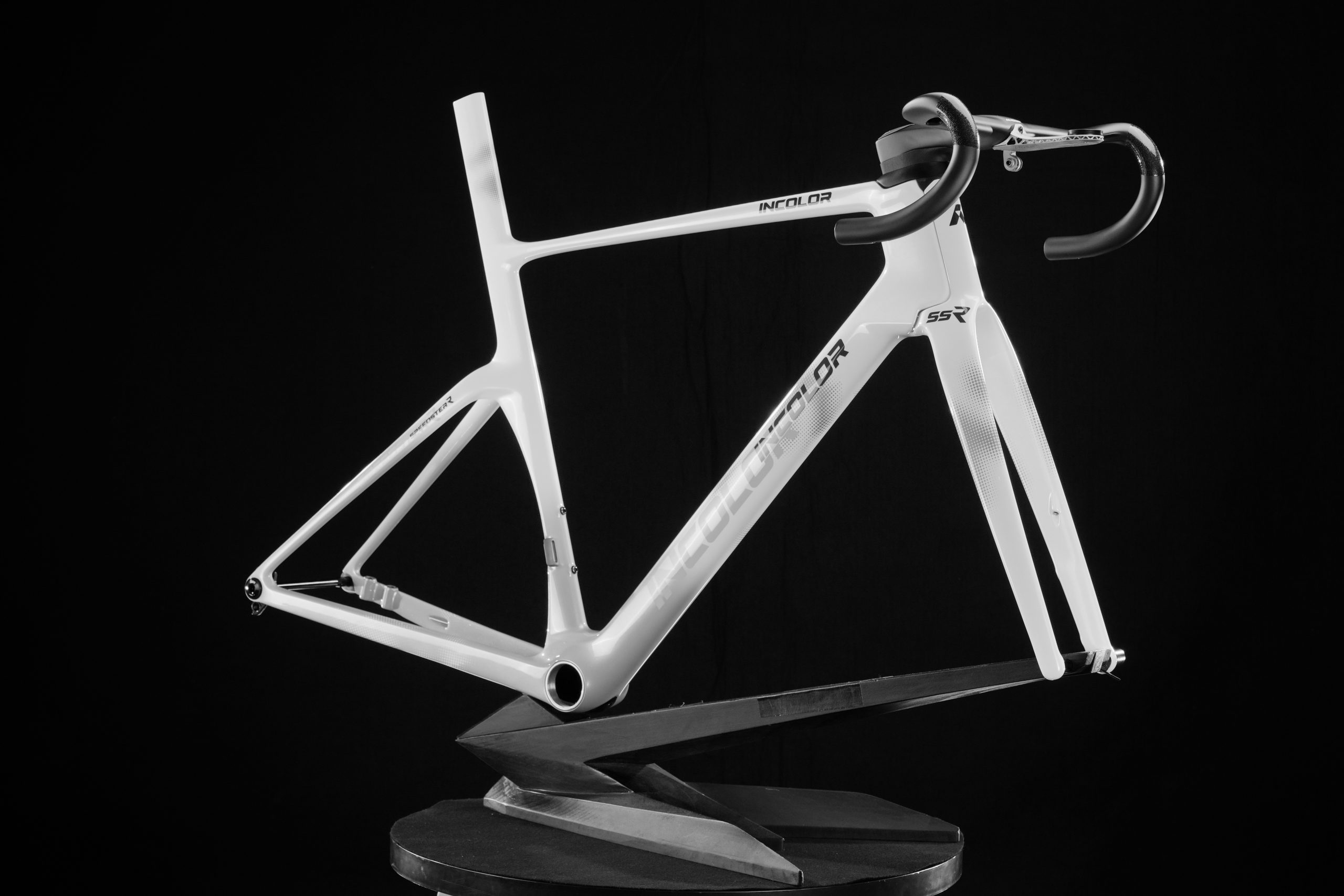

- INCOLOR SSR Frame, Fork and Integrated Seatpost

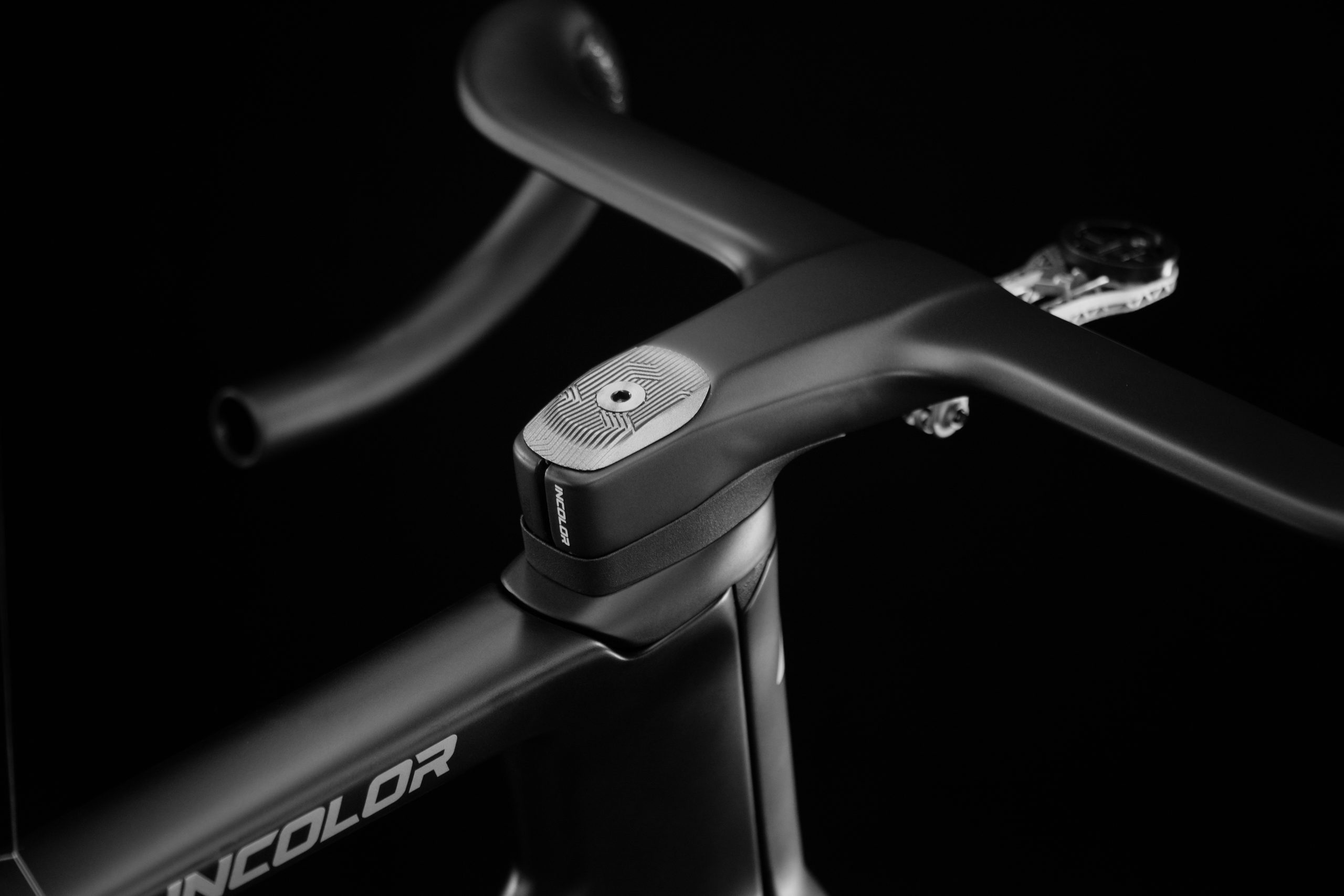

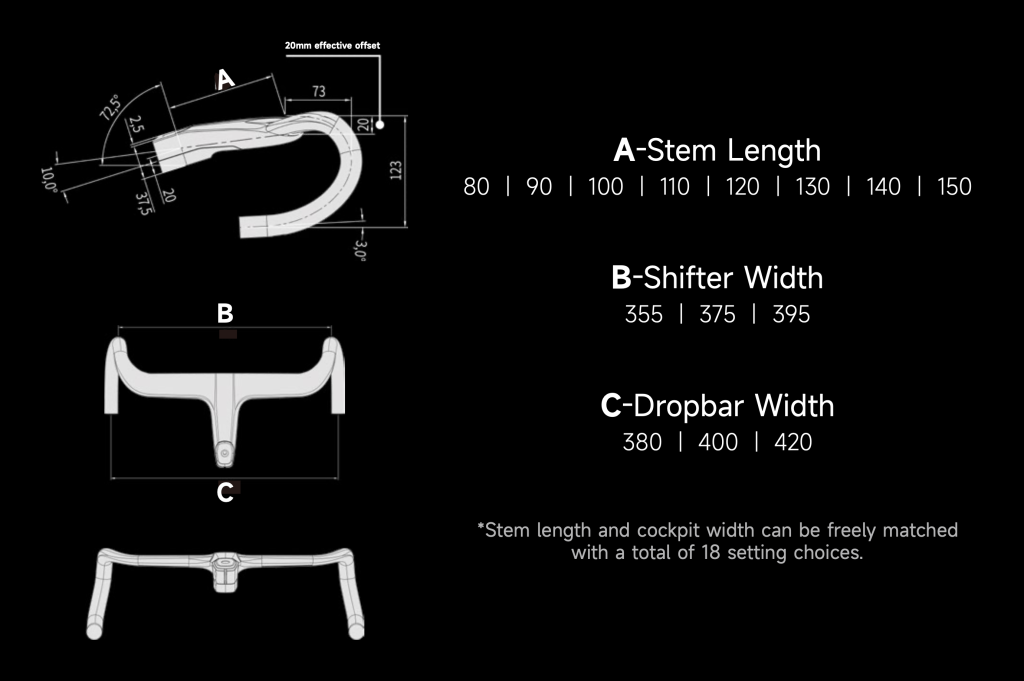

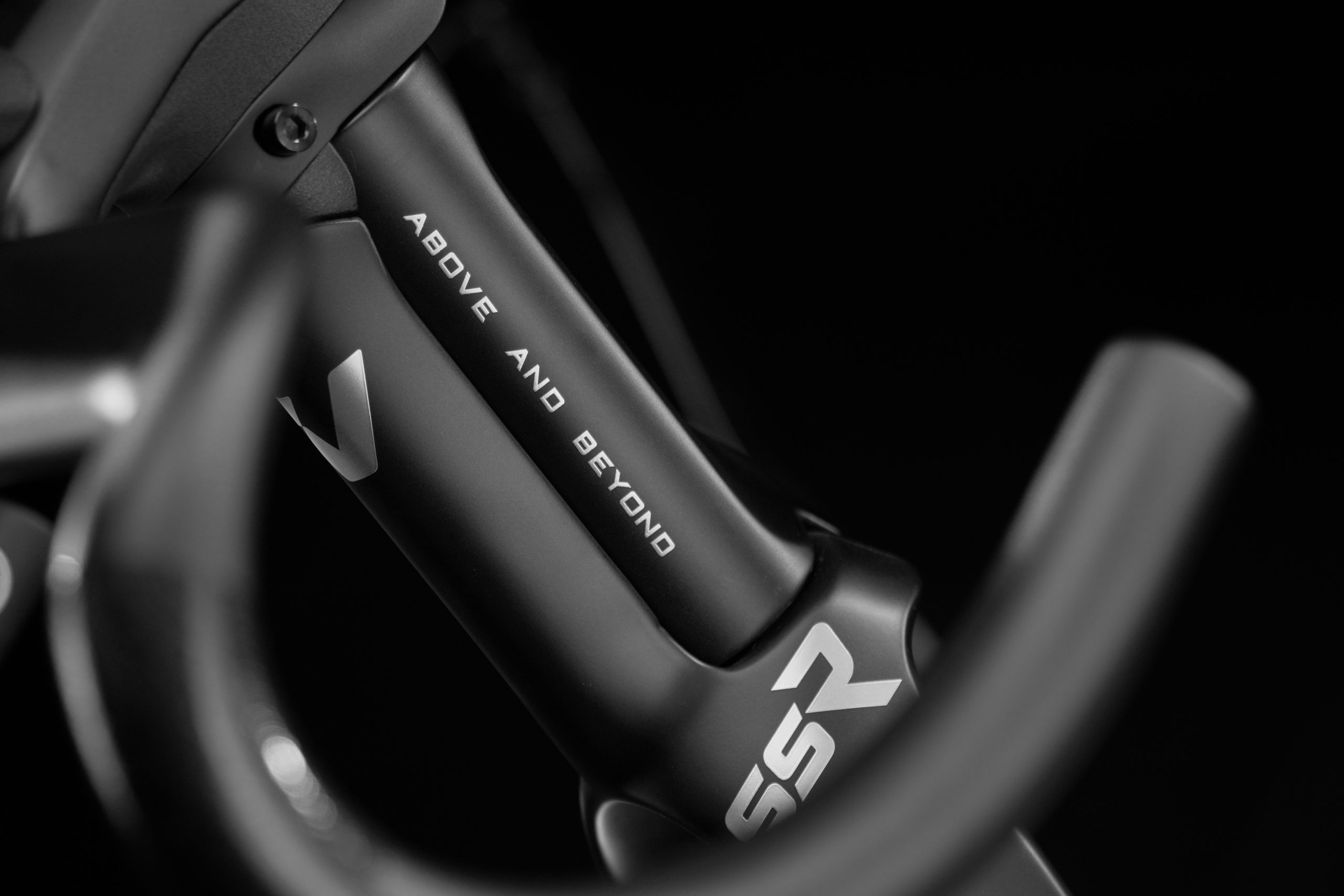

- INCOLR Aero Cockpit
- Titanium 3D-Printed Accessory Package
INCOLOR Lifetime Warranty:
- Covers all damages caused by material or production issues (excludes human or force majeure causes).
- If the original model is discontinued, a new model of equivalent level will be provided.
- For major damage, a 30% discount applies toward a new replacement.

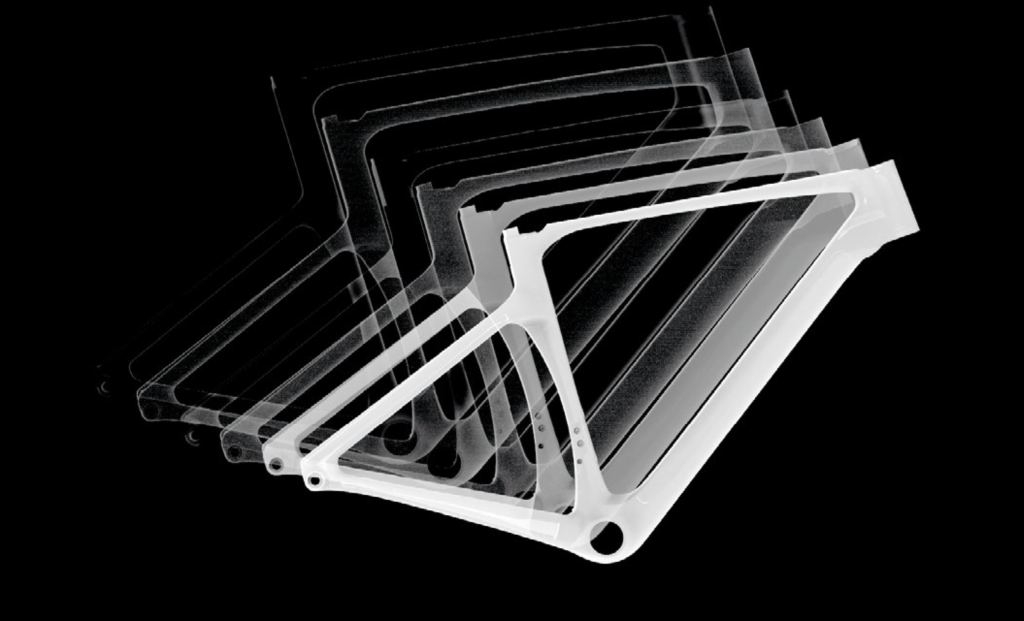

Available in seven sizes (45–60) for riders 155–195 cm tall, the SSR offers three fit profiles
Aggressive, Moderate, and Comfort.

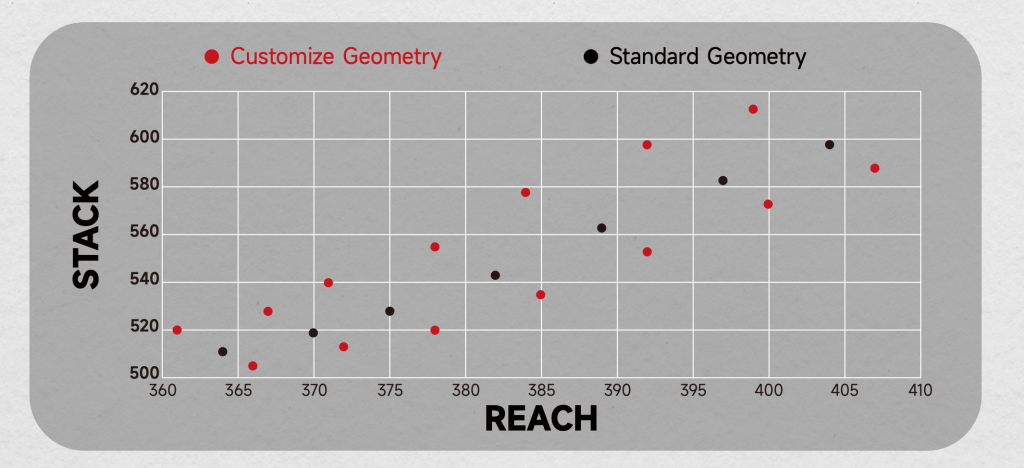

It's integrated seatpost allows precise saddle height and setback adjustments, making it the first performance frame to offer customizable geometry without sacrificing efficiency.

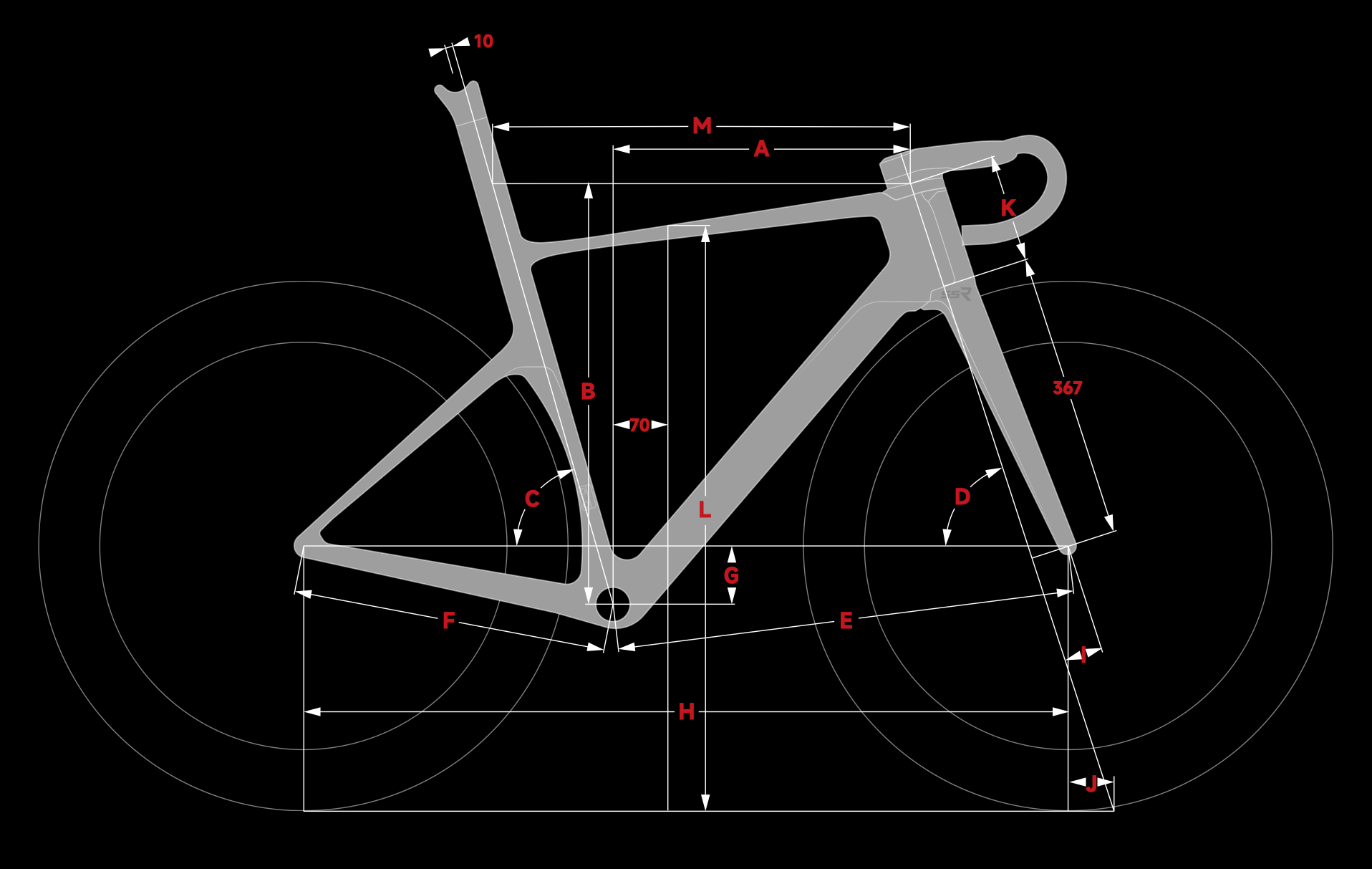

Standard Geometry
*The sizes listed are for reference only and represent common cases, as limb proportions vary among riders of the same height. To find your ideal fit, consult our customer service with details of your previous bike brand and size for personalized advice.
| SSR (standard) Geometry | 45 | 48 | 51 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|---|
| Recommended Height | 155–162 | 162–168 | 167–173 | 172–178 | 177–183 | 182–188 | 185–195 |
| A Reach | 364 | 370 | 375 | 382 | 389 | 397 | 404 |
| B Stack | 511 | 519 | 528 | 543 | 563 | 583 | 598 |
| C Seat Tube Angle | 75 | 74.5 | 74.5 | 74° | 73.75° | 73.5° | 73° |
| D Head Tube Angle | 70.8° | 71° | 71.2° | 72° | 72° | 72.25° | 72.5° |
| E Front Center | 578.3 | 585.2 | 592.1 | 591.4 | 605.3 | 615 | 626 |
| F Rear Center | 405 | 405 | 405 | 405 | 405 | 405 | 405 |
| G Bottom Bracket Drop | 78 | 78 | 75 | 75 | 72 | 72 | 72 |
| H Wheelbase | 970.4 | 977.4 | 985.3 | 984.6 | 999.6 | 1010 | 1020.6 |
| I Front Fork Offset | 55 | 55 | 55 | 50 | 50 | 50 | 50 |
| J Trail | 60.2 | 58.9 | 57.7 | 58 | 58 | 56.4 | 55 |
| K Head Tube Length | 110 | 117 | 129 | 140 | 164 | 184.5 | 199 |
| L Stand over | 715 | 724 | 738 | 754 | 777 | 799 | 829 |
| M Top Tube Length | 501 | 514 | 522 | 538 | 553.2 | 571 | 589 |
| Minimum Saddle Height | 59cm-2cm | 63cm-2cm | 67cm-2cm | 71cm-2cm | 73cm-2cm | 75cm-2cm | 75cm-2cm |
| Maximum Saddle Height | 71cm+2cm | 75cm+2cm | 79cm+2cm | 83cm+2cm | 87cm+2cm | 91cm+2cm | 93cm+2cm |

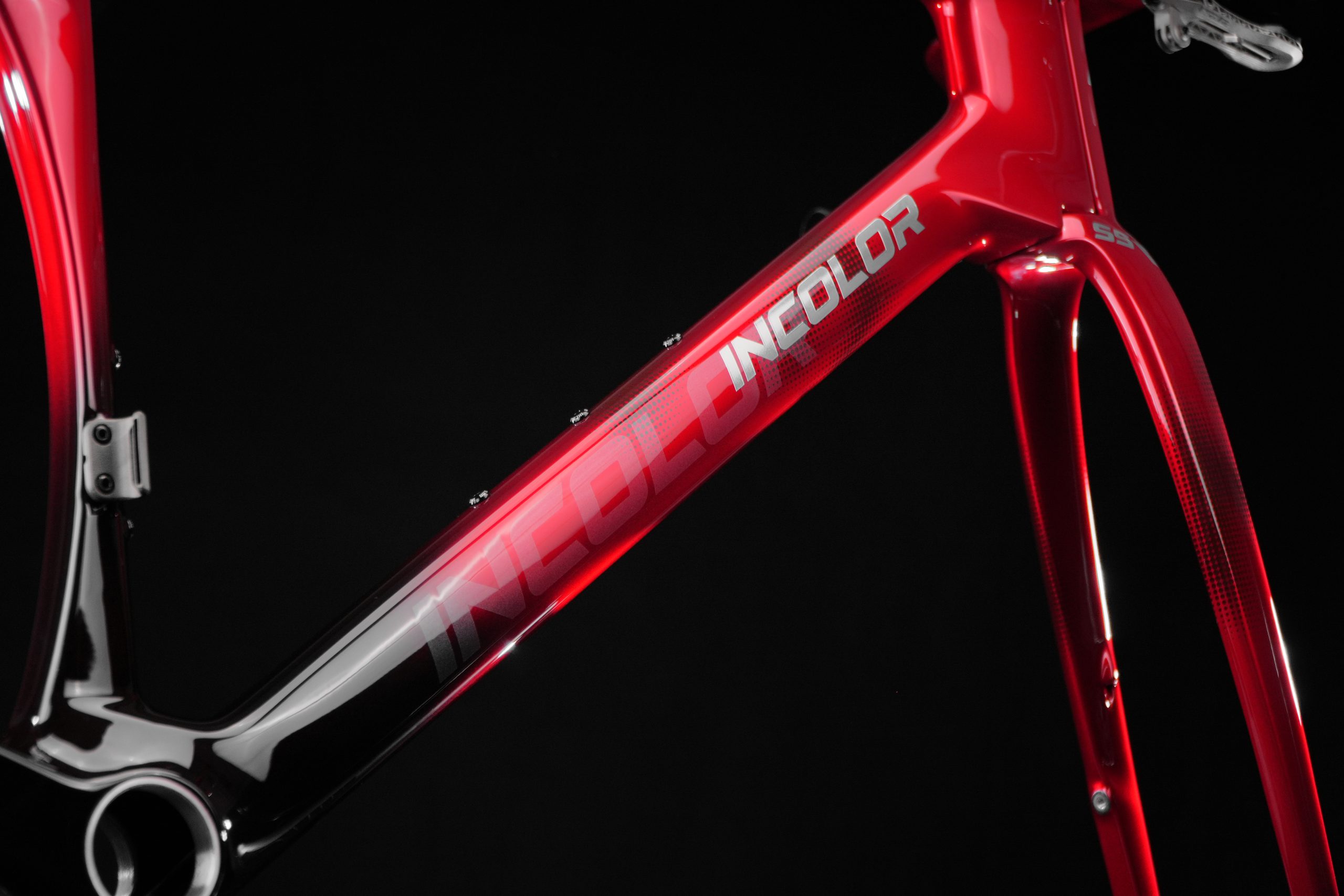

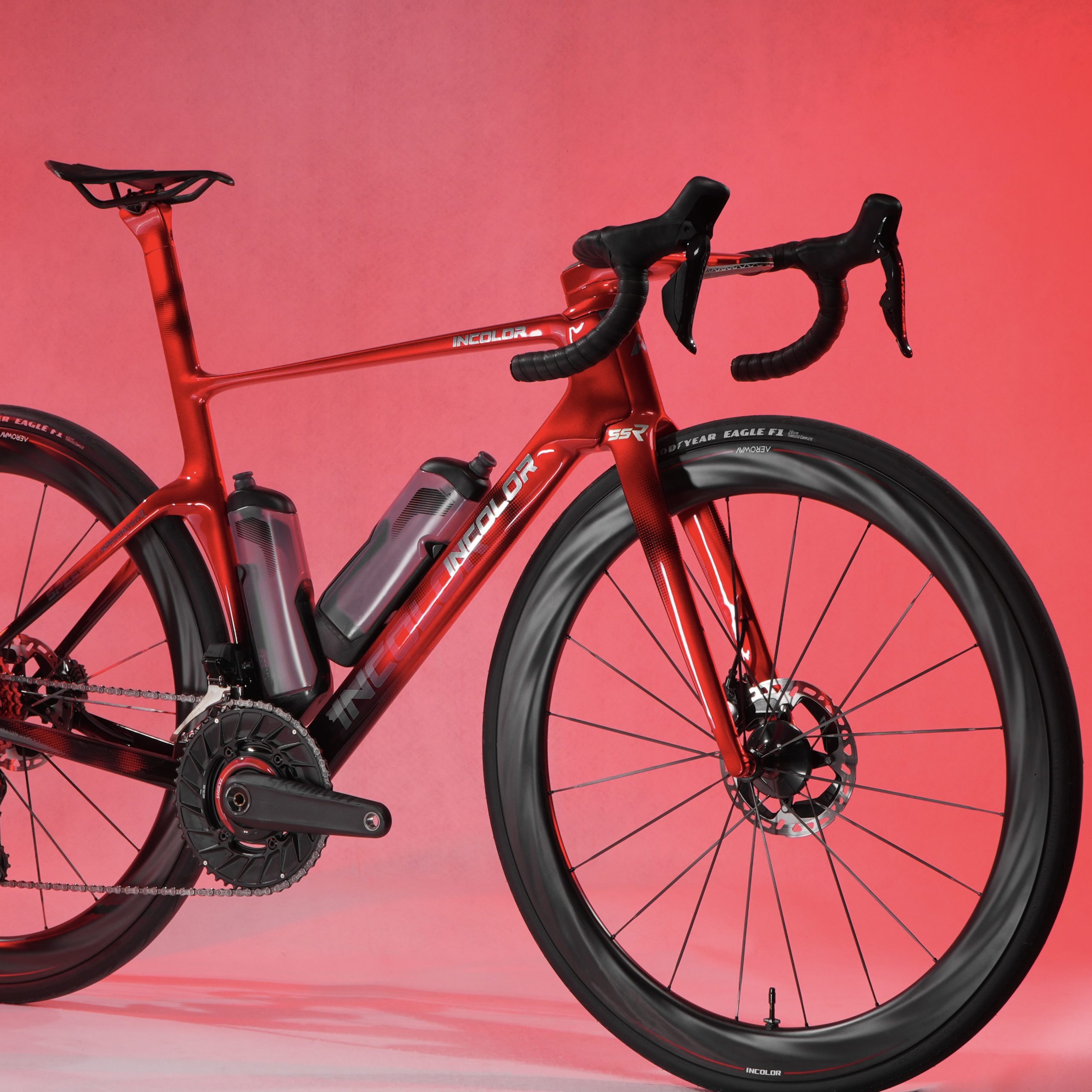

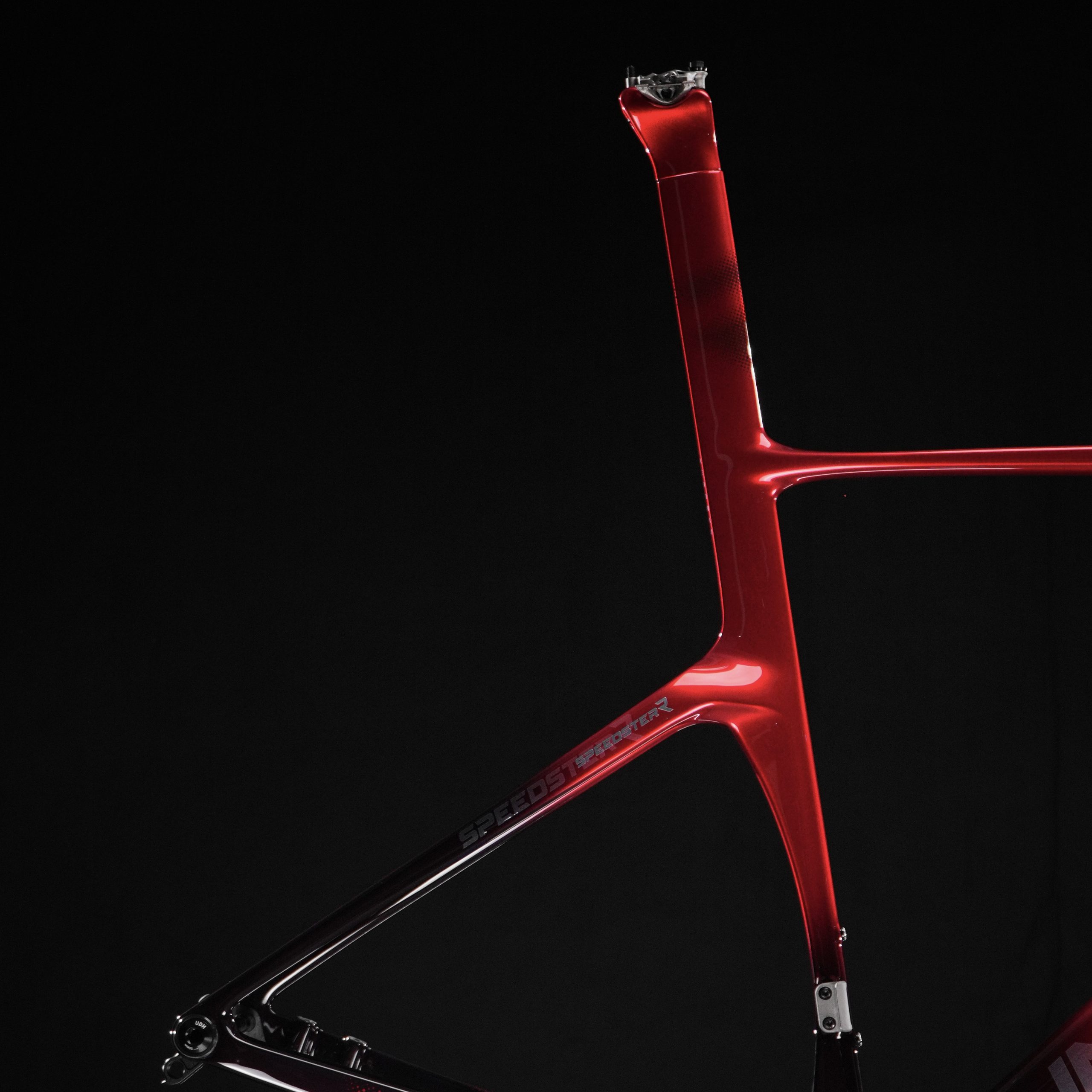

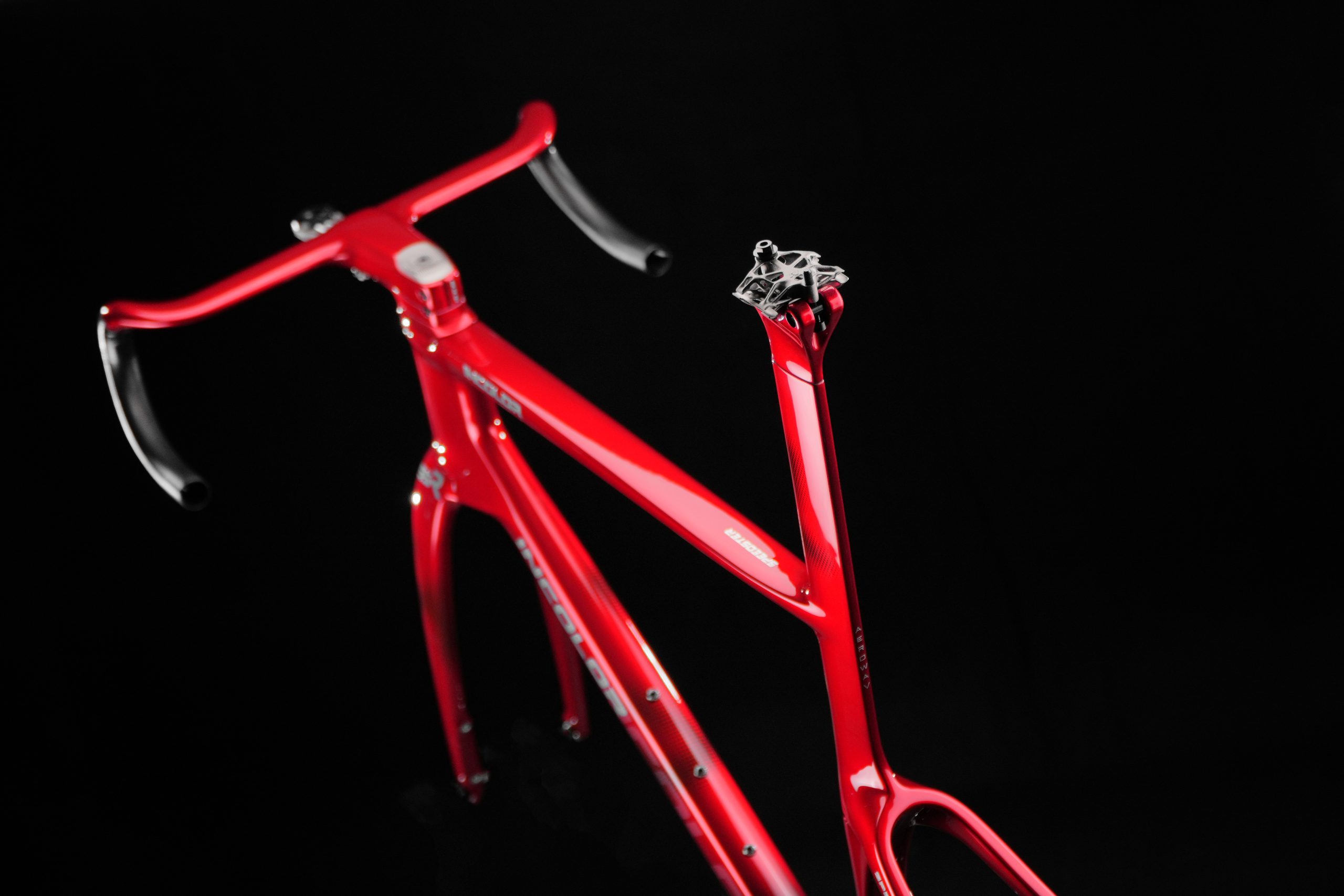

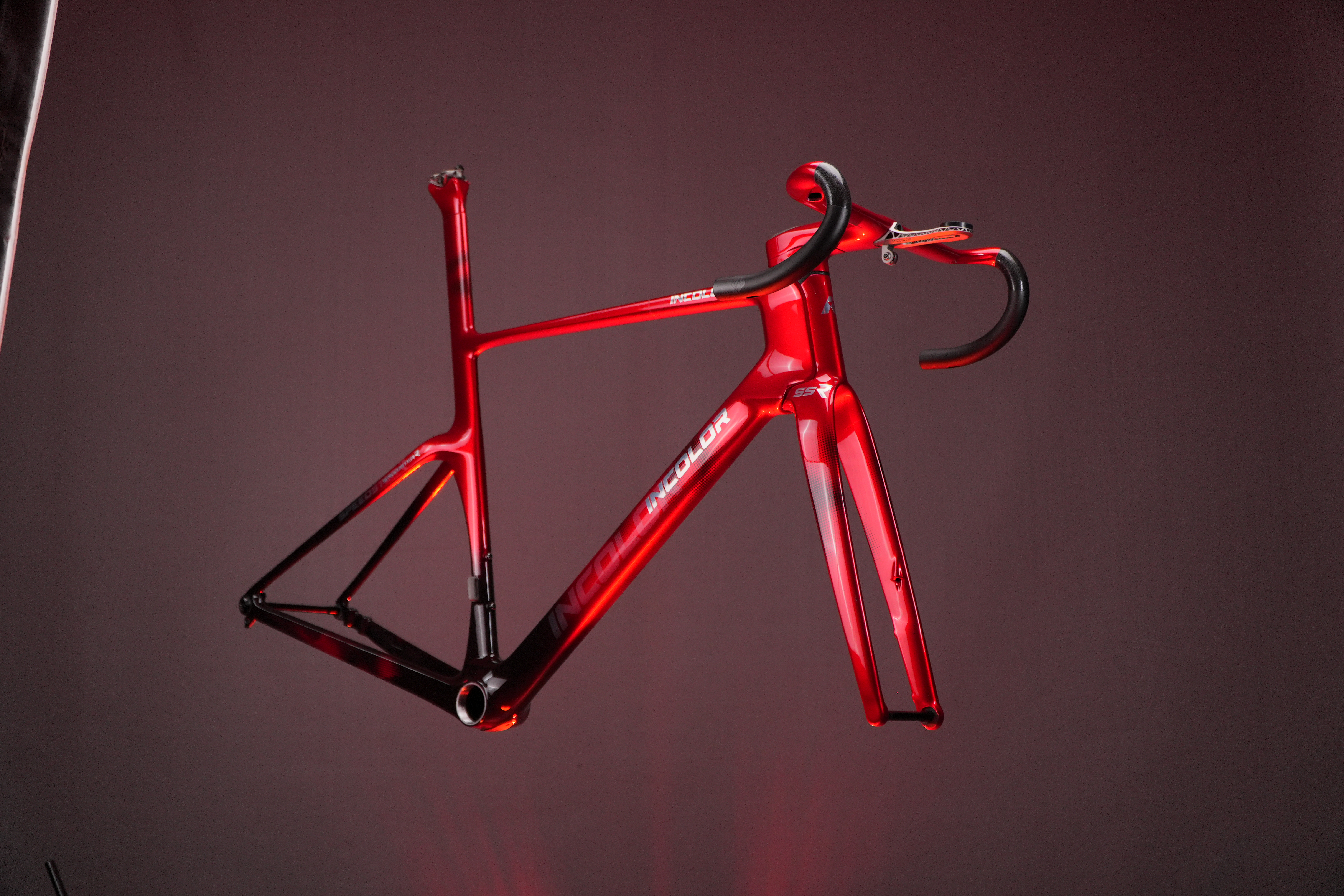

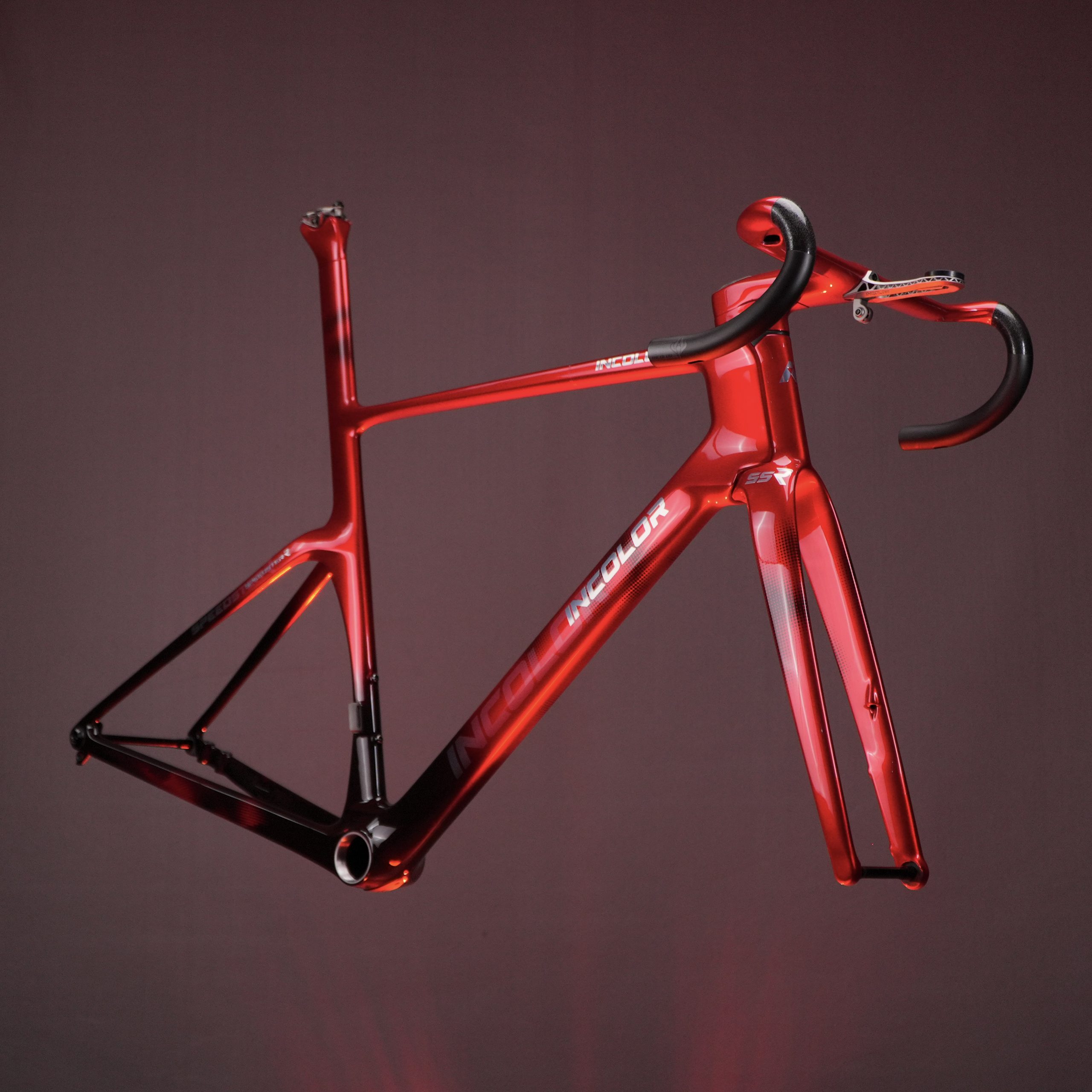

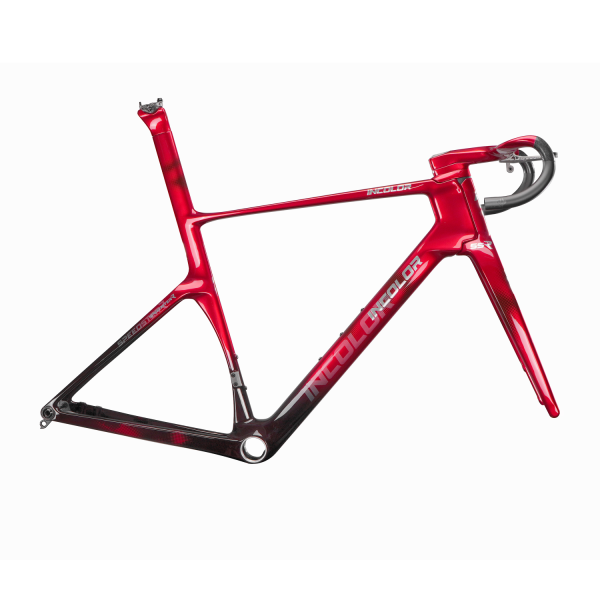

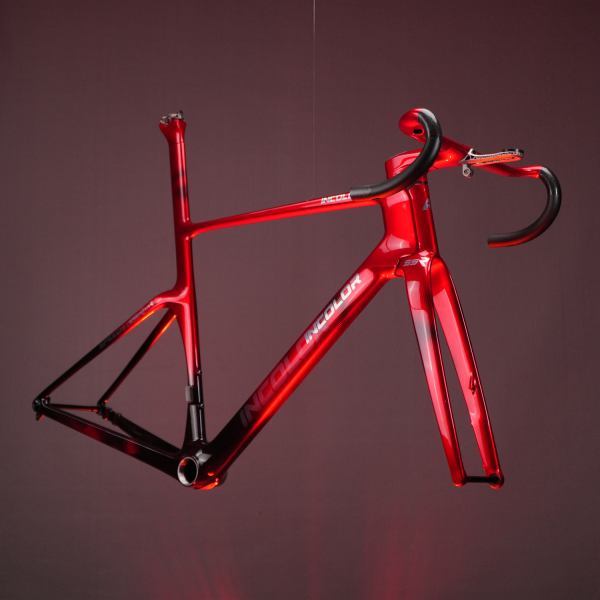

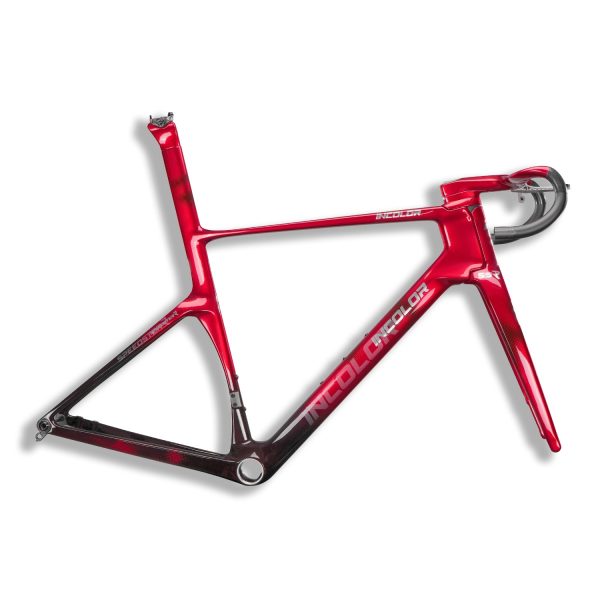

INCOLOR SSR - Scarlet

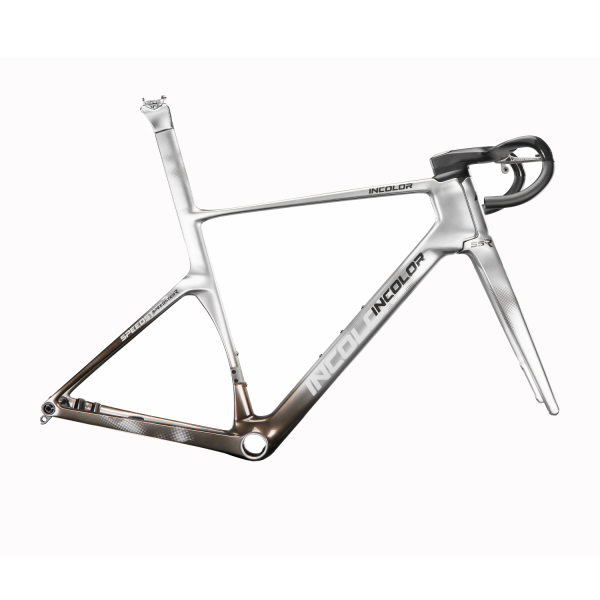

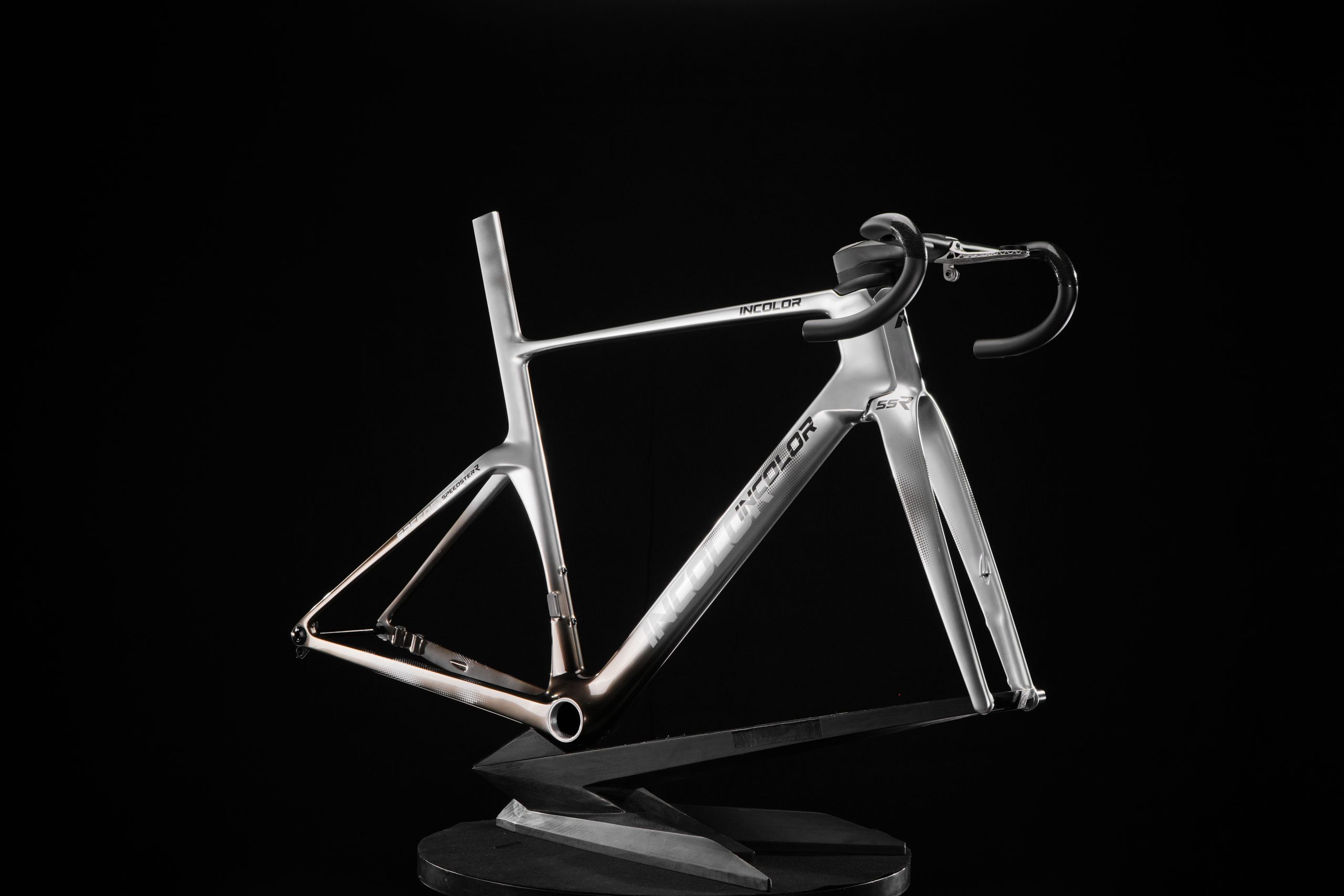

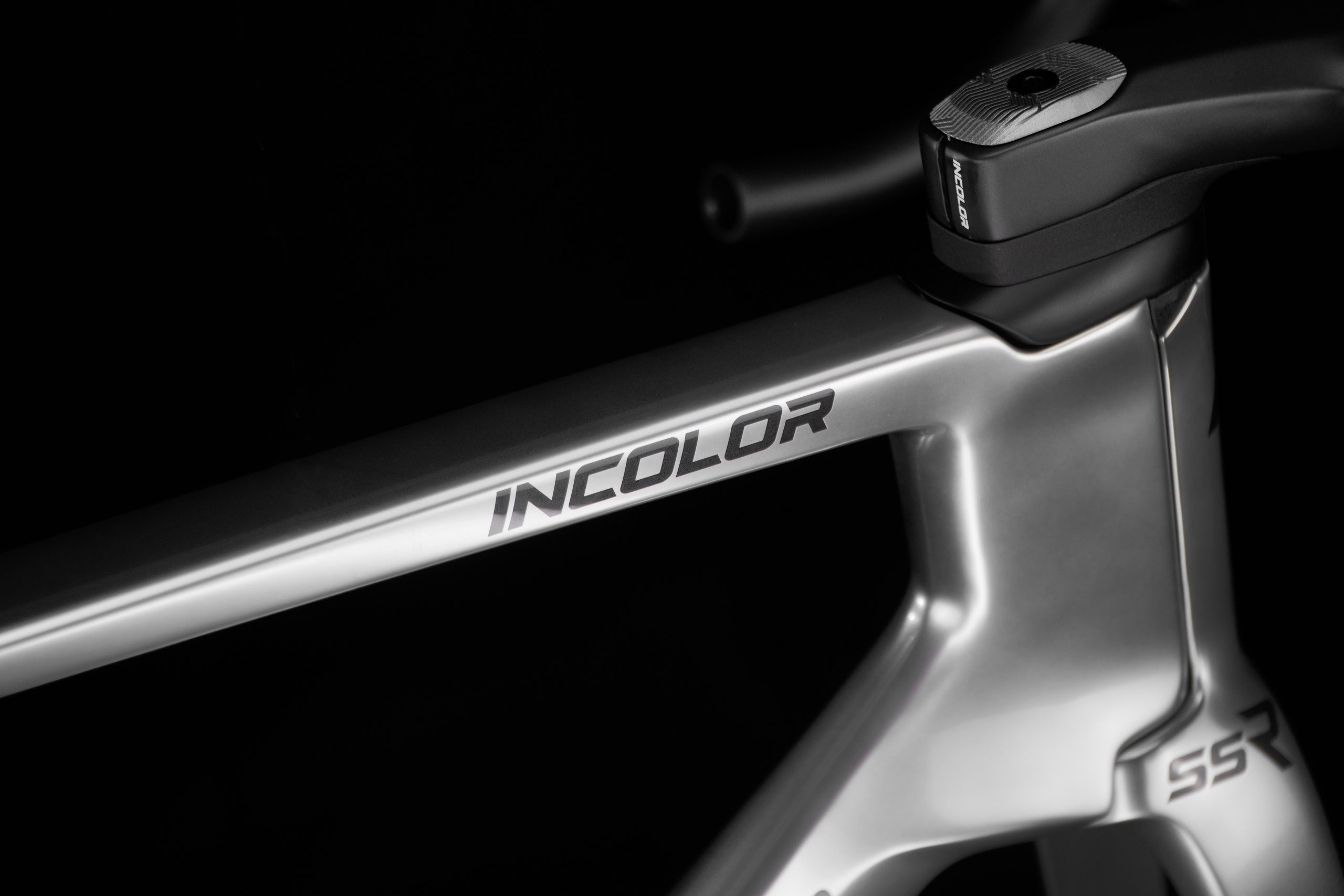

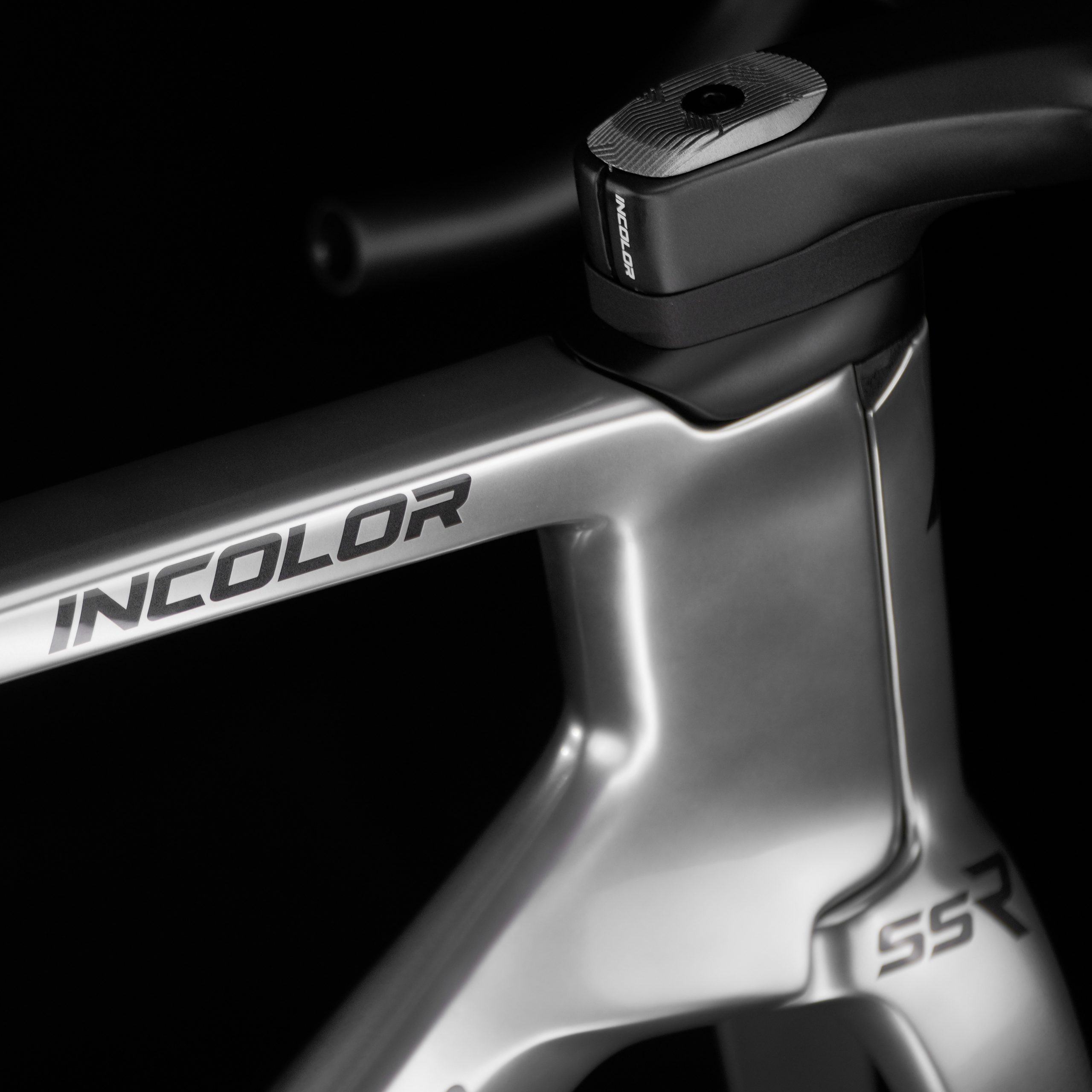

INCOLOR SSR - Mercury

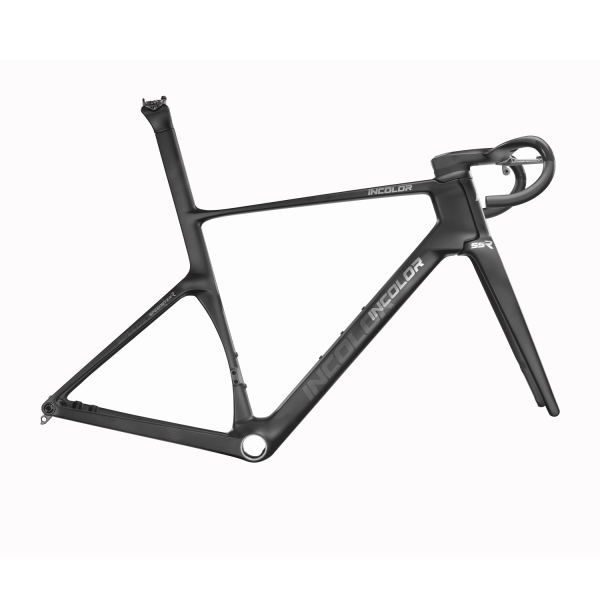

INCOLOR SSR - Noir

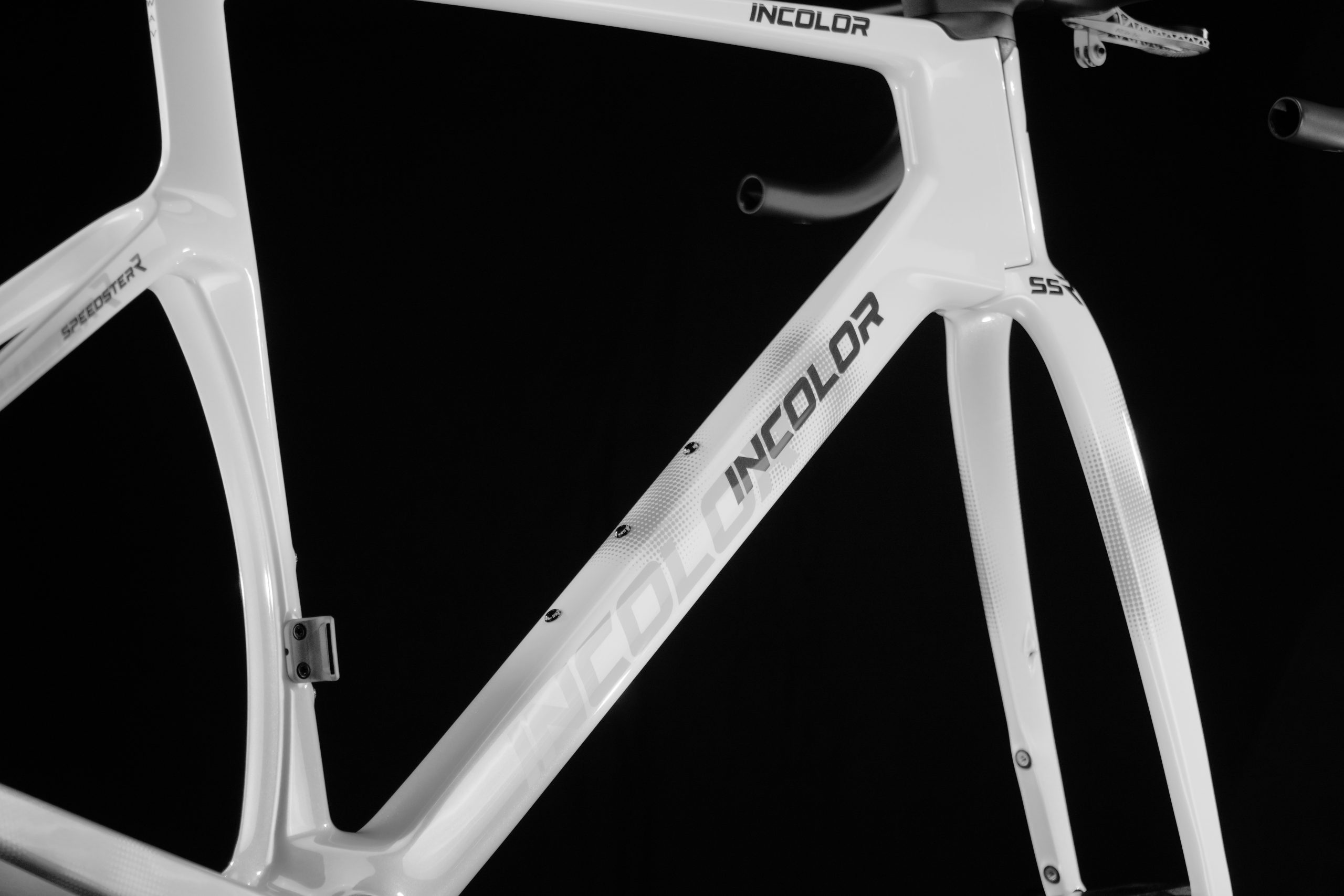

INCOLOR SSR - White
Additional information
| Frame Size | 45, 48, 54, 56, 58, 60, Custom Geometry (Contact Us), 51 |
|---|---|

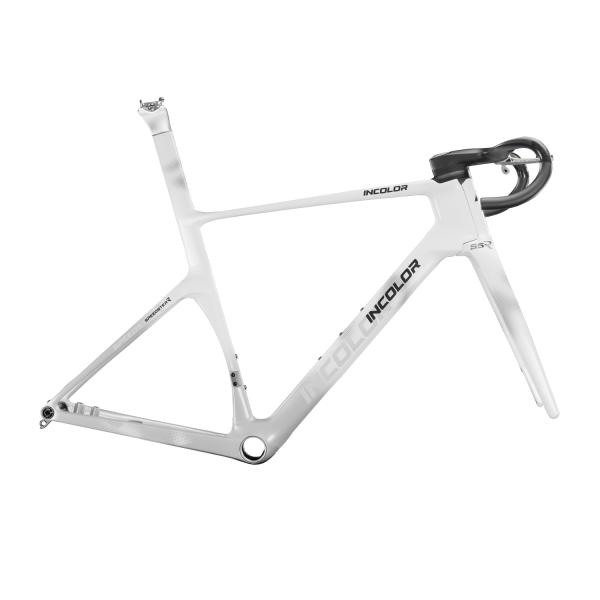

| Frame Color | SSR MARBLE, SSR MERCURY, SSR NOIR, SSR SCARLET |
Brand
Incolor
| Brand Name: Incolor | Chinese Company Name: 广州应凯路科技有限公司 |
| Founded: 2016 | # of Employees: 10+ |
| Headquarters: Panyu, Guangzhou | Products Categories: Crankset, Cassette |
