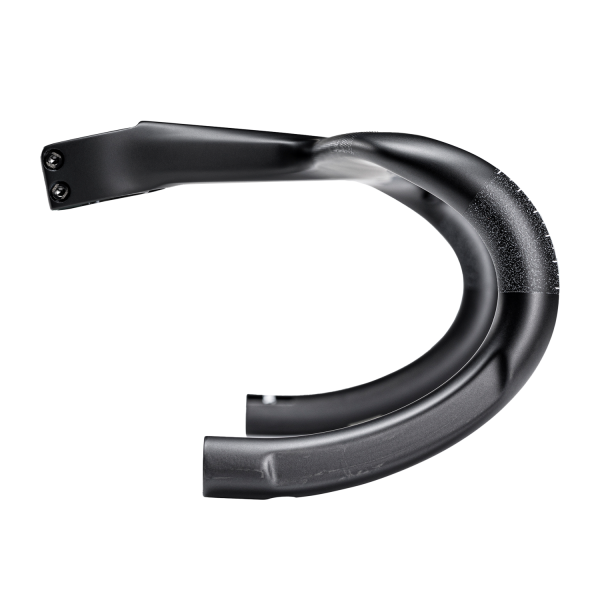

GANNA Angle° Integrated Handlebar
$429.00
“GANNA ANGLE°: Chasing Perfection.”
- Enhanced strength: 15% stronger than other similar products thanks to T800+T1100 carbon composite
- Safe and durable: 200,000+ fatigue cycles test—exceeds ISO 4210 standards
- Aero-optimized top profile
- Fully internal cable routing compatible (electronic & mechanical)
- OD2 Compatible
- Reach/Drop: 71/125mm
- Steerer tube stack: 30mm
- Stem angle: -10°
- Width: 360/380/400/420mm
- Length: 80/90/100/110/120/130/140mm
- Weight: 320g (400mm x 100mm)

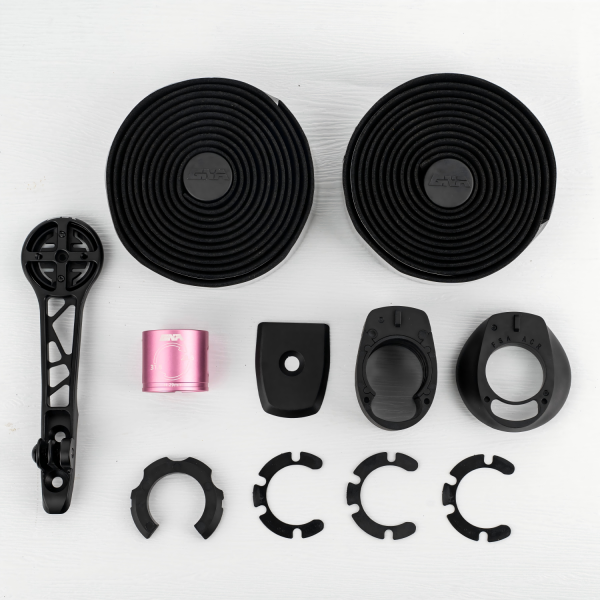

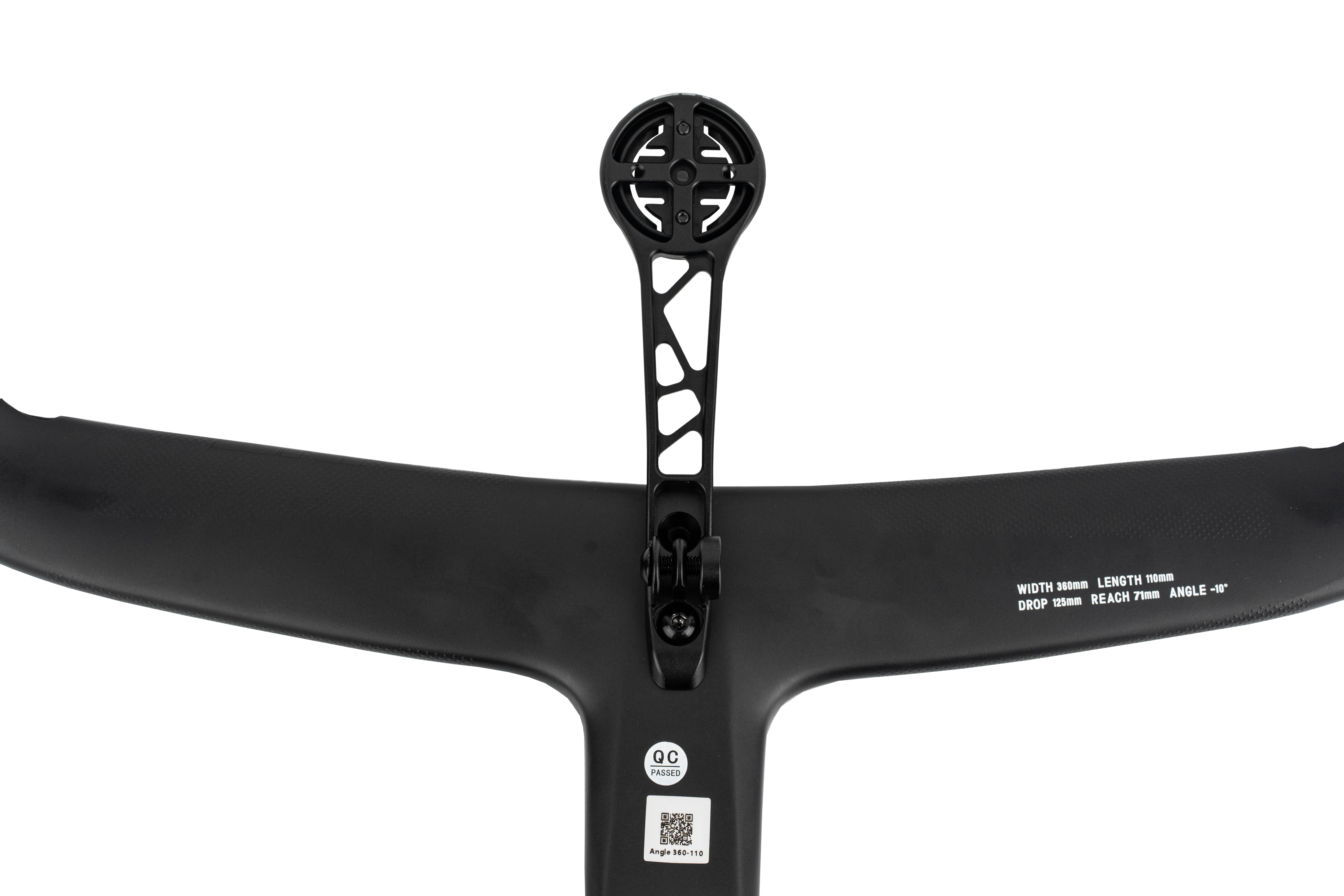

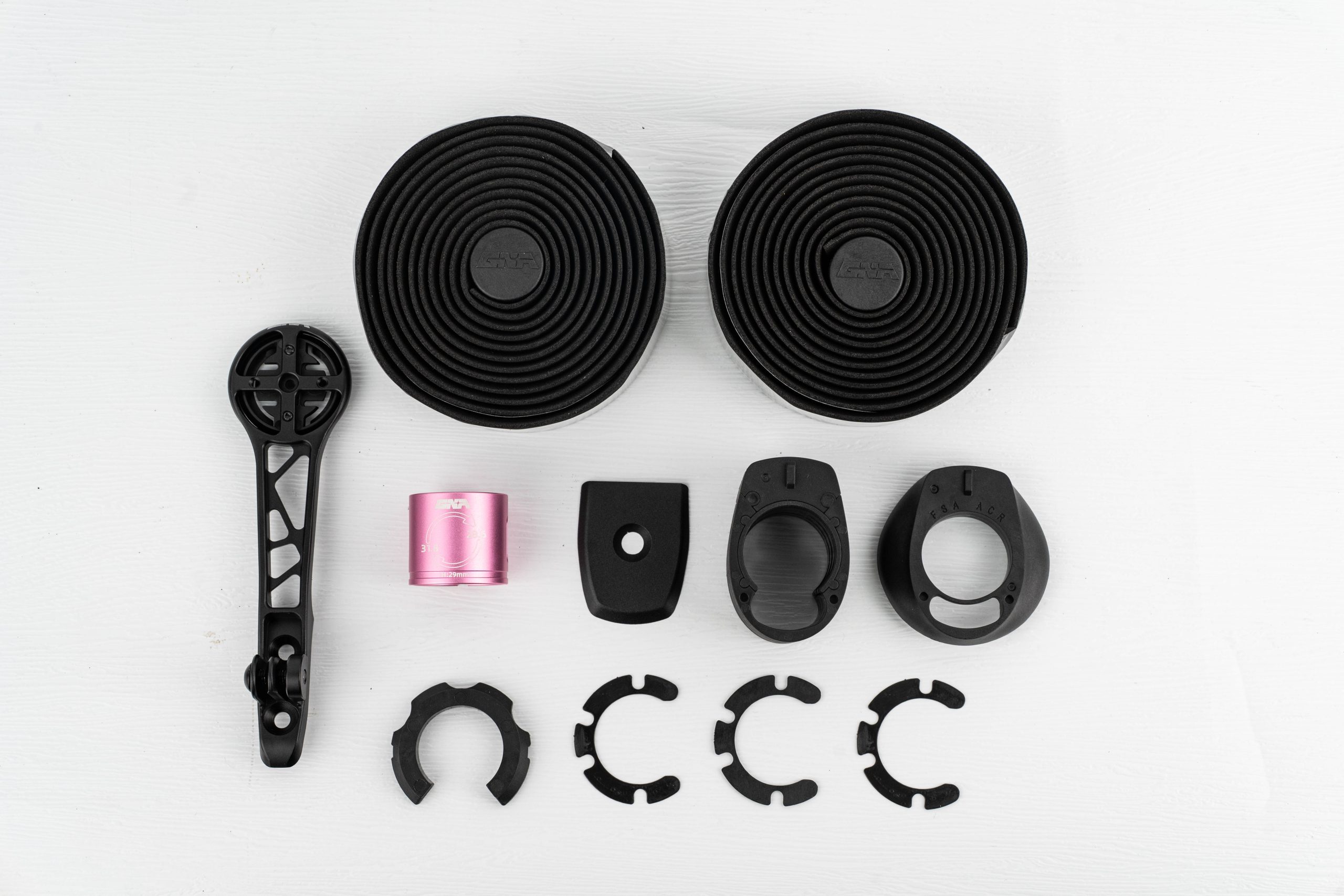

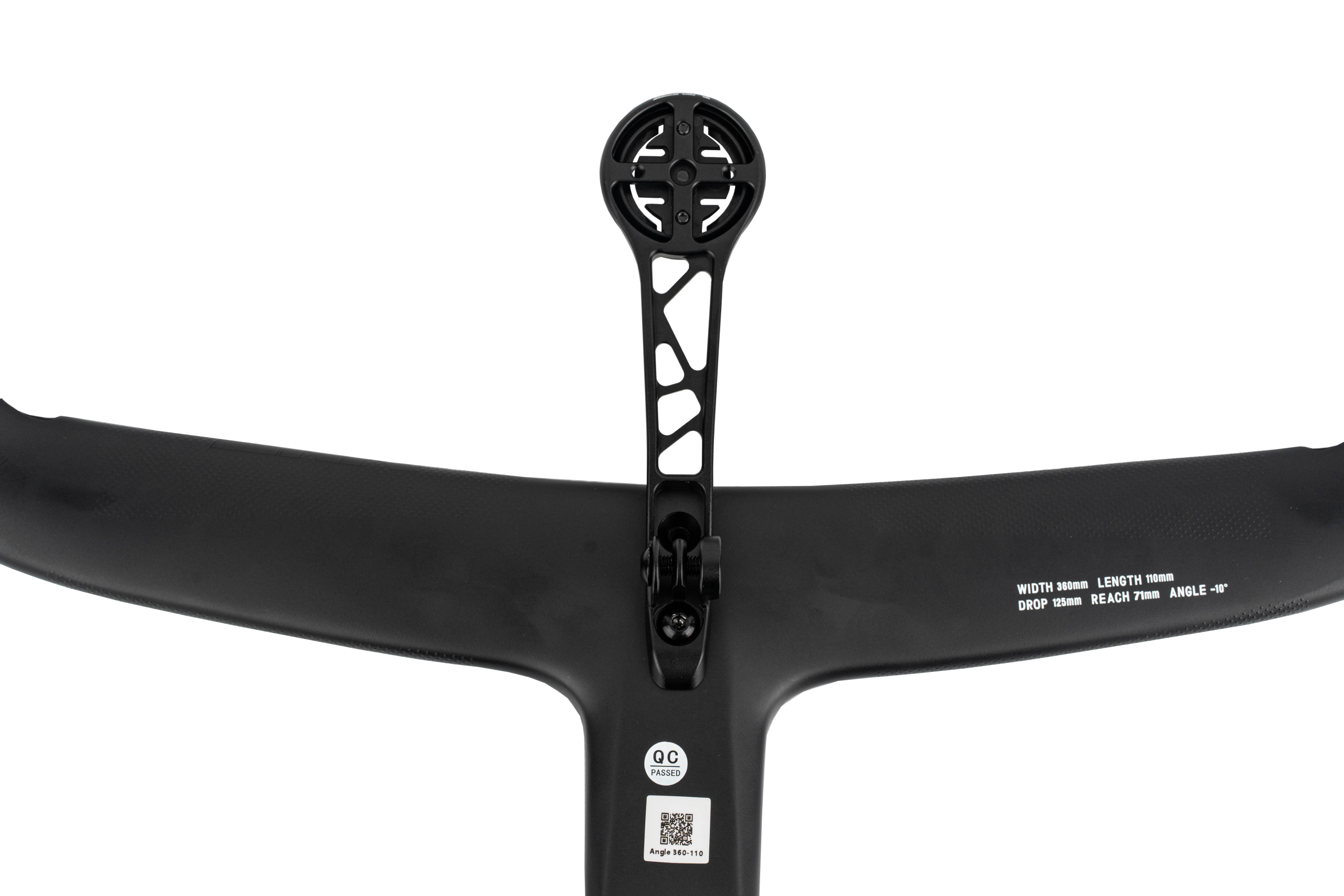

- Included: Computer Holder (Garmin), GoPro Mount, Spacer Kit, Top Cap*¹, S-PARTS Titanium bolts, GANNA 30g Bartape (Black), White Sticker
- Please check for frame‑to‑cap interference before installation*²
- Please check Groupset Compatibility*³ from bottom
- Select your bike model to continue. We’re happy to help if you can’t find what you need!
Customer Review
Installed it in November 2025 on my Wilier Filante SLR. Super happy with it. Rigid, comfortable, great quality and feels proper high quality. At least same level than original Filante Bar. Packagi... keep reading
What Customers Think
- Description
- Additional information
- Brand
- Reviews (2)
Description

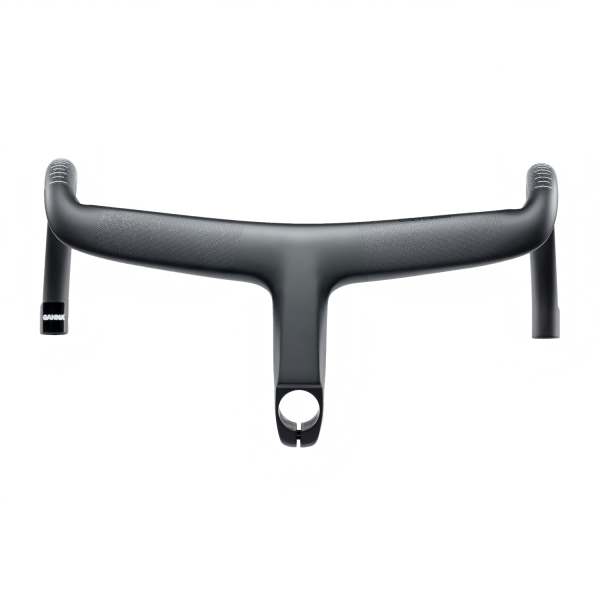

GANNA Angle° Integrated Handlebar
Ride with confidence.

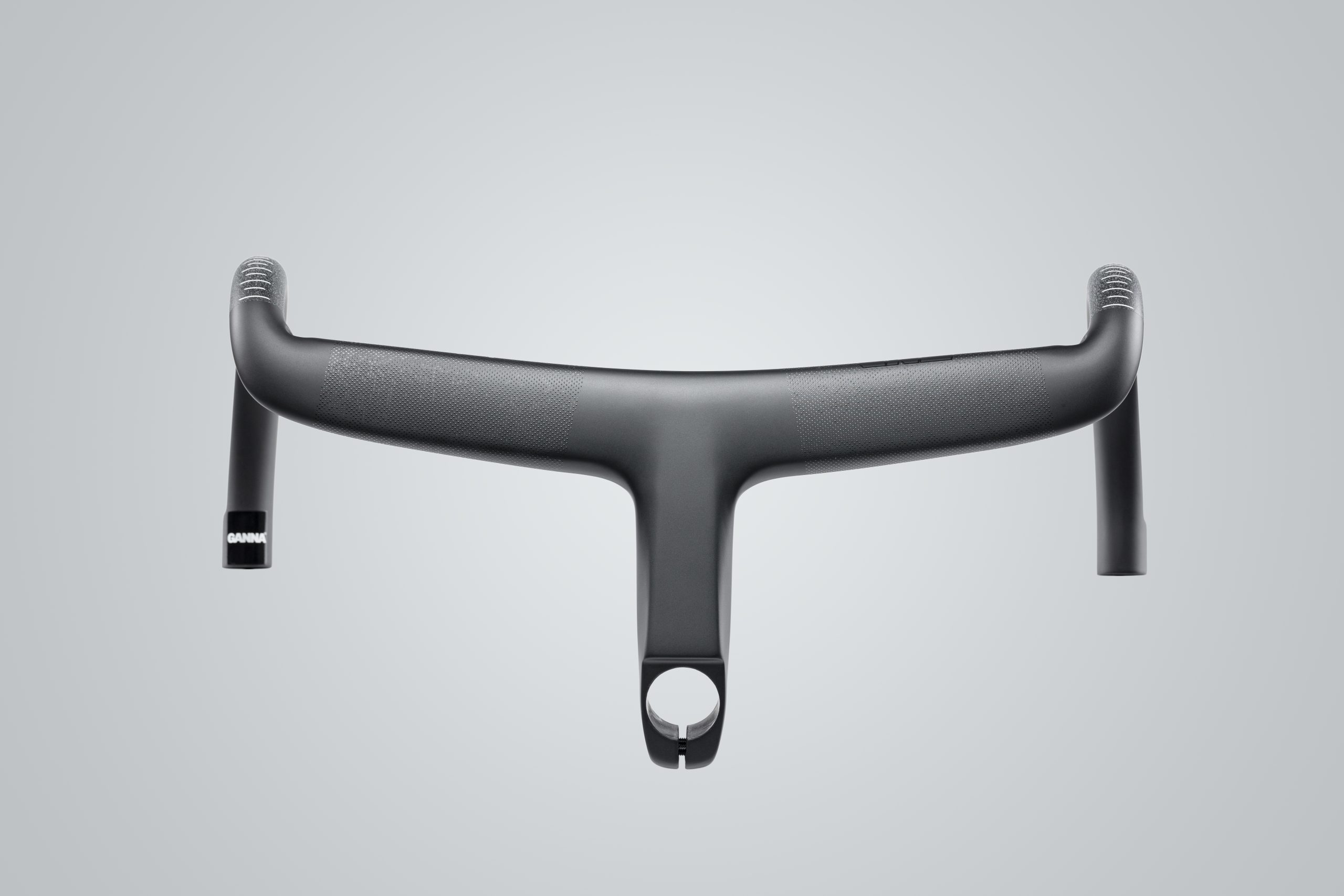

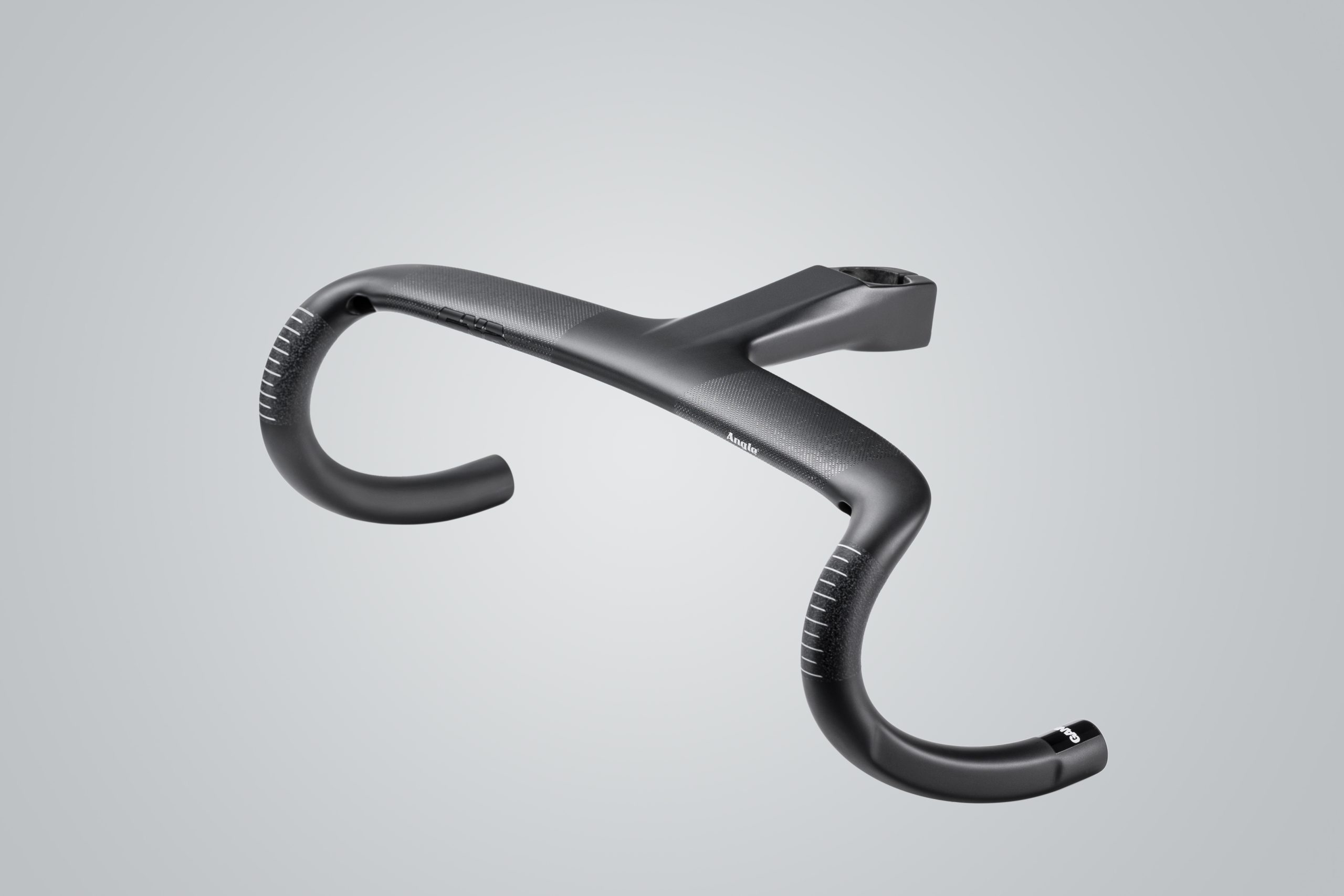

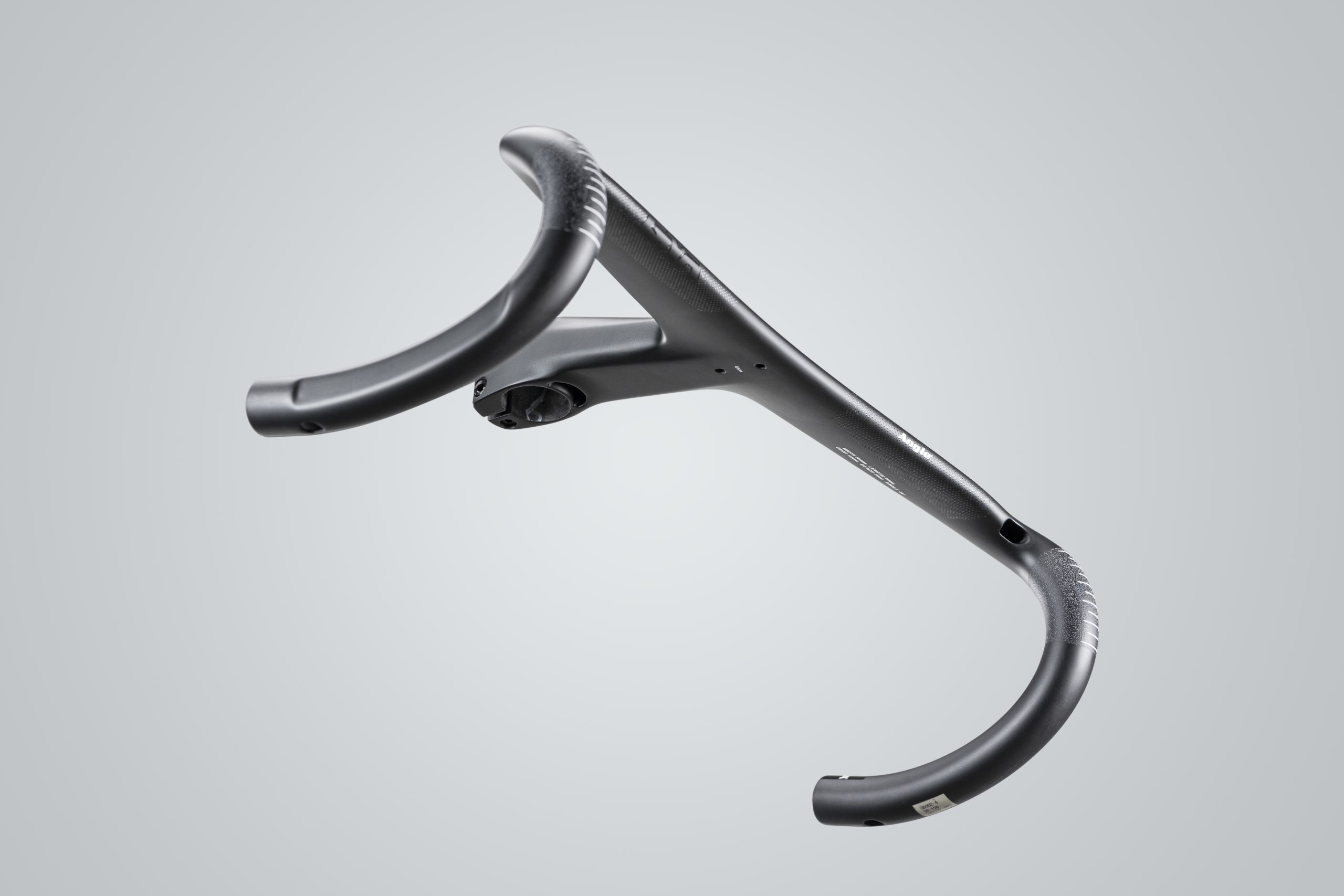

GANNA Angle° Integrated Handlebar
Cut through the wind, ride in comfort every mile
Ergonomic by Design
Developed with feedback from pro riders, the bar shape is optimised for both sprint and climbing positions. The compact reach and drop dimensions allow a quick change of position for catching any break.

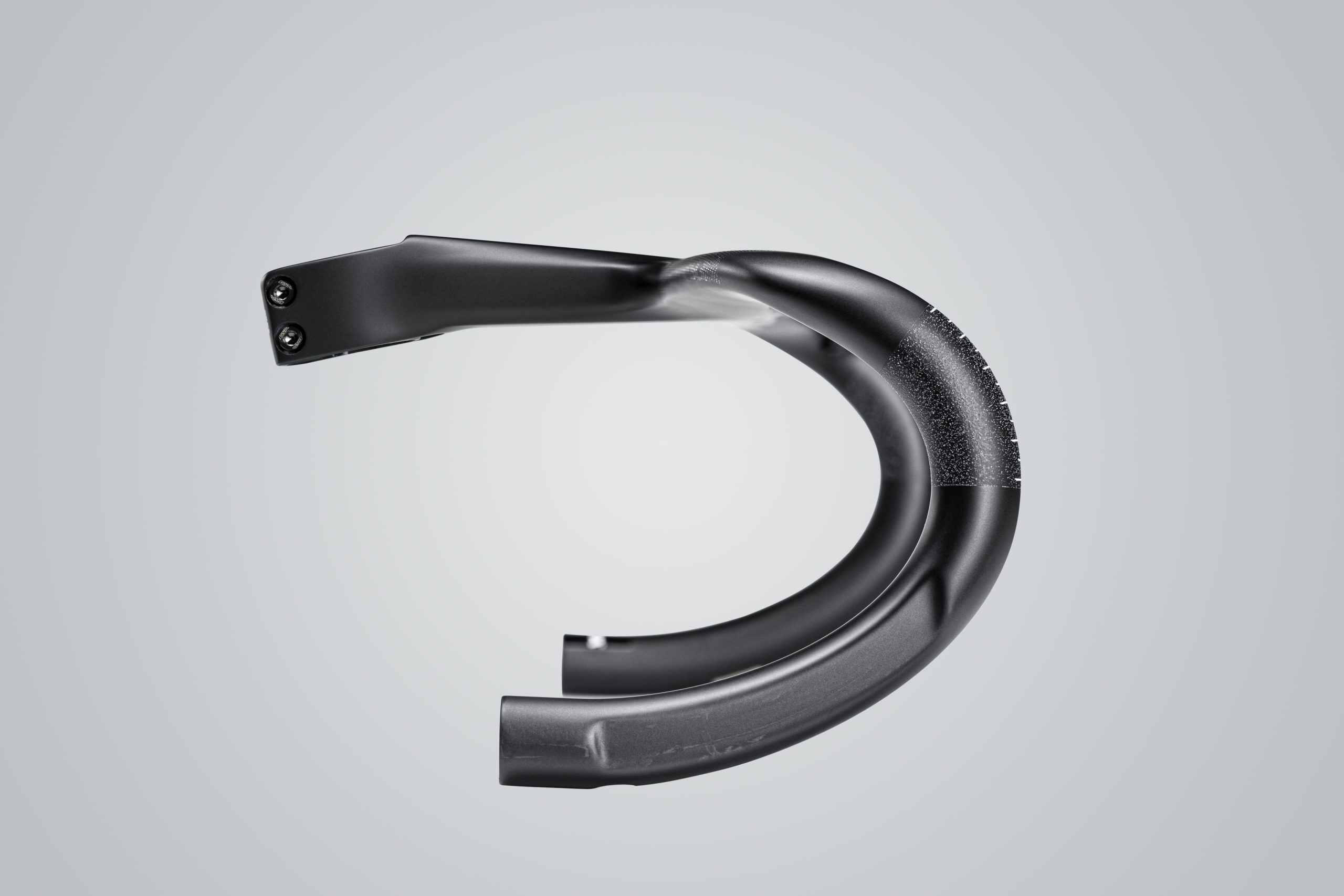

Aero Edge, Race Ready

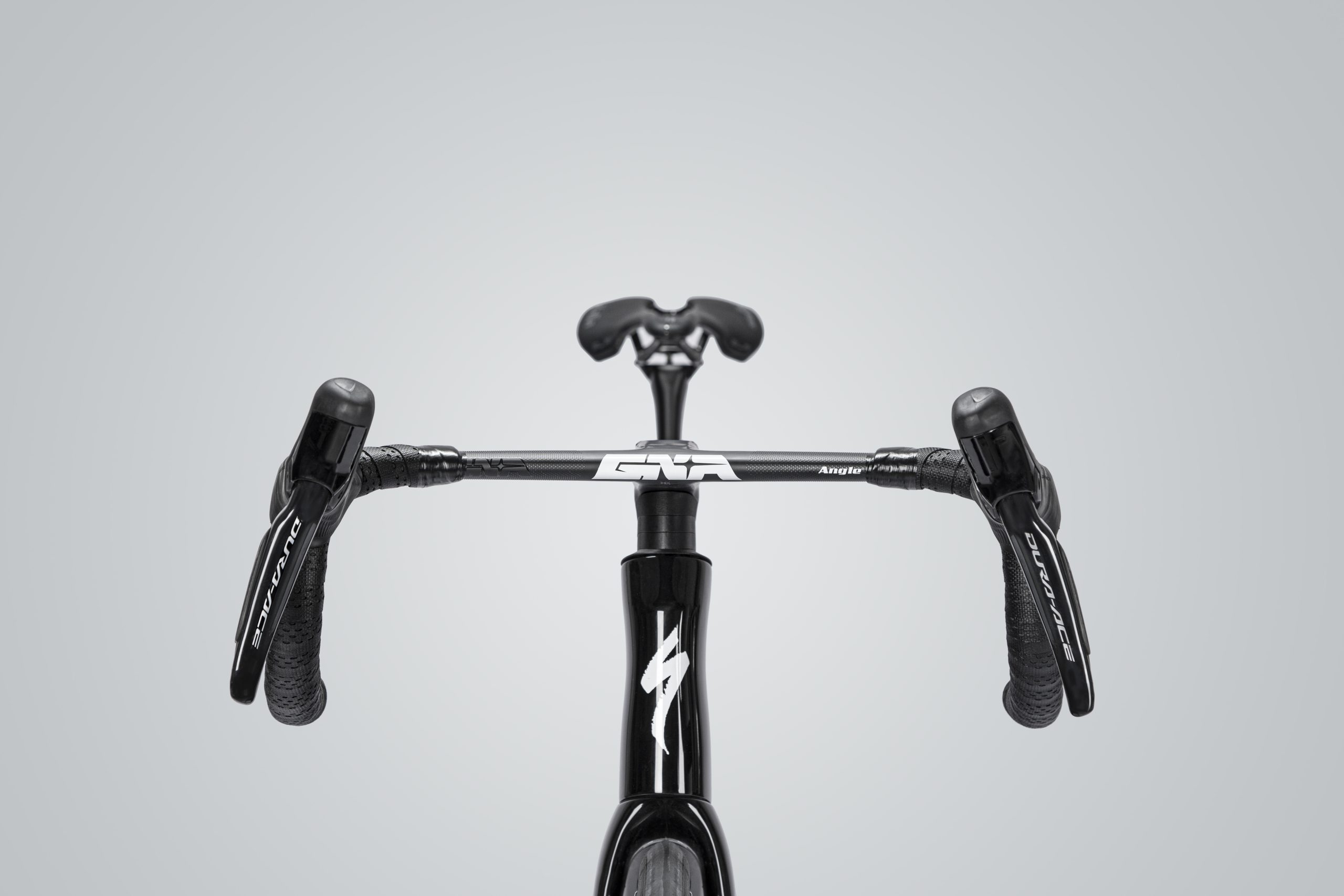

A refined, flattened top section is designed to cut through the air efficiently, reducing drag at high speeds while maintaining stiffness for aggressive riding.
Lightweight, All-Day Comfort
Compared to traditional oval bar tops, the flat profile offers better support—ideal for riders who spend long periods in an aero, forearm-supported position.
Smooth Damping, Confident Ride
Made from an advanced proprietary carbon fibre layup, the bar absorbs road vibrations, improving comfort and control on rougher terrain without compromising responsiveness.

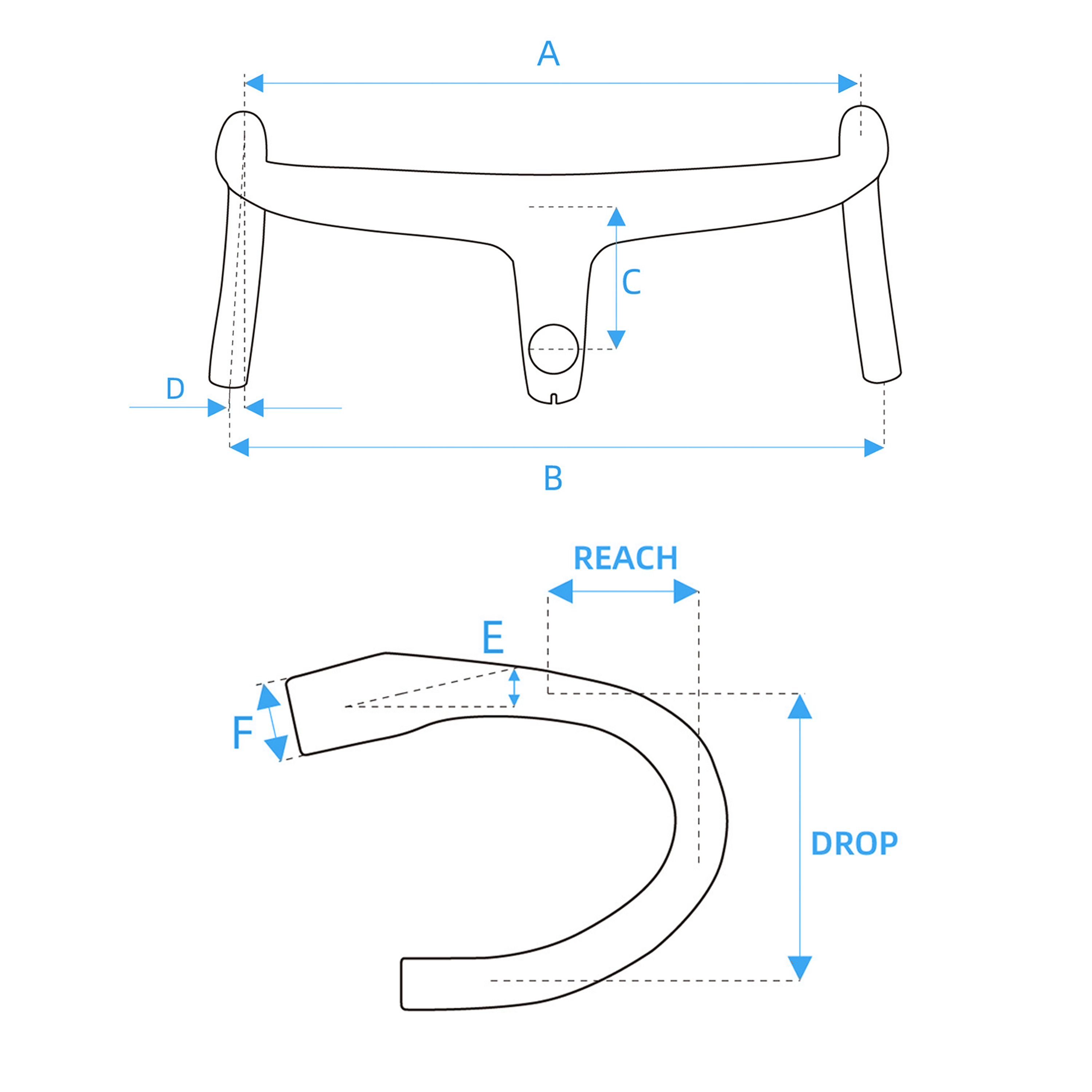

Specification
| A Hood-to-hood (mm) | 360 | 380 | 400 | 420 |
| B Drop-to-drop (mm) | 390 | 410 | 430 | 450 |
| C Stem Length (mm) | 80‑140 | 80‑140 | 80‑140 | 80‑140 |
| D Flare Angle (°) | 6.9° | 6.9° | 6.9° | 6.9° |
| E Stem Angle (°) | -10° | -10° | -10° | -10° |
| F Stack (mm) | 30 | 30 | 30 | 30 |
| Reach (mm) | 71 | 71 | 71 | 71 |
| Drop (mm) | 125 | 125 | 125 | 125 |
Note: Measurements are subject to usual manufacturing tolerances.
Gallery
Important Notes
*¹ Headset Adapter & Spacer:
The adapter is made of nylon, available in either injection‑molded or 3D‑printed version depending on the bike models. It is reverse-engineered from scanning original factory top caps.
*² Important Installation Reminder:
Interference between the top cap and frame may happen on individual frames. This risk is higher for repainted frames with thicker paint layers.
If contact occurs, you may lightly sand the top cap to achieve proper fit. Always double‑check the fit before fully tightening all components.
*³ Groupset Compatibility:
Incompatible Shifters:
SRAM 2nd‑generation 12‑speed eTap AXS shifters (Red / Force / Rival AXS),
Magene QED, Sentyeh Pro.
Examples: RED eTap AXS, FORCE eTap AXS, RIVAL AXS
WARRANTY
GANNA Angle Integrated Handlebar Provide a 2-year warranty service for manufacturing defects.
Not covered by warranty:
1. Purchased through non-formal channels and unable to provide purchase receipt
2. Product damage caused by mechanical damage crashes, improper use, breakage, or incorrect installation
Additional information
| Handlebar Width | 340mm, 360mm, 380mm, 400mm, 420mm |
|---|---|
| Handlebar Length | 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm |
Brand
GANNA
2 reviews for GANNA Angle° Integrated Handlebar
Add a review
You must be logged in to post a review.
Yannick Engel –
Installed it in November 2025 on my Wilier Filante SLR. Super happy with it. Rigid, comfortable, great quality and feels proper high quality. At least same level than original Filante Bar.
Packaging is premium, comes with a really nice looking GPS mount, bar tape and spacers.
Simeon Lee (verified owner) –
Amazing set of handlebars. Really premium and slick. They looks amazing and came with all the parts needed to install them.
I was a bit unsure on the computer mount (it’s a bit long for my Edge 540) but it still looks good.
