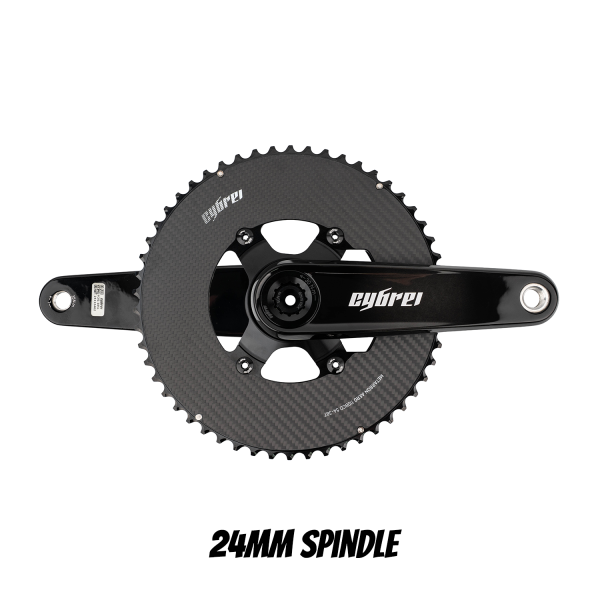

CYBREI Carbon Crankset | 24mm Spindle, Alloy or Carbon Spider, METARBON Carbon Chainrings
Price range: $784.00 through $854.00
- Using Toray high modulus carbon fiber, crankset only 320g (29mm, 170mm)/ 335g (24mm, 170mm)
- Super high rigidity, the second generation of dual-channel technology improves crank rigidity by 12%
- Offering 24mm titanium/29mm aluminum spindle, adaptable to more frames
- Cold forged 7075 aluminum alloy axle core brings unimaginable rigidity and durability
- Passed 1800N 14w crank fatigue test and 5600N crank damage test, far exceeding EU standards
- Spindle Choice: 24mm (click here for DUB 29mm Spindle Crankset)
- Powermeter Choice: Standard Alloy Spider / Carbon Spider (click here for Powermeter Spider)
- Chainring Choice: CYBREI METARBON Carbon Chainring (click here for CYBREI EVO Alloy Chainring)
Customer Review
Super stiff! Incredibly light 165mm 50-34 all in weighed 495g. Tricky to get the spider mounted but worth the struggle! Would buy 10x over!
What Customers Think
- Description
- Additional information
- Brand
- Reviews (4)
Description
Designed by Racers
When you're a bike racer, you know what it takes to win. The team at CYBREI are racers themselves, they understand the demands of bike racing as well as any.
Their goal was simple—achieve the perfect balance of stiffness and weight to deliver a crankset that can handle anything you throw at it.
The CYBREI carbon crankset is the result of that relentless pursuit. At just 319 grams (Dub spindle / 165mm), it shatters industry safety standards while remaining incredibly light.
It's already been proven in the field. Tested and raced by the Ferei Quick-Panda Podium Mongolia Team, these cranks have repeatedly stood up to their riders' monstrous 2,000-watt sprint power in nail biting race finishes.
If you're serious about upgrading your bike, don't settle for less. The CYBREI carbon crankset is the definitive choice for those who demand the ultimate in performance.
For the weight weenies
The golden ratio in cycling is w/kg and CYBREI had the scales out every step of the way. Making sure that your components are built to handle the demanding conditions of racing but also that you don't carry a single extra gram over those long and arduous climbs.
Everyone's invited
Compatibility is an area of great frustration in the cycling world but don't worry, CYBREI has you covered. The cranks come with either a 28.99mm spindle (DUB standard) or a 24mm spindle (Shimano standard), allowing you to fit them to your current setup with ease.
Dial in your fit
CYBREI cranks are available in a wide range of lengths, letting you dial in your fit with precision. Whether you're a taller or shorter rider who struggles to find components that fit properly, or a performance-focused cyclist seeking an aggressive position, you'll find the perfect crankset to match your needs.
Add some colour to your ride

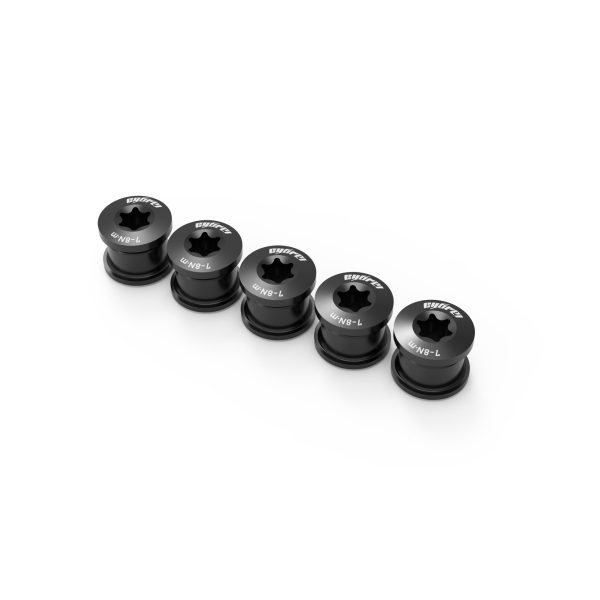

CYBREI offers a variety of eye catching colour options for their alloy chainrings and bolt kits. This allows you to colour match your components to your bike frame, kit or any other part of your setup. Default color is black. Please contact us or leave a note for your preferred color.
Component Breakdown
CYBREI Carbon Crankset
Crafted for the performance-driven cyclist, CYBREI carbon cranks represent a meticulous blend of lightweight design and exceptional stiffness. Having undergone three years of development and rigorous testing by professional teams and World Tour racers, these cranks boast an impressive strength-to-weight ratio. The use of high-modulus carbon fiber and an advanced molding process ensures superior rigidity and power transfer. With a modular design and compatibility with popular spindle standards like DUB and 24mm, , CYBREI offers a versatile and high-performance upgrade for any road or gravel bike.
| CYBREI CARBON CRANKSET | |
|---|---|
| CRANK ARM LENGTH | 162.5mm; 165mm; 167.5mm; 170mm; 172.5mm; 175mm |
| SPEEDS | 11s; 12s |
| MATERIAL | HM Carbon |
| SPINDLE SIZE | 24mm titanium/29mm aluminum spindle |
| BB compatibility | Aluminium: All 28.99mm BBs Titanium: All 24mm BBs |
| SIZE | 50/34T | 52/36T | 54/38T |
| SPIDER INTERFACE | CYBREI 16T |
| CHAINLINE | CYBREI spider: 44mm |
| Q FACTOR | 148mm |
| WEIGHT | 319 Grams (165mm / DUB Spindle) |
| CYBREI CARBON SPIDER (Left) | |
|---|---|
| WEIGHT | 38g |
OR

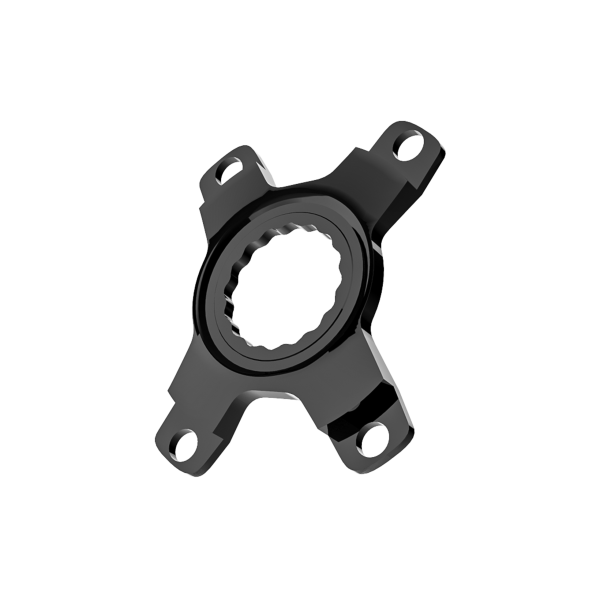

| CYBREI ALLOY SPIDER (right) | |
|---|---|
| WEIGHT | 42g |

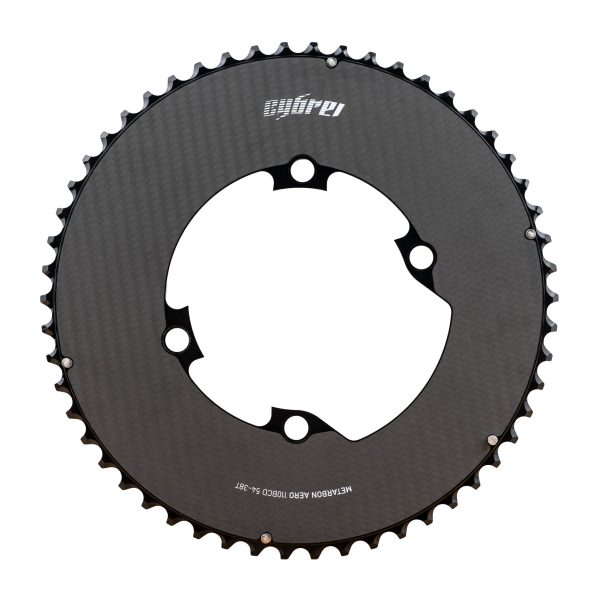

CYBREI METARBON AERO Carbon Chainring
The emergence of METABON AERO is to manufacture the best Chainring in the world. CYBREI makes all-round innovations in materials, structures, and technology. Through constant challenges and dozens of iterative updates, CYBREI finally achieved a satisfactory result. With an exquisite carbon fiber appearance, excellent durability, extremely high shifting efficiency, an innovative 54/38T gear, leading product weight and rigidity, the CYBREI team strives for perfection and excellence in every detail.
| CYBREI METARBON AERO CHAINRINGS | |
|---|---|
| MATERIAL | HM CARBON & AL 7075-T6 CNC |
| SPEED | 11s; 12s |
| BCD | BCD 110×4 Shimano® |
| SIZE | 50/34T | 52/36T | 54/38T |
| WEIGHT | 50/34T (135g±5g) |
OR
CYBREI EVO Alloy Chainring
Upgrade your ride with the EVO Chainrings, engineered for peak performance and durability. Made from ultra-light aviation-grade 7075 aluminum, these chainrings offer an optimal combination of weight, stiffness, and strength.
The 5.6mm thick structure ensures a firmer and stronger product, while the optimized tooth profile delivers fast and accurate gear shifting. Compared to traditional aluminum sprockets, the EVO Chainrings are 12% more rigid, providing a noticeably more efficient and responsive cycling experience.
| CYBREI METARBON AERO CHAINRINGS | |
|---|---|
| MATERIAL | 7075-T6 CNC |
| SPEED | 11s; 12s |
| BCD | BCD 110×4 Shimano® |
| SIZE | 50/34T | 52/36T | 54/38T |
| WEIGHT | 50/34T (145g±5g) |
Specifications
Carbon Crank | Alloy or Carbon Spider
-
Select options This product has multiple variants. The options may be chosen on the product pageComponents, CranksetsCYBREI Carbon Crankset | 24mm Spindle, Alloy or Carbon Spider
Price range: $554.00 through $624.00
Carbon Crank | Power Meter Spider
-
Select options This product has multiple variants. The options may be chosen on the product pageComponents, Cranksets, Power MetersCYBREI Carbon Crankset | 24mm Spindle, Power Meter Spider
Price range: $799.00 through $829.00
Carbon Crank | Power Meter Spider |
Aluminium or Carbon Chainrings
-
Select options This product has multiple variants. The options may be chosen on the product pageComponents, Cranksets, Power MetersCYBREI Carbon Crankset | 24mm Spindle, Power Meter Spider, METARBON Carbon Chainrings
Price range: $1,029.00 through $1,059.00
Additional information
| Crank Spindle Options | 24mm Spindle |
|---|---|
| Crank Length | 150mm, 155mm, 157.5mm, 160mm, 162.5mm, 165mm, 167.5mm, 170mm, 172.5mm, 175mm |
| Chainring Option | CYBREI METARBON AERO 2X Carbon Chainring Combo 110×4 BCD |
| Chainring Size | 50-34T, 52-36T, 54-38T |
| Spider Type | CYBREI Carbon Spider, CYBREI STANDARD SPIDER |
Brand
Cybrei
| Brand Name: Cybrei | Chinese Company Name: 厦门市益百克运动器材有限公司 |
| Founded: 2021 | # of Employees: 5-10 |
| Headquarters: Xiamen, Fujian | Products Categories: Wheels, Cranks, Chainrings, Bottom Brackets, etc |
4 reviews for CYBREI Carbon Crankset | 24mm Spindle, Alloy or Carbon Spider, METARBON Carbon Chainrings
Add a review
You must be logged in to post a review.
ajmartinez54 (verified owner) –
Super stiff! Incredibly light 165mm 50-34 all in weighed 495g. Tricky to get the spider mounted but worth the struggle! Would buy 10x over!
Andrew Guy (verified owner) –
Had the cranks for a few months now and are light stiff and ride well. There is a small gap between the spider and chainrings which just effects the looks. Hard to keep big chaining clean with the CNC machining. Crank arms are beautiful
Andrew Guy (verified owner) –
Had the cranks for a few months now and are light stiff and ride well. There is a small gap between the spider and chainrings which just effects the looks. Hard to keep big chaining clean with the CNC machining. In all very good
dazza-1987 (verified owner) –
I have run my Cybrei Crankset for about a year now, very pleased with it. The weight was within +/- a gram or two of the claimed weight. Fitting and alignment was a little bit tricky, the instructions are not the clearest. I am not a bike mechanic though so some of that may be down to my lack of experience. The alloy chain rings are wearing well at the moment. Would definitely recommend as an upgrade.
