9Velo 2025 Gravel Disc Super Wide GV SW Series
$1,059.00
“Experience the future of gravel.”
- High Profile Speedy Gravel
- Just 1360g±5% (with alloy Shimano Freehub)
- 45mm Rim Depth
- 32mm Internal Wide, 38mm Outer Wide
- Sapim CX-Ray Spokes
- Titanium freehub body upgrade available.
- Tire Size Range: 700×36c-700×65c
- *The wheelset is build with order, the wait time will be around 5-10 days.
Customer Review
They should call it the Holy Grail of gravelwheels.. they are just right on every aspect: The right amount of stiffness, comfort, speed. Easy to get up to speed and they just keep spinning..they ha... keep reading
What Customers Think
- Description
- Brand
- Reviews (2)
Description
FEATURES
RIM
- With an ultra-wide 32mm internal width and a 38mm external rim width, gravel-specific GV Super Wide SW gravel wheels optimize comfort and control while maintaining agility and speed, redefining what's possible on rough terrain.
- No holes are drilled on the rim beds, offering convenient tubeless tire installation and saving the weight of tubeless tapes.
- The hooked profile design of rims provides a larger selection of compatible tires, accommodating different riding styles and preferences. The hooked design also ensures a secure tire fit, preventing blowouts and enhancing safety.
- Tubeless/clincher compatibility offers you more choices of tires.
- The gravel-specific carbon layup with high-level precision makes the extraordinary stiffness-to-weight ratio, ensuring your confidence in all road conditions.
HUB
- Specially developed T18 ratchet hubs carried over from the GV 2.0 series are kept in the gravel super wide GV SW wheels.
- Hubs are designed and manufactured to match the tolerance of high-quality bearings.
- Ratchet system hubs offer a fast-engagement and efficient wheel for a smooth riding experience, which is beneficial for instant speed acceleration.
- High-precision hub axle is hard anodized to add stiffness and reached a tolerance within 0.003mm.
- Lightweight freehub body equipped.
- Hubs provide convenient and easy freehub body exchange between different groupset systems and no-tool needed maintenance.

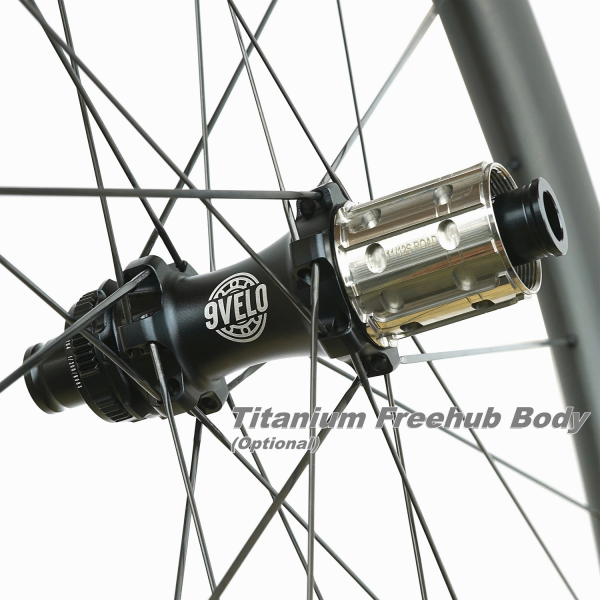

- Titanium freehub body upgrade is available, which provides exceptional resistance to the cassette biting effect. This means you can enjoy a longer-lasting performance without worrying about the freehub body being damaged by the cassette (the titanium freehub body is 18 grams heavier than the standard alloy freehub body).
SPOKE & NIPPLE
- Well-recognized Sapim CX-Ray spokes and Sapim Sils nipples provide a balance between stiffness, durability and aero benefits.
SPECIFICATIONS
| Model | GV45 SW |
| Wheel Type | 700C Gravel Wheelset |
| Brake Type | Disc Brake |
| Tire Compatibility | Tubeless/Clincher Compatible |
| Rim Type | Hooked |
| Rim Bed | No Holes Drilled |
| Rim Finish | UD Matte |
| Rim Decal | Dark Gray Logo |
| Rim Outer Width | 38 mm |
| Rim Inner Width | 32 mm |
| Rim Depth | 45 mm |
| Tire Size Range | 700×36c – 700×65c |
| Spoke Hole Count | 24H/24H |
| Spoke | Sapim CX-Ray, 2× front, 2× rear |
| Nipple | Sapim SILS |
| Hub | 9Velo T18 Hub, Straight Pull (Ratchet System, 36 Teeth), Center Lock, 12×100 / 12×142 |
| Freehub | Shimano/SRAM XDR / Campagnolo N3W |
| Bearing | Steel bearings; Front: 6803×2, Rear: 15267×2, 6802×2 |
| Rider Weight Limit | 120 kg / 265 lbs |
| Weight (Front + Rear)* | 1360 g* |
* Weighted with alloy Shimano freehub, ±30 g
* The titanium freehub is 18 grams heavier than the alloy freehub.
* Specs are subject to change without notice.
IN THE BOX
- Wheelset
- Tubeless valves
- Spare spokes
- Spare nipples
Brand
9VELO
| Brand Name: 9VELO | Chinese Company Name:厦门九维洛自行车科技有限公司 |
| Founded: 2021 | # of Employees: 5-10 |
| Headquarters: Xiamen, Fujian | Products Categories: Wheelsets Handlebars |
